Category
Drilling machine
Type
for deep holes for moulds
Made
Model
EXPRESS 1250
Capacity
1250x1250x800+2020 mm49,21x49,21x31,50+79,53 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
1250 mm49,21 in
Vertical (Y)
1250 mm49,21 in
Cross (Z)
800 mm31,50 in
Profondità di foratura (V)
2020 mm79,53 in
Table rotation (B)
360.000x0,001 °
Inclinazione Testa di foratura ( C)
(option) +35/-20 °
CNC
CNC
FAGOR 8060M
UNITà DI FORATURA
Diametro min-max dal pieno
3-52 mm0,12-2,05 in
Spindle power
13/26 Kw
Rotating speed
18000 Rpm
Torque
124 Nm
FEEDS
Rapid X
45 m/min1.771,65 ipm
Rapid Y
45 m/min1.771,65 ipm
Rapid Z
45 m/min1.771,65 ipm
ATC FRESATURA
Positions
24 (option)

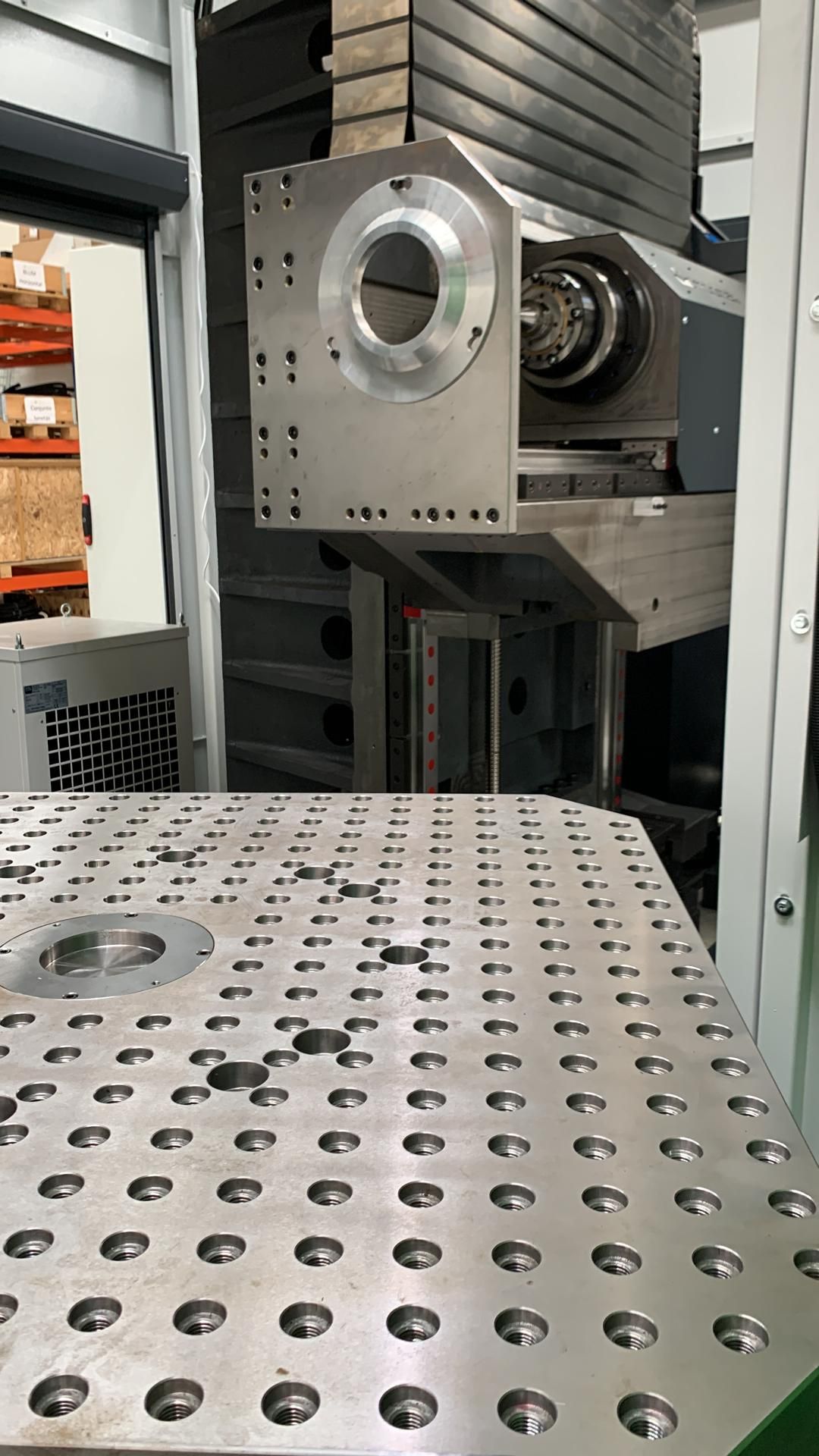

TABLE
Surface
1000x1000 mm39,37x39,37 in
Accuracy (B axis)
0,001 °
Capacity
5000 Kg
Rotating speed
6,6 Rpm
SISTEMA REFRIGERANTE
Capacità vasca
1500 l
Capacity
80 l/min
Pressione
80 Bar
Filtration unit
10µm
EXTRA
Machine weight
18000 kg
Total power supply
65 Kw
Floor space
3600x5500x3650 mm141,73x216,54x143,70 in
