Category
Drilling machine
Type
for deep holes for moulds
Made
Model
2000 PLUS
Capacity
ø6/30x1400 mmø0,24/1,18x55,12 in

Technical specifications

Metric Imperial
WORKING CAPACITY
Profondità di foratura (V)
1400 mm55,12 in
Longitudinal (X)
2000 mm78,74 in
Vertical (Y)
800 mm31,50 in
Cross (Z)
850 mm33,46 in
UNITà DI FORATURA
Diametro min-max dal pieno
6/30 mm0,24/1,18 in
Spindle power
16 Kw
Rotating speed
4500 Rpm
TABLE
Surface
2100x1300 mm82,68x51,18 in
Capacity
20.000 Kg
Accuracy (B axis)
2,5 °
CNC
Spindle
ISO 50

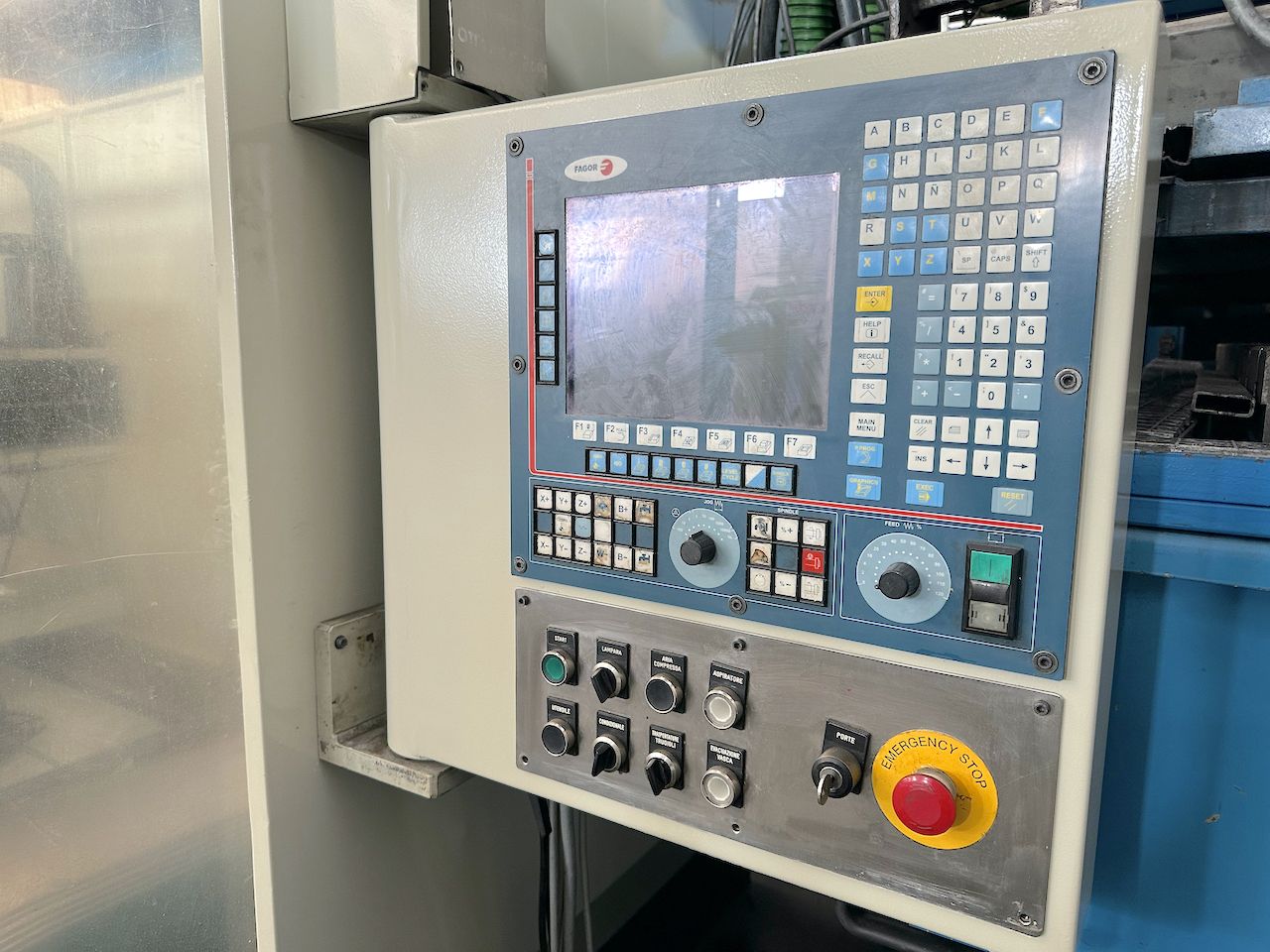

CNC
FAGOR 8055
SISTEMA REFRIGERANTE
Pressione
CTS 80 Bar
EXTRA
Machine weight
19500 kg
Chip conveyor
si
Housing
integrale
The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy cannot be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
