Category
Turning Machine
Type
Teach in
Made
Model
T40 SNC 400x1500mm
Capacity
400x1500x110 mm15,75x59,06x4,33 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Max bar working diameter
105 mm4,13 in
Max swing on the bed
800 mm31,50 in
Max working lenght
1500 mm59,06 in
Bed width
450 mm17,72 in
Guide-ways number
2
Max weight between centres
3000 Kg

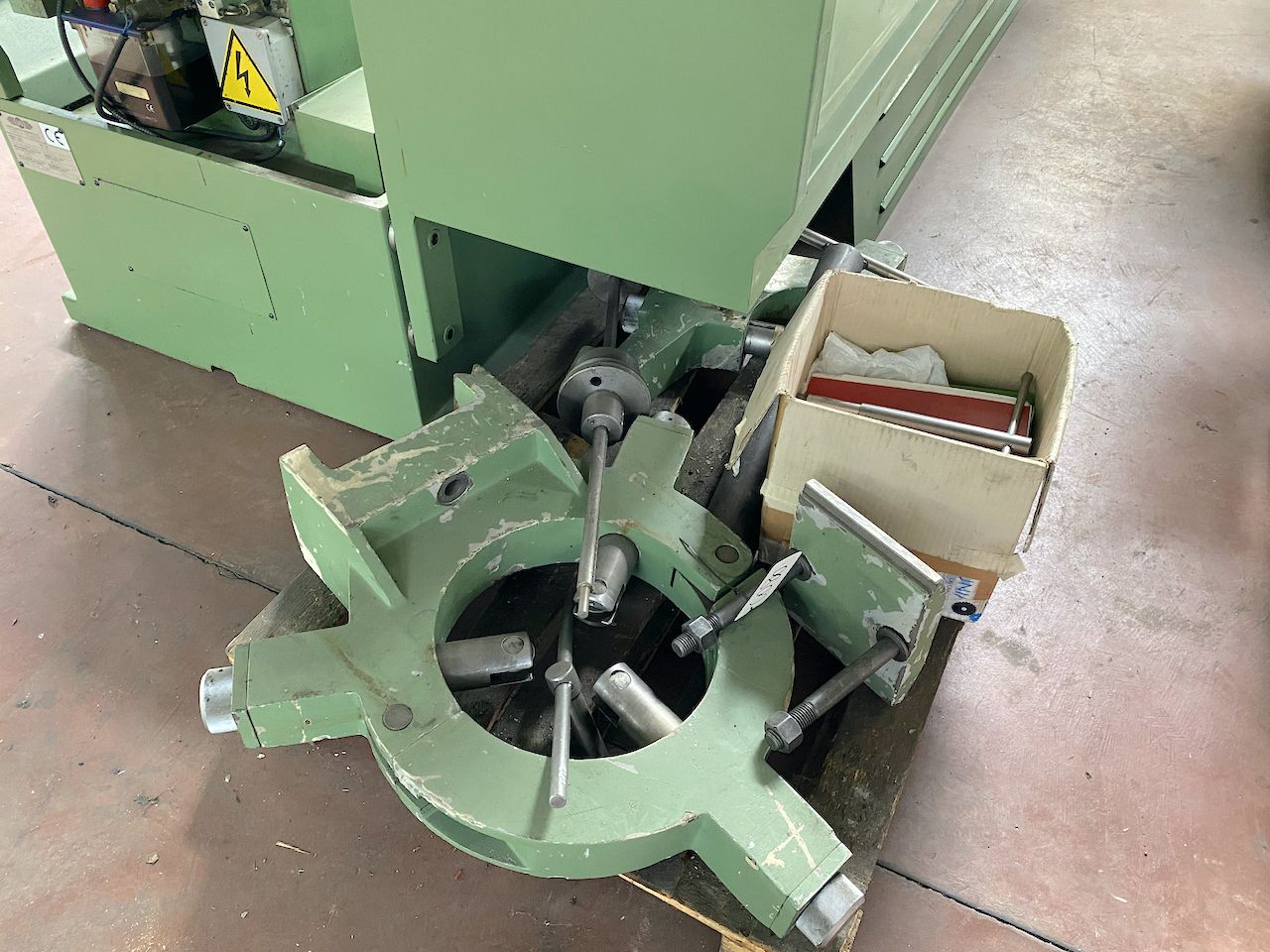

Max weight on steadies
4000 Kg
CNC
CNC

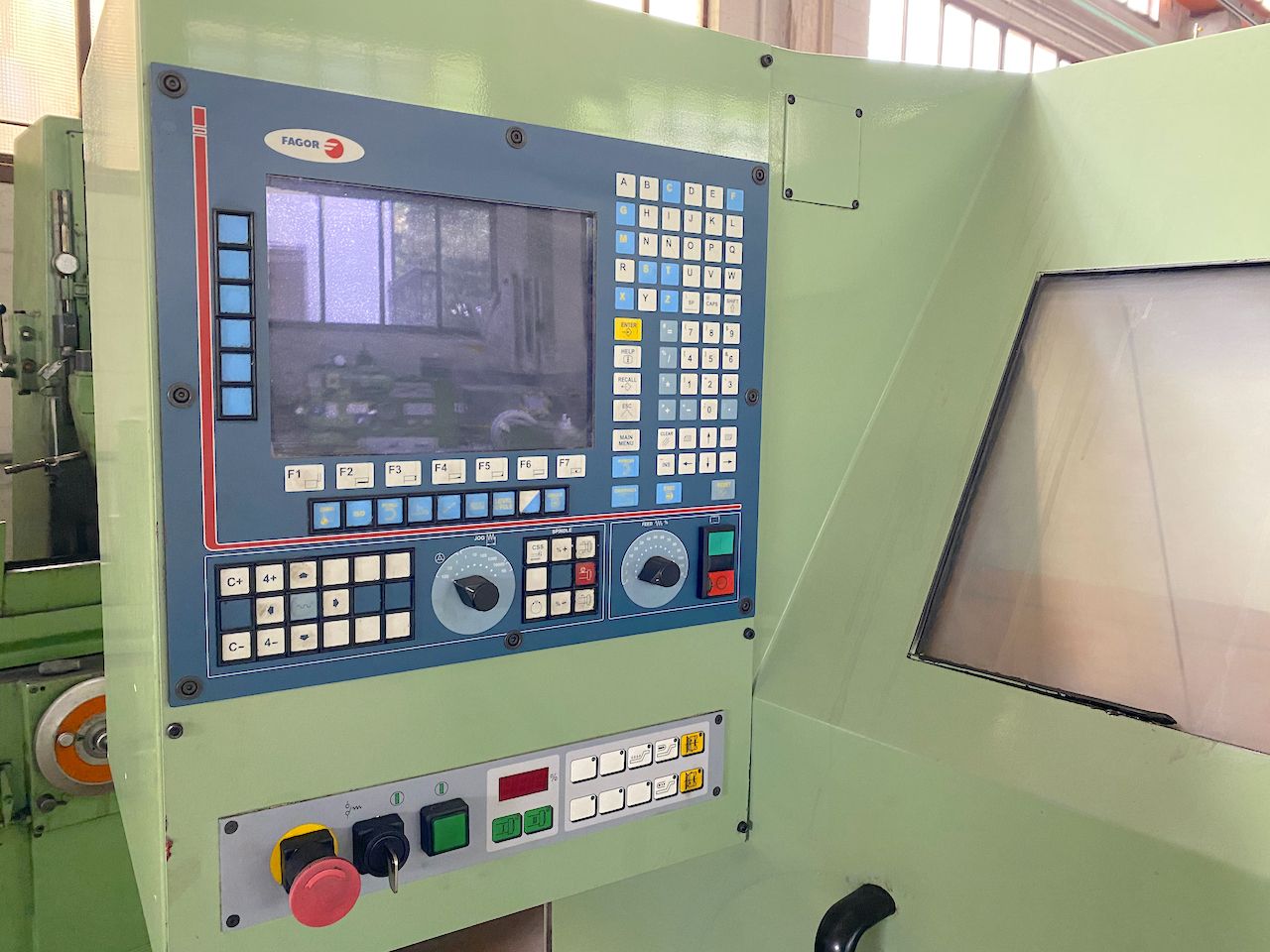

FAGOR 8055
MAIN SPINDLE
Max rotation speed
0-2000 rpm
Spindle nose
Cam Lock 8”
Spindle hole
105 mm4,13 in
Internal bearing diameter
130 mm5,12 in
Max power
17 Kw
Max torque
1560 Nm
Gearbox
2 gamme meccaniche
TAILSTOCK
Quill diameter
115 mm4,53 in
Quill stroke
250 mm9,84 in
Taper
MK6
TURRET
Positions number
4
Axis stroke X
450 mm17,72 in
Rapid feed X
10 m/min393,70 ipm
Axis stroke Z
1500 mm59,06 in
Rapid feed Z
10 m/min393,70 ipm
EXTRA
Machine total weight
5800 Kg
Floor space
4200x2535x2005 mm165,35x99,80x78,94 in
Maintenance & Use books
Yes
Electrical drawings
Yes
CE Certification
Yes
Protections
integrale
Availability
pronta
Available in stock
Yes
Available under power
Yes
