Category
Turning Machine
Type
Teach in
Made
Model

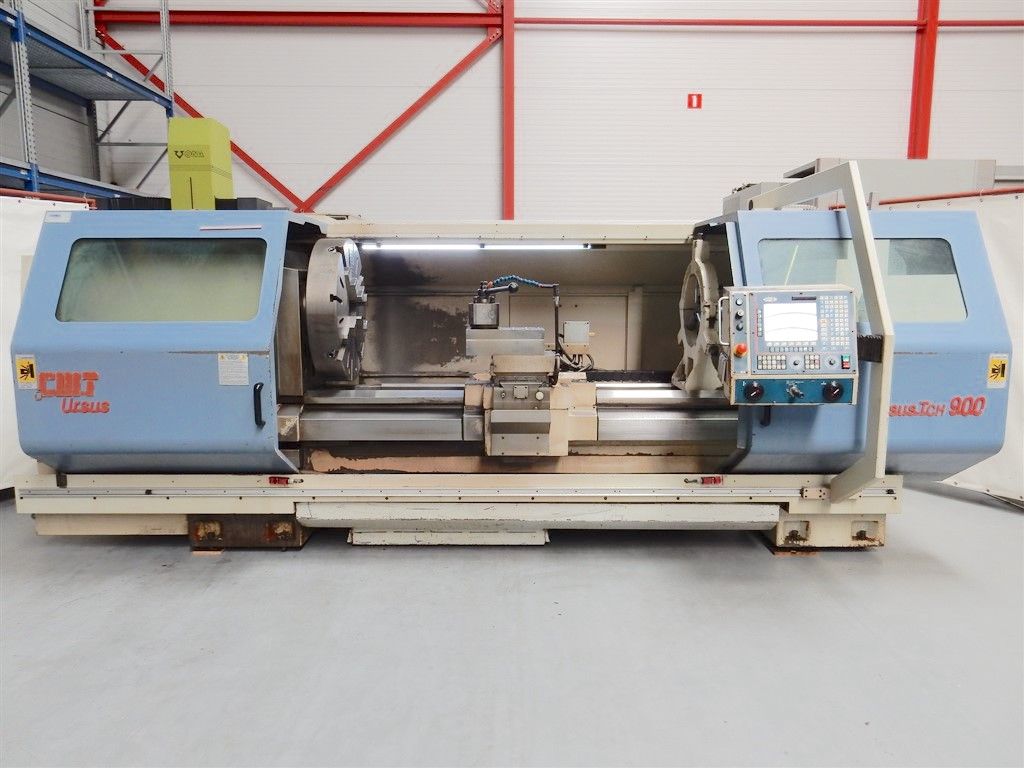

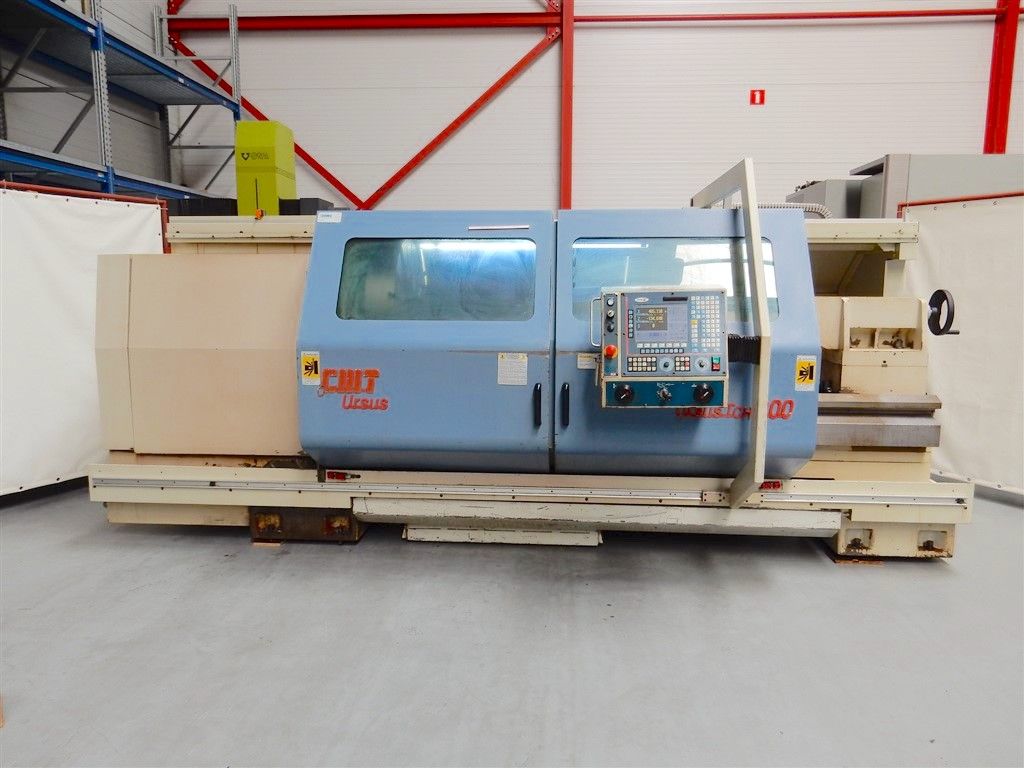

URSUS TCH 900
Capacity
ø910x2000 mmø35,83x78,74 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Max swing on saddle
585 mm23,03 in
Max swing on the bed
910 mm35,83 in
Max working lenght
2000 mm78,74 in
Max bar working diameter
137 mm5,39 in
MAIN SPINDLE
Spindle hole
137 mm5,39 in
Spindle nose
ASA A2-11’’
Max rotation speed
1200 rpm
Max torque
3140 Nm
Notes

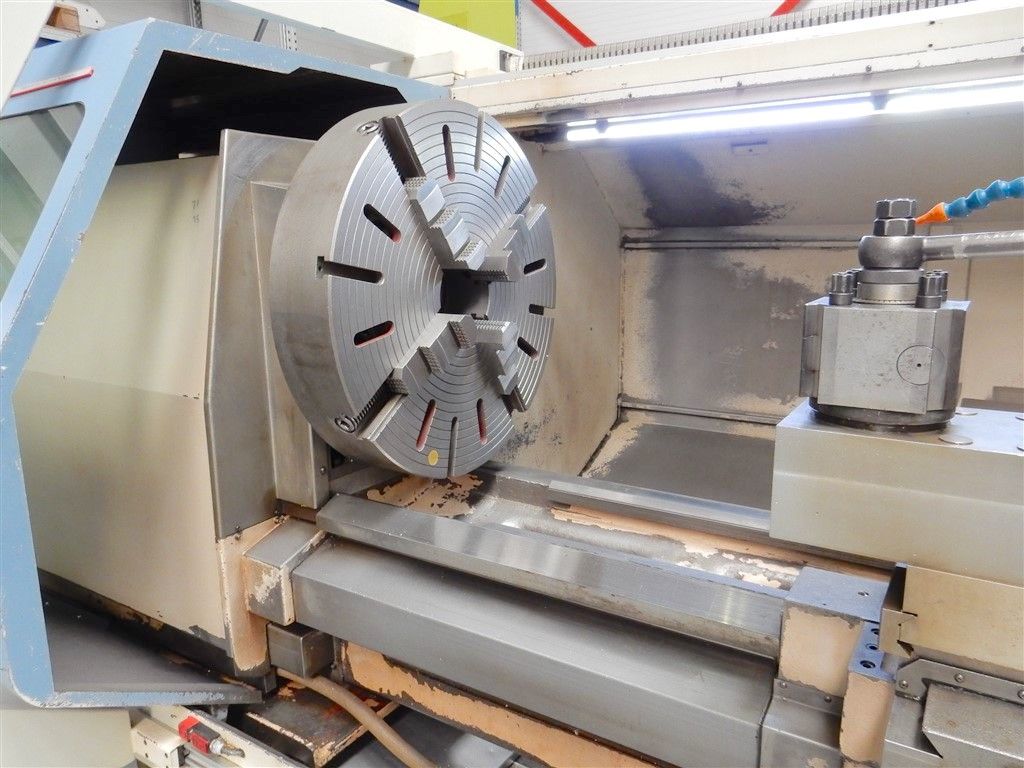

Piattaforma 4 griffe diametro 900 mm
Gearbox
10-105 / 40-1200 Rpm
Max power
35 Kw
CNC
CNC

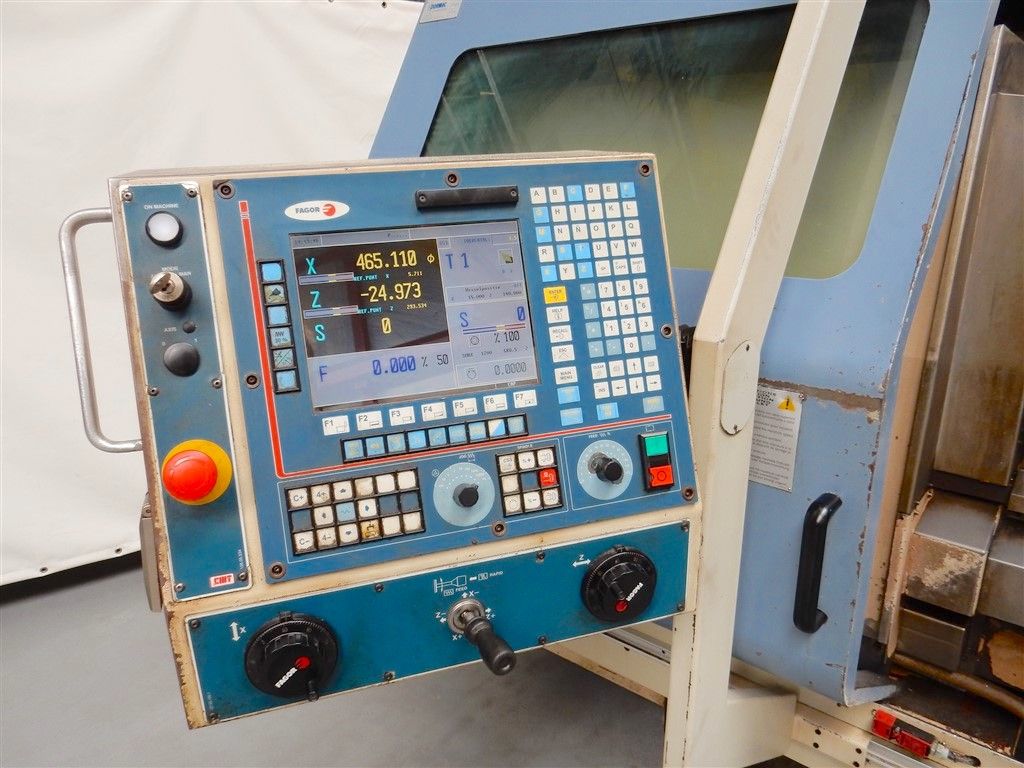

FAGOR 8055TC
TURRET
Positions number

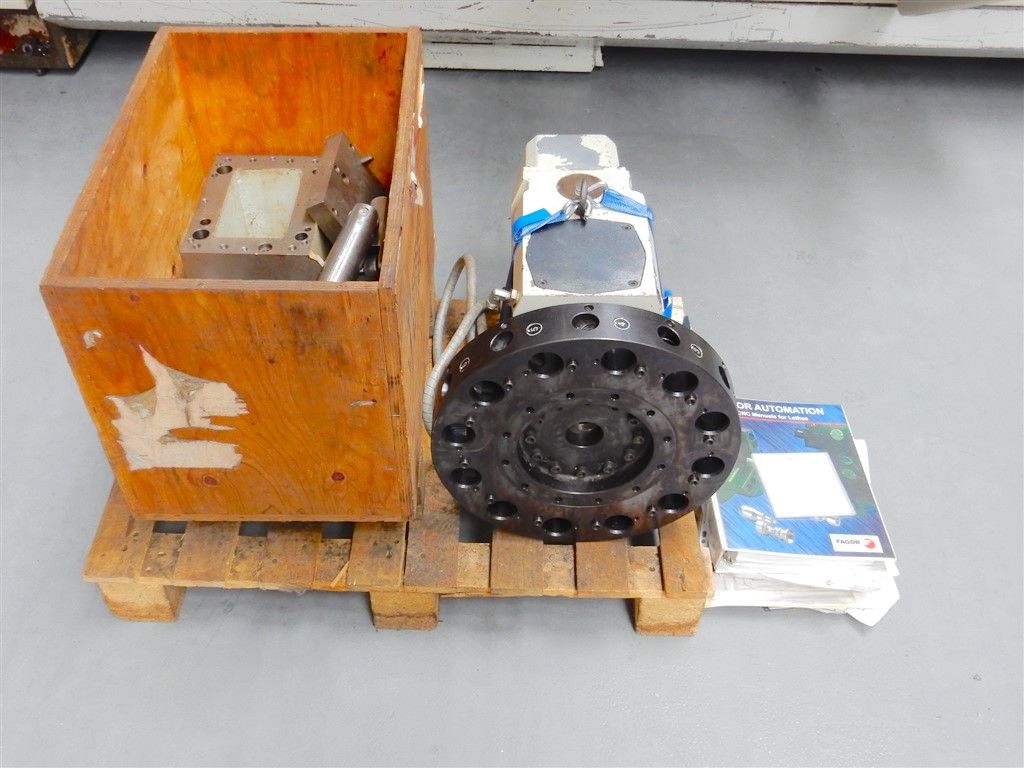

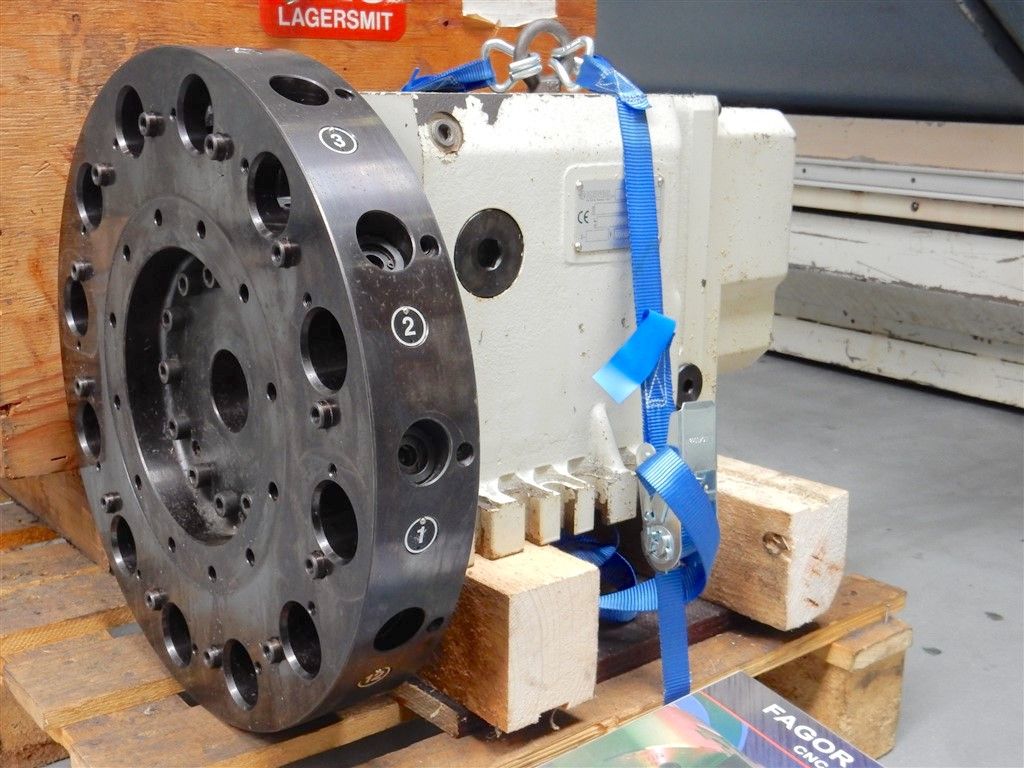

Multifix + Baruffaldi TS 200
Axis stroke X
450 mm17,72 in
Axis stroke Z
2000 mm78,74 in

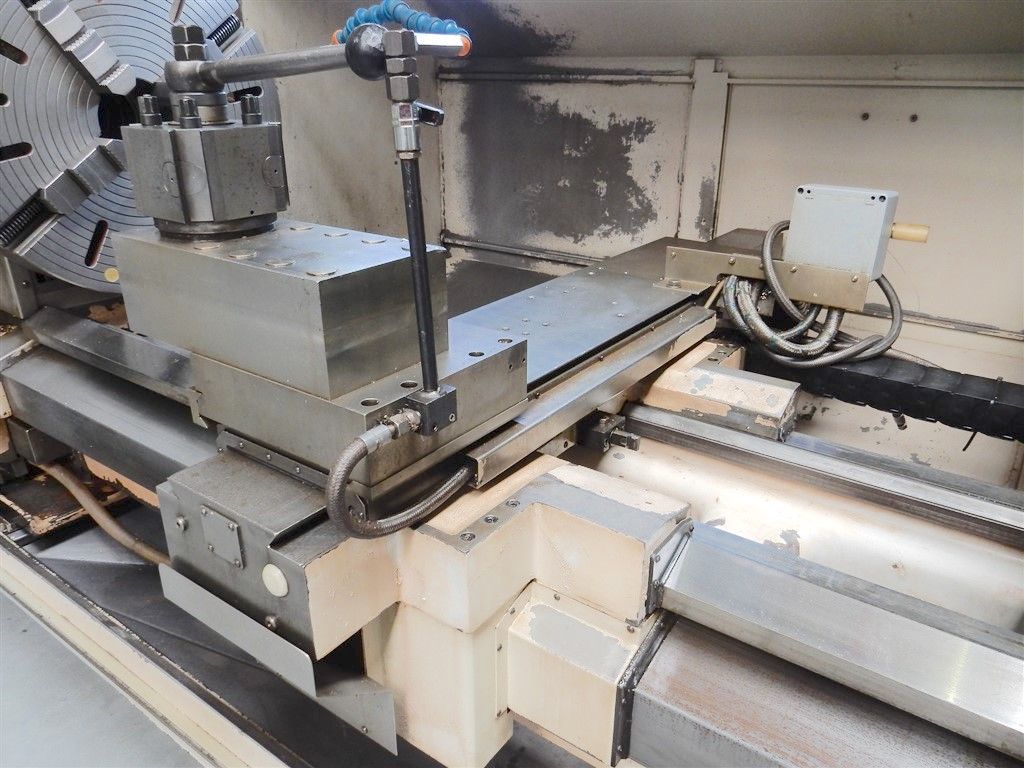

SADDLE
X stroke
450 mm17,72 in
Z stroke
2000 nn
X rapid feed
10000 mm/min393,7000 ipm
Z rapid feed
12000 mm/min472,4400 ipm
TAILSTOCK
Quill diameter
115 mm4,53 in
Quill stroke
250 mm9,84 in
EXTRA
Chip conveyor
SI
Maintenance & Use books
Yes
Electrical drawings
Yes
CE Certification
Yes
Available in stock
Yes
Availability
IMMEDIATA
Machine total weight
7000 Kg
Total power supply
45 Kw

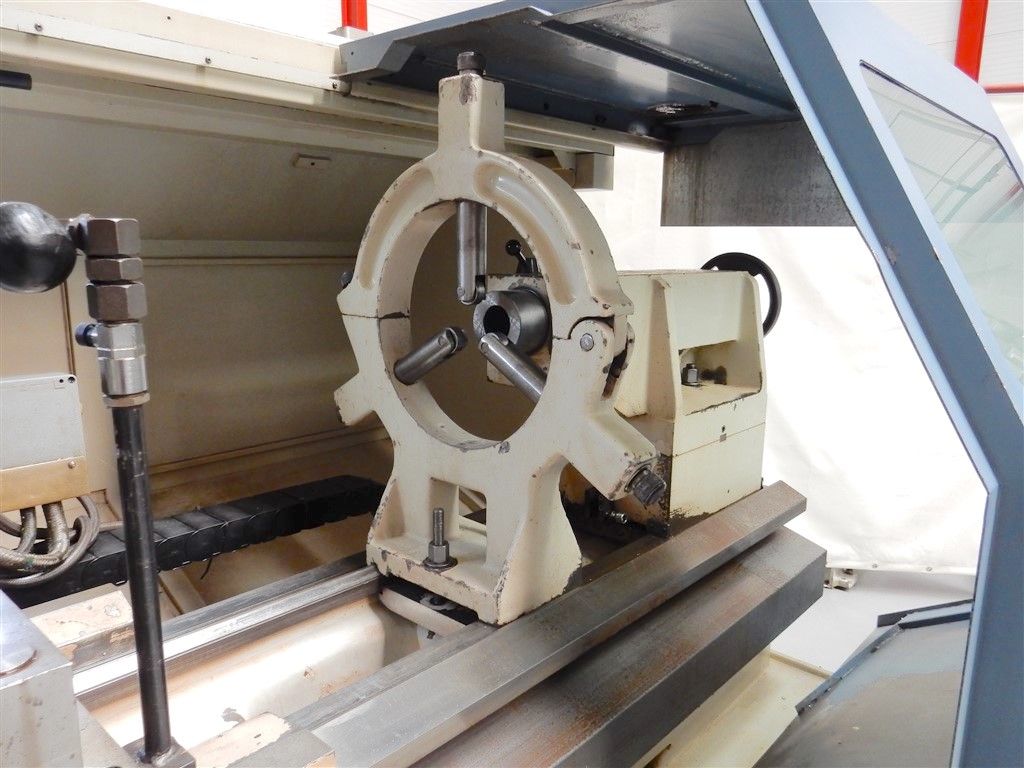

Closed steadies
si

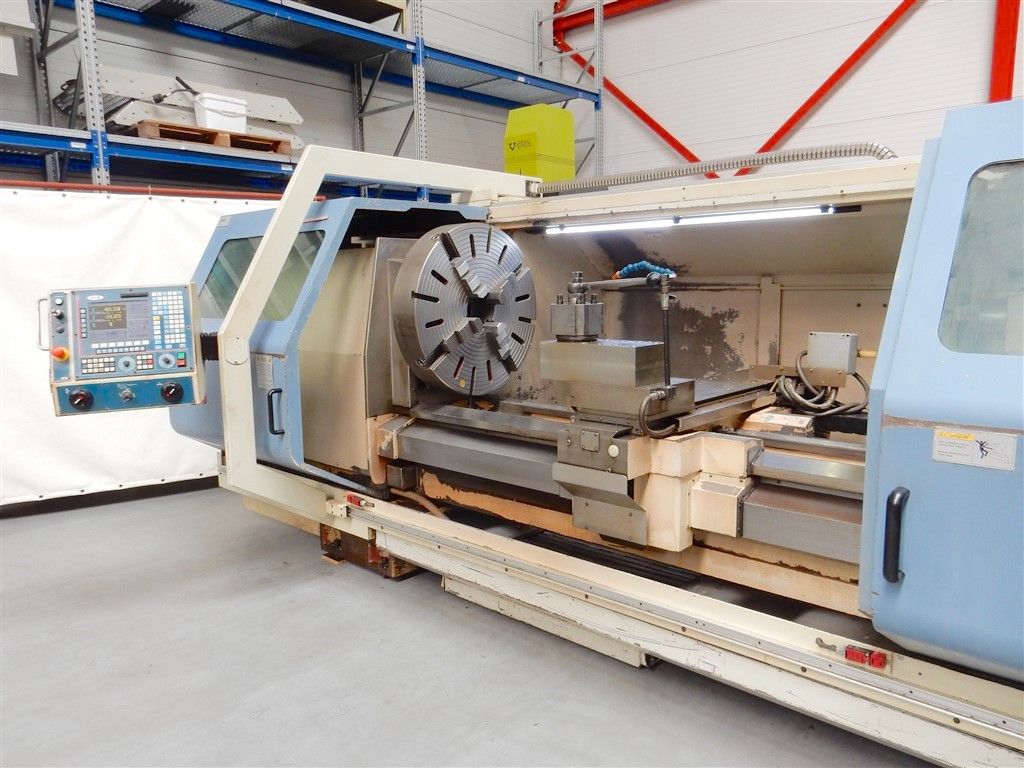

Platform
900 mm 4 griffe
Protections
si
Floor space
4770x2250 mm187,79x88,58 in
