Category
Turning Machine
Type
Teach in
Made
Model

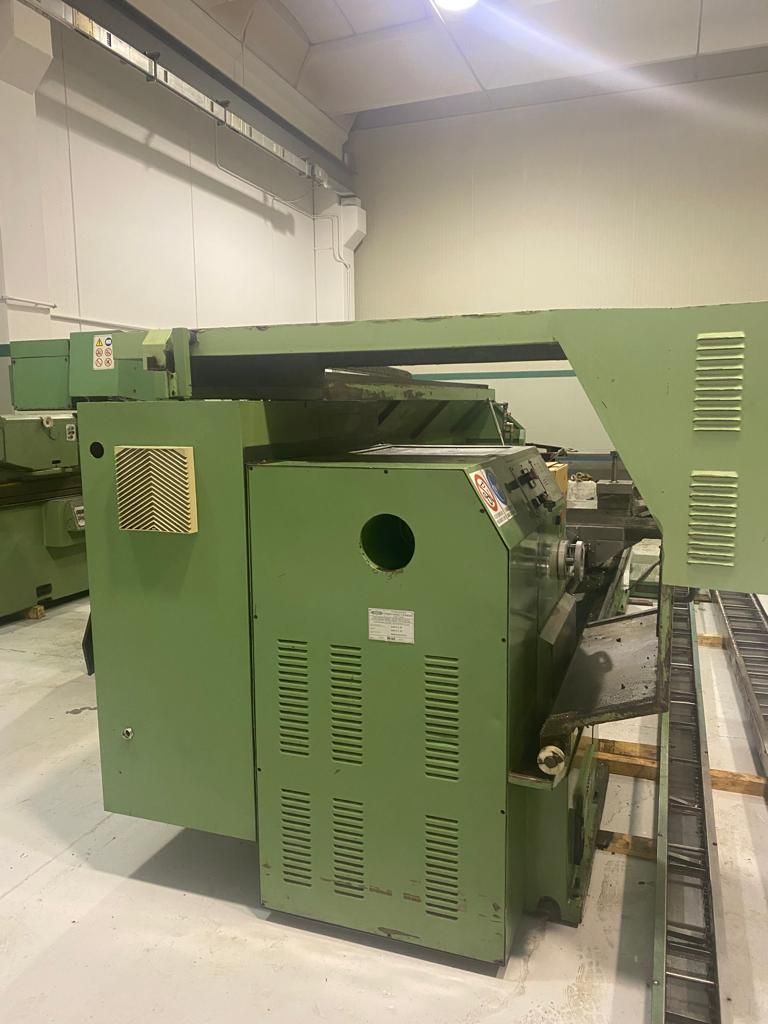

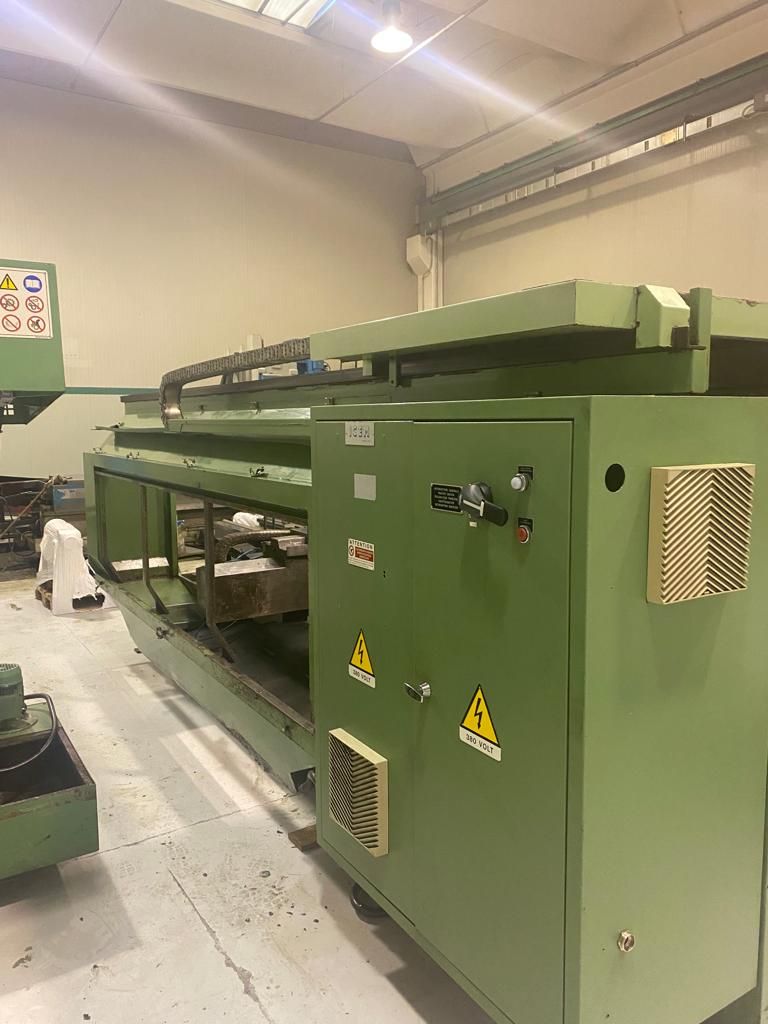

T35-S SNC 350x2000mm
Capacity
700x2000 mm27,56x78,74 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Max swing on the bed
720 mm28,35 in
Max swing on saddle
425 mm16,73 in
Max working lenght
2000 mm78,74 in
Bed width
450 mm17,72 in
Guide-ways number
2
Max weight between centres
3000 Kg
Max weight on steadies
4000 Kg
SADDLE
Saddle width
750 mm29,53 in
X rapid feed
6000 mm/min236,2200 ipm
Z rapid feed
6000 mm/min236,2200 ipm
Max swing on saddle
720 mm28,35 in
X stroke
450 mm17,72 in
MAIN SPINDLE
Max rotation speed
0-2000 rpm
Spindle nose
Cam Lock 6”
Spindle hole
105 mm4,13 in
Internal bearing diameter
146/130 mm5,75/5,12 in
Max power
17 Kw
Max torque
2440 Nm
Gearbox
67-31/430-2000

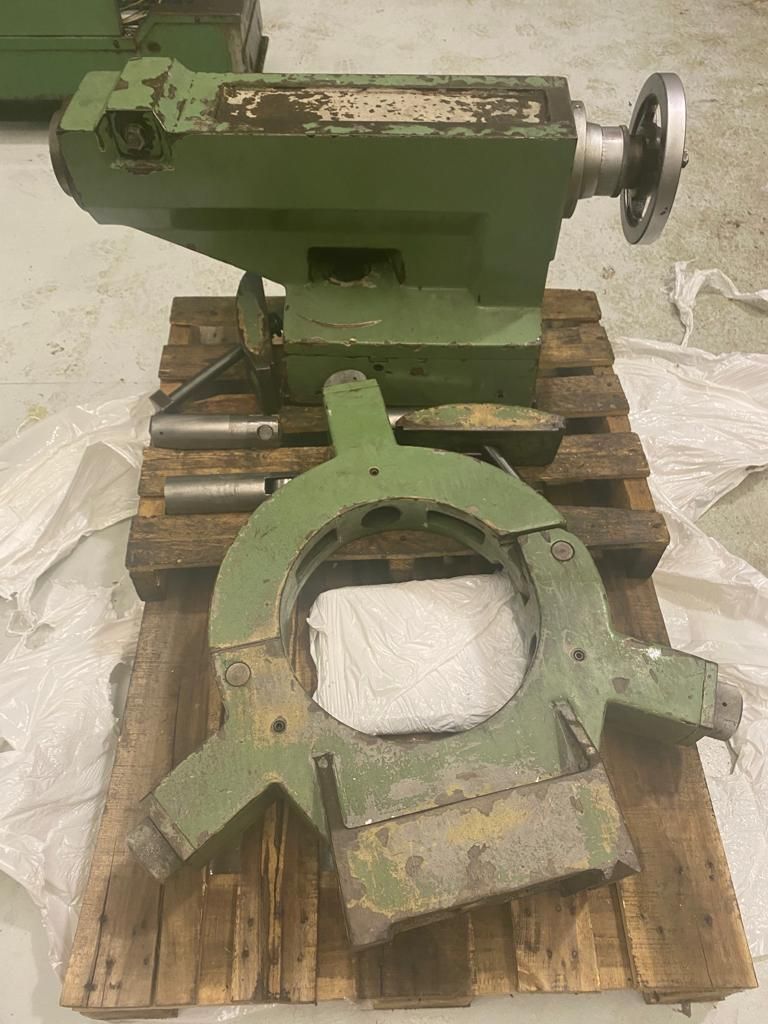

TAILSTOCK
Quill diameter
115 mm4,53 in
Quill stroke
250 mm9,84 in
Taper
CM 5
TURRET
Positions number
1-Multifix
EXTRA
Machine total weight
6200 Kg
Floor space
4700x2250x1815 mm185,04x88,58x71,46 in
Open steadies
1
Closed steadies
1
Availability
Pronta
Available in stock
Yes
