Category
Turning Machine
Type
Teach in
Made
Model

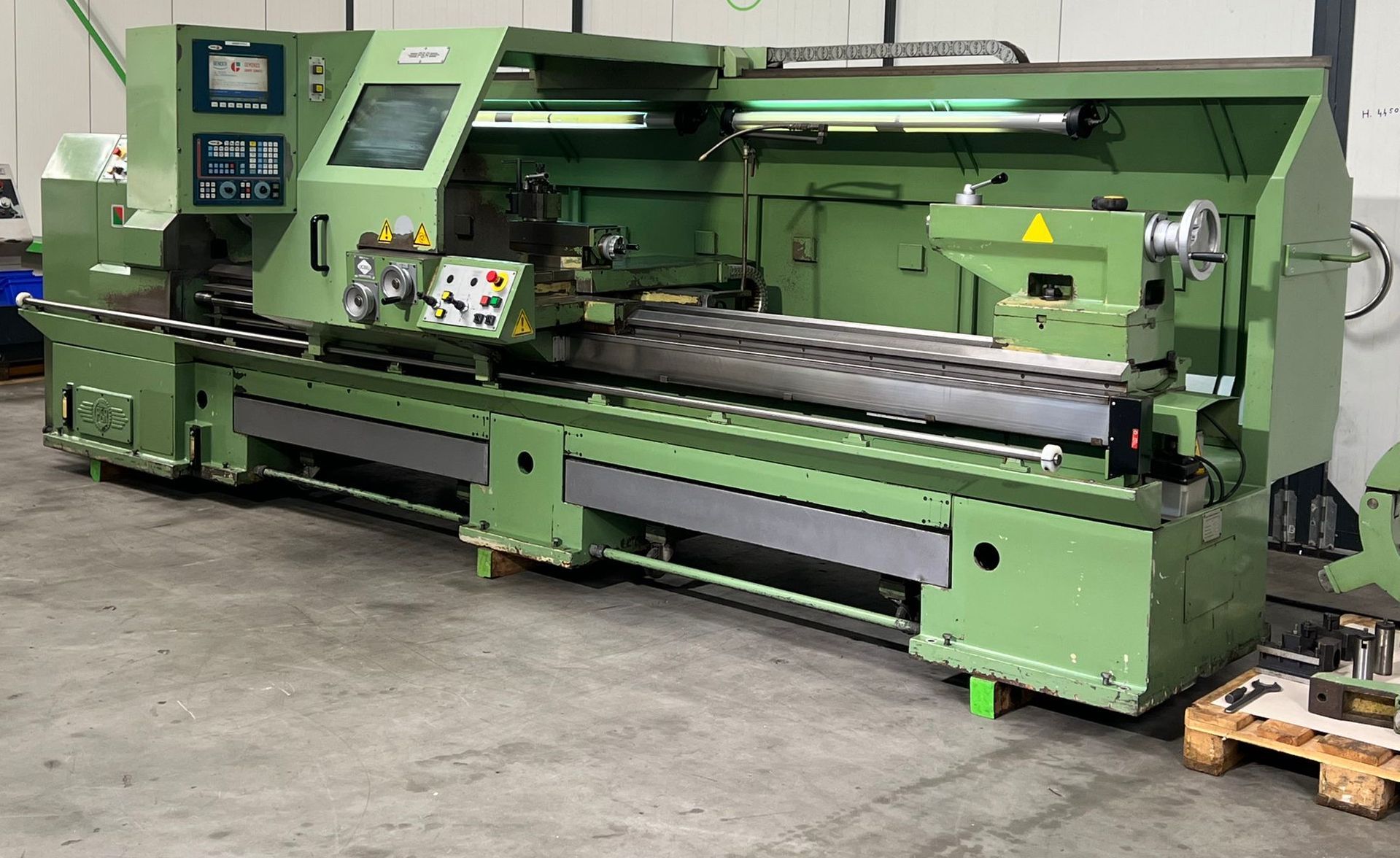

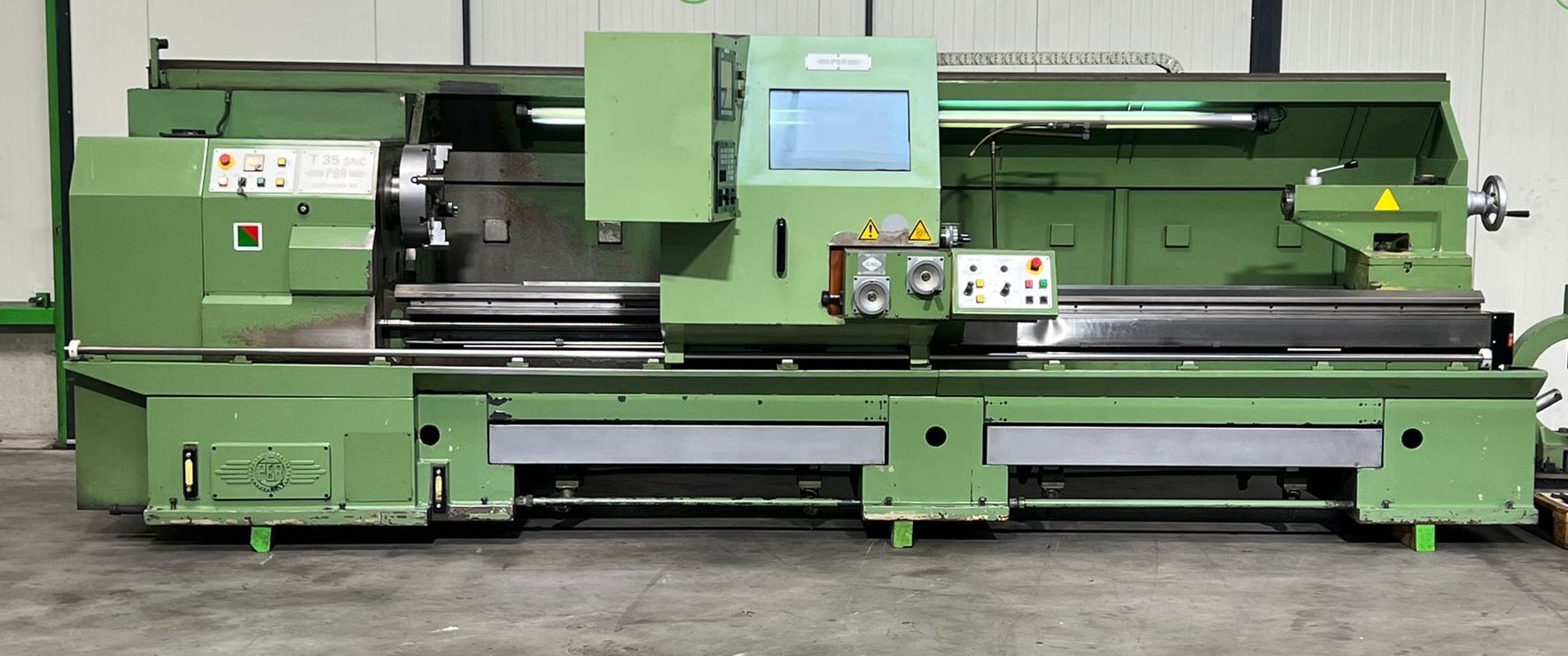

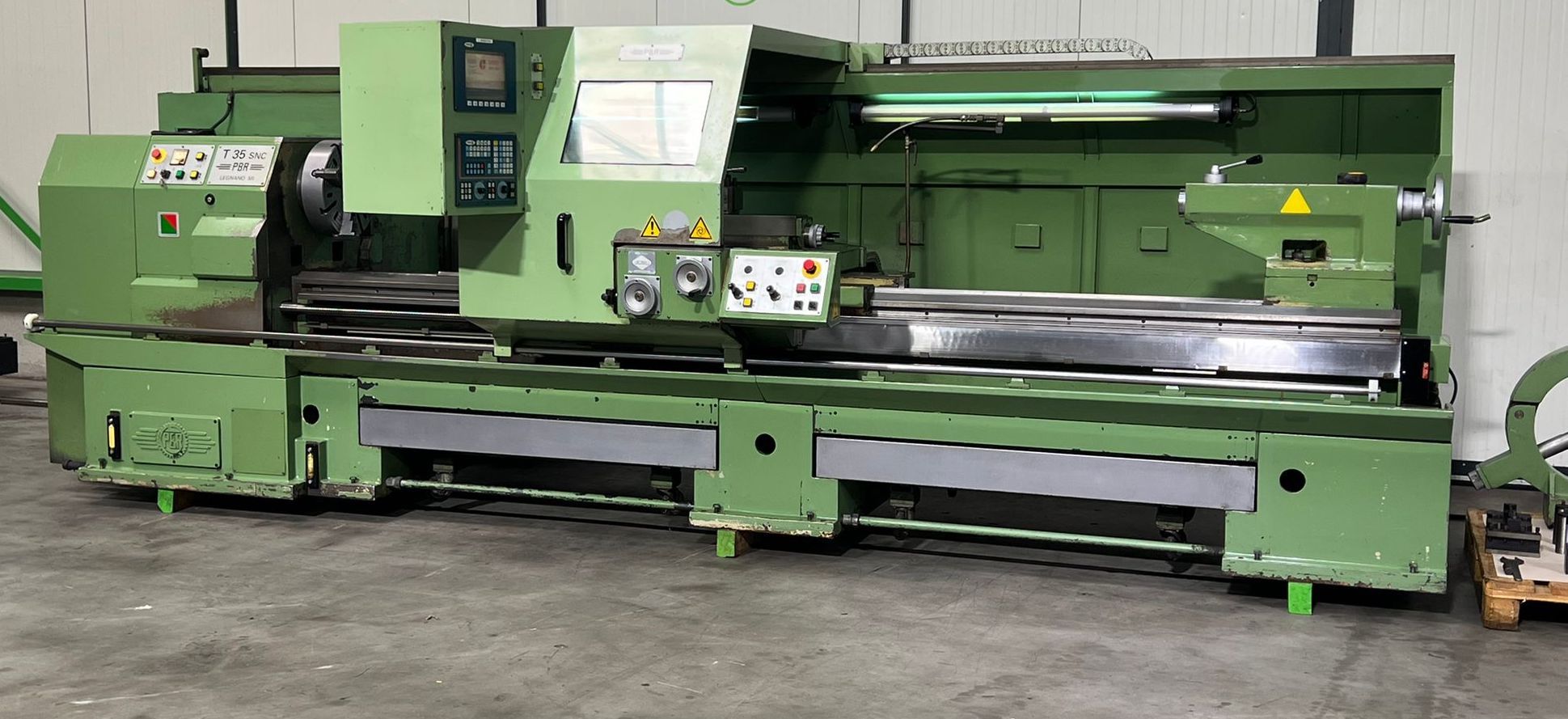

T35 SNC 700x3000
Capacity
ø700x3000 mmø27,56x118,11 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Max swing on saddle
425 mm16,73 in
Max working lenght
3000 mm118,11 in
Max weight between centres
3000 Kg
Max weight on steadies
4000 Kg
Max swing on the bed
720 mm28,35 in
Guide-ways number
2
Bed width
450 mm17,72 in
CNC
CNC
FAGOR 8055
SADDLE
Saddle width
750 mm29,53 in
X rapid feed
6000 mm/min236,2200 ipm
Z rapid feed
6000 mm/min236,2200 ipm
Max swing on saddle
720 mm28,35 in
X stroke
450 mm17,72 in
MAIN SPINDLE
Max rotation speed
0-2000 rpm
Spindle hole
105 mm4,13 in
Max power
17 Kw
Gearbox
67-31 / 430-2000
Spindle nose
Cam Lock 6”
Internal bearing diameter
146/130 mm5,75/5,12 in
Max torque
2440 Nm
TAILSTOCK
Quill diameter
115 mm4,53 in
Quill stroke
250 mm9,84 in
Taper
CM 5

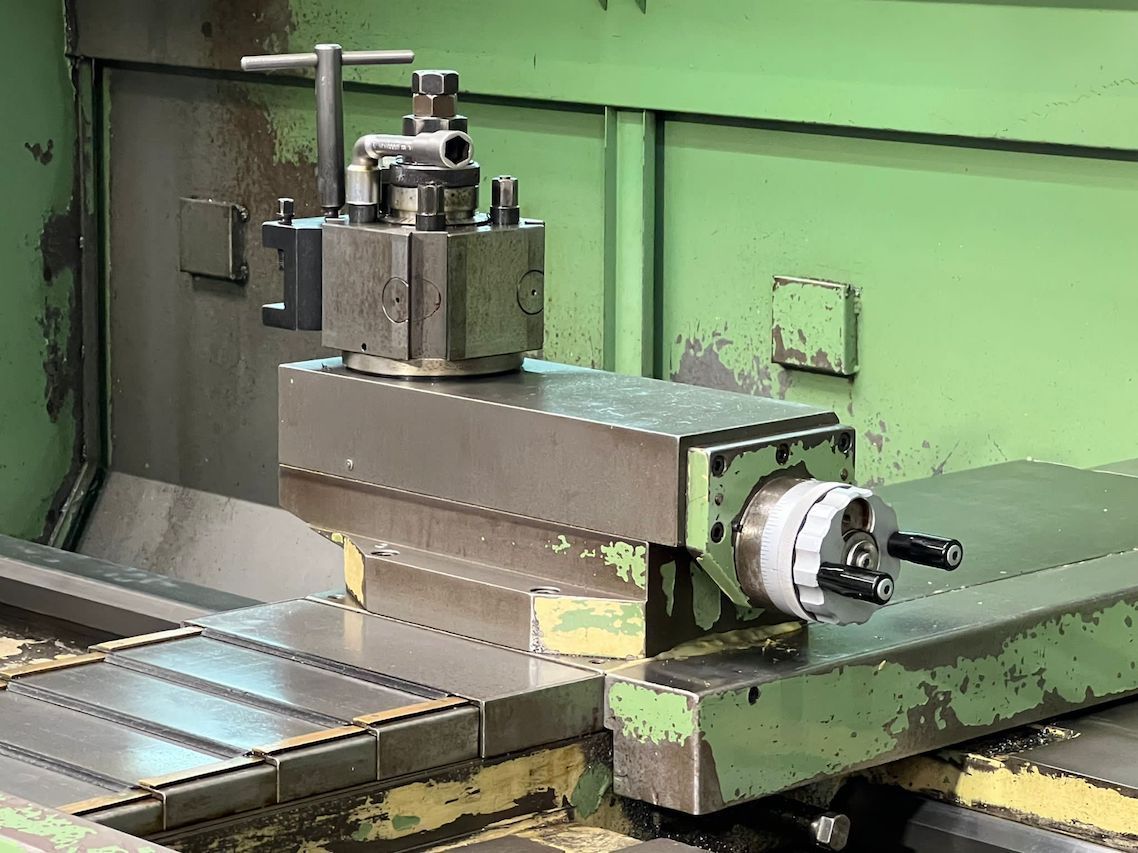

TURRET
Positions number
1 - Multifix
EXTRA
Available in stock
Yes
Available under power
Yes
Availability
PRONTA
Machine total weight
6200 Kg

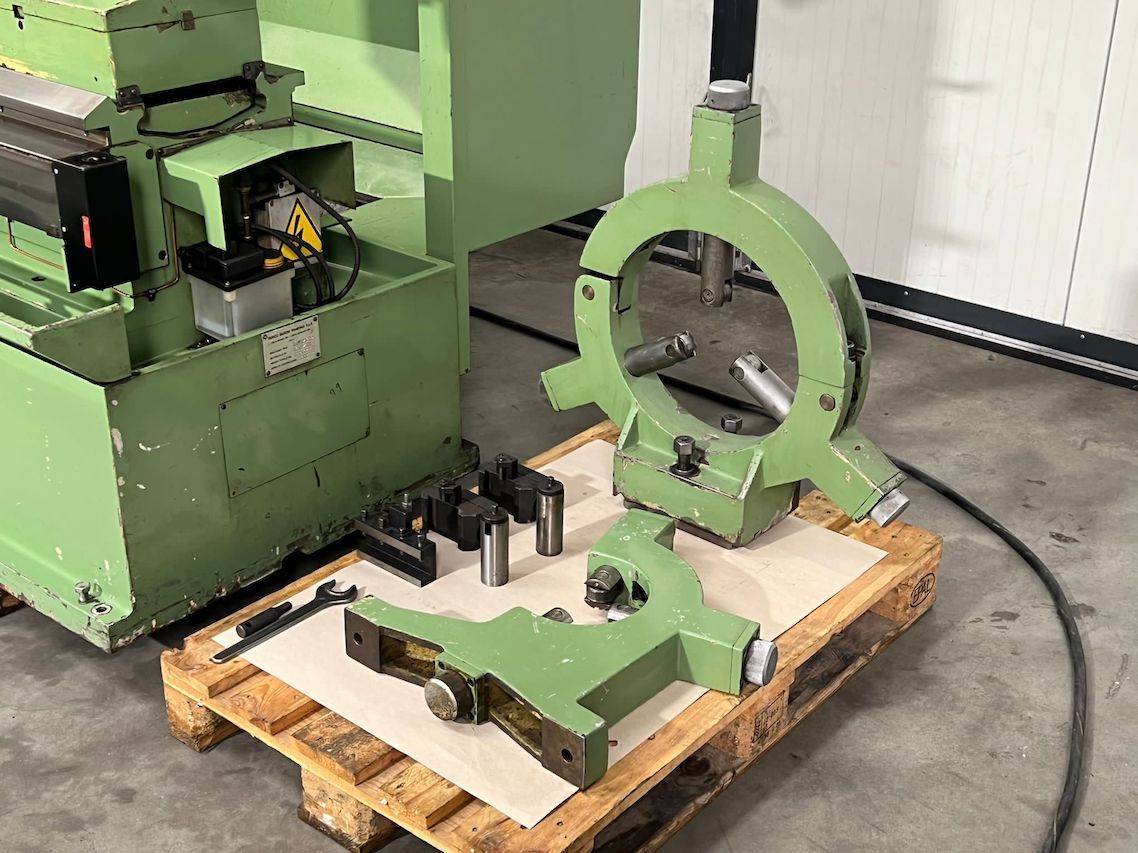

Open steadies
1
Closed steadies
1
Floor space
5700x2250x1815 mm224,41x88,58x71,46 in
