Category
Turning Machine
Type
Teach in
Made
Model

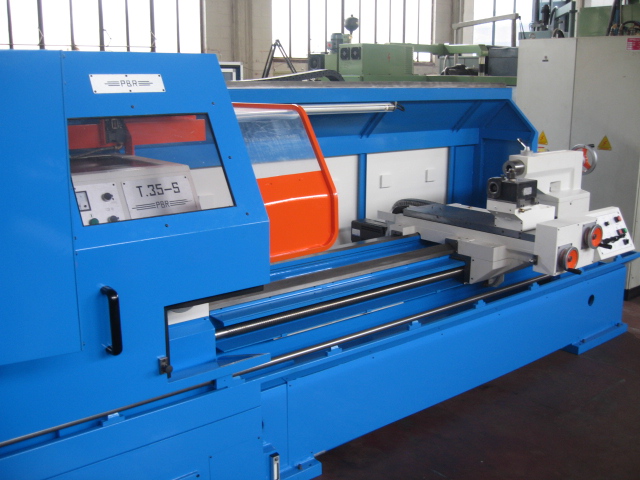

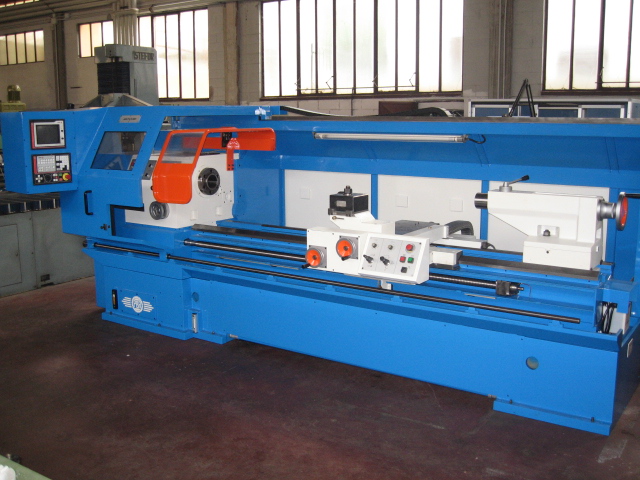

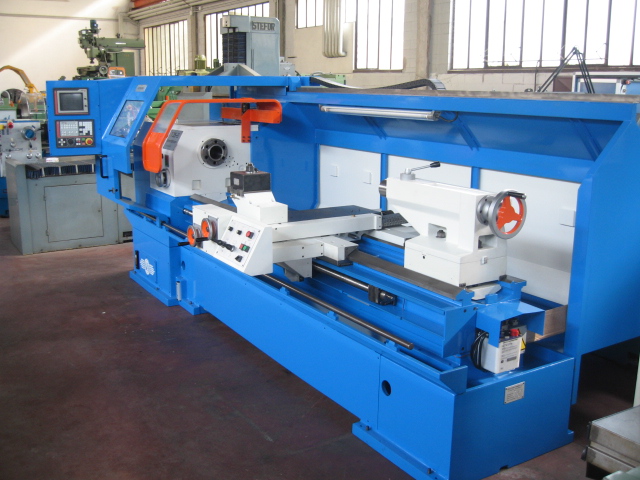

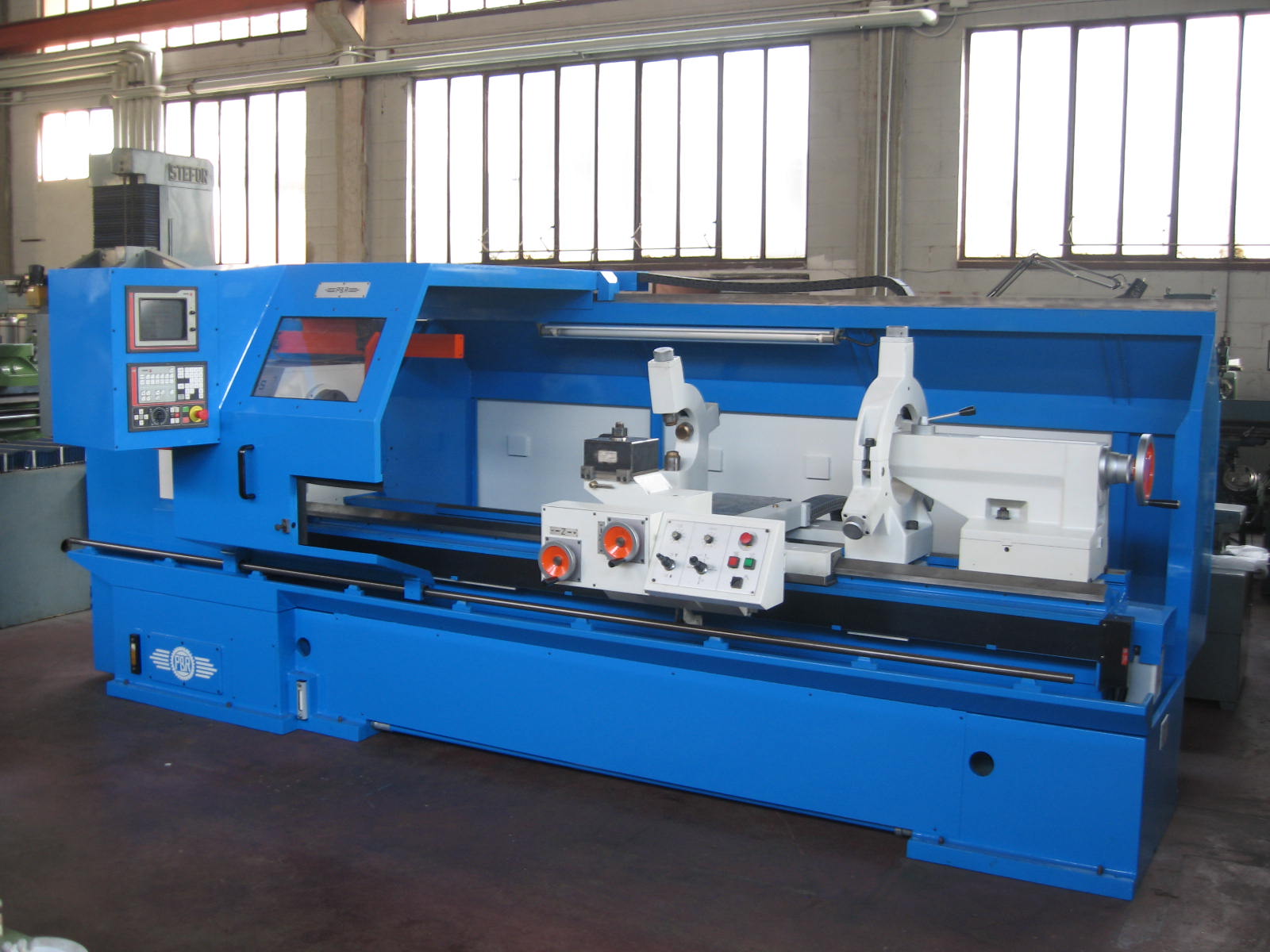

T35-S SNC 350x2000mm
Capacity
720x2000x105 mm28,35x78,74x4,13 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Max bar working diameter
105 mm4,13 in
Max swing on the bed
425 mm16,73 in
Max working lenght
2000 mm78,74 in
Bed width
450 mm17,72 in
Guide-ways number
2
Max weight between centres
3000 Kg
Max weight on steadies
4000 Kg

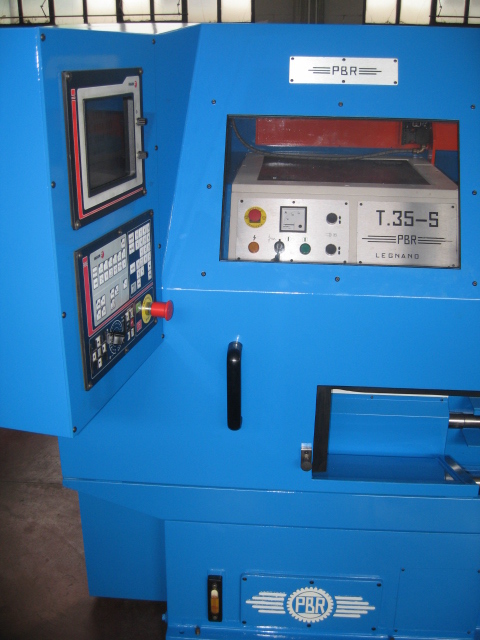

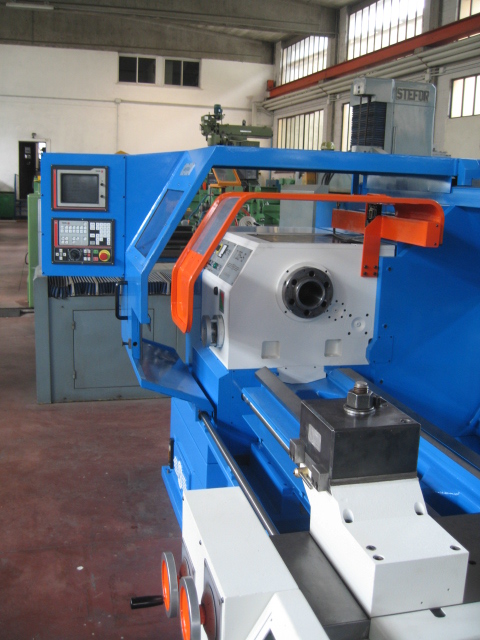

CNC
CNC

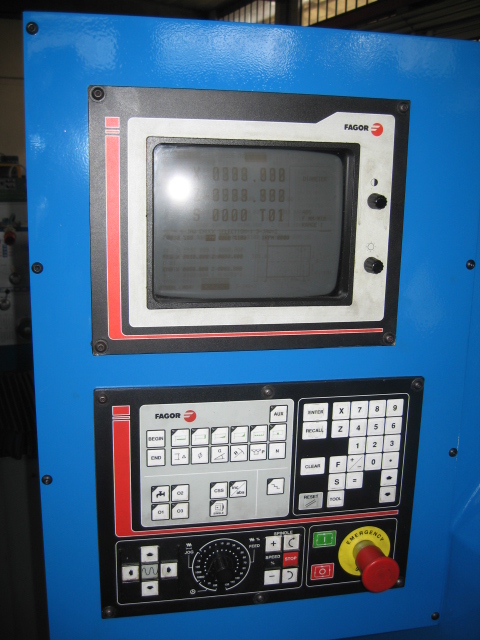

FAGOR T800
Drives
NUM
MAIN SPINDLE
Max rotation speed
0-2000 rpm
Spindle nose
Cam Lock 8”
Spindle hole
105 mm4,13 in
Internal bearing diameter
130 mm5,12 in
Max power
17 Kw
Max torque
2440 Nm
Gearbox
due gamme meccaniche

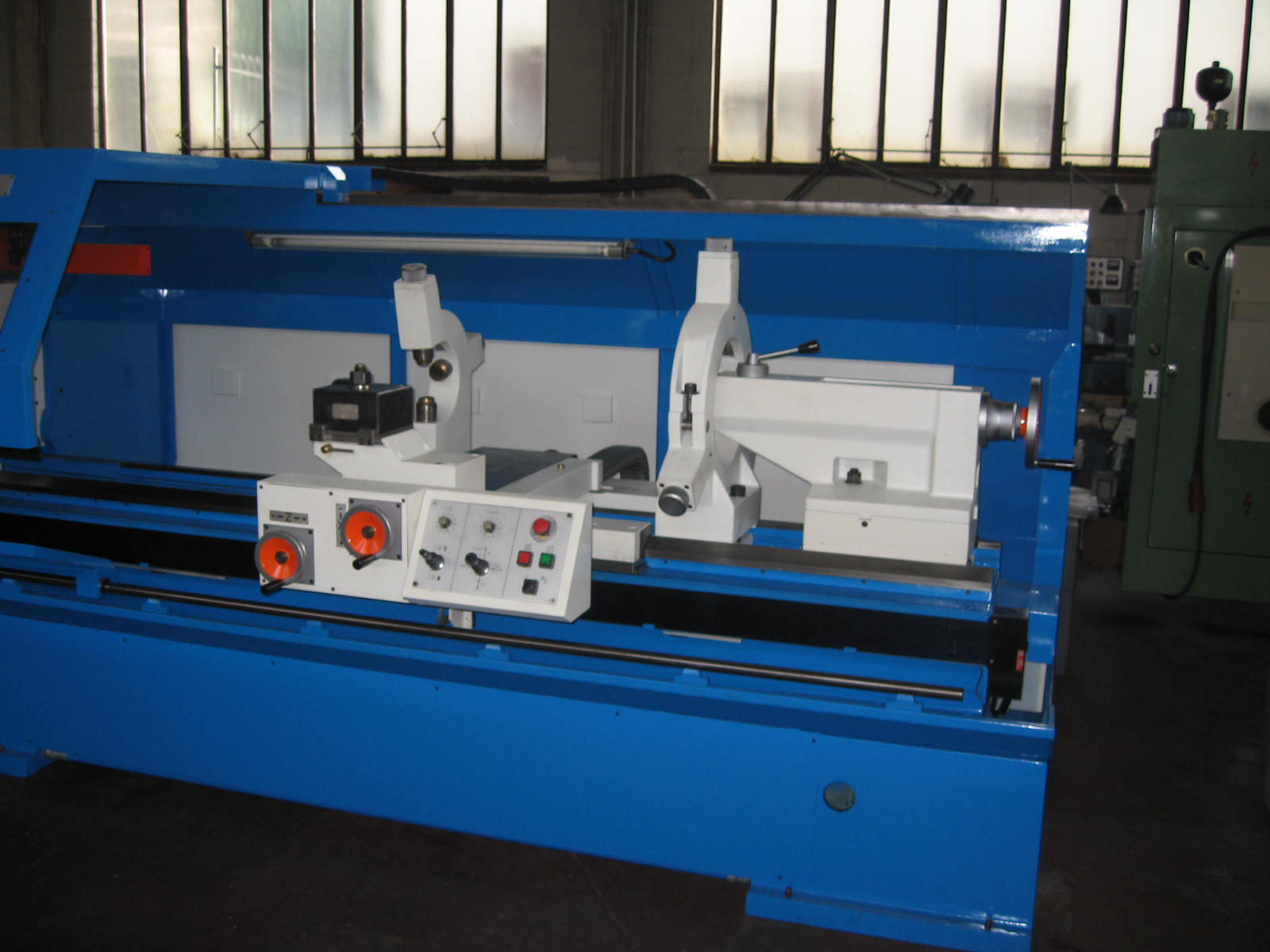

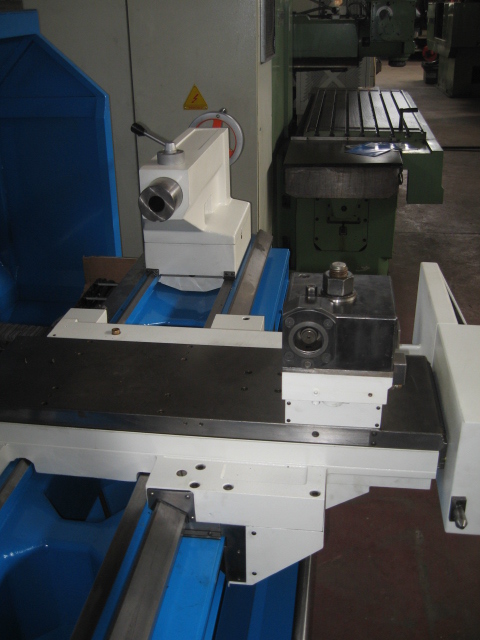

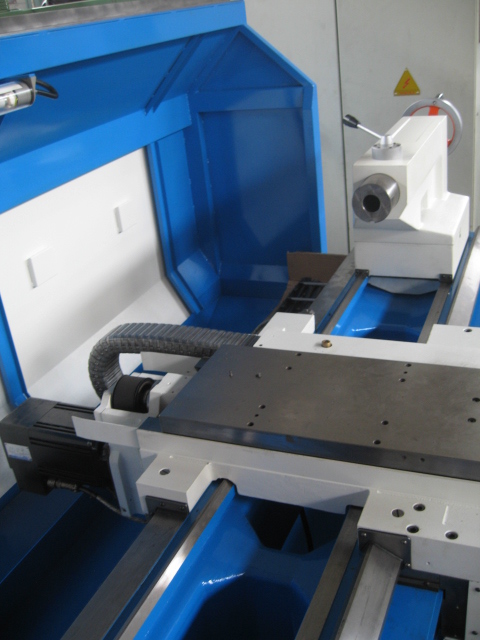

TAILSTOCK
Quill diameter
115 mm4,53 in
Quill stroke
250 mm9,84 in
Taper
MK5

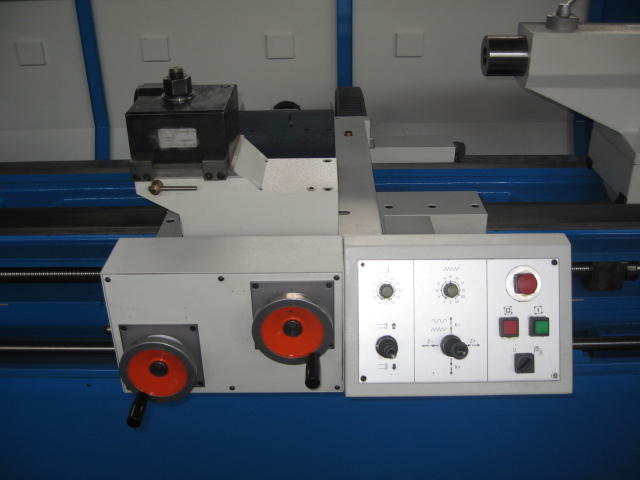

TURRET
Axis stroke X
450 mm17,72 in
Rapid feed X
1-6 m/min39,37-236,22 ipm
Axis stroke Z
2000 mm78,74 in
Rapid feed Z
1-6 m/min39,37-236,22 ipm
Positions number
CAPTO C6
EXTRA
Total power supply
19 Kw
Machine total weight
5650 Kg
Floor space
4700x2250x1815 mm185,04x88,58x71,46 in

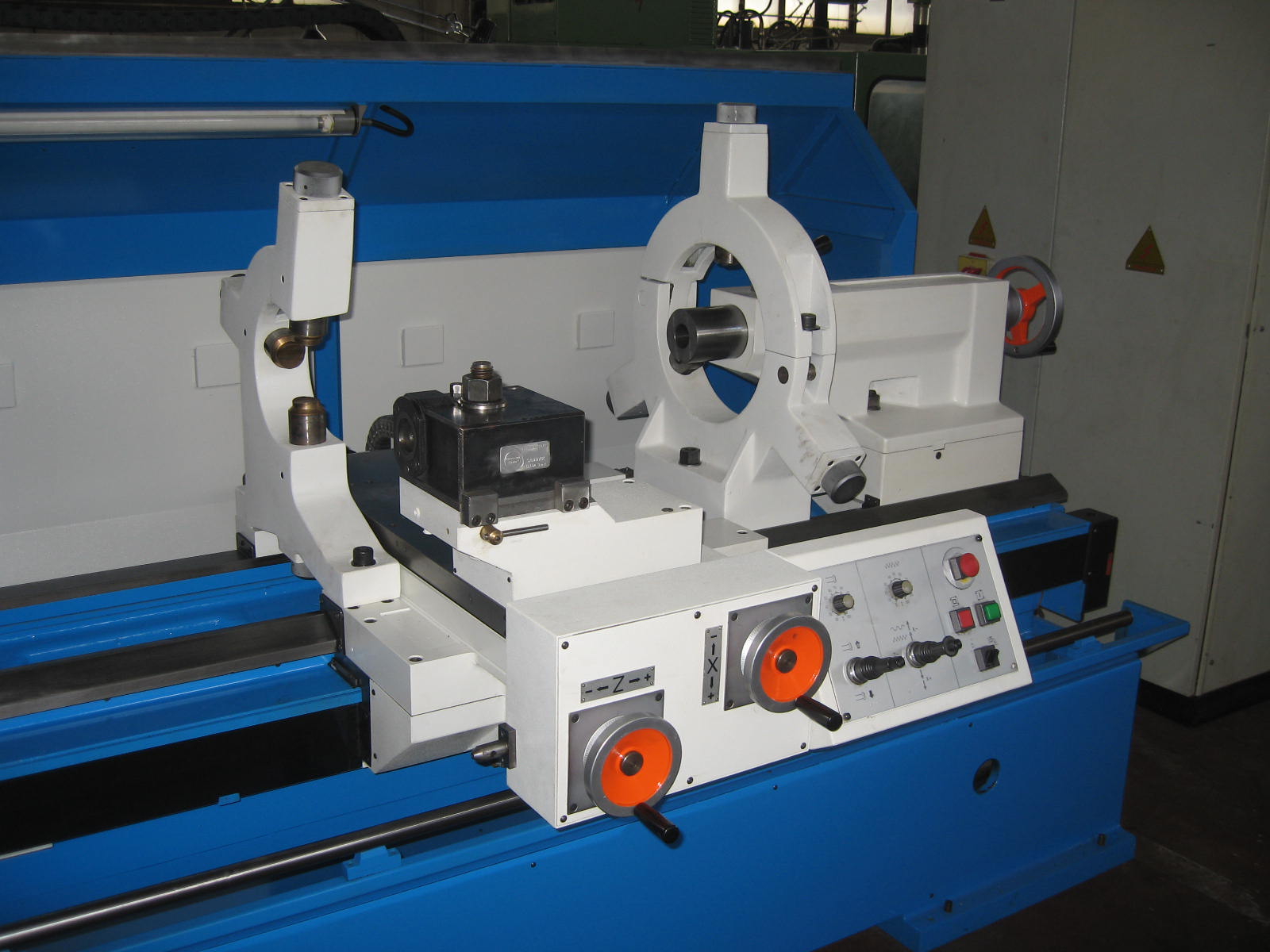

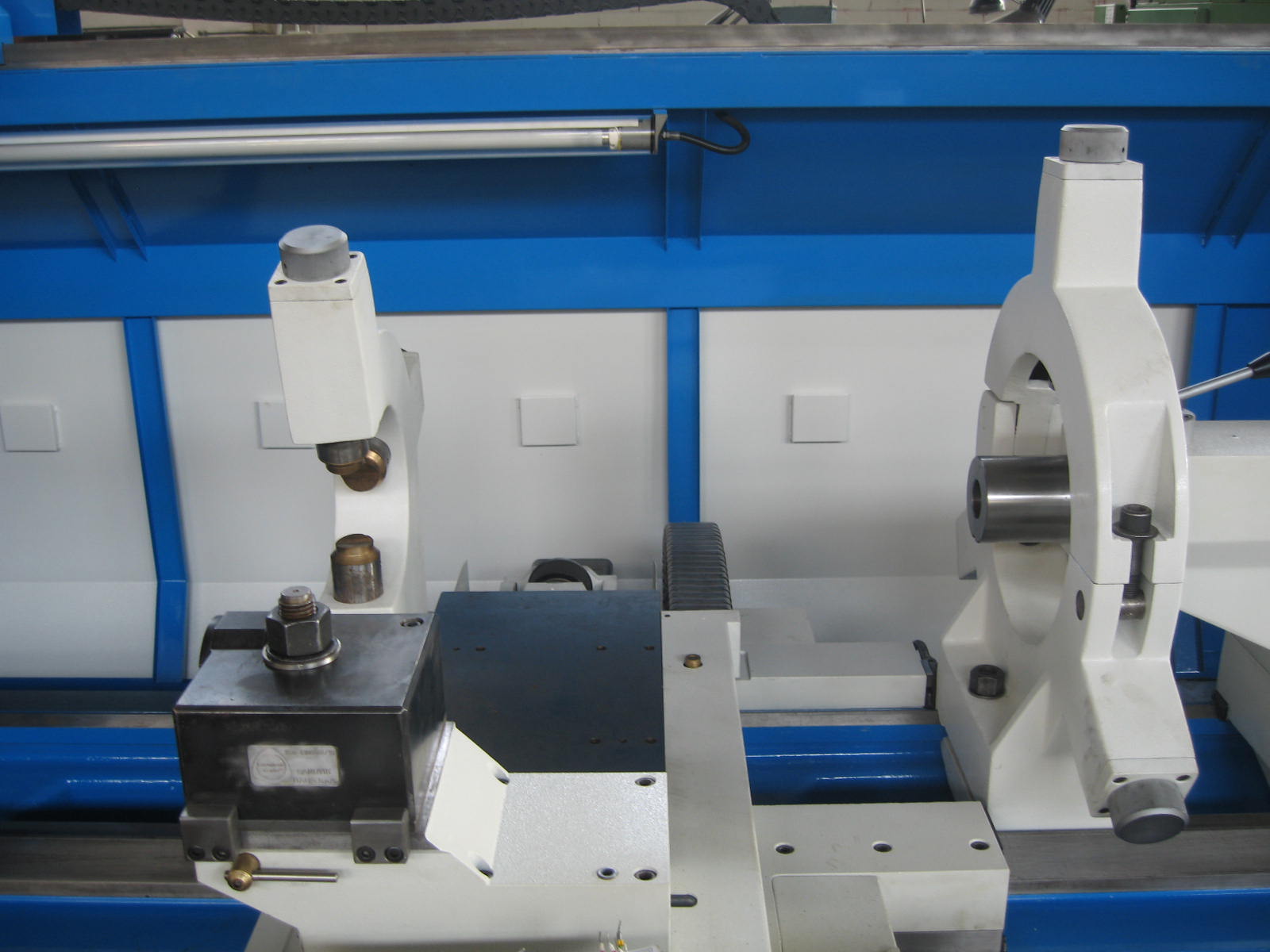

Open steadies
1
Closed steadies
1

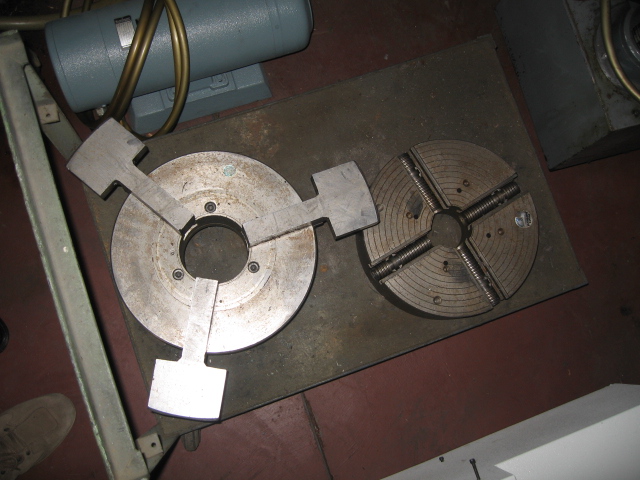

Autocentering chuck
1 ø315mm
Platform
1 ø400mm
Maintenance & Use books
Yes
Electrical drawings
Yes
Protections
protezione integrale
Availability
pronta
Available in stock
Yes
Available under power
Yes
