Category
Turning Machine
Type
Teach in
Made
Model
MASTER
Capacity
Ø620x3000 mmØ24,41x118,11 in

Technical specifications

Metric Imperial
WORKING CAPACITY
Max bar working diameter
155 mm6,10 in
Max swing on saddle
620 mm24,41 in
Max working lenght
3000 mm118,11 in
Guide-ways number
2+1
Max swing on the bed
940 mm37,01 in

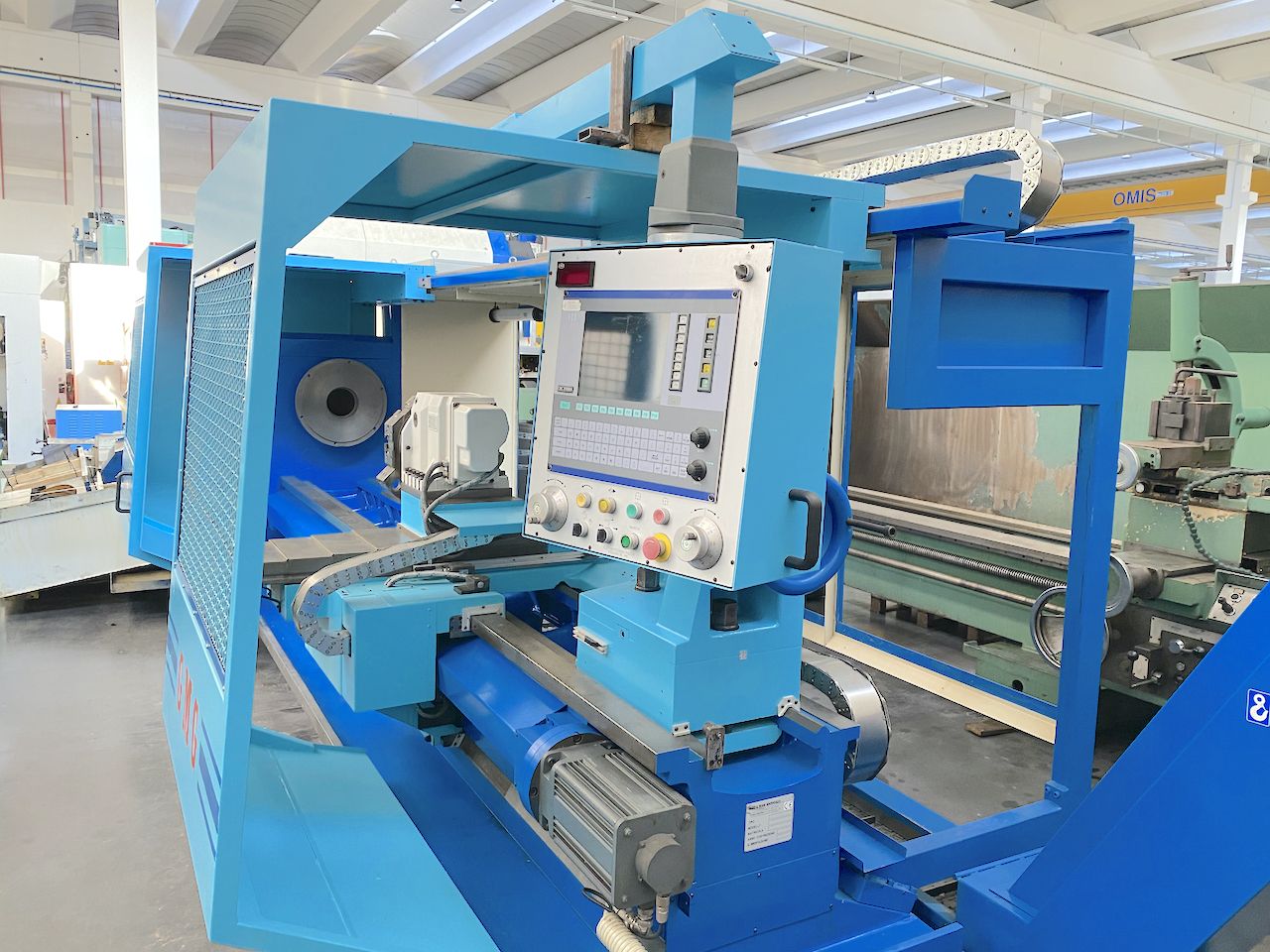

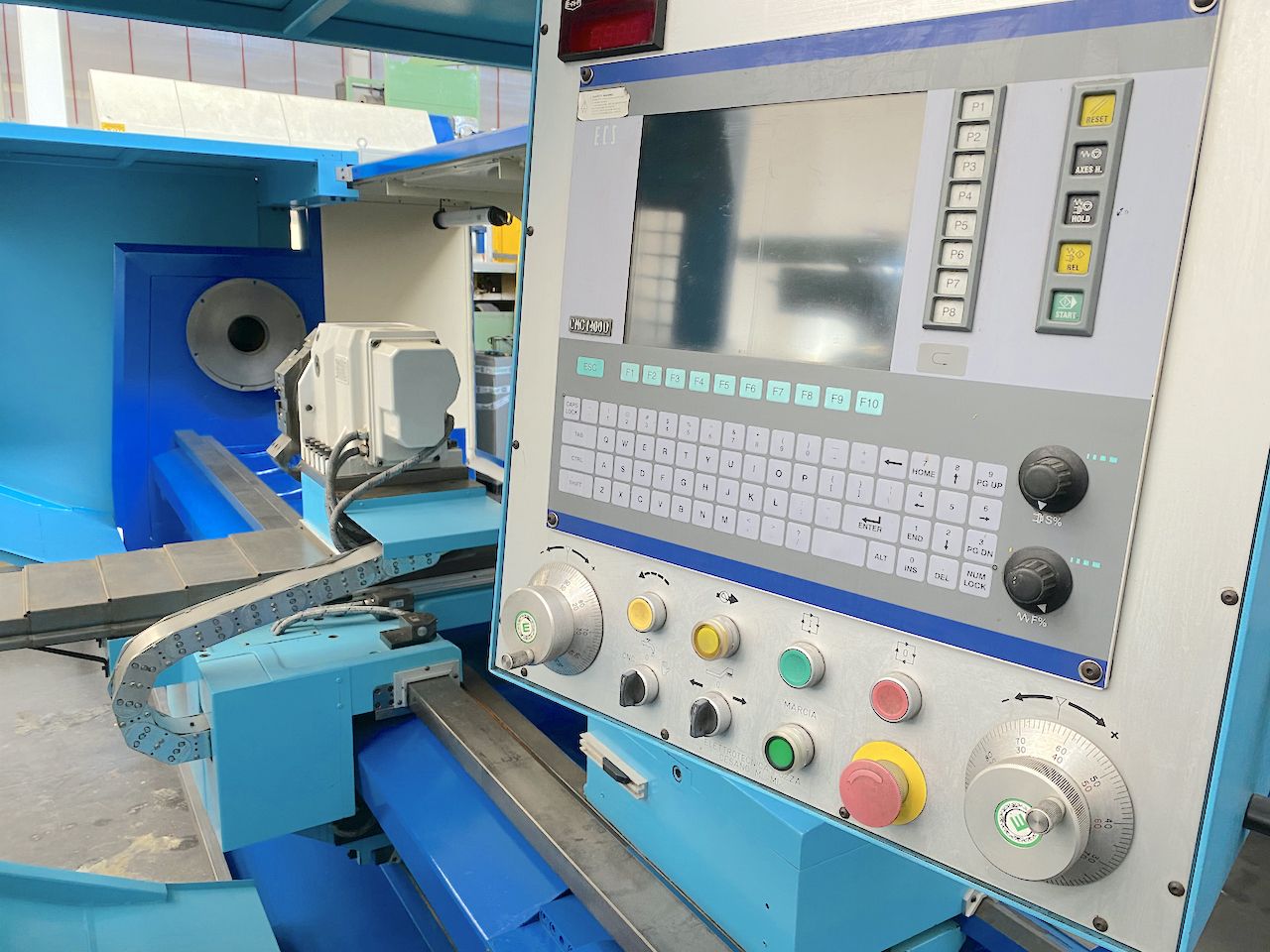

CNC
CNC
ECS 1402D
Drives
Fagor

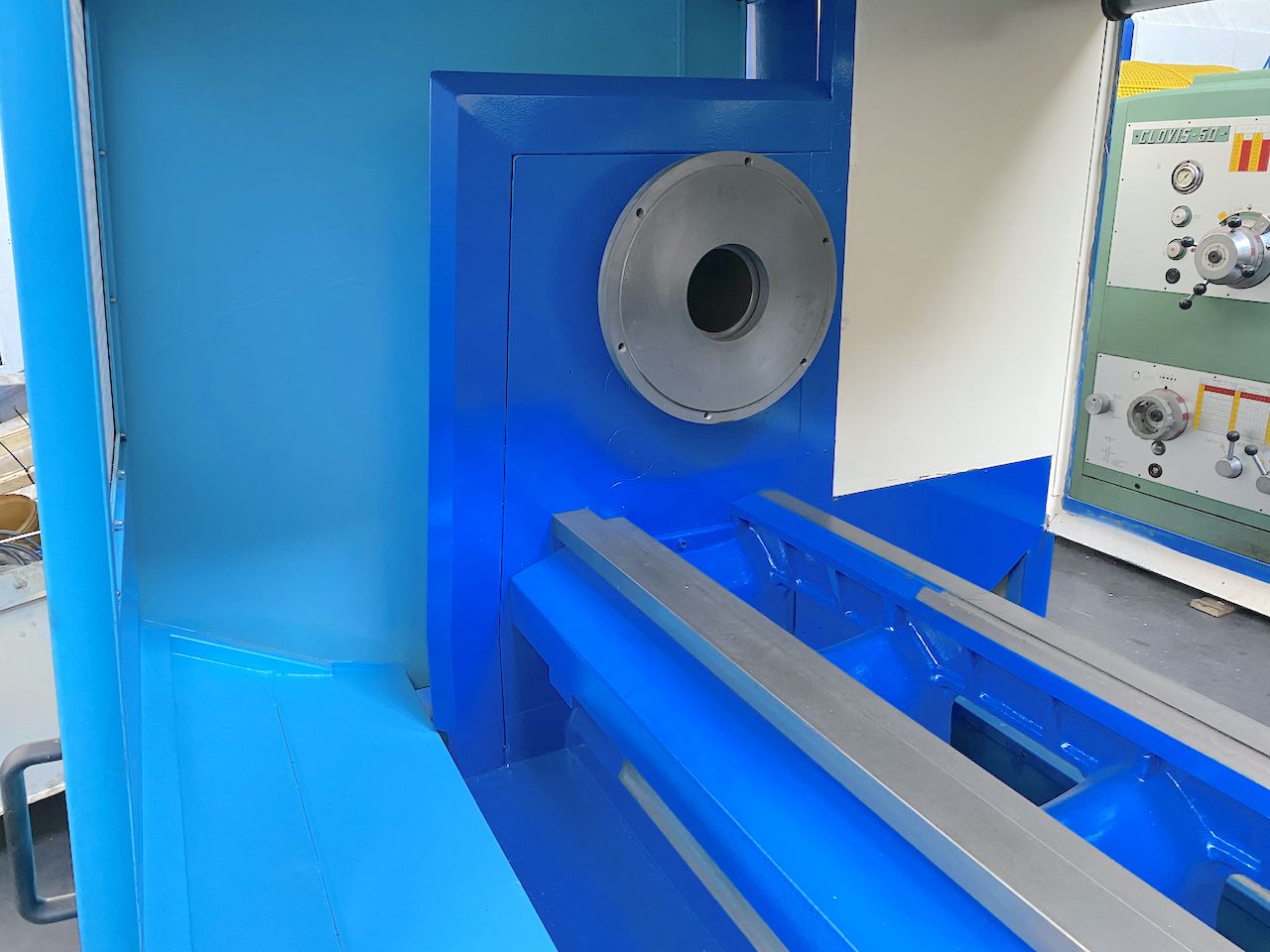

MAIN SPINDLE
Max rotation speed
1500 rpm
Spindle nose
CL11”
Spindle hole
155 mm6,10 in
Max power
30 Kw
Gearbox
4 gamme automatiche
TAILSTOCK
Quill diameter
120 mm4,72 in
Quill stroke
300 mm11,81 in
Taper
CM6

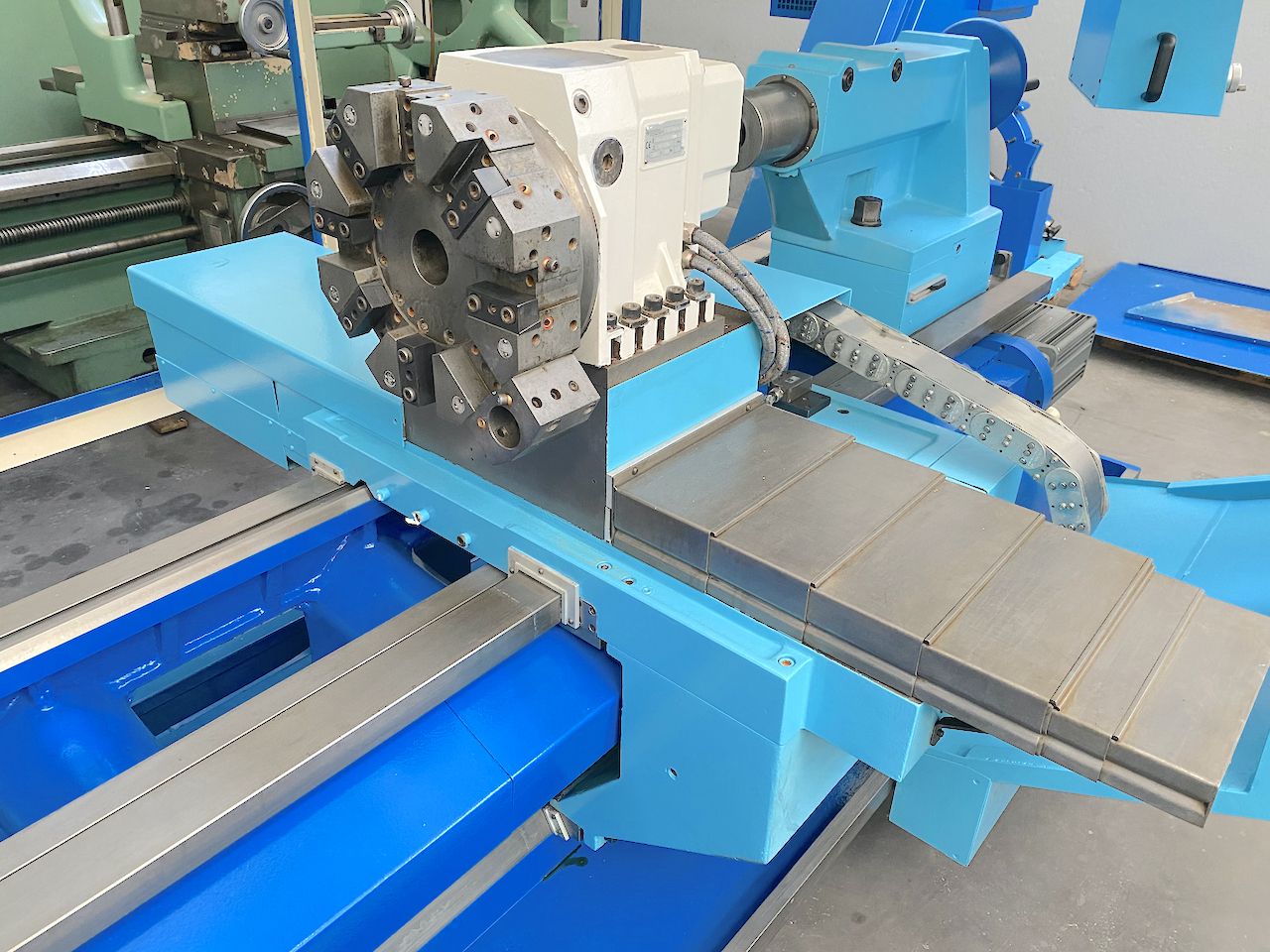

TURRET
Positions number
Baruffaldi 8 posizioni
EXTRA
Electrical drawings
Yes
CE Certification
Yes
Maintenance & Use books
Yes
Availability
PRONTA

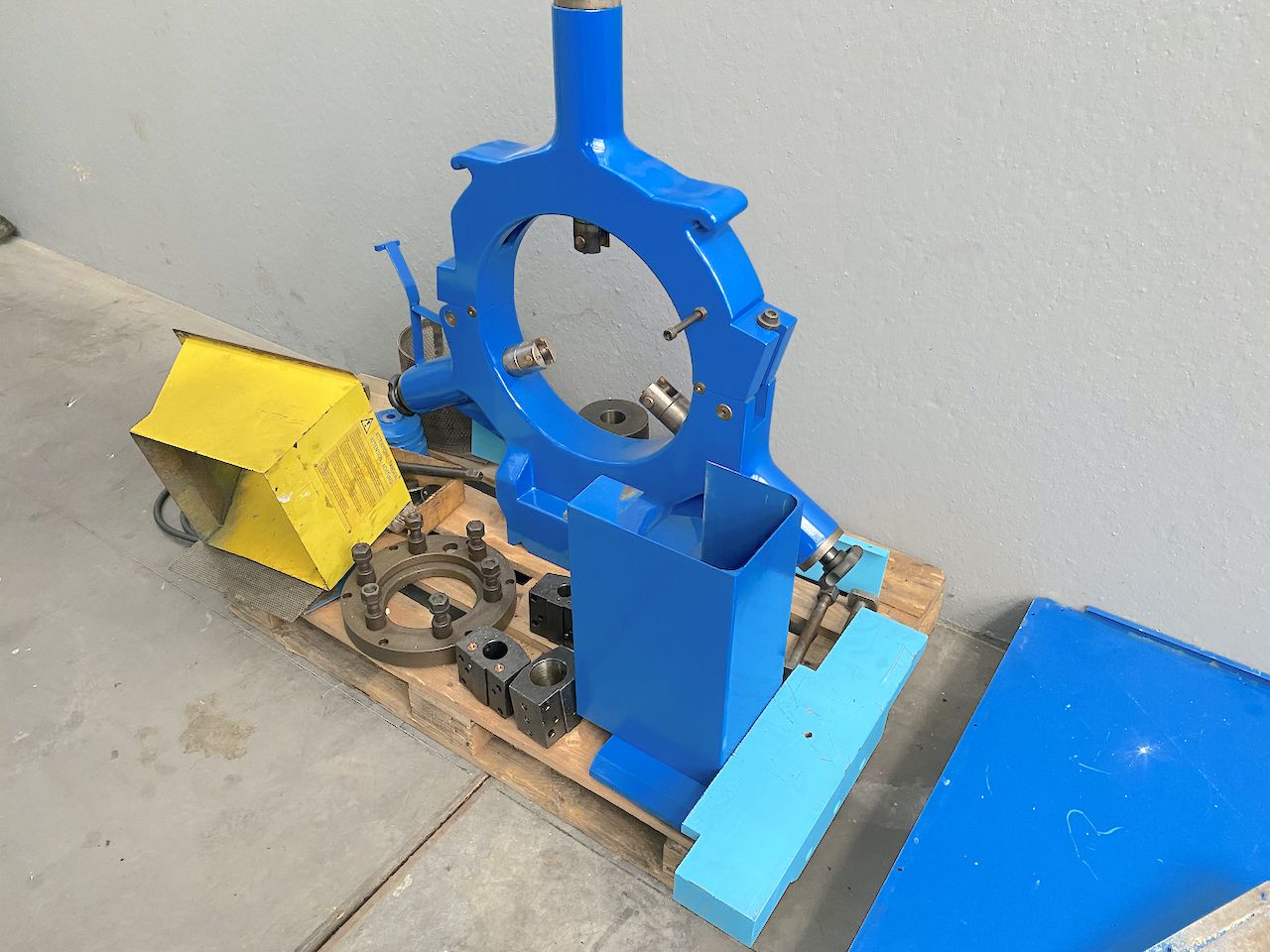

Closed steadies
1 x ø420mm

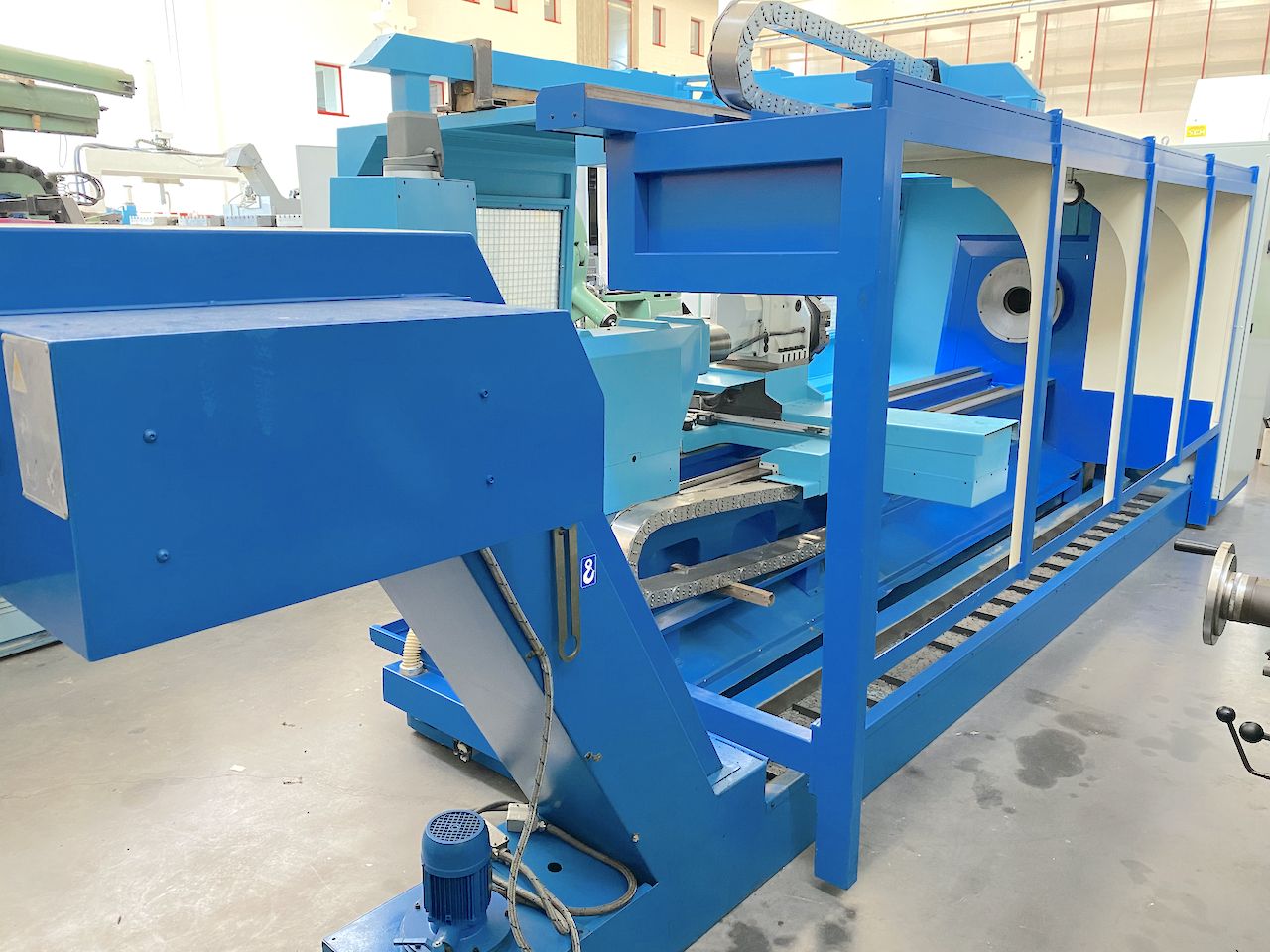

Chip conveyor
si
Protections
doppio portellone anteriore scorrevole
