Category
Turning Machine
Type
Teach in
Made
Model

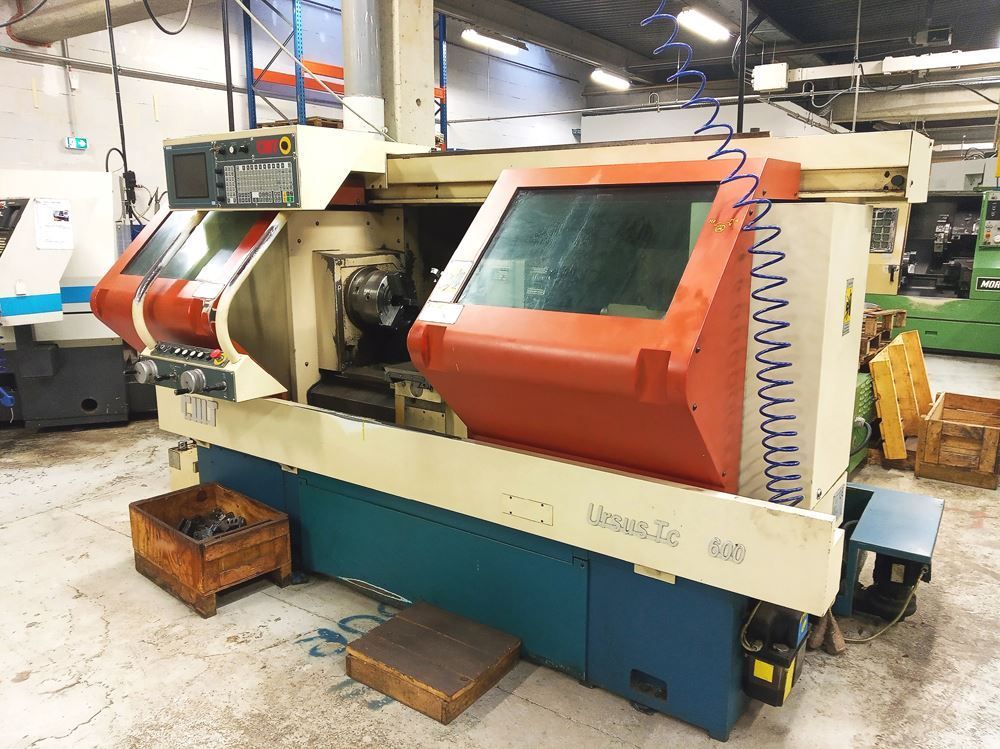

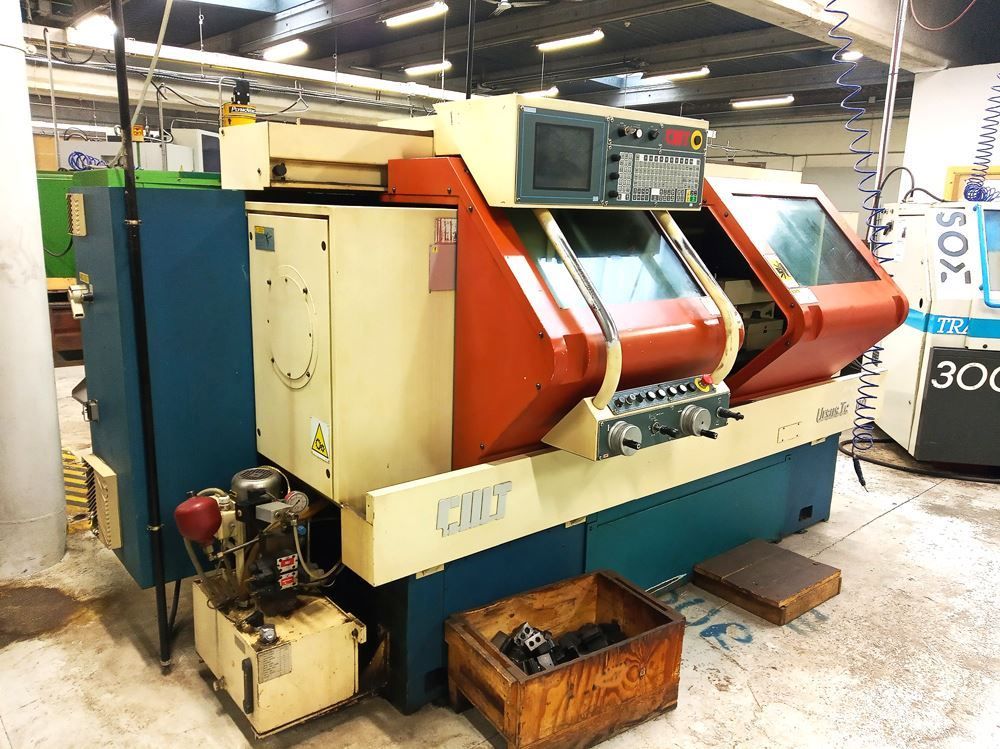

URSUS TC 600
Capacity
ø600x1000 mmø23,62x39,37 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Max bar working diameter
105 mm4,13 in
Max swing on the bed
600 mm23,62 in
Max swing on saddle
365 mm14,37 in
Max working lenght
1000 mm39,37 in
Guide-ways number
2
CNC
CNC

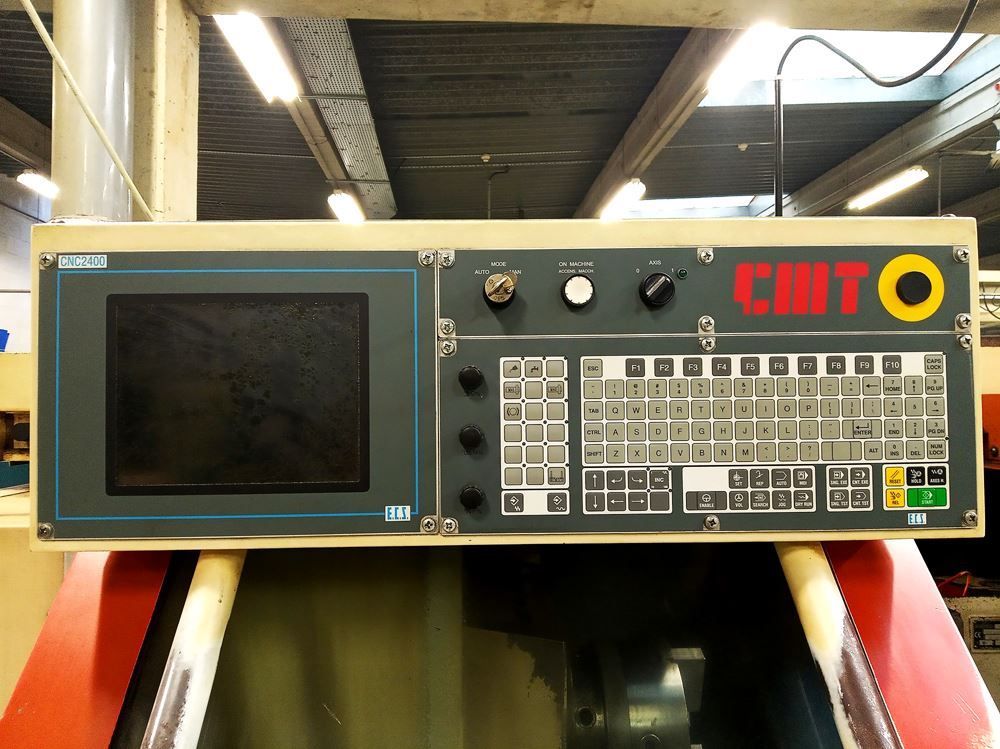

ECS 2400
SADDLE
X rapid feed
10 mm/min0,3937 ipm
Z rapid feed
12 mm/min0,4724 ipm
Max swing on saddle
380 mm14,96 in
X stroke
1000 mm39,37 in
MAIN SPINDLE
Max rotation speed
10-2200 rpm
Spindle nose
CL8”
Spindle hole
105 mm4,13 in

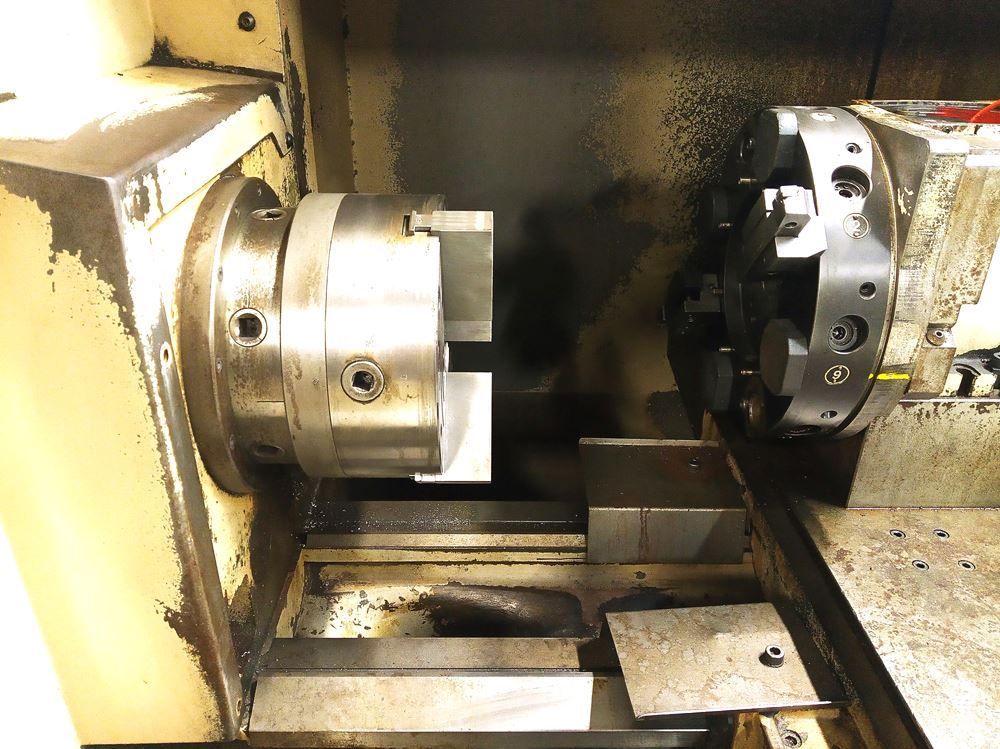

Chuck diameter
315 mm12,40 in
Max power
13 Kw
Max torque
1650 Nm
Notes
asse C
TURRET
Positions number

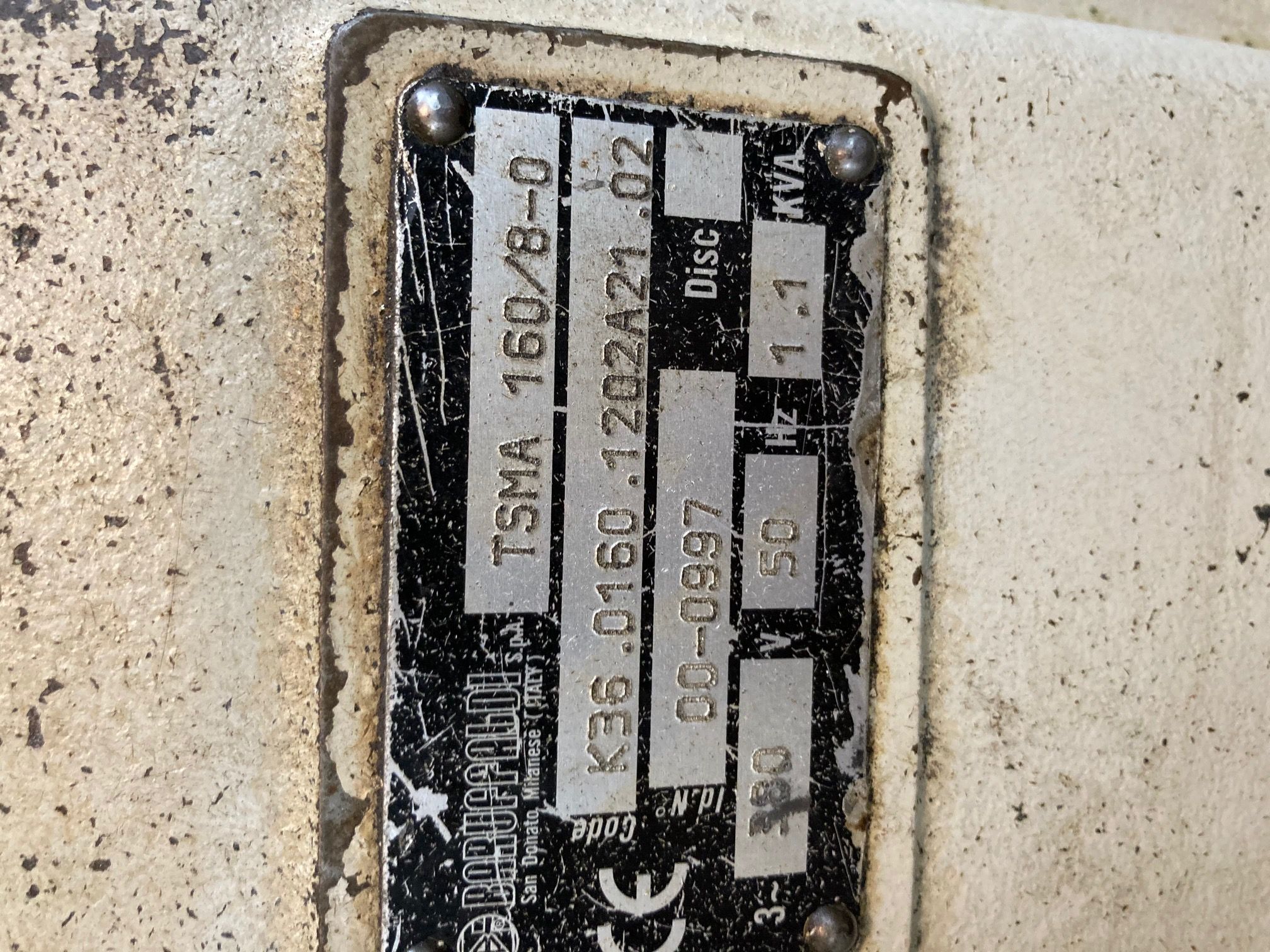

Baruffaldi TSMA 160/8-0 MOTORIZZATA
EXTRA
Total power supply
15 Kw
Machine total weight
5500 Kg
Floor space
4000X1800 mm157,48X70,87 in
Maintenance & Use books
Yes

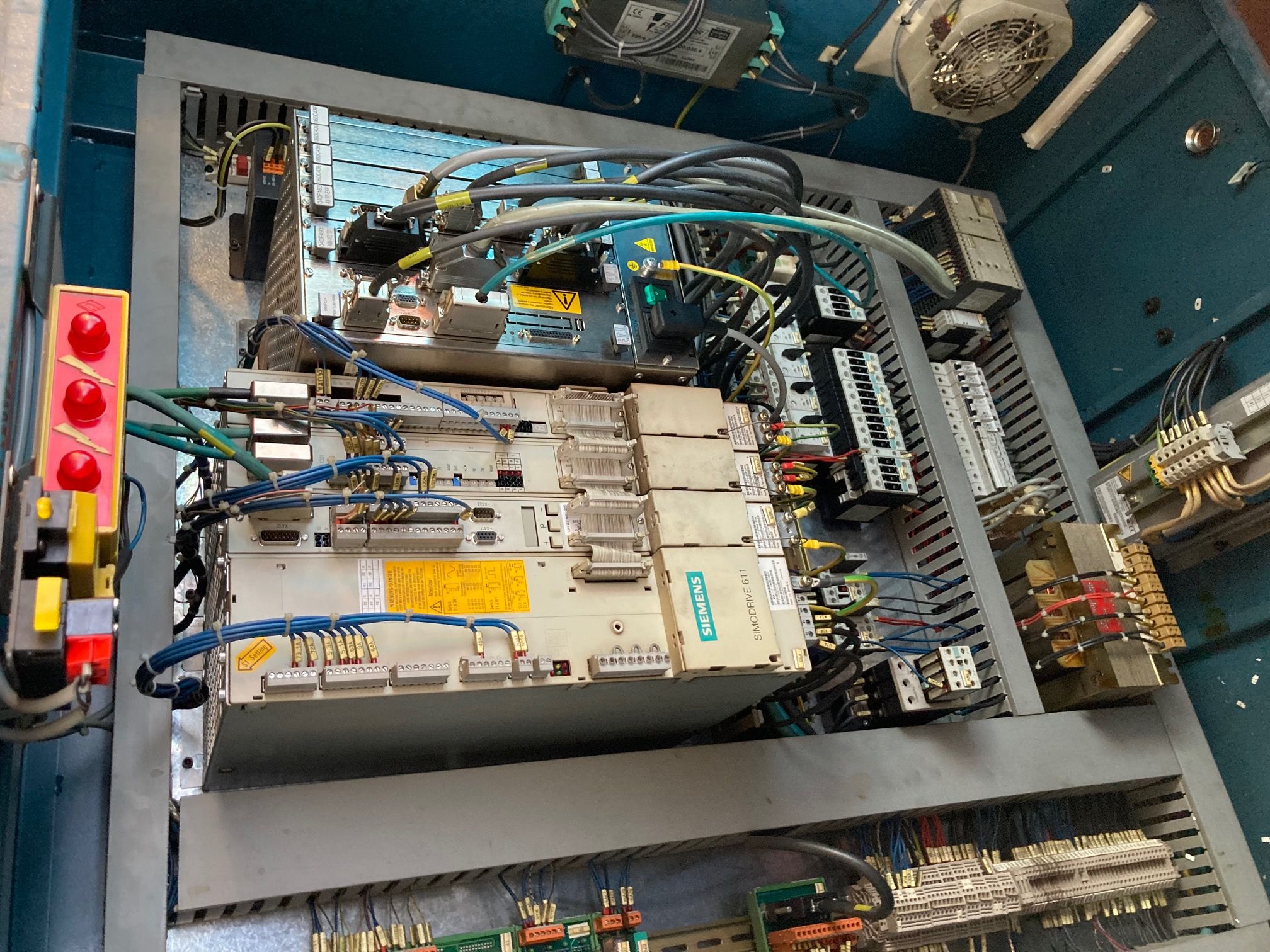

Electrical drawings
Yes
CE Certification
Yes
Protections
CARENATURA INTEGRALE
Availability
PRONTA
Available in stock
Yes
