Category
Turning Machine
Type
Teach in
Made
Model

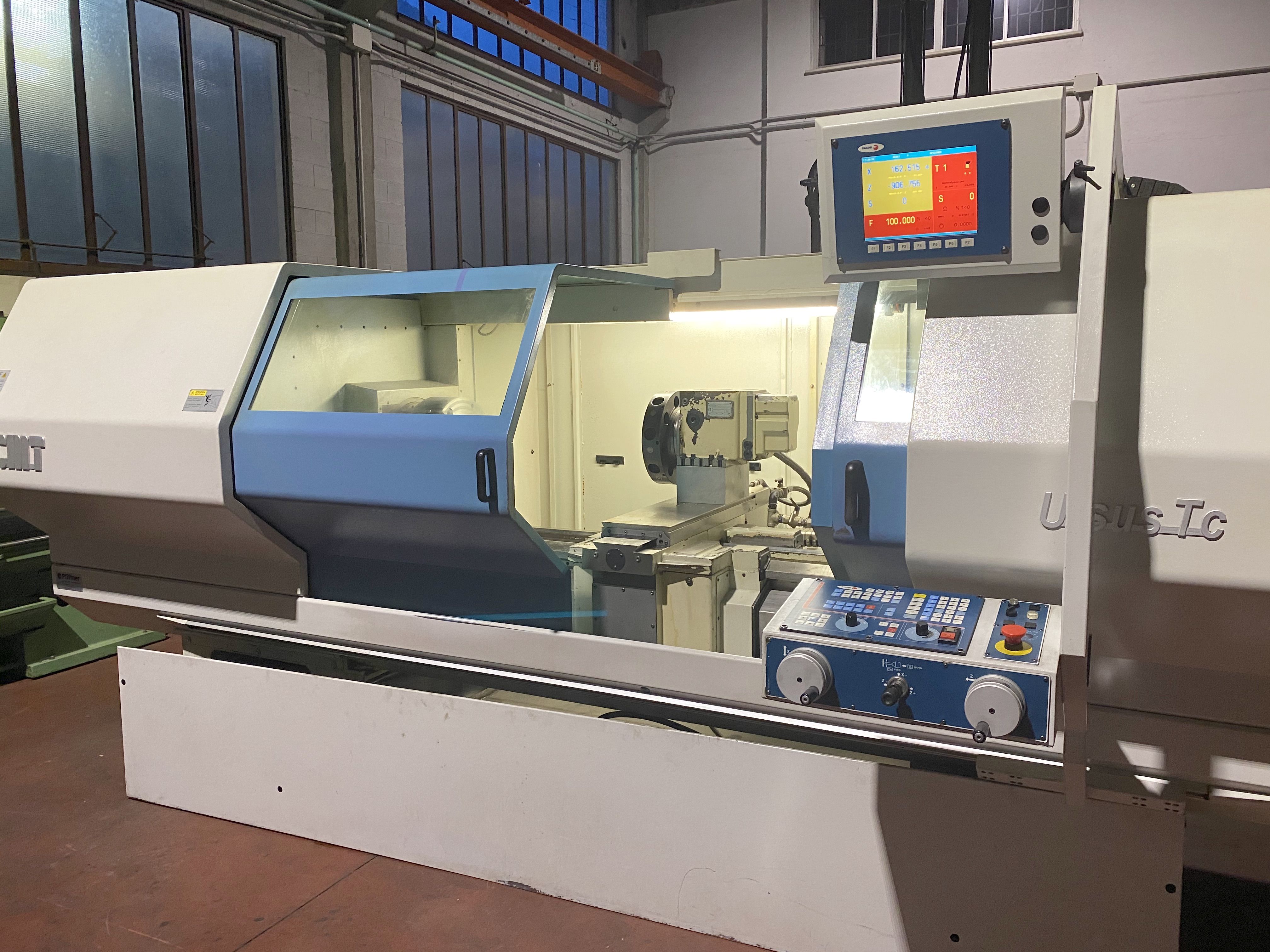

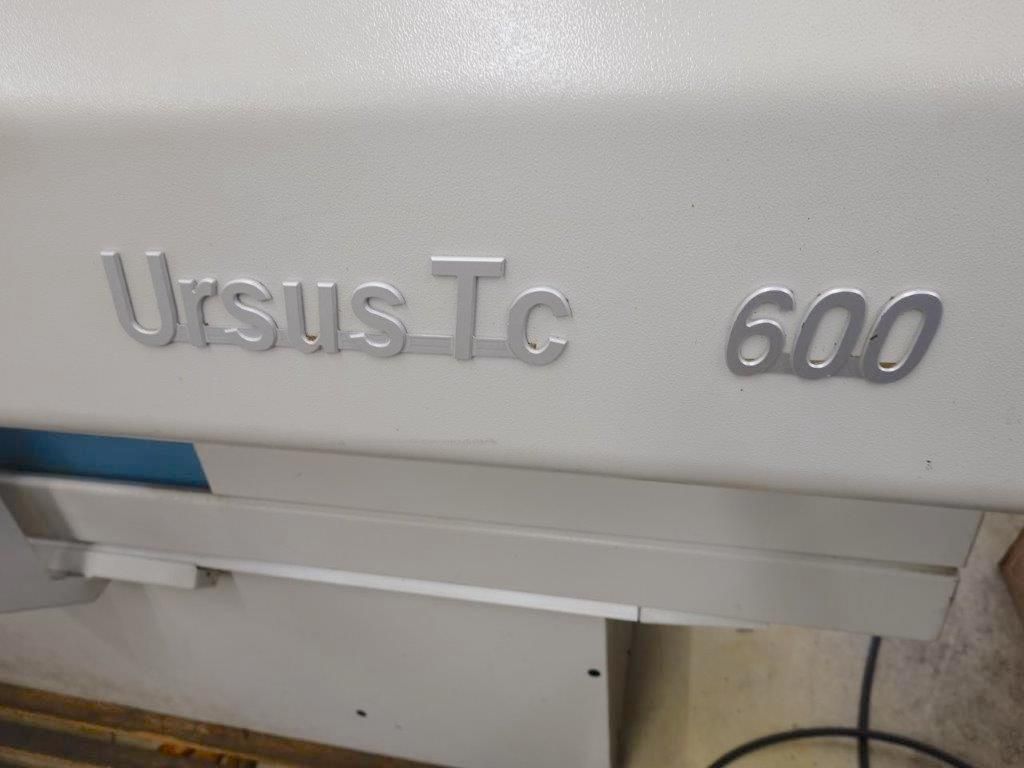

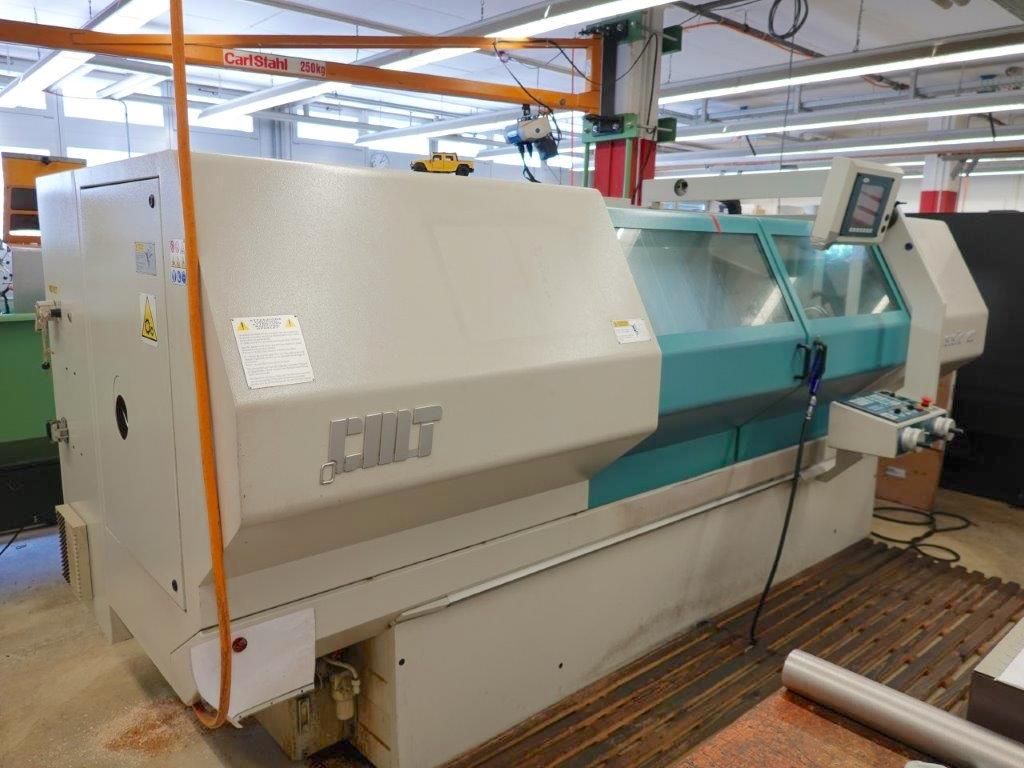

URSUS TC 600
Capacity
ø600x1500 mmø23,62x59,06 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Max bar working diameter
105 mm4,13 in
Max swing on the bed
600 mm23,62 in
Max swing on saddle
365 mm14,37 in
Max working lenght
1500 mm59,06 in

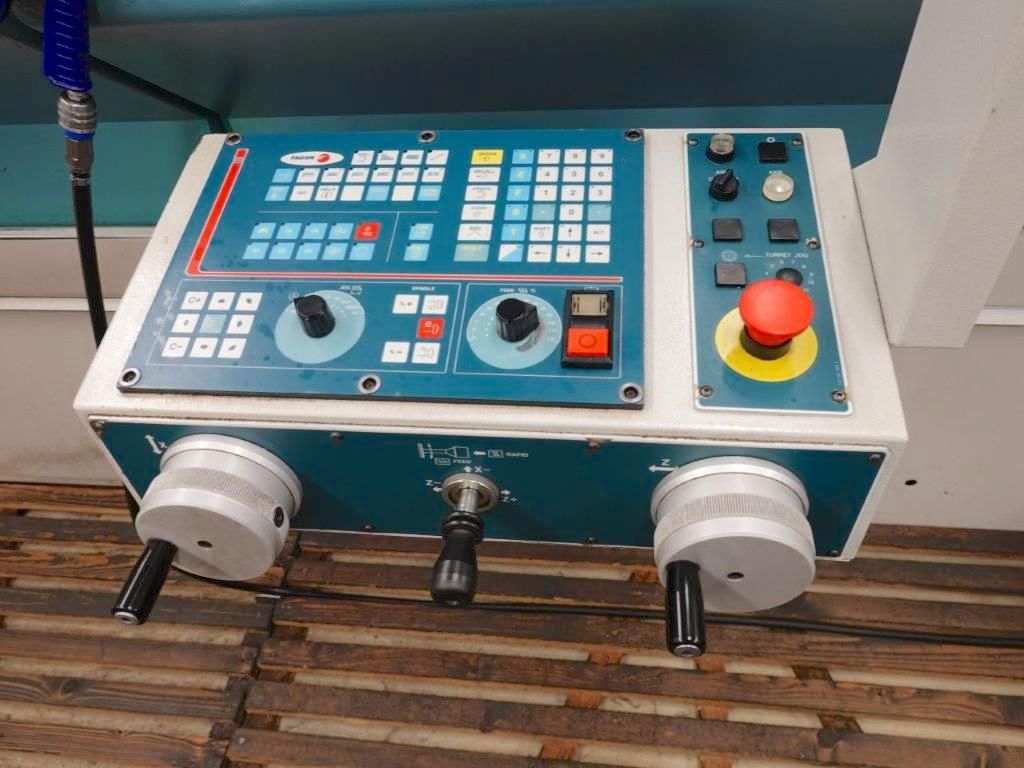

CNC
CNC

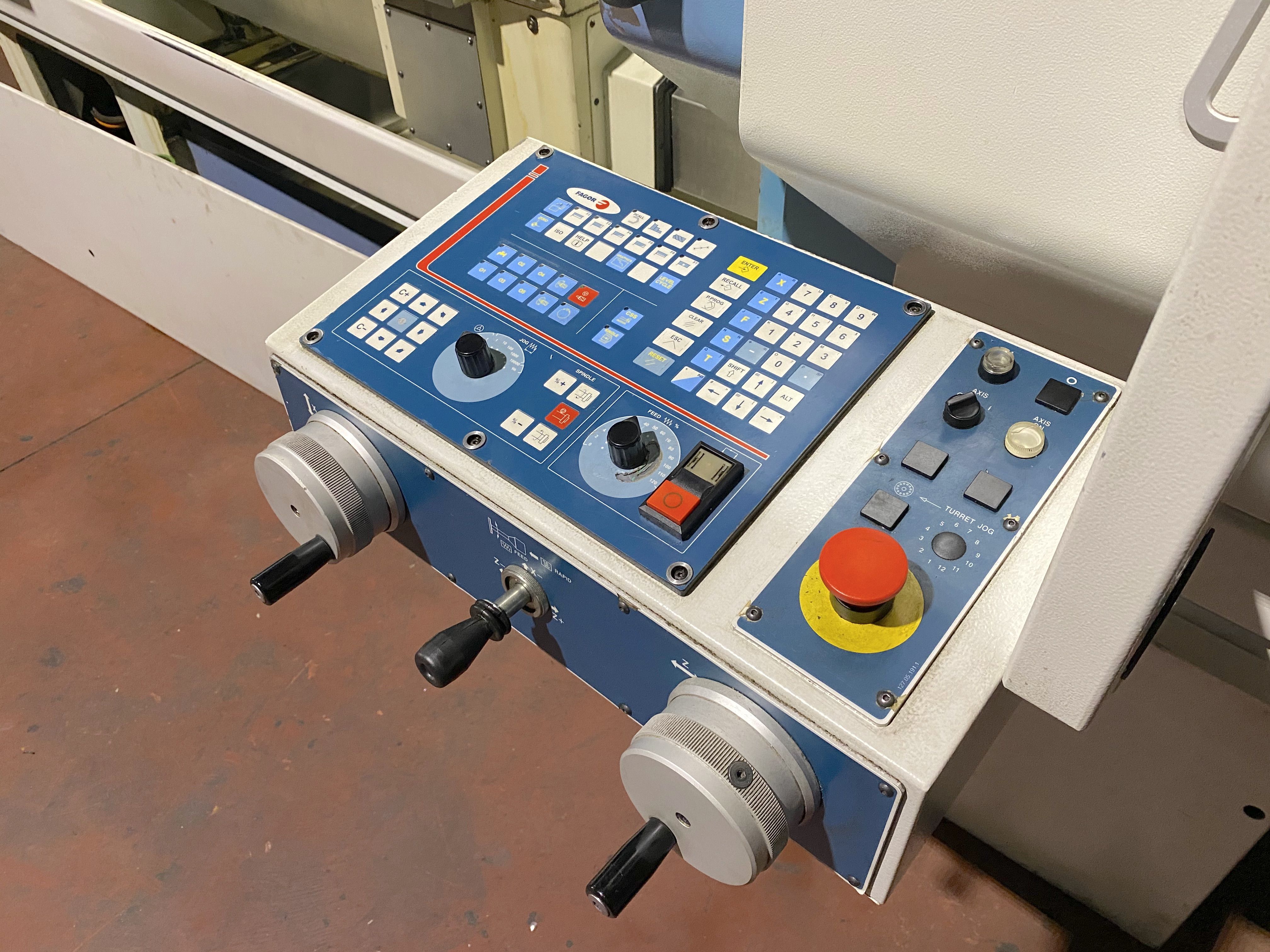

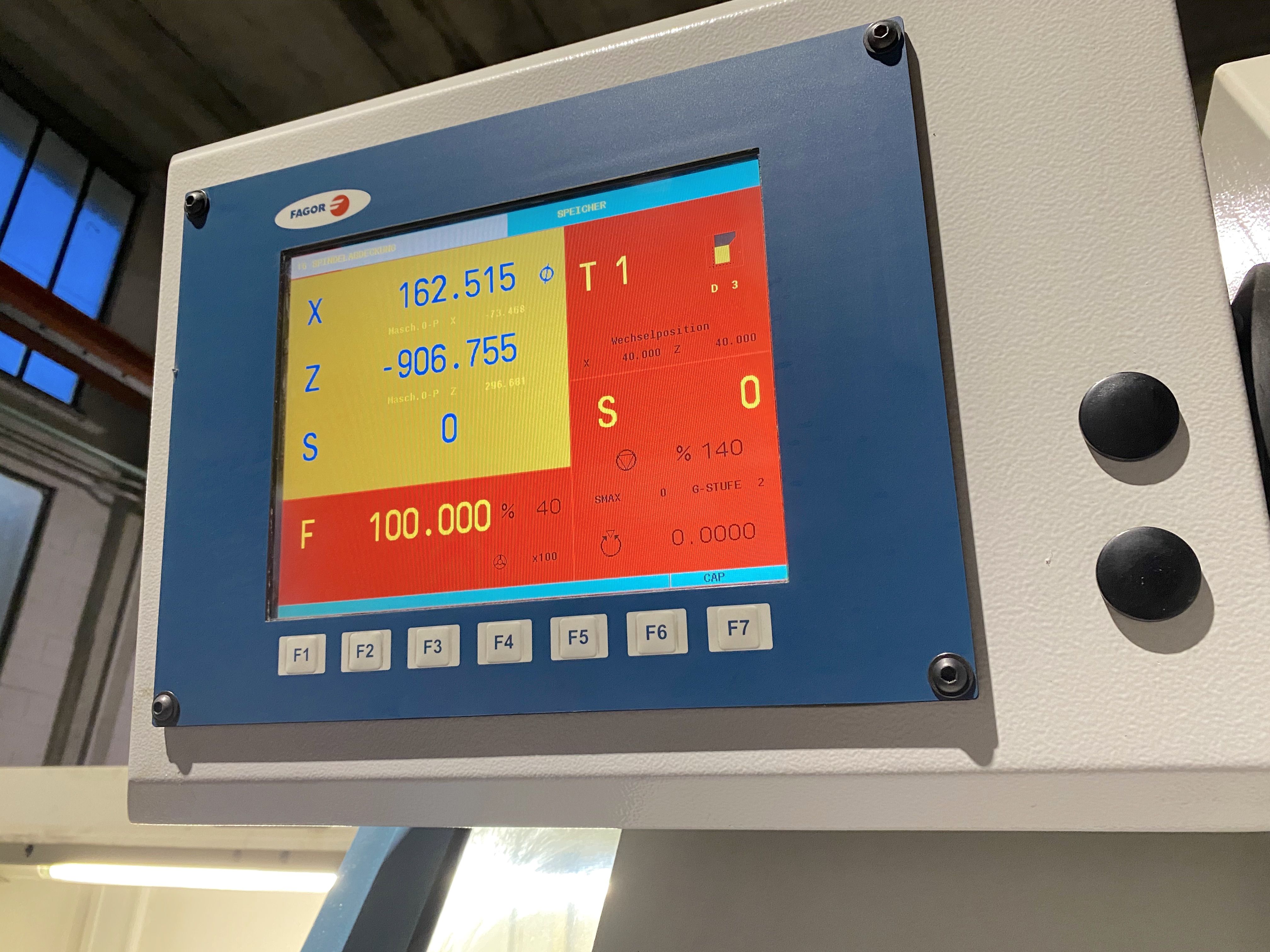

FAGOR 8055
SADDLE
X rapid feed
5000 mm/min196,8500 ipm
Z rapid feed
5000 mm/min196,8500 ipm
MAIN SPINDLE
Max rotation speed
1800 rpm
Spindle nose
CL8”
Spindle hole
105 mm4,13 in
Max power
9/13 Kw
Gearbox
SI

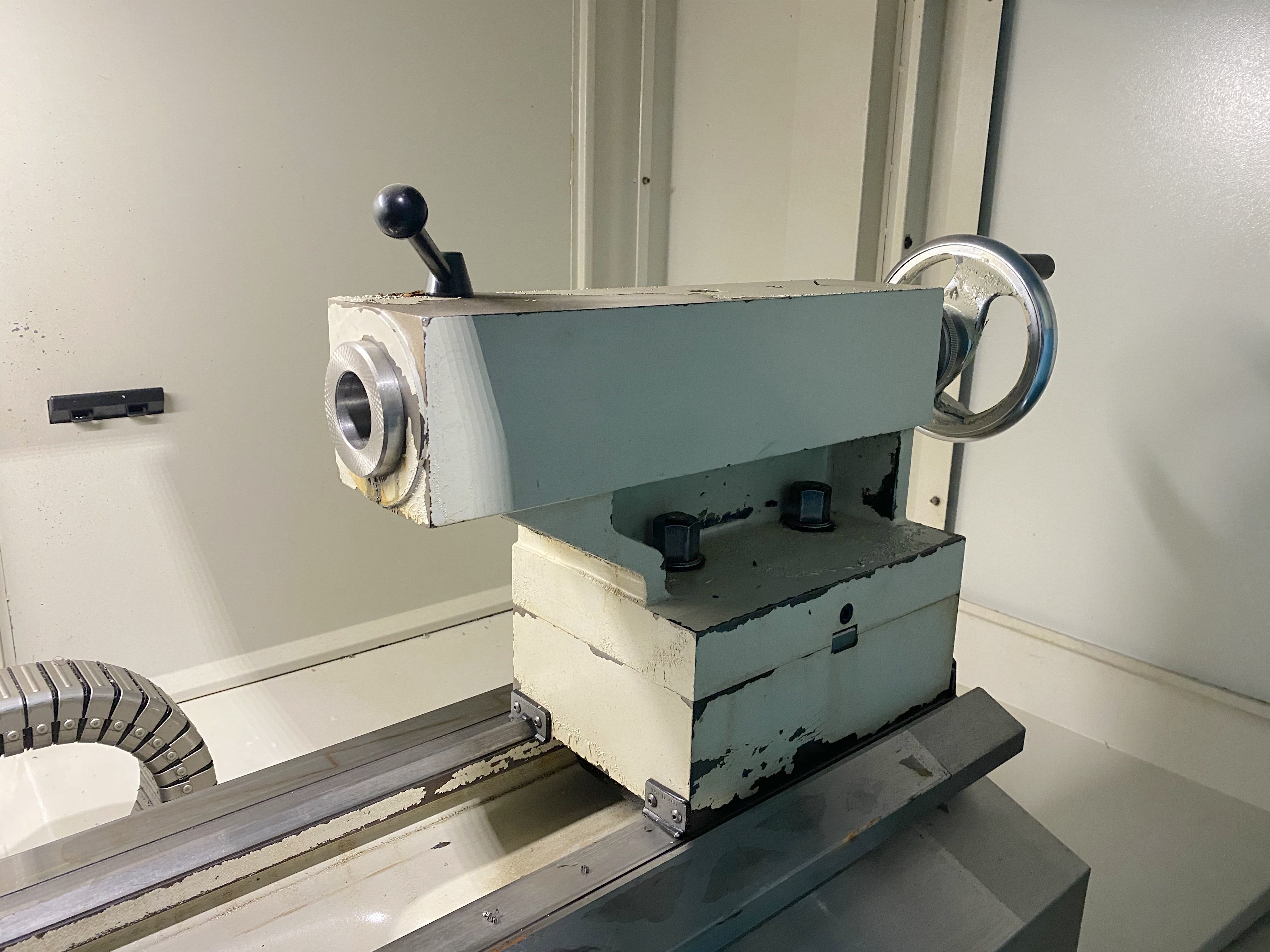

TAILSTOCK
Quill stroke
220 mm8,66 in
Quill diameter
68 mm2,68 in
Taper
CM5

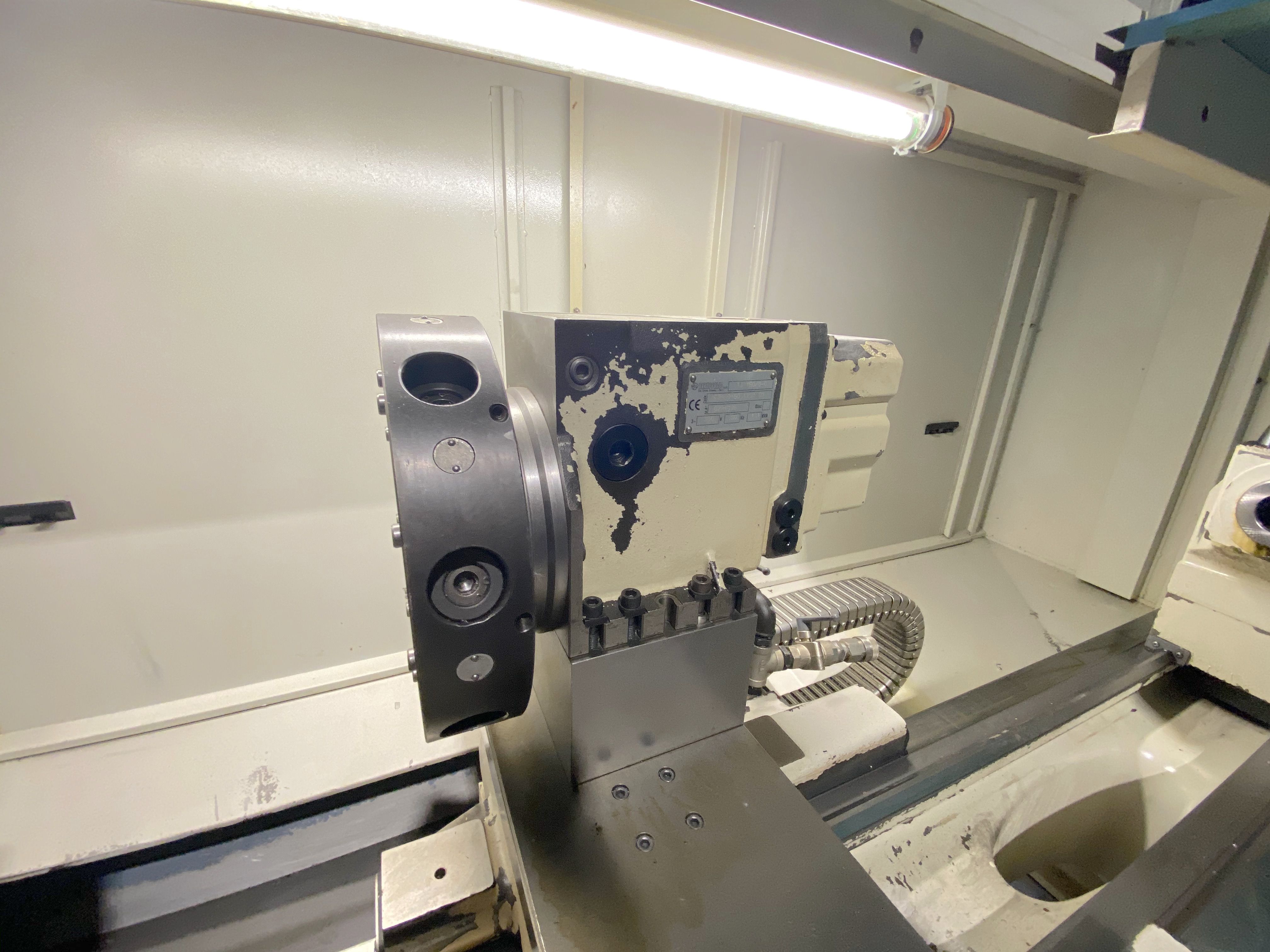

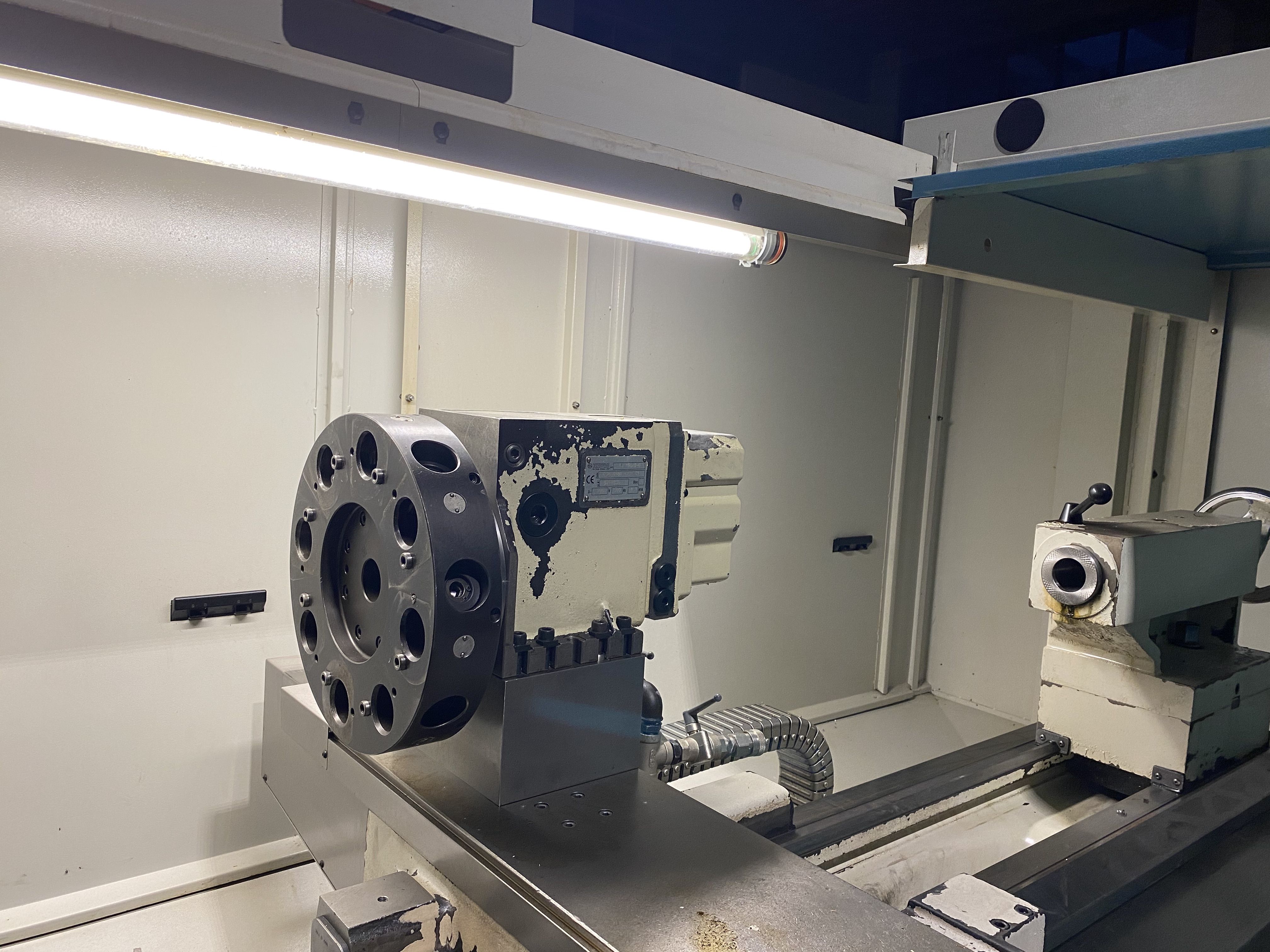

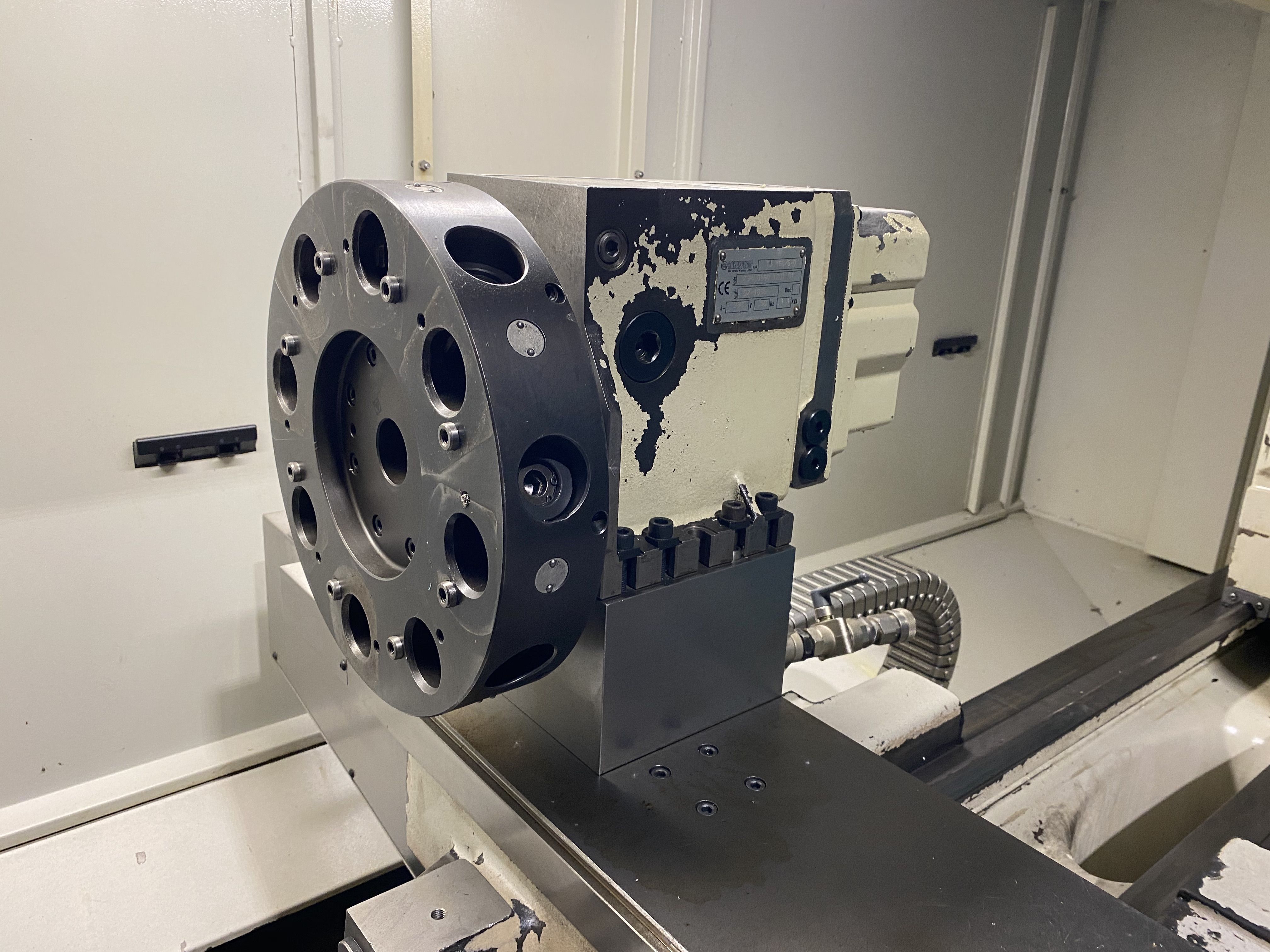

TURRET
Positions number
8
EXTRA
Total power supply
13 Kw

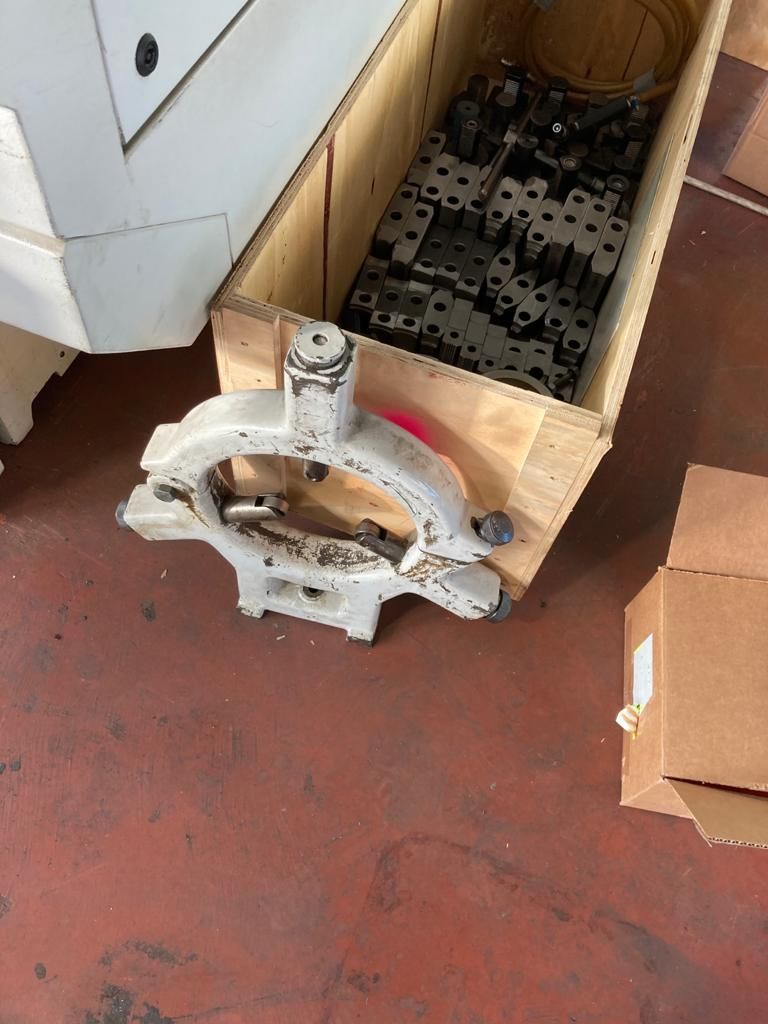

Closed steadies
1

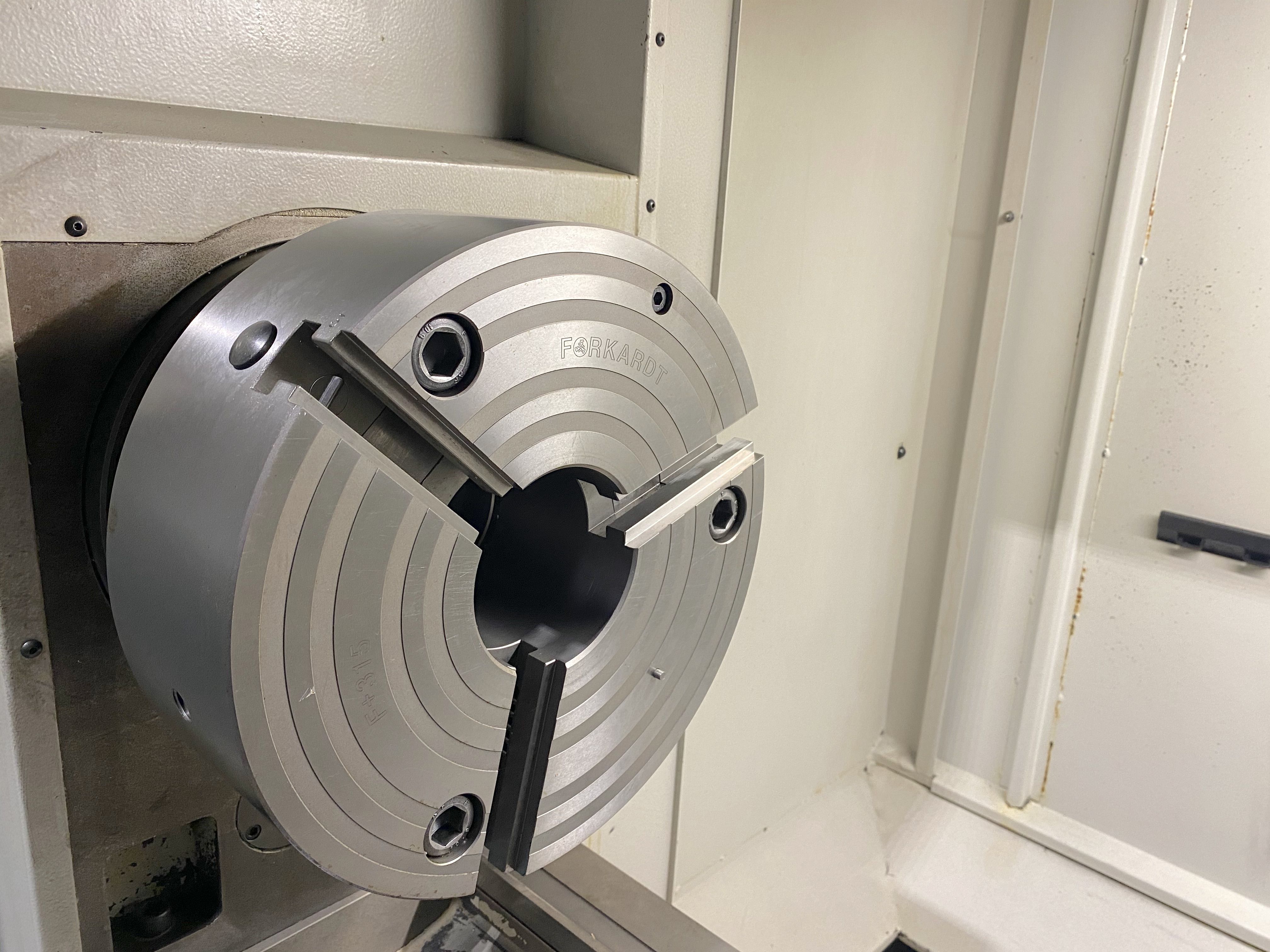

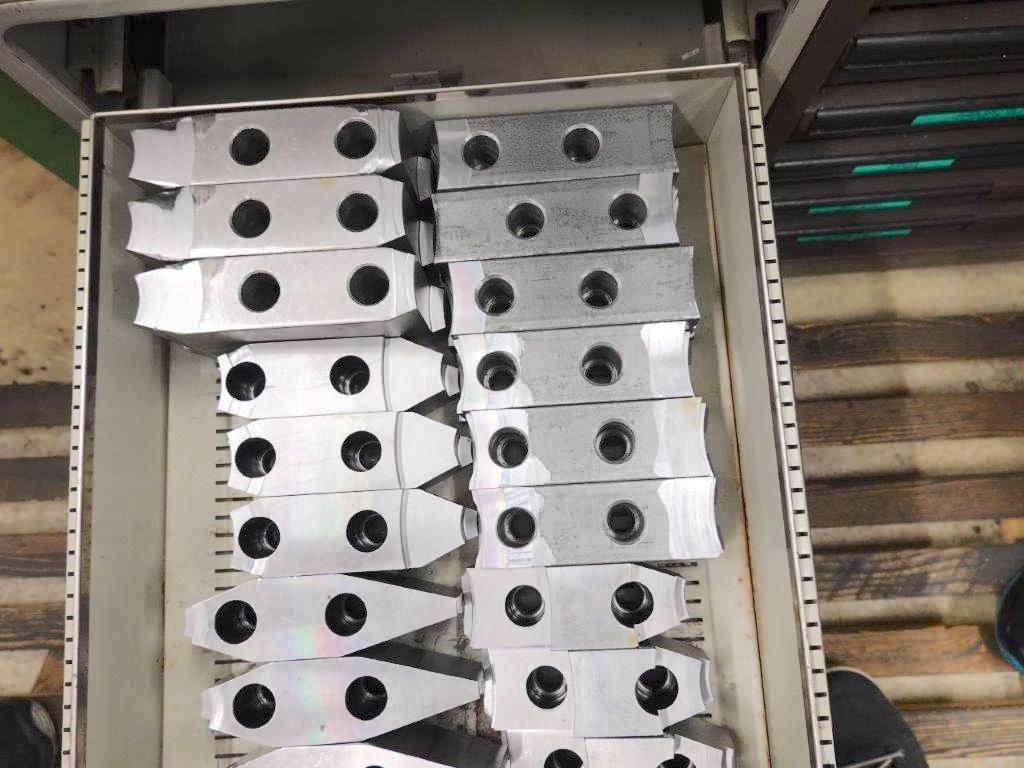

Autocentering chuck
Forkhardt con aggancio rapido
CE Certification
Yes

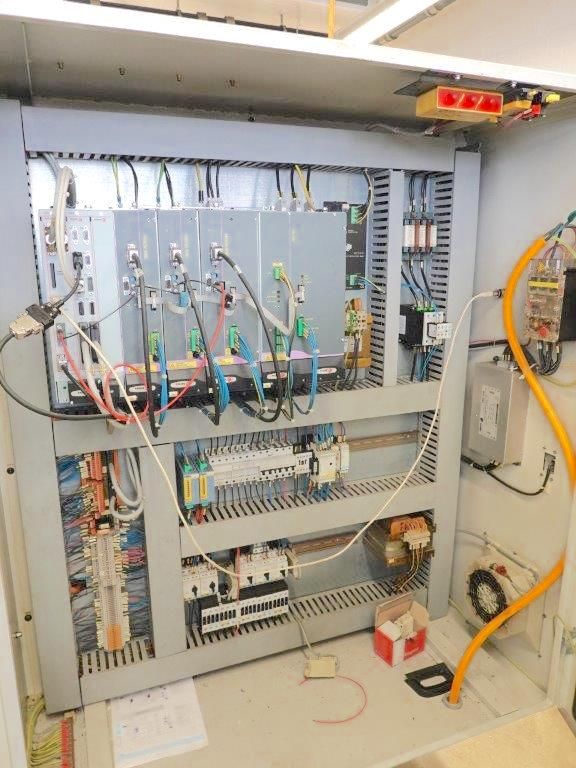

Electrical drawings
Yes
Maintenance & Use books
Yes
