Category
Turning Machine
Type
Teach in
Made
Model

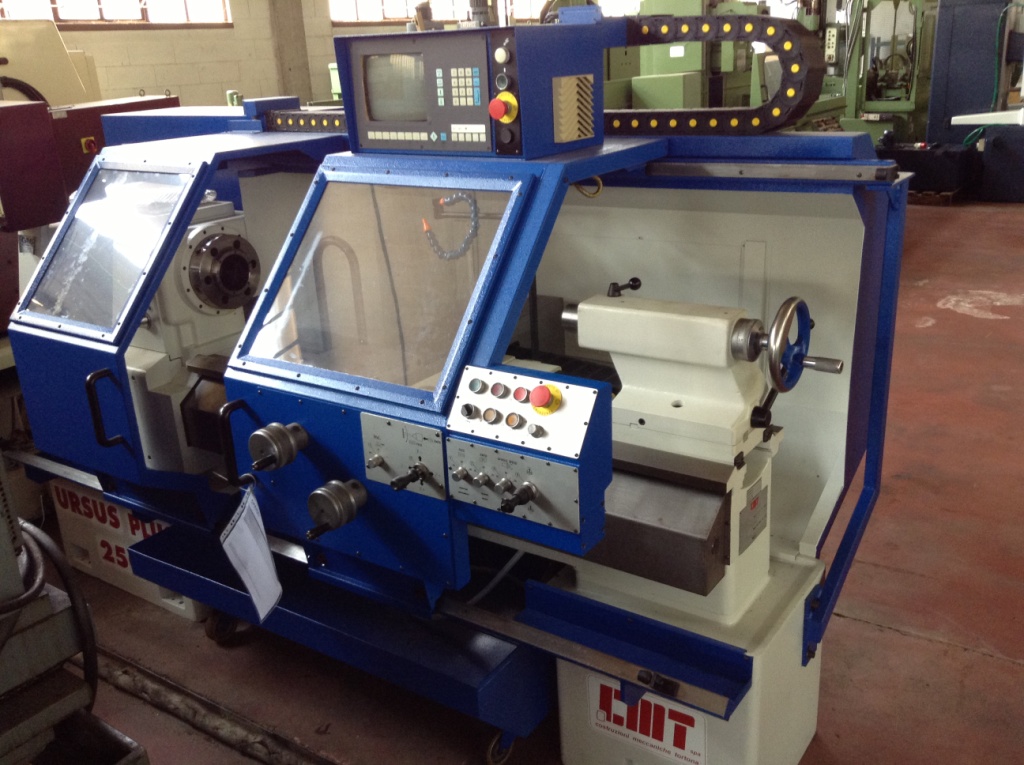

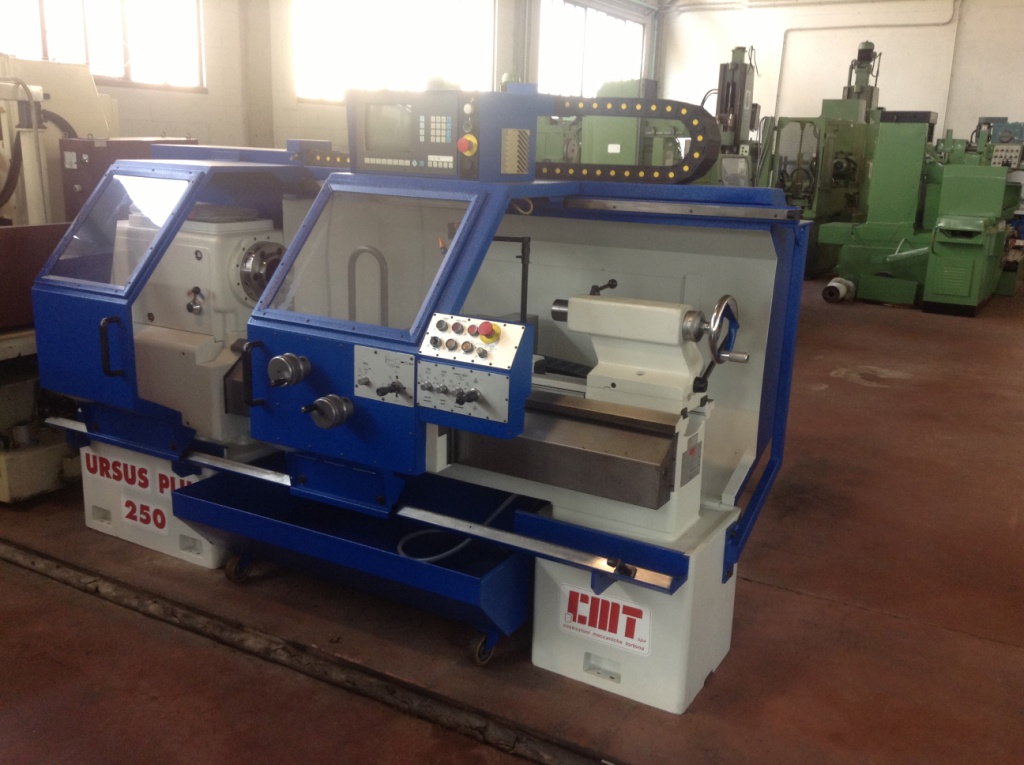

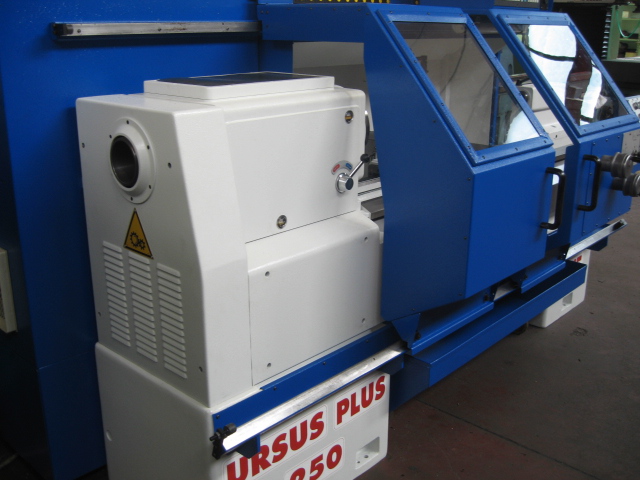

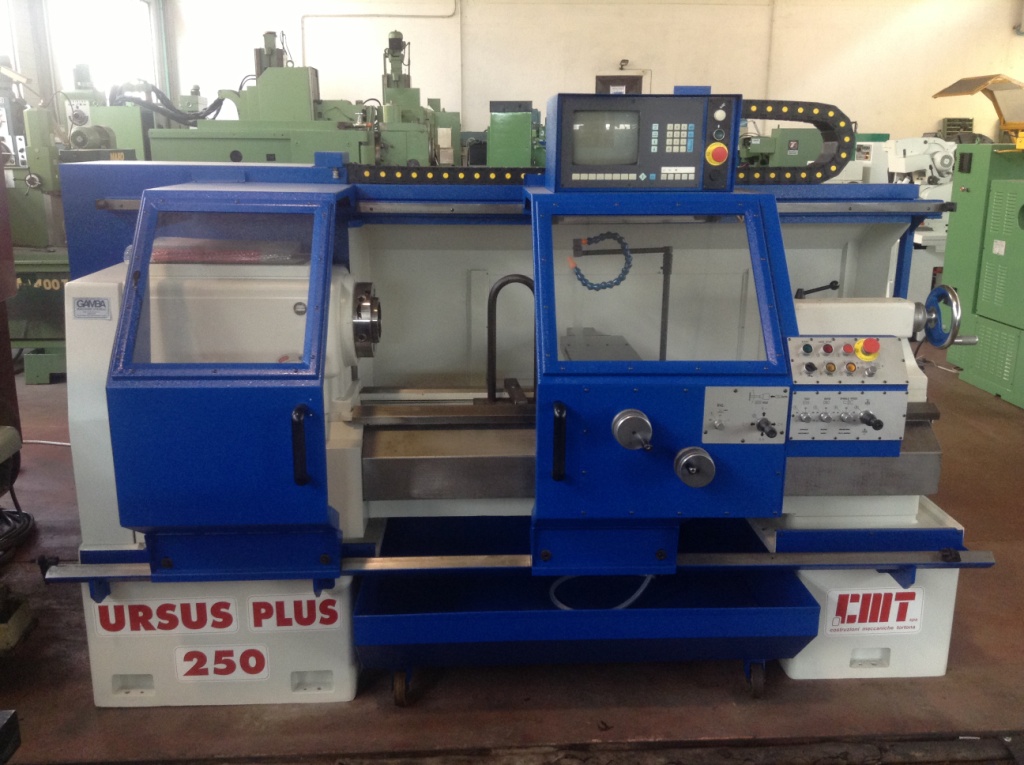

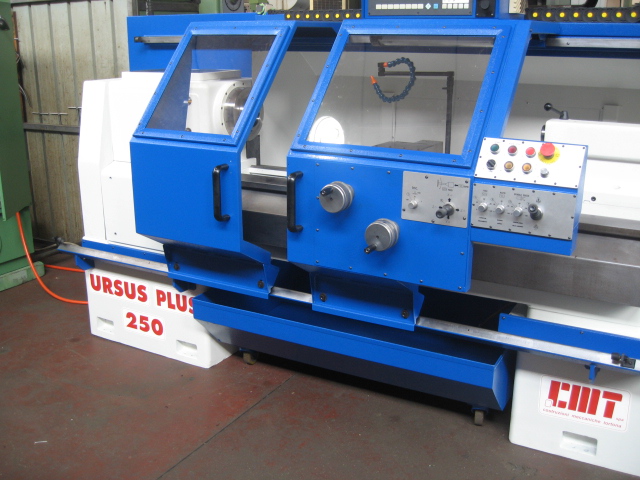

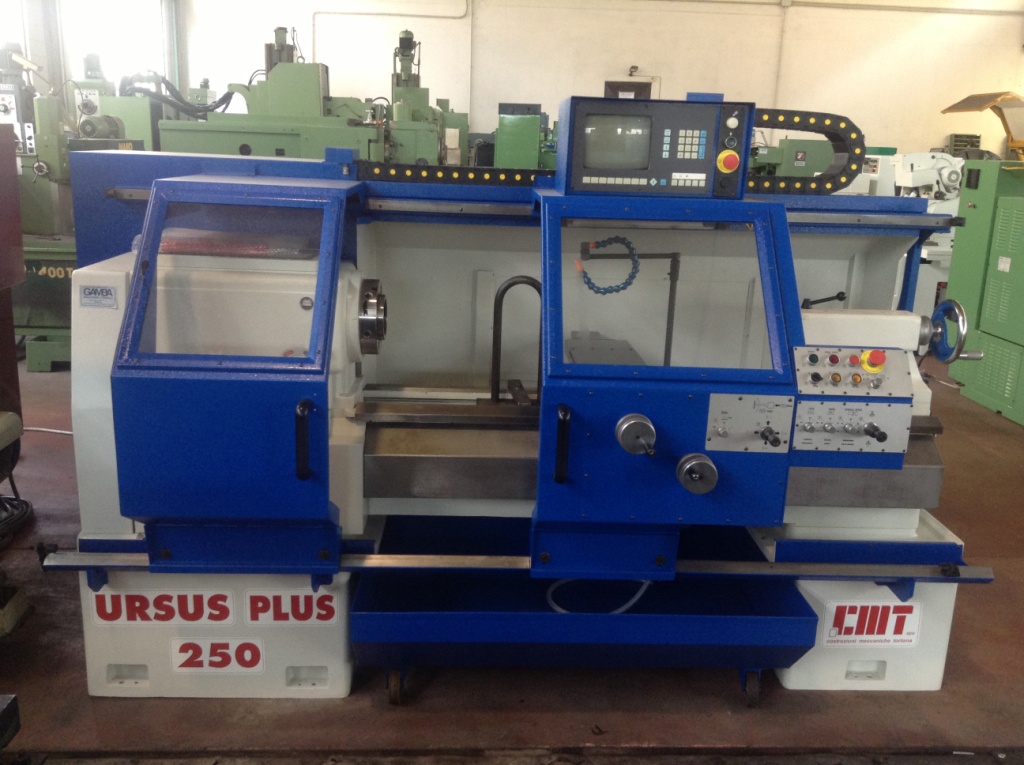

URSUS PLUS 250
Capacity
505x1000x105 mm19,88x39,37x4,13 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Bed width
330 mm12,99 in
Max bar working diameter
105 mm4,13 in
Max swing on the bed
505 mm19,88 in
Max swing on saddle
265 mm10,43 in
Max working lenght
1000 mm39,37 in
Guide-ways number
2

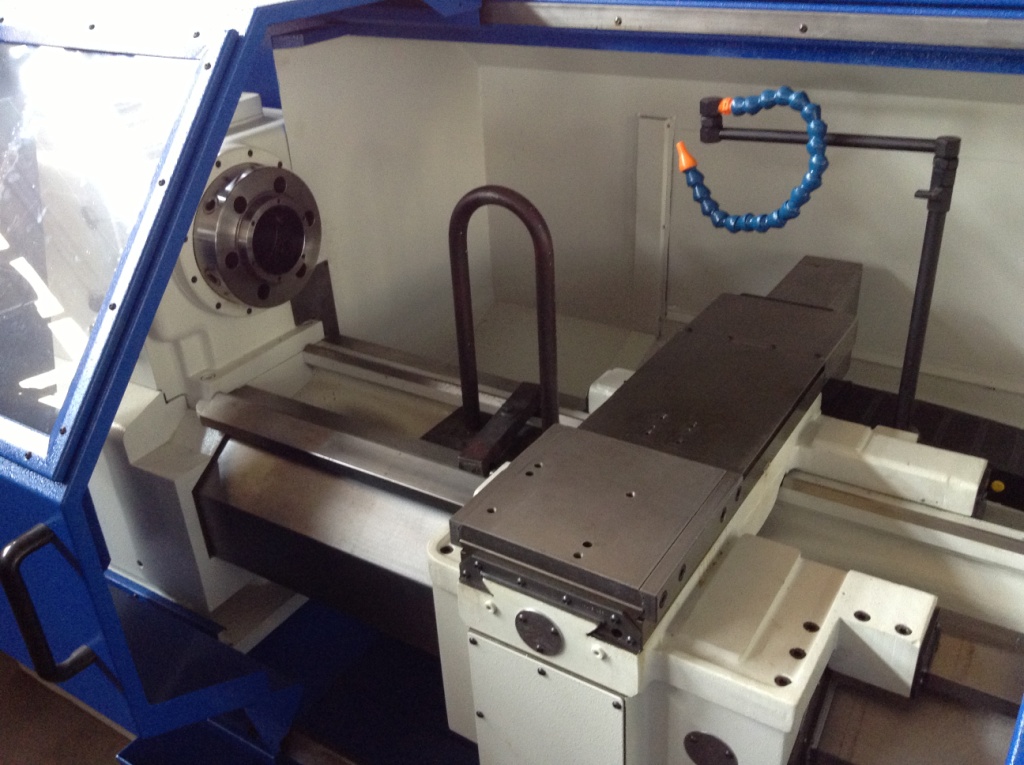

SADDLE
X rapid feed
5000 mm/min196,8500 ipm
Z rapid feed
5000 mm/min196,8500 ipm
Z stroke
1000 nn
X stroke
240 mm9,45 in

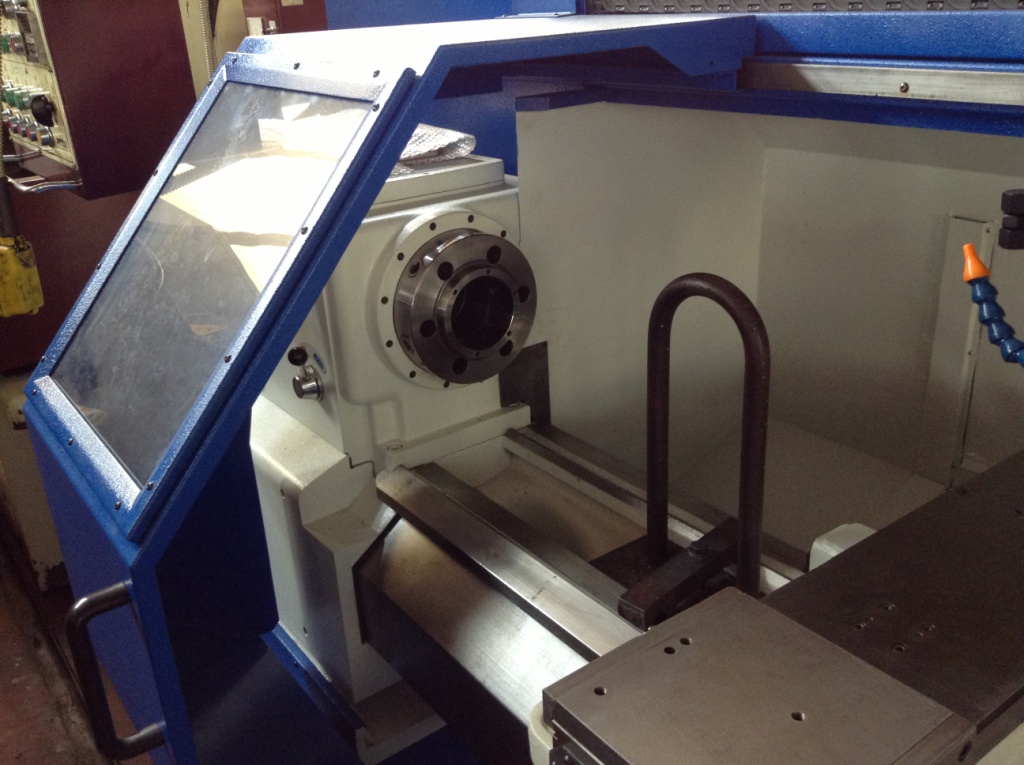

MAIN SPINDLE
Max rotation speed
2000 rpm
Spindle hole
105 mm4,13 in
Spindle nose
CL 8”
Max power
7,5 Kw
TAILSTOCK
Taper
MK5
Quill diameter
68 mm2,68 in
Quill stroke
220 mm8,66 in

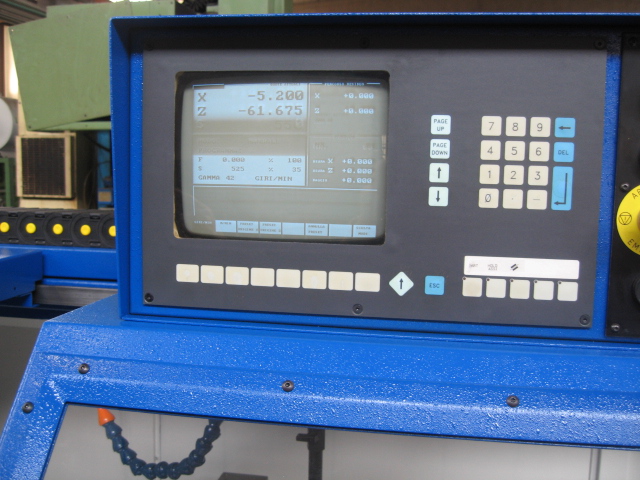

CNC
CNC
Vidue
EXTRA
Protections
integrali scorrevoli
Availability
pronta consegna
Available in stock
Yes
Available under power
Yes
Relevant updates made on the machine
Rettifica banco, carro, sottotesta, sostituzione turcite, cuscinetti, riverniciatura completa a spruzzo, ricablaggio elettrico, collaudo geometrico
Total power supply
12 Kw
Machine total weight
2800 Kg
Floor space
3000x1500x1800 mm118,11x59,06x70,87 in
Maintenance & Use books
Yes

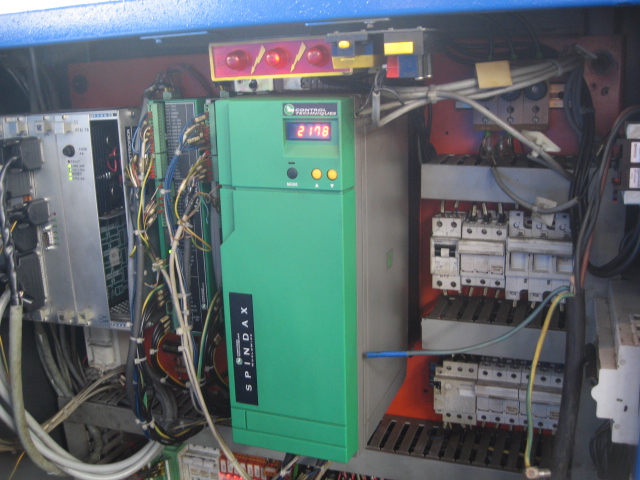

Electrical drawings
Yes
