Category
Turning Machine
Type
CNC
Made
Model
FTD/C 122/820
Capacity
ø3000(2550)x9000 mmø118,11(100,39)x354,33 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Max diameter on bed
3000 mm118,11 in
Max diameter on cross-slide
2550 mm100,39 in
Max working lenght
9000 mm354,33 in
Guide-ways number
4
Bed width
1600 (900+700) mm62,99 (35,43+27,56) in
FLAT BED
Guide-ways number
4

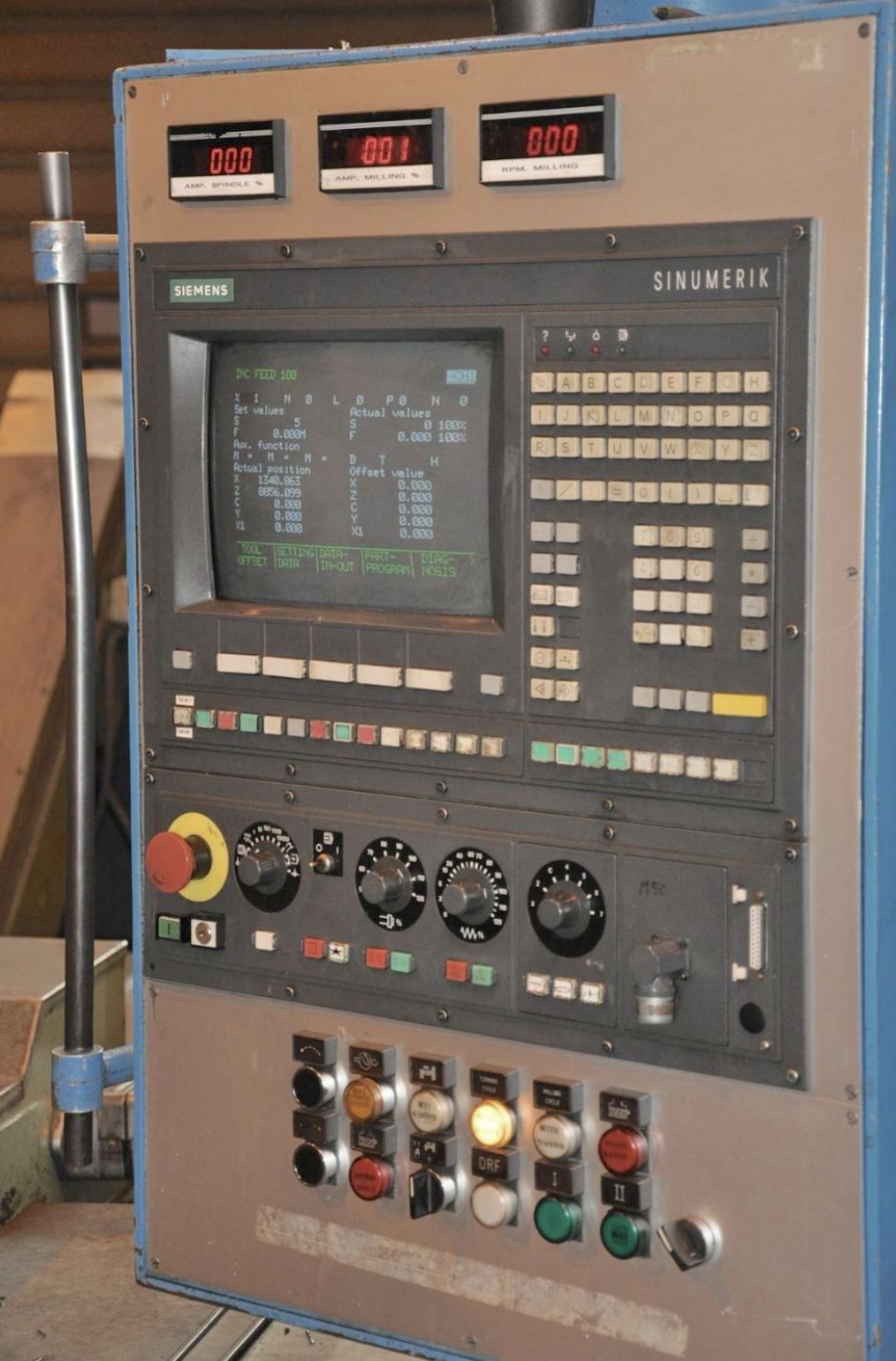

CNC
CNC
SIEMENS 820T
Axis stroke Y
800 (+/-400) mm31,50 (+/-15,75) in
Axis stroke X
1300 mm51,18 in
Rapid feed X
6 m/min236,22 ipm
Rapid feed Z
6 m/min236,22 ipm
Axis stroke Z
9000 mm354,33 in
Driven tools power
15 Kw
Driven tools speed
2 Gamme 1300 rpm
TURRET 2
Positions number
1
Driven tools speed
3000 rpm
TURRET 4
Positions number
Porta Bareni

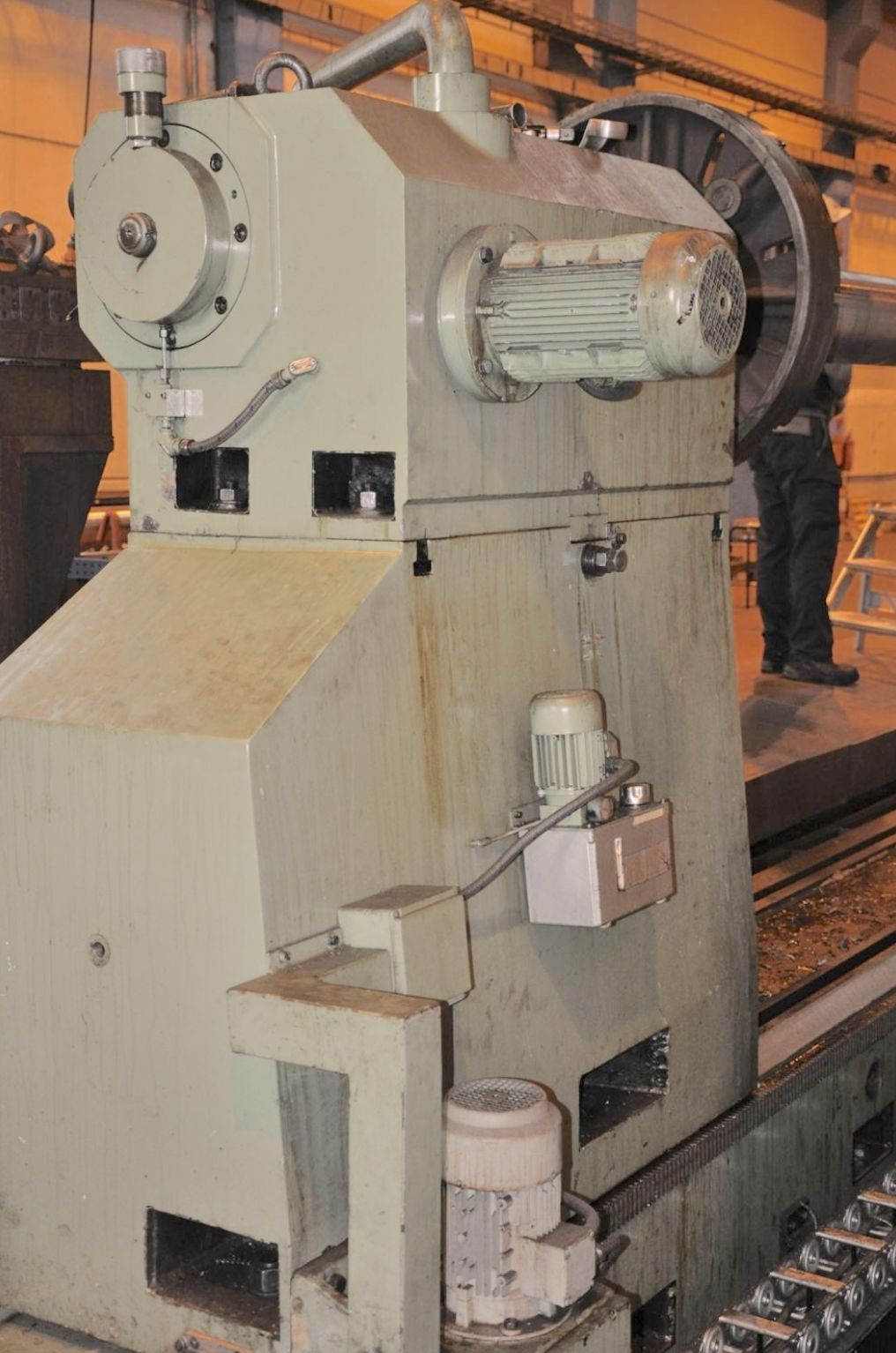

MAIN SPINDLE
Max rotation speed
400 rpm
Gearbox
1: 10-44Rpm | 2: 44-133Rpm | 3: 133-400Rpm
Spindle hole
120 mm4,72 in

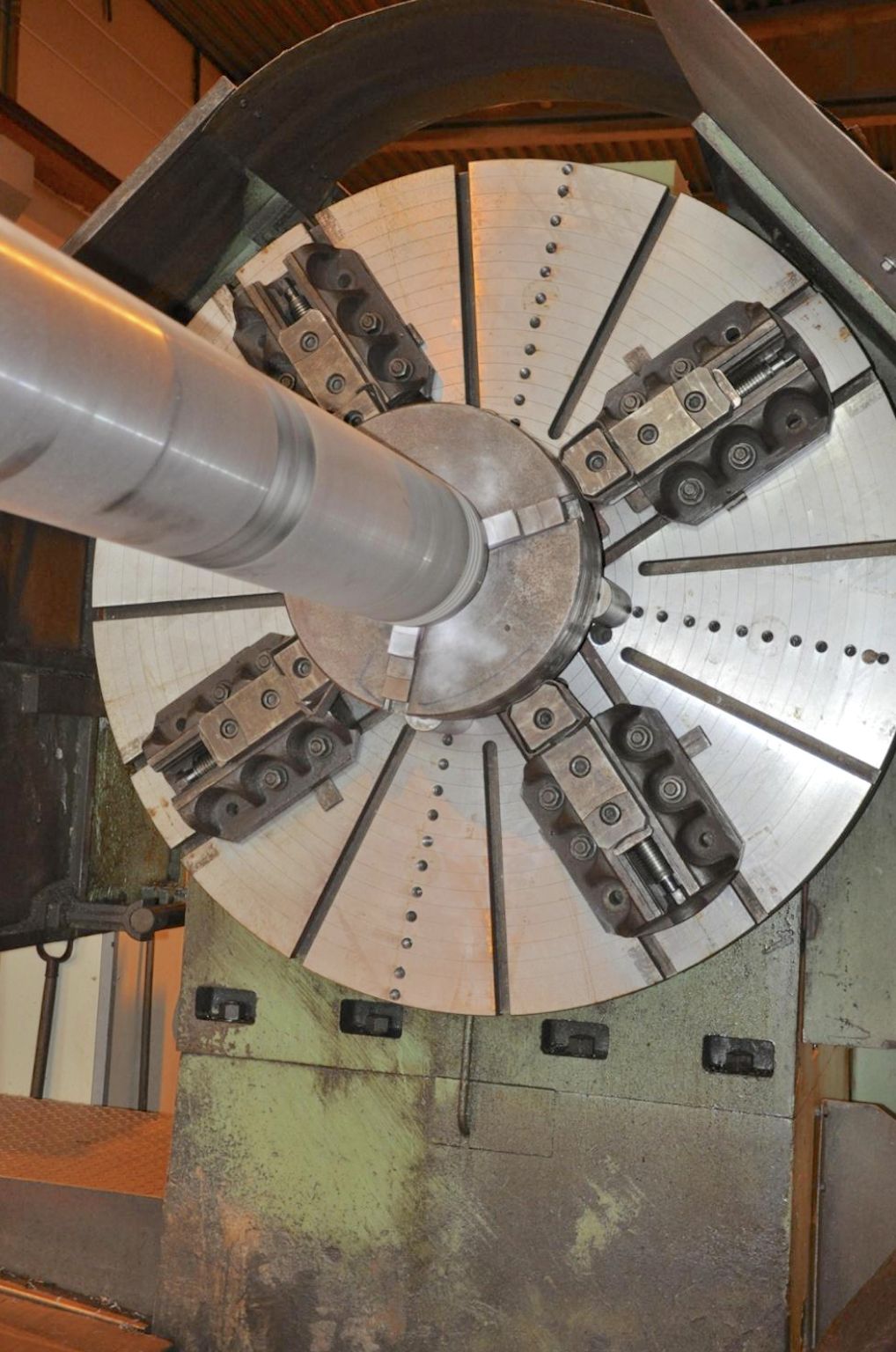

Chuck diameter
1500 mm59,06 in
Max power
56 Kw
Max torque
25000 Nm

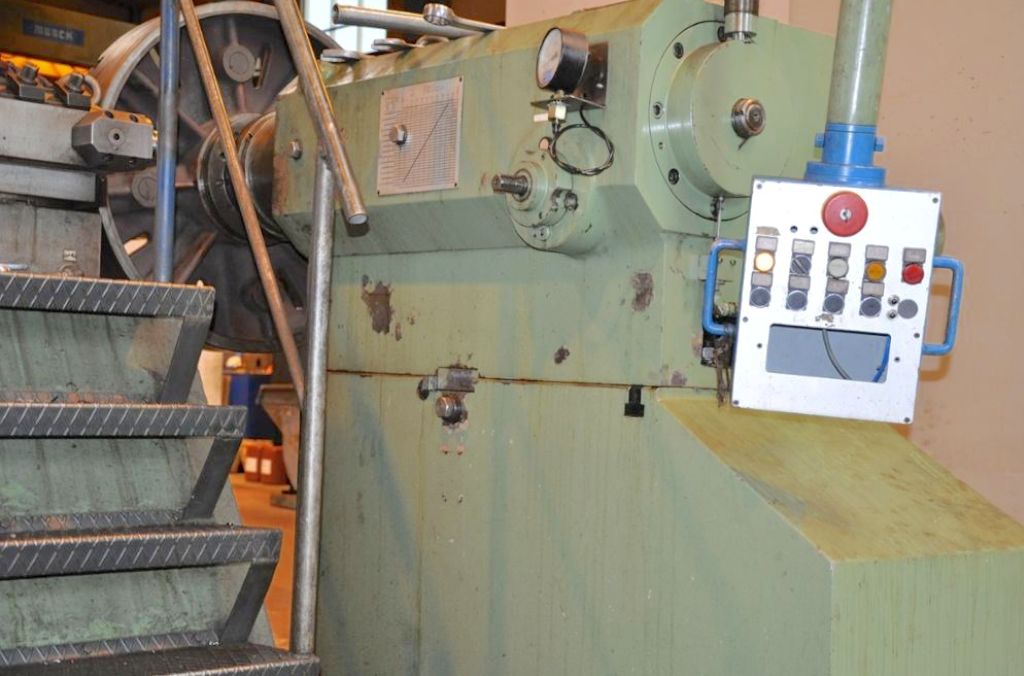

TAILSTOCK
Quill diameter
250 mm9,84 in
Quill stroke
20 mm0,79 in
Taper
80
EXTRA

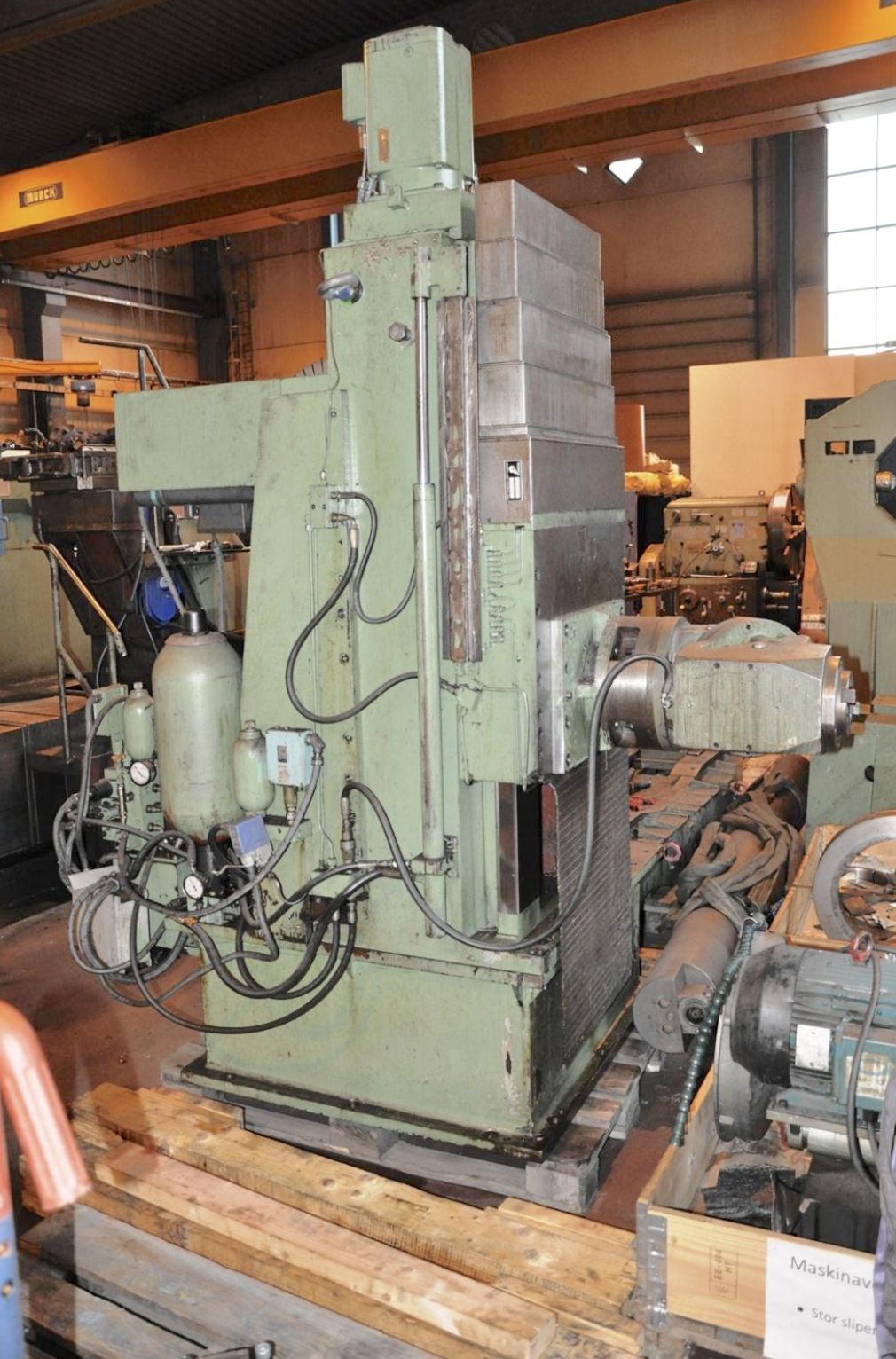

Grinding head attachment
-1

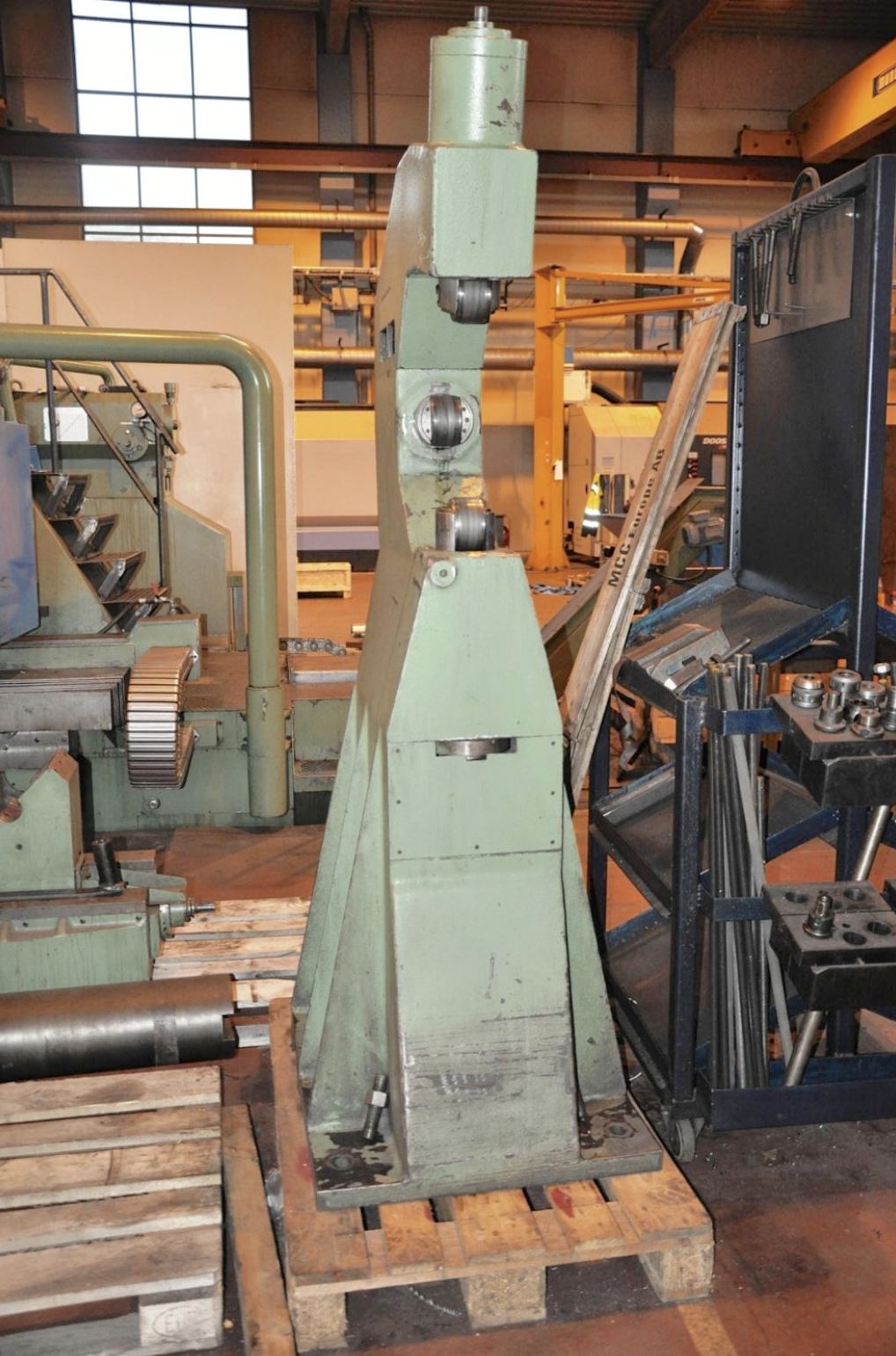

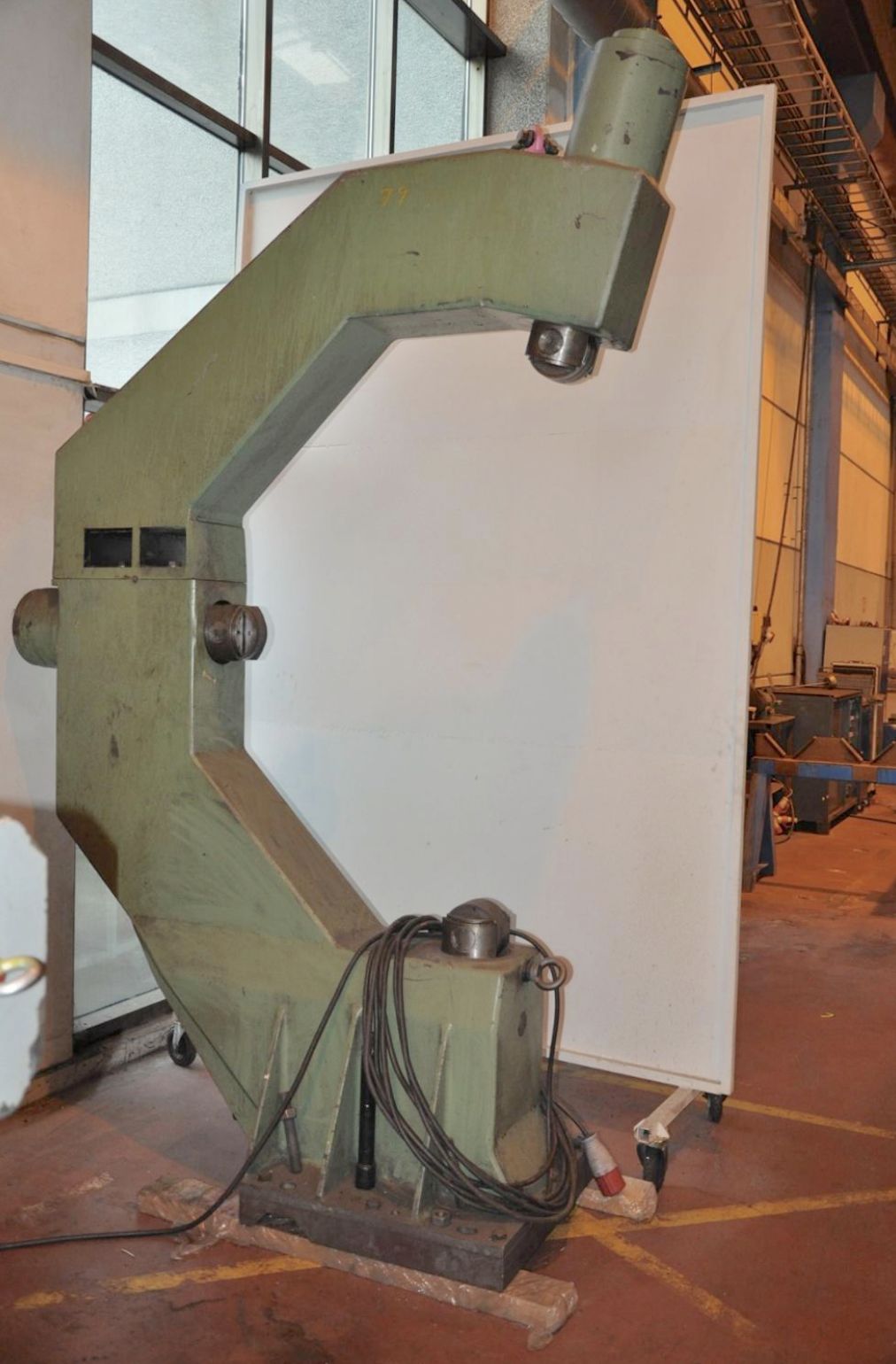

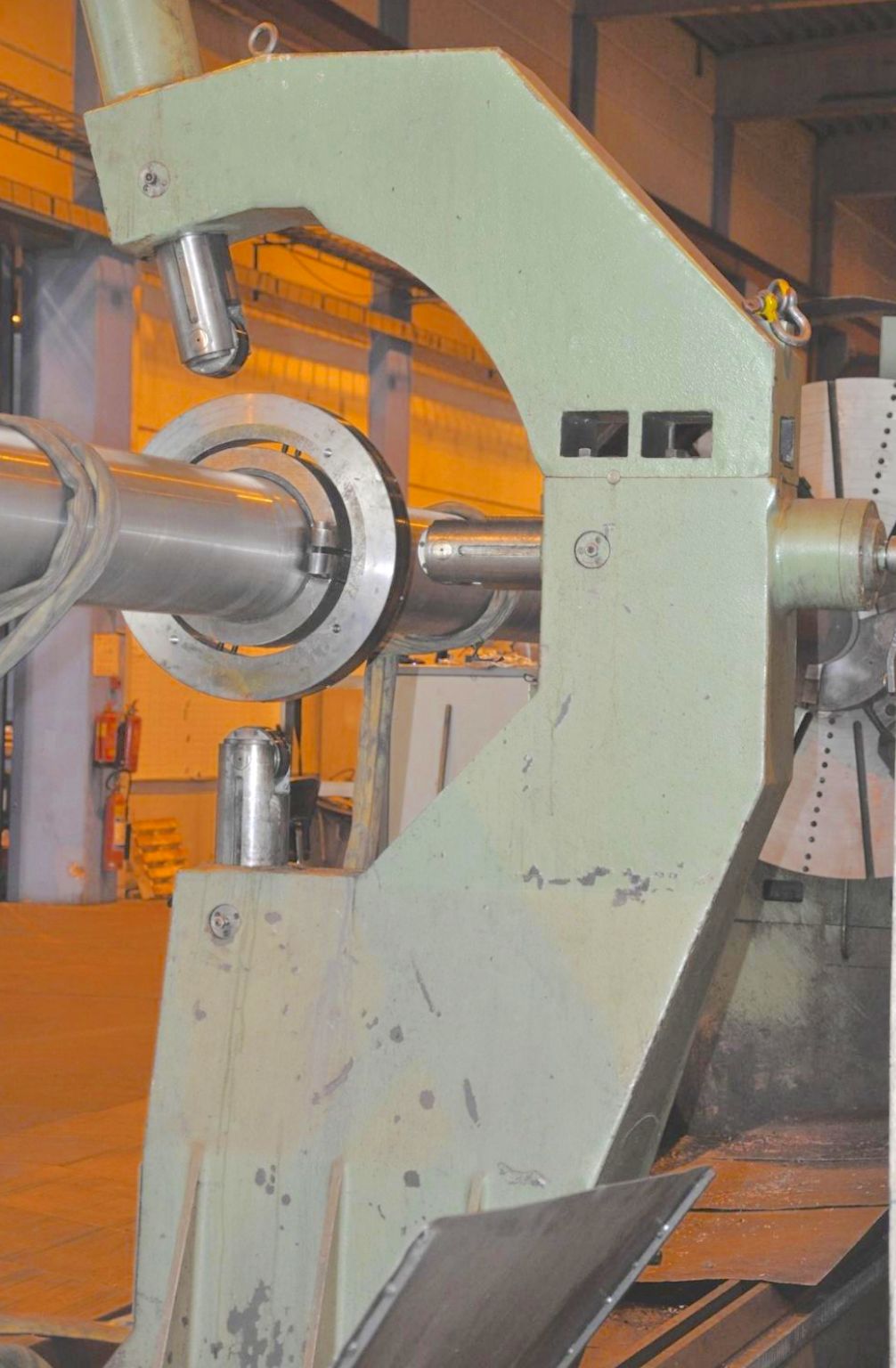

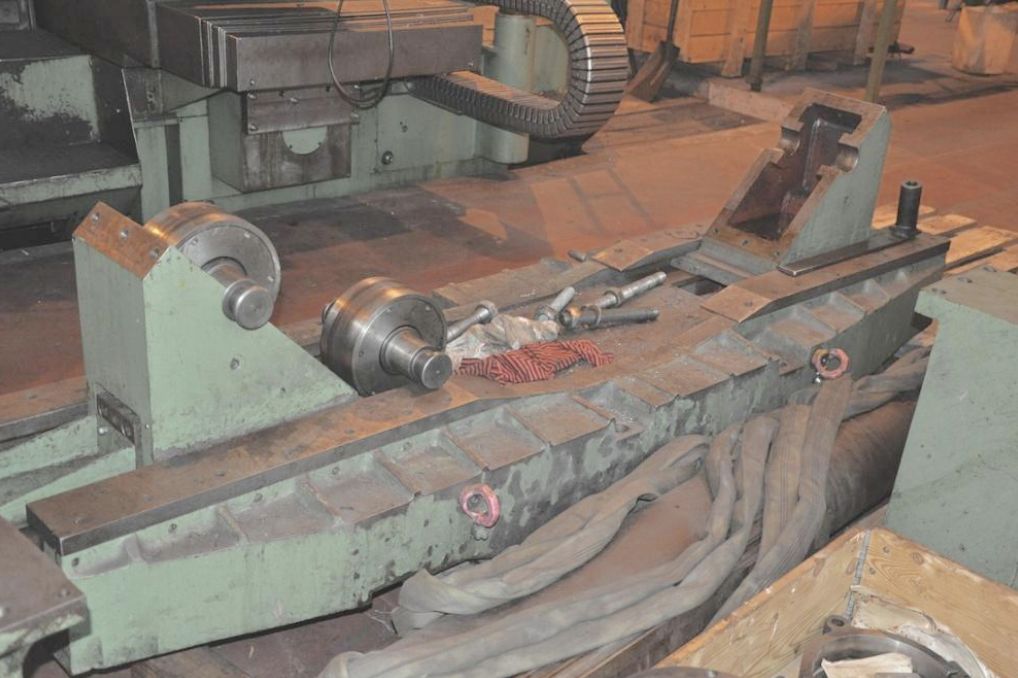

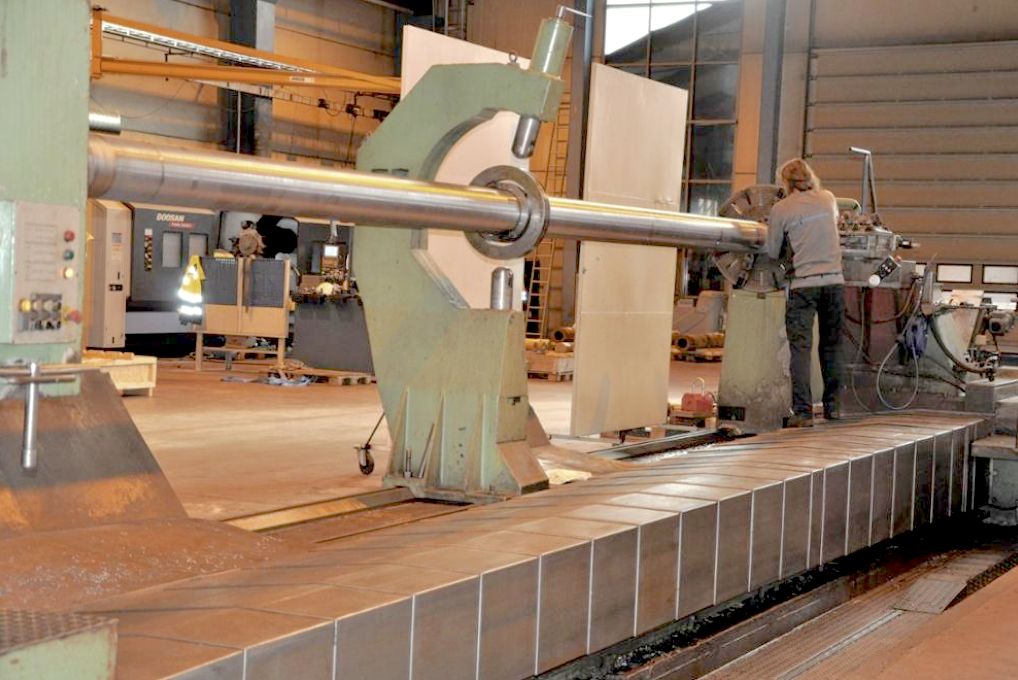

Open steadies
1 lunetta 100-500mm a C 1 lunetta 400-1000mm a C 1 lunetta a slitte 2550mm

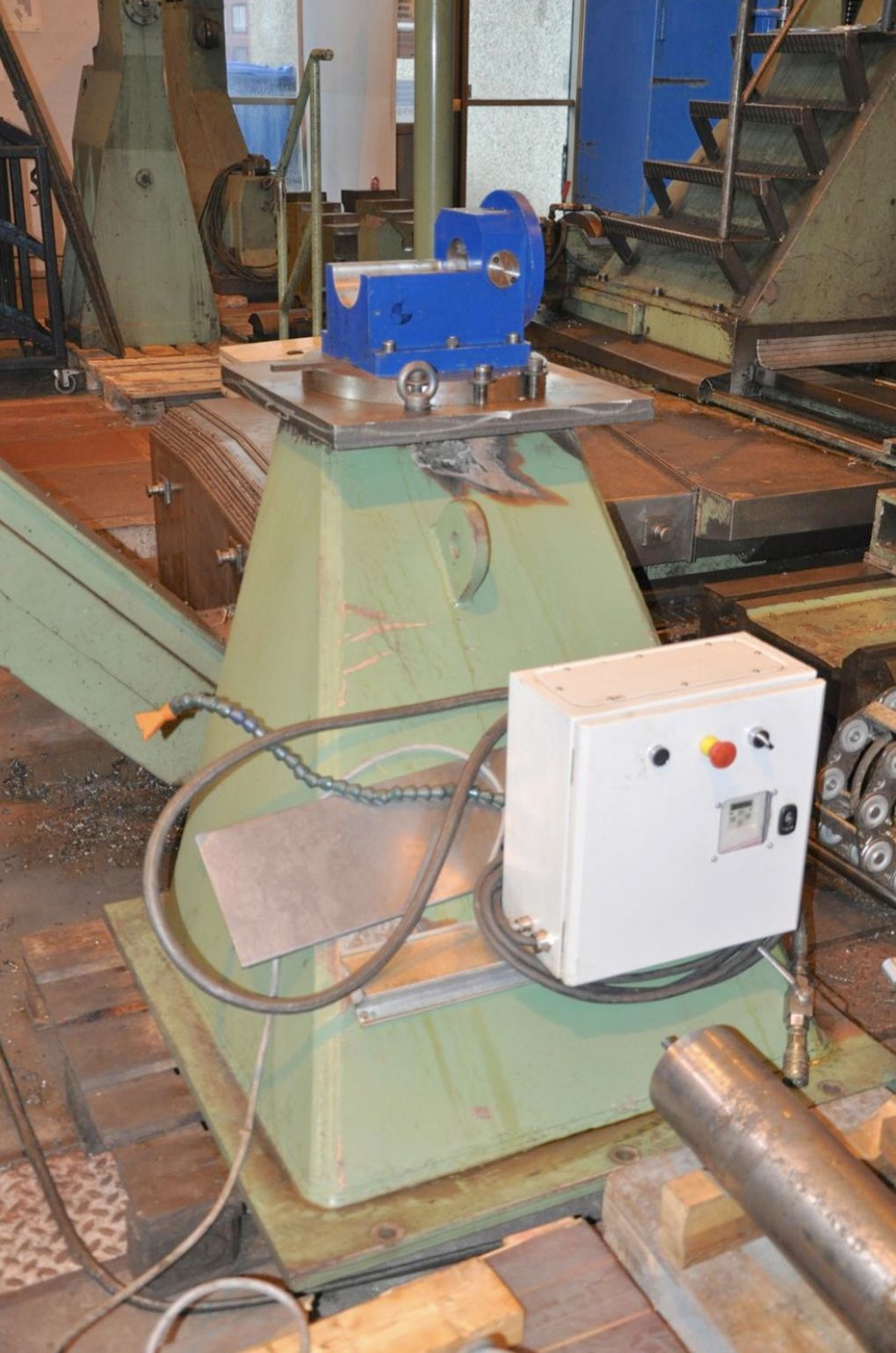

Platform
ø1500mm

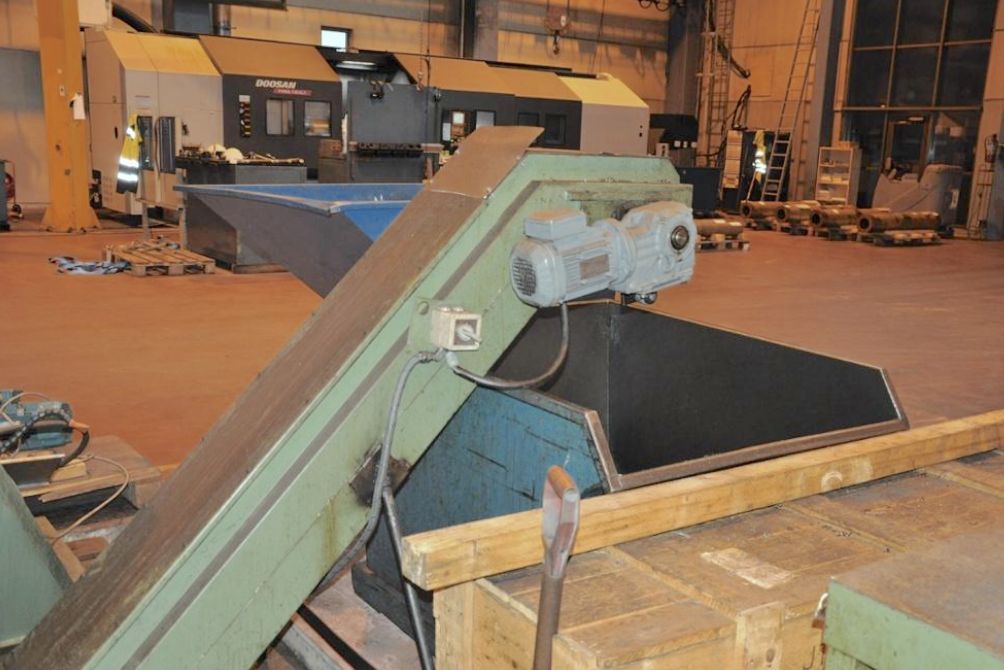

Chip conveyor
SI
Machine total weight
≈70.000 Kg
