Category
Turning Machine
Type
CNC
Made
Model

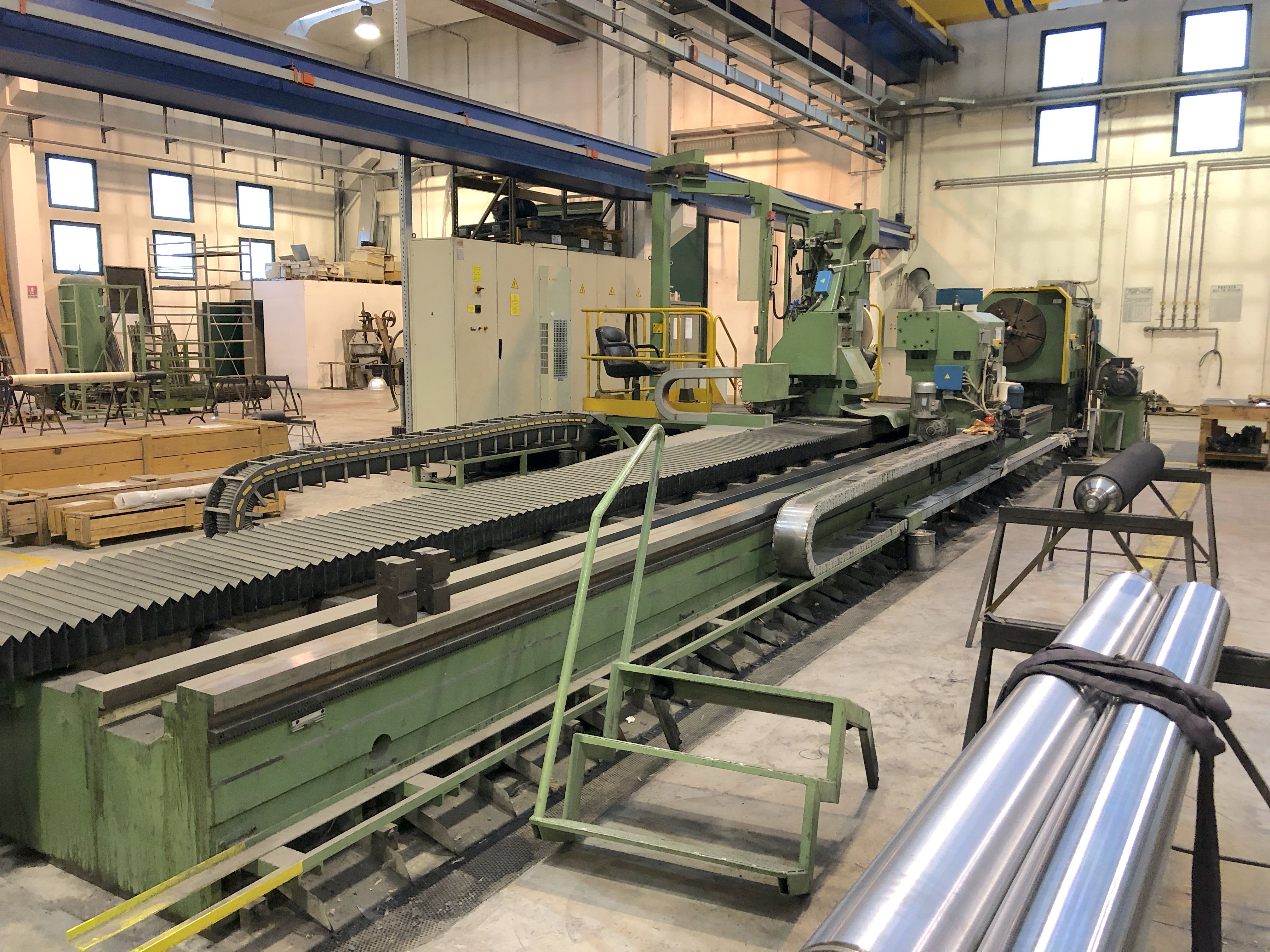

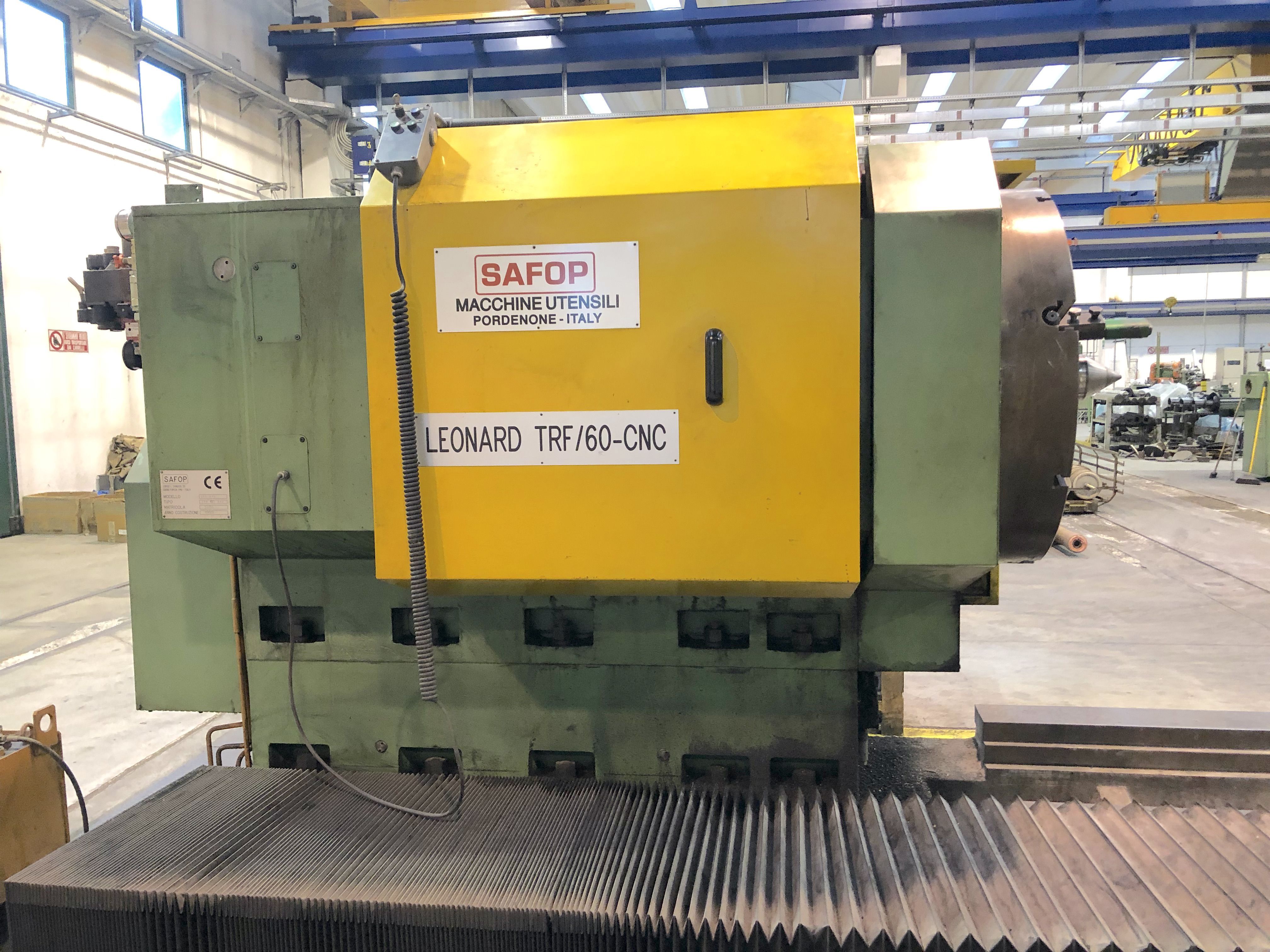

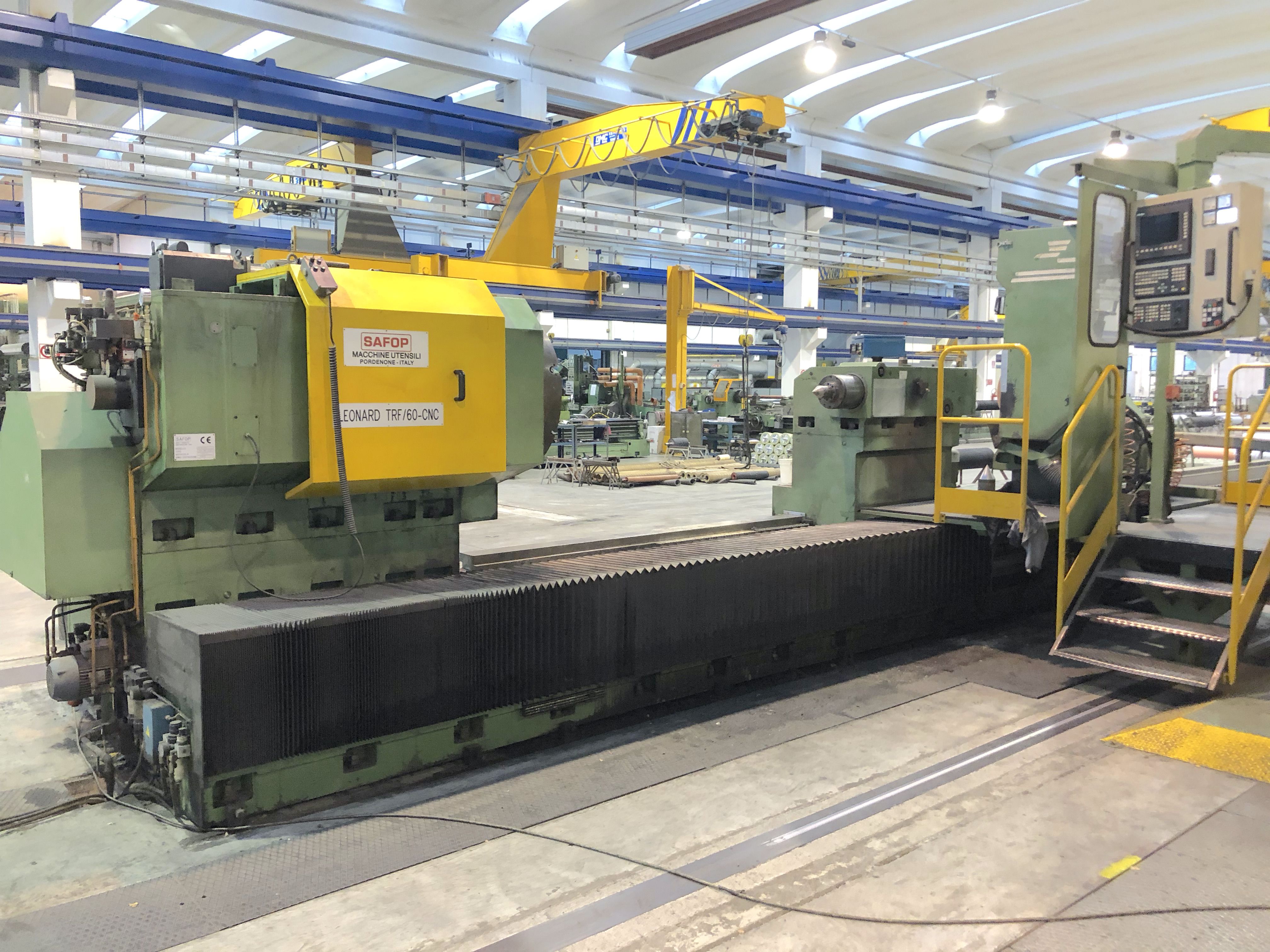

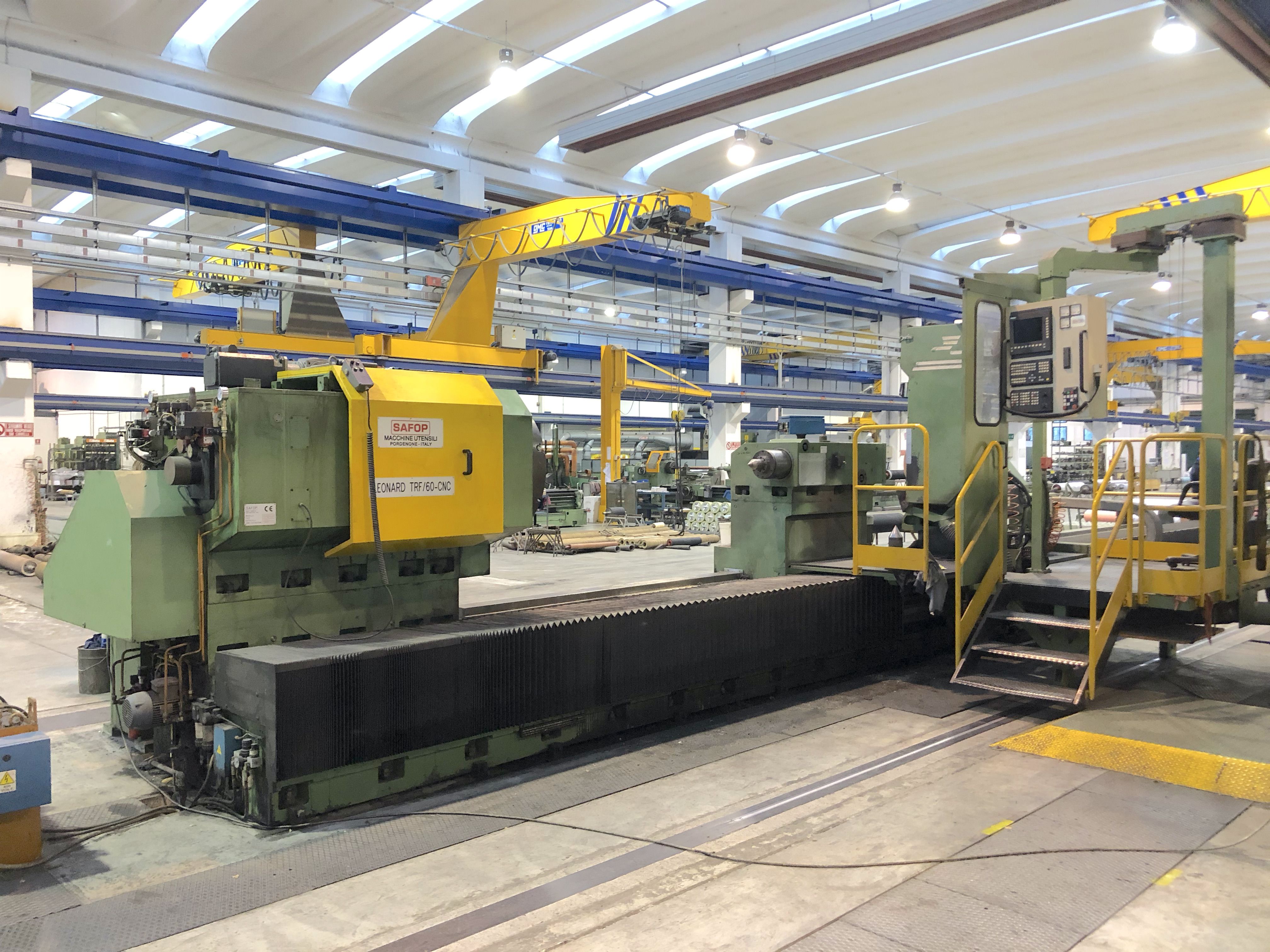

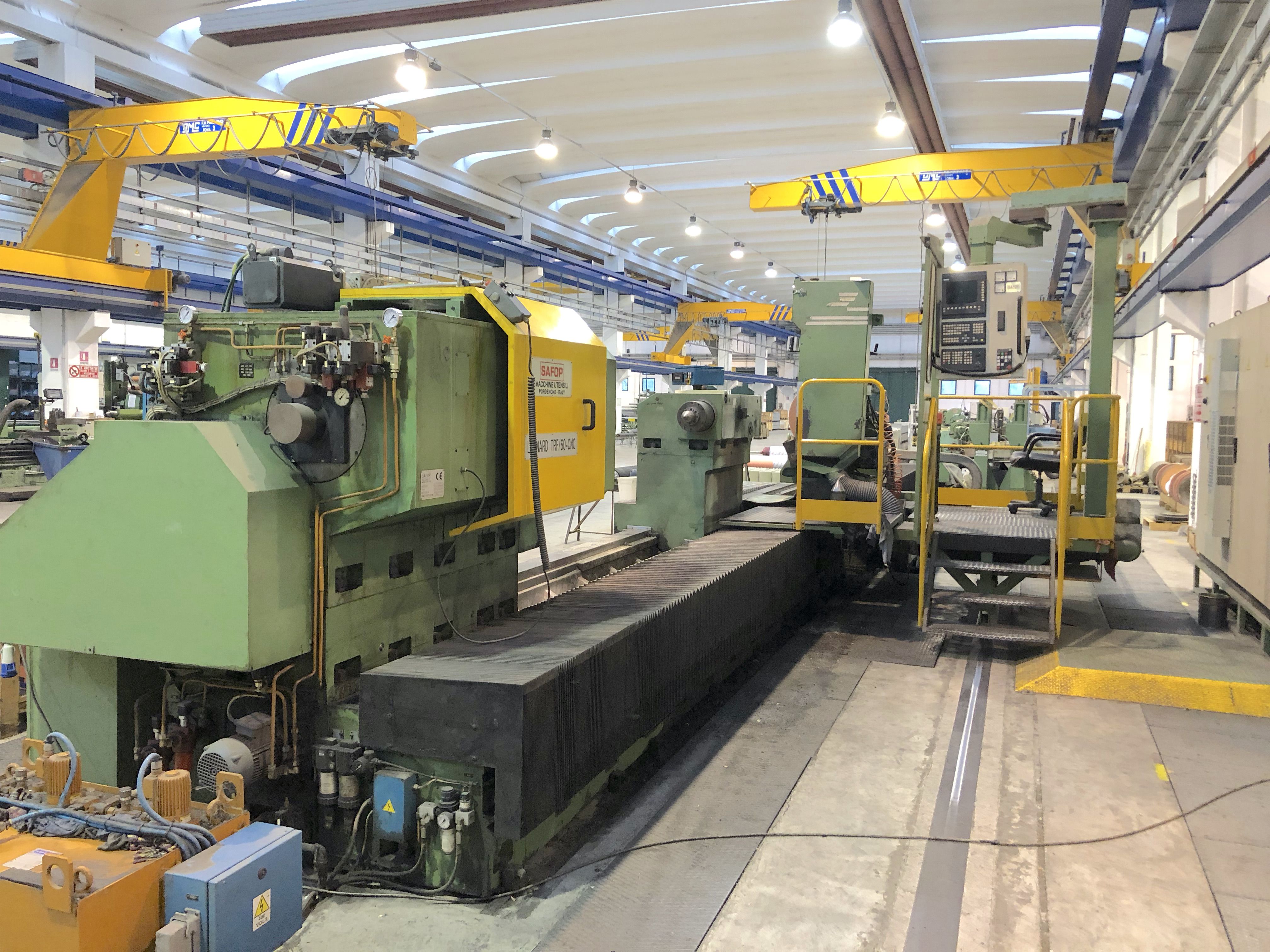

LEONARD TRF60 CNC
Capacity
Tornitura ø1.300x10.000mm, Rettifica ø1.300x10.000 mmTornitura ø0,05x0,39mm, Rettifica ø0,05x0,39 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Max diameter on bed
1800 mm70,87 in
Max diameter on cross-slide
1300 mm51,18 in
Max working lenght
10000 mm393,70 in
Max weight between centres
18000 Kg
Max weight on steadies
10.000 (cad) Kg

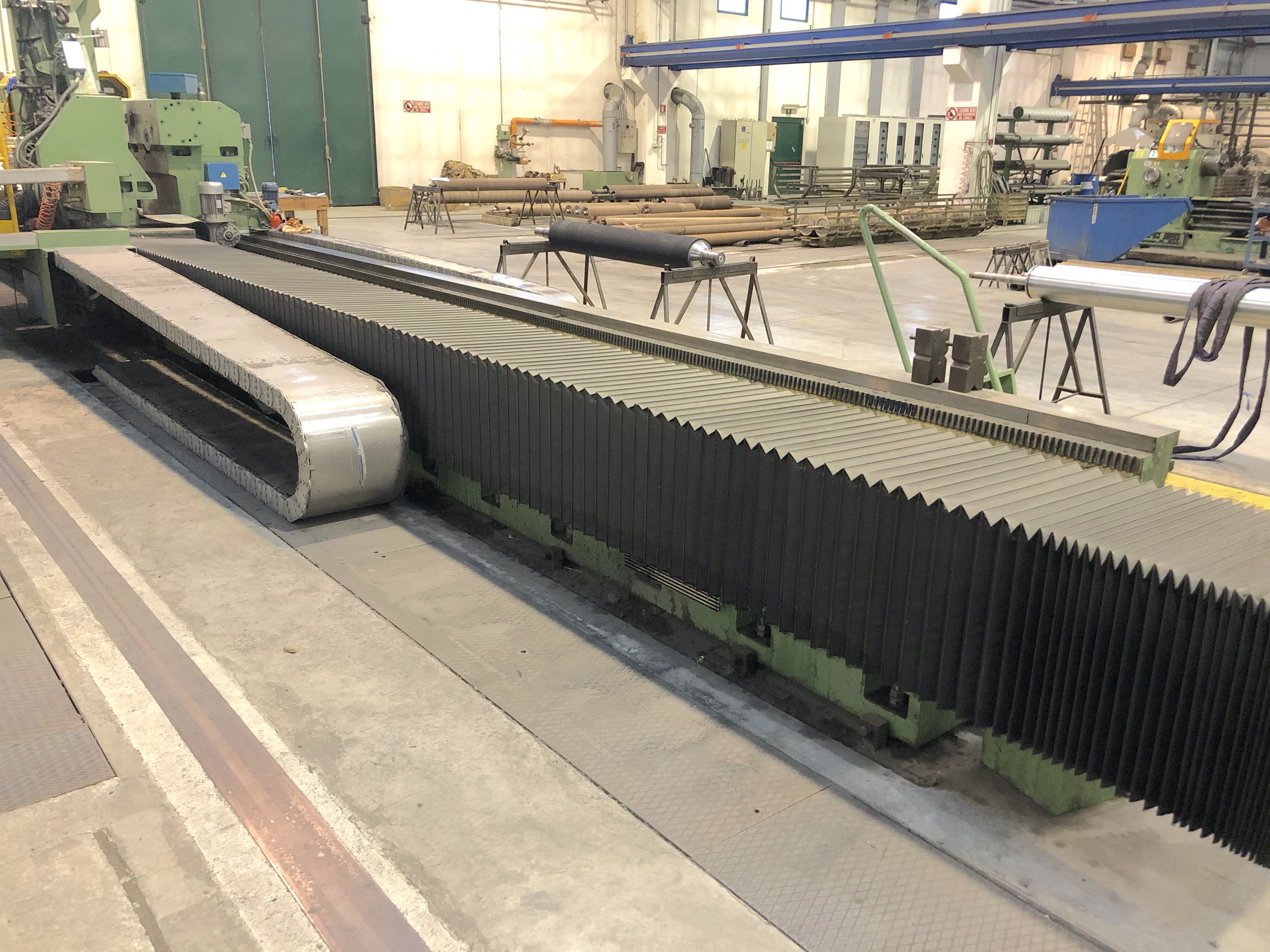

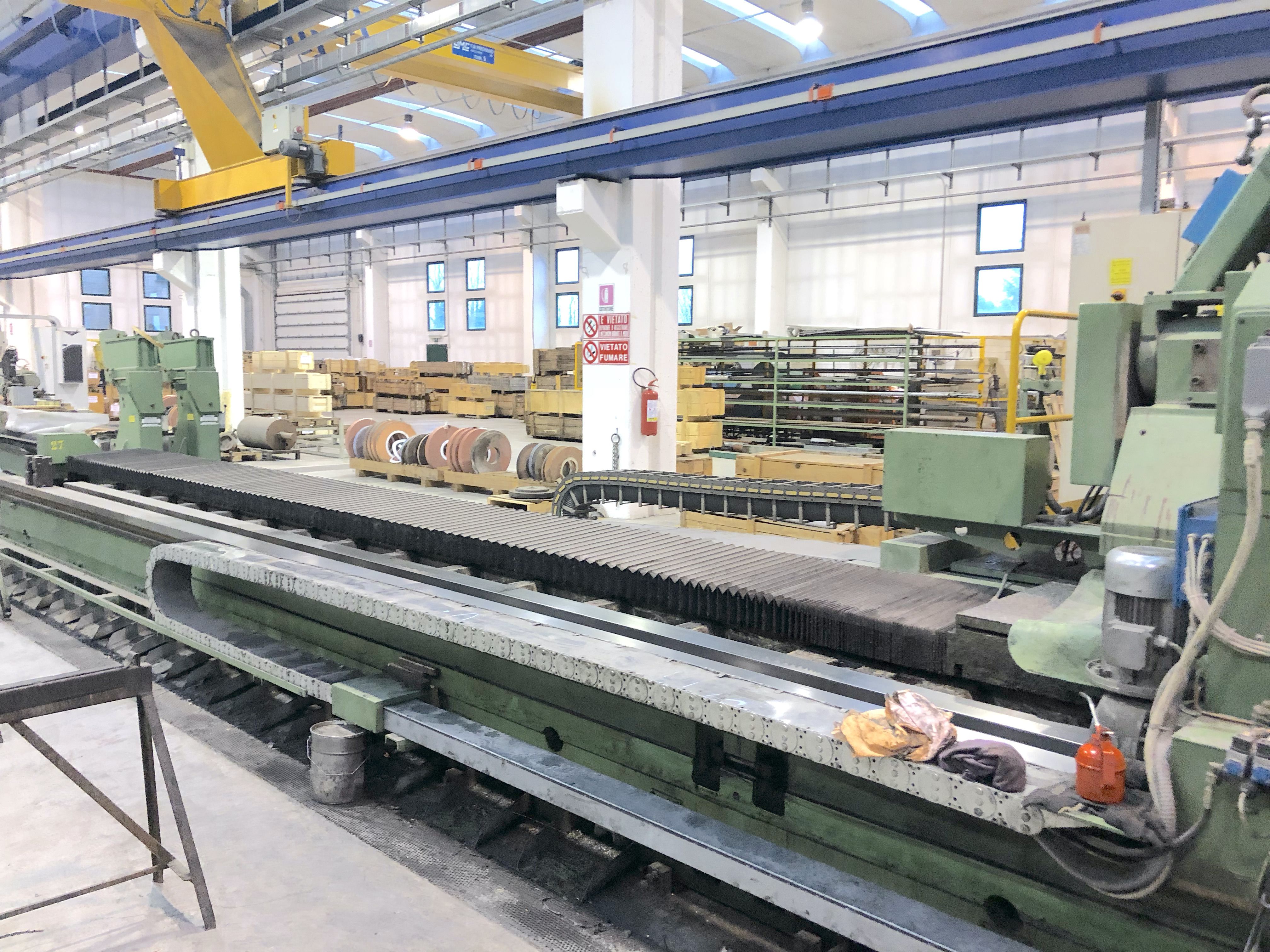

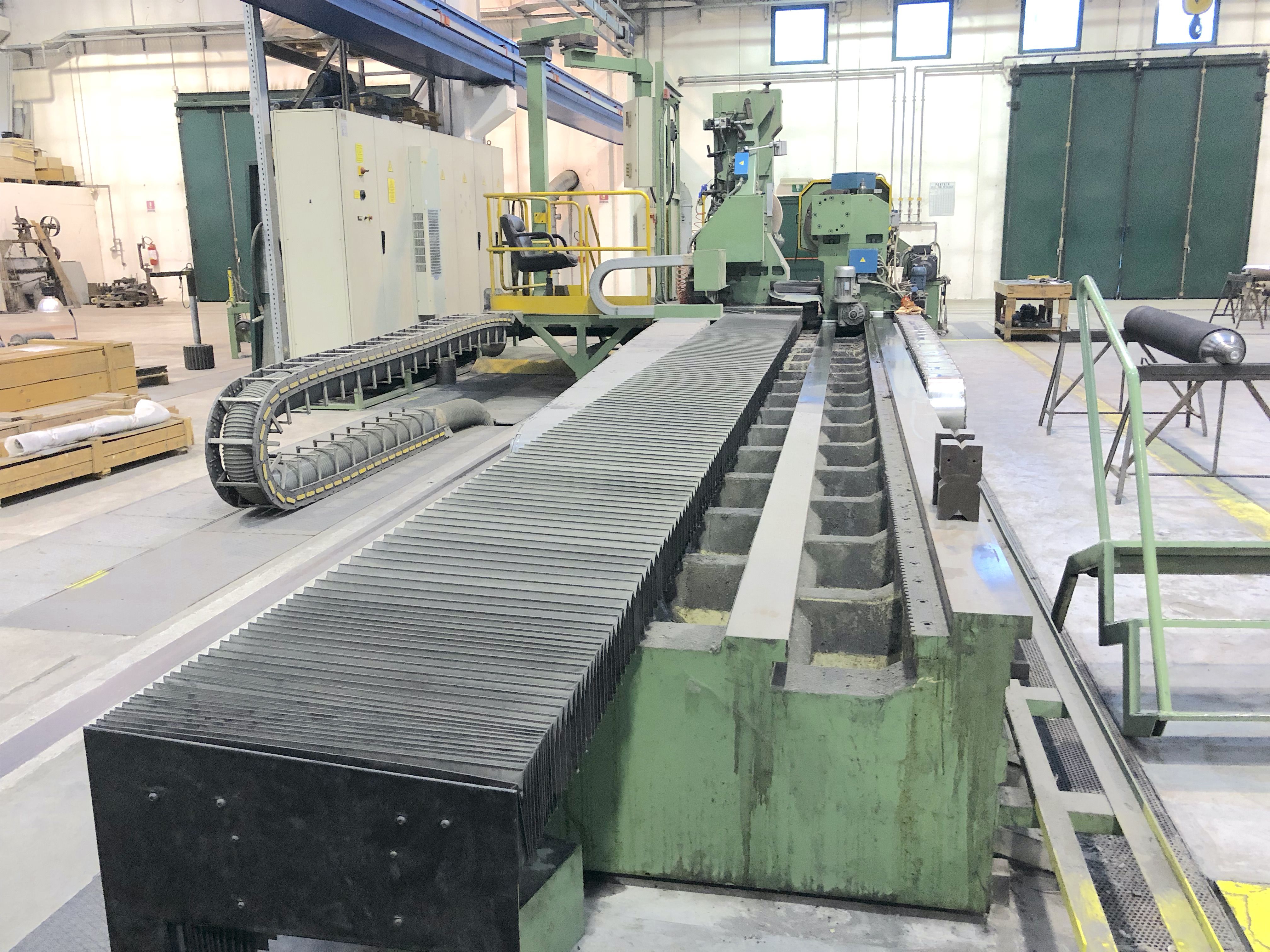

FLAT BED
Guide-ways number
4
CNC
CNC

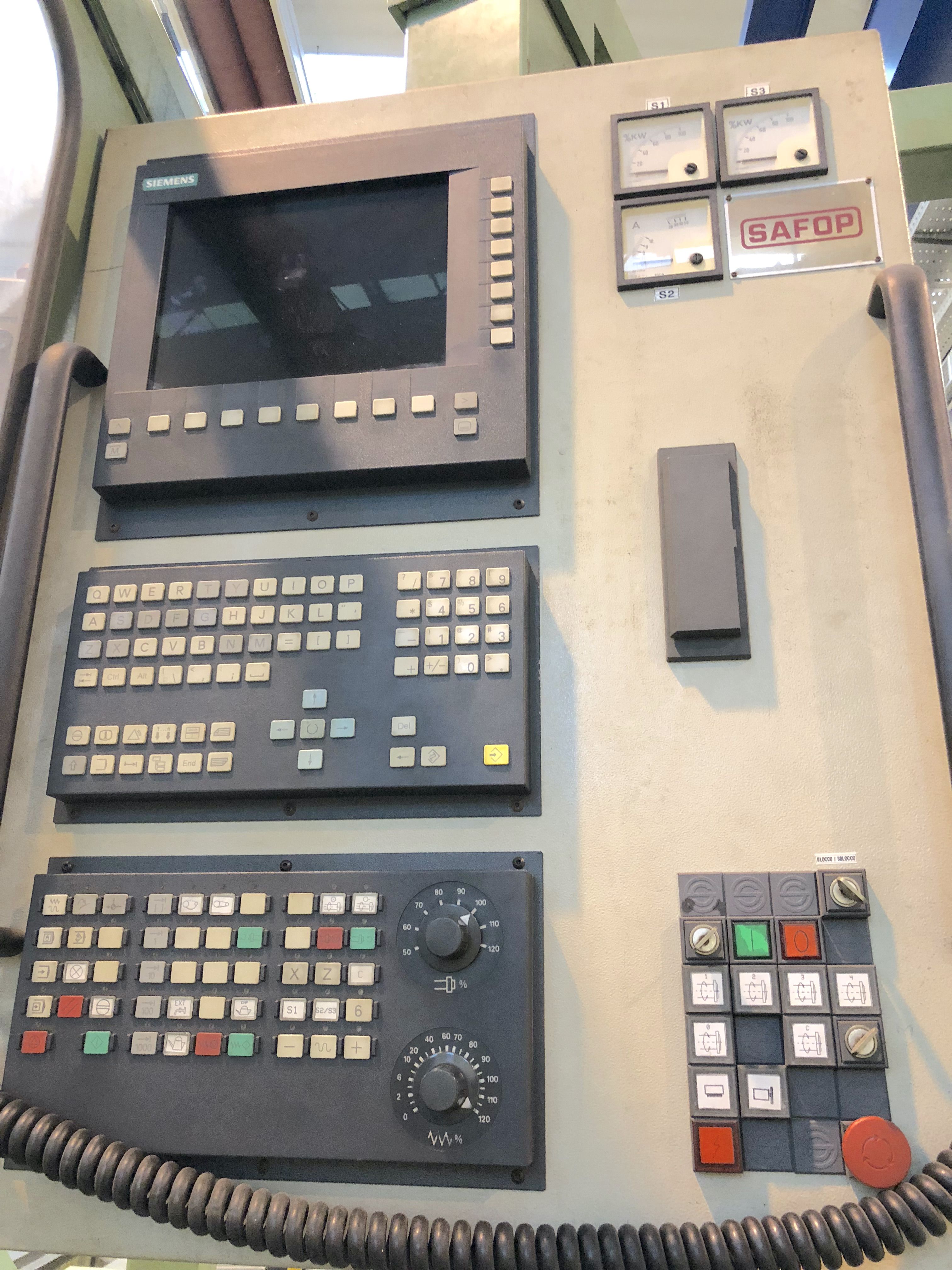

SIEMENS 840D

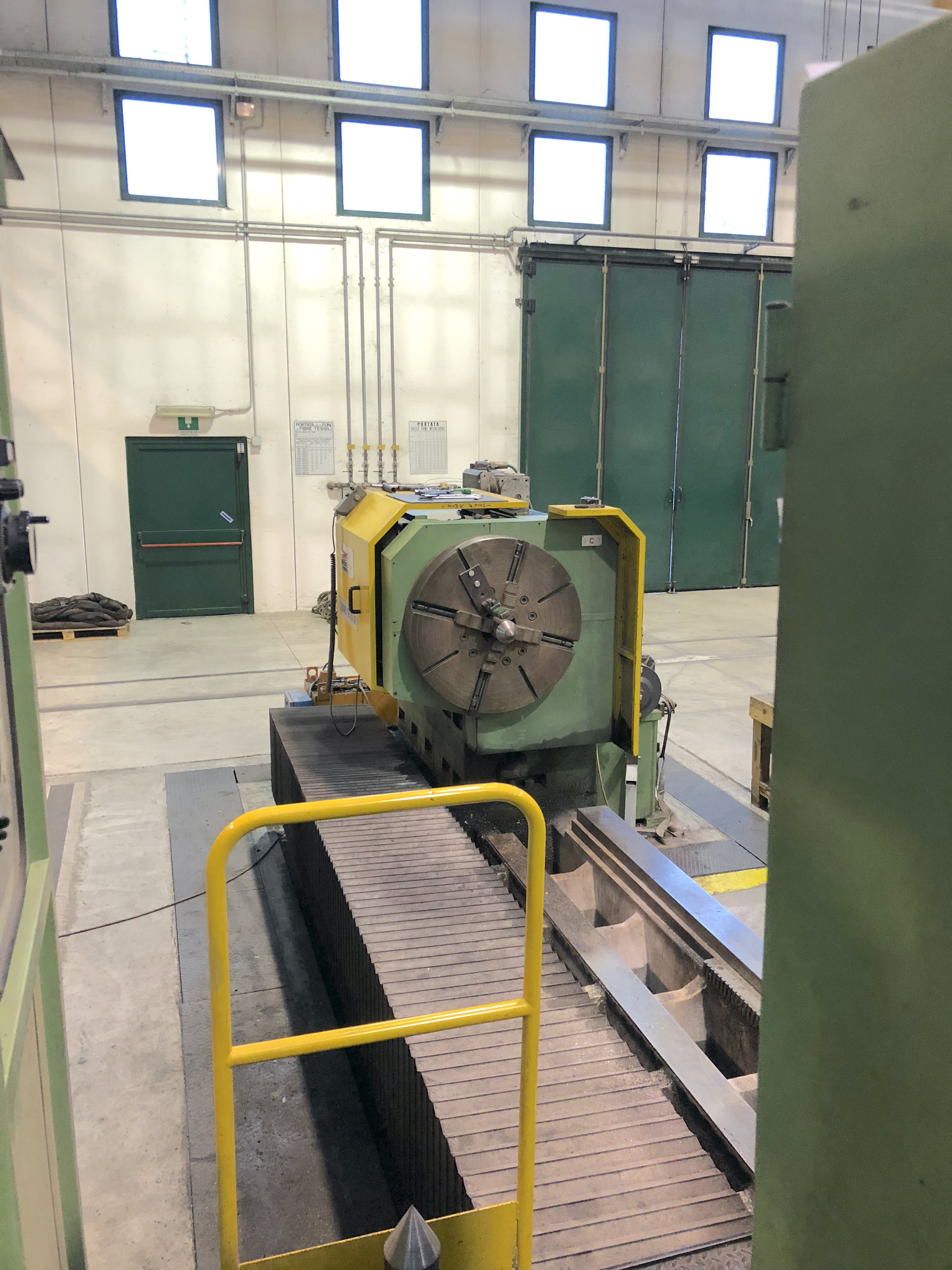

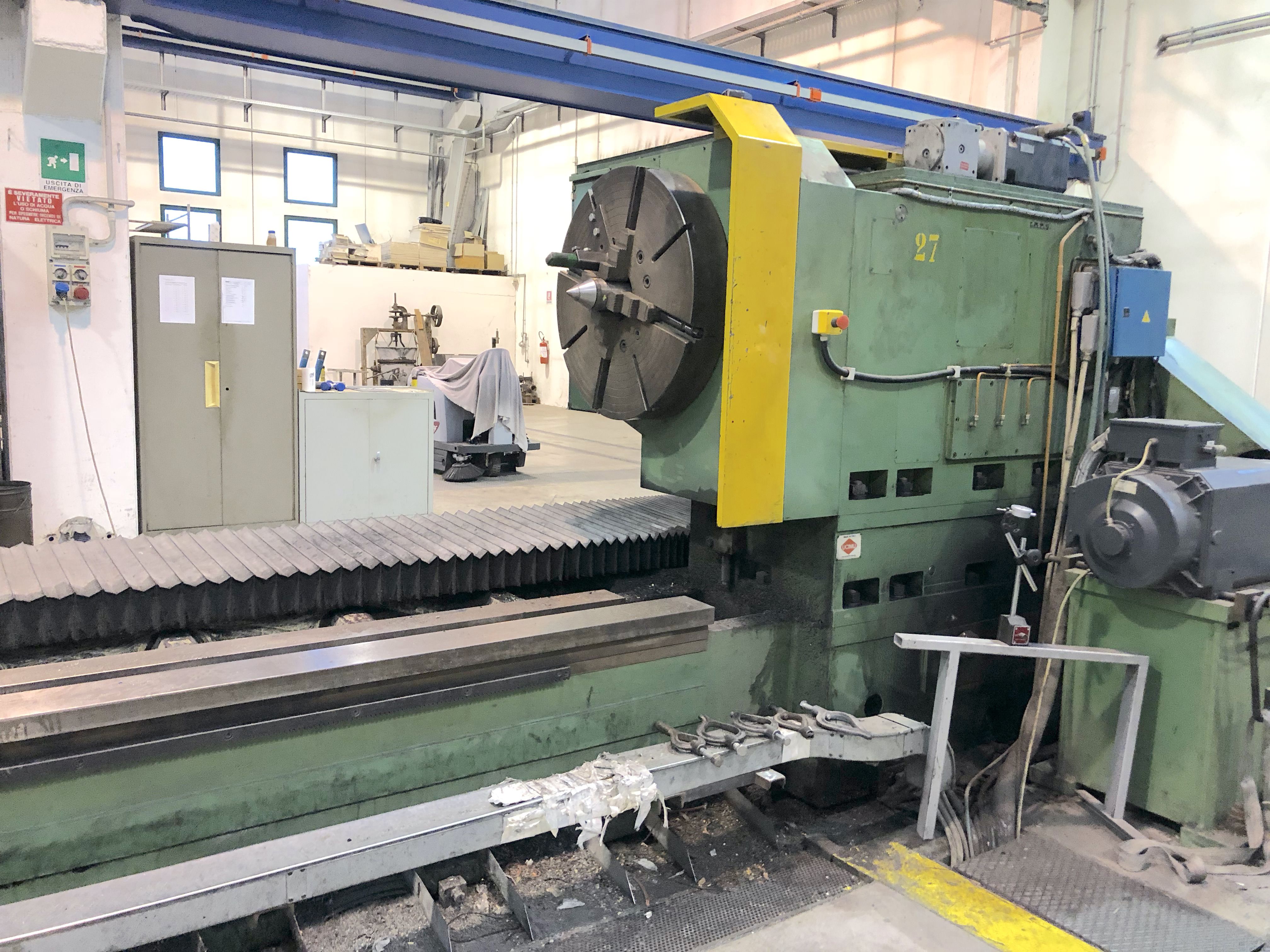

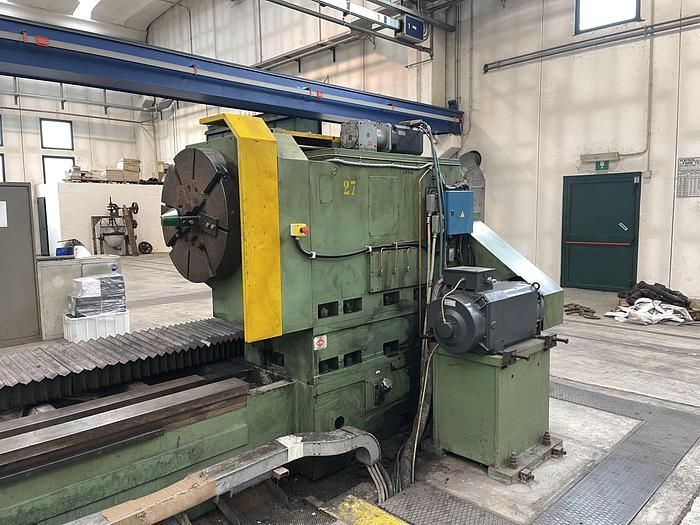

MAIN SPINDLE
Accuracy (C axis)
0,001 °
C axis speed
5 Rpm

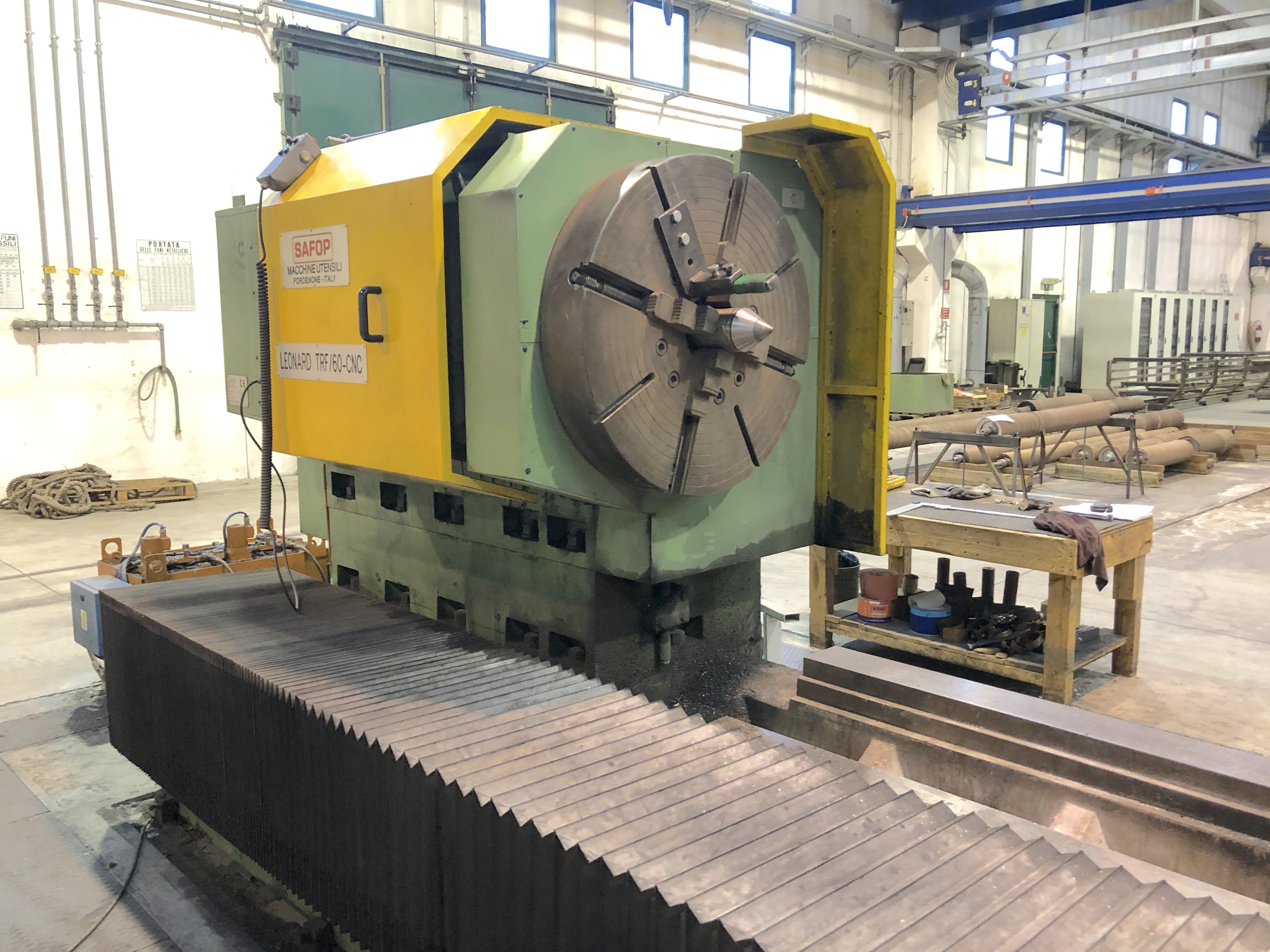

Chuck diameter
800 mm31,50 in
Spindle hole
160 mm6,30 in
Notes

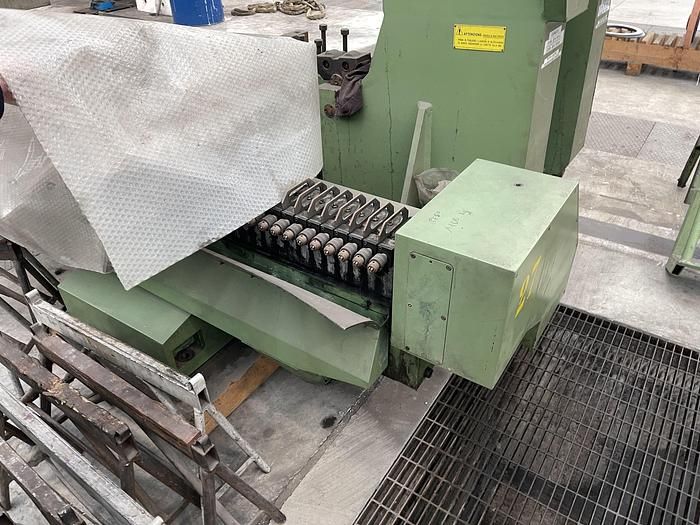

Torretta per Tornitura, Apparecchio per Nastratura, Foratura, Testa di foratura Multipla a 50 punte, 2 Lunette pesanti, 2 Lunette leggere

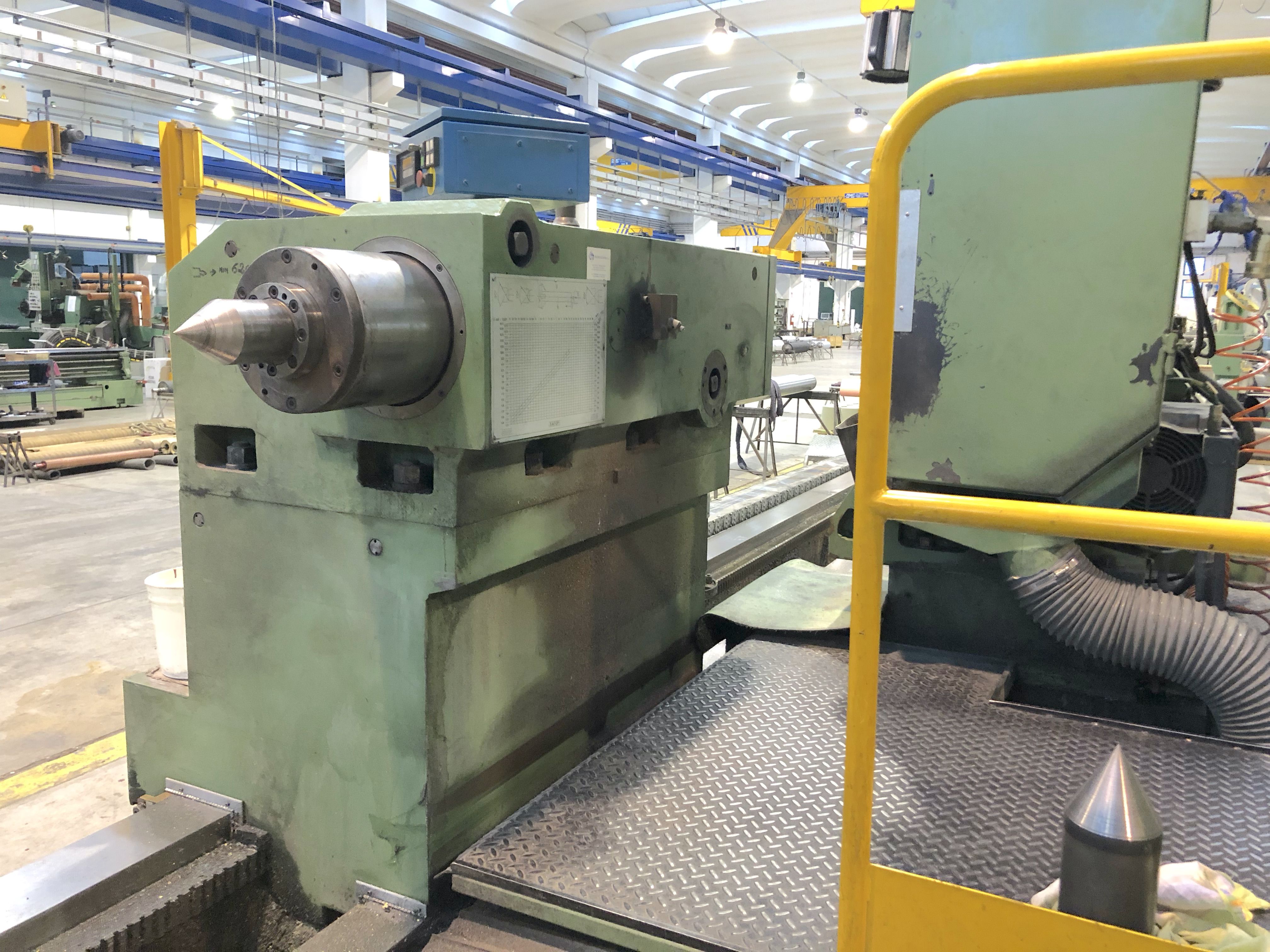

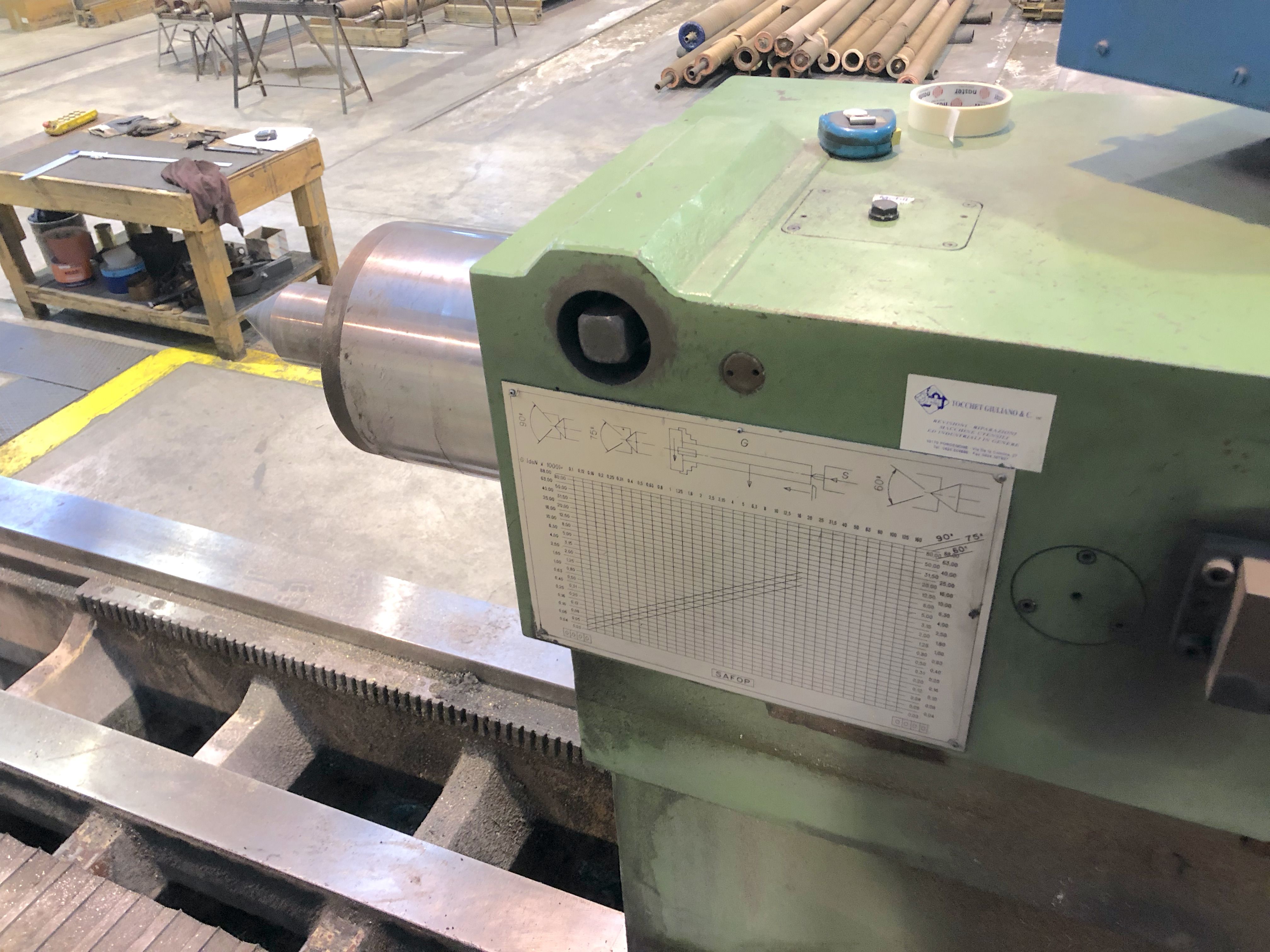

TAILSTOCK
Quill diameter
230 mm9,06 in
Quill stroke
290 mm11,42 in
Taper
”
Rapid feed B
0,45 m/min17,72 ipm
EXTRA

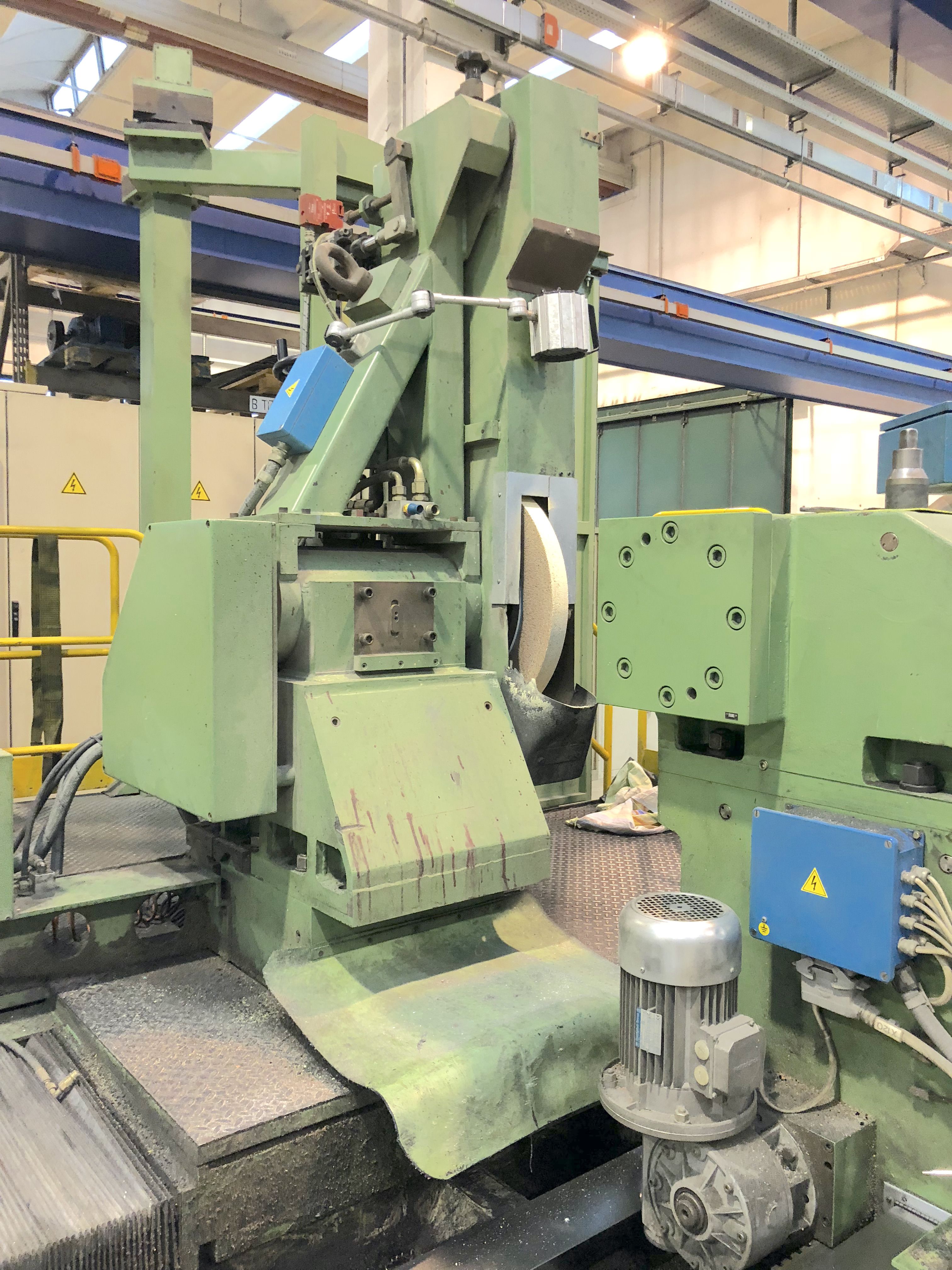

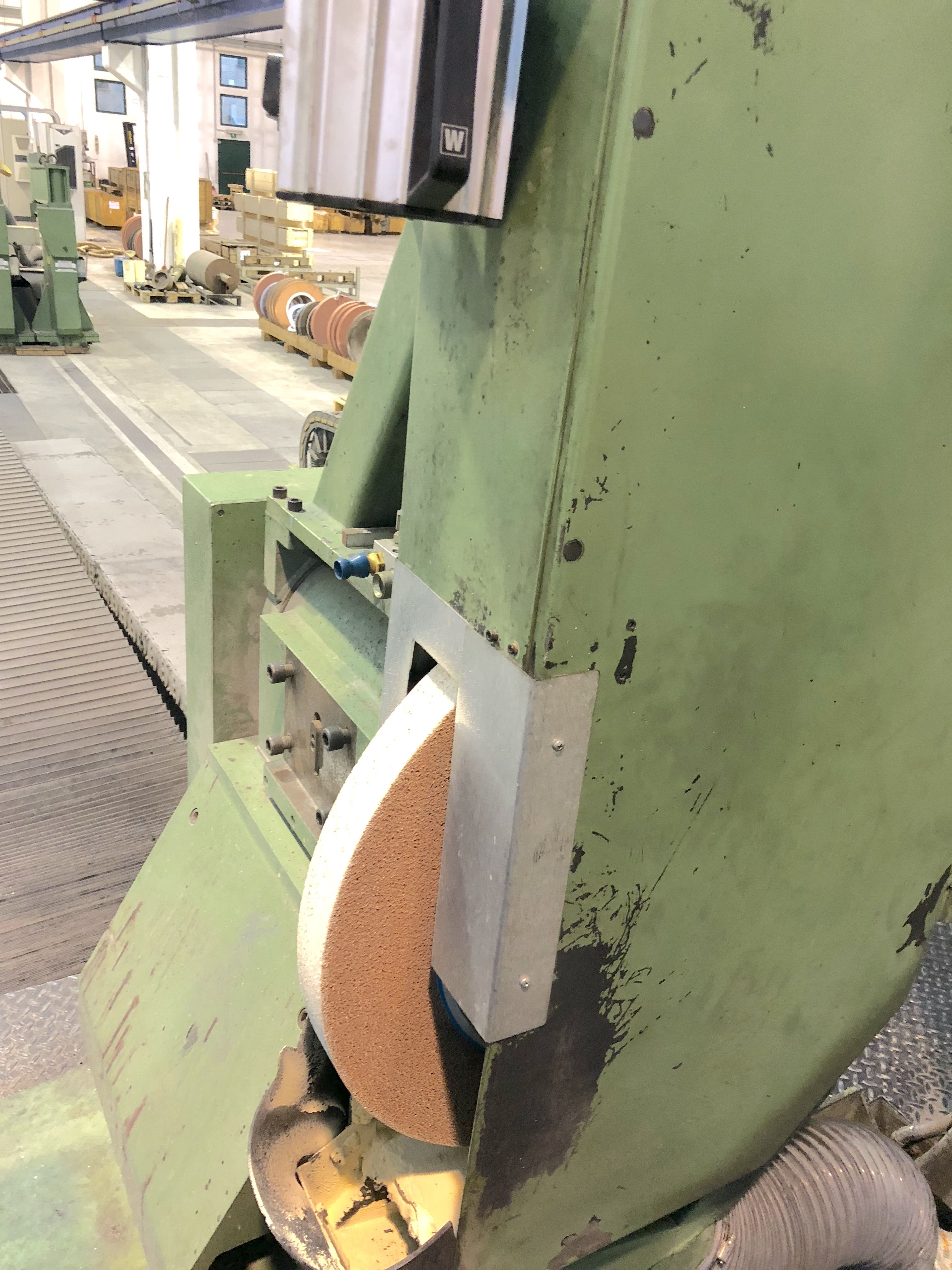

Grinding head attachment
ø1300mm

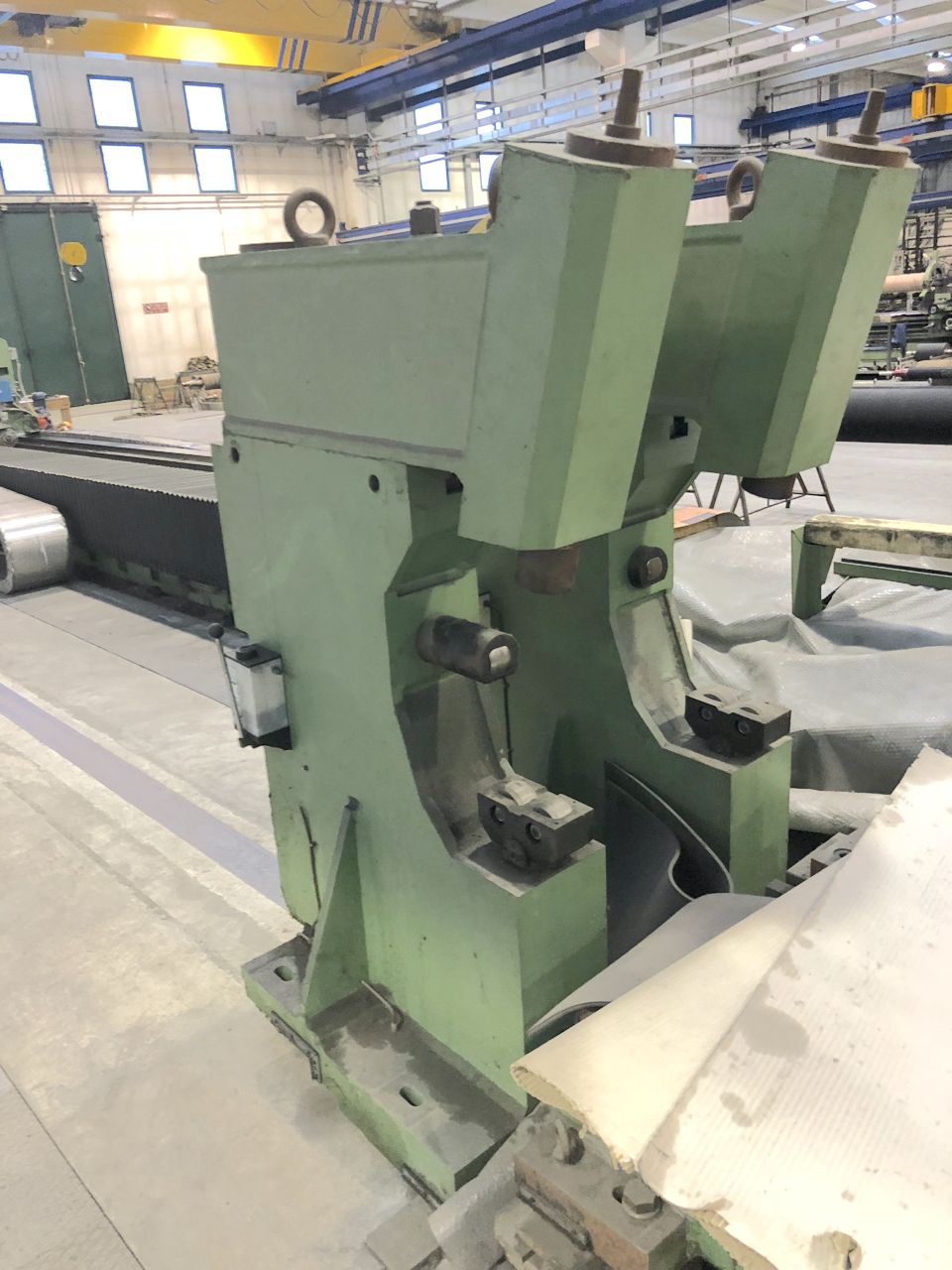

Open steadies
2
Platform
ø800mm
Carriage
Carro per testa di tornitura, testa di rettifica, testa di foratura, testa nastratura
CE Certification
Yes
Electrical drawings
Yes
Maintenance & Use books
Yes
