Category
Turning Machine
Type
CNC
Made
Model
LEONARD 60 D
Capacity
ø1380(banco)/1200(carro)x5000 mmø54,33(banco)/47,24(carro)x196,85 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Guide-ways number
4
Max weight between centres
18.000 Kg
Max weight on steadies
23.000 Kg
WORKING CAPACITY
Centres distance
5000 mm196,85 in
Centres height
780 mm30,71 in
Longitudinal (Z)
5000 mm196,85 in
Cross (X)
640 mm25,20 in
Max turning lenght
5000 mm196,85 in
Max diameter on the bed
1380 mm54,33 in
Max swing on saddle
1200 mm47,24 in
Bar passage
80 mm3,15 in

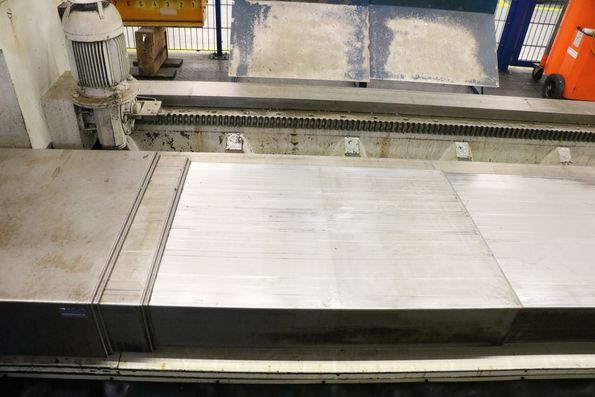

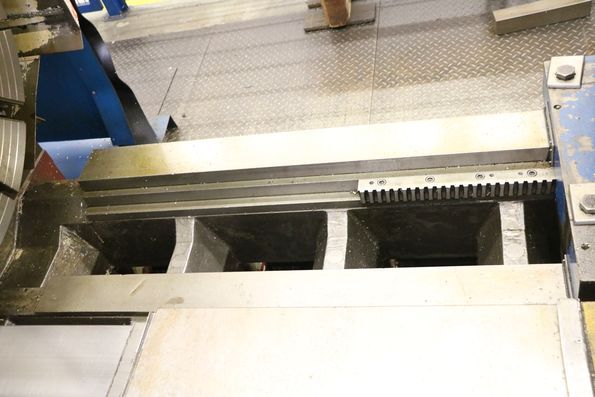

FLAT BED
Guide-ways number
4
Bed width
1300 mm51,18 in
Notes
altezza banco 630mm

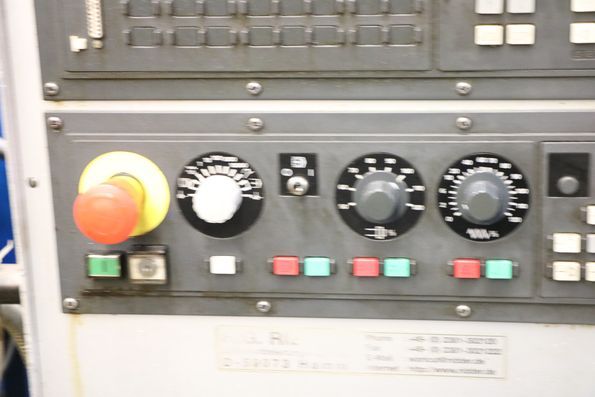

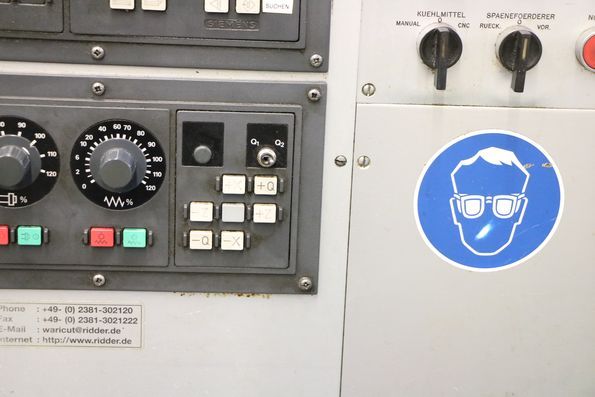

CNC
CNC
Siemens Sinumerik
MAIN SPINDLE
Spindle nose
ASA15”
Spindle hole
80 mm3,15 in
Max power
80 Kw
Max torque
39000 Nm
Gearbox
- first speed range 5-150 U/min - second speed range 10-300 U/min - third speed range 20-600 U/min
Max rotation speed
5-600 rpm
Internal bearing diameter
260 mm10,24 in

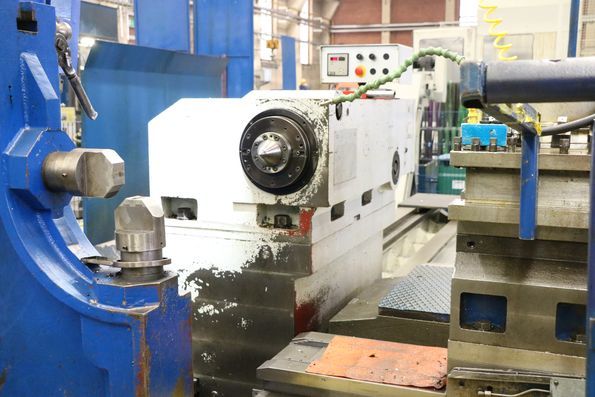

TAILSTOCK
Quill diameter
230 mm9,06 in
Quill stroke
300 mm11,81 in
Rapid feed B
1,4 m/min55,12 ipm
Positions number
4
EXTRA
Machine total weight
33000 Kg

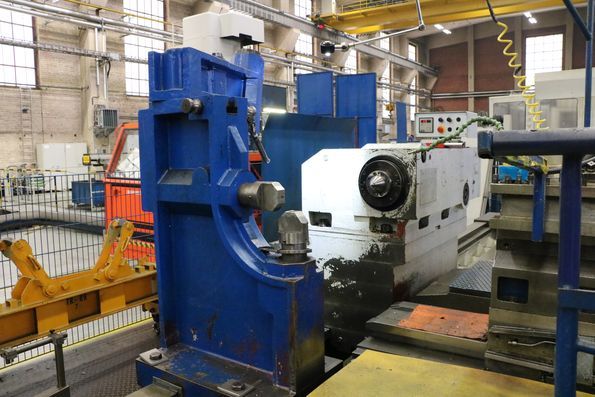

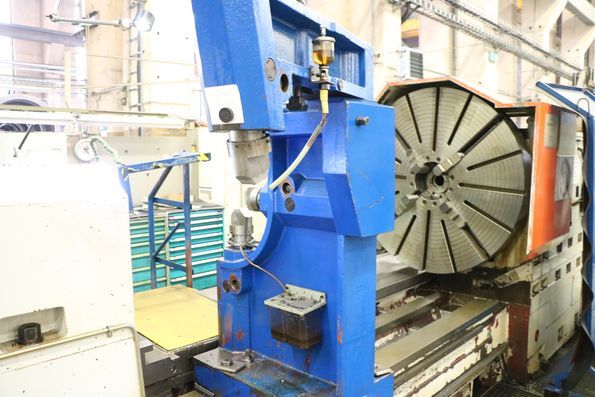

Hydraulic steady
2

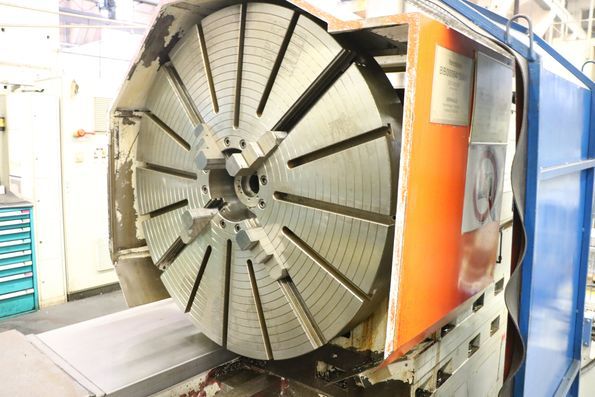

Autocentering chuck
ø1000 4 griffe

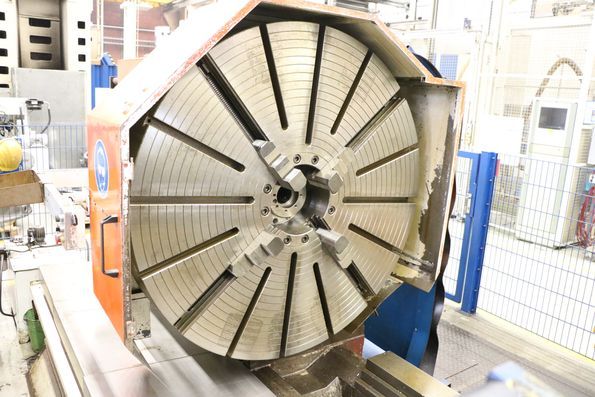

Platform
ø1000mm 4 griffe
Chip conveyor
si

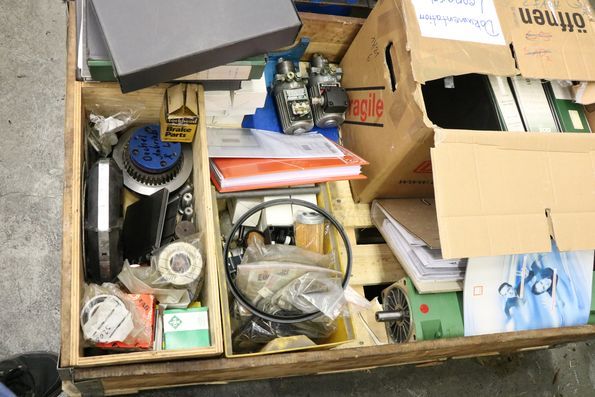

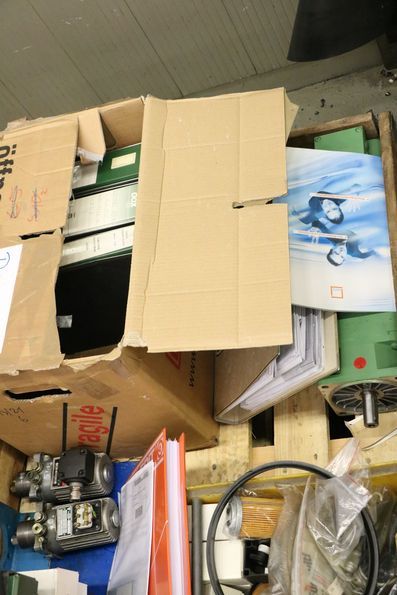

Maintenance & Use books
Yes

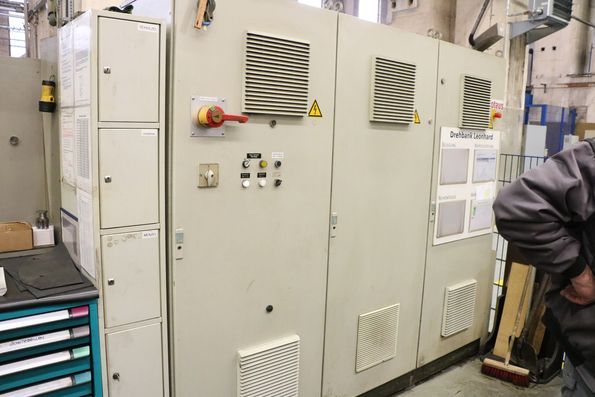

Electrical drawings
Yes
Availability
pronta
