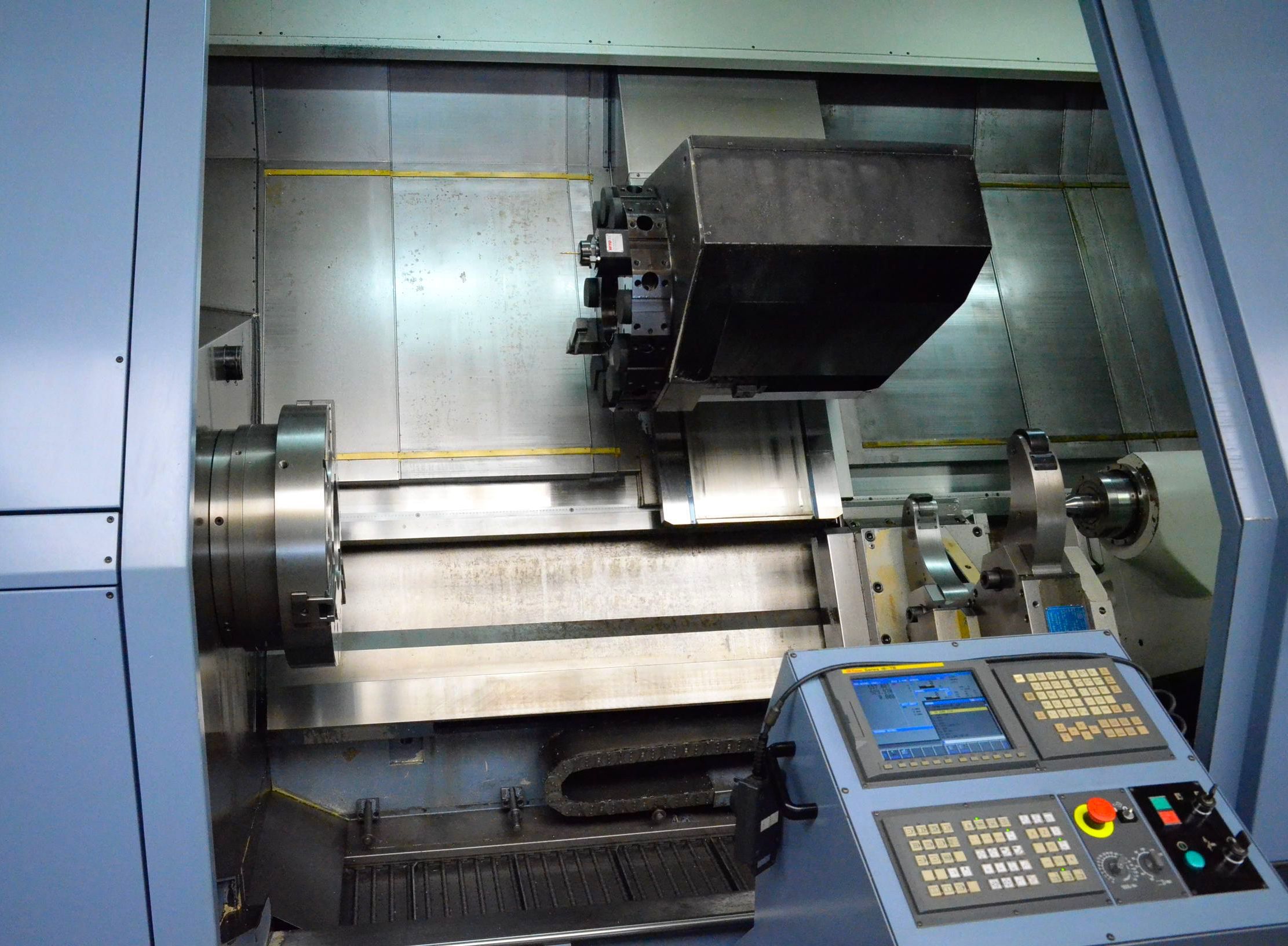

Category
Turning Machine
Type
CNC
Made
Model
A550 CNC
Capacity
ø1100/930x2000 mmø43,31/36,61x78,74 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Max working lenght
2000 mm78,74 in
Bed width
1300 mm51,18 in
Guide-ways number
4
Max weight between centres
8.000 Kg
Max weight on steadies
10.000 Kg
Max diameter on bed
1100 mm43,31 in
Max diameter on cross-slide
930 mm36,61 in
FLAT BED
Bed width
1300 mm51,18 in
Guide-ways number
4
CNC
CNC

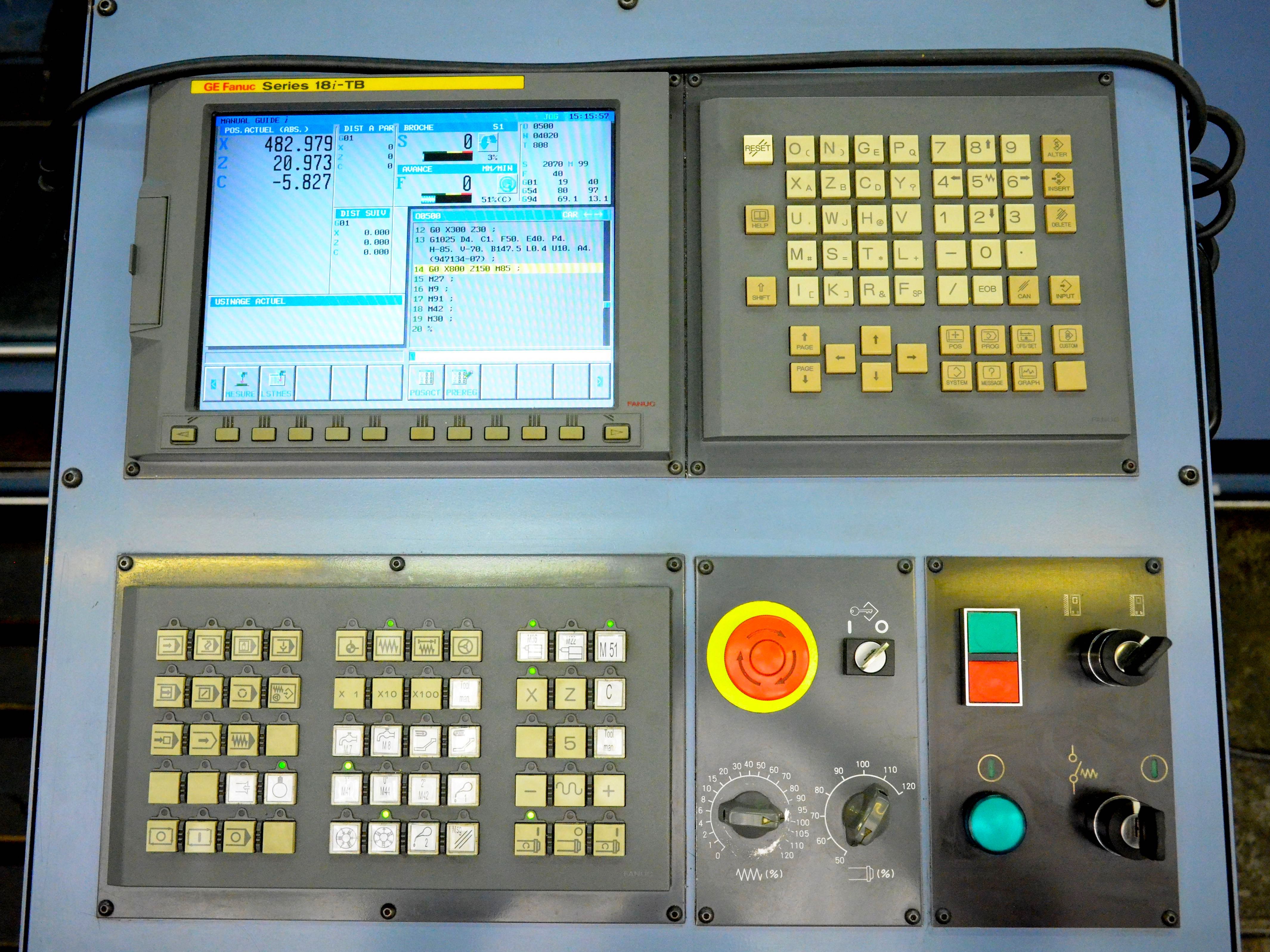

FANUC 18i-TB
Drives
Fanuc
Notes
Manual Guide
MAIN SPINDLE
Max rotation speed
10 - 1.720 rpm
Spindle nose
A1-15
Spindle hole
130 mm5,12 in
Internal bearing diameter
190 mm7,48 in

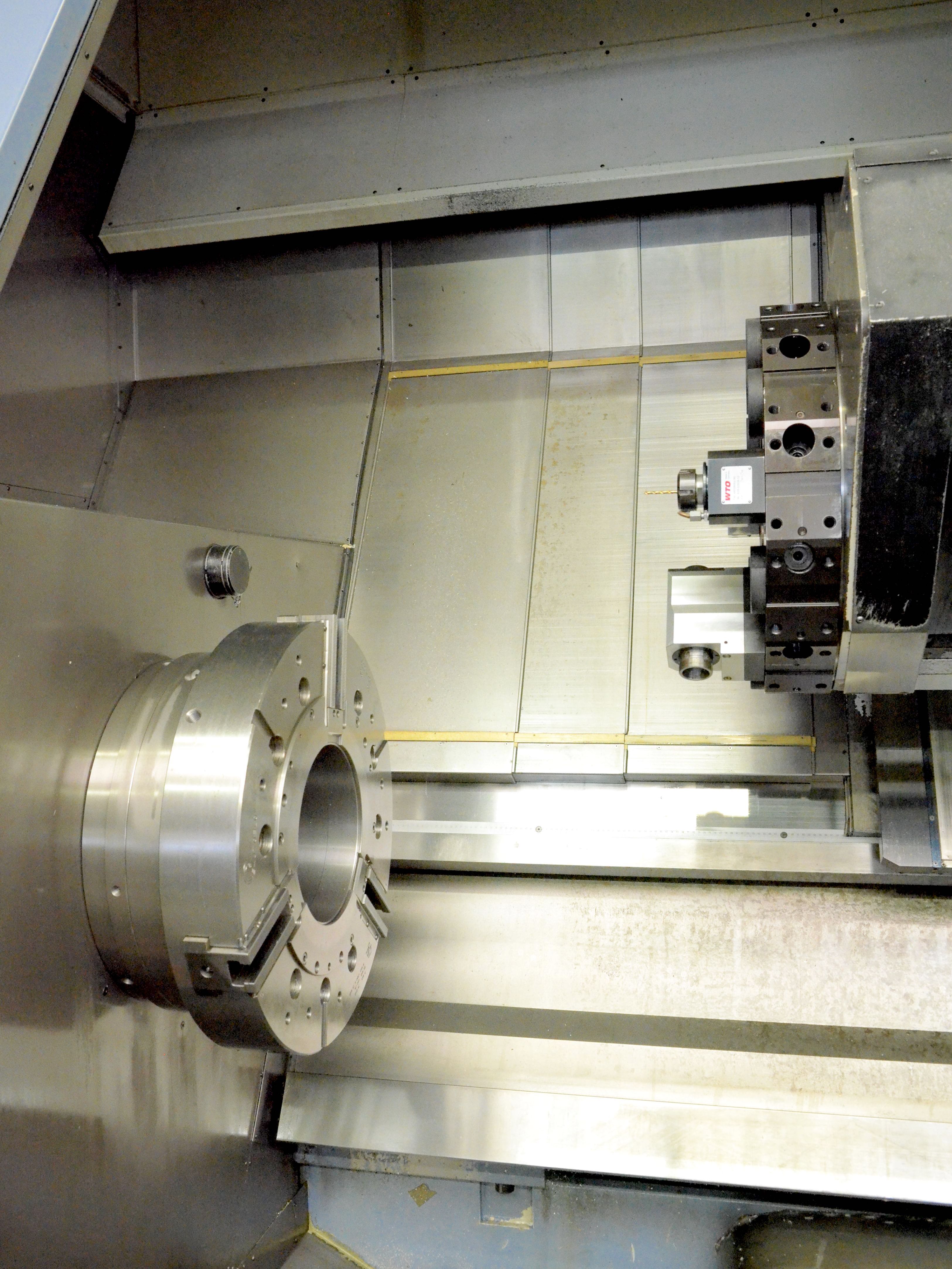

Chuck diameter
SMW-Autoblock ø630 mmSMW-Autoblock ø24,80 in
Max power
51 Kw
Max torque
10.338 Nm
Accuracy (C axis)
0,001 °
Gearbox
2: I 48 - 320 / II 260 - 1720

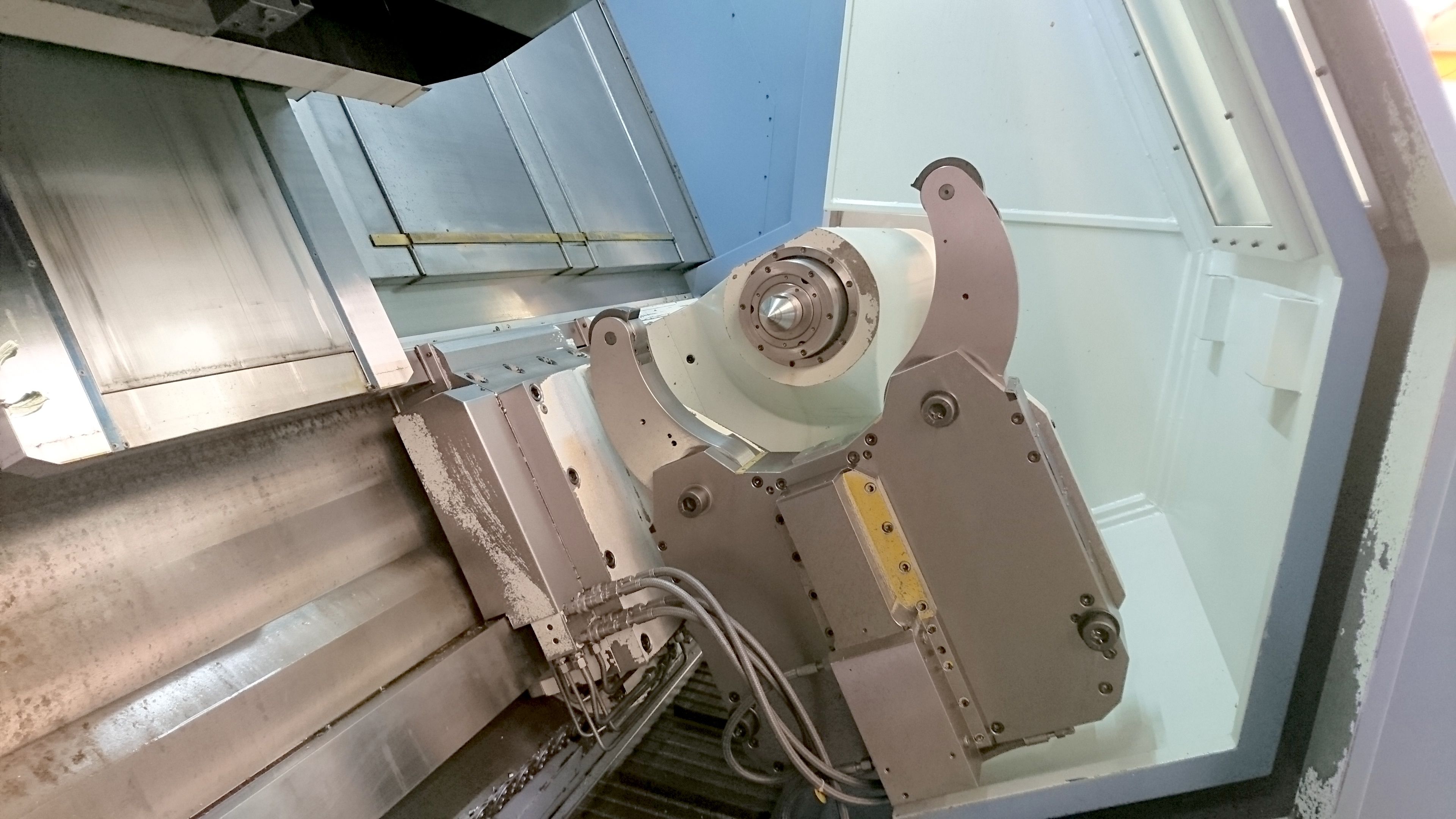

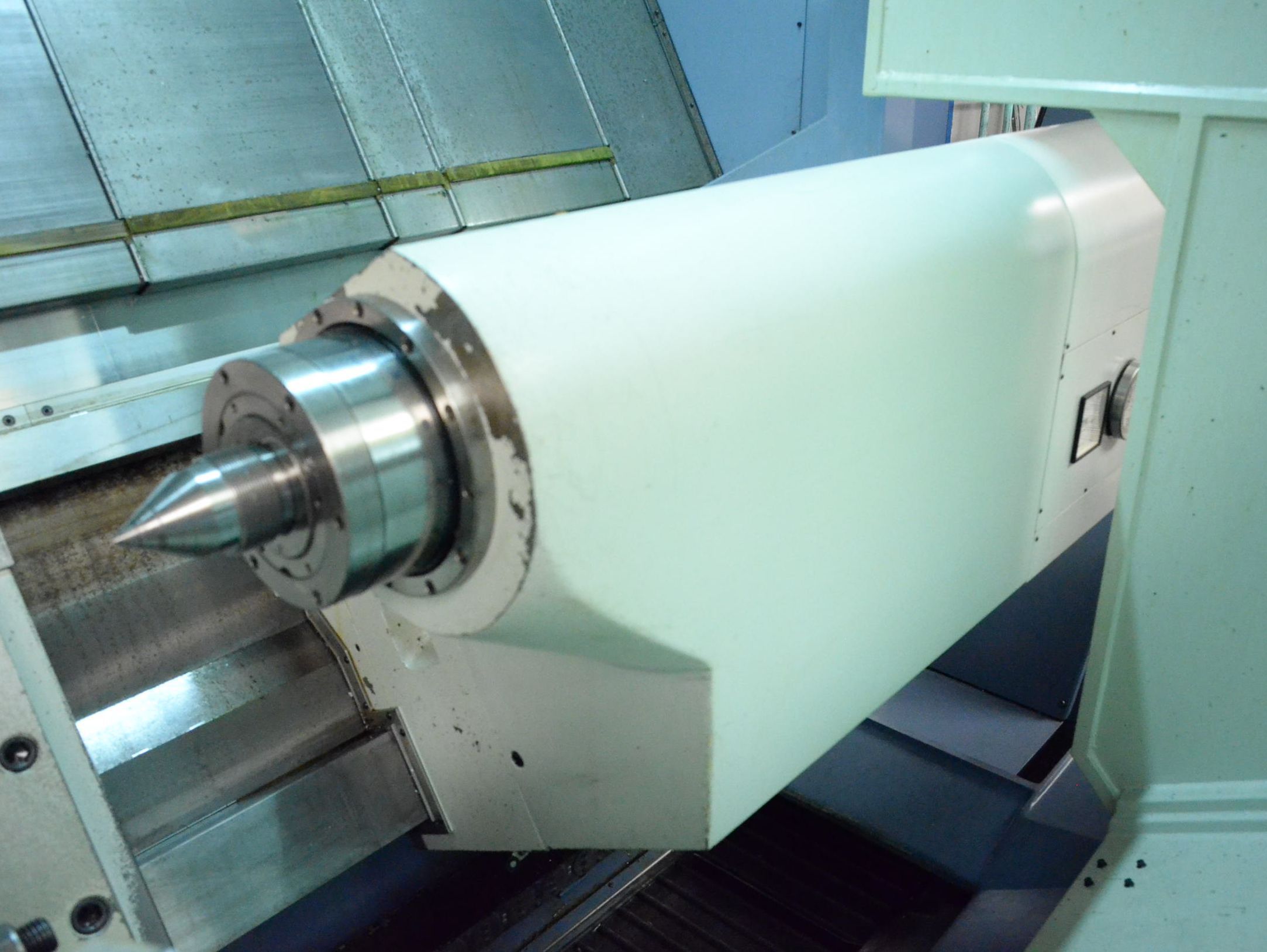

TAILSTOCK
Quill diameter
180 mm7,09 in
Quill stroke
200 mm7,87 in
Taper
MK6
Positions number
12
Number of driven stations
6
Axis stroke X
580 mm22,83 in
Axis stroke Z
2100 mm82,68 in
Rapid feed X
8 m/min314,96 ipm
Rapid feed Z
8 m/min314,96 ipm
Driven tools power
5,5 Kw
EXTRA
Total power supply
400V / 78 Kw
Machine total weight
19.700 Kg
Floor space
7300x2810x2915 mm287,40x110,63x114,76 in
Hydraulic steady
Morari SLZWB-140450 ø140-450mm

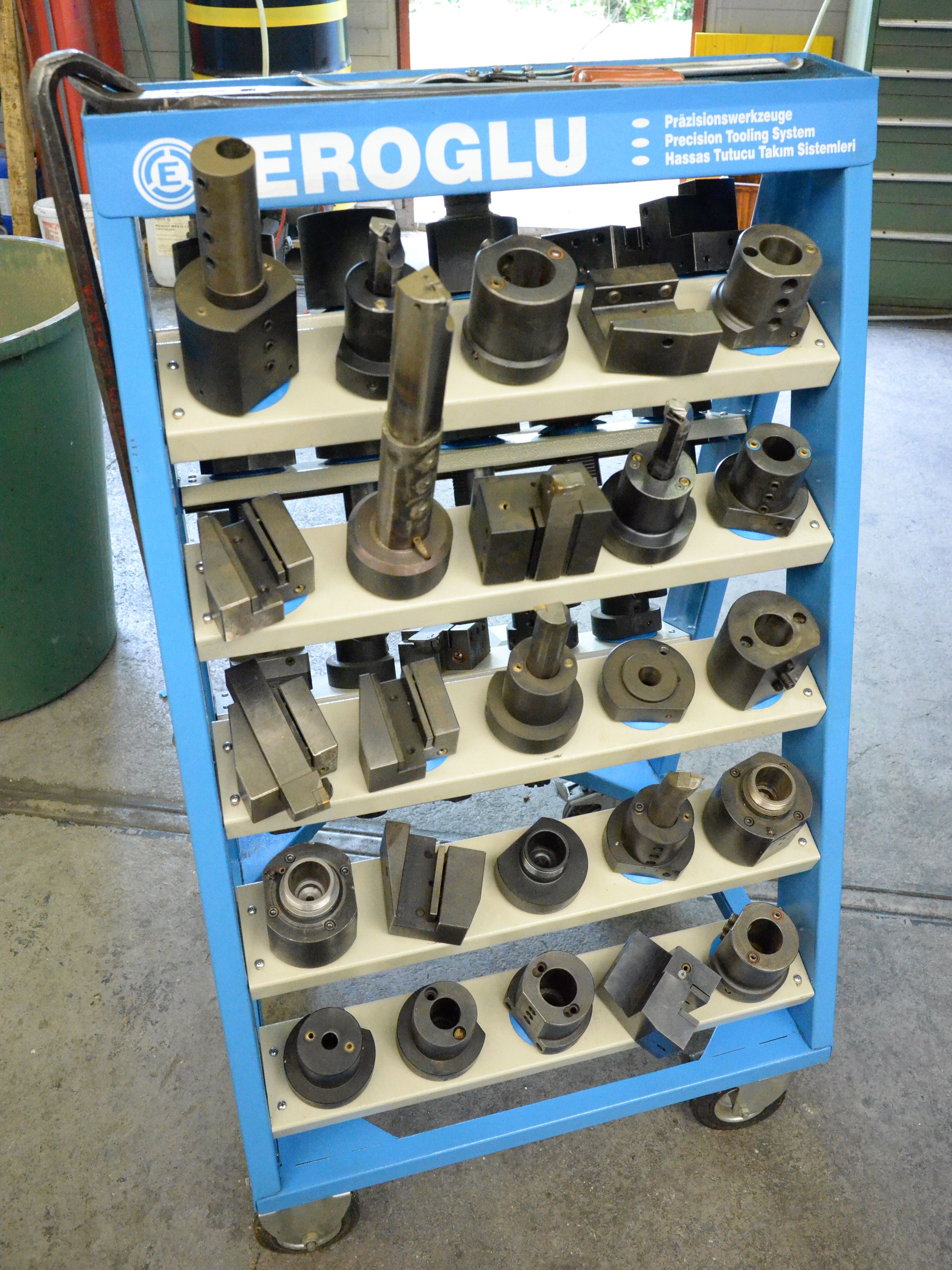

Fixed toolholders
20
Driven toolholders
4

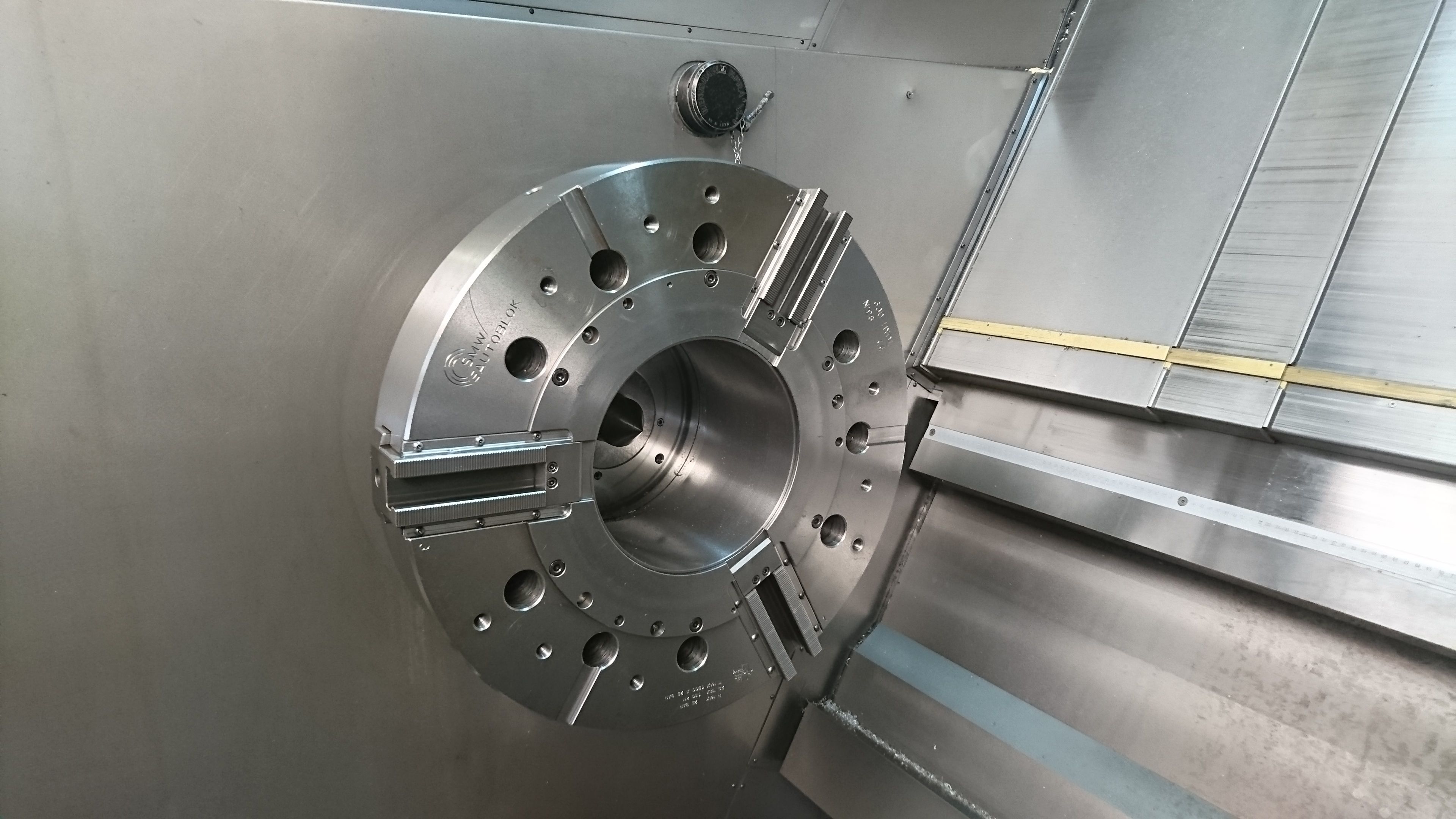

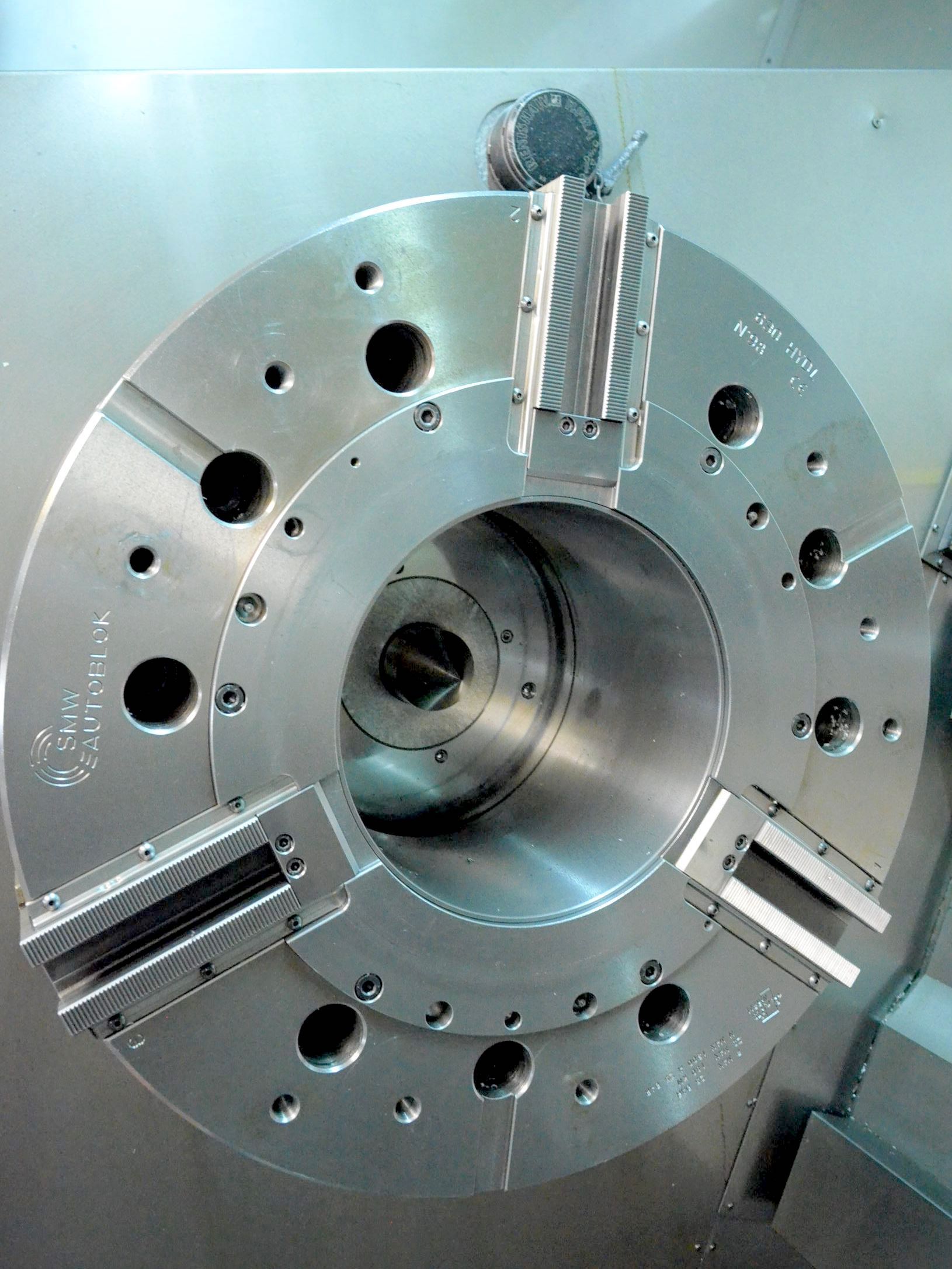

Autocentering chuck
SMW-Autoblock ø630mm
Platform
manuale 4 griffe ø630
Chip conveyor
yes
Tool presetter
yes
Coolant pump
50Bar
Maintenance & Use books
Yes
Electrical drawings
Yes
CE Certification
Yes
Mist extractor
Yes
Protections
integrali CE
Availability
Pronta
Available under power
Yes
Relevant updates made on the machine
condizioni pari al nuovo
