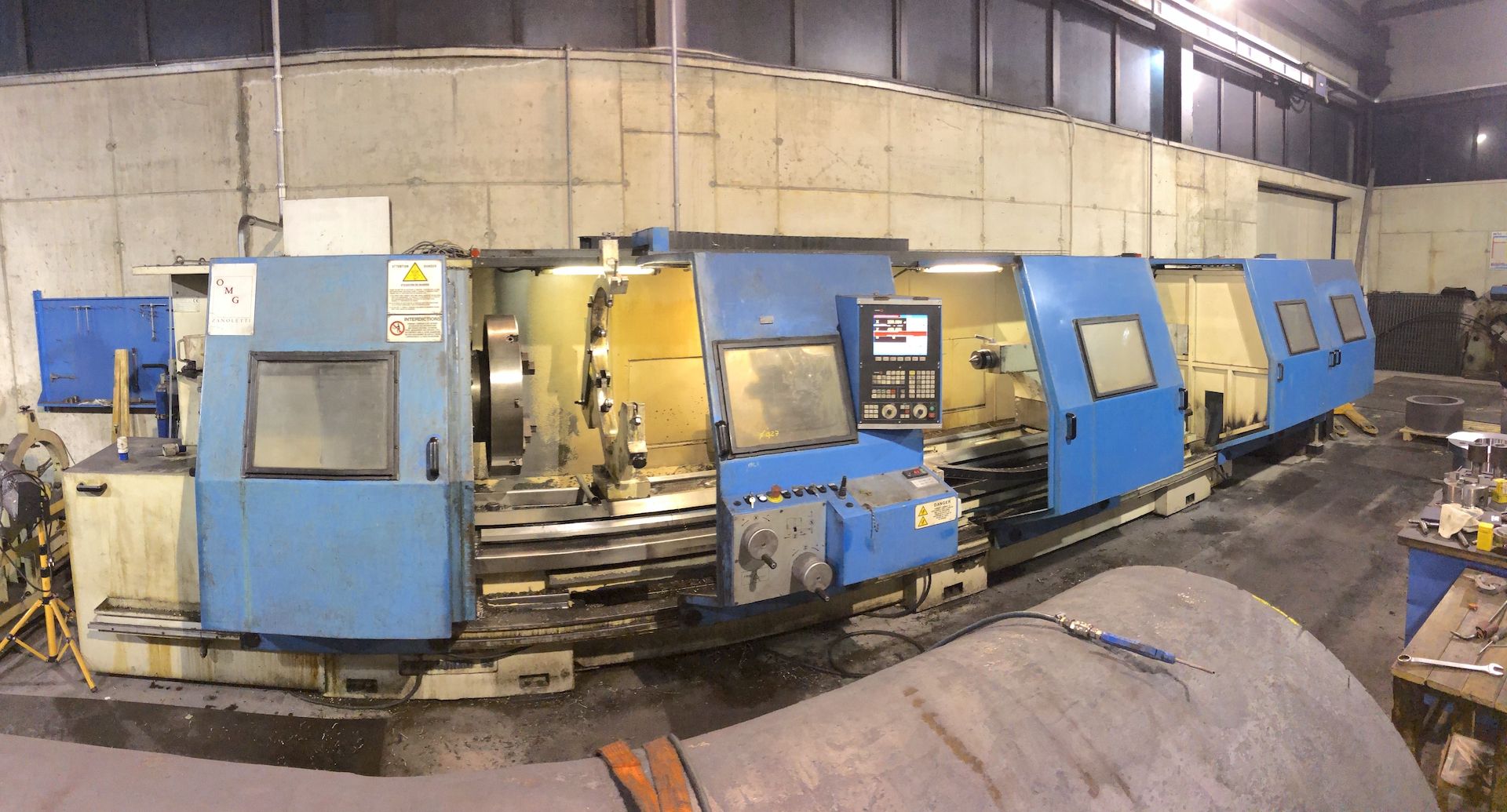

Category
Turning Machine
Type
CNC
Made
Model
CNA500 /4000
Capacity
ø1000/720x4000 mmø39,37/28,35x157,48 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Max diameter on bed
1000 mm39,37 in
Max diameter on cross-slide
720 mm28,35 in
Max working lenght
4000 mm157,48 in
Bed width
500 mm19,69 in
Guide-ways number
2
Max weight between centres
3000 Kg

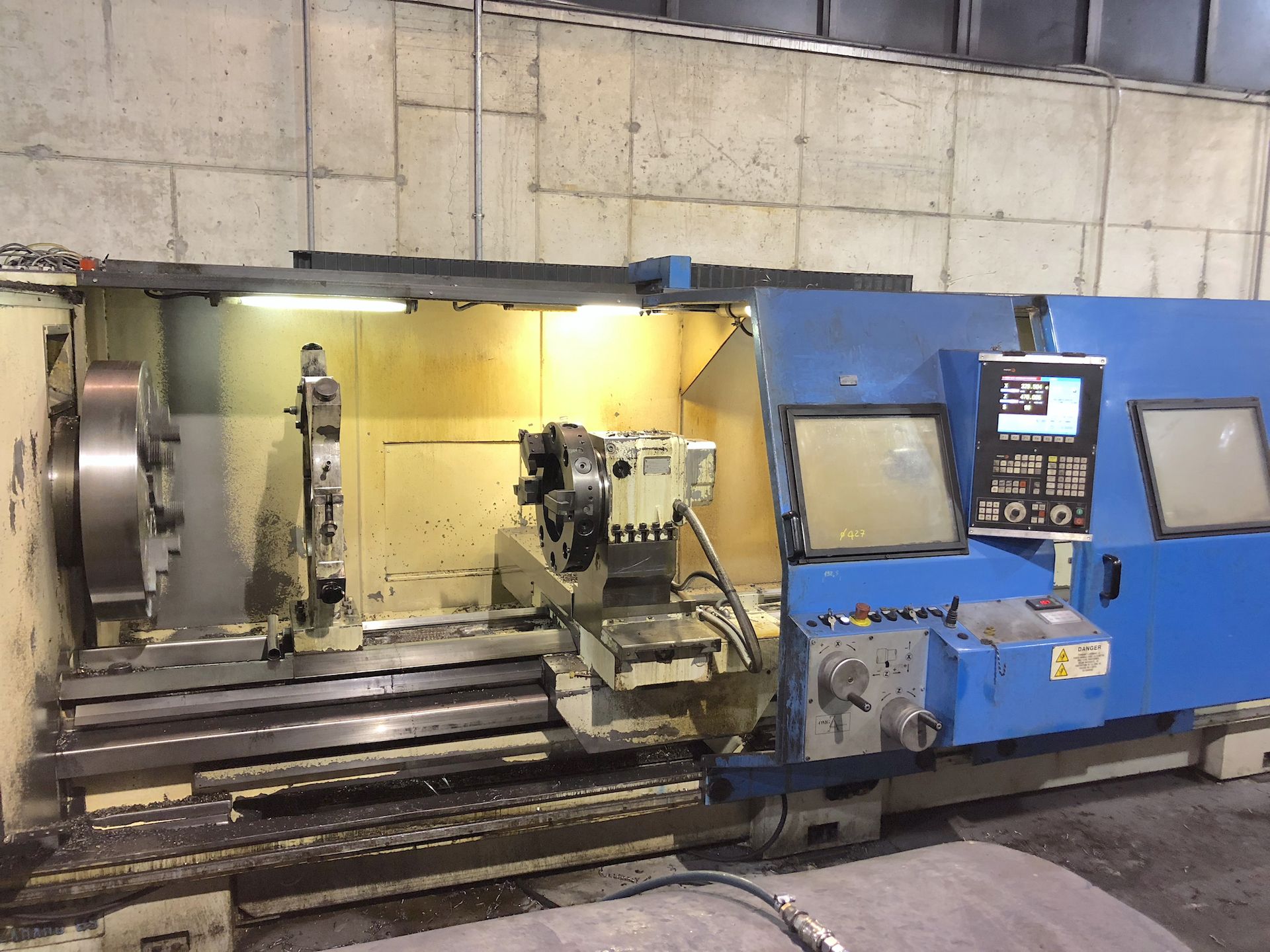

FLAT BED
Guide-ways number
2
Bed width
500 mm19,69 in

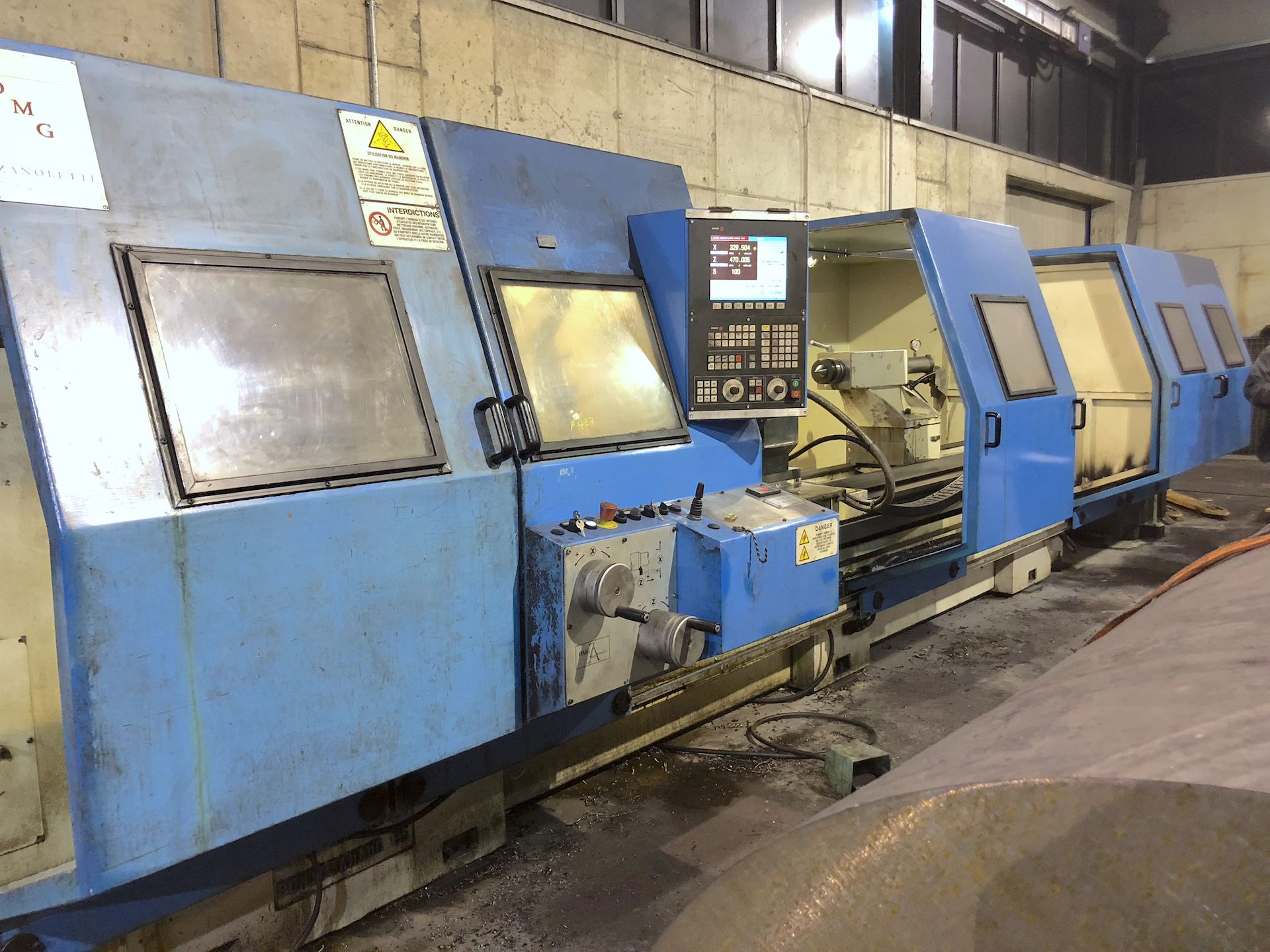

CNC
CNC

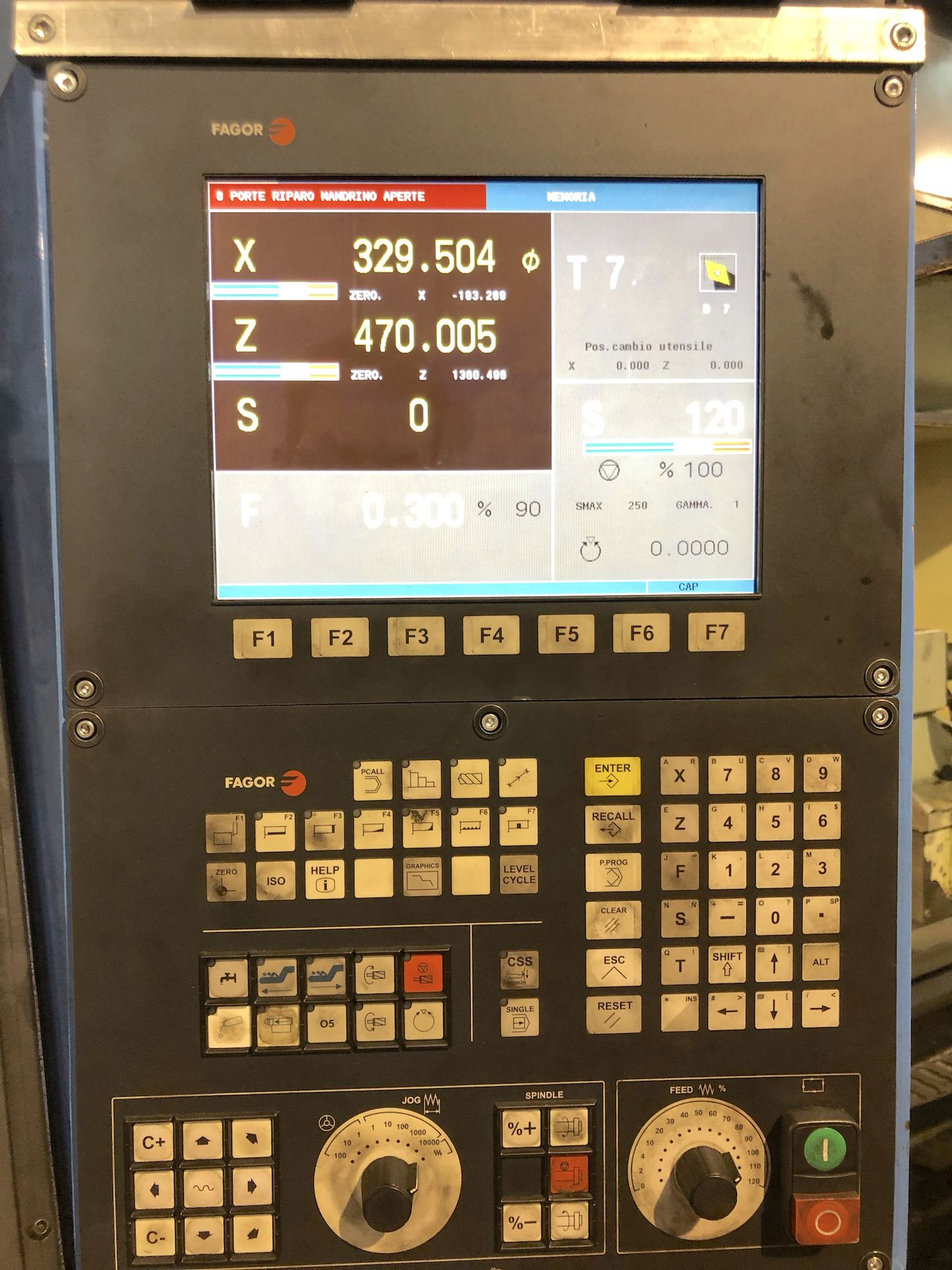

Fagor 8055
Drives
SIEMENS

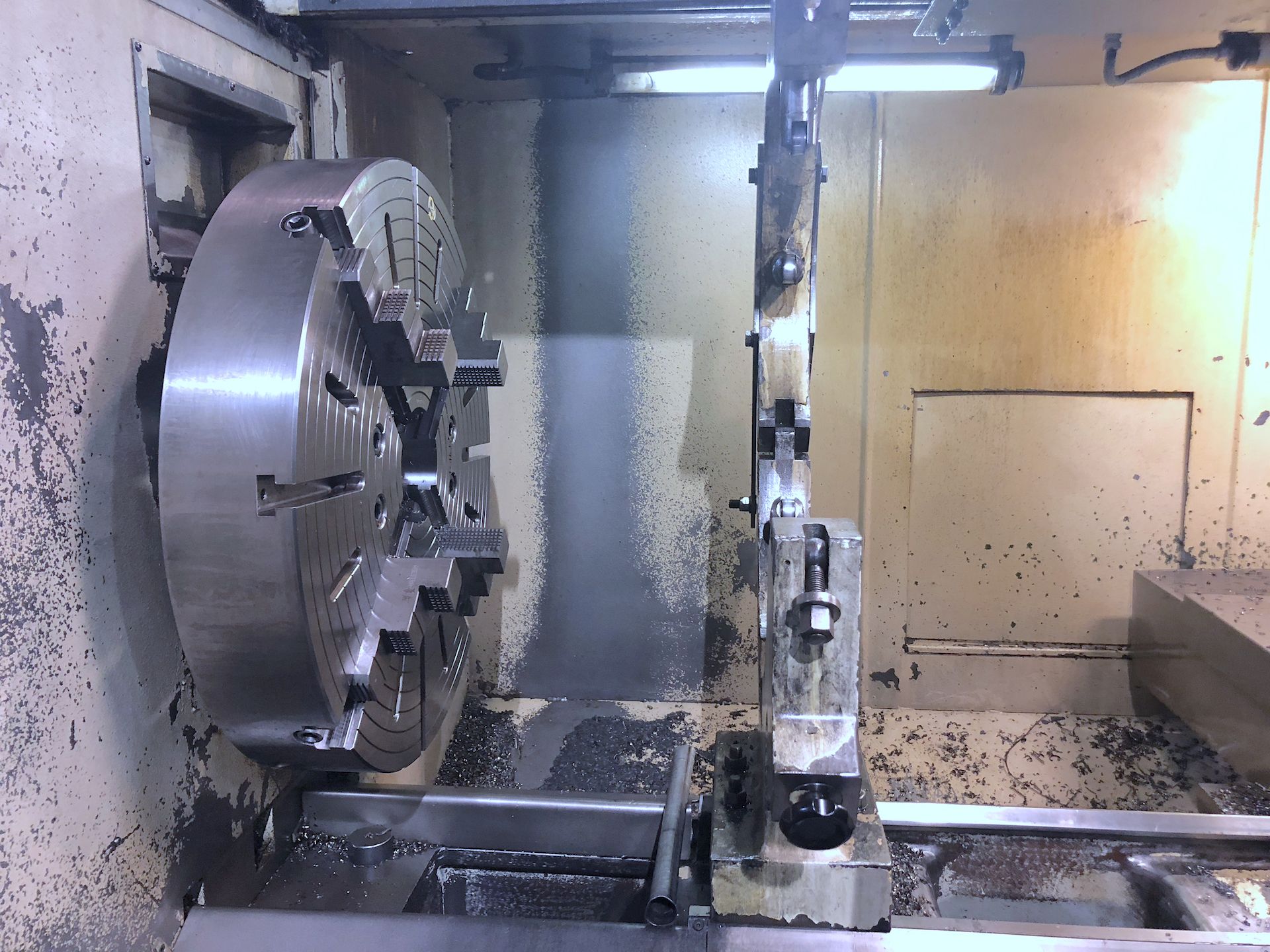

MAIN SPINDLE
Max rotation speed
4500 rpm
Spindle nose
CL11”
Max power
22 Kw
Max torque
2267 Nm
Gearbox
Baruffaldi CE12
Notes
predisposizione con tirante per autocentrante idrauilco
Spindle hole
152 mm5,98 in

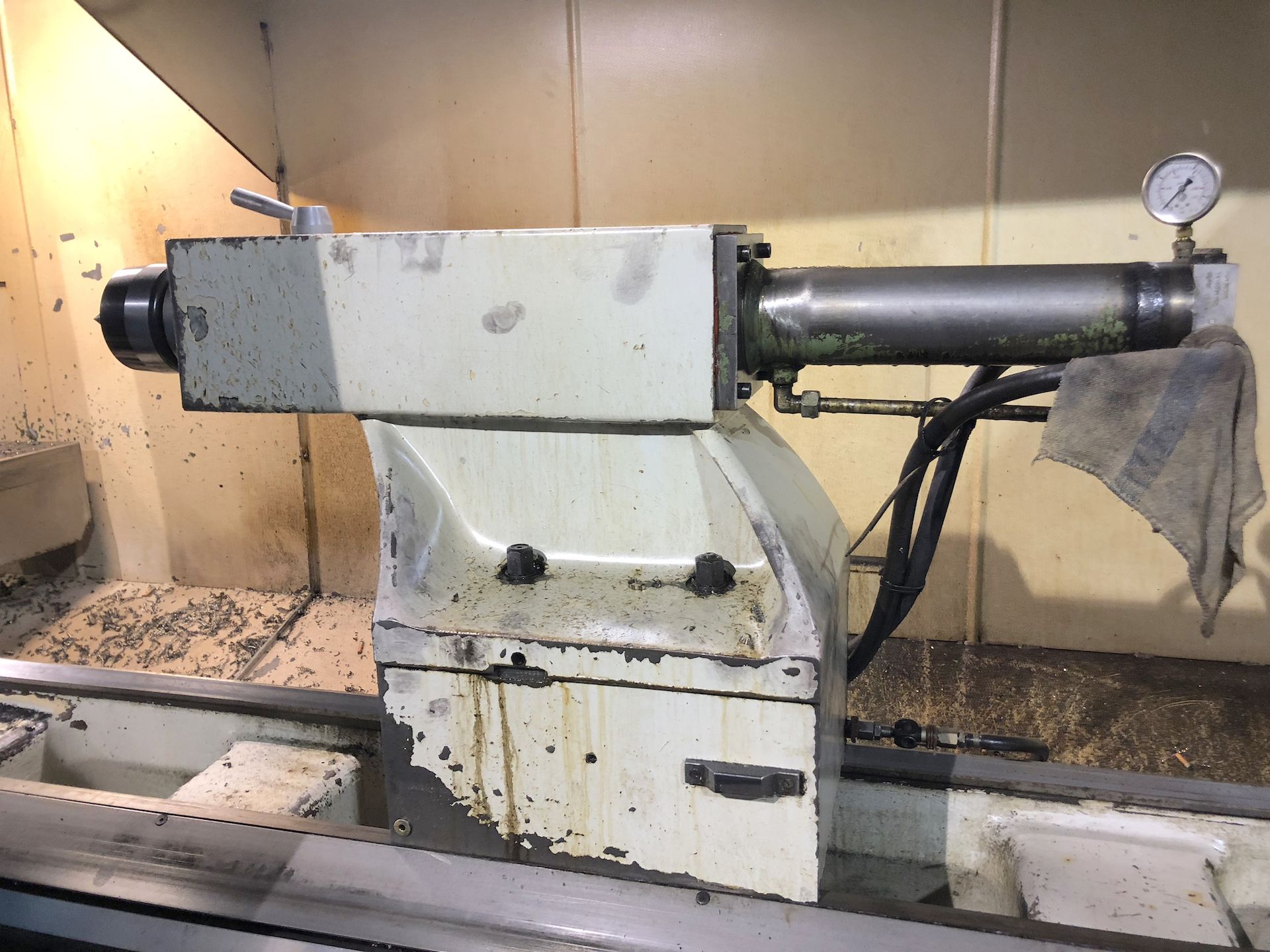

TAILSTOCK
Quill diameter
125 mm4,92 in
Quill stroke
240 mm9,45 in
Taper
CM6 - contropunta idraulica

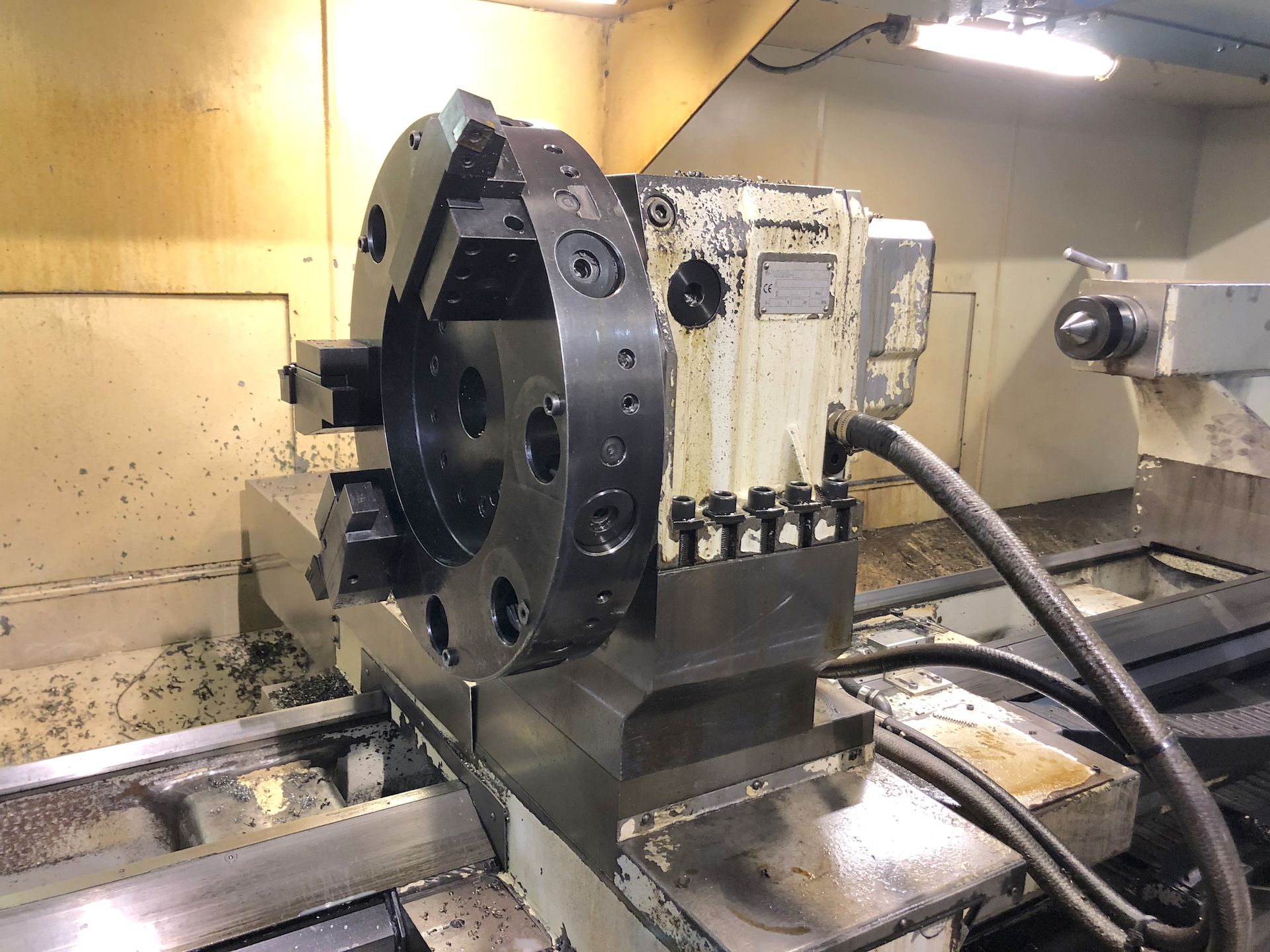

Positions number
8
Axis stroke X
535 mm21,06 in
Rapid feed X
5 m/min196,85 ipm
Axis stroke Z
4000 mm157,48 in
Rapid feed Z
10 m/min393,70 ipm
EXTRA
Total power supply
29 Kw

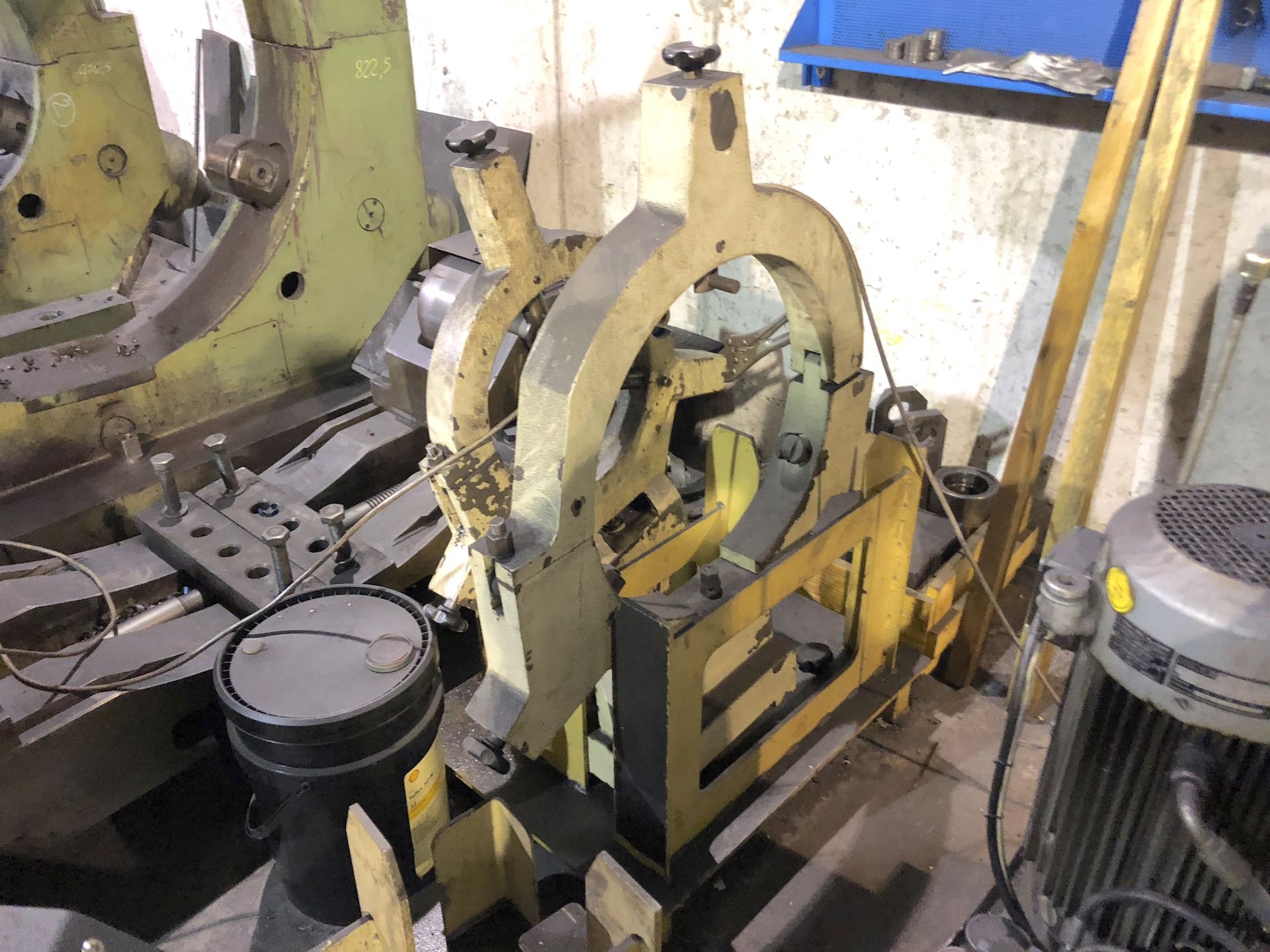

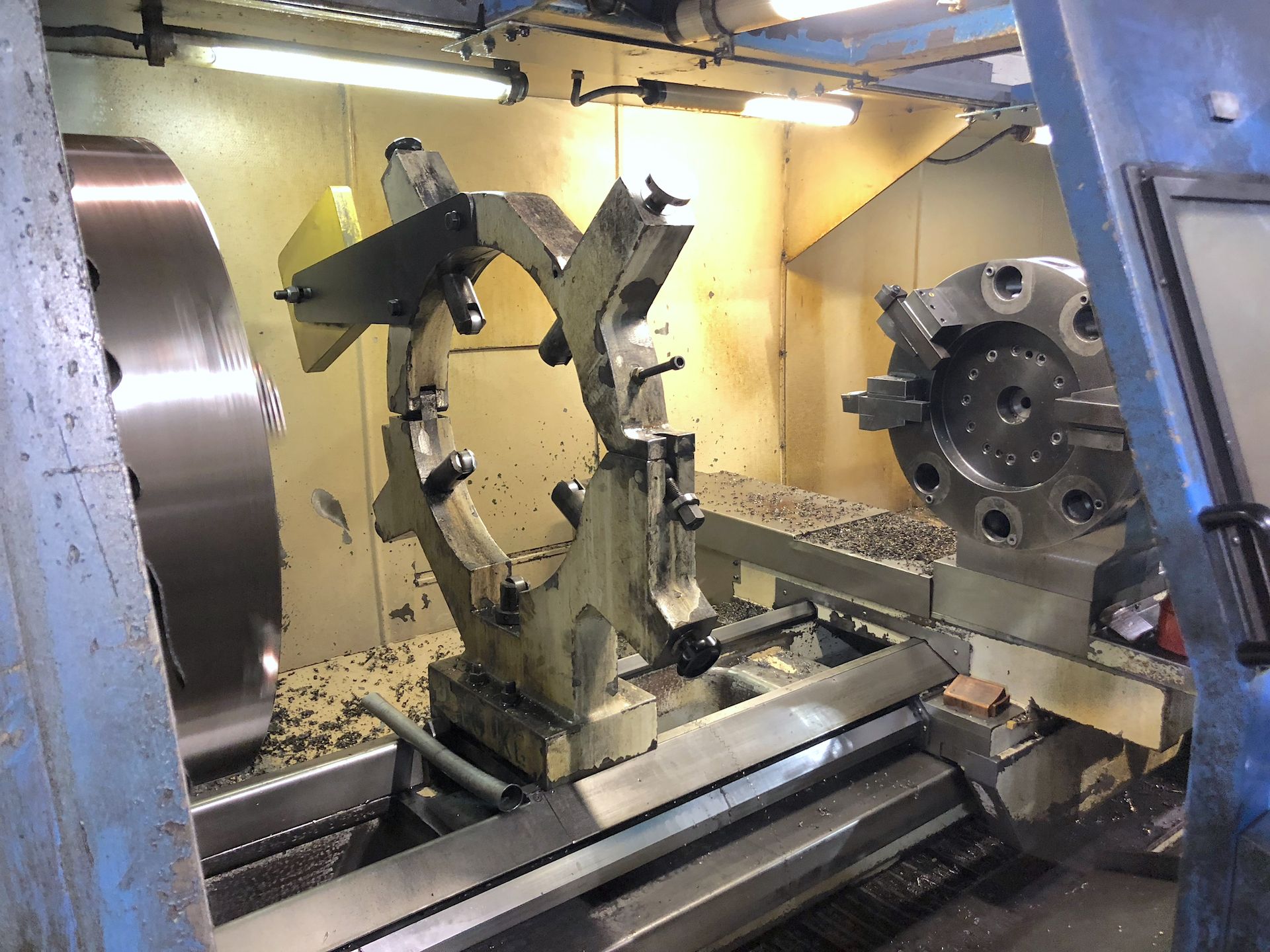

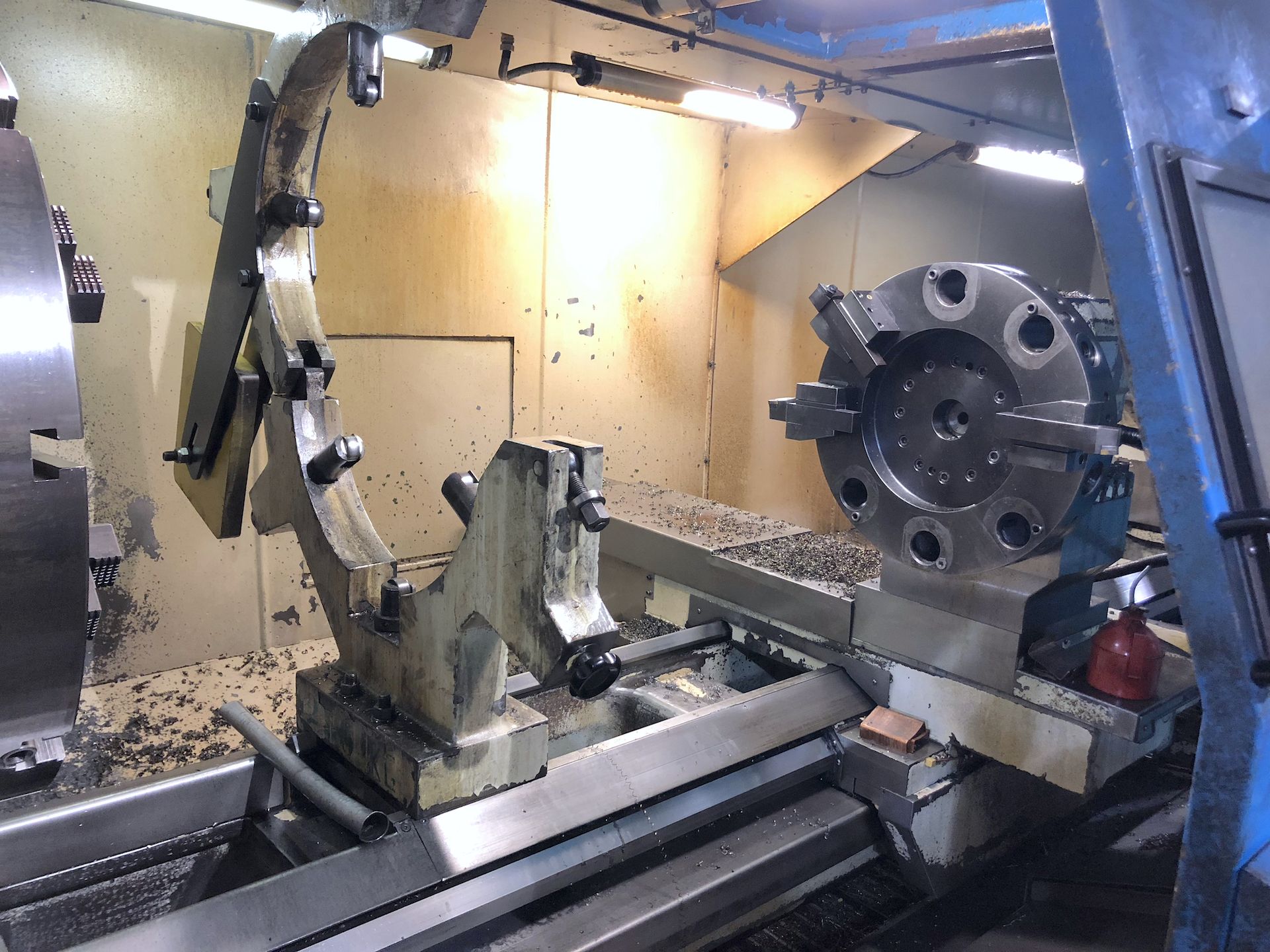

Closed steadies
3 (ø300mm 3 rulli / ø500mm 3 rulli/ ø500mm 5 rulli)
Platform
ø800mm
Chip conveyor
si
Protections
5 portelloni scorrevoli
Availability
pronta
Machine total weight
8400 Kg
Floor space
6890x2319x2169 mm271,26x91,30x85,39 in
