Category
Turning Machine
Type
CNC
Made

MOMAC

Model
TA 50
Capacity
altezza punte 500x3000 mmaltezza punte 19,69x118,11 in

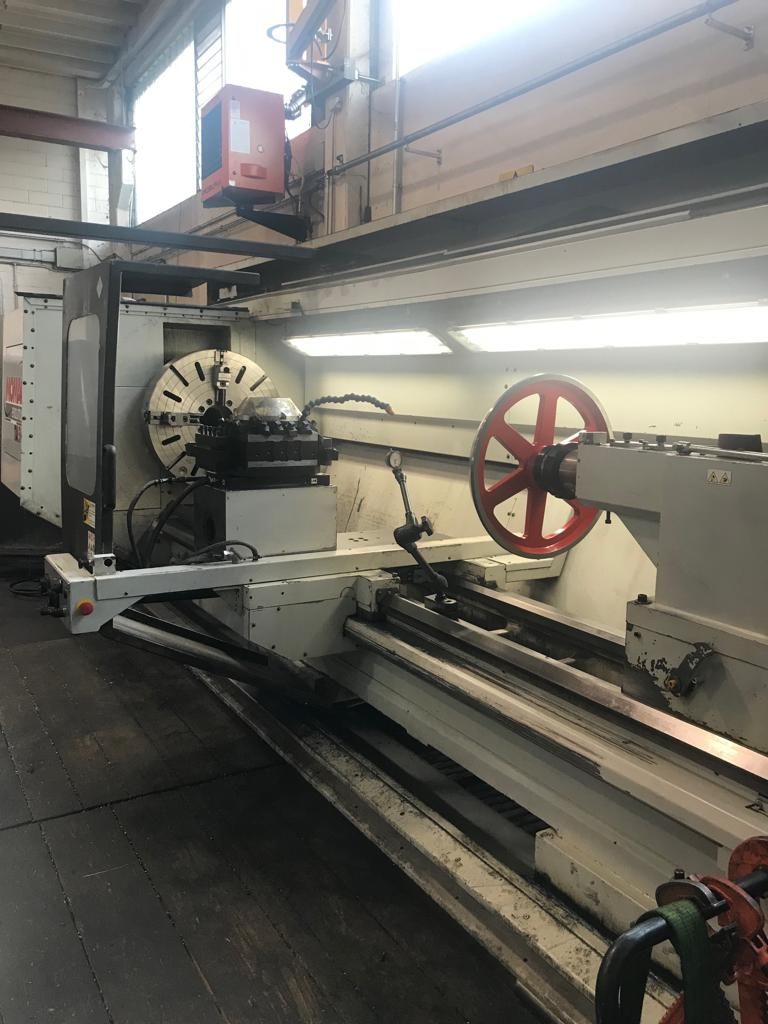

MOMAC TA 50
All the machines are available subject to prior sale
Gallery - 9 photos
Gallery - 9 photos
Gallery - 9 photos
Gallery - 9 photos
Gallery - 9 photos
Gallery - 9 photos
Gallery - 9 photos
Gallery - 9 photos
Gallery - 9 photos
Data sheet

Technical specifications

Metric Imperial
WORKING CAPACITY
Max diameter on bed
1010 mm39,76 in
Max diameter on cross-slide
935 mm36,81 in
Max working lenght
3000 mm118,11 in
Bed width
500 mm19,69 in

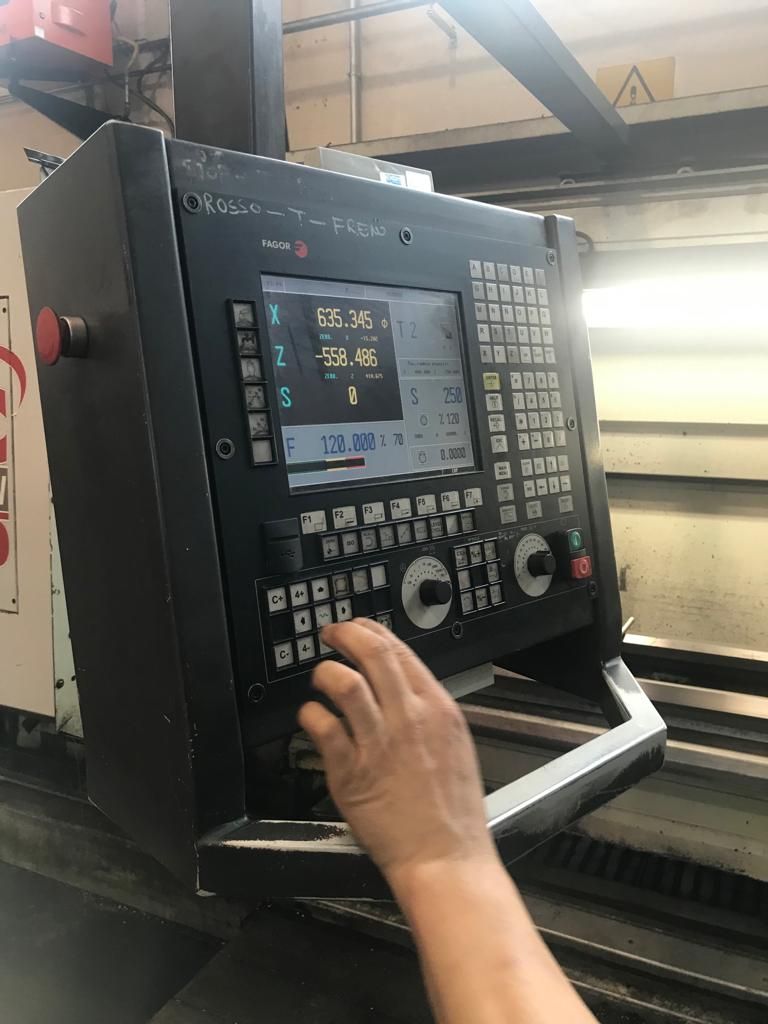

CNC
CNC
FAGOR 8055
MAIN SPINDLE
Gearbox
gamma 1 0-375 gamma 2 375-1700
Notes
Torretta automatica Baruffaldi
Max rotation speed
0/1400 rpm
Spindle nose
CM 6
Spindle hole
130 mm5,12 in
Max power
22 Kw
TAILSTOCK
Quill diameter
120 mm4,72 in
Quill stroke
300 mm11,81 in
Taper
CM 6
Positions number
4

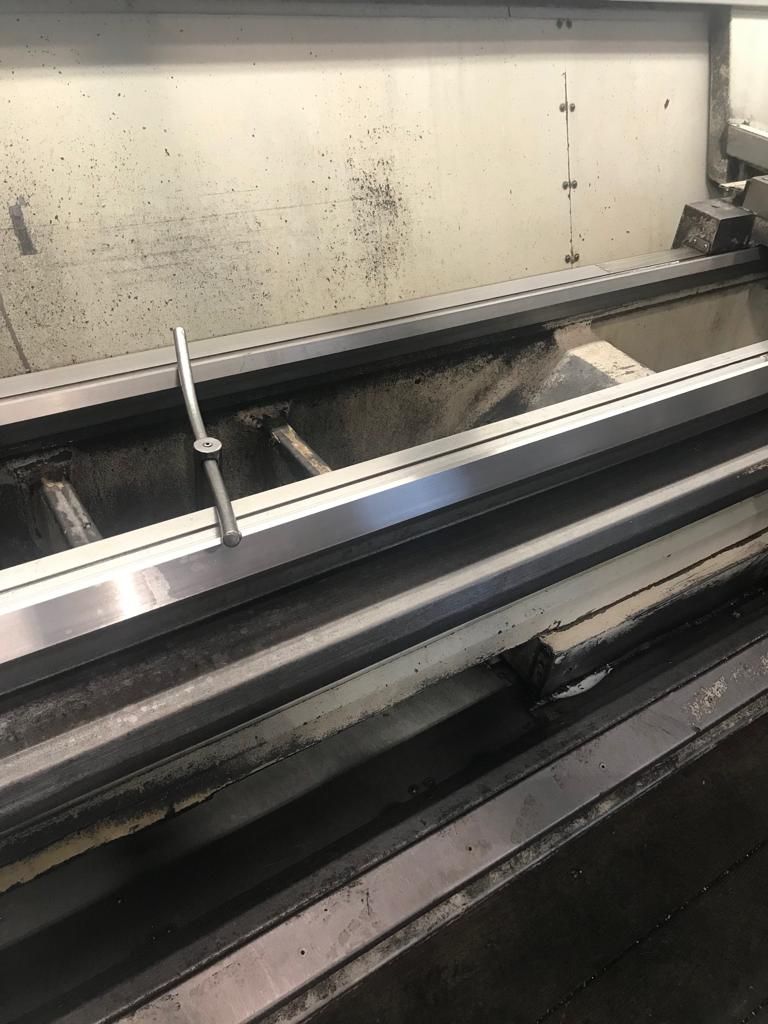

FLAT BED
Bed width
500 mm19,69 in
EXTRA

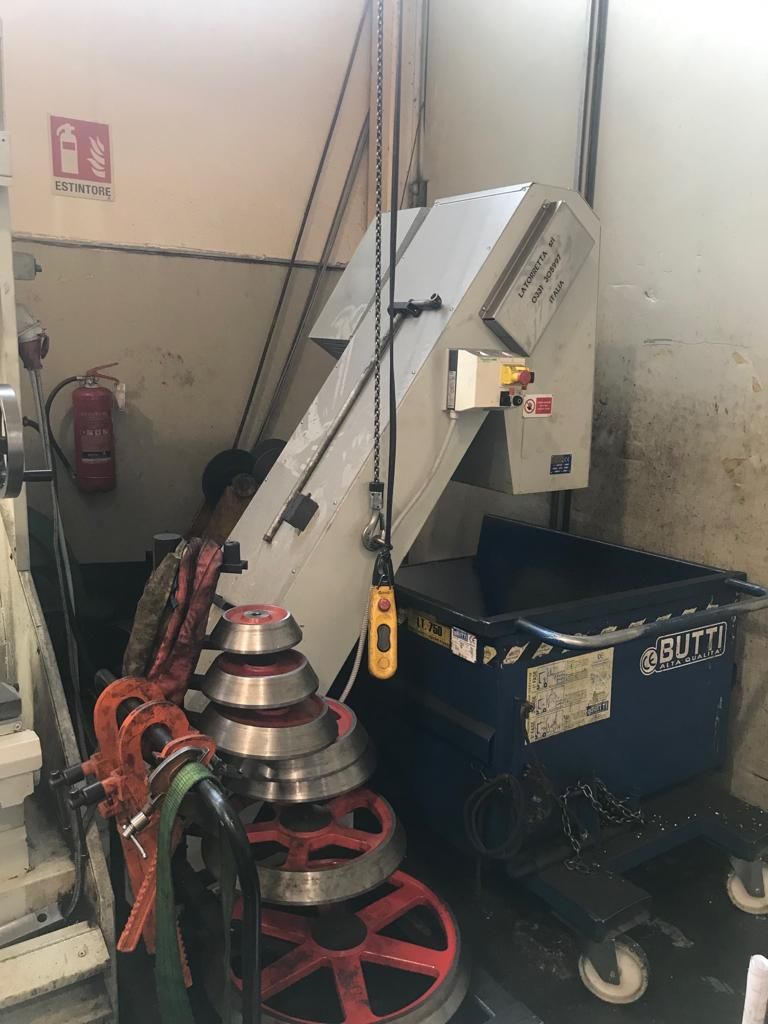

Chip conveyor
Si

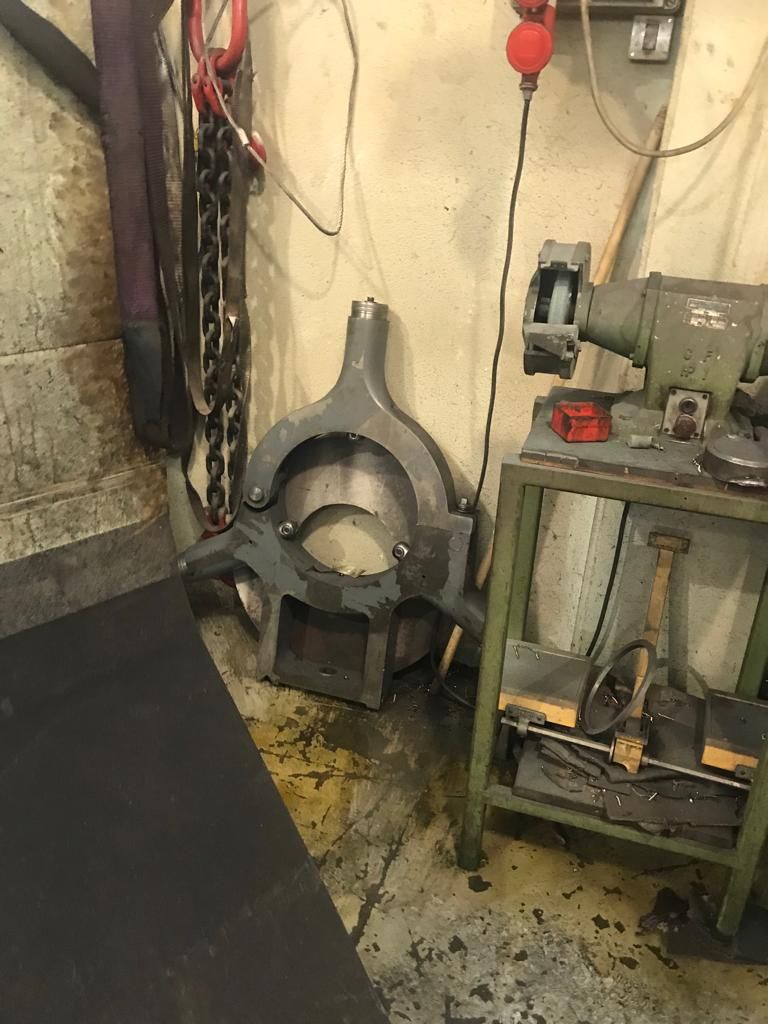

Closed steadies
SI
Platform
SI
Availability
PRONTA
Available in stock
Yes
Available under power
No
Fixed toolholders
SI
Coolant pump
SI
