Category
Turning Machine
Type
CNC
Made
Model

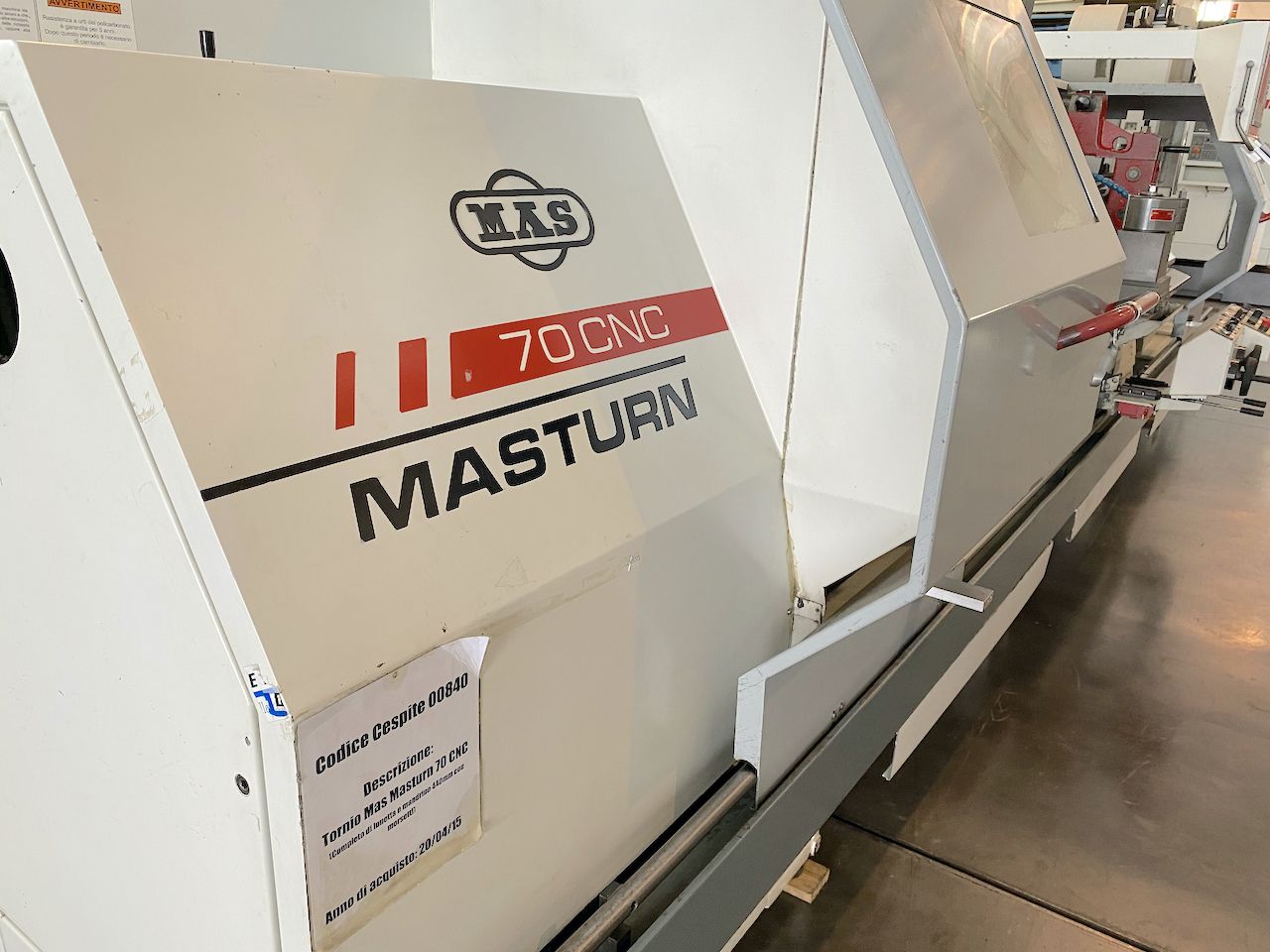

MT 70
Capacity
ø820x4500x128 mmø32,28x177,17x5,04 in

Technical specifications

Metric Imperial
WORKING CAPACITY
Max bar working diameter
128 mm5,04 in
Max diameter on bed
820 mm32,28 in
Max diameter on cross-slide
530 mm20,87 in

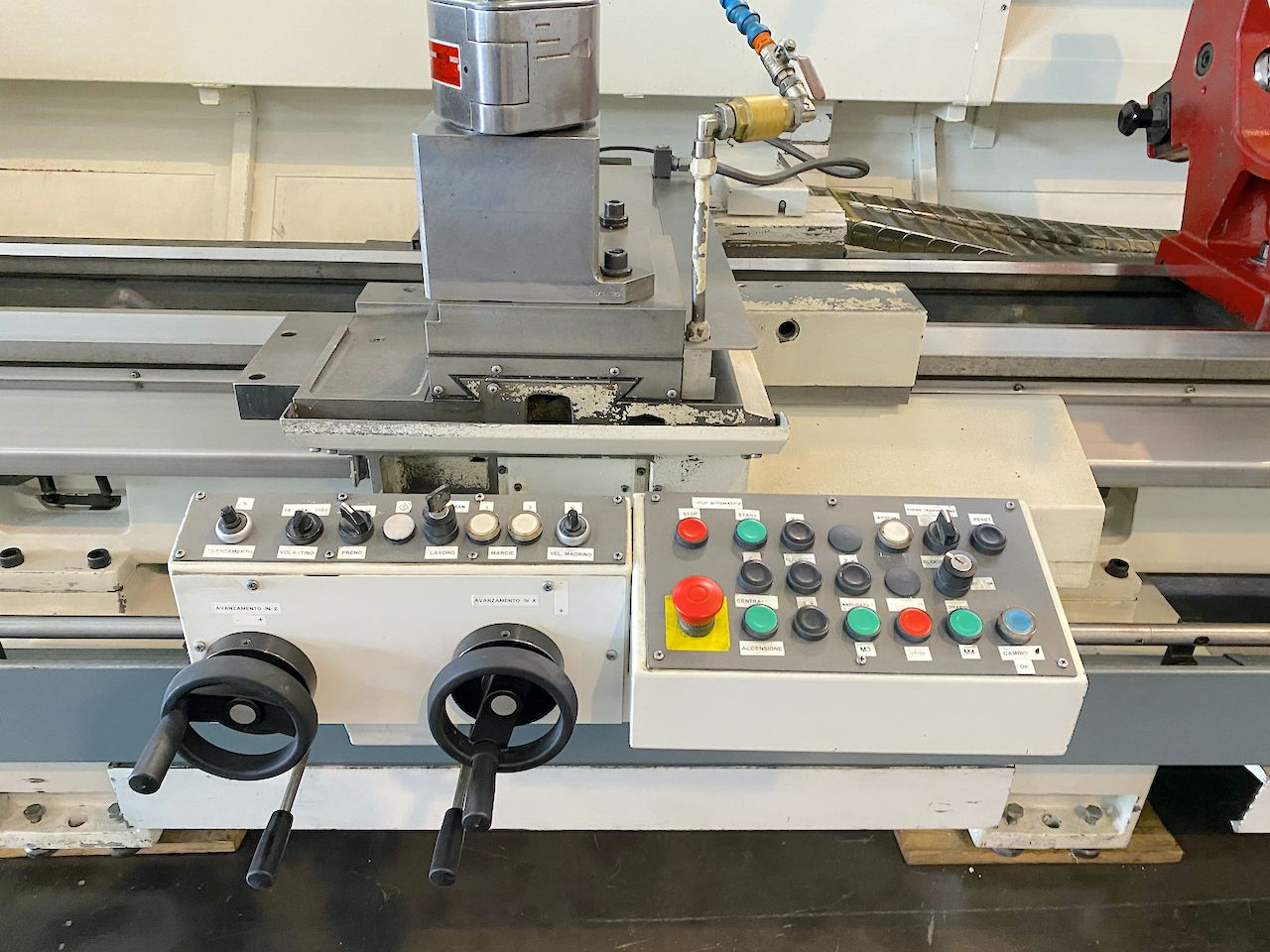

CNC
CNC

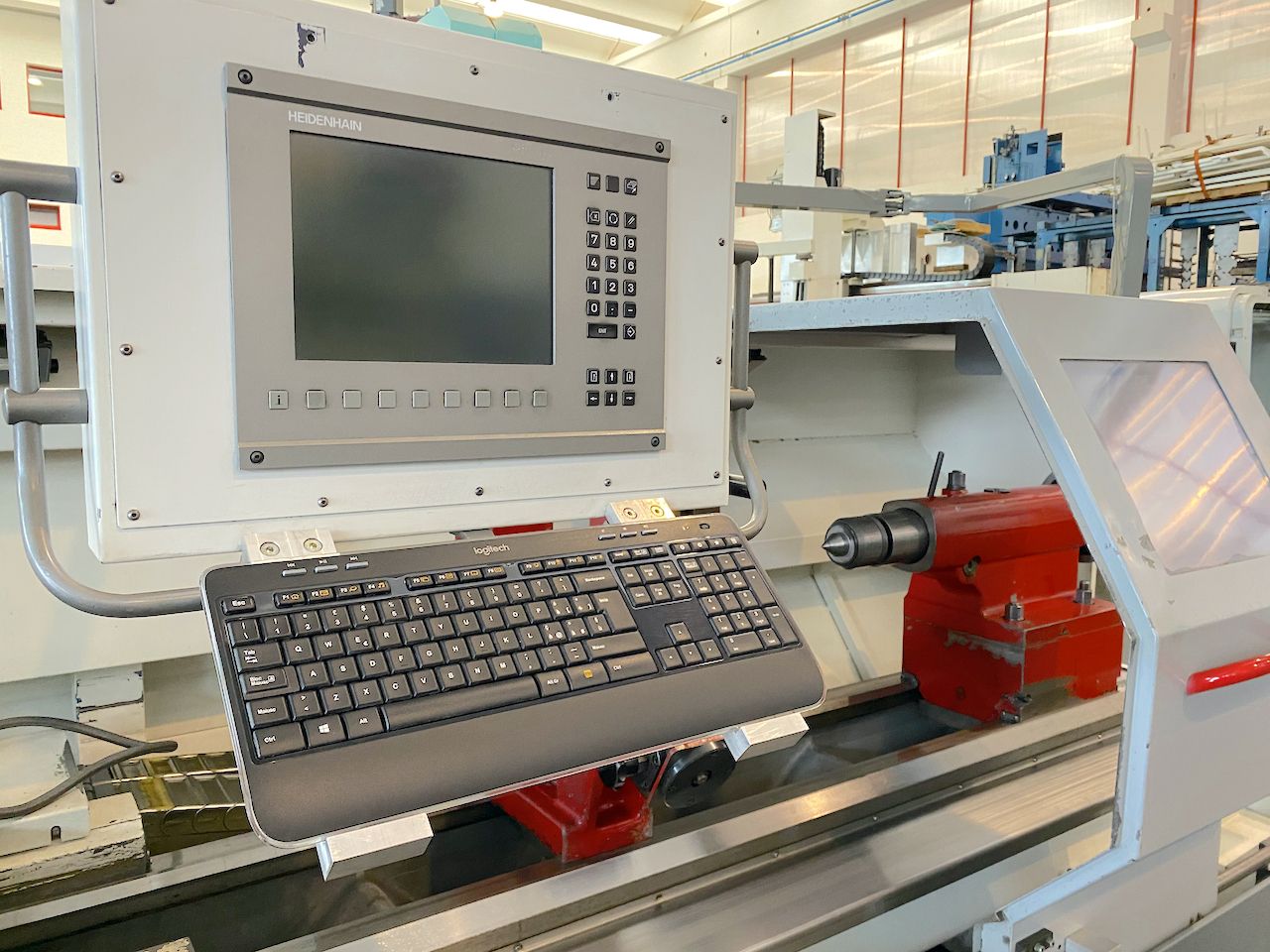

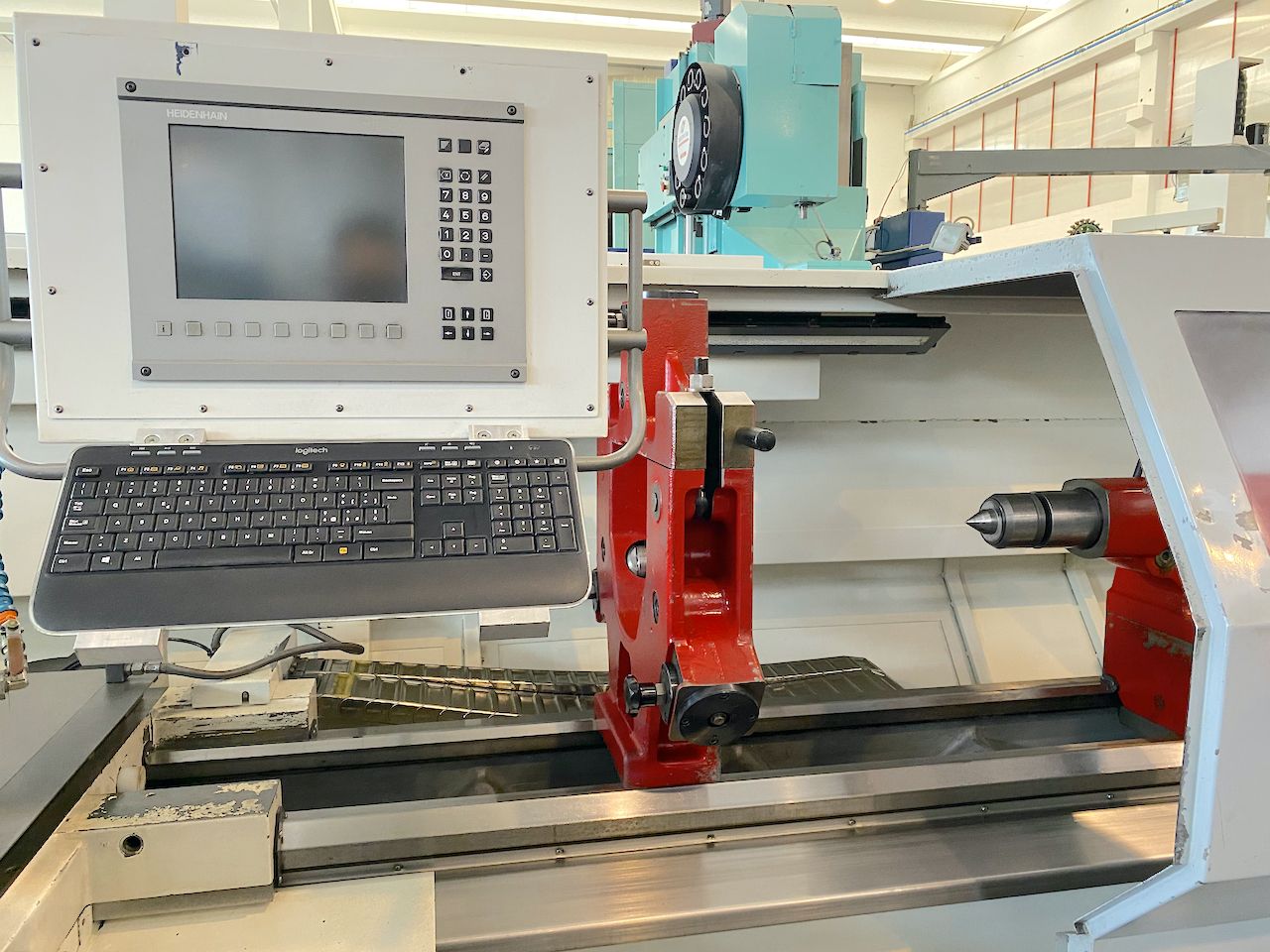

Heidenhain 620 Manual Plus
Notes
volantino elettronico
MAIN SPINDLE
Max rotation speed
1800 rpm

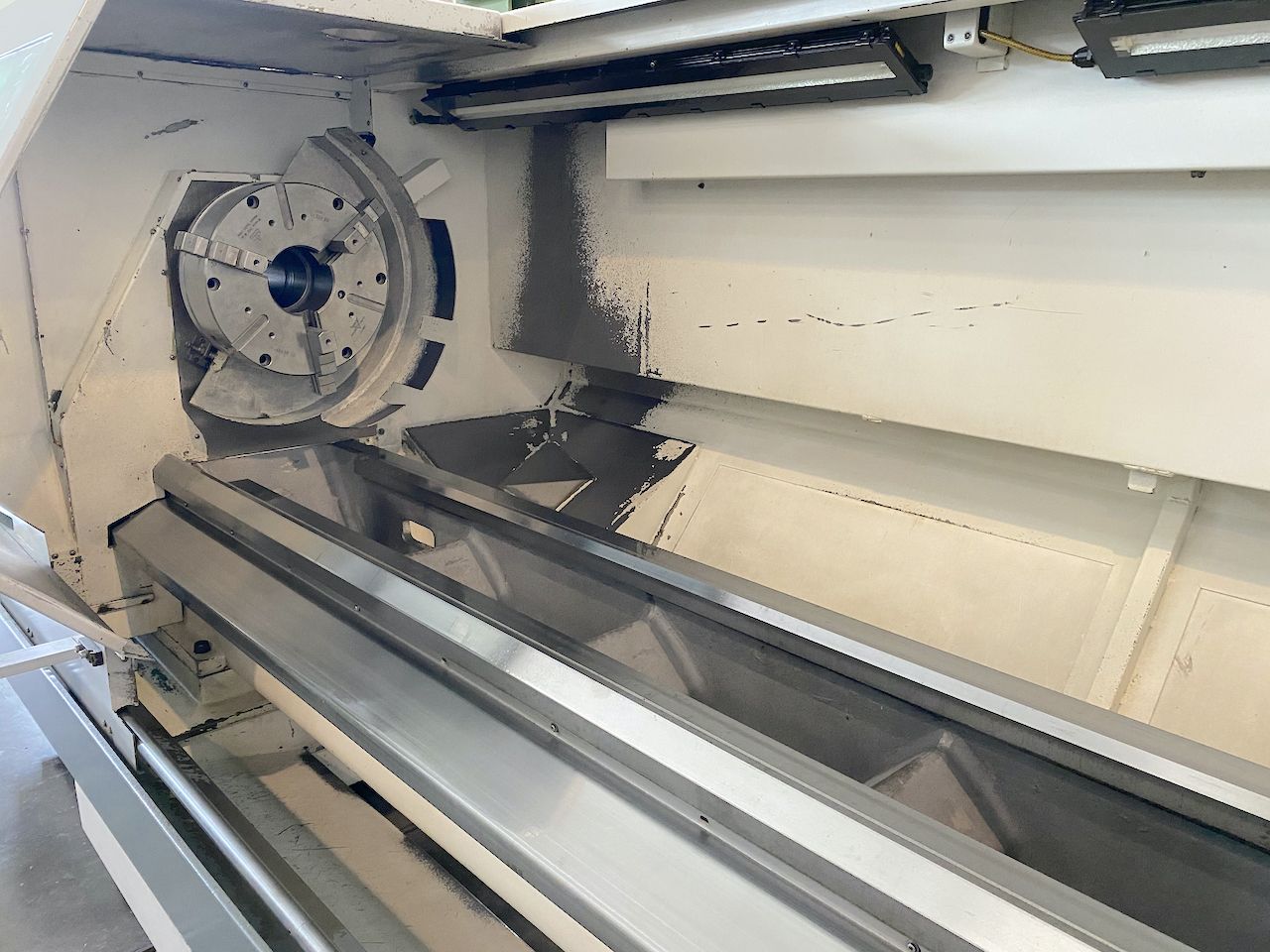

Spindle nose
Cam Lock 11”
Spindle hole
128 mm5,04 in
Max torque
2150 Nm
Max power
22 Kw

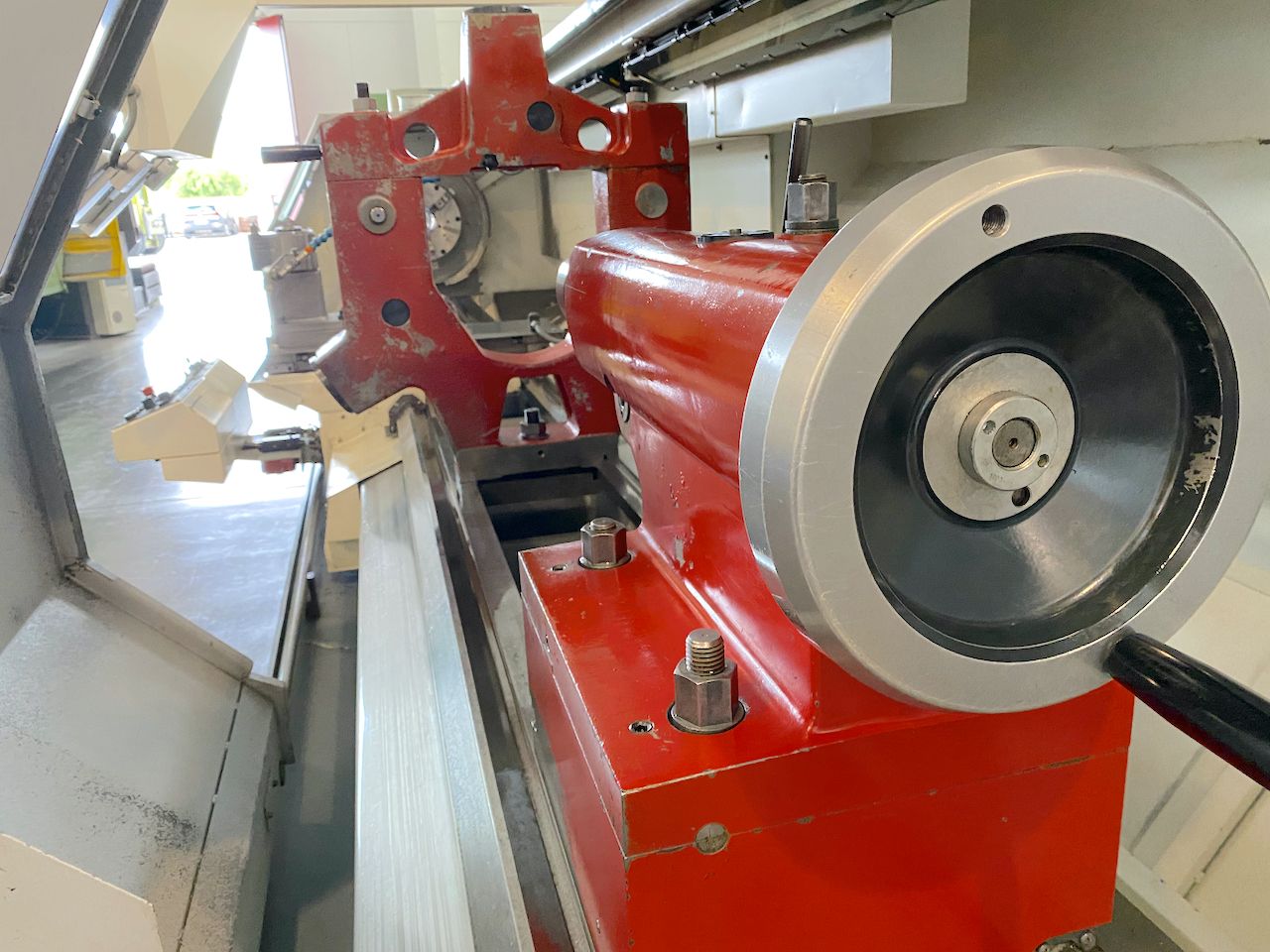

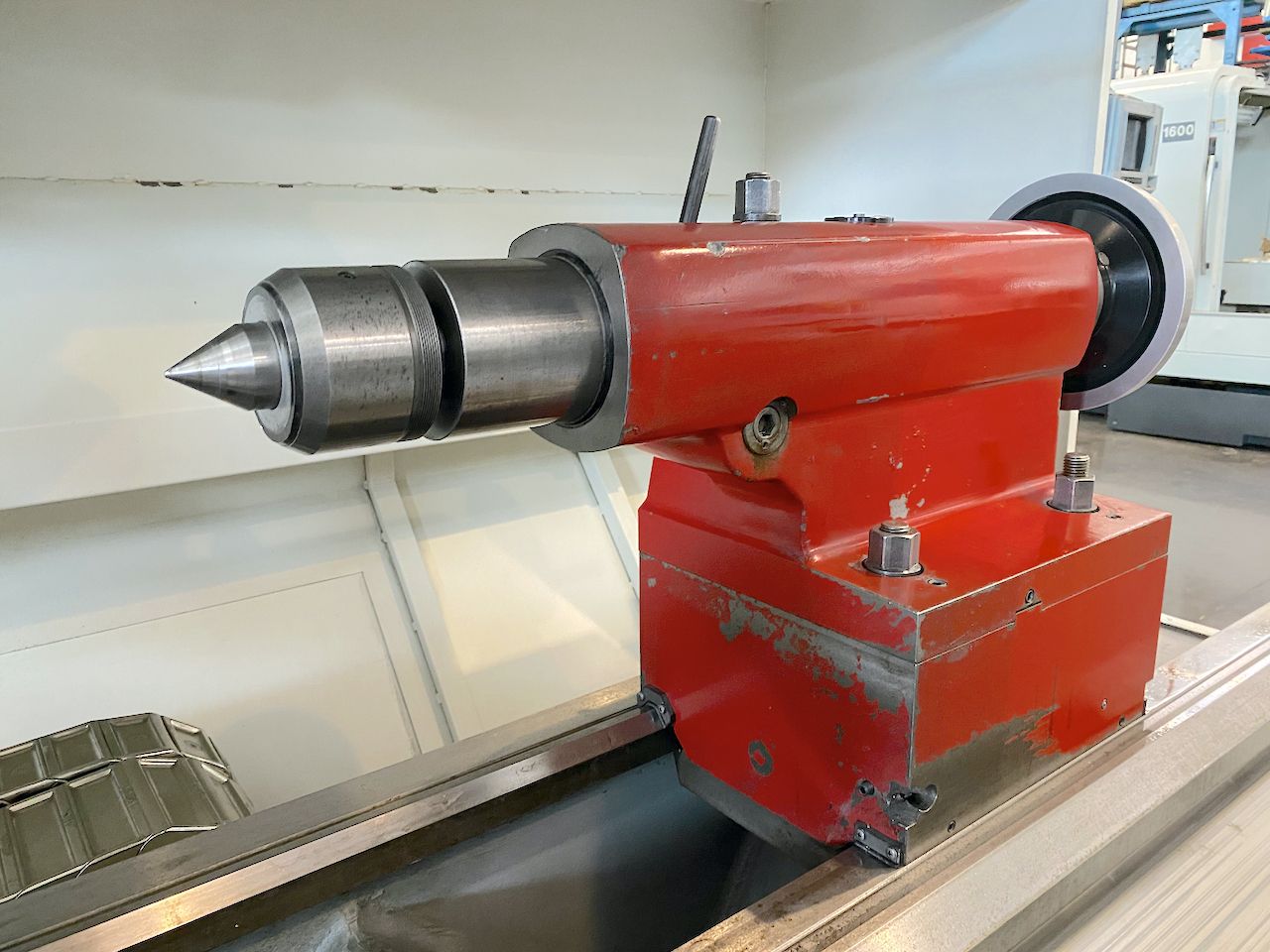

TAILSTOCK
Quill diameter
115 mm4,53 in
Quill stroke
225 mm8,86 in
Taper
CM6
EXTRA
Machine total weight
7000 Kg
Floor space
6500x1840x1860 mm255,91x72,44x73,23 in

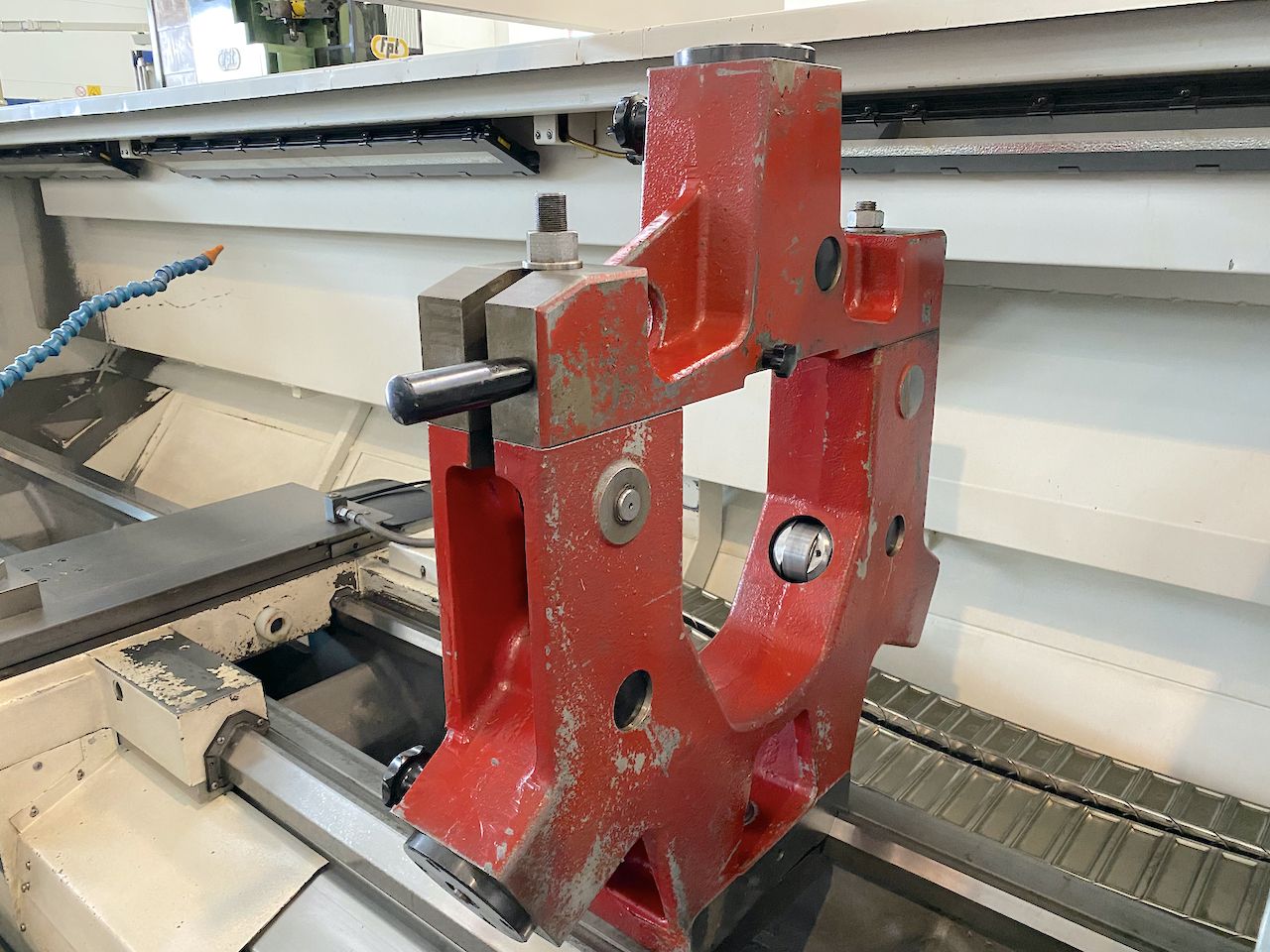

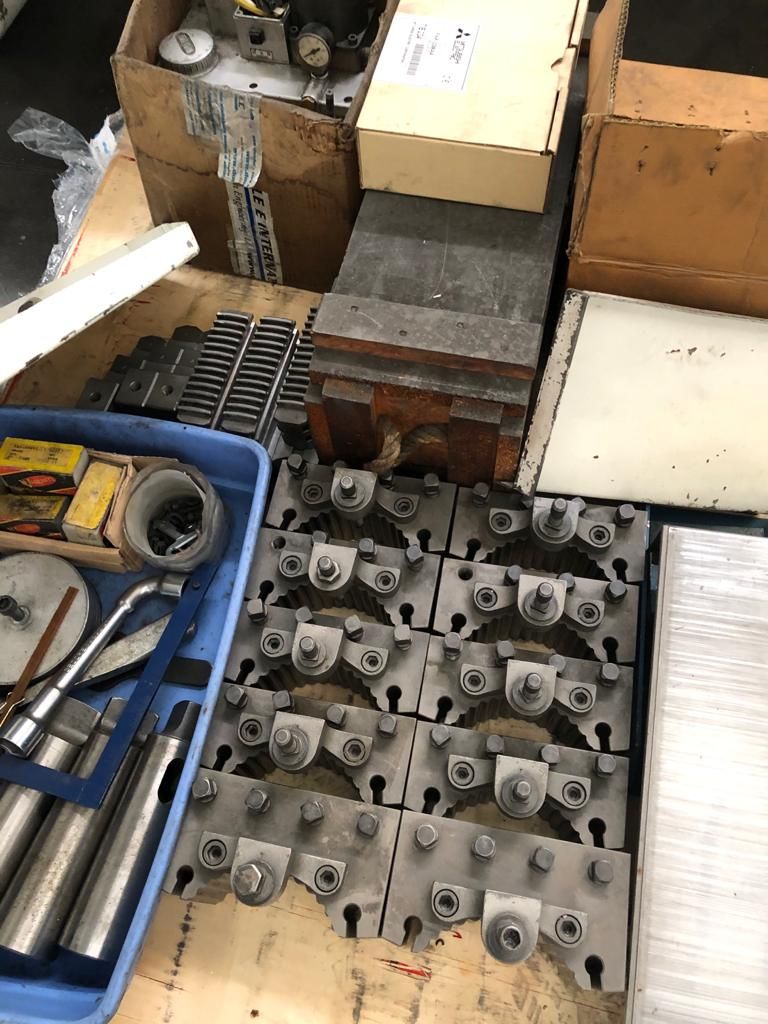

Closed steadies
1
Autocentering chuck
1
Available in stock
Yes
Protections
doppio portellone scorrevole
