Category
Turning Machine
Type
CNC
Made
Model

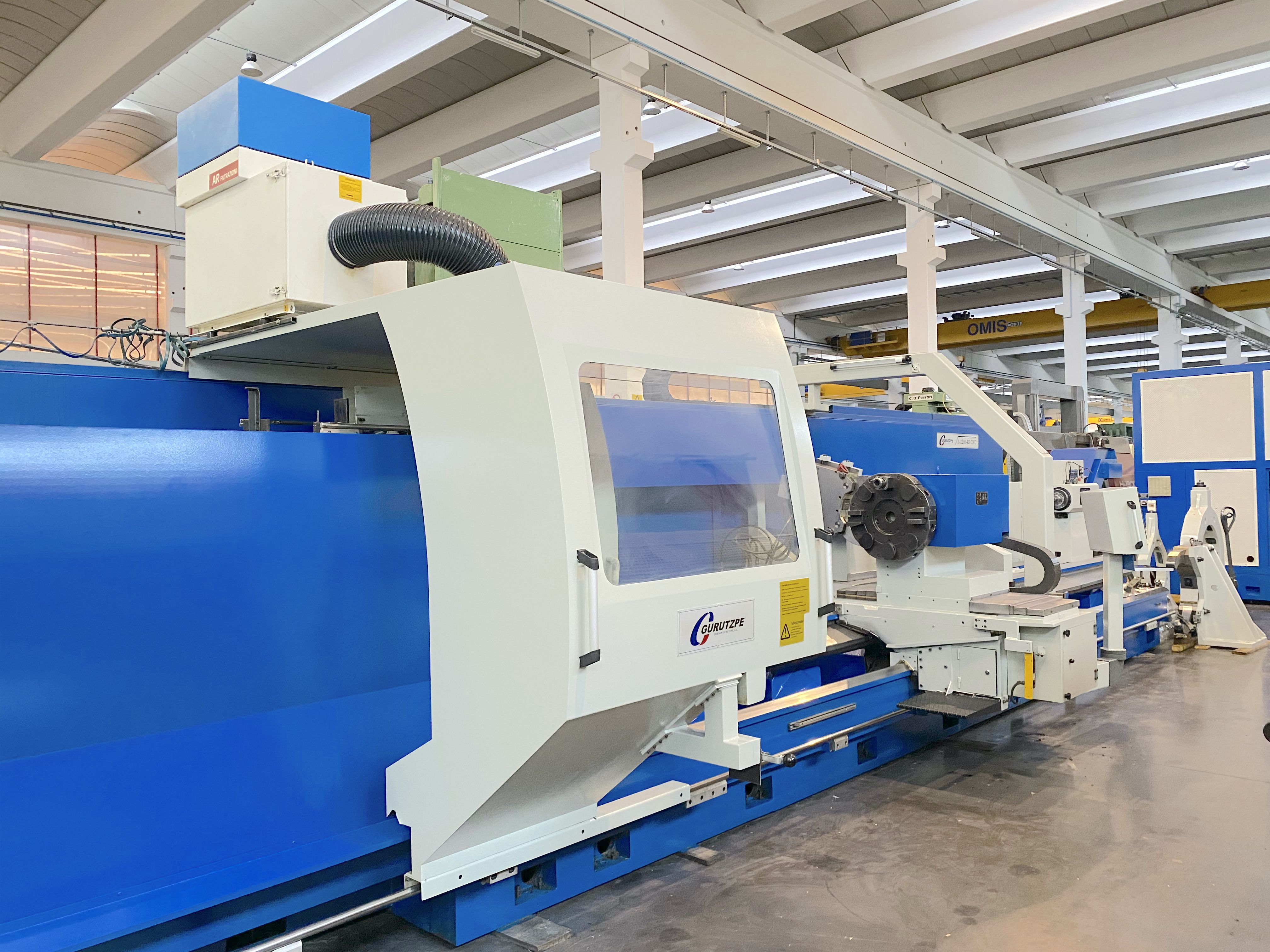

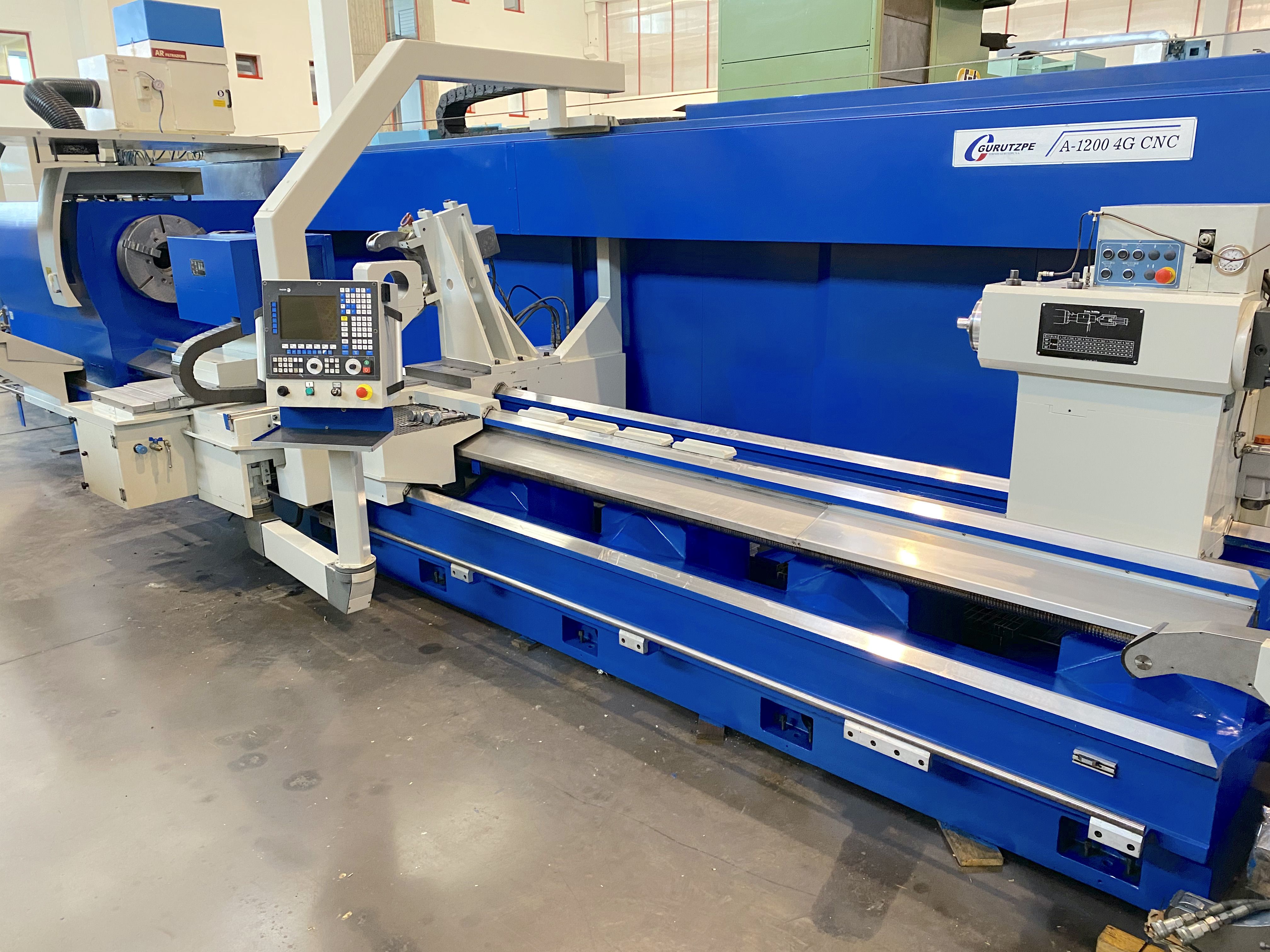

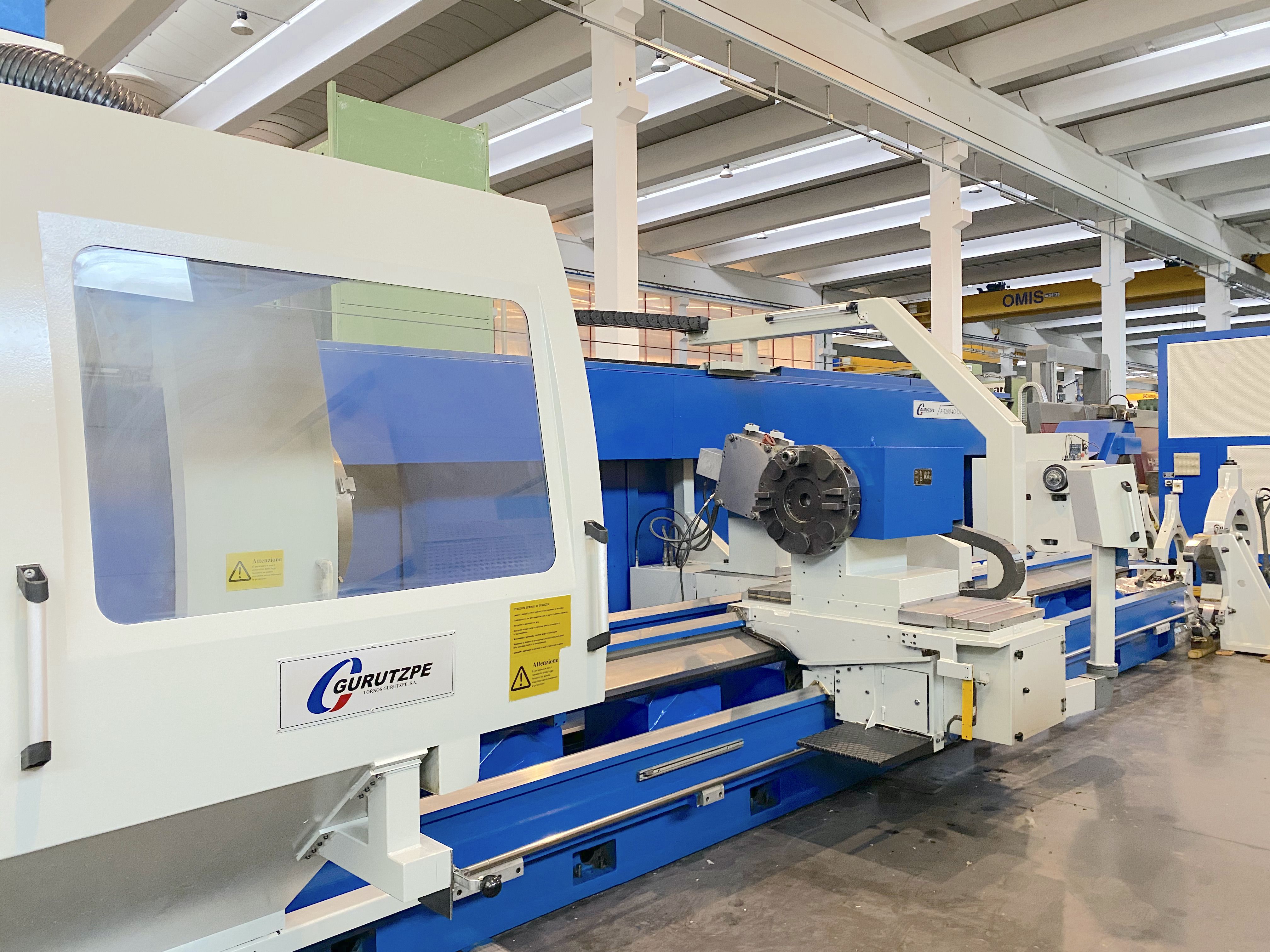

A1200 4G CNC
Capacity
ø1200x6000x150 mmø47,24x236,22x5,91 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Max bar working diameter
150 mm5,91 in
Max diameter on bed
1200 mm47,24 in
Max diameter on cross-slide
940 mm37,01 in
Max working lenght
6000 mm236,22 in

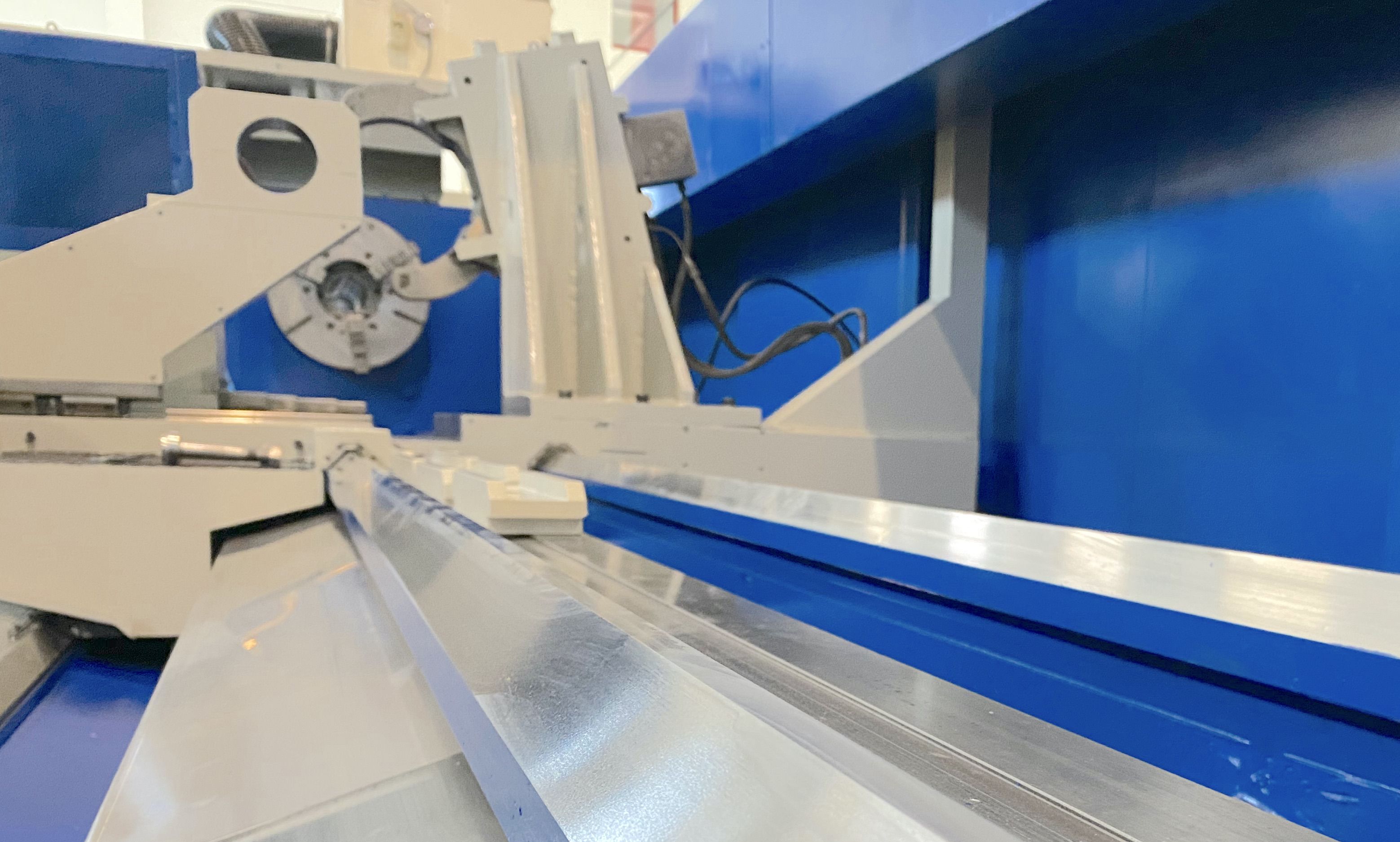

Bed width
900 mm35,43 in
Guide-ways number
4
Max weight between centres
10.000 Kg
FLAT BED
Guide-ways number
3
Bed width
900 mm35,43 in

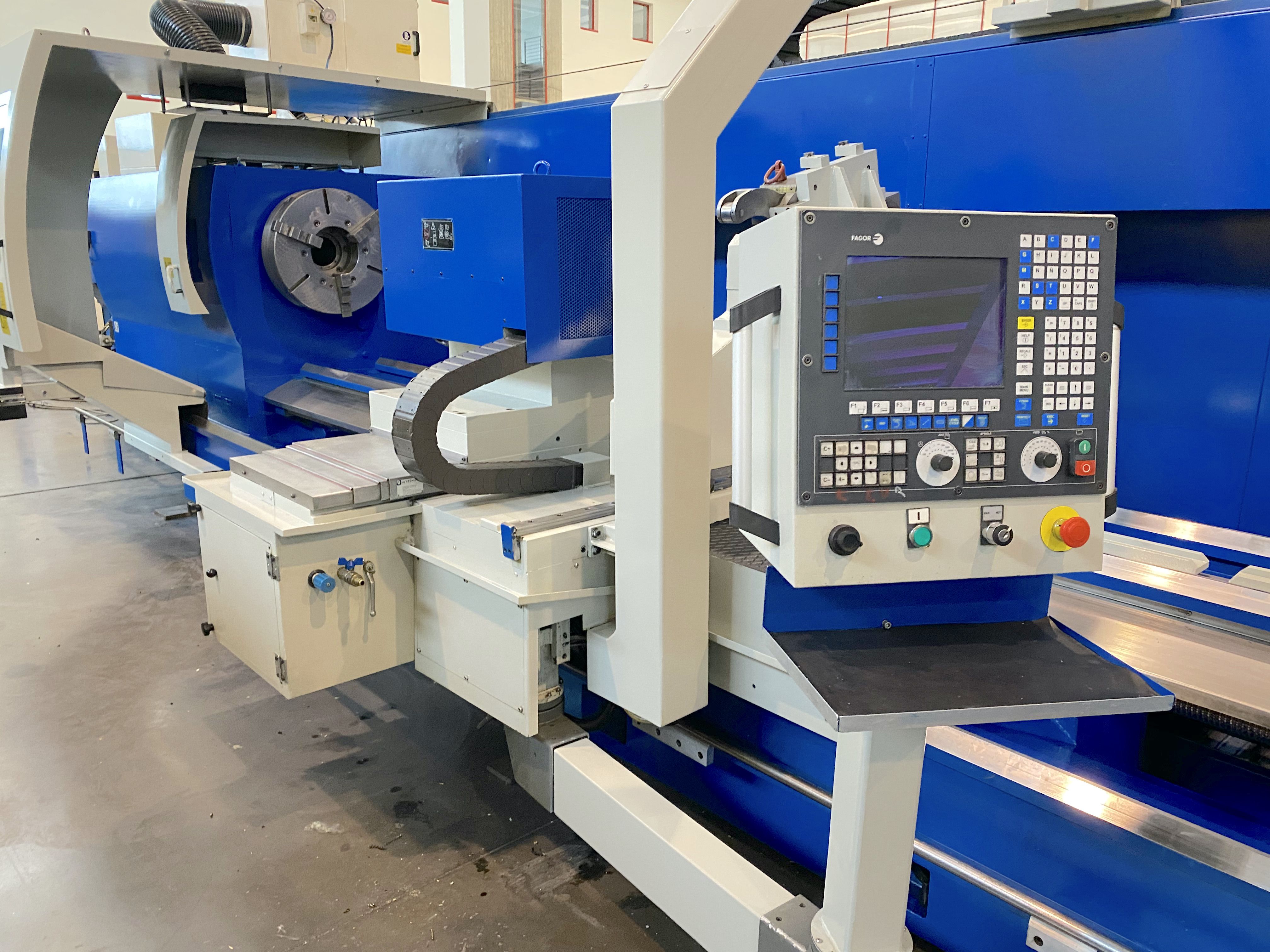

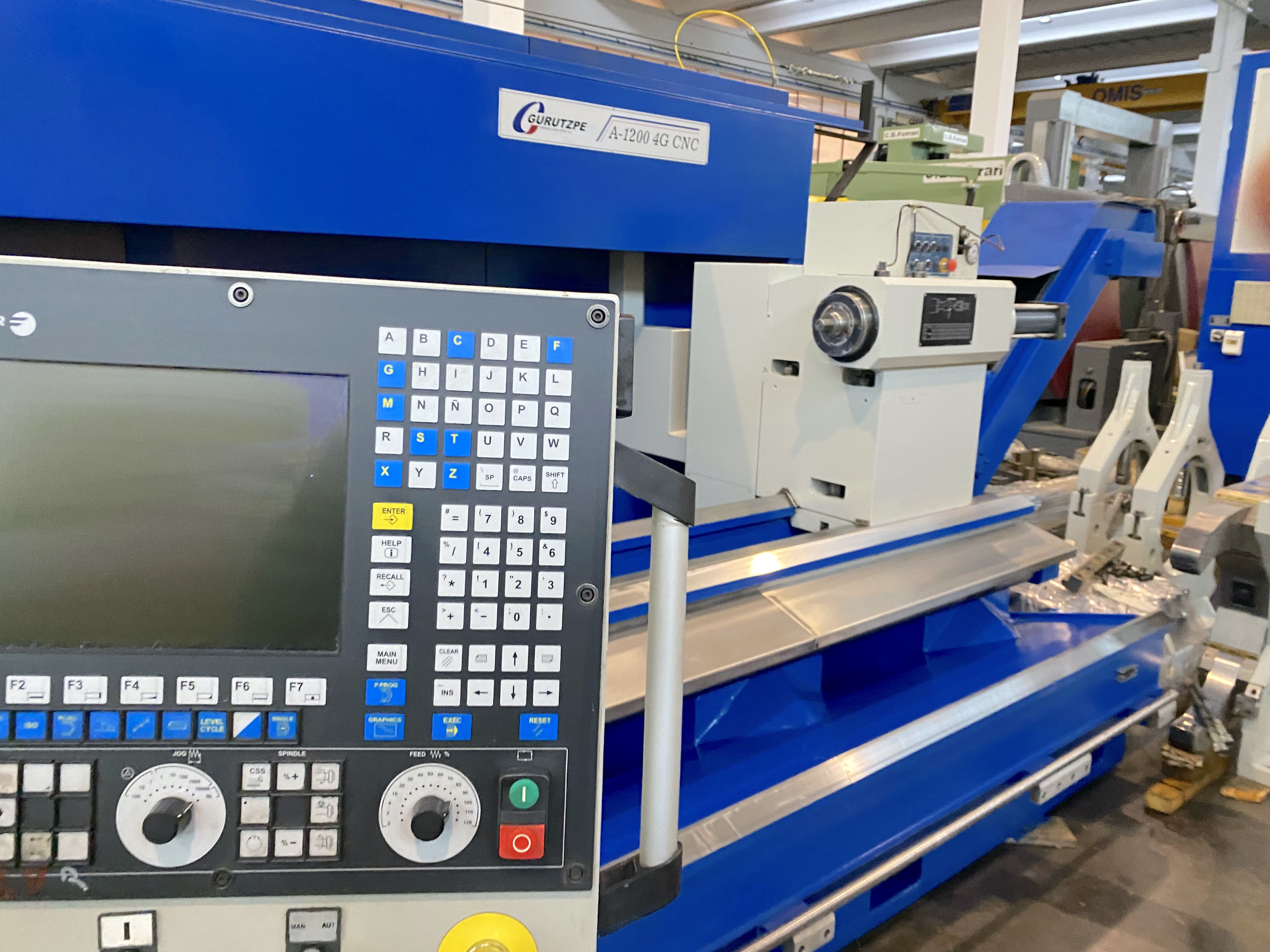

CNC
CNC
FAGOR 8055

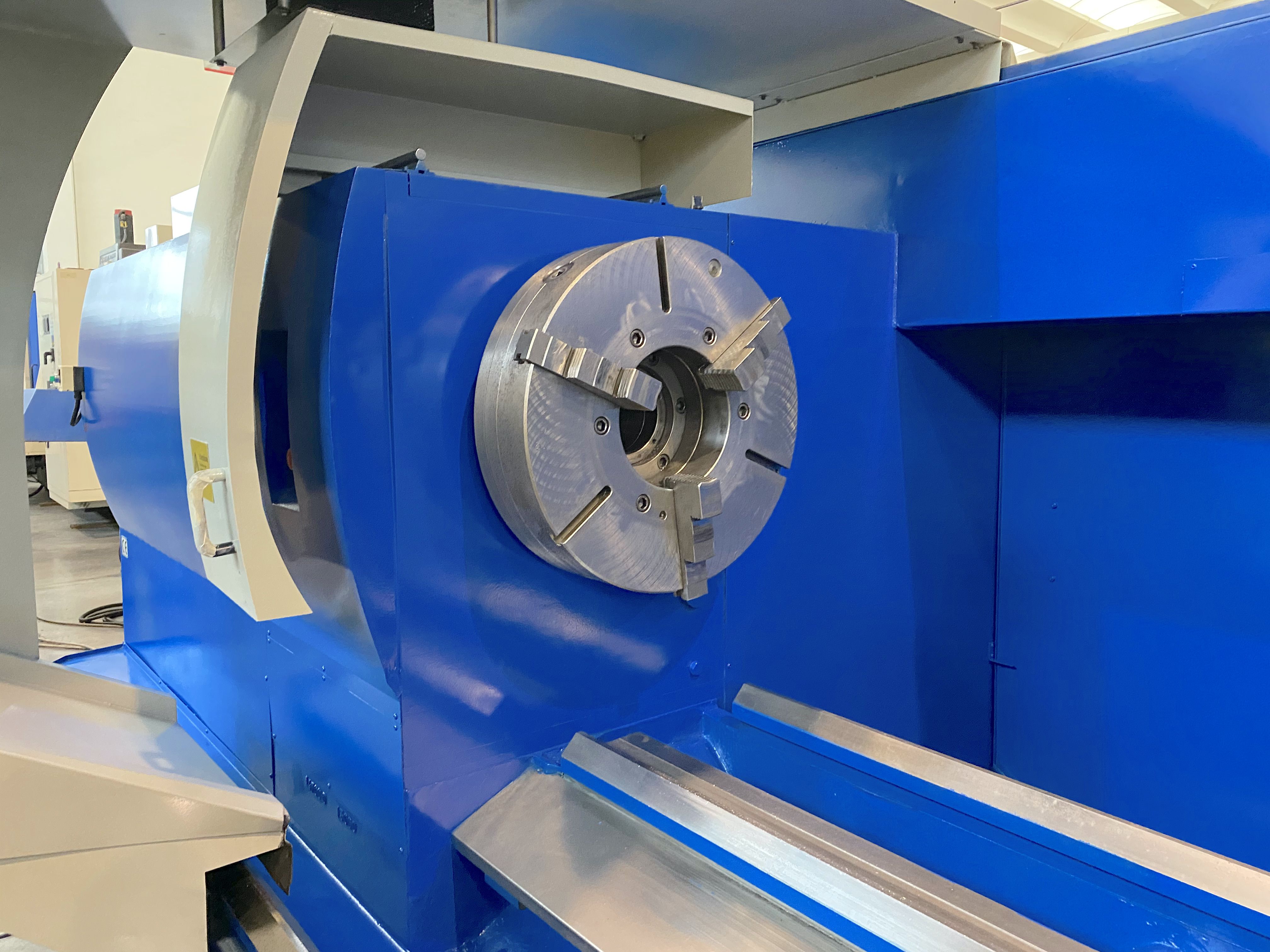

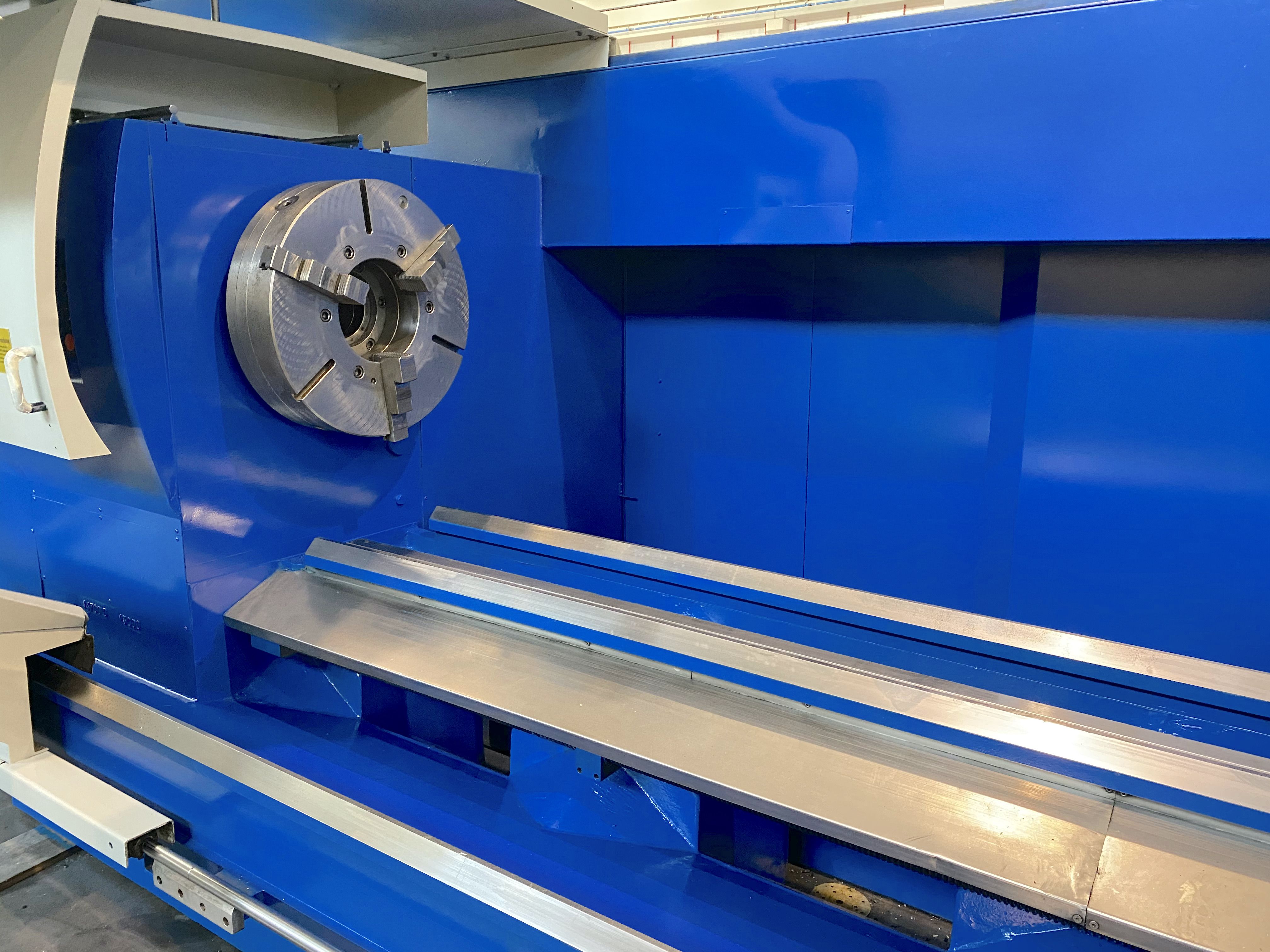

MAIN SPINDLE
Max rotation speed
0-1600 rpm
Spindle nose
ASA11”
Spindle hole
150 mm5,91 in
Internal bearing diameter
200 mm7,87 in
Max power
28/42 Kw
Max torque
3680/4420 Nm
Accuracy (C axis)
0,001 °
Notes
asse C con motore indipendente

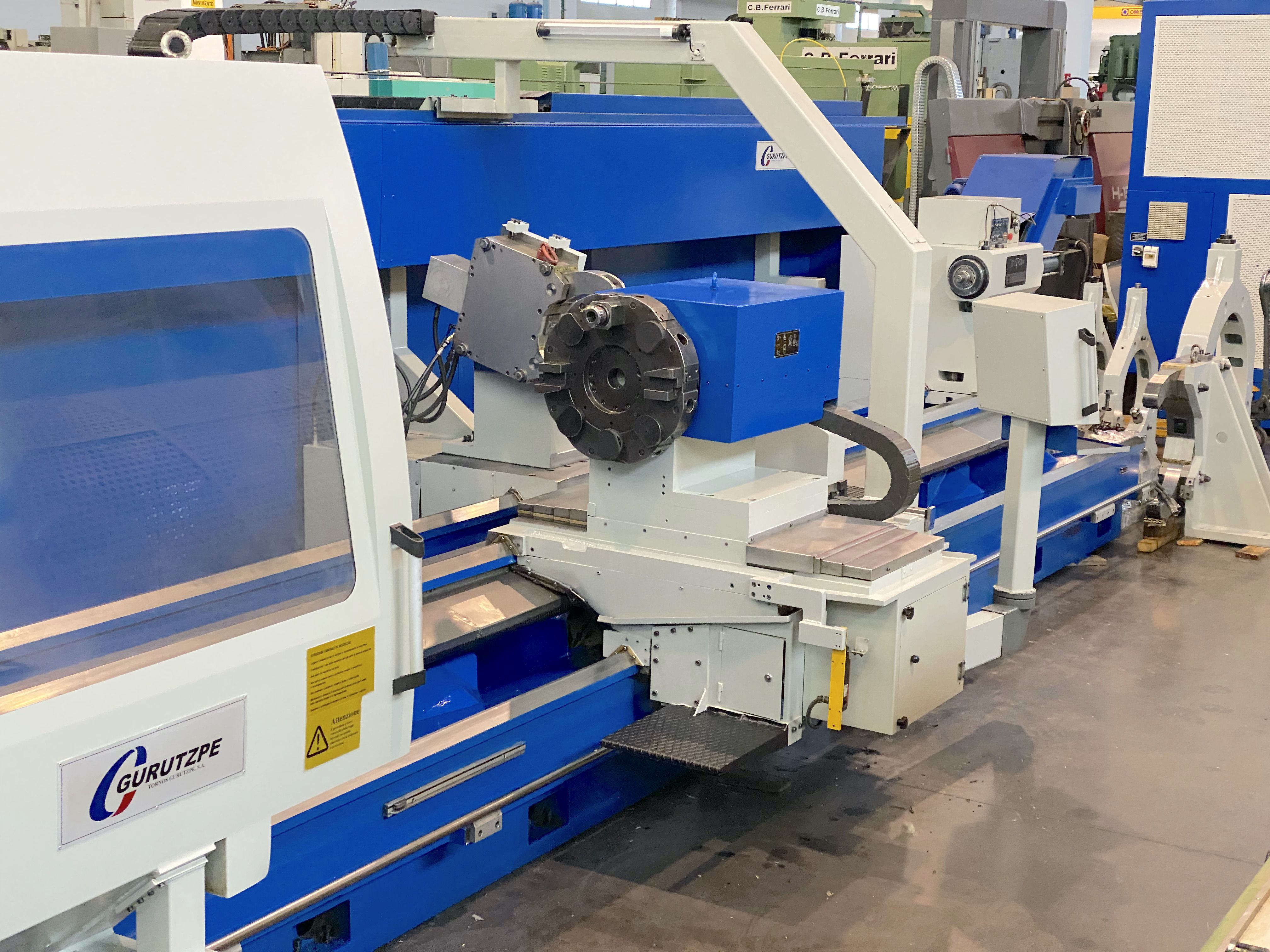

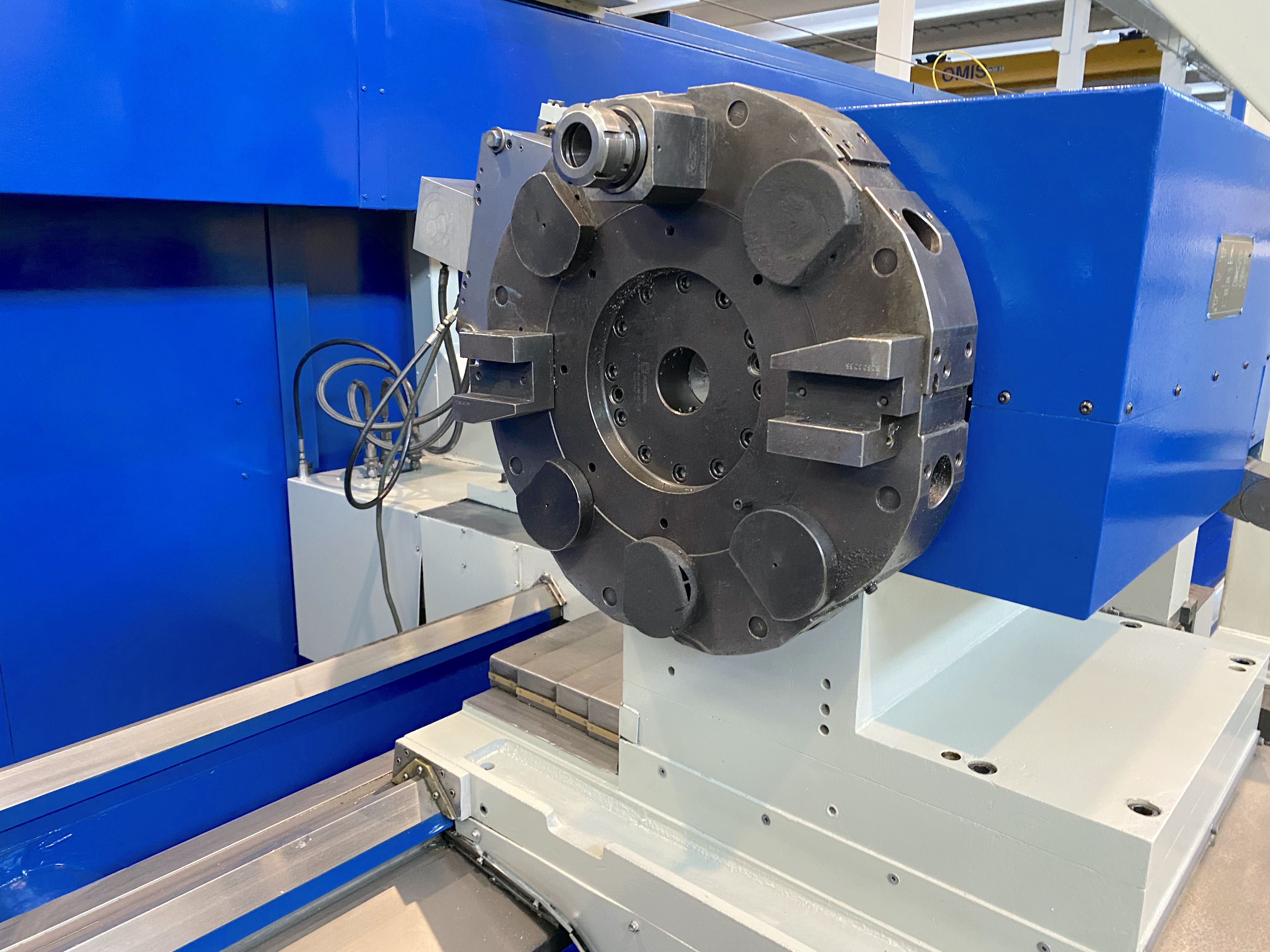

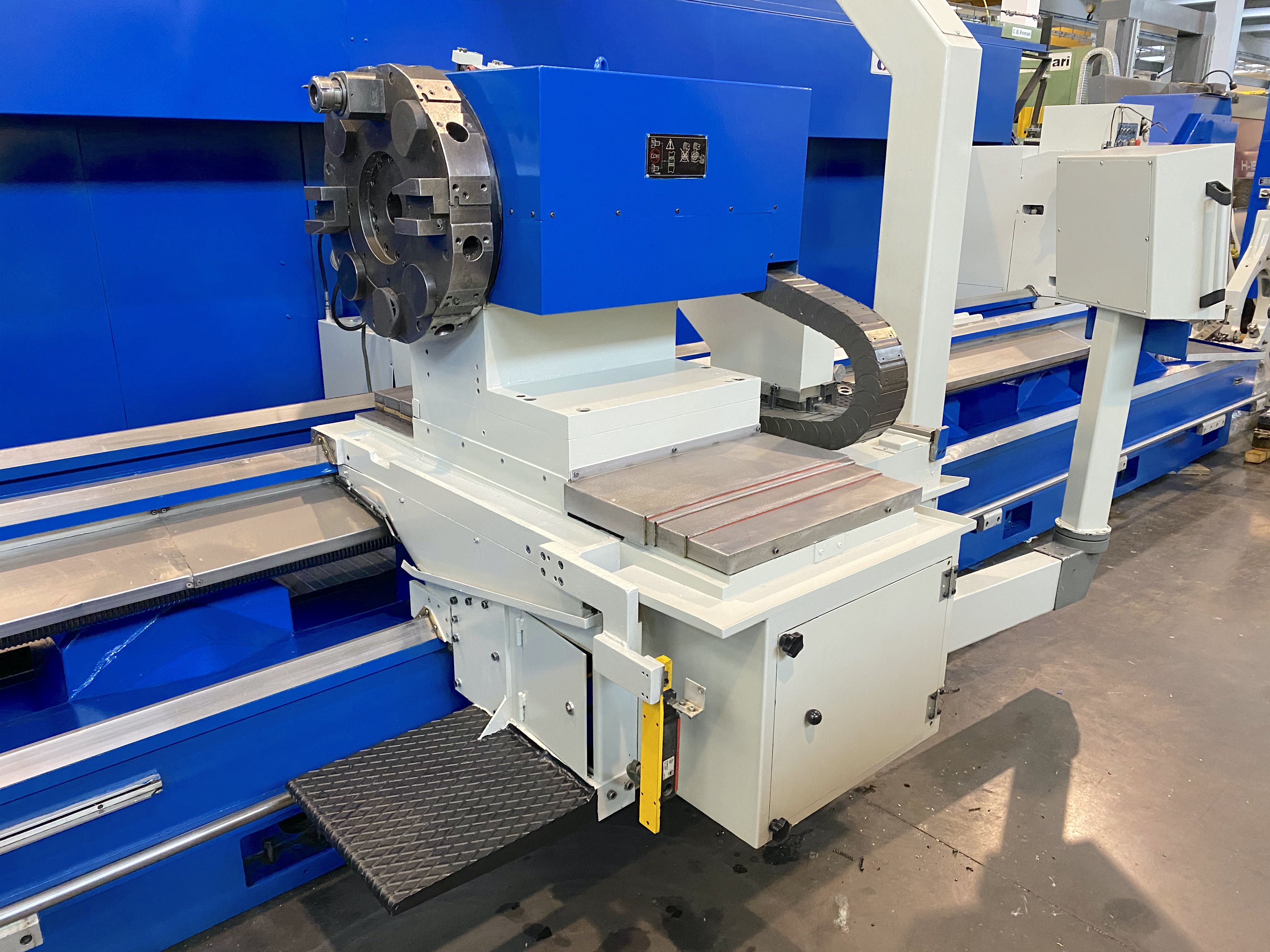

Positions number
8
Number of driven stations
8

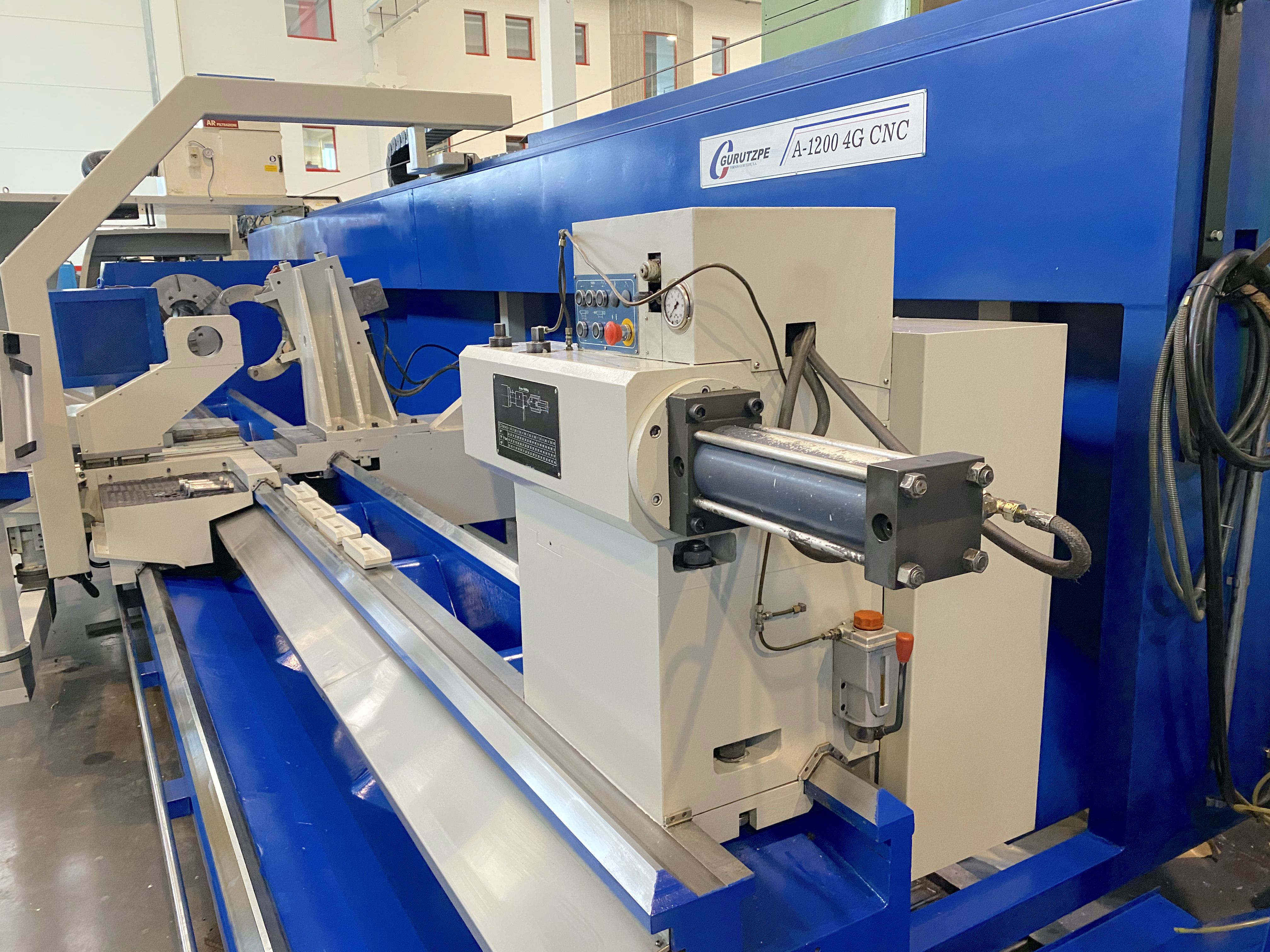

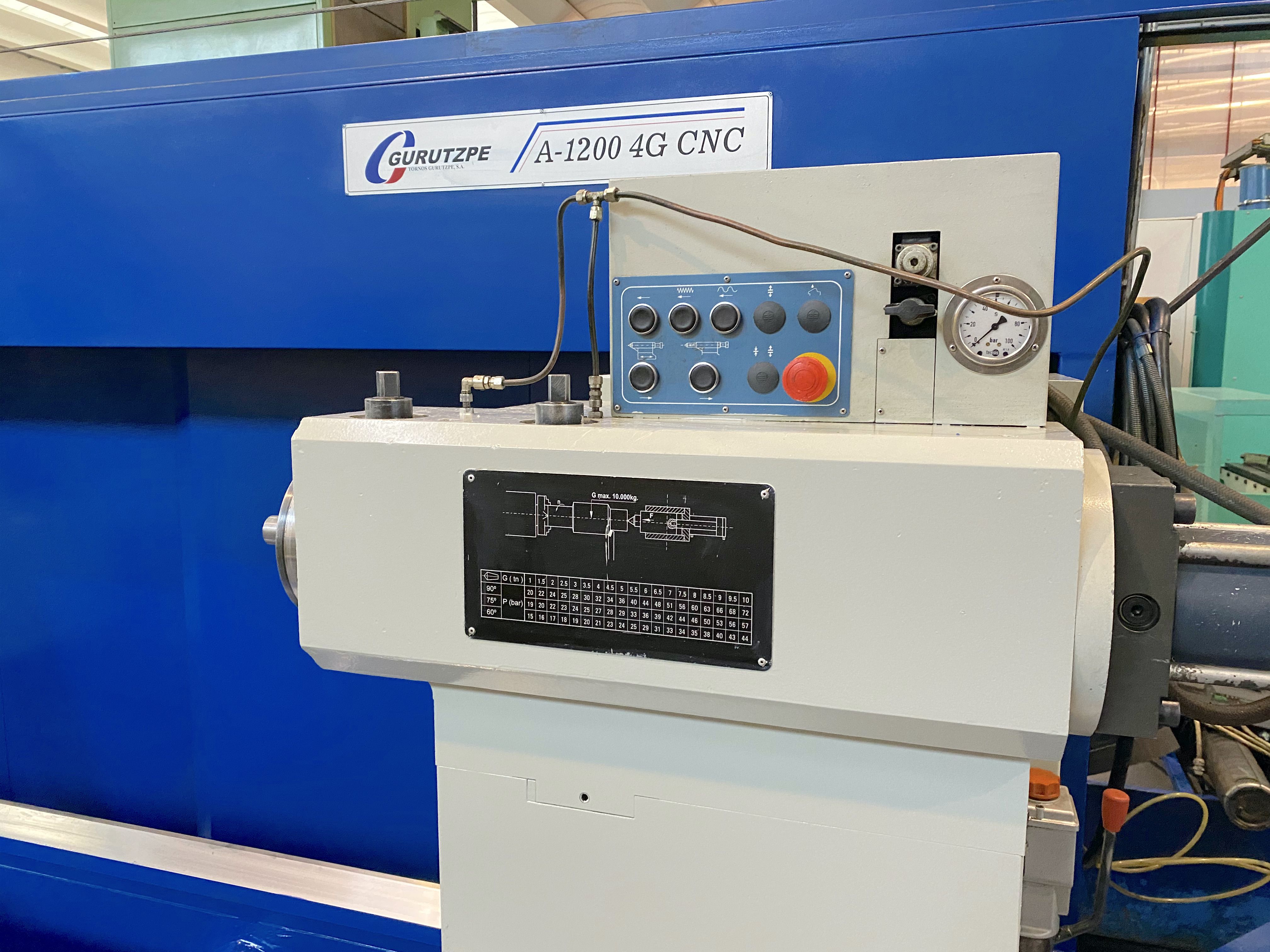

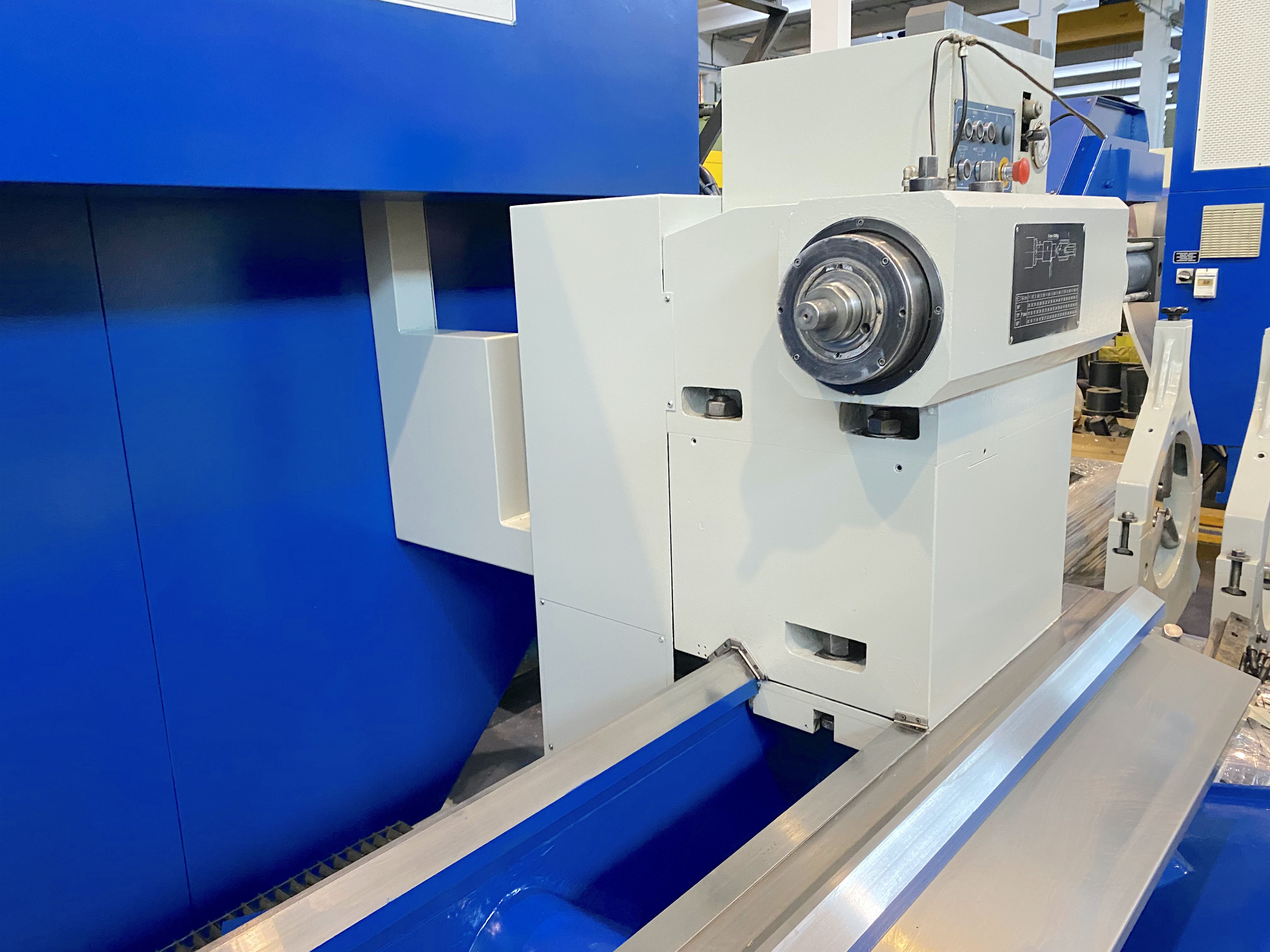

TAILSTOCK
Quill diameter
180 mm7,09 in
EXTRA

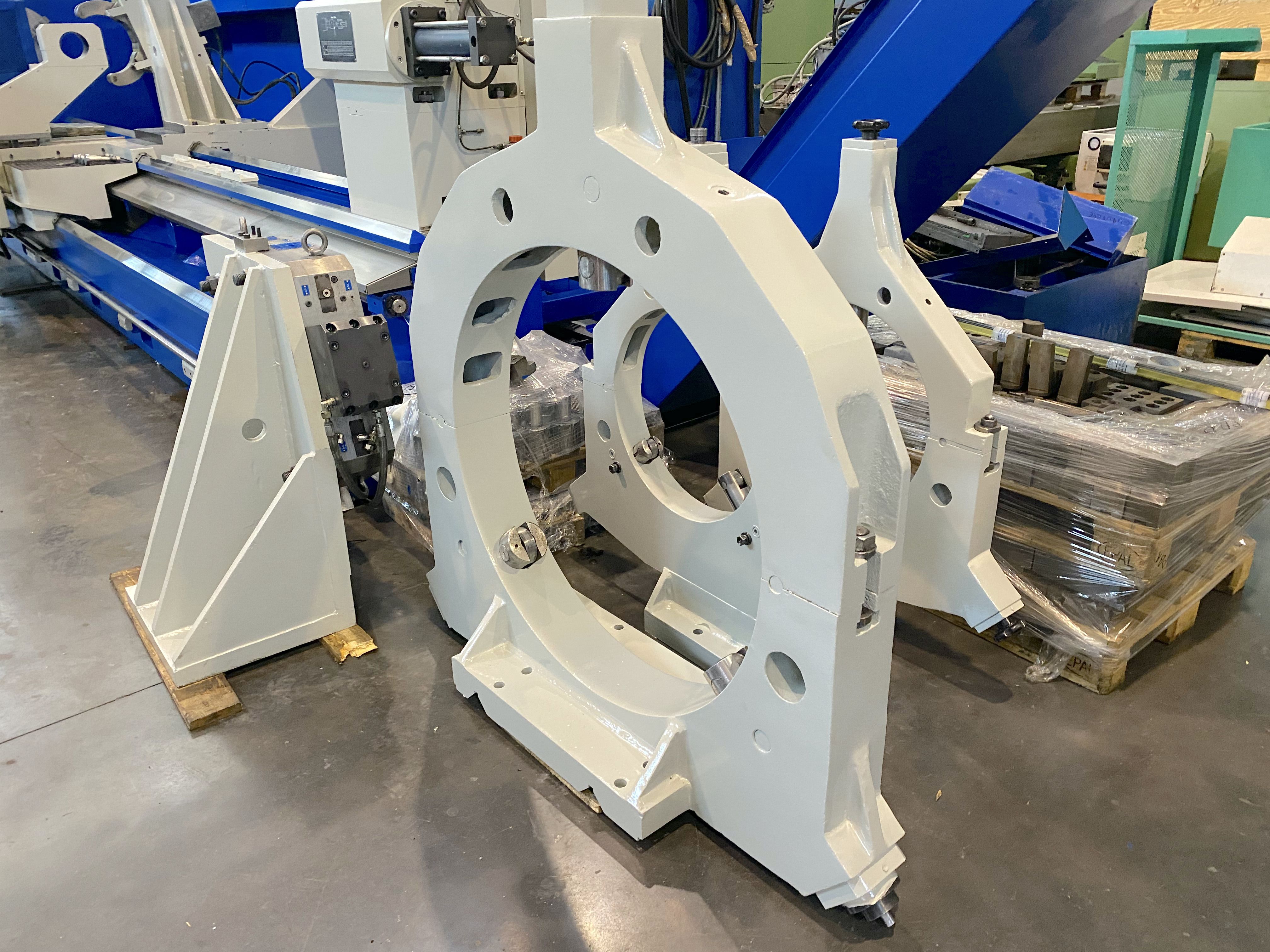

Closed steadies
2x ø50-500mm, 1x ø480-800mm
Hydraulic steady
Morari SLZ-280540 ø280-540mm + lunetta idraulica 50-315mm
Chip conveyor
Si
Mist extractor
Yes
CE Certification
Yes
Electrical drawings
Yes
Maintenance & Use books
Yes
Floor space
9620 (escluso evacuatore)x2825 mm378,74 (escluso evacuatore)x111,22 in
Protections
Si, scorrevoli
Availability
Pronta
Fixed toolholders
si, incluso porta bareni ø150
Driven toolholders
fissi + radiali
