Turning Machine
Type
CNC
Made

BIGLIA

Model
B470YSM
Capacity
ø67,5/240x250 mmø2,66/9,45x9,84 in

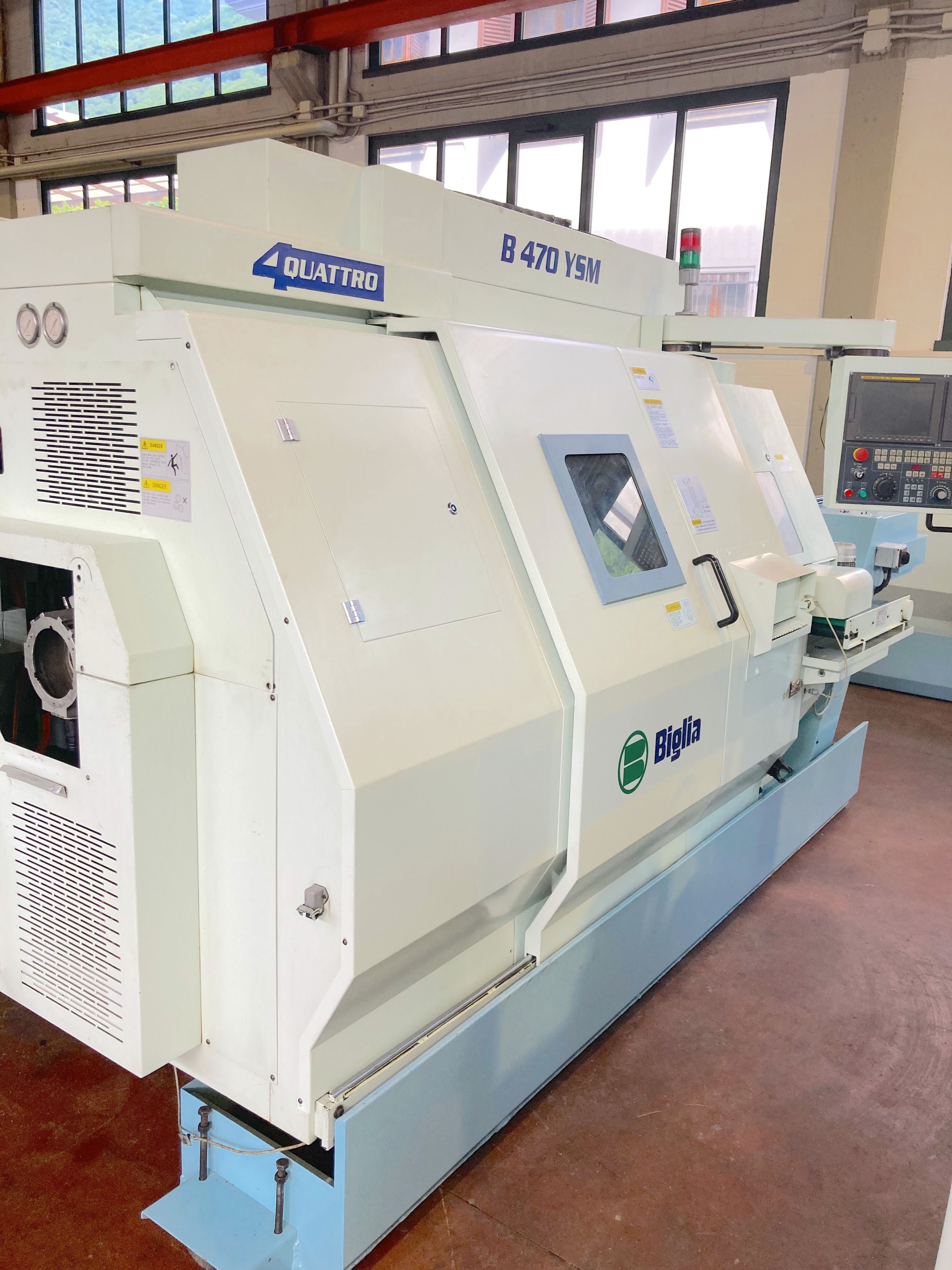

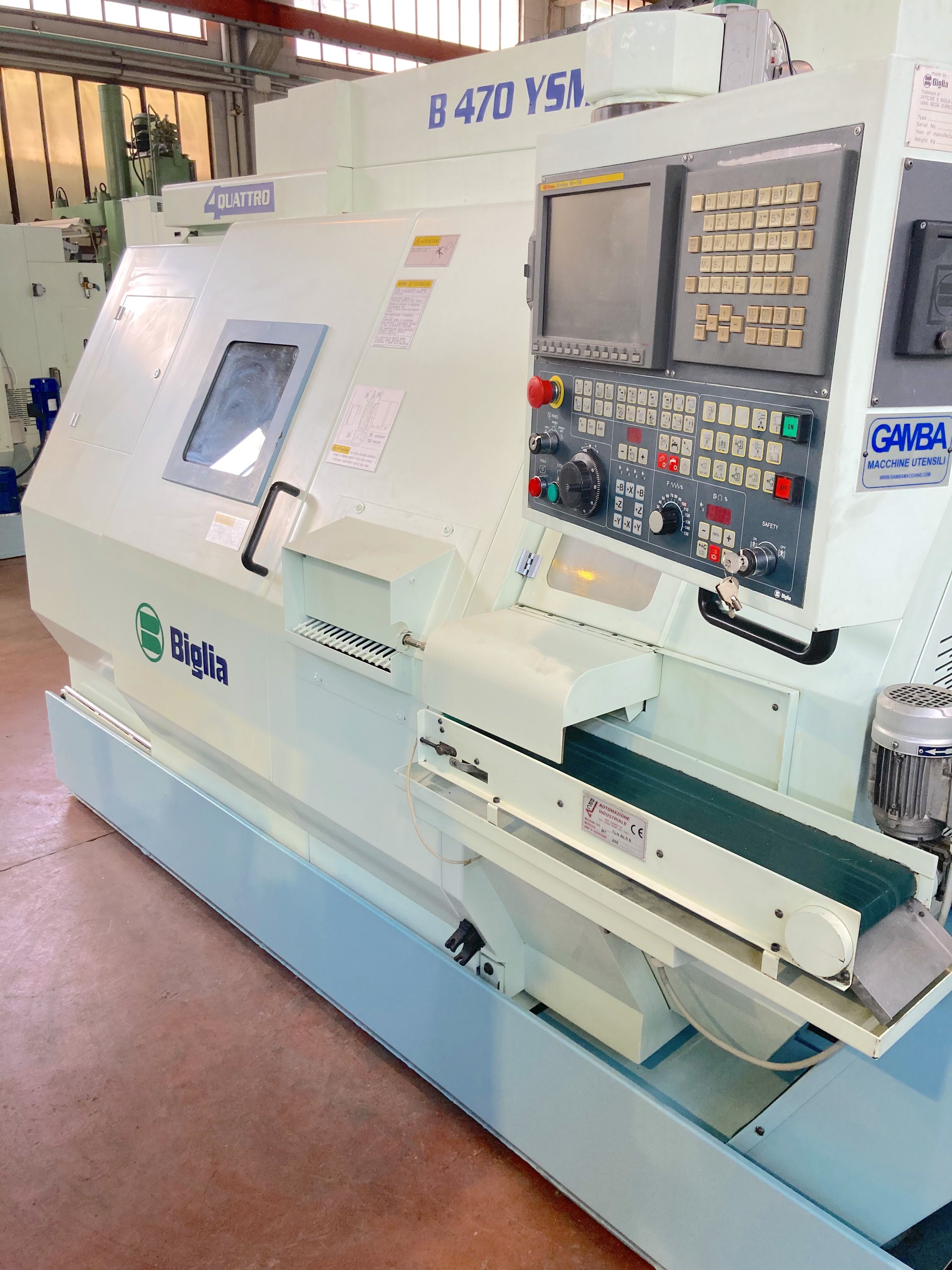

BIGLIA B470YSM
All the machines are available subject to prior sale
Gallery - 10 photos
Gallery - 10 photos
Gallery - 10 photos
Gallery - 10 photos
Gallery - 10 photos
Gallery - 10 photos
Gallery - 10 photos
Gallery - 10 photos
Gallery - 10 photos
Gallery - 10 photos
View video
Data sheet

Technical specifications

Metric Imperial
WORKING CAPACITY
Max bar working diameter
68 mm2,68 in
Max turning diameter
Volteggio 520mm / Tornibile 240 mmVolteggio 20,47mm / Tornibile 9,45 in
Max working lenght
250 mm9,84 in
CNC
CNC
Fanuc 18i-TB
Notes
Software anticollisione, Monitoraggio utensile
MAIN SPINDLE
Max rotation speed
4000 rpm
Spindle nose
ASA6”
Spindle hole
80 (passaggio barra 68mm) mm3,15 (passaggio barra 2,68mm) in
Internal bearing diameter
110 mm4,33 in
Max power
26 Kw
Accuracy (C axis)
0,001 °
SUBSPINDLE
Max rotation speed
4000 rpm
Spindle nose
ASA5”
Spindle hole
55 (passaggio barra 45mm) mm2,17 (passaggio barra 1,77mm) in
Internal bearing diameter
80 mm3,15 in
Rapid feed B
30 m/min1.181,10 ipm
Automatic B axis positioning
420 mm16,54 in
Accuracy (C axis)
0,001 °
Max power
11 Kw
Positions number
12
Rotation time (1 pos)
0,15 sec.
Number of driven stations
12
Driven tools speed
4000 rpm
Driven tools power
3,7 Kw
Rapid feed X
20 m/min787,40 ipm
Axis stroke X
160 mm6,30 in
Axis stroke Z
390 mm15,35 in
Rapid feed Z
24 m/min944,88 ipm
Axis stroke Y
100 mm3,94 in
Rapid feed Y
6 m/min236,22 ipm

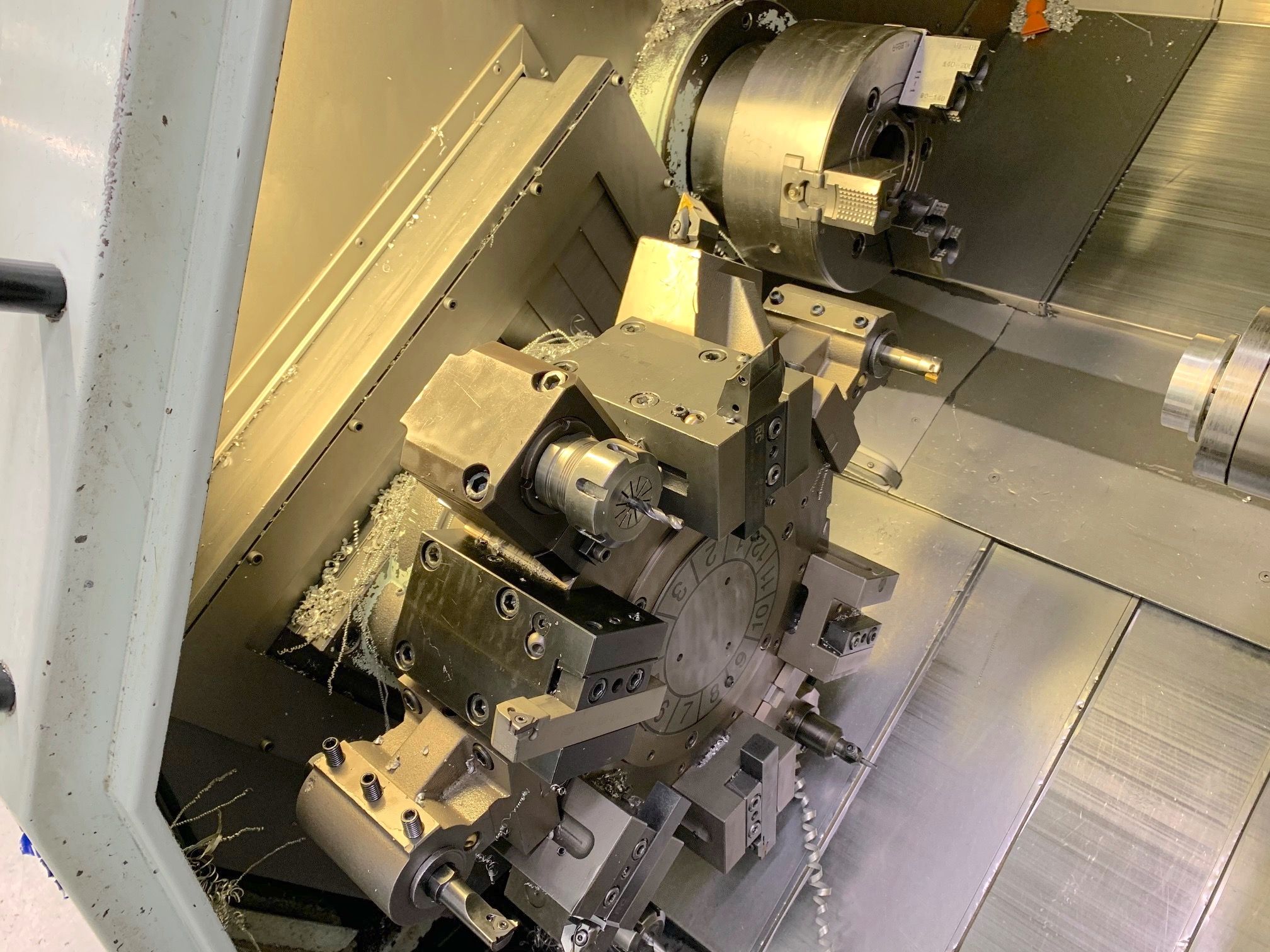

TURRET 2
Positions number
12
Rotation time (1 pos)
0,15 sec.
Number of driven stations
12
Driven tools speed
4000 rpm
Driven tools power
3,7 Kw
Axis stroke X2
160 mm6,30 in
Rapid feed X2
12 m/min472,44 ipm
Axis stroke Z2
240 mm9,45 in
Rapid feed Z2
20 m/min787,40 ipm
EXTRA
Machine total weight
6900 Kg
Floor space
4150x2100x2200 mm163,39x82,68x86,61 in
Workpiece espulsion robot
Gruppo scaricatore speciale con rotazione polso di 180° per scarico pezzo finito da controtesta e scarico spezzone fine barra da mandrino principale.
Chip conveyor
si
Workpieces conveyor belt
Yes

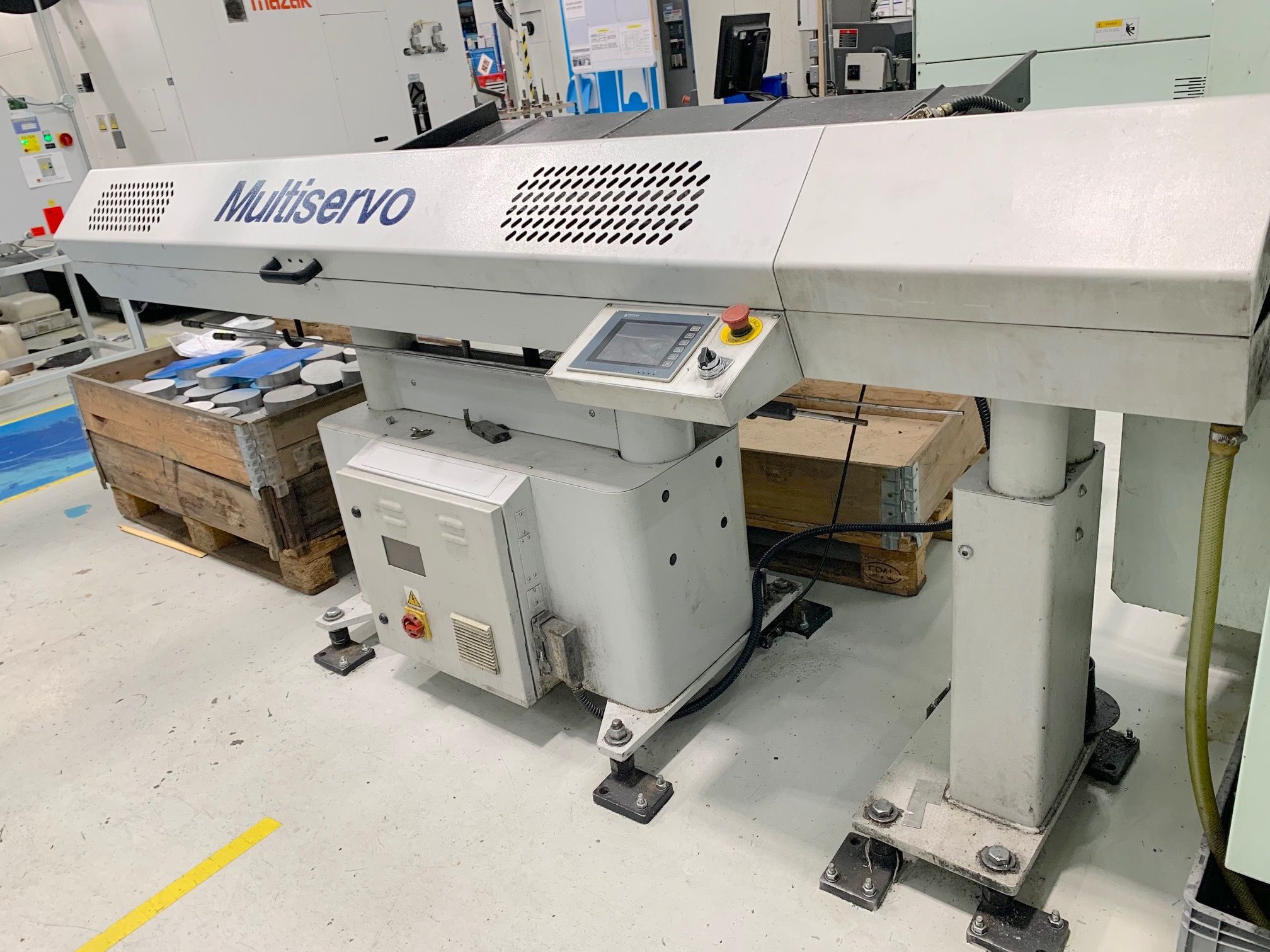

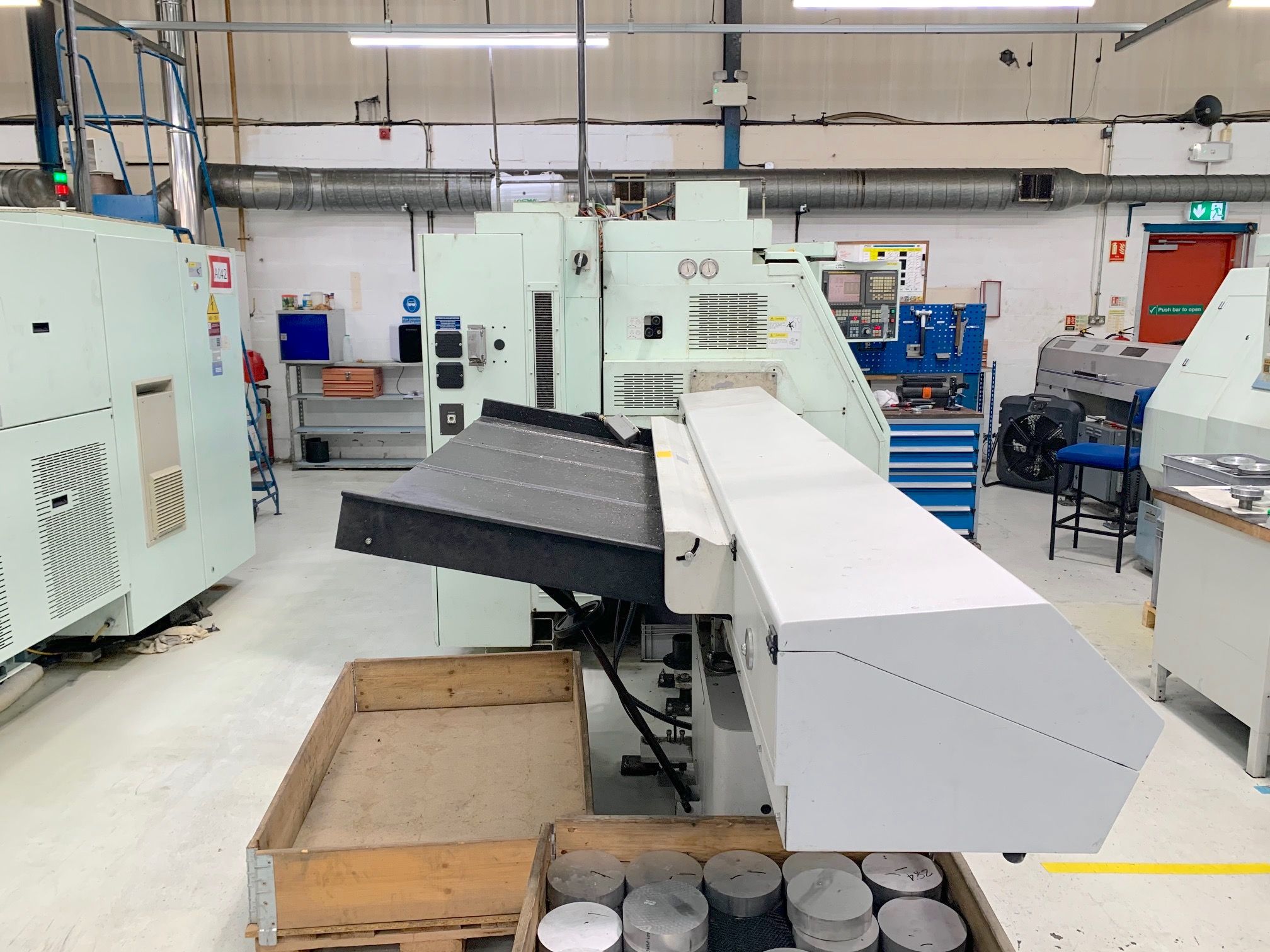

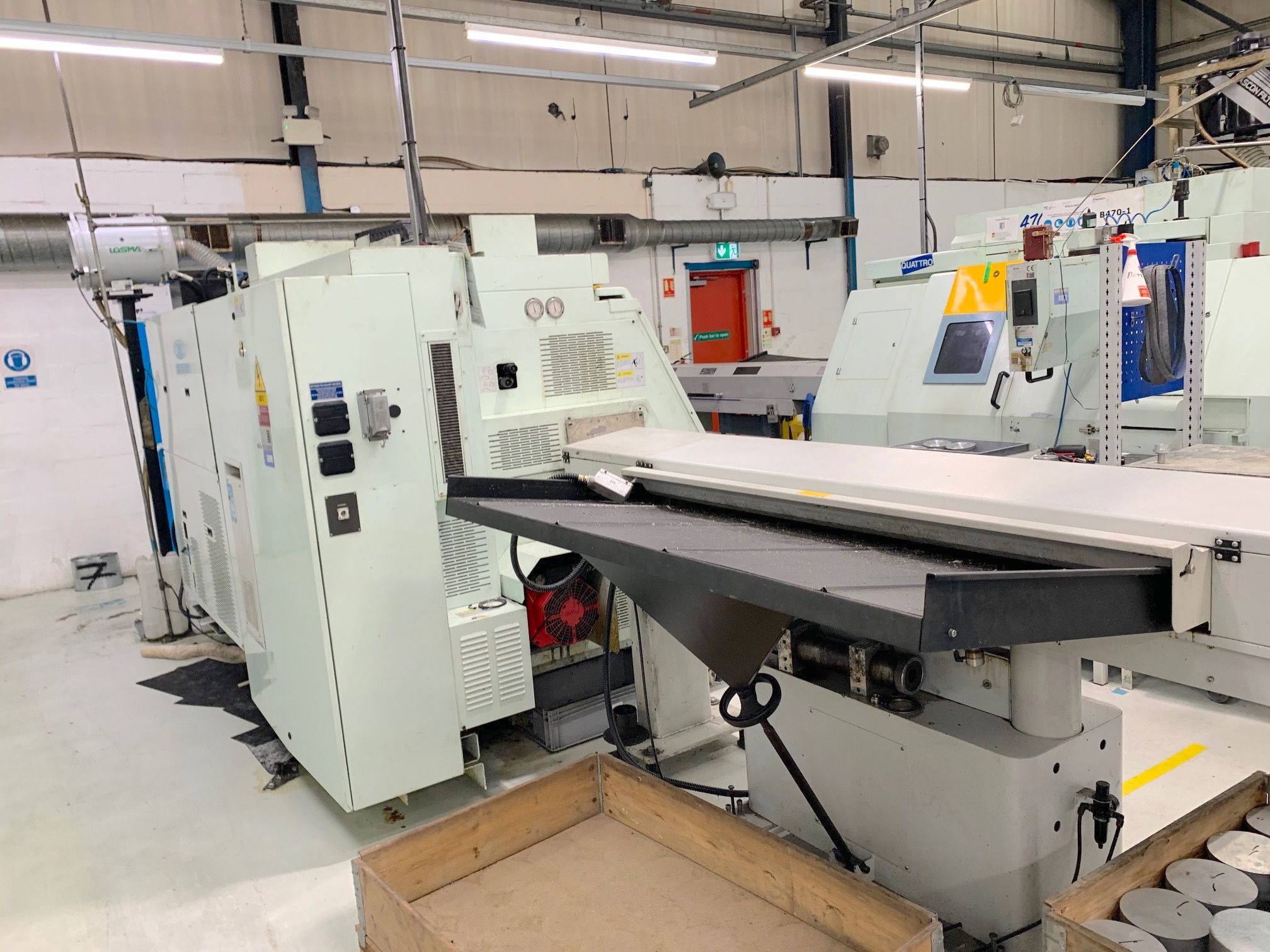

Bar feeder
Hydrafeed Multiservo (opzionale)
Maintenance & Use books
Yes
Electrical drawings
Yes
CE Certification
Yes
Fixed toolholders
si
Driven toolholders
si
Coolant pump
Pompa 25 bar per entrambe le torrette con filtro
Availability
Pronta
Available in stock
Yes
Workpiece touch probe
Predisposizione per tastatore
