Technical specifications
Metric
Imperial
WORKING CAPACITY
Max bar working diameter
65 mm2,56 in
Max turning diameter
250 mm9,84 in
CNC
CNC

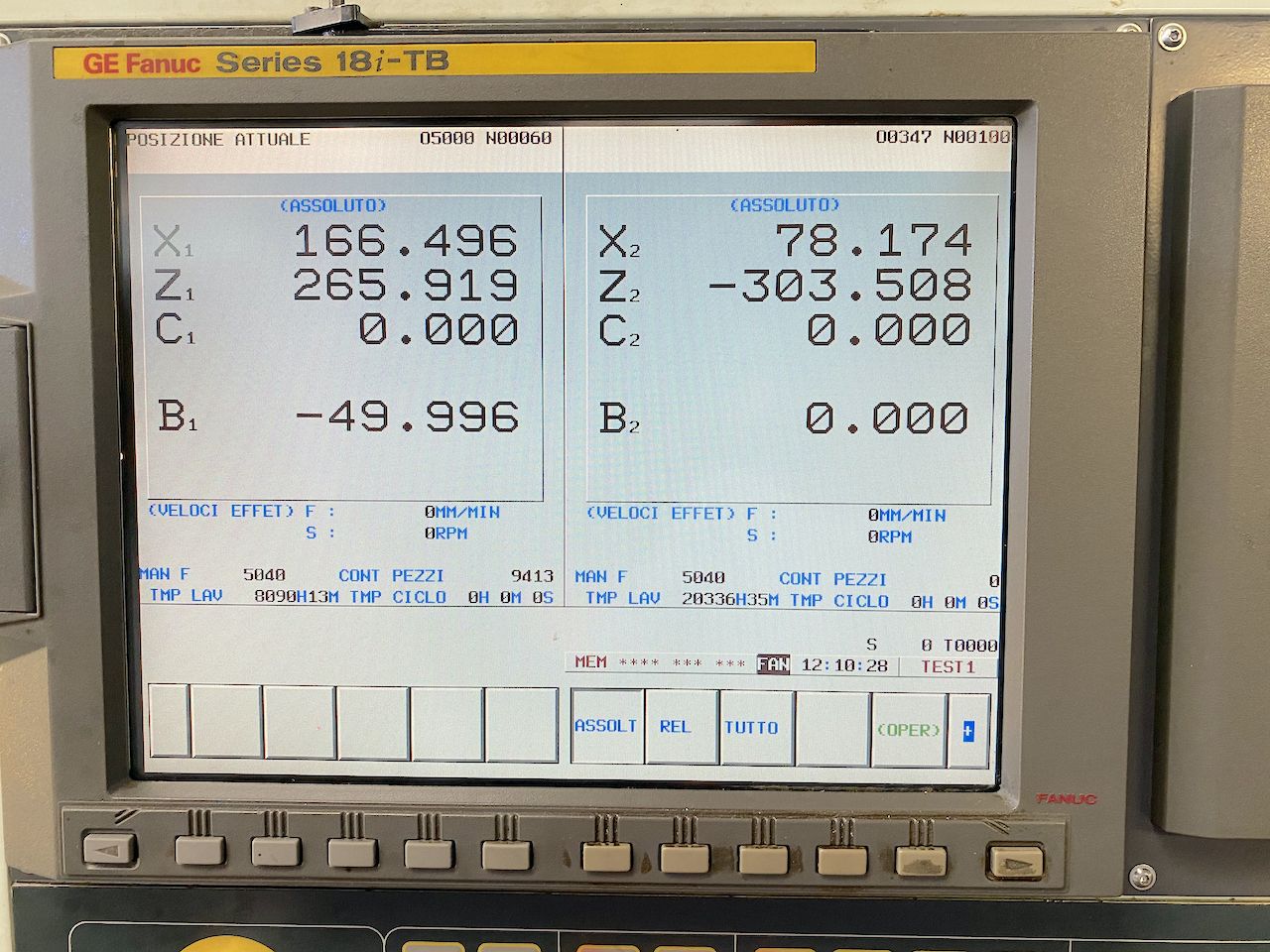

Fanuc 18i-TB
Notes
Easy biglia Cycles

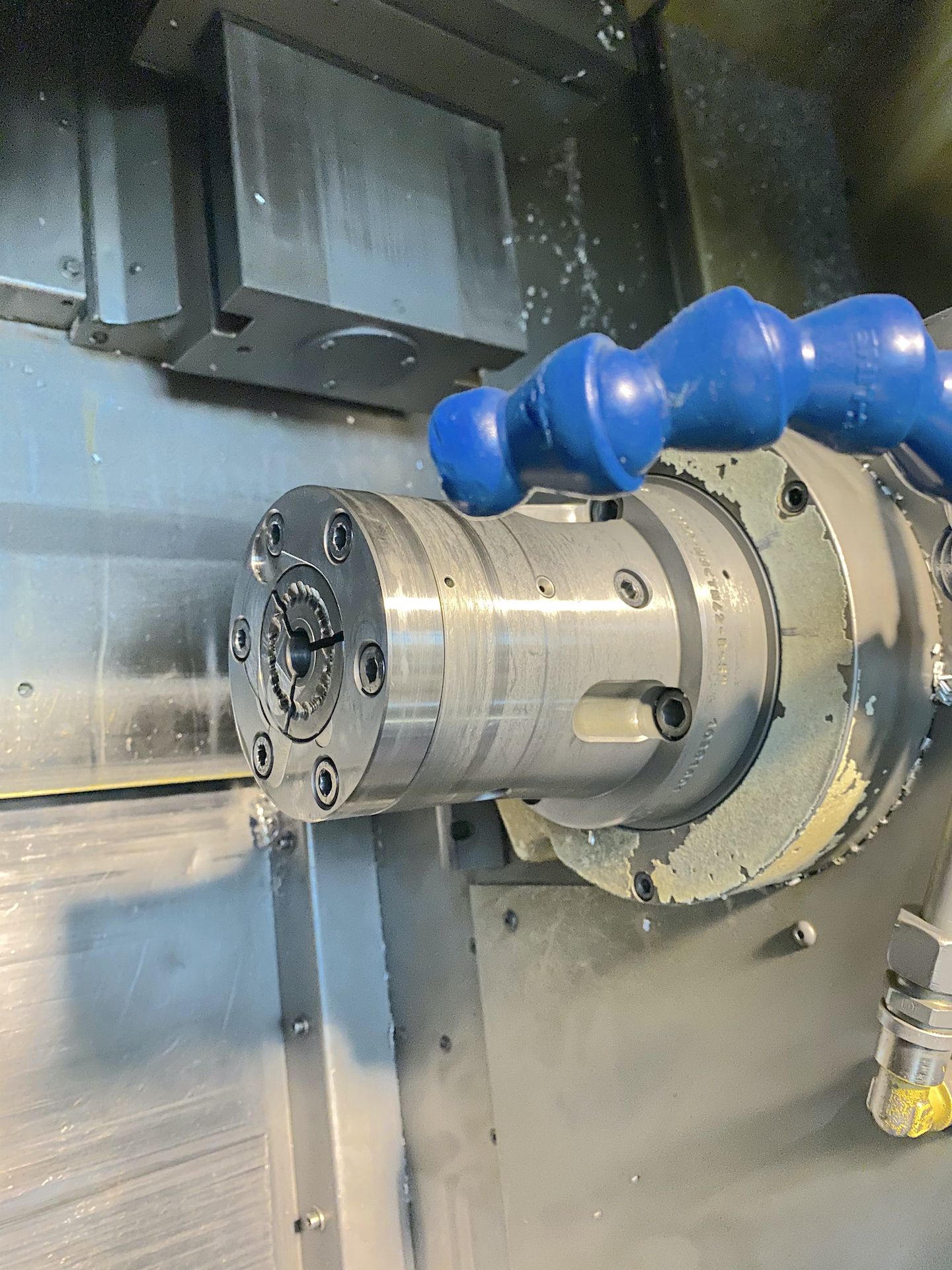

MAIN SPINDLE
Max rotation speed
4000 rpm
Spindle nose
ASA6”
Spindle hole
80 mm3,15 in
Internal bearing diameter
110 mm4,33 in
Max power
26 Kw
Accuracy (C axis)
0,001 °

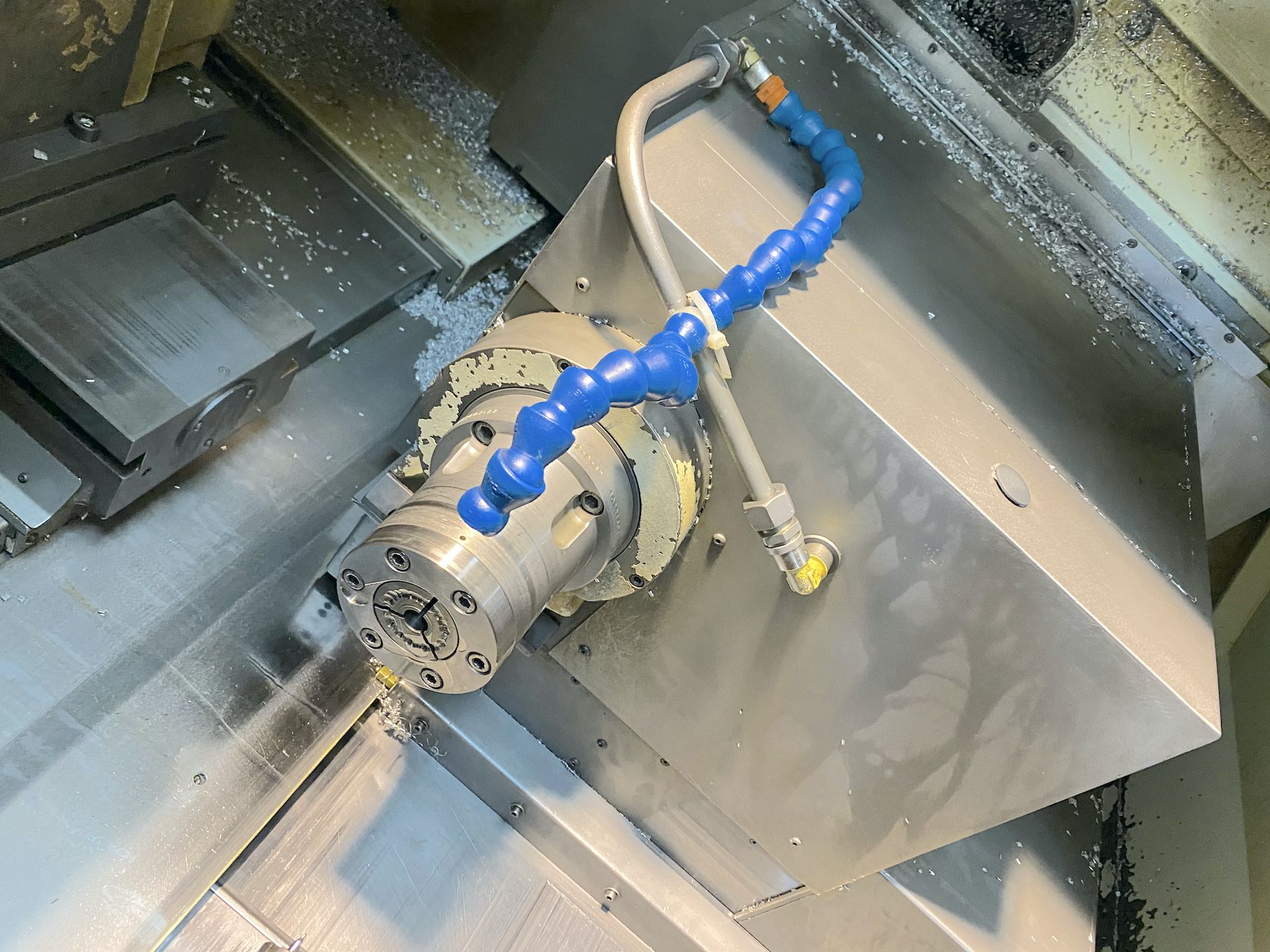

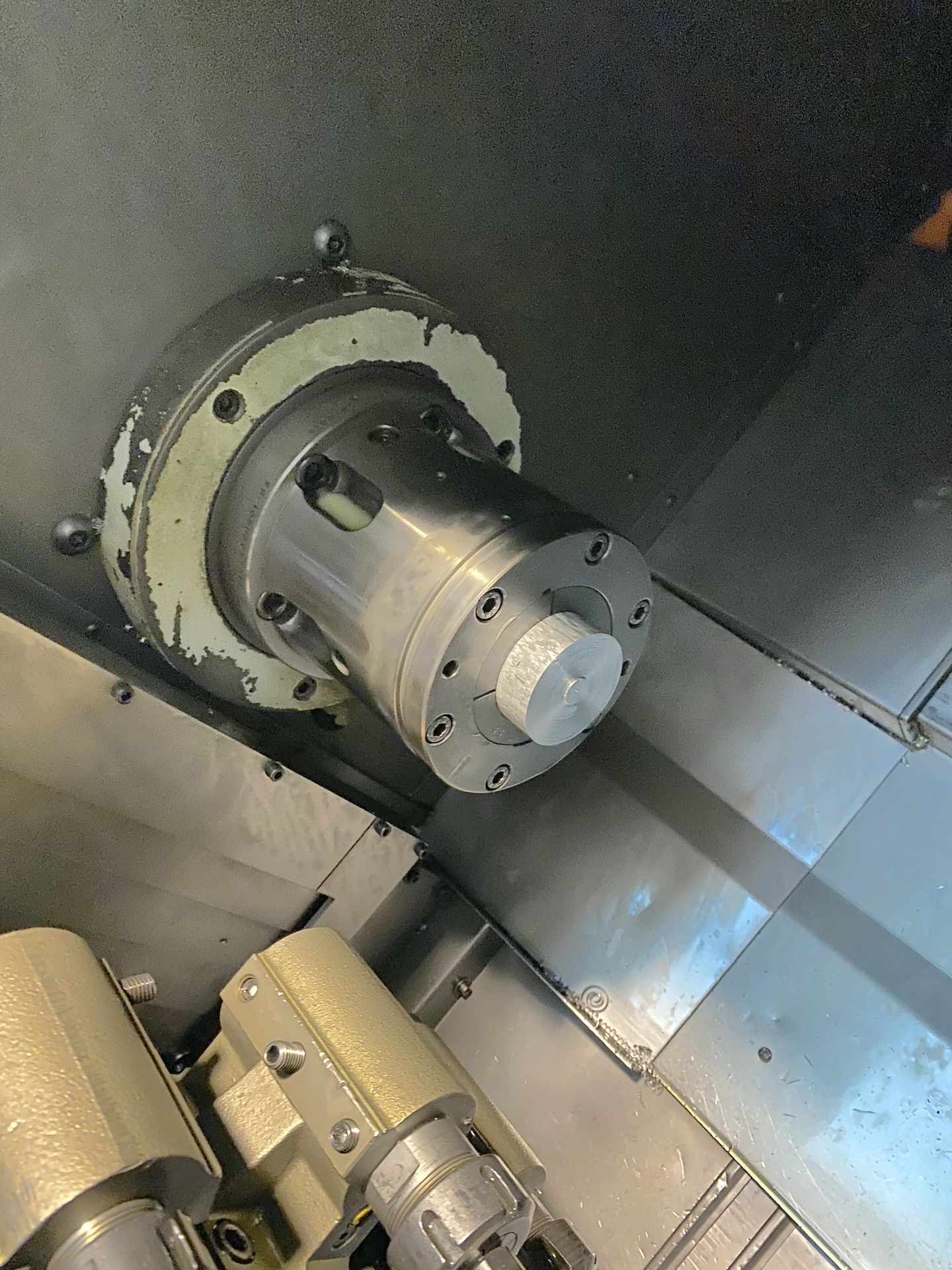

SUBSPINDLE
Max rotation speed
4000 rpm
Spindle nose
ASA5”
Spindle hole
55 mm2,17 in
Internal bearing diameter
80 mm3,15 in
Max power
11 Kw
Accuracy (C axis)
0,001 °
Automatic B axis positioning
420 mm16,54 in
Rapid feed B
30 m/min1.181,10 ipm
Rotation time (1 pos)
0,15 sec.
Number of driven stations
12
Driven tools speed
3000 rpm
Driven tools power
3,7 Kw
Axis stroke X
160 mm6,30 in
Rapid feed X
20 m/min787,40 ipm
Axis stroke Z
390 mm15,35 in
Rapid feed Z
4 m/min157,48 ipm

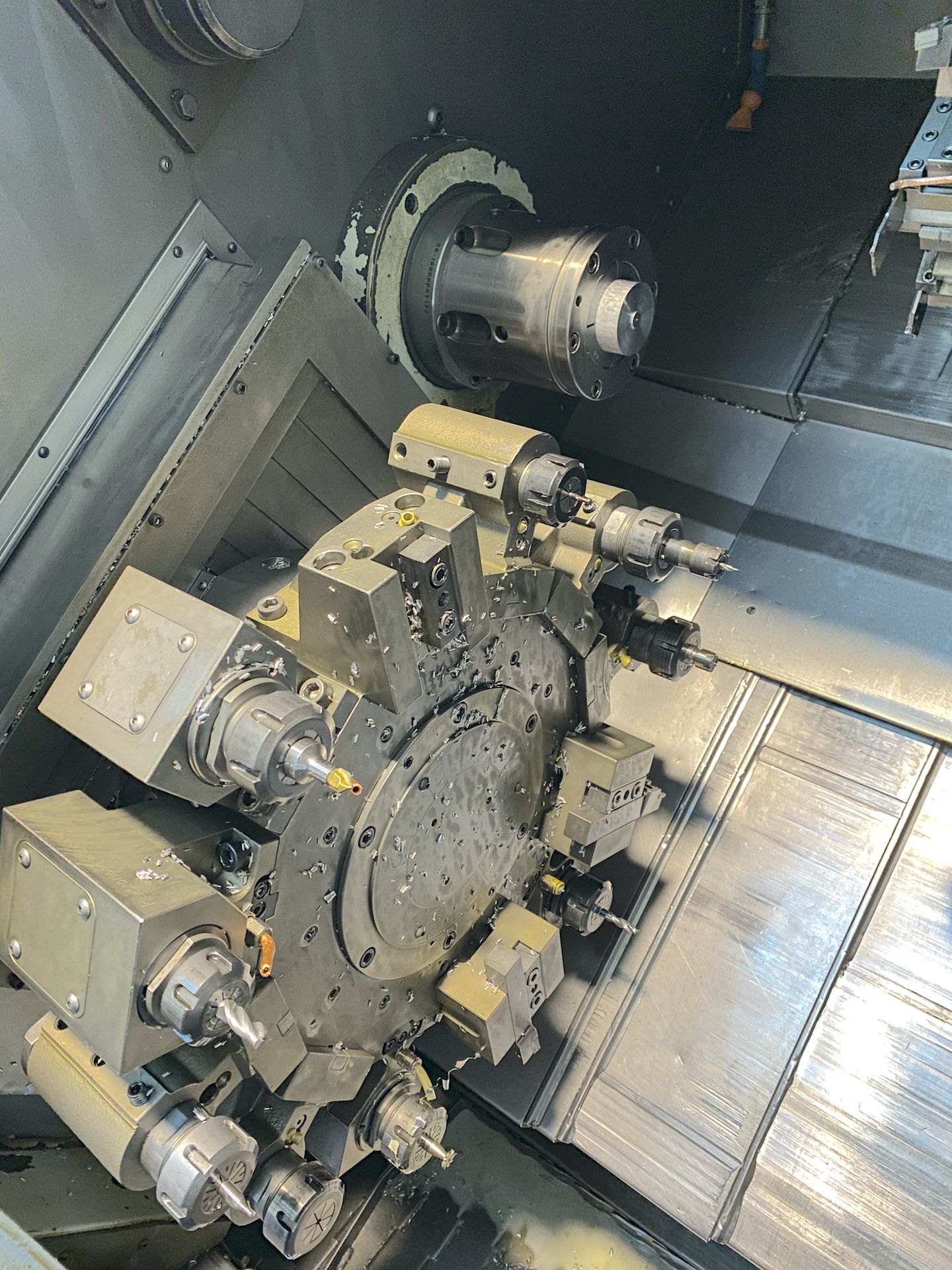

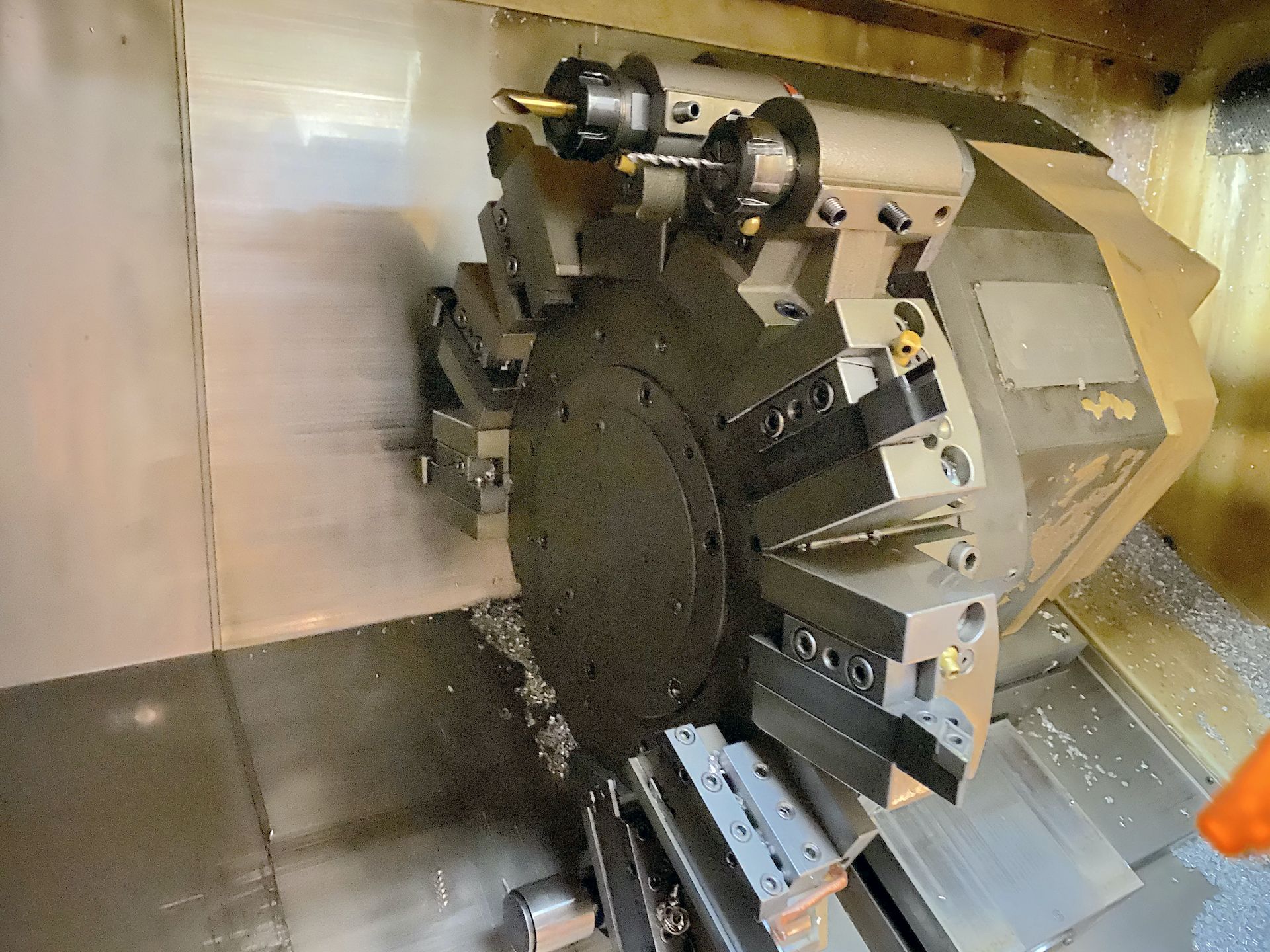

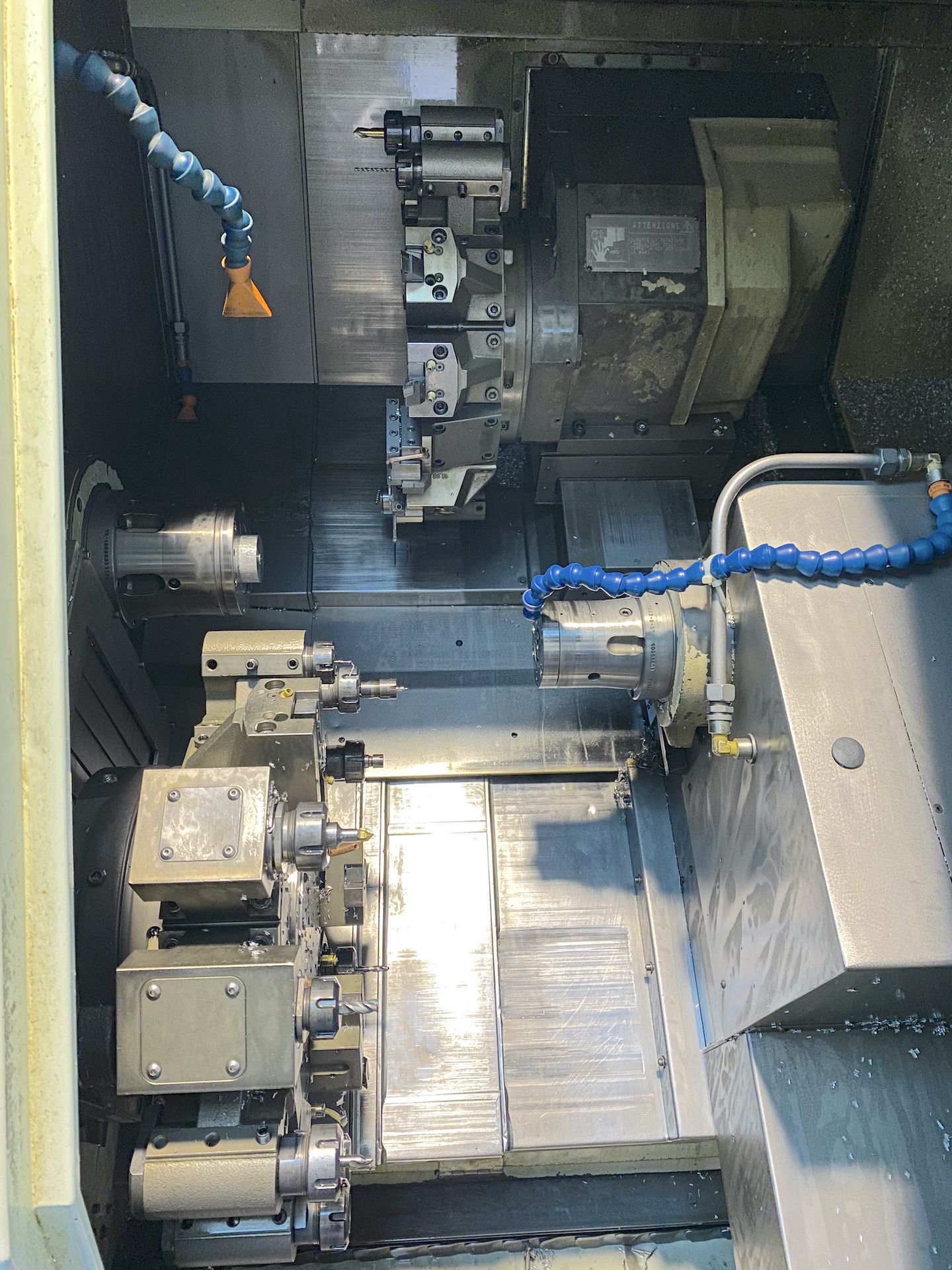

TURRET 2
Number of driven stations
12
Rotation time (1 pos)
0,15 sec.
Driven tools speed
3000 rpm
Driven tools power
3,7 Kw
Axis stroke X2
160 mm6,30 in
Rapid feed X2
12 m/min472,44 ipm
Axis stroke Z2
240 mm9,45 in
Rapid feed Z2
20 m/min787,40 ipm
INCLINED BED
Tilt
30 °
EXTRA
Machine total weight
6700 Kg
Floor space
4150x2100x2200 mm163,39x82,68x86,61 in
Fixed toolholders
4
Driven toolholders
4
Autocentering chuck
Portapinze su mandrino e contromandrino

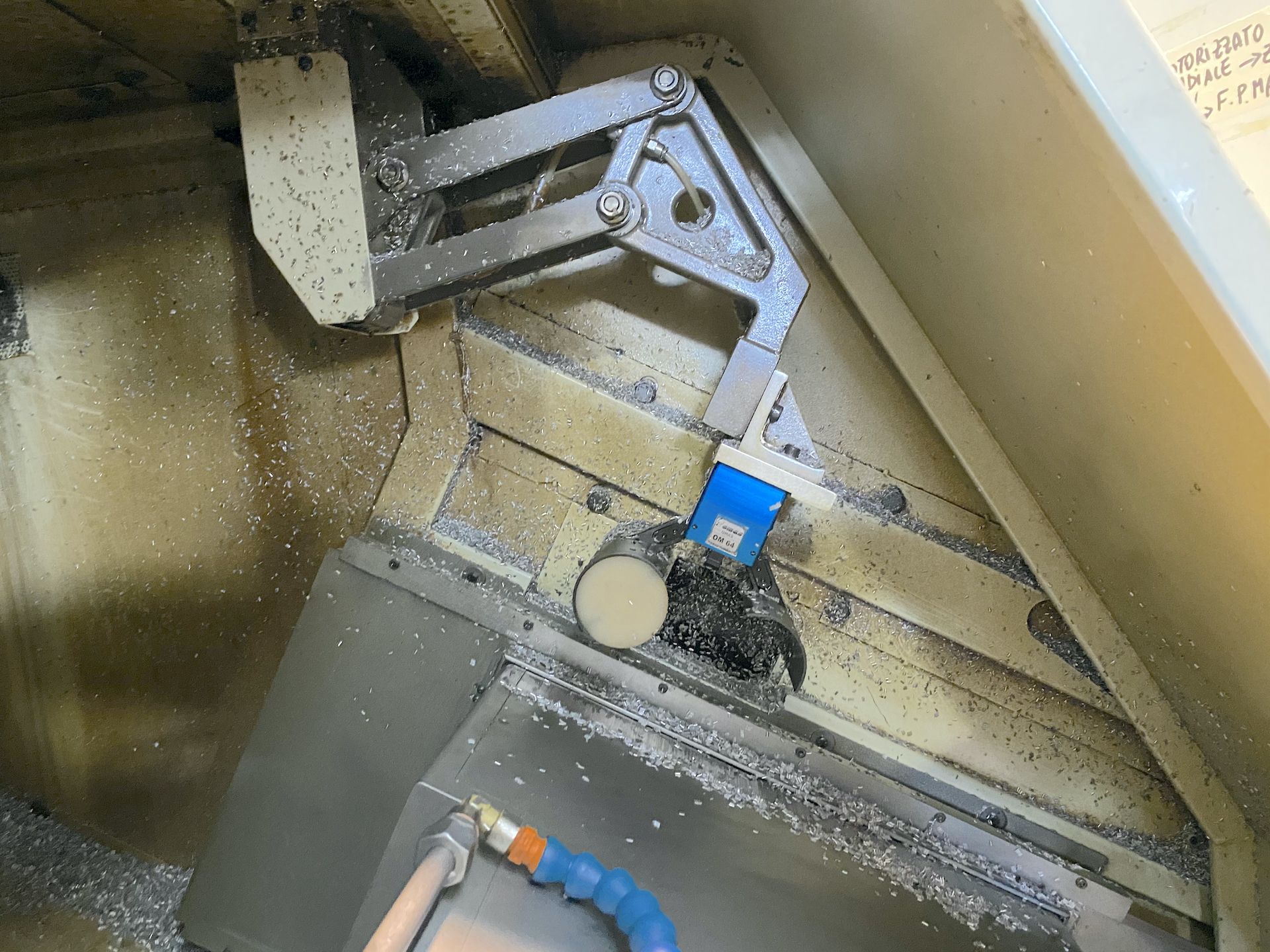

Workpiece espulsion robot
si, programmabile da CNC, automatico, in tempo mascherato
Chip conveyor
si

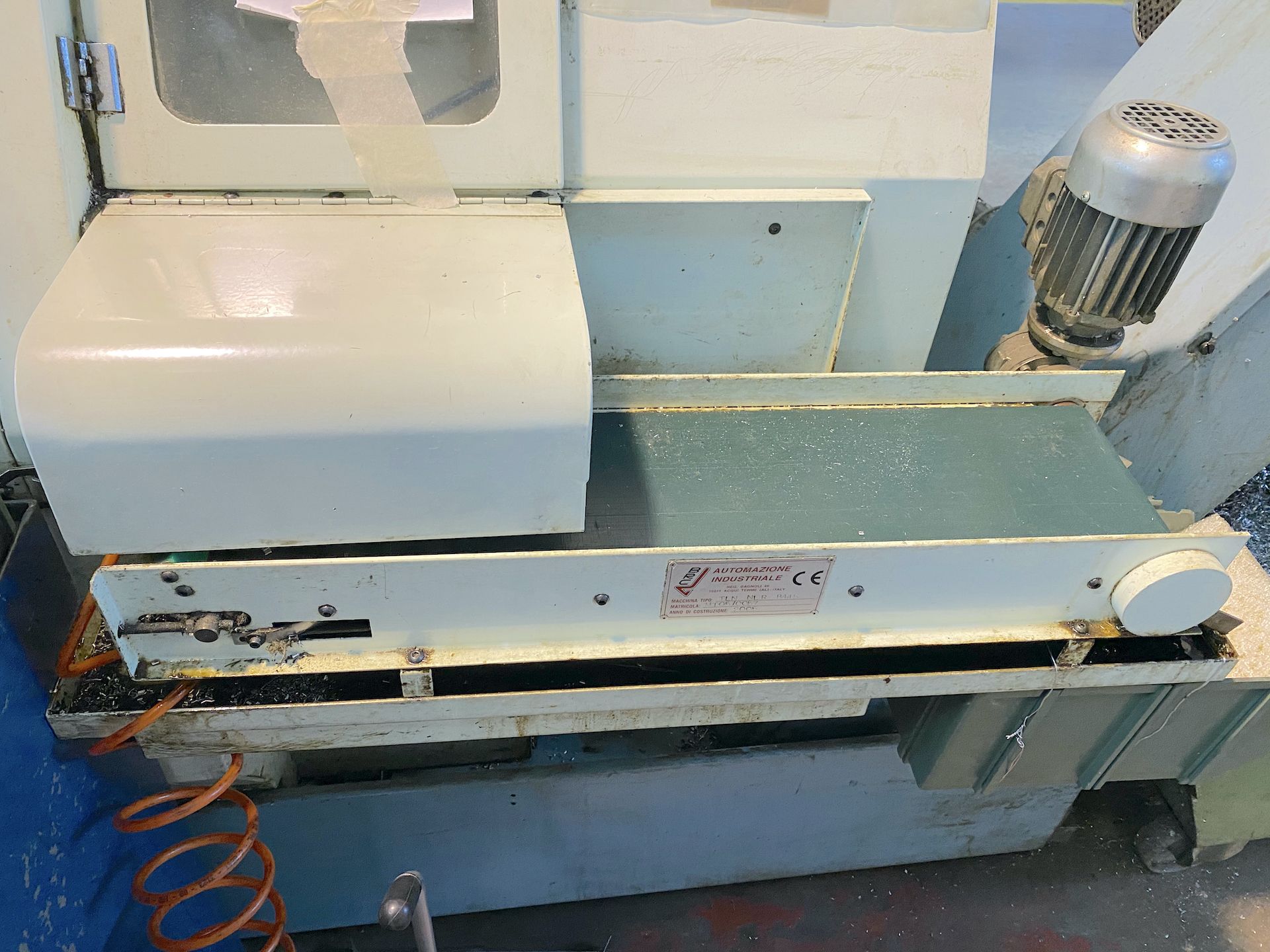

Workpieces conveyor belt
Yes

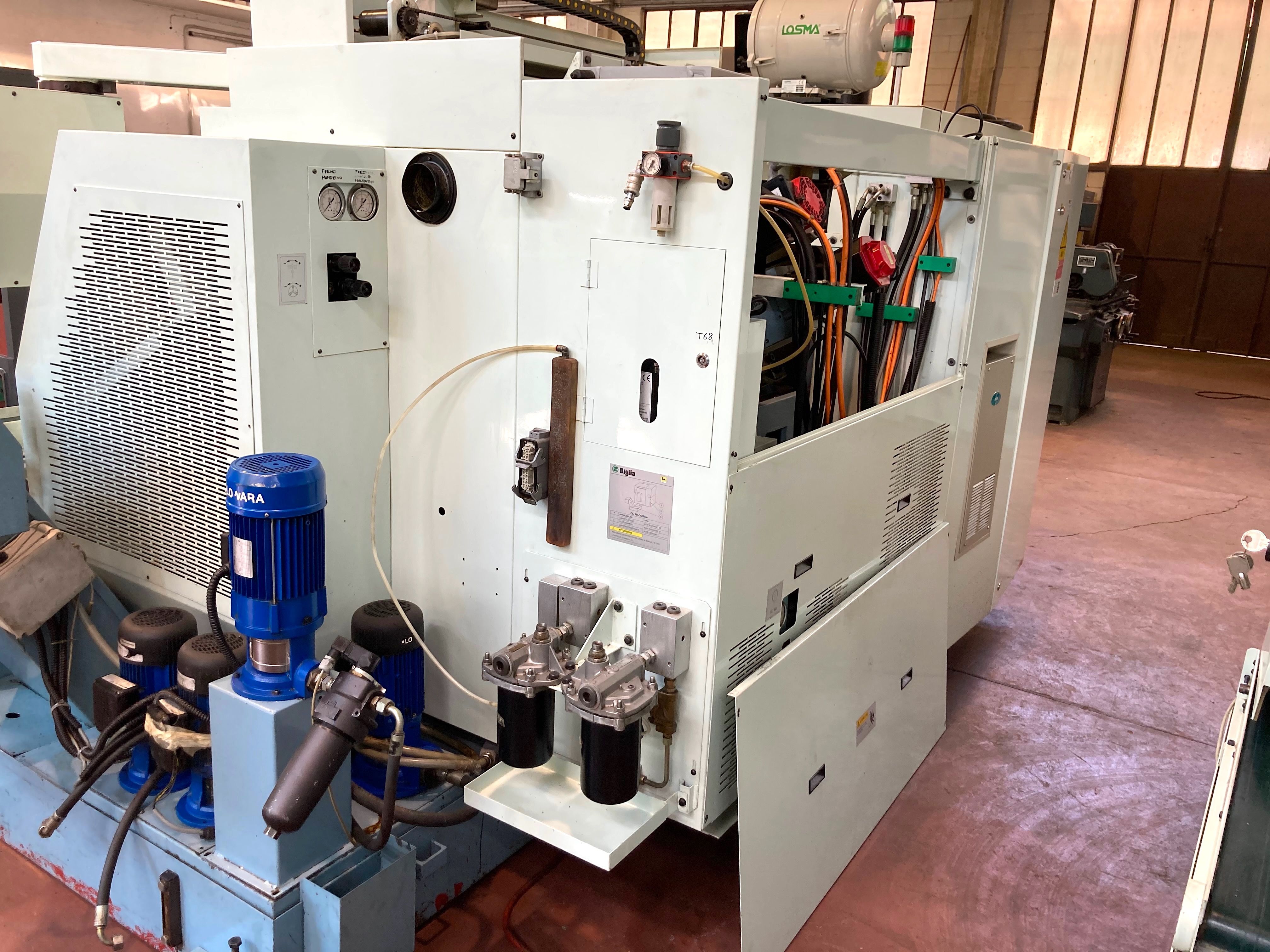

Coolant pump
n.1 pompa 18 Bar alta-bassa pressione, n.1 pompa 4 bar per lavaggi
Bar puller
Si
Maintenance & Use books
Yes
Electrical drawings
Yes
CE Certification
Yes

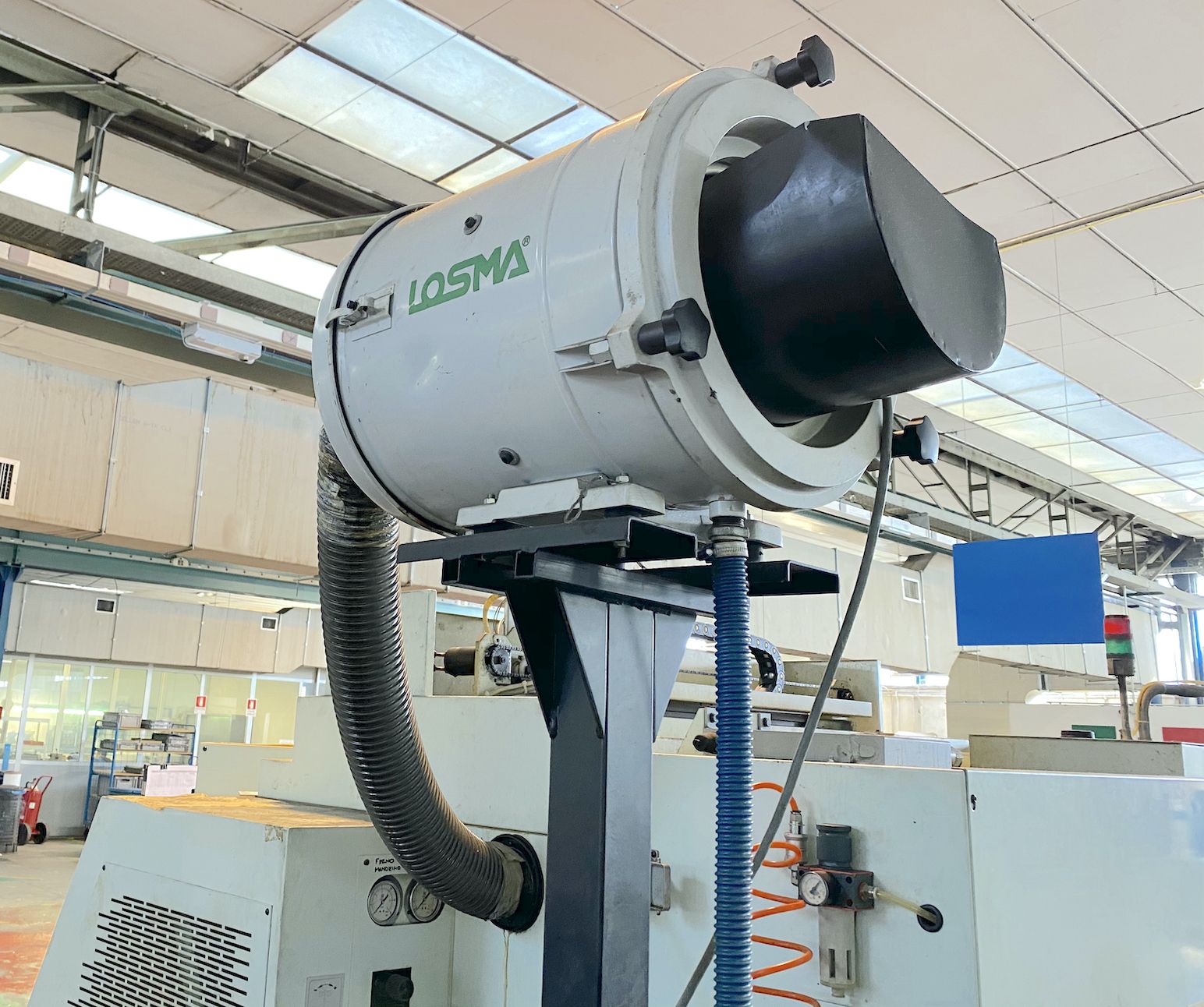

Mist extractor
Yes
