Category
Turning Machine
Type
CNC
Made
Model

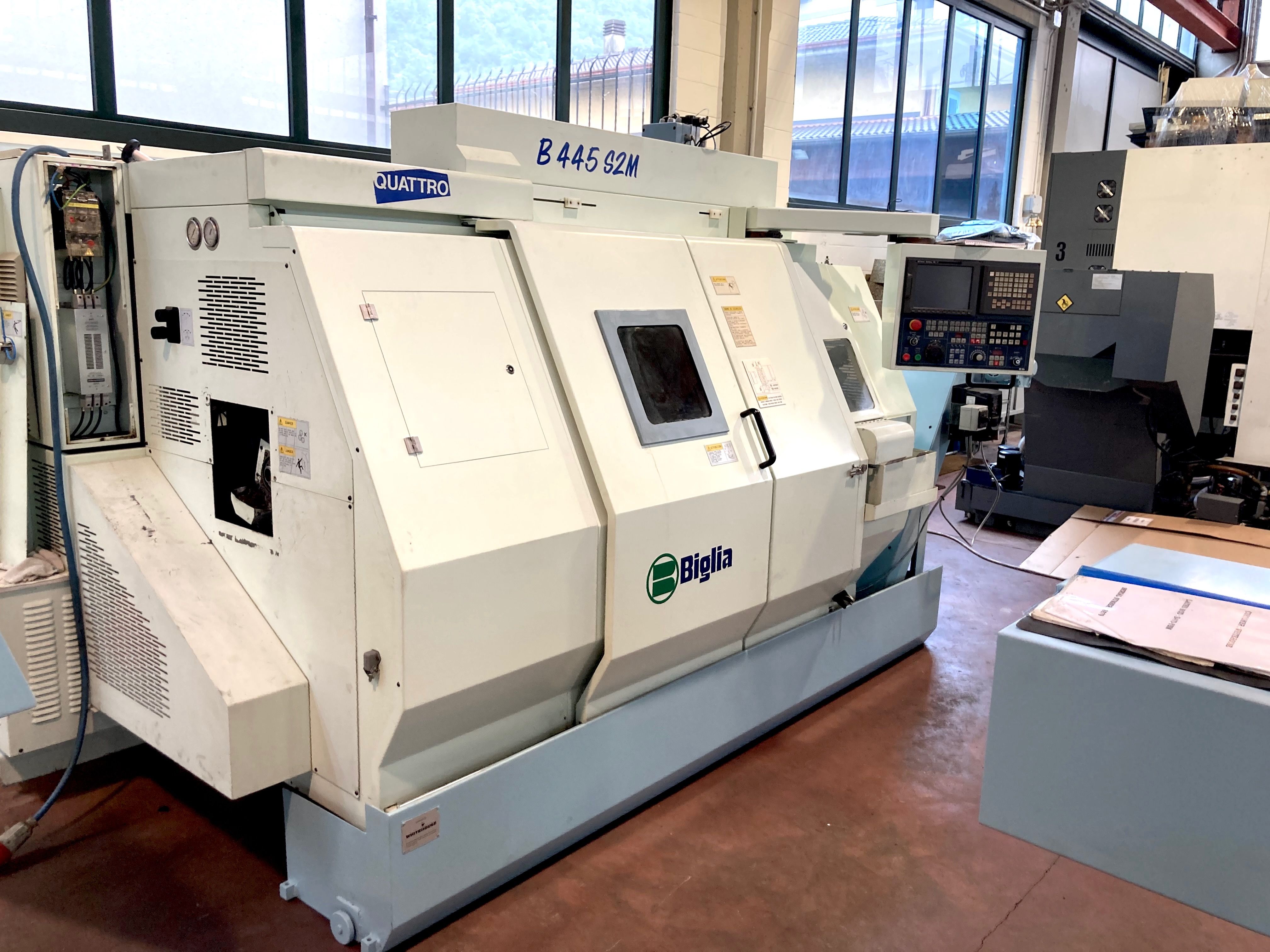

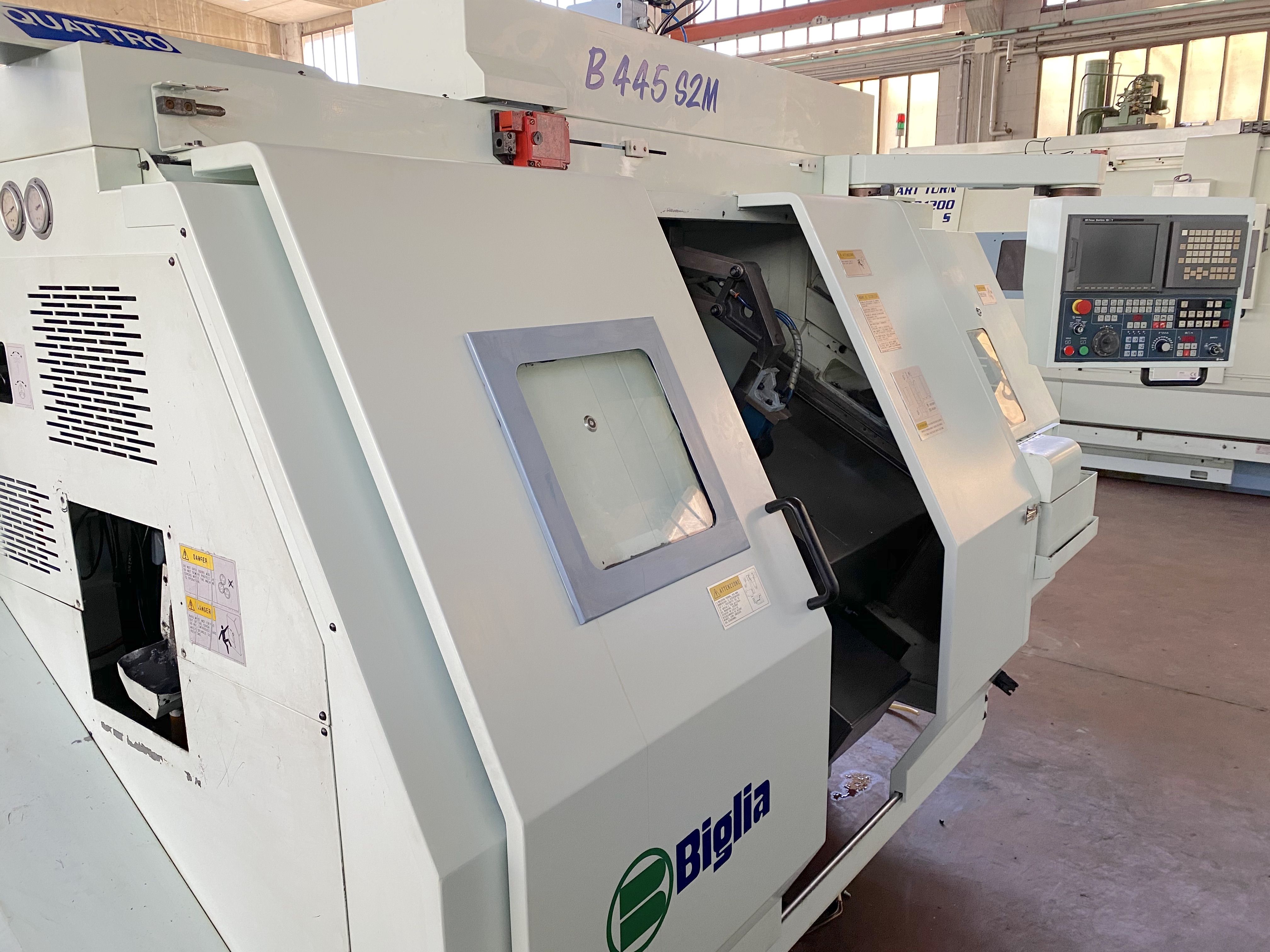

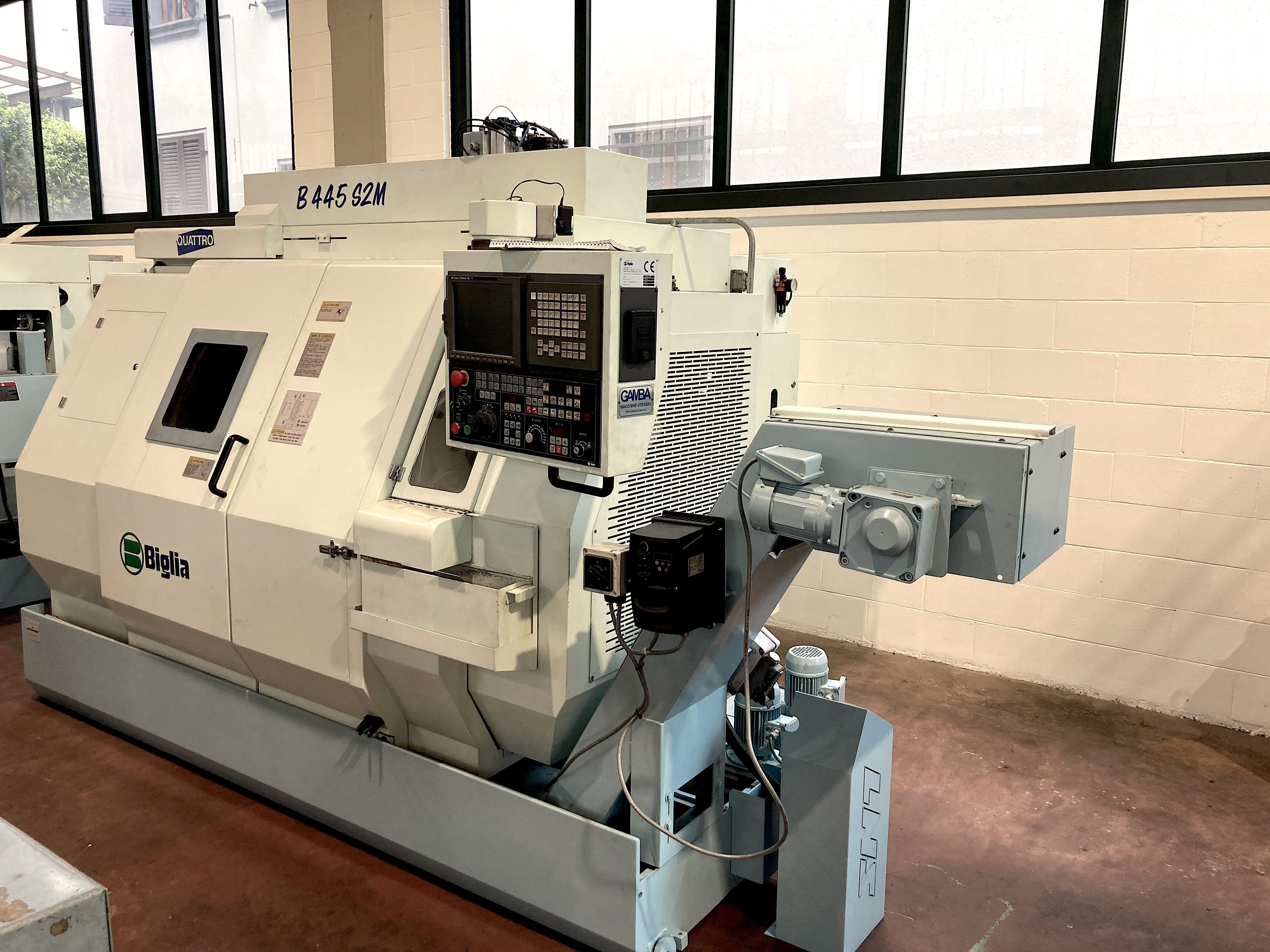

445S2M
Capacity
ø240/45x250 mmø9,45/1,77x9,84 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Max bar working diameter
45 mm1,77 in
Max turning diameter
volteggio 520mm / tornibile 240 mmvolteggio 20,47mm / tornibile 9,45 in
Max working lenght
250 mm9,84 in
CNC
CNC

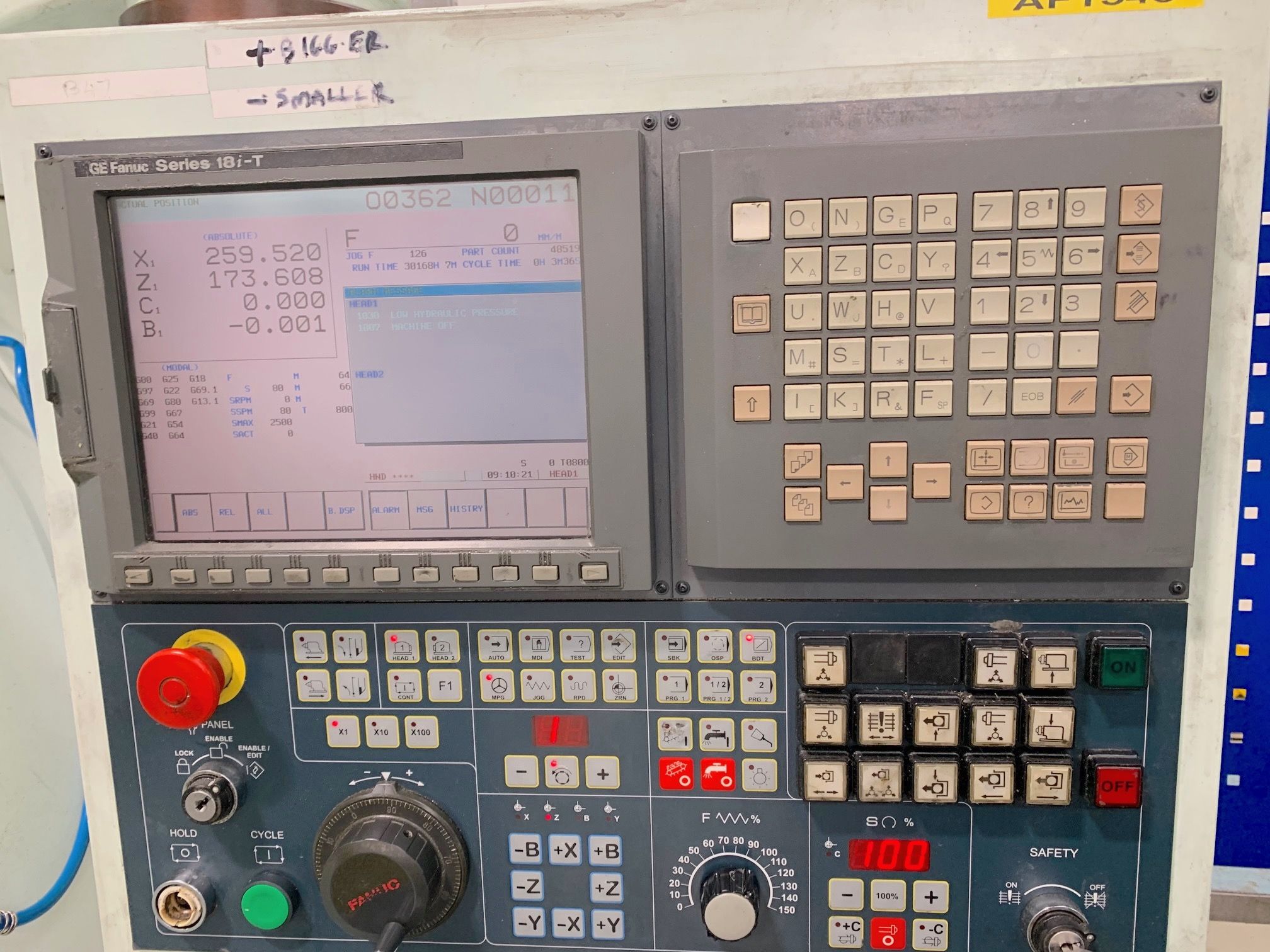

Fanuc 18i-T
MAIN SPINDLE
Max rotation speed
5000 rpm
Spindle nose
ASA5”
Spindle hole
55 (passaggio barra 45mm) mm2,17 (passaggio barra 1,77mm) in
Internal bearing diameter
80 mm3,15 in
Max power
15 Kw
Accuracy (C axis)
0,001 °

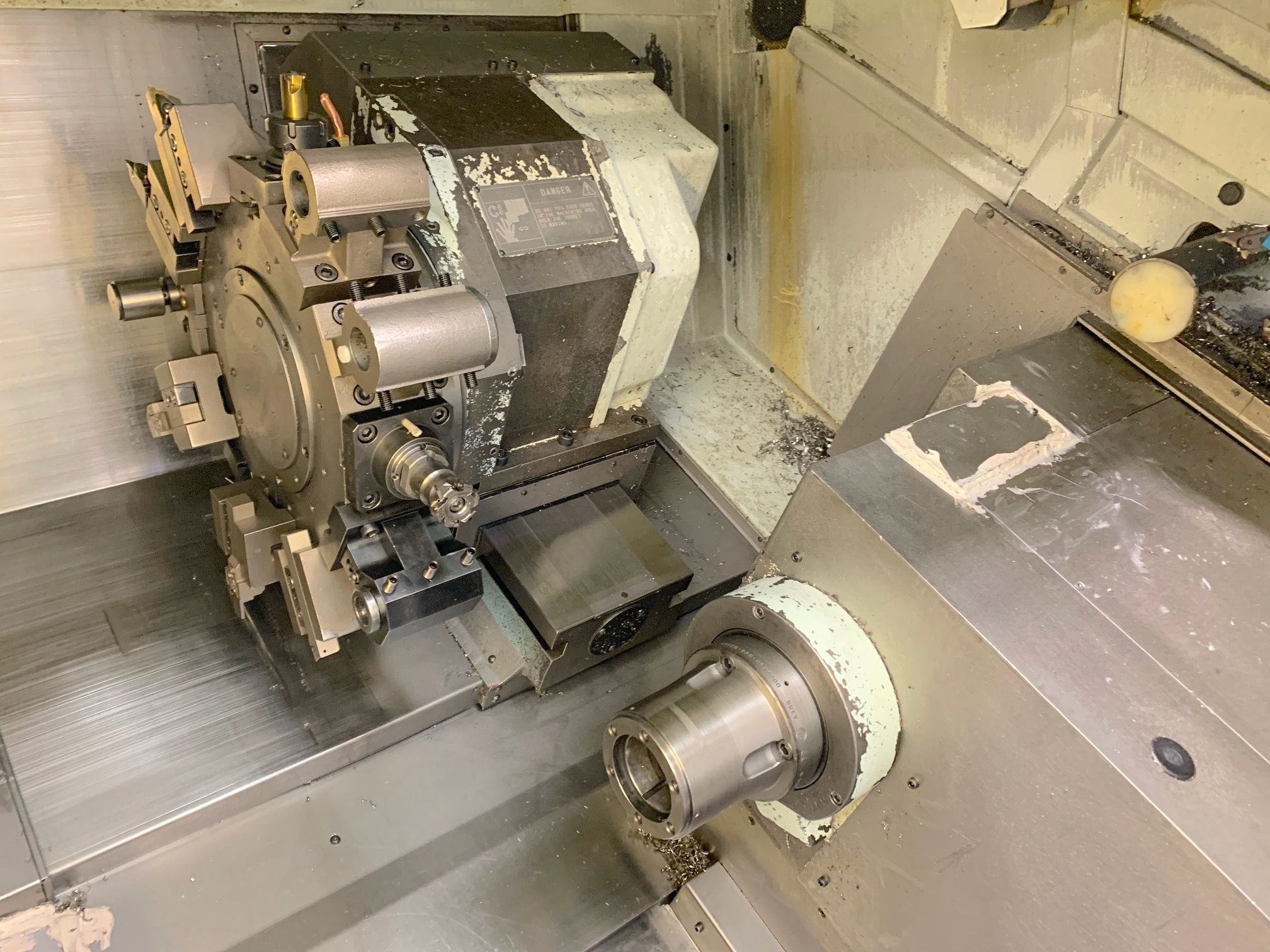

SUBSPINDLE
Max rotation speed
5000 rpm
Spindle nose
ASA5”
Spindle hole
55 (passaggio barra 45mm) mm2,17 (passaggio barra 1,77mm) in
Internal bearing diameter
80 mm3,15 in
Max power
7,5/11 Kw
Accuracy (C axis)
0,001 °
Automatic B axis positioning
420 mm16,54 in
Rapid feed B
30 m/min1.181,10 ipm
Positions number
12
Rotation time (1 pos)
0,15 sec.
Number of driven stations
12
Driven tools speed
4000 rpm
Driven tools power
3,7 Kw
Axis stroke X
160 mm6,30 in
Rapid feed X
20 m/min787,40 ipm
Axis stroke Z
390 mm15,35 in
Rapid feed Z
24 m/min944,88 ipm

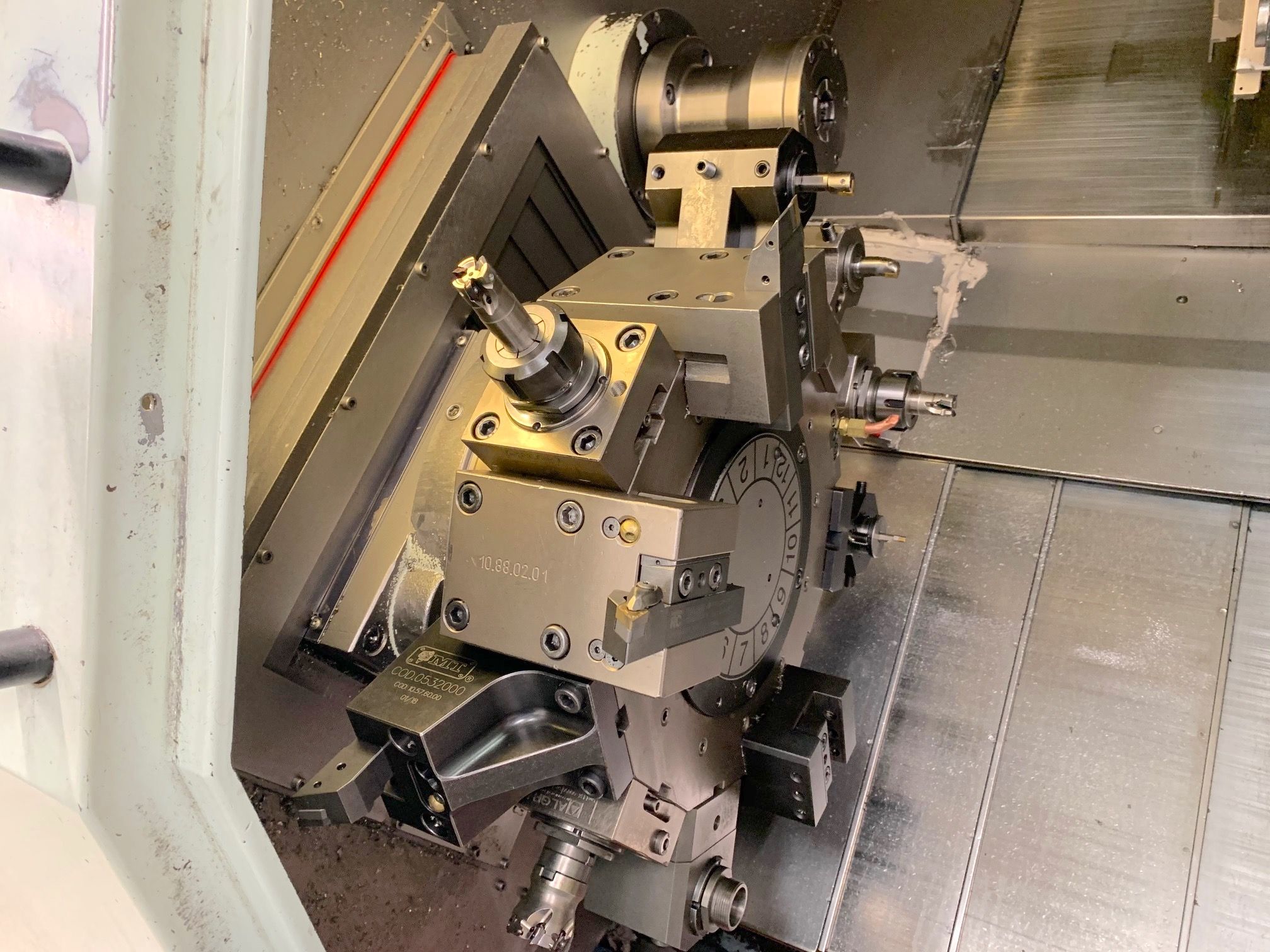

TURRET 2
Positions number
12
Rotation time (1 pos)
0,15 sec.
Number of driven stations
12
Driven tools speed
4000 rpm
Driven tools power
3,7 Kw
Axis stroke X2
160 mm6,30 in
Rapid feed X2
12 m/min472,44 ipm
Axis stroke Z2
240 mm9,45 in
Rapid feed Z2
20 m/min787,40 ipm
EXTRA
Machine total weight
6600 Kg
Floor space
4150x2100x2200 mm163,39x82,68x86,61 in
Maintenance & Use books
Yes
Electrical drawings
Yes
CE Certification
Yes

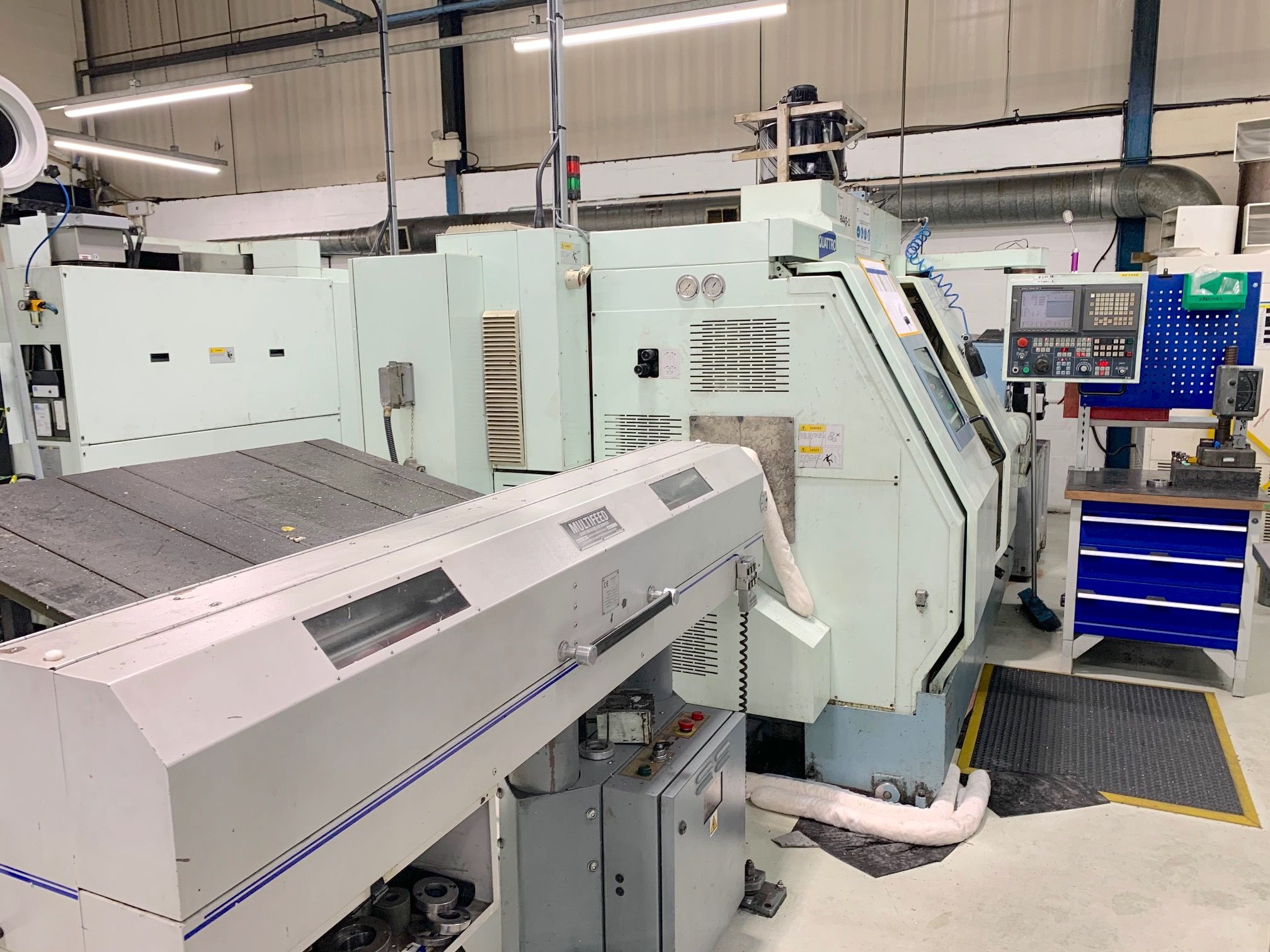

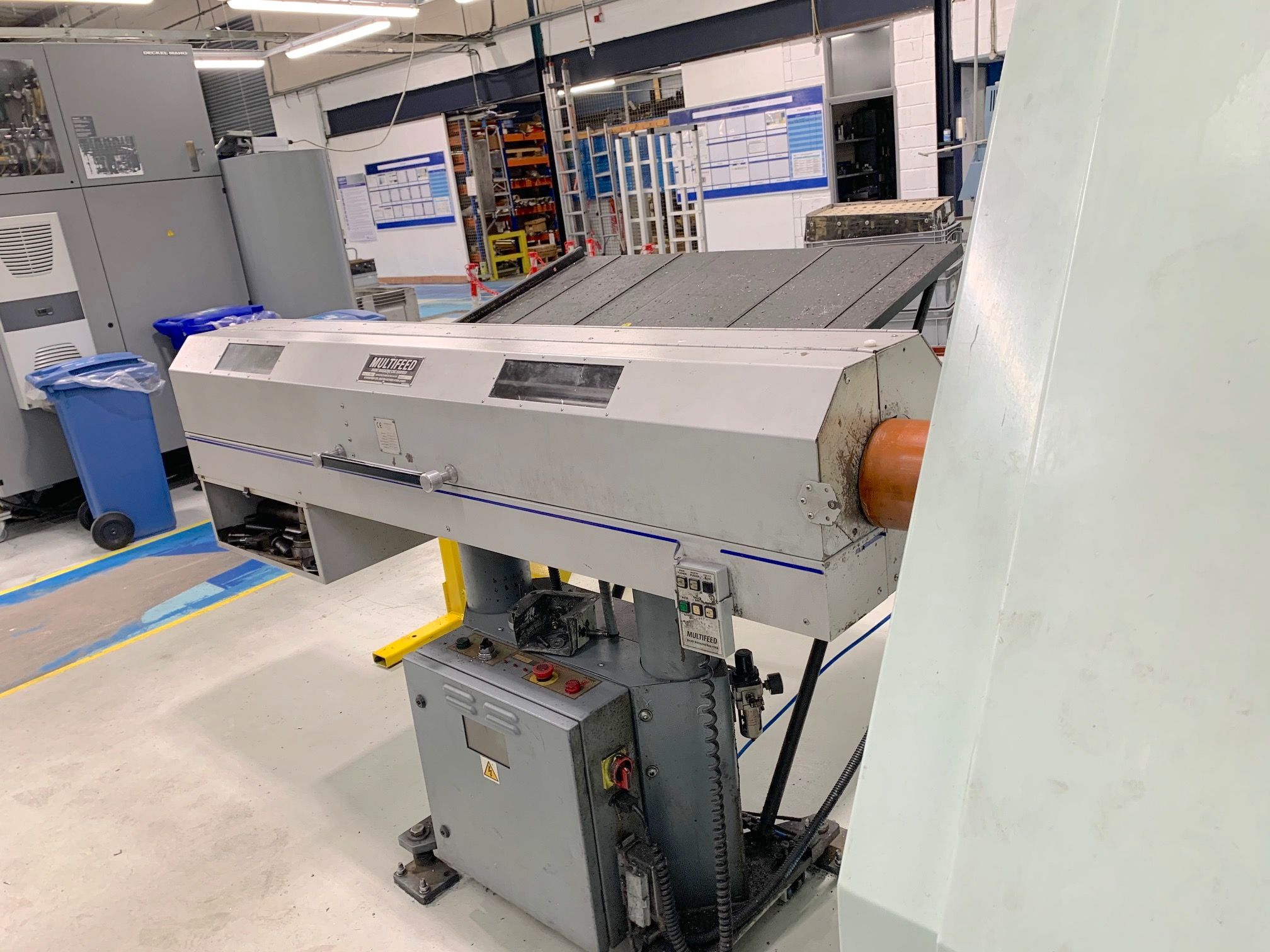

Bar feeder
Hydrafeed Multifeed
