Category
Turning Machine
Type
Center
Made
Model
T700 700x4000mm
Capacity
ø1420x4000x150 mmø55,91x157,48x5,91 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Centres height
700 mm27,56 in
Centres distance
4000 mm157,48 in
Max swing on saddle
1040 mm40,94 in
Max diameter on the bed
1420 mm55,91 in
Longitudinal (Z)
4000 mm157,48 in
Cross (X)
760 mm29,92 in
Bar passage
150 mm5,91 in
Max swing in the gap
1750 mm68,90 in

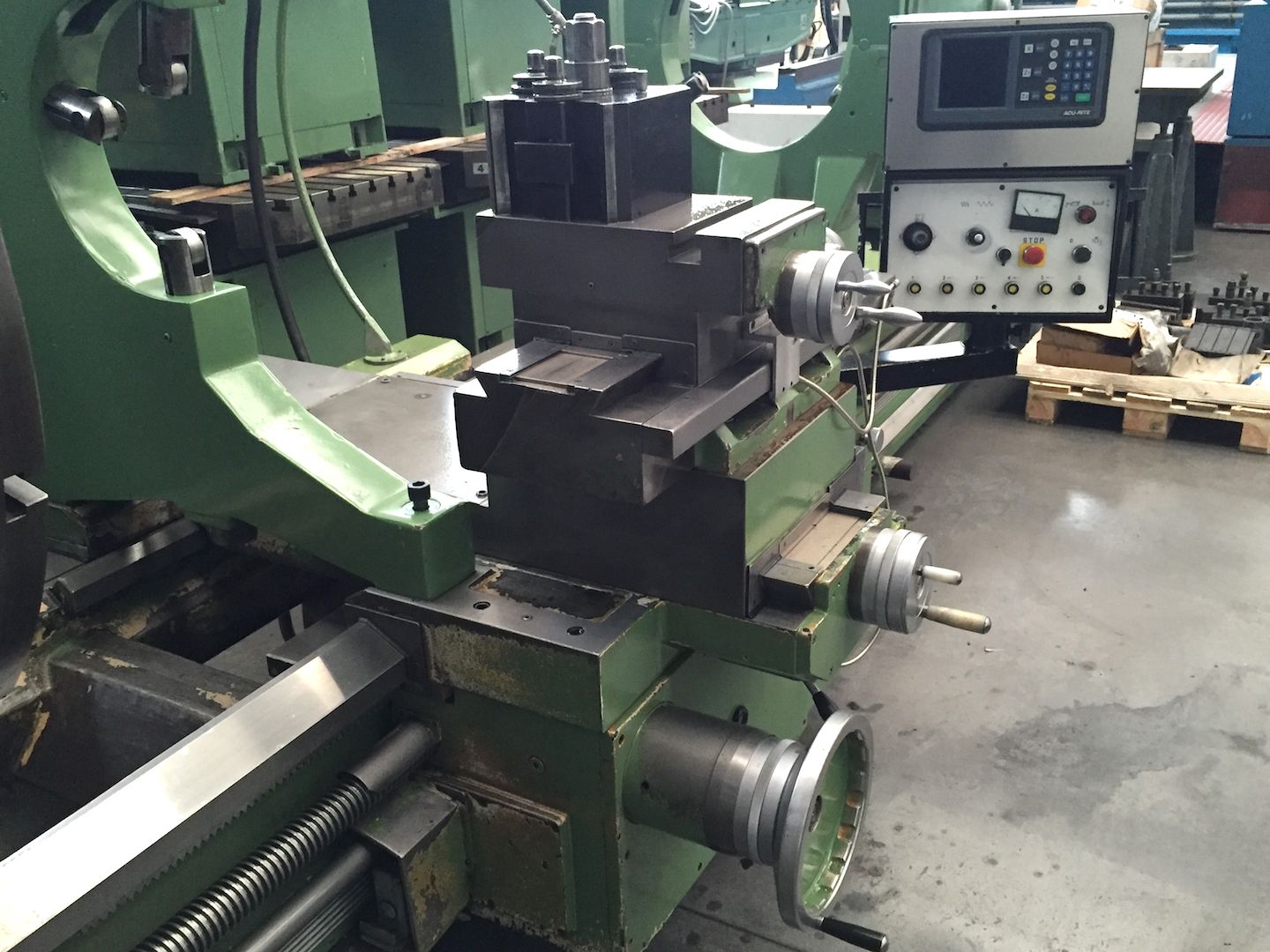

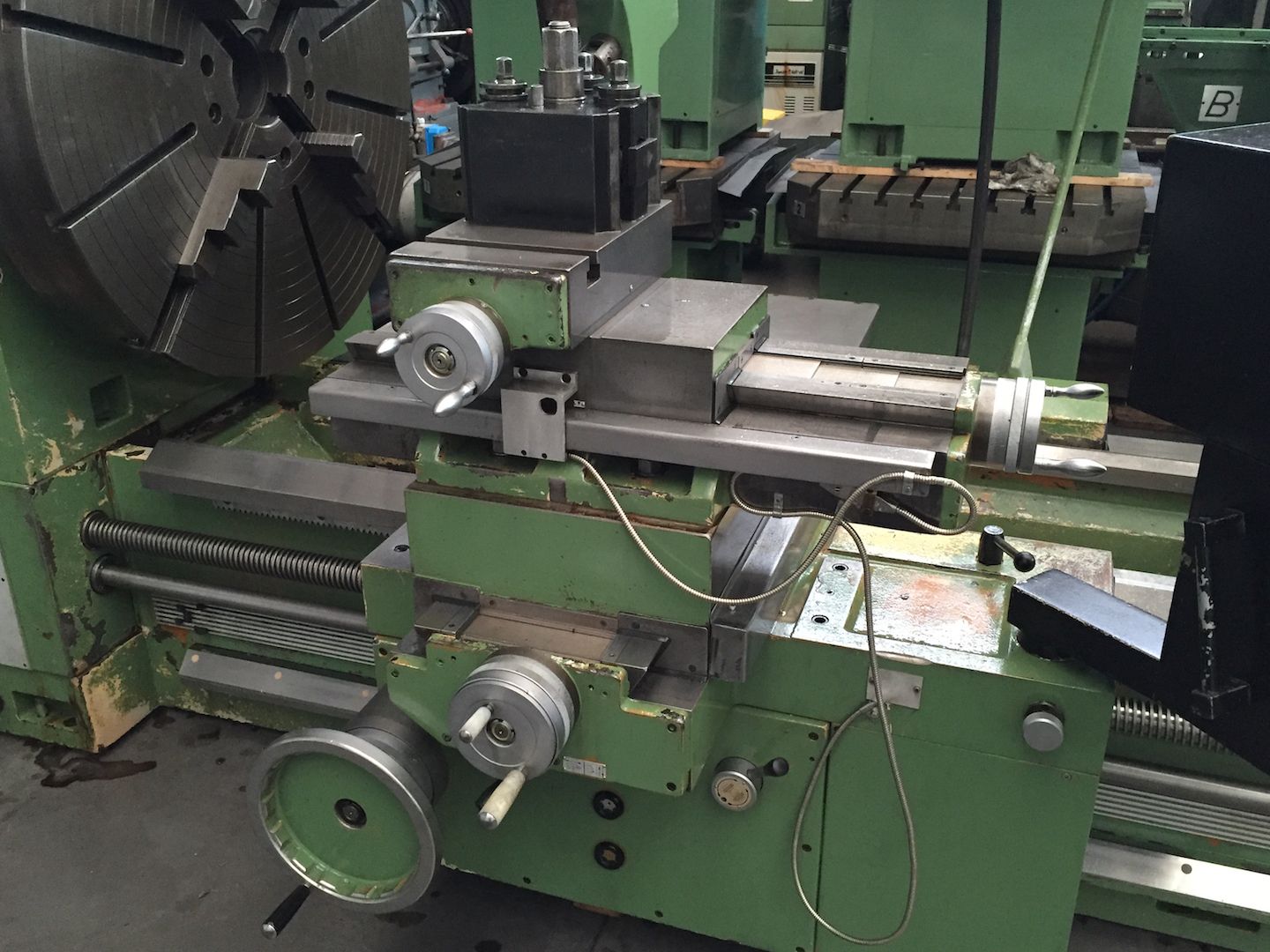

SADDLE
X stroke
760 mm29,92 in
Saddle Width
1100 mm43,31 in
X rapid feed
2500 mm/min98,4250 ipm
Z rapid feed
5000 mm/min196,8500 ipm
X feeds
2500 mm/min98,4250 ipm
Z feeds
2500 mm/min98,4250 ipm
Max swing diam on saddle
1040 mm40,94 in

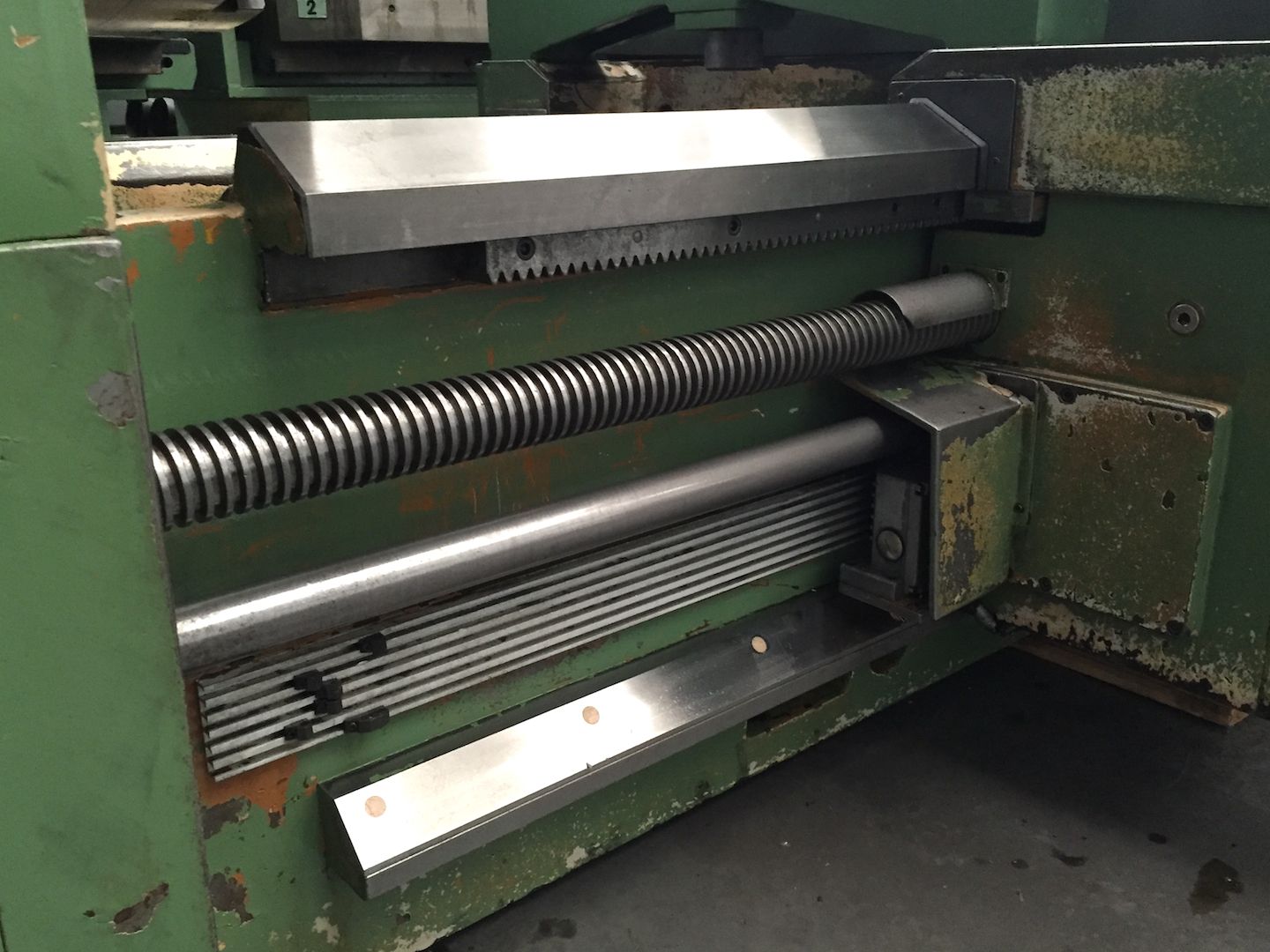

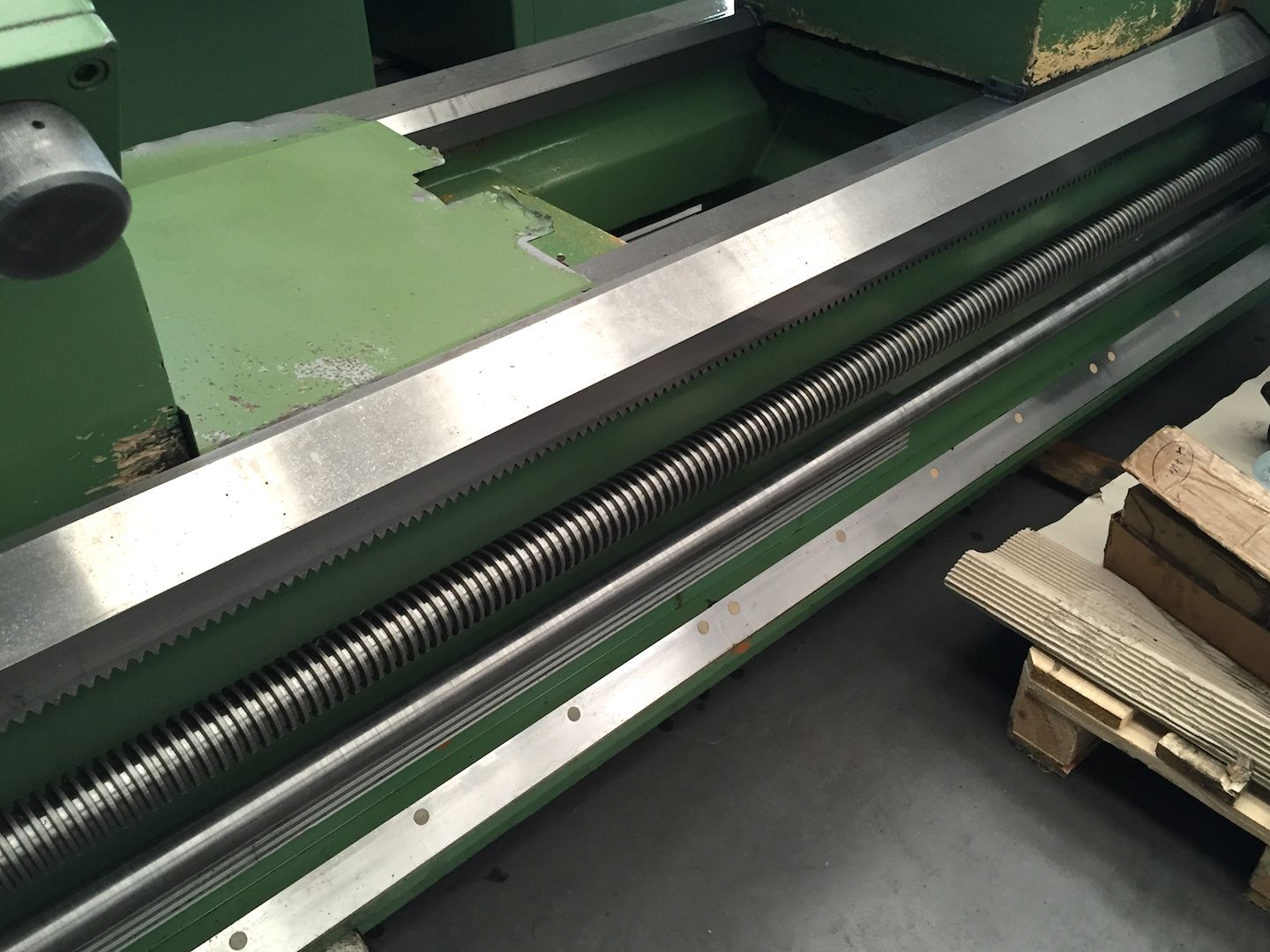

BED
Max weight on steadies
10000 Kg
Max weight between centres
8000 Kg
Bed width
800 mm31,50 in
Guide-ways number
2+1

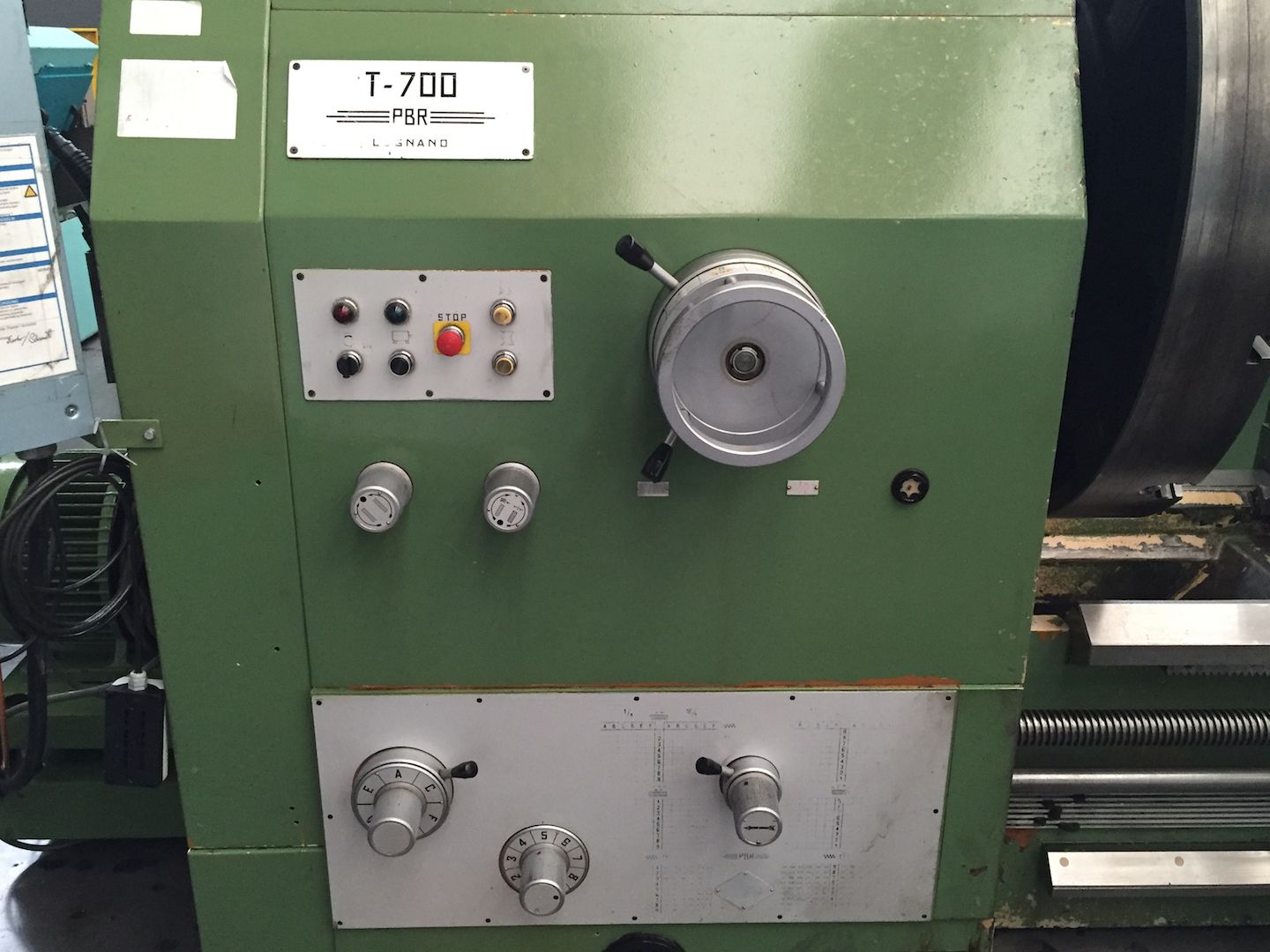

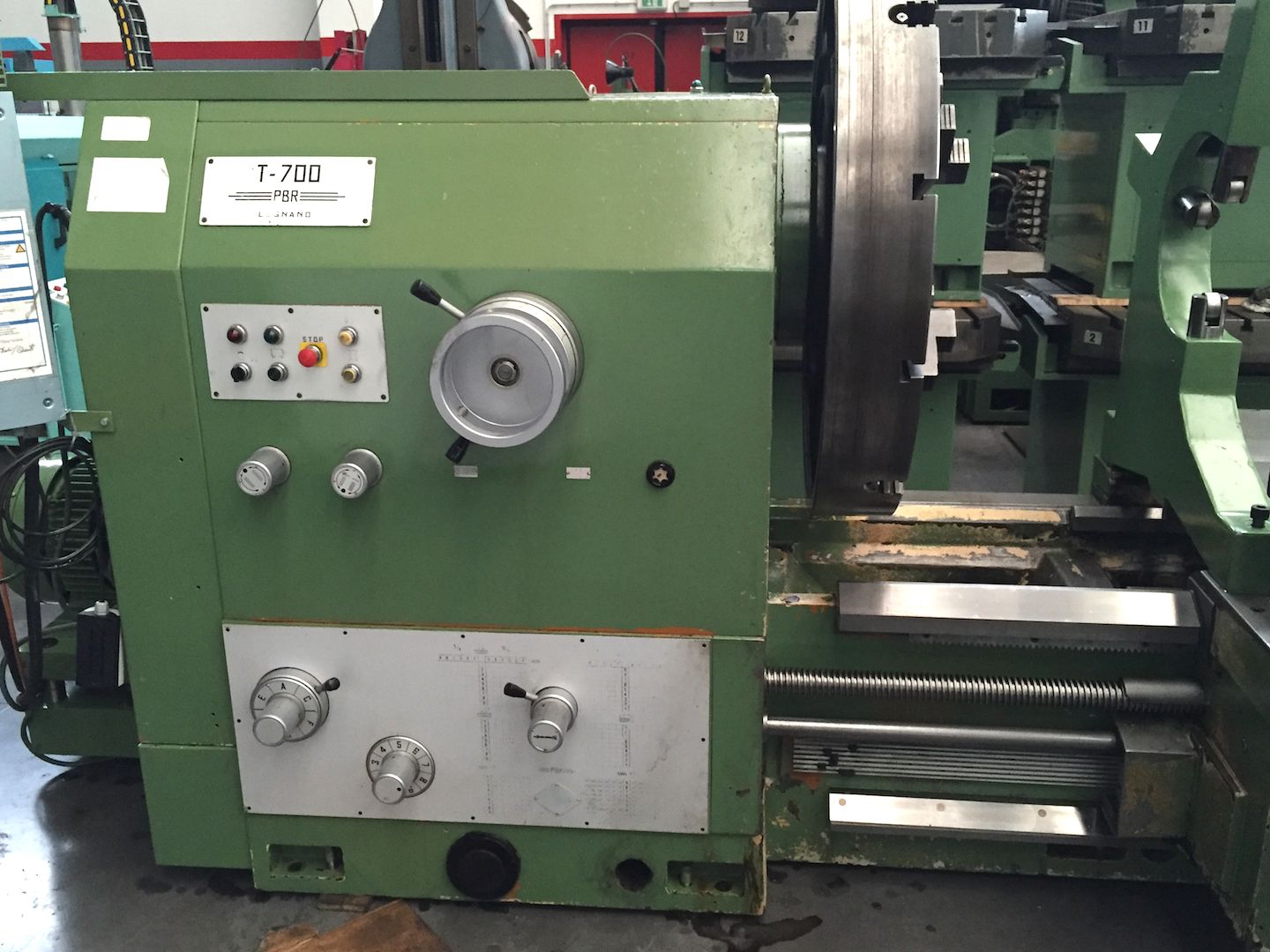

HEAD
Spindle taper
ASA 15”
Spindle speed
3-630 Rpm
Spindle power
40 Kw
Spindle torque
11000 Nm

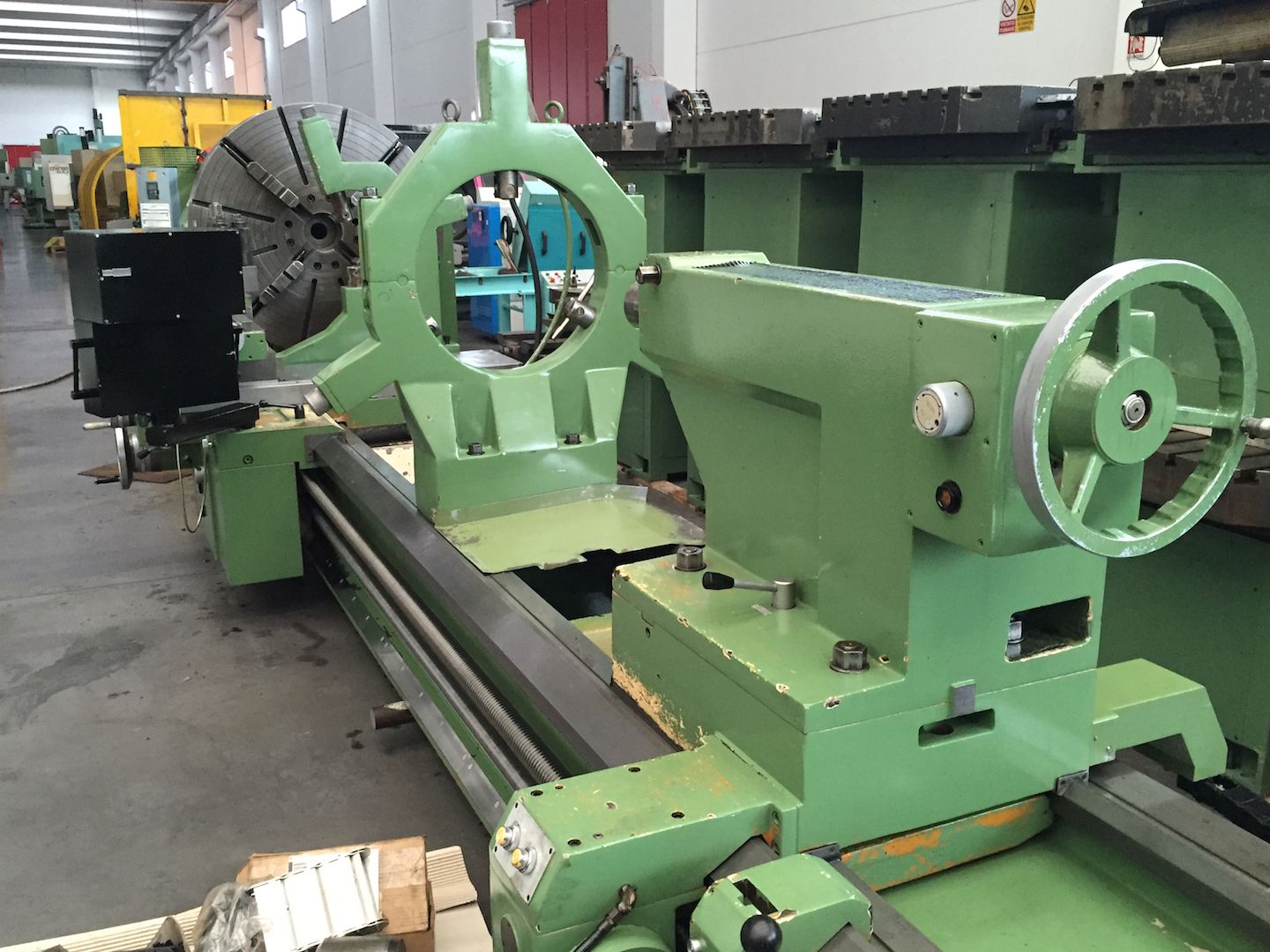

TAILSTOCK
Quill stroke
400 mm15,75 in
Quill diameter
150 mm5,91 in

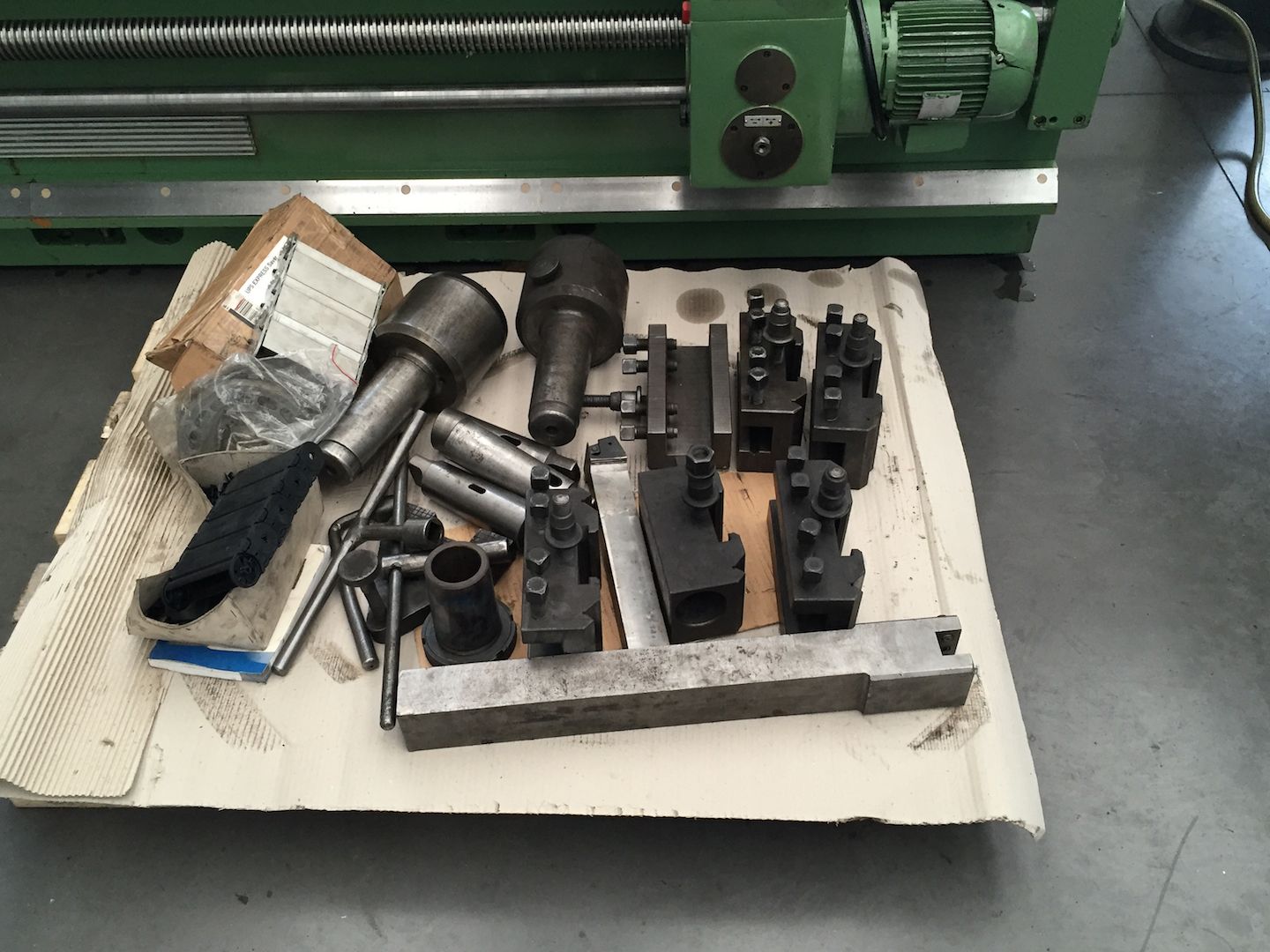

EXTRA

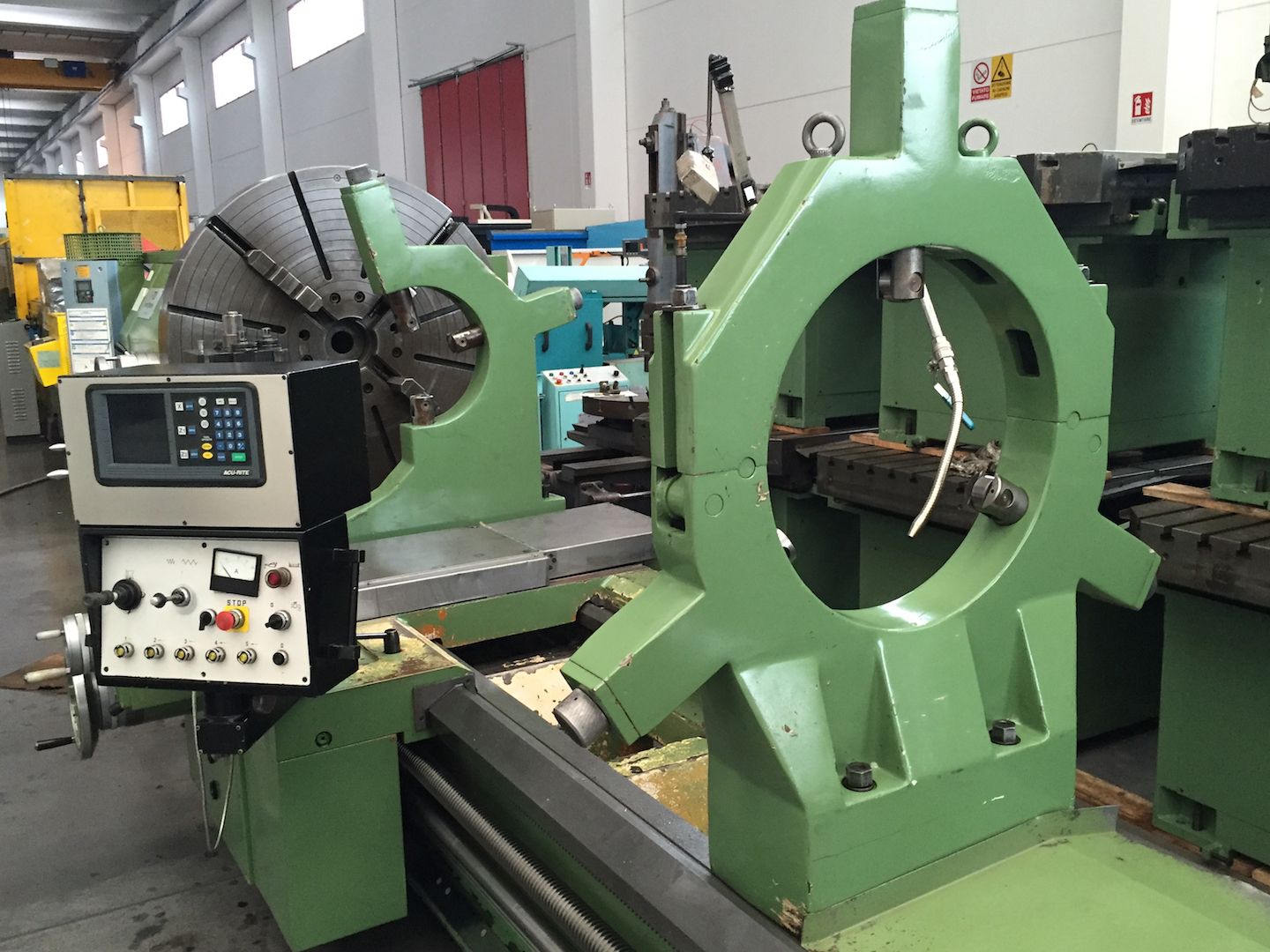

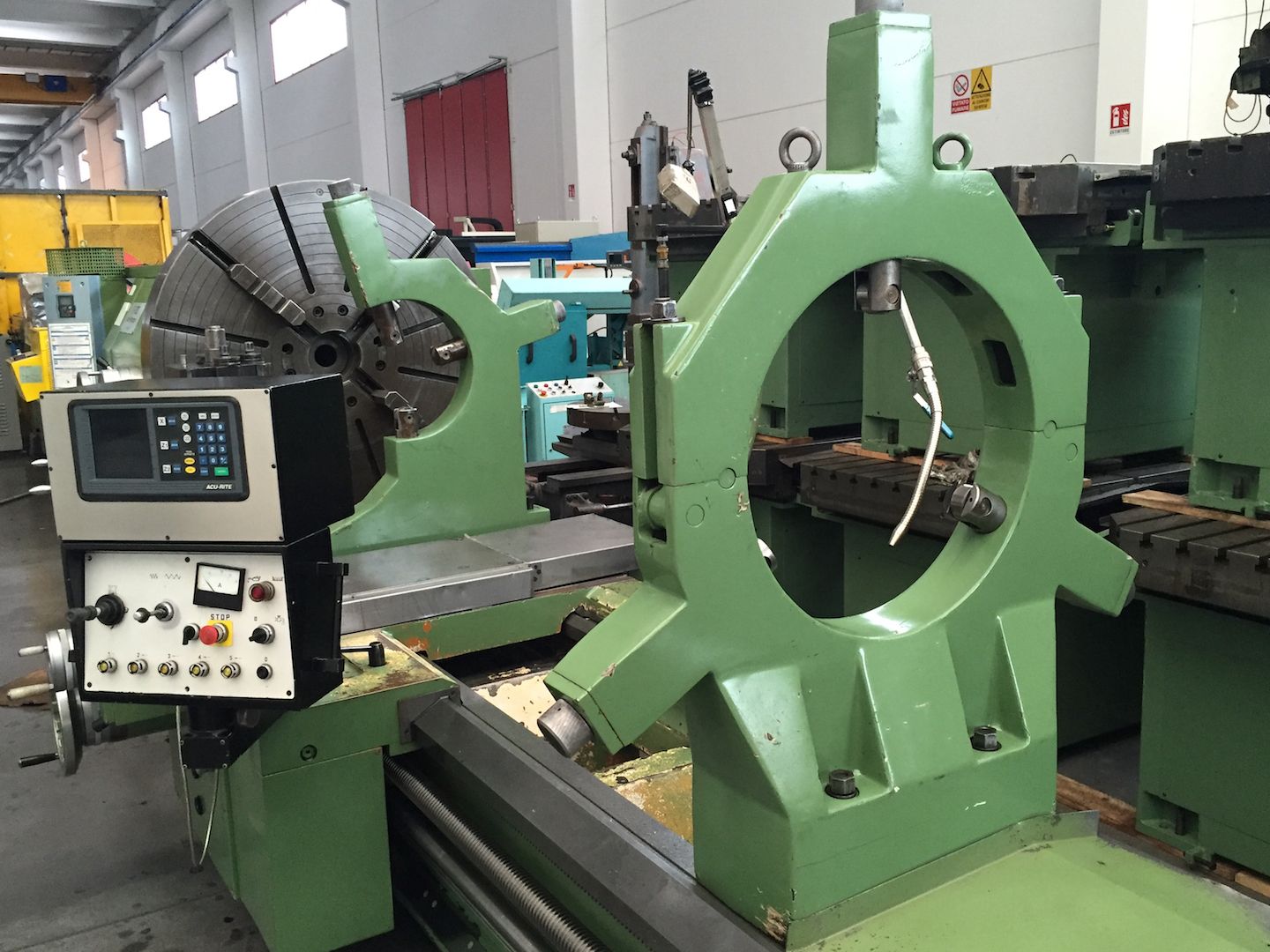

Open steadies
1
Closed steadies
1

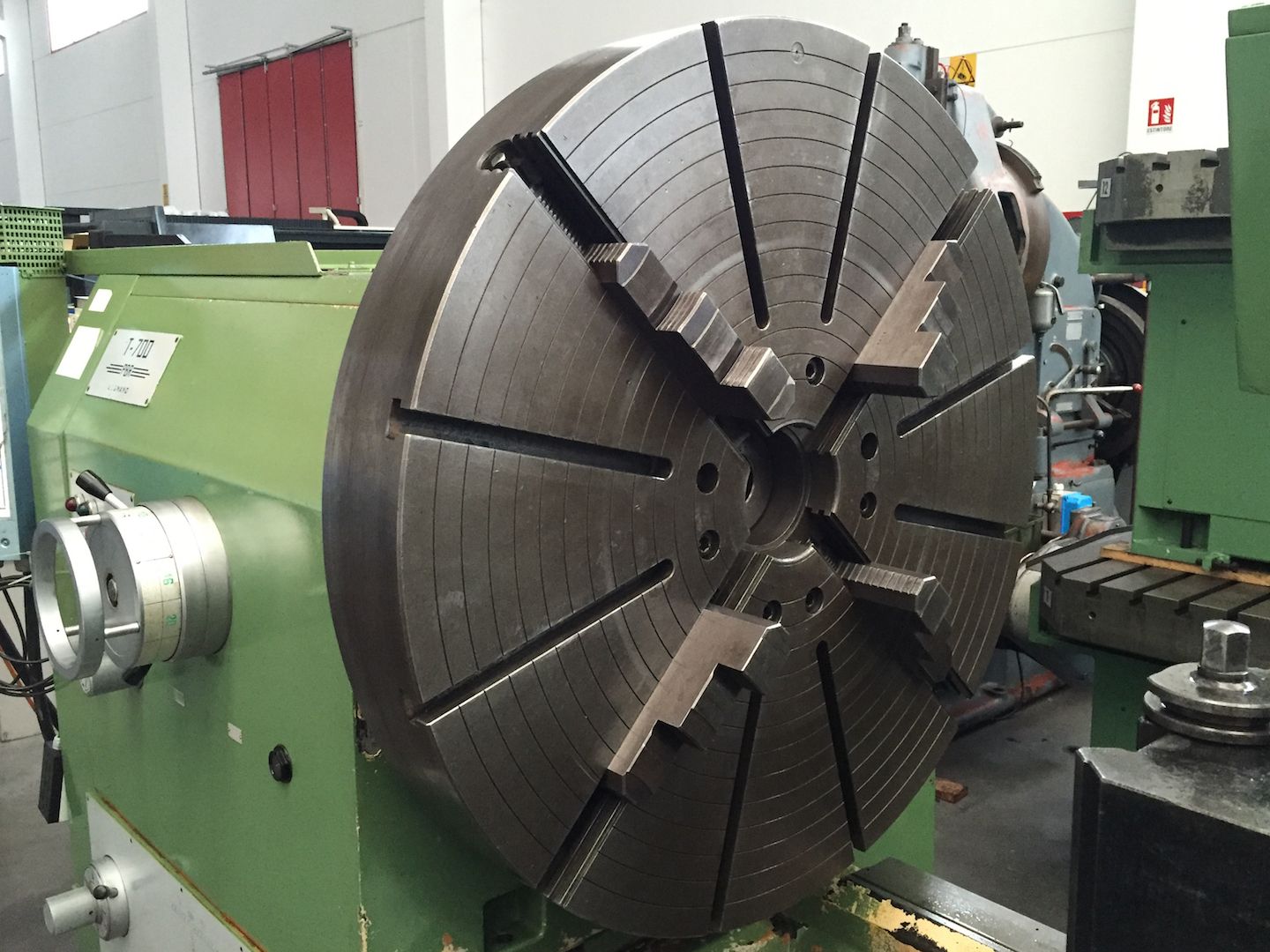

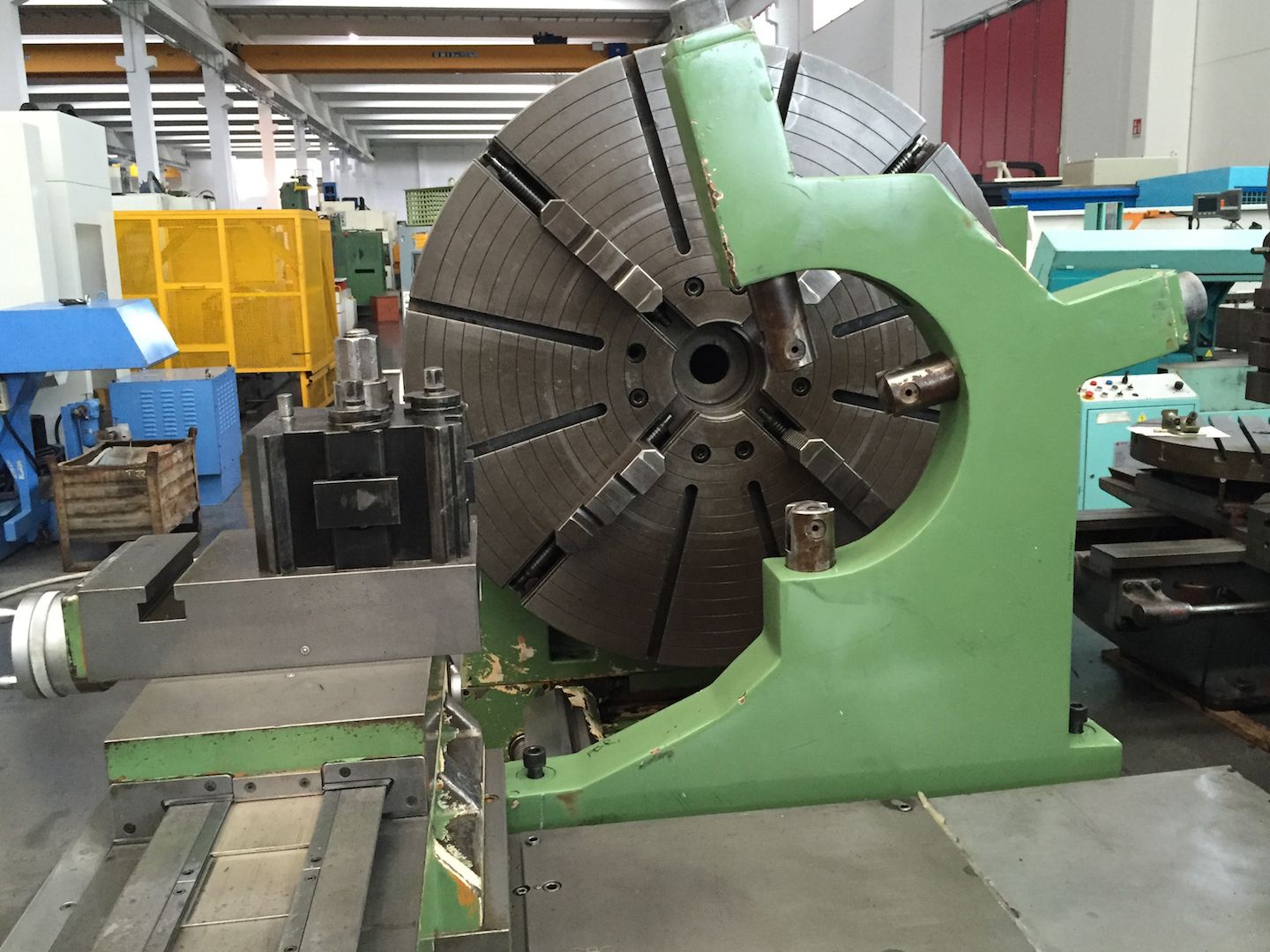

Autocentering chuck
1400
Platform
1400mm
Maintenance & Use books
Yes
Electrical drawings
Yes
Availability
pronta
Available in stock
si
Machine total weight
13600 Kg
