Category
Turning Machine
Type
Center
Model
300
Capacity
300x2000 mm11,81x78,74 in

Technical specifications

Metric Imperial
WORKING CAPACITY
Centres distance
2000 mm78,74 in
Centres height
300 mm11,81 in

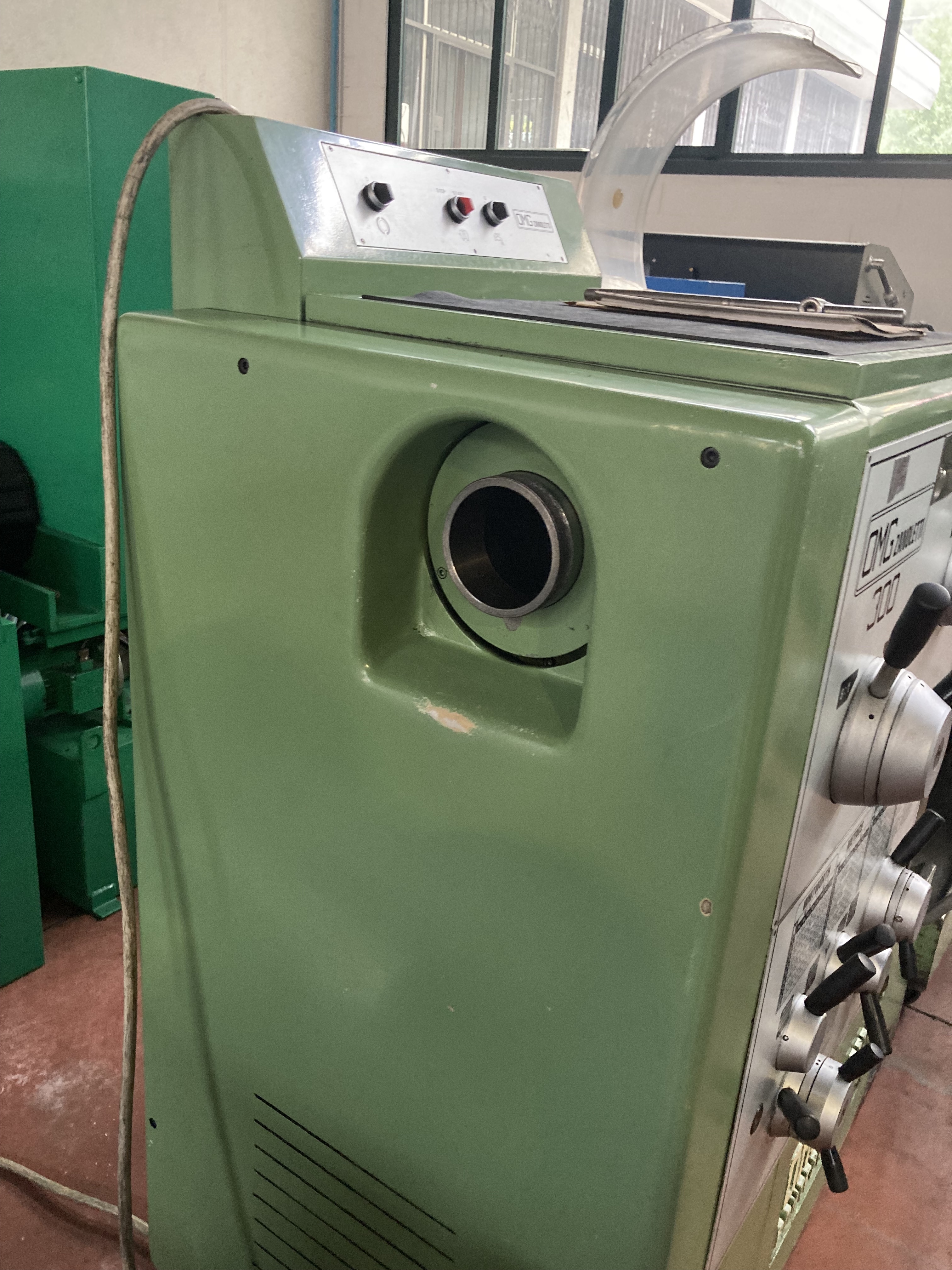

Bar passage
102 mm4,02 in
Max diameter on the bed
600 mm23,62 in
Max swing on saddle
570 mm22,44 in
BED
Bed width
380 mm14,96 in
HEAD
Spindle speed
28/1600 Rpm
Spindle taper
8”
TAILSTOCK
Quill stroke
220 mm8,66 in
Quill diameter
80 mm3,15 in
Taper
CM6
SADDLE
X stroke
360 mm14,17 in
Z rapid feed
SI mm/minSI ipm
X rapid feed
SI mm/minSI ipm
TURRET
Positions
SI
EXTRA
Machine total weight
3900 circa Kg
Availability
Pronta
Available in stock
SI
Open steadies
SI
Closed steadies
SI
Autocentering chuck
SI
Electrical drawings
Yes
