Category
Turning Machine
Type
Center
Made
Model

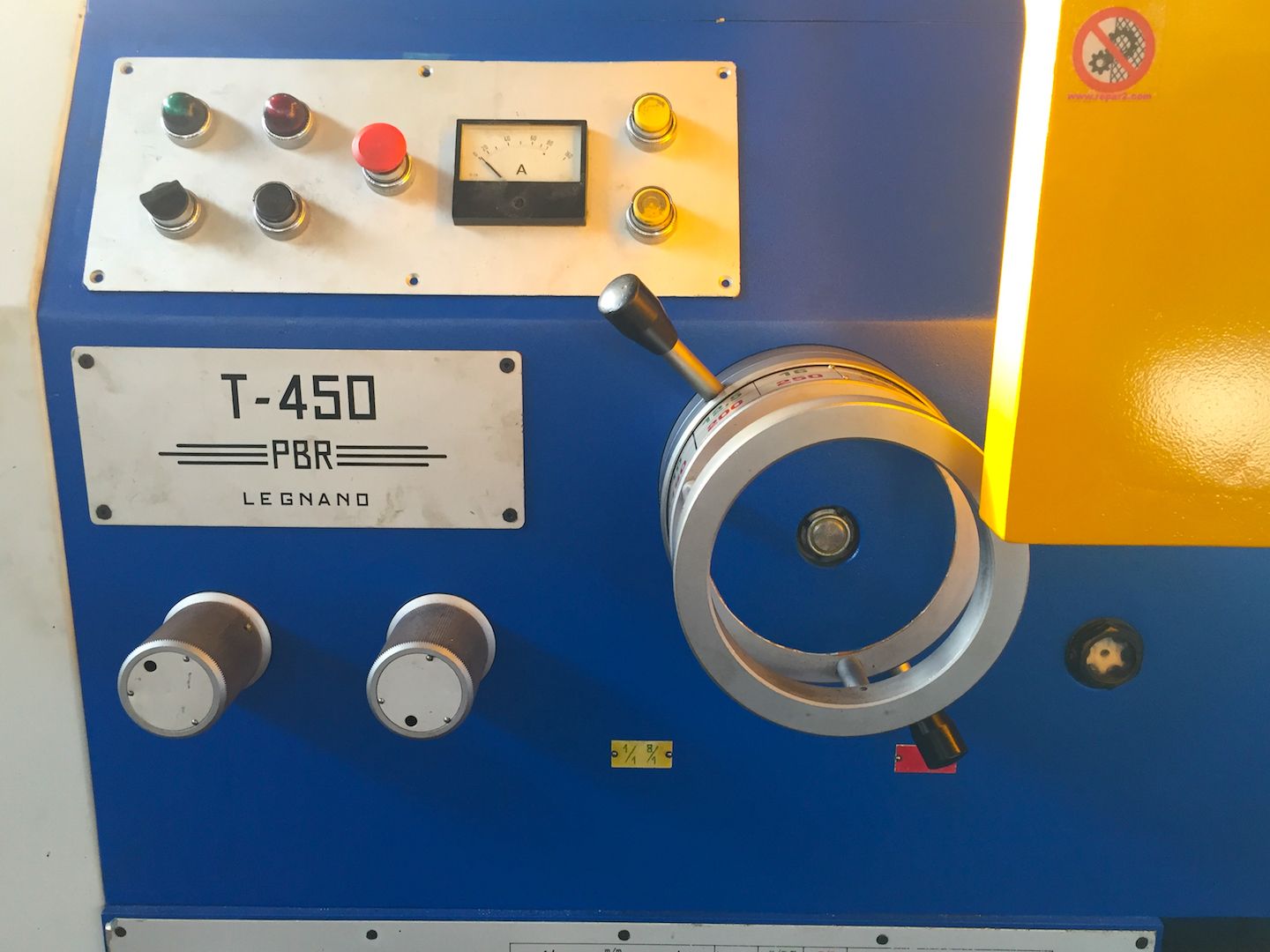

T450 450x3000
Capacity
920x3000x130 mm36,22x118,11x5,12 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Centres distance
3000 mm118,11 in
Centres height
450 mm17,72 in
Longitudinal (Z)
3000 mm118,11 in
Cross (X)
560 mm22,05 in
Max turning lenght
3000 mm118,11 in
Max diameter on the bed
920 mm36,22 in
Max swing on saddle
620 mm24,41 in
Max swing in the gap
1200 mm47,24 in

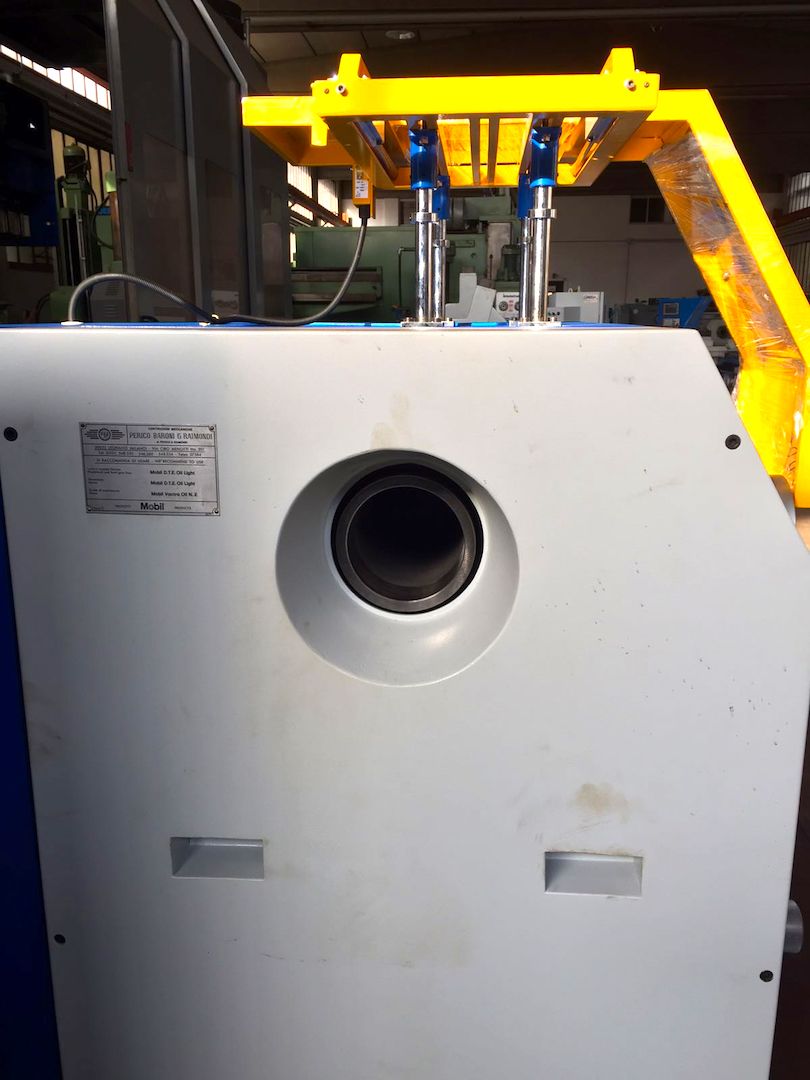

Bar passage
130 mm5,12 in
BED
Bed width
570 mm22,44 in
Guide-ways number
2
Max weight between centres
3500 Kg
Max weight on steadies
4500 Kg
EXTRA

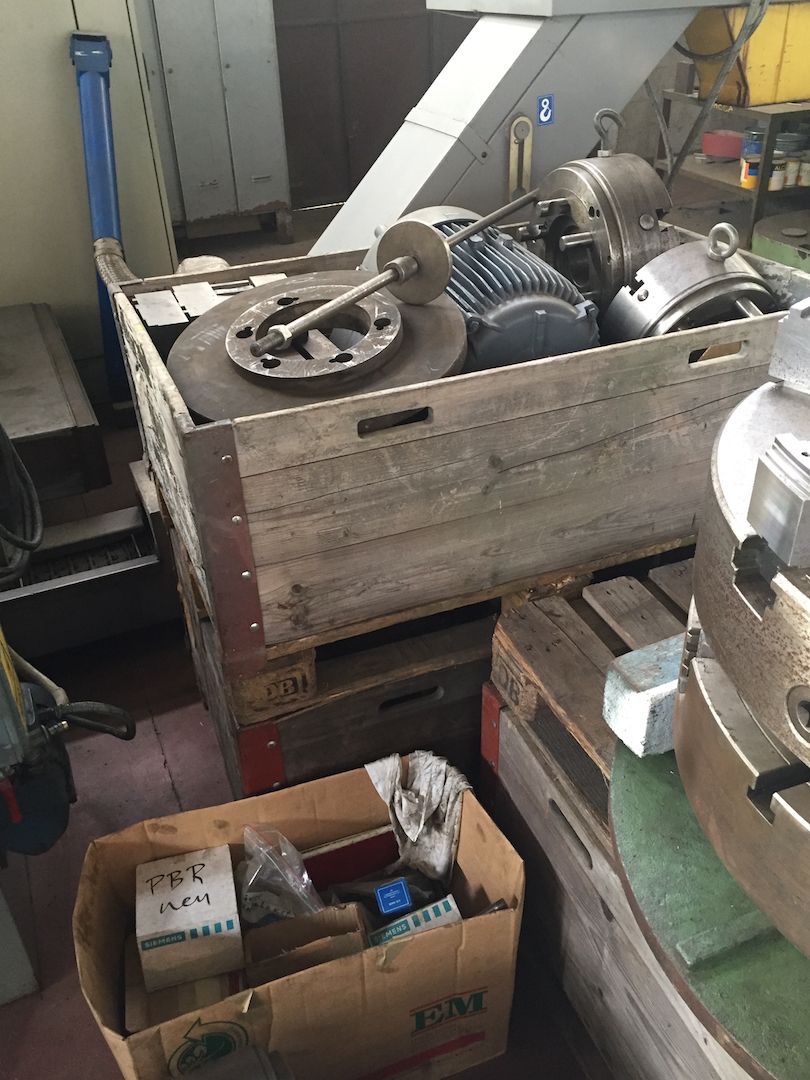

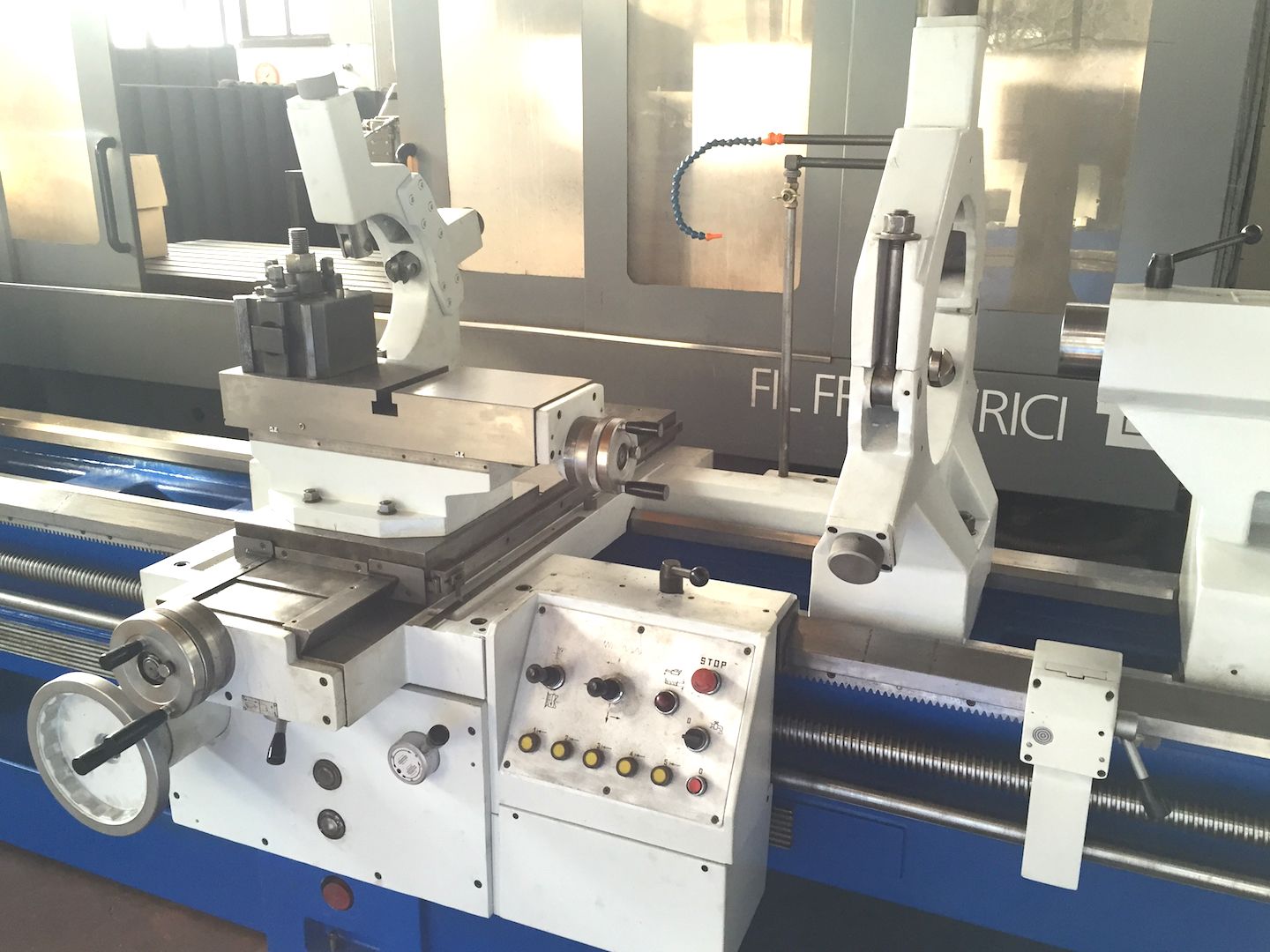

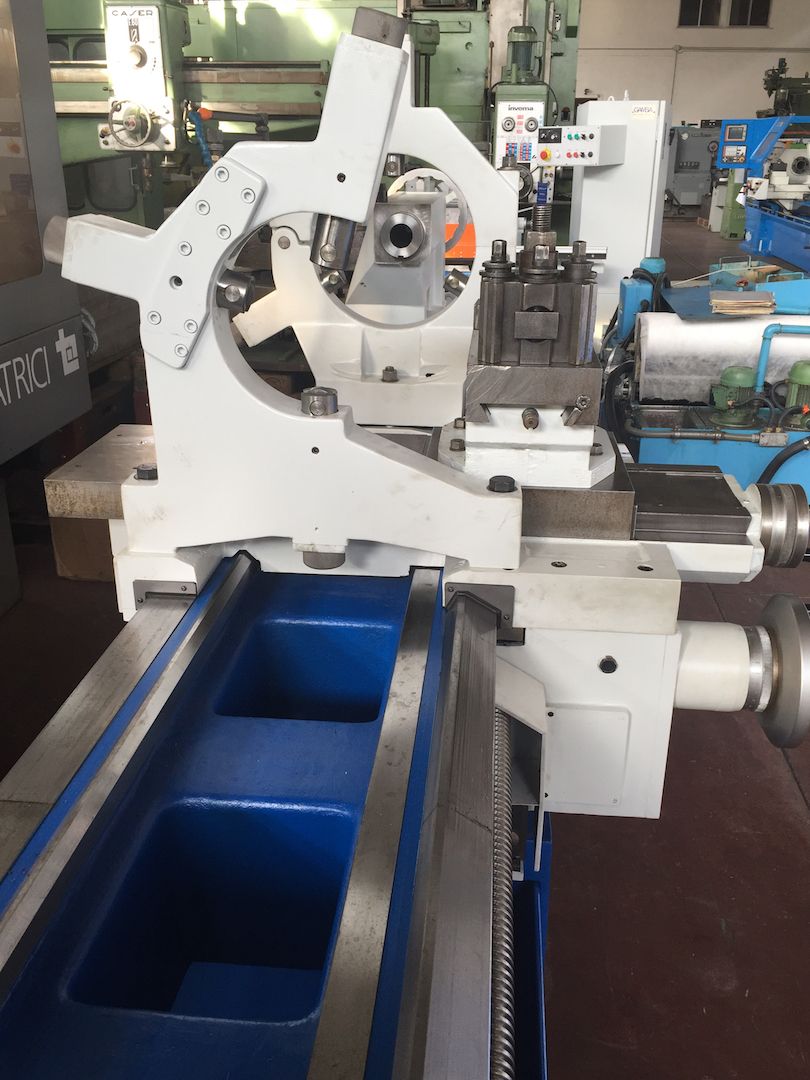

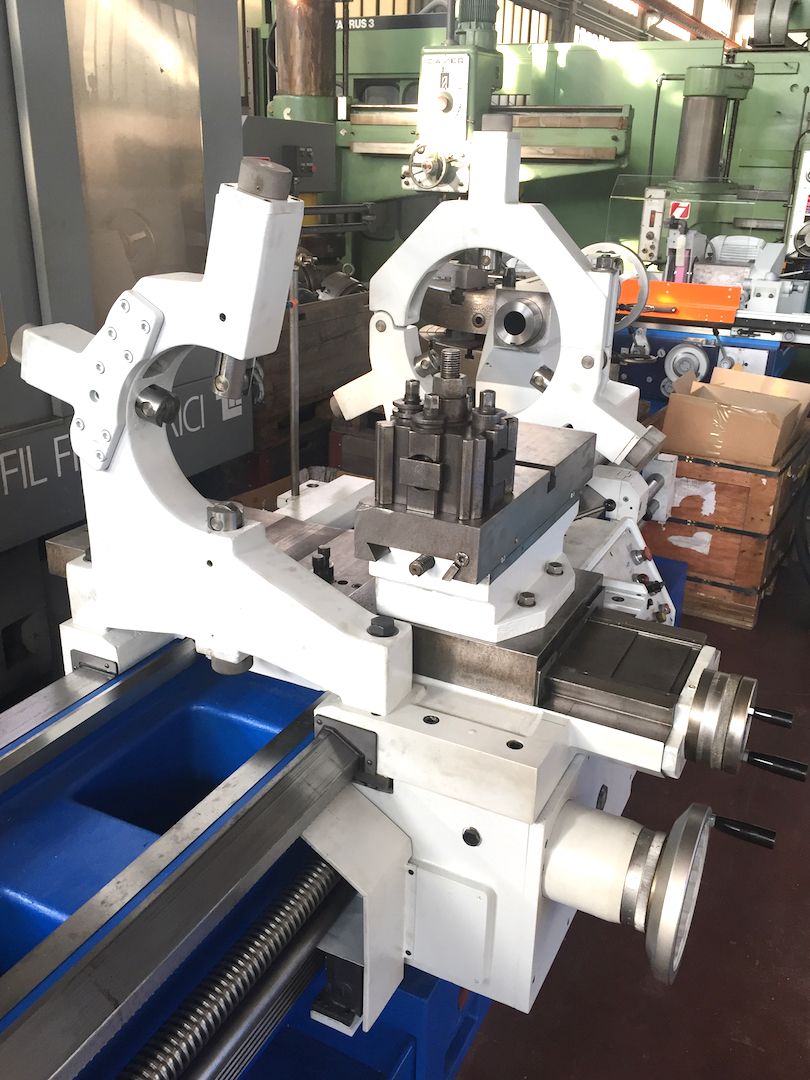

Closed steadies
1

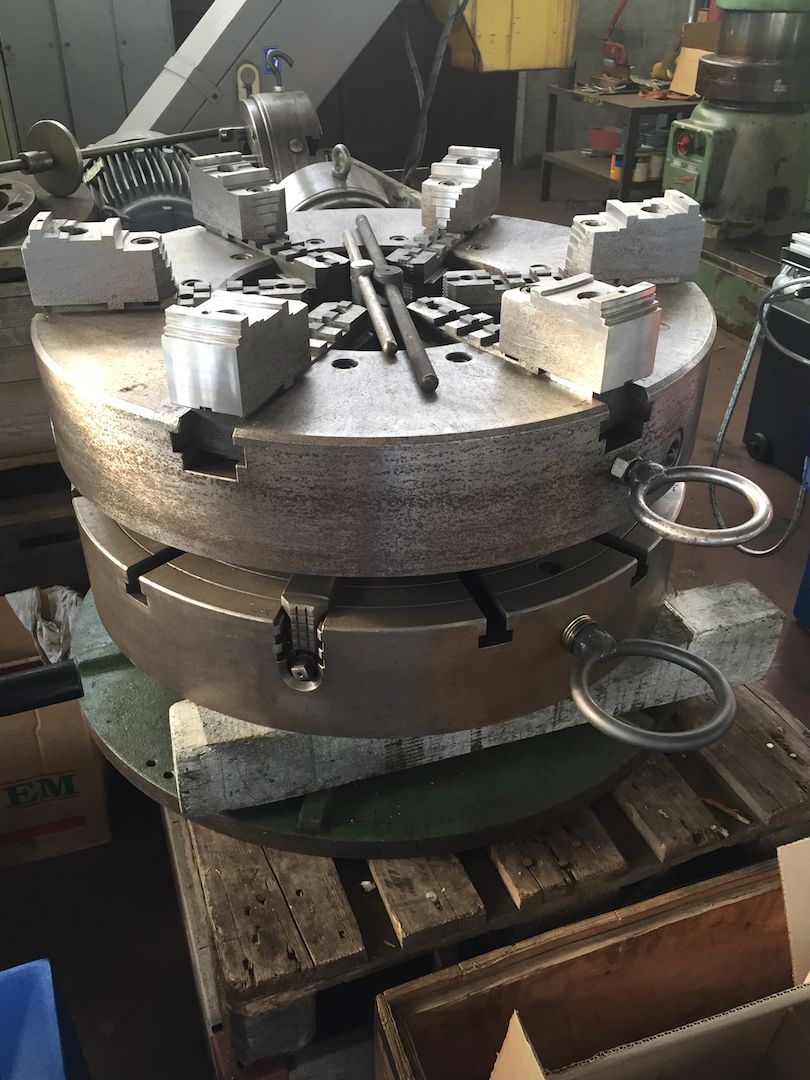

Platform
n.1 ø500mm, n.1 ø600mm, n.1 ø700mm, n.1 ø800mm
Electrical drawings
Yes
Availability
pronta
Available under power
previo appuntamento
