Category
Turning Machine
Type
Center
Made
Model
T 700 C
Capacity
1420 X4000 X150 mm55,91 X157,48 X5,91 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Centres distance
4000 mm157,48 in
Centres height
700 mm27,56 in
Longitudinal (Z)
4000 mm157,48 in
Cross (X)
760 mm29,92 in
Max diameter on the bed
1420 mm55,91 in
Max swing on saddle
1040 mm40,94 in
Max swing in the gap
1750 mm68,90 in
Bar passage
150 mm5,91 in

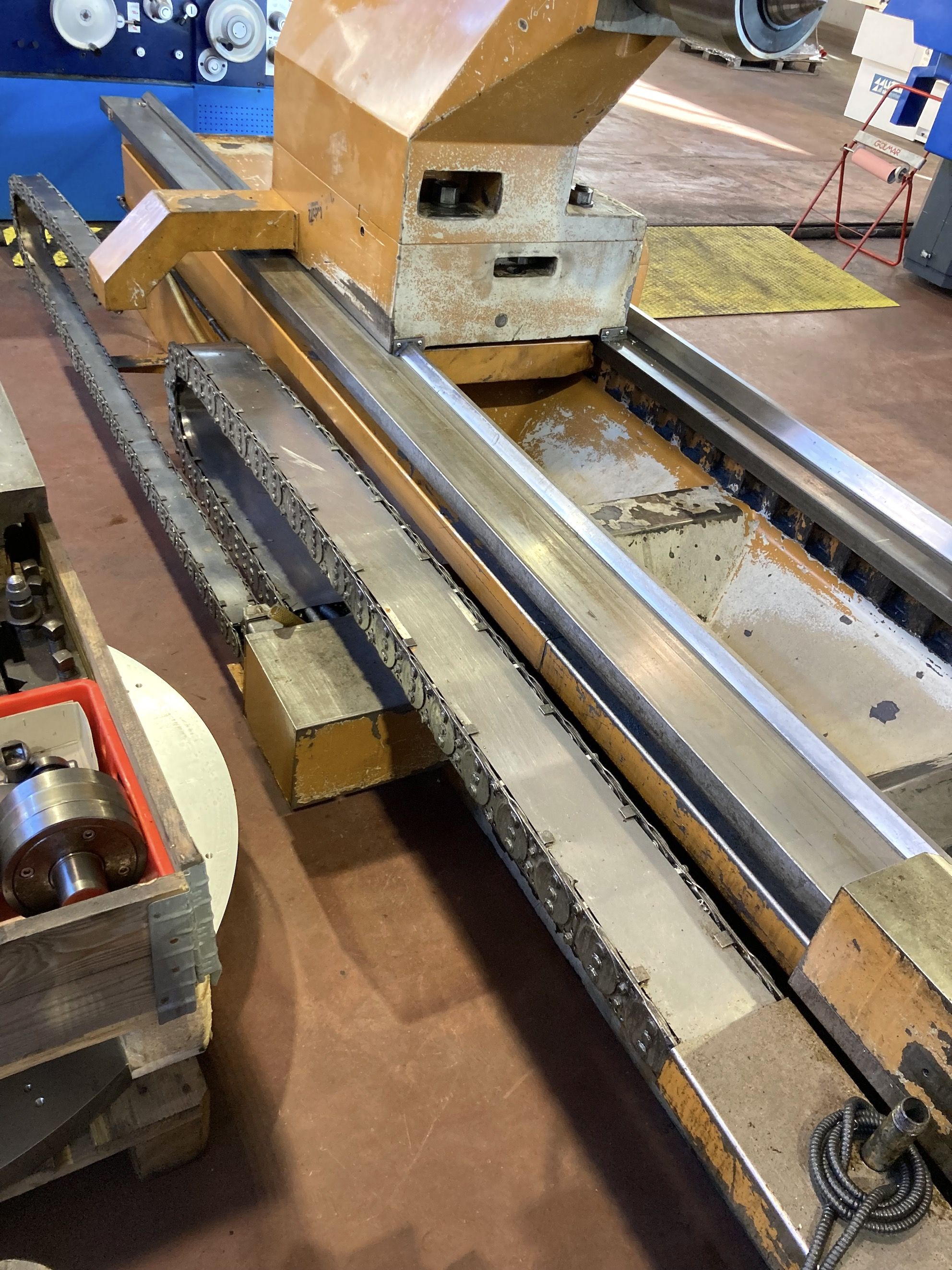

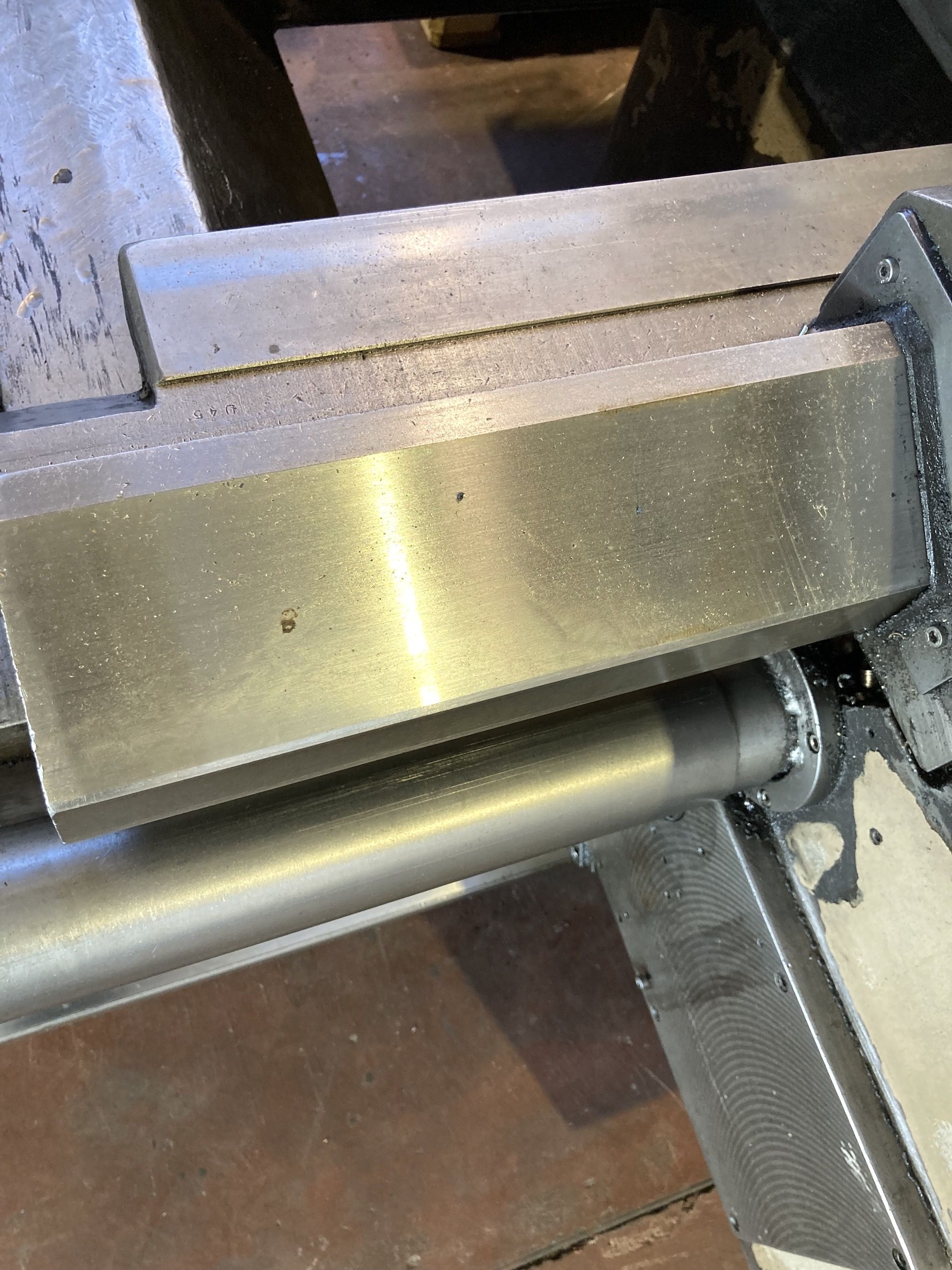

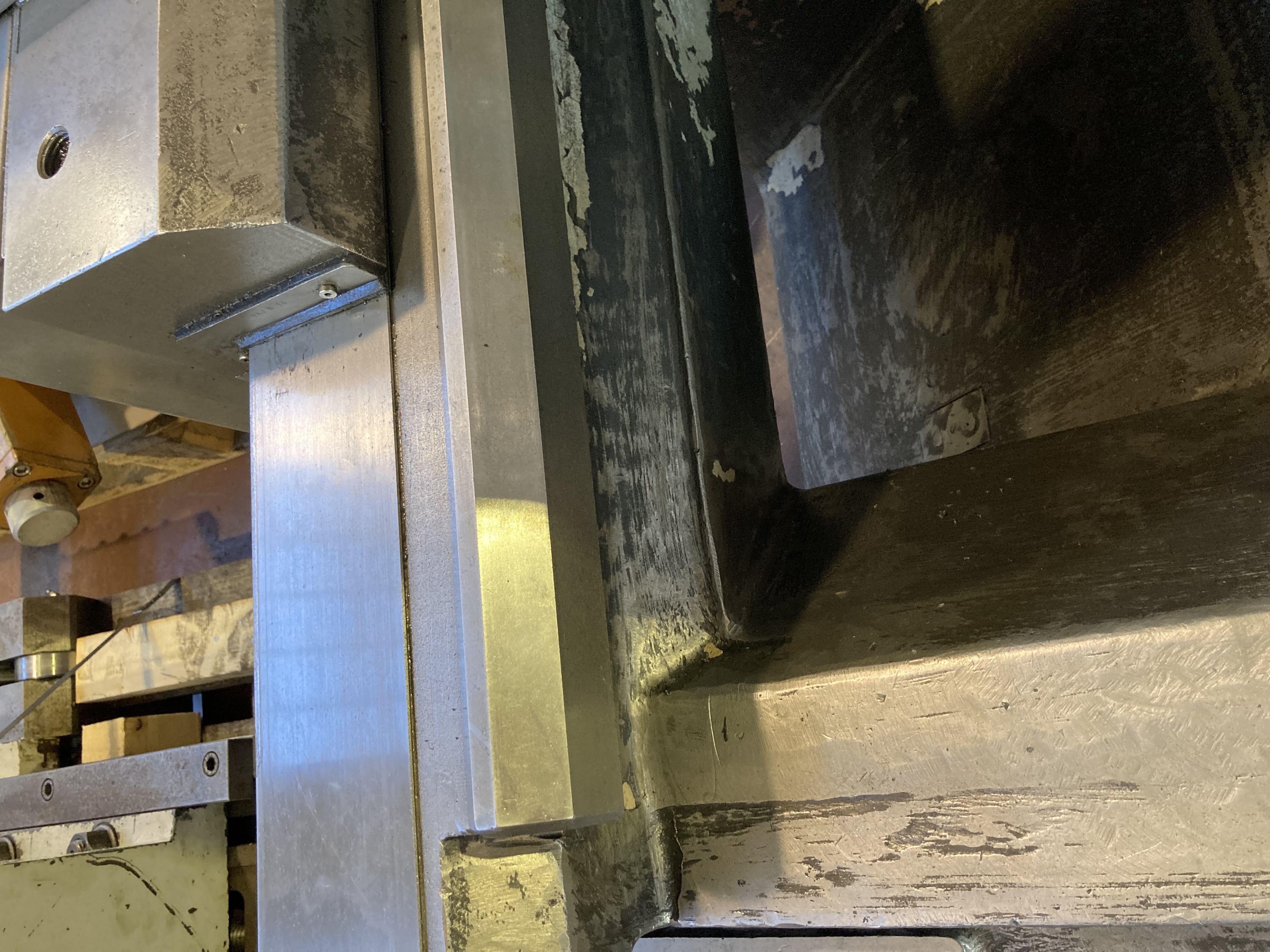

BED
Bed width
800 mm31,50 in
Guide-ways number
2+1
Max weight between centres
8000 Kg

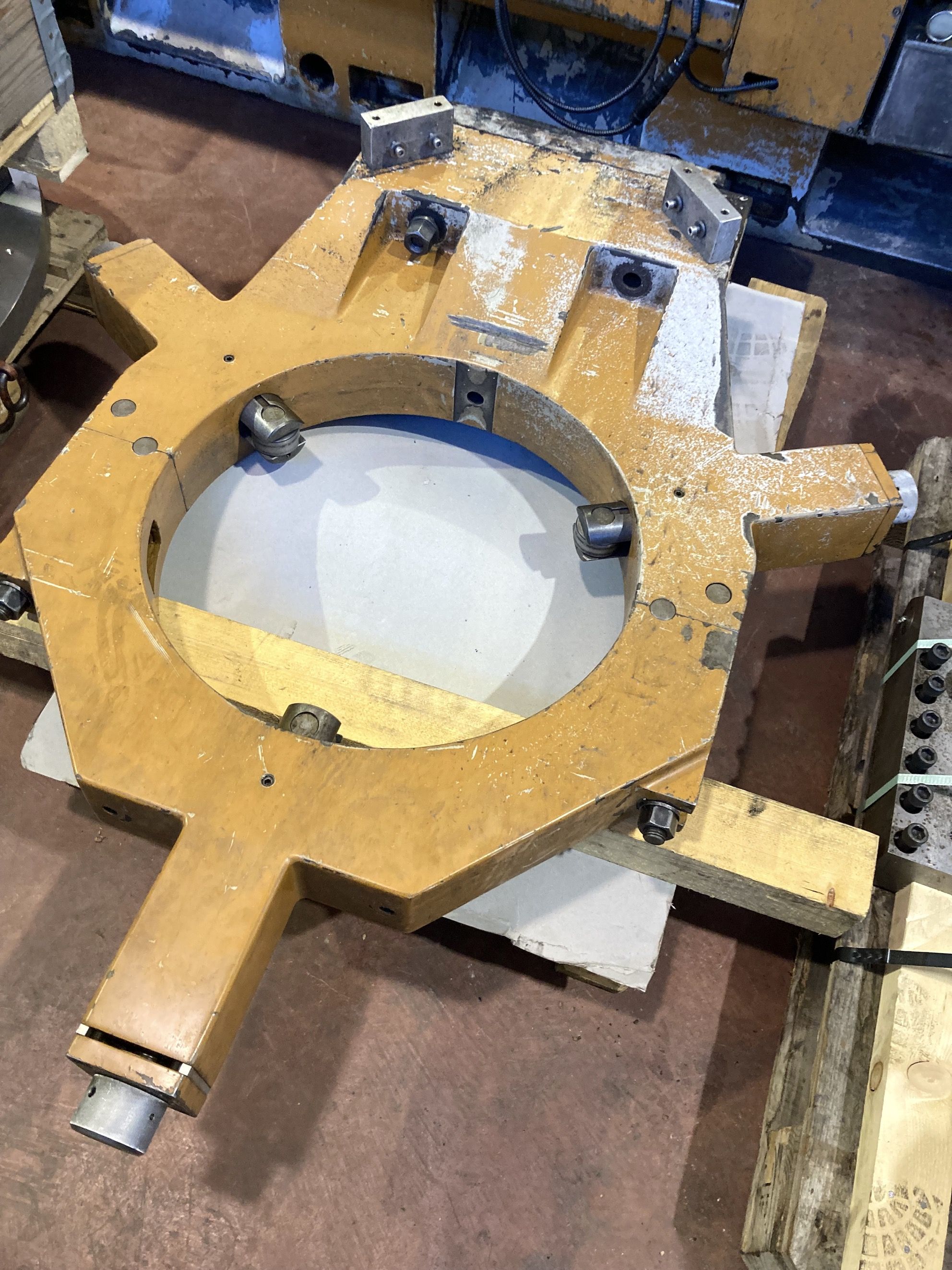

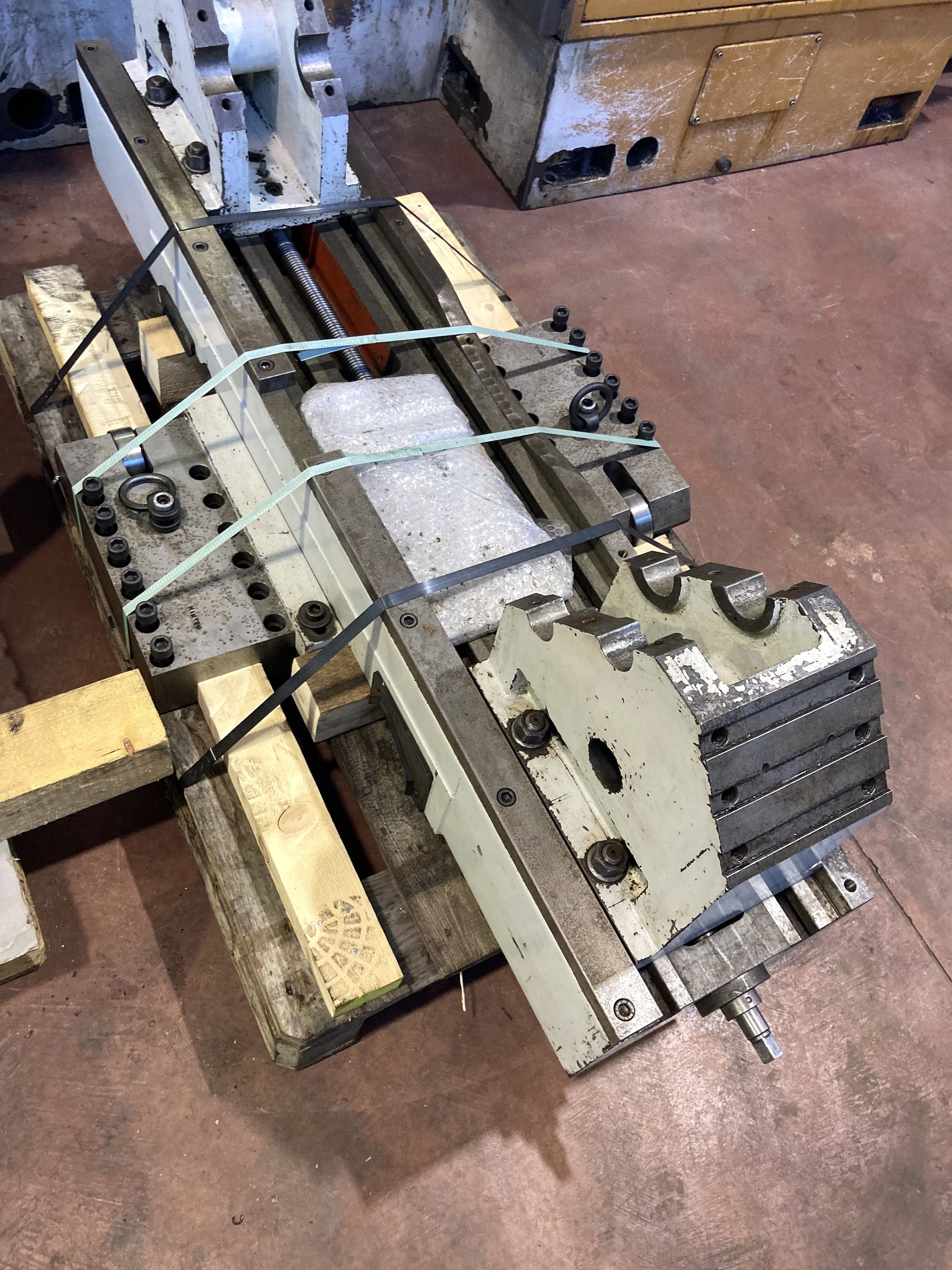

Max weight on steadies
10000 Kg
SADDLE
Saddle Width
1100 mm43,31 in
X stroke
760 mm29,92 in
Max swing diam on saddle
1040 mm40,94 in
Z feeds
2500 mm/min98,4250 ipm
X feeds
2500 mm/min98,4250 ipm
Z rapid feed
5000 mm/min196,8500 ipm
X rapid feed
2500 mm/min98,4250 ipm

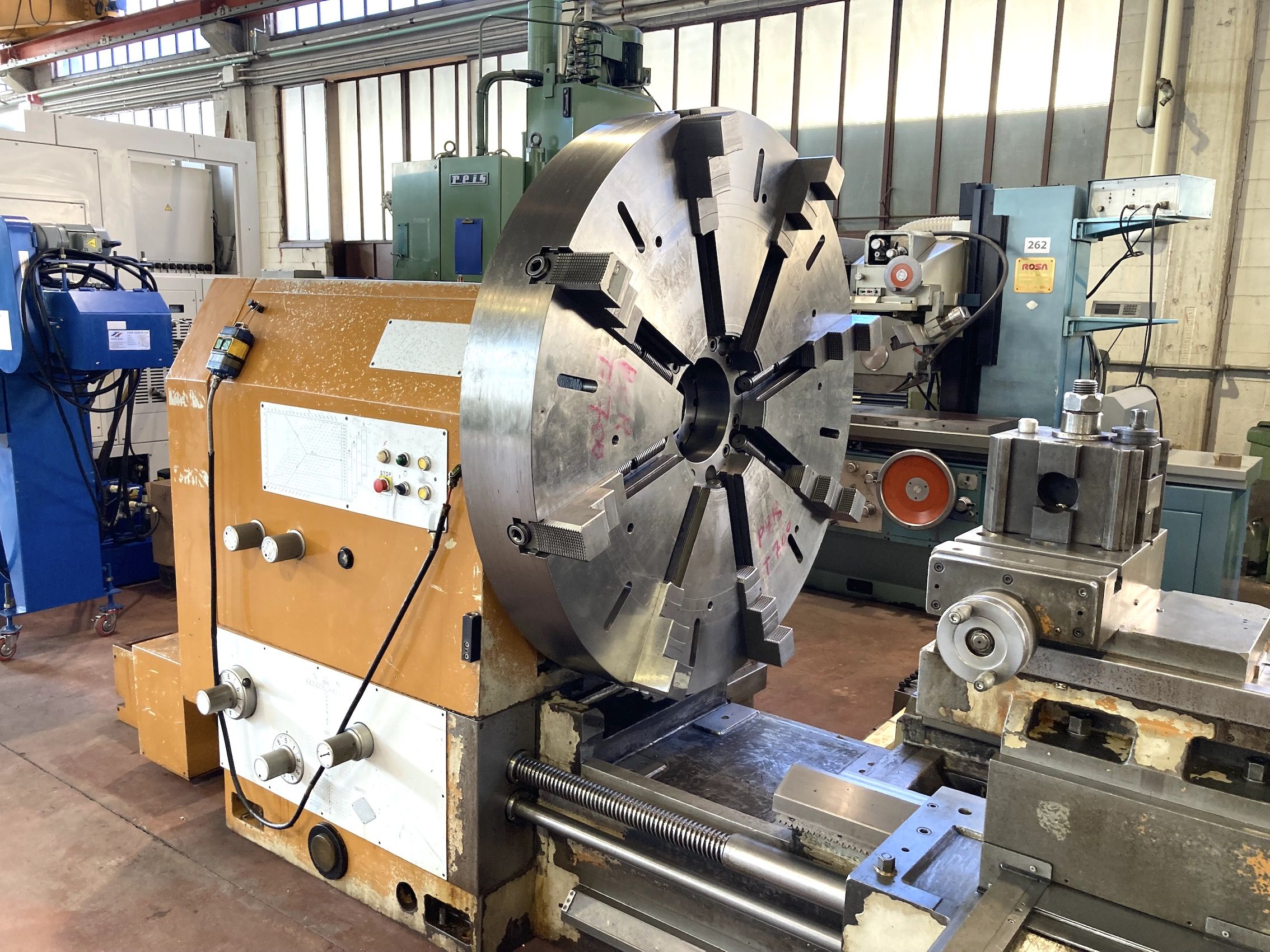

HEAD

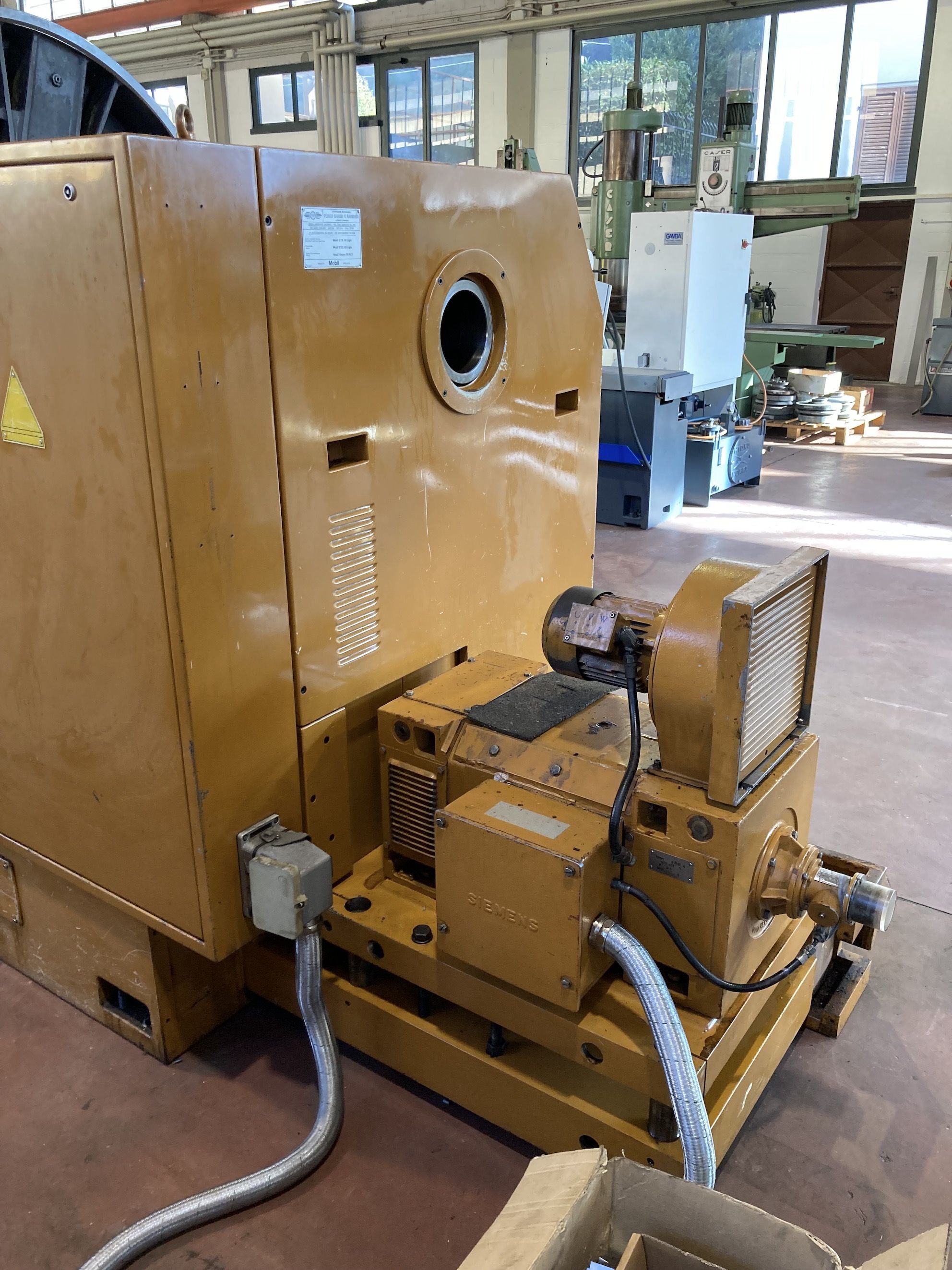

Spindle power
40 Kw
Spindle speed
3-360 Rpm
Spindle taper
ASA16”
Spindle torque
11000 Nm

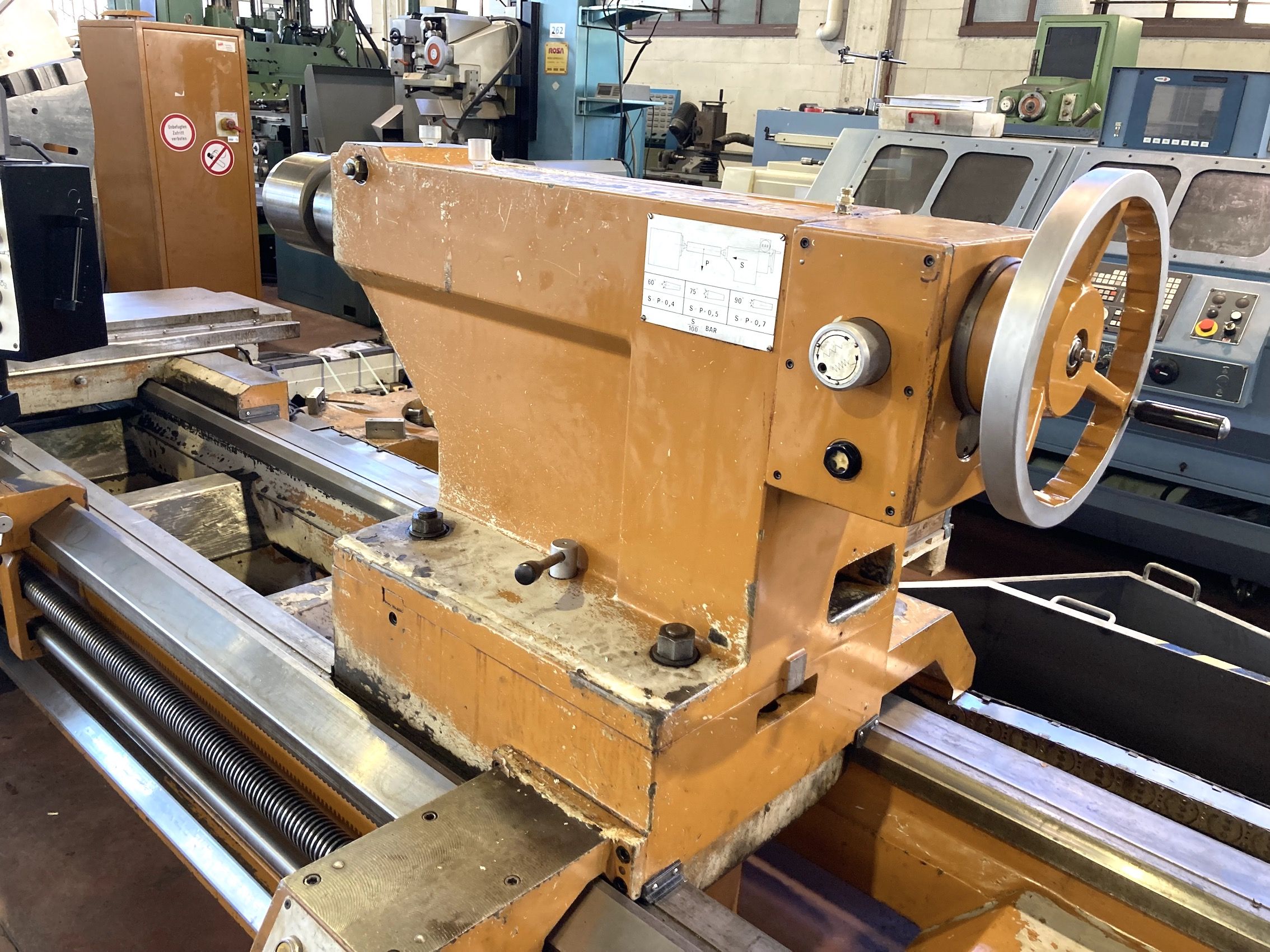

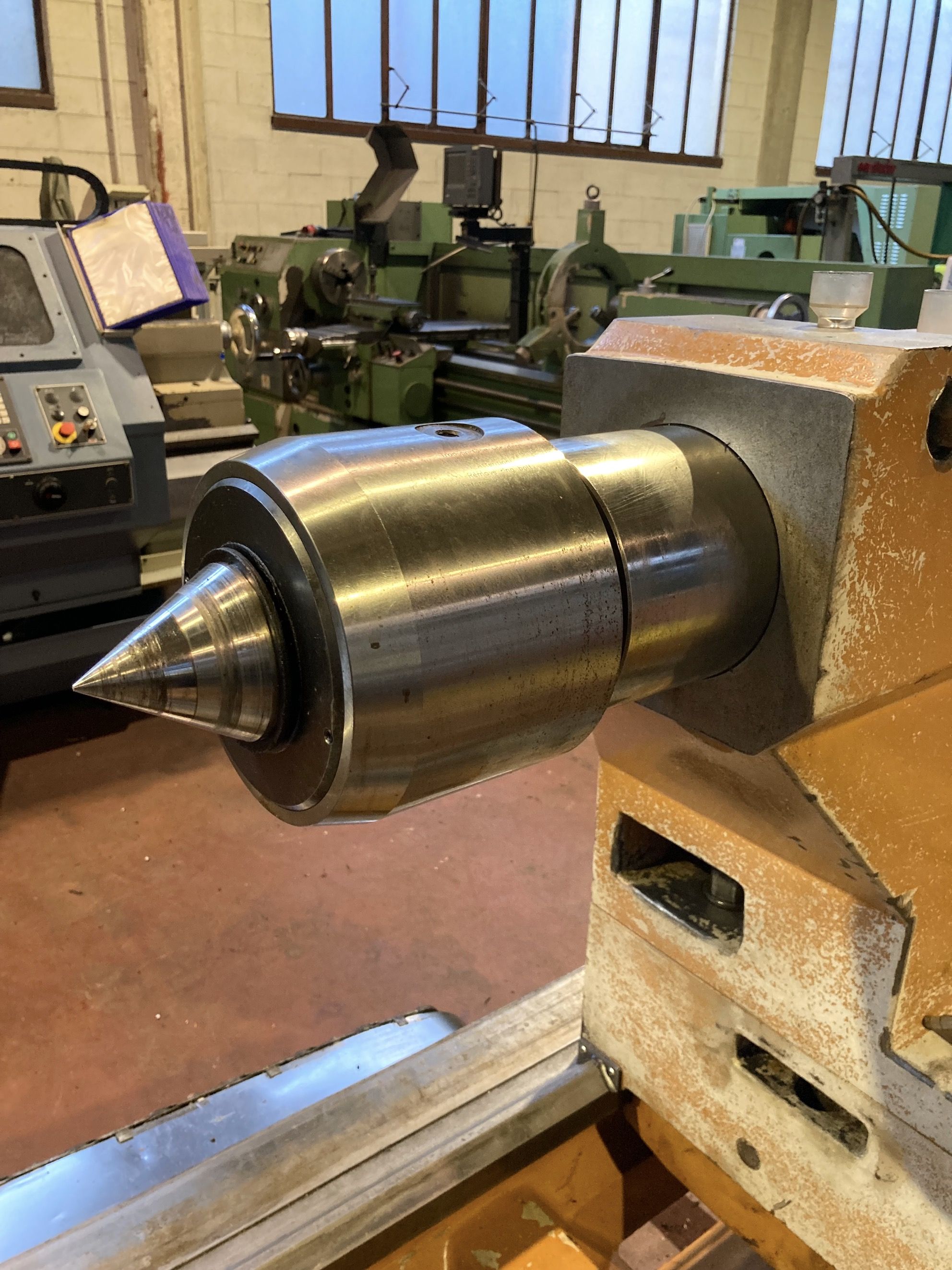

TAILSTOCK
Quill diameter
150 mm5,91 in
Quill stroke
400 mm15,75 in
EXTRA
Machine total weight
13600 Kg
Digital read out (DRO)
3 ASSI
Platform
SI
Protections
SI
Availability
PRONTA
Available in stock
SI
Available under power
SI
