Category
Turning Machine
Type
Center
Made
Model

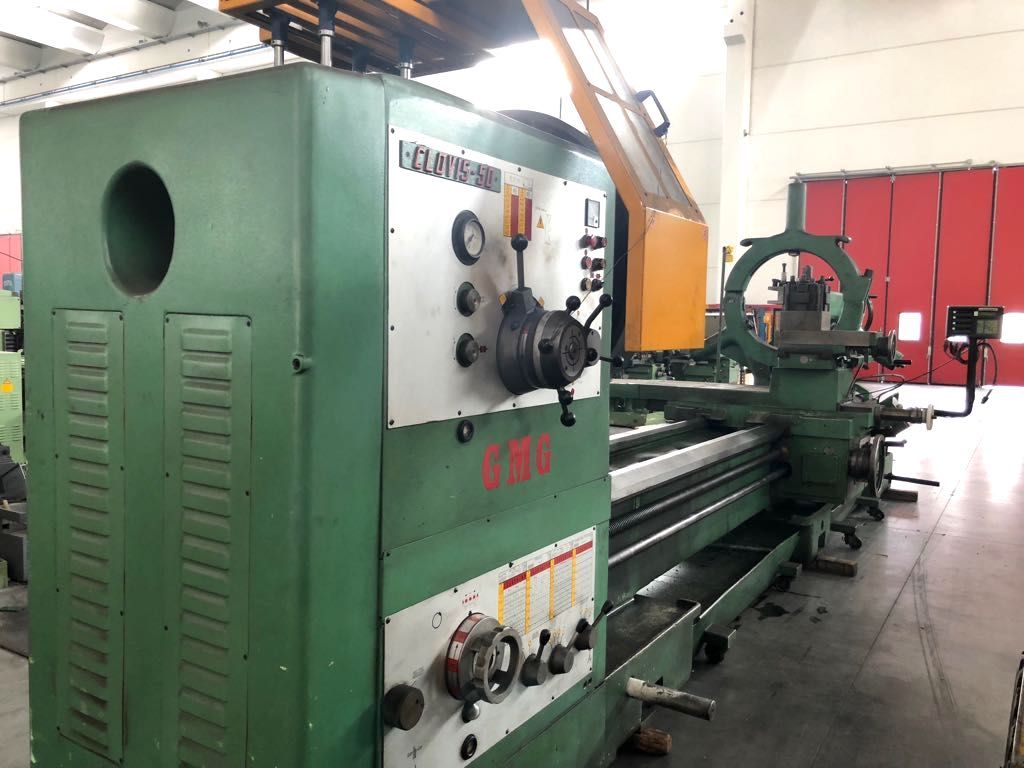

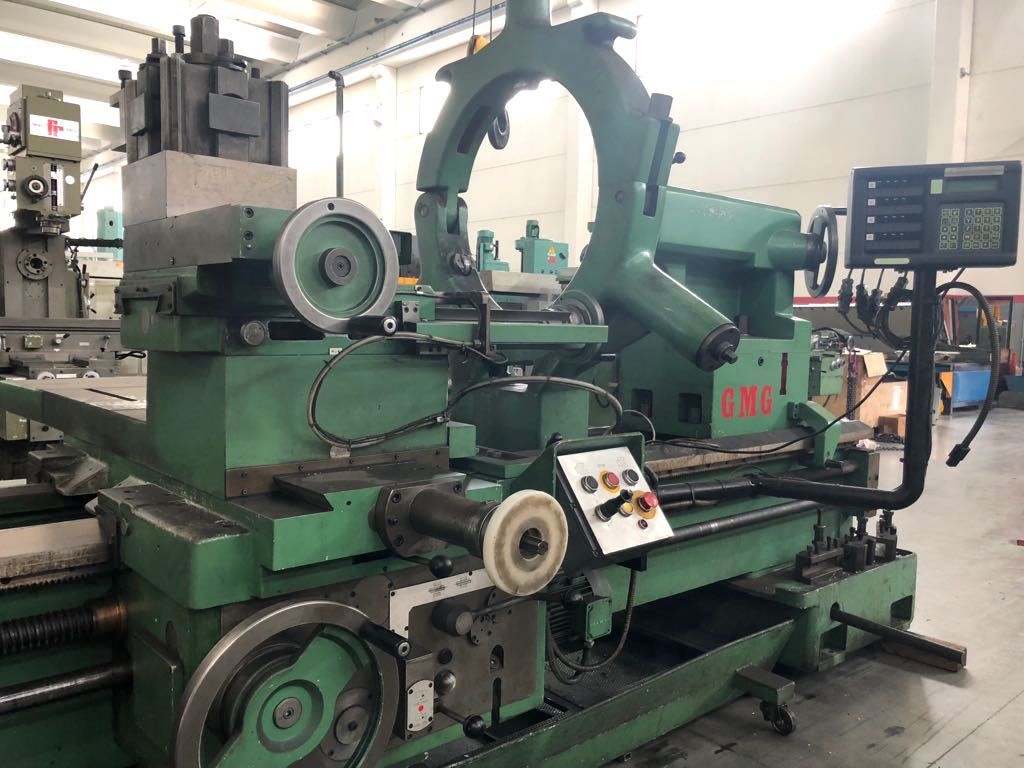

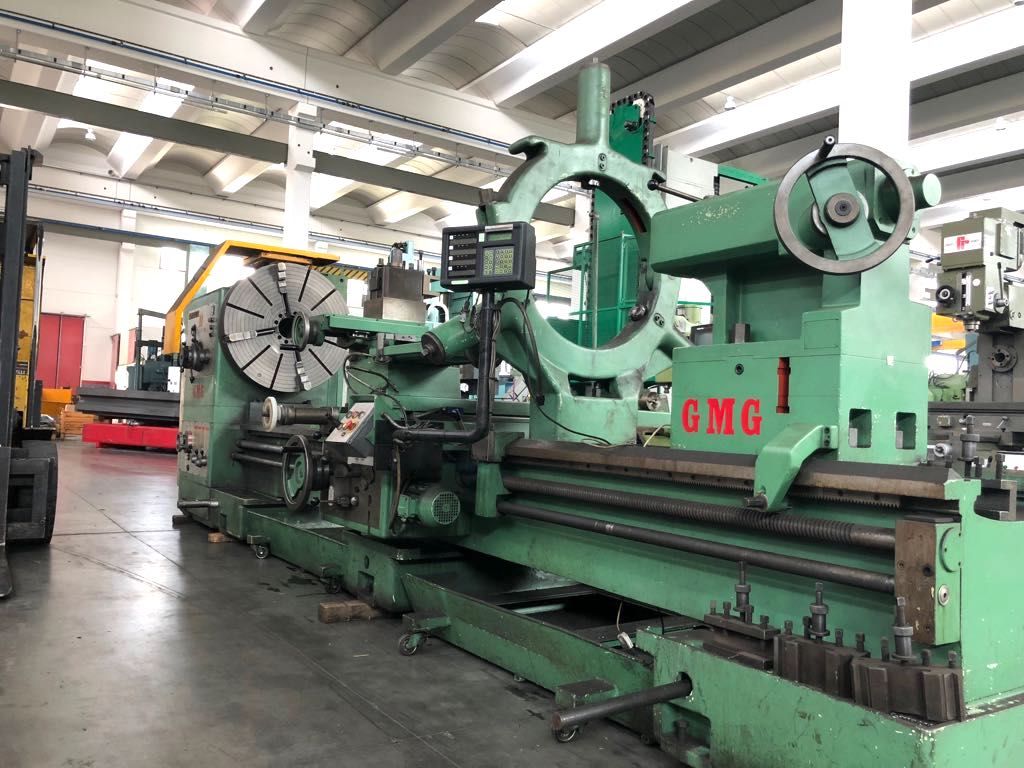

CLOVIS 50
Capacity
ø1080/1500x4500 mmø42,52/59,06x177,17 in

Technical specifications

Metric Imperial
WORKING CAPACITY
Centres distance
4500 mm177,17 in
Centres height
750 mm29,53 in
Axes movement
rapidi
Max turning lenght
4500 mm177,17 in
Max swing in the gap
1700 mm66,93 in
Max swing on saddle
1080 mm42,52 in

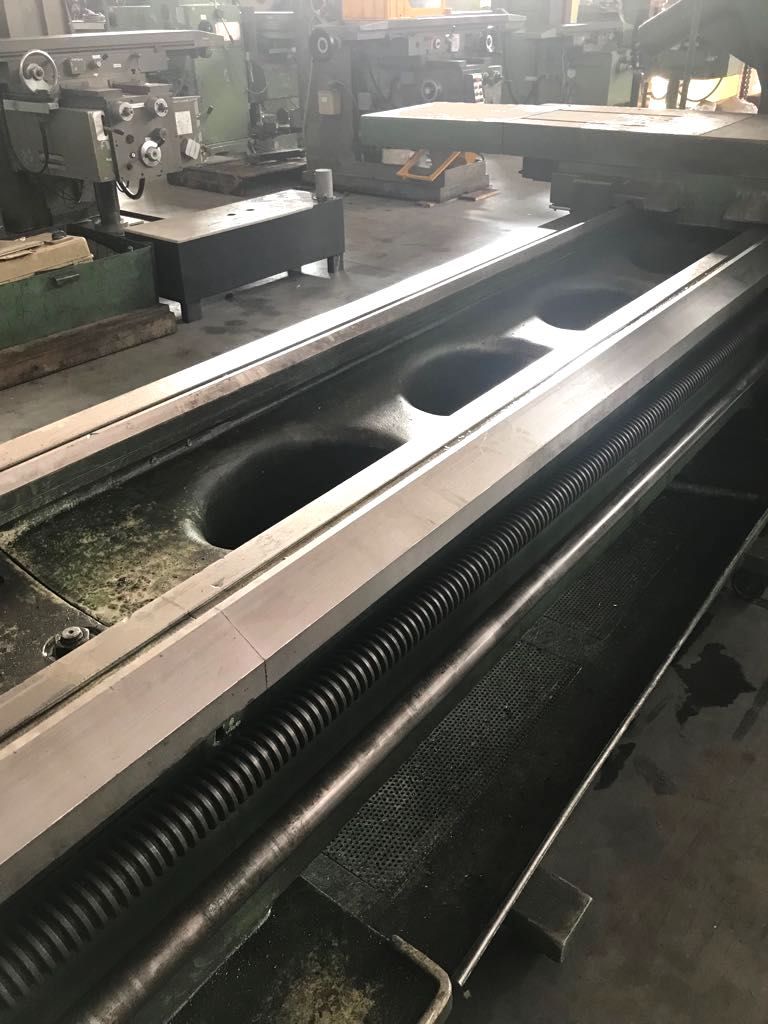

Max diameter on the bed
1500 mm59,06 in
Bar passage
155 mm6,10 in

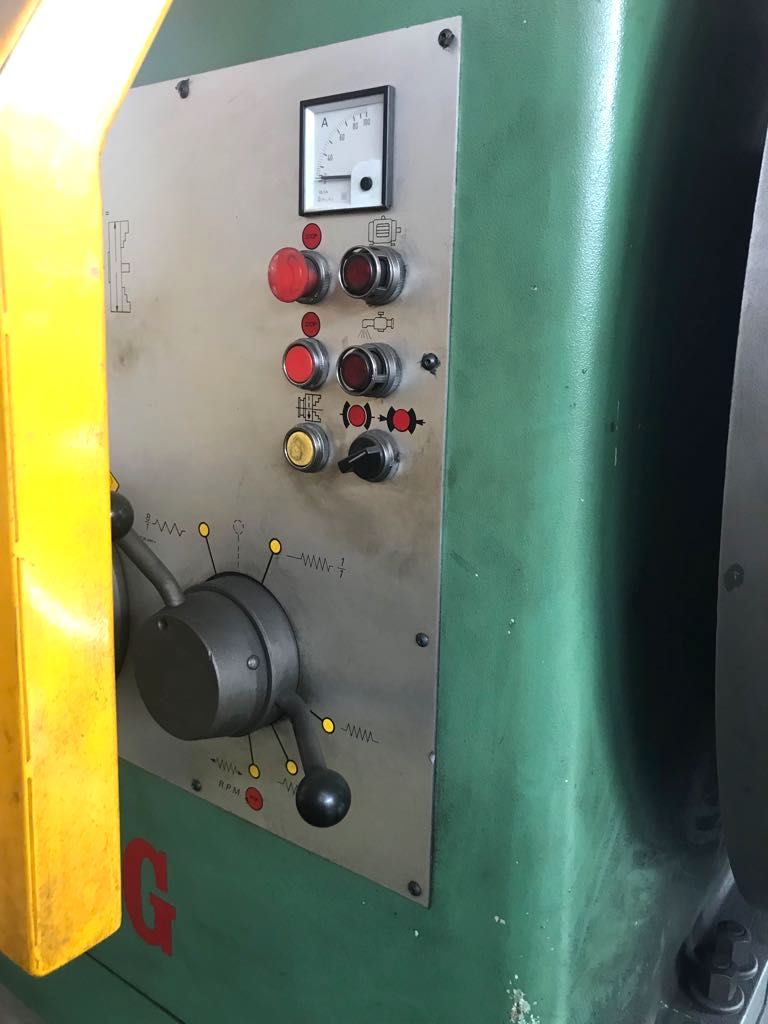

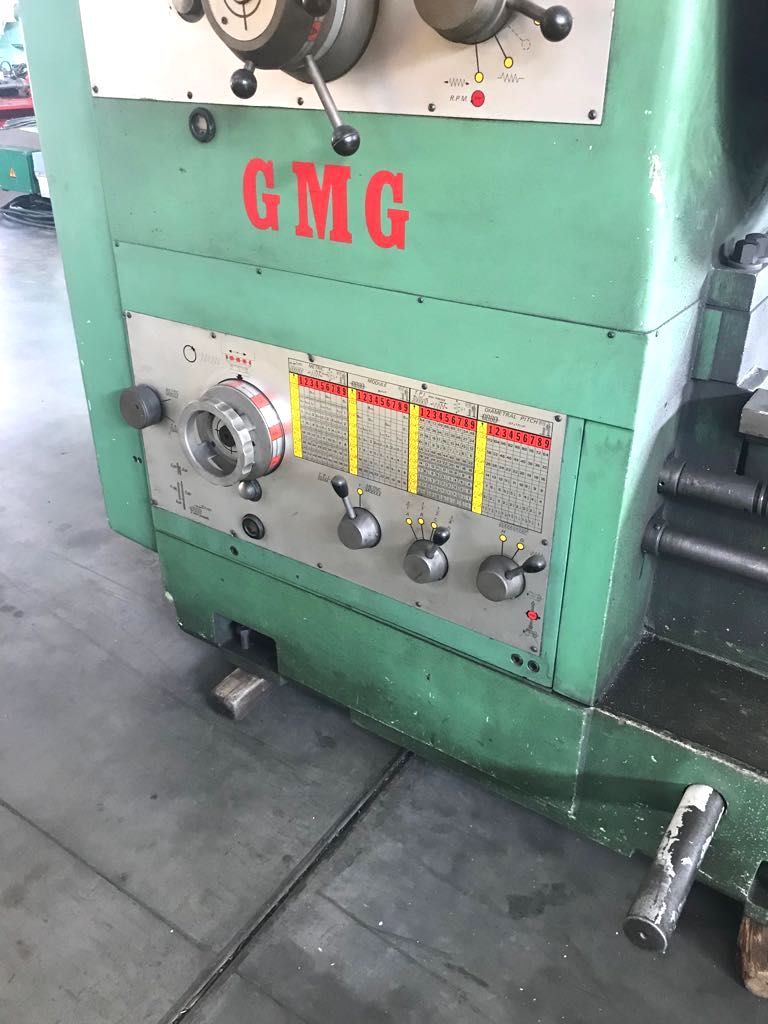

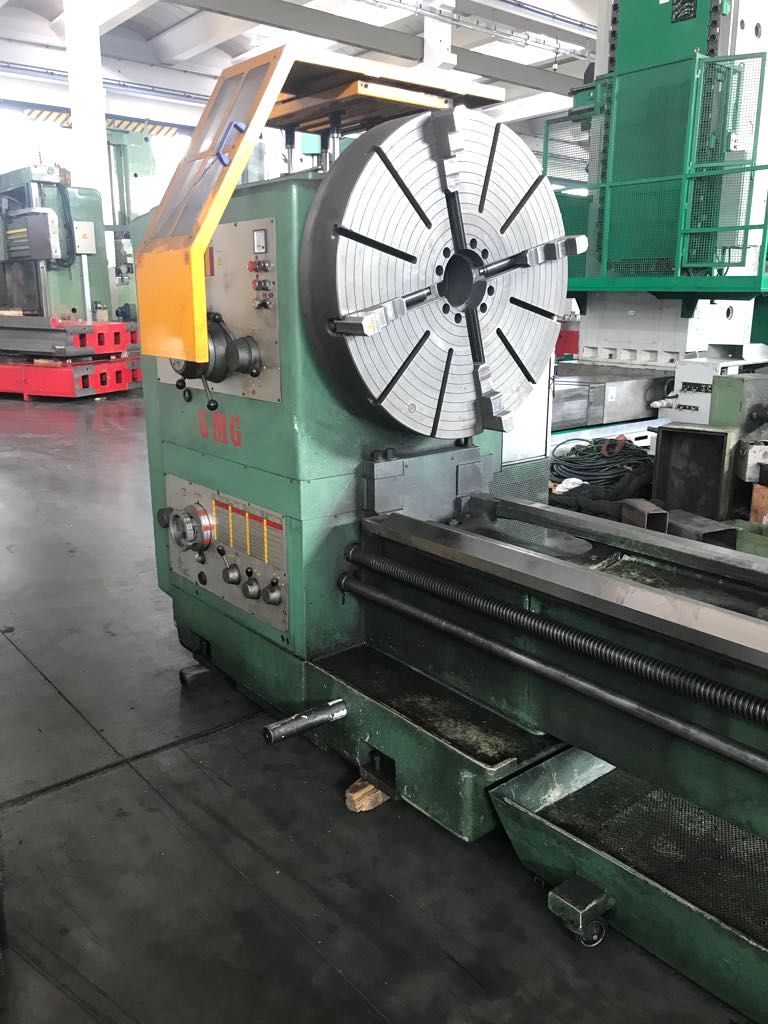

HEAD
Spindle speed
6-500 Rpm
Spindle taper
CL 11

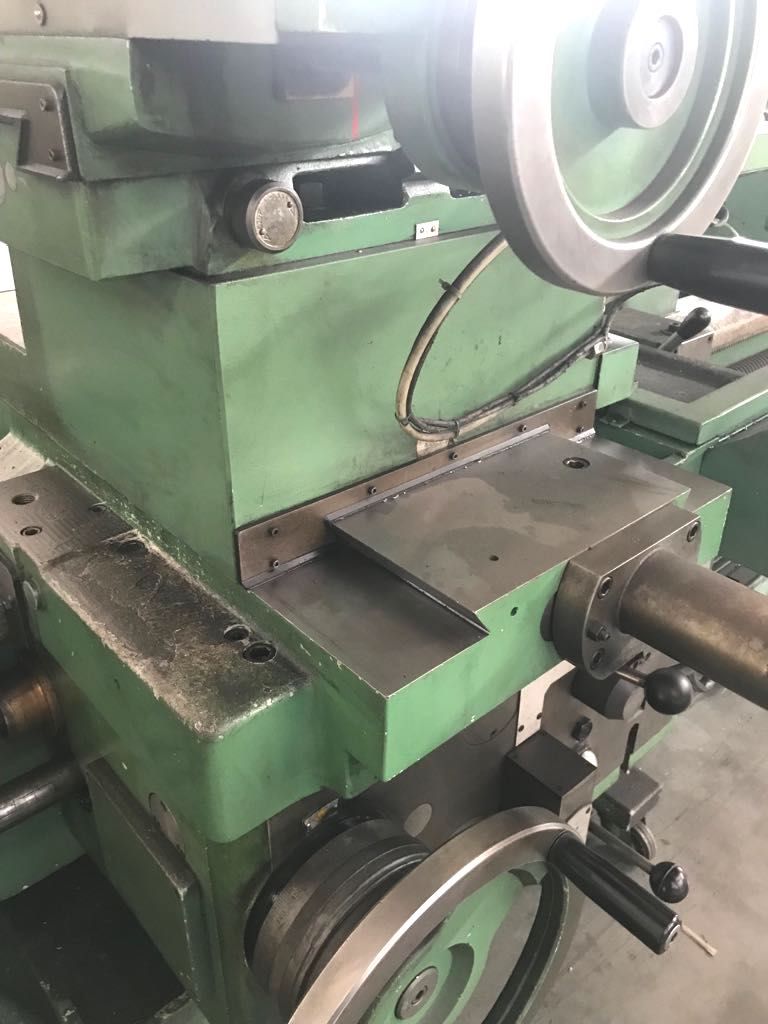

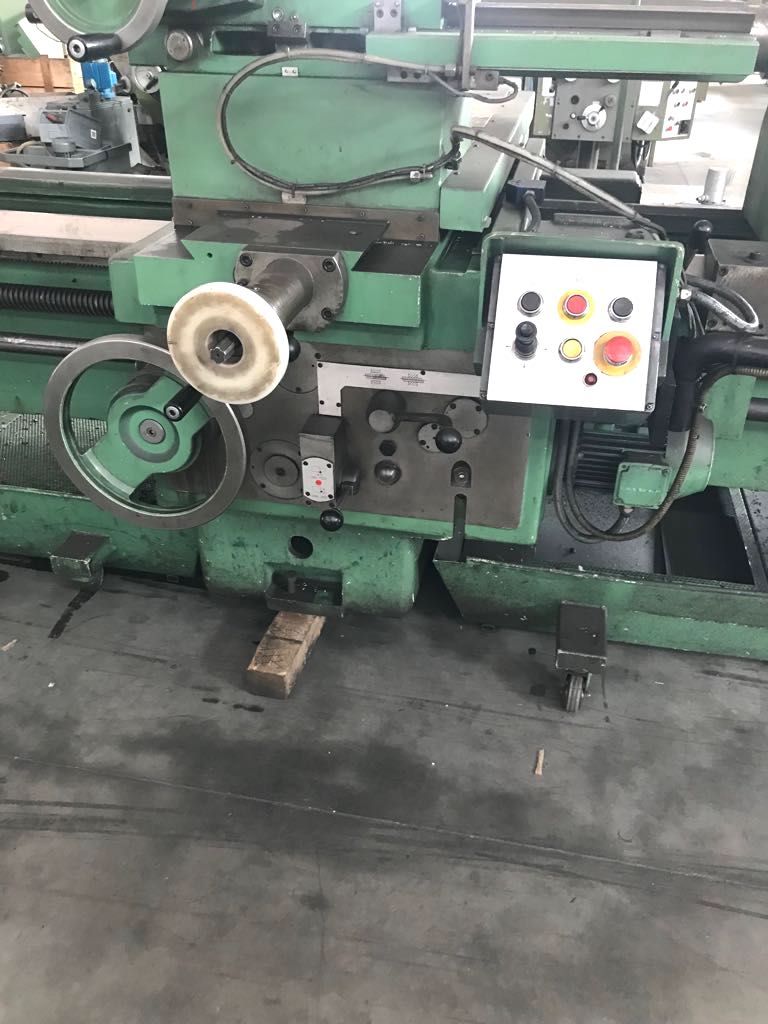

SADDLE
Notes
AVANZAMENTI AUTOMATICI SU CARRINO
Z rapid feed
SI mm/minSI ipm
X rapid feed
SI mm/minSI ipm
TURRET
Notes
TIPO E
EXTRA

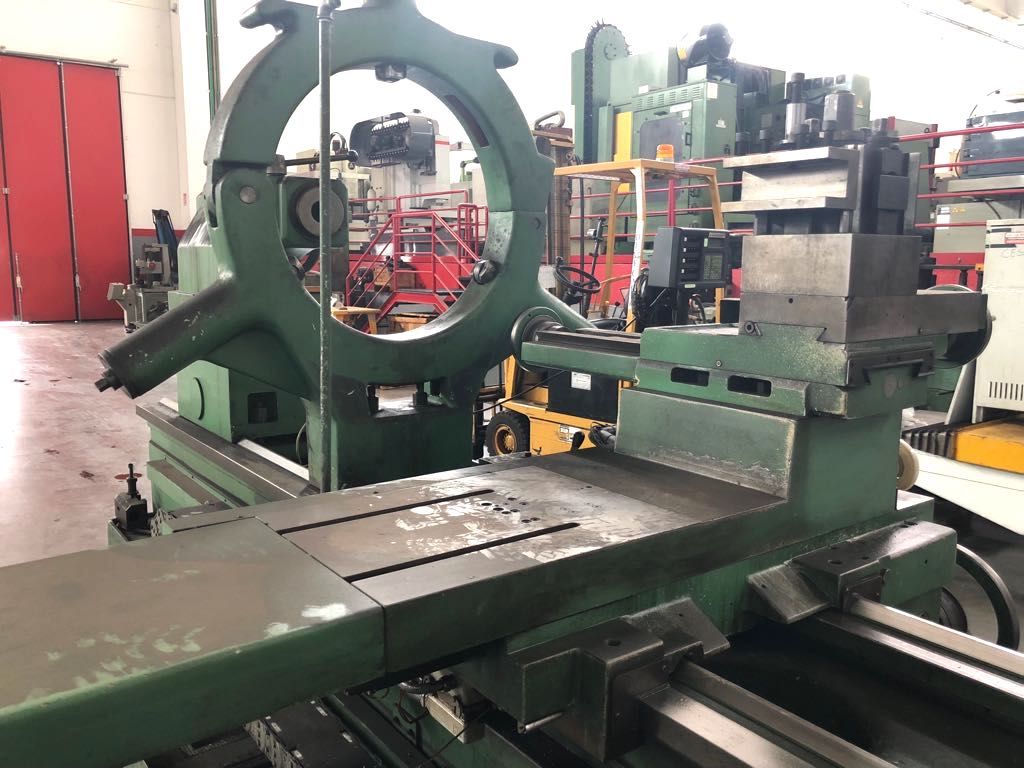

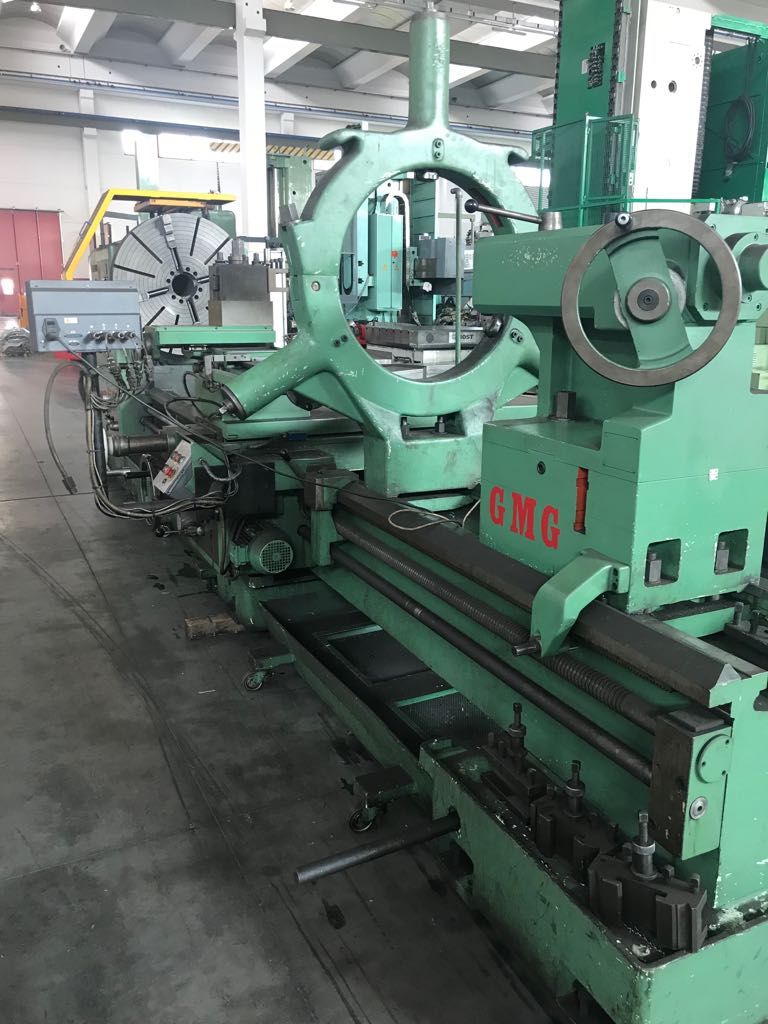

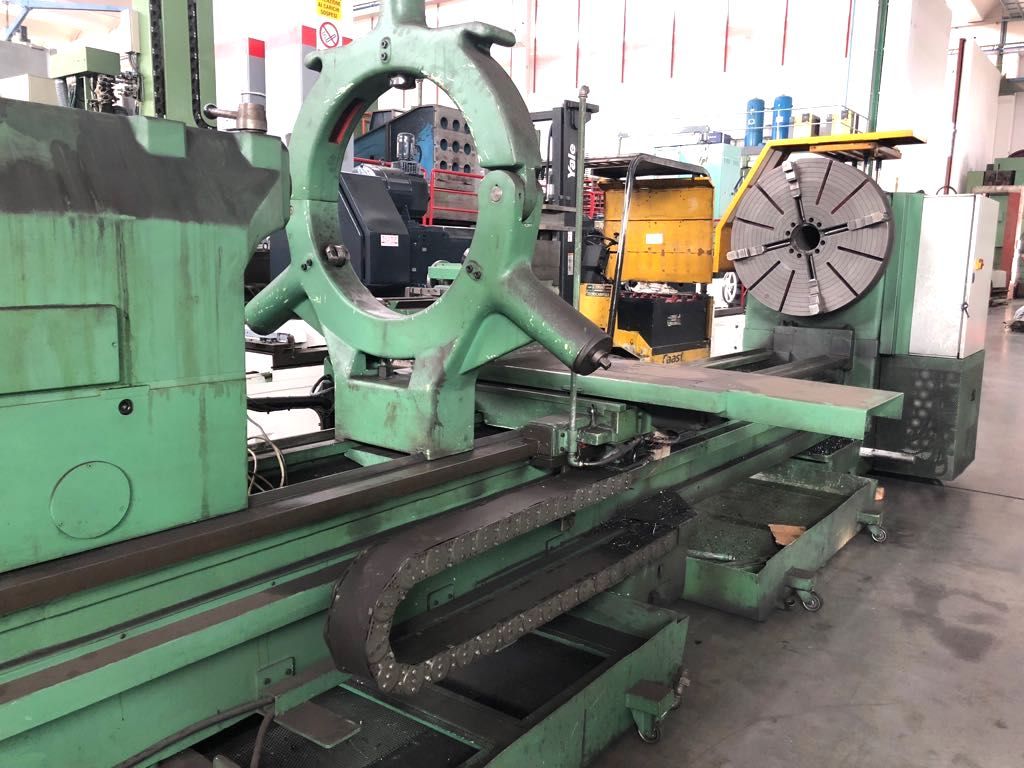

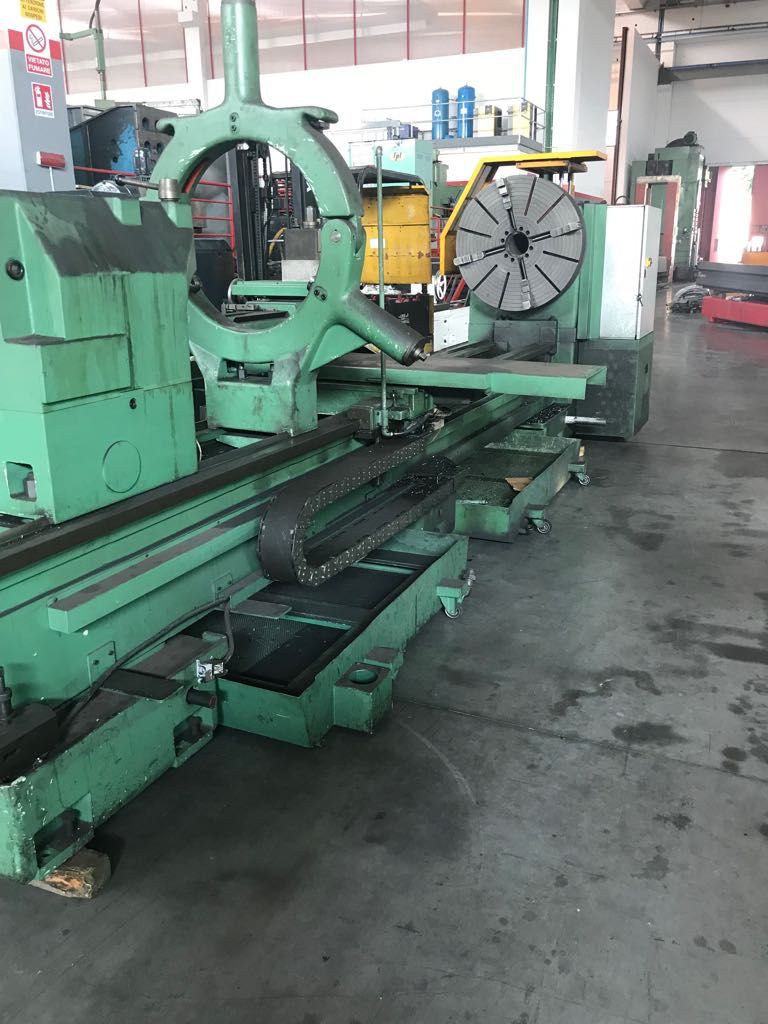

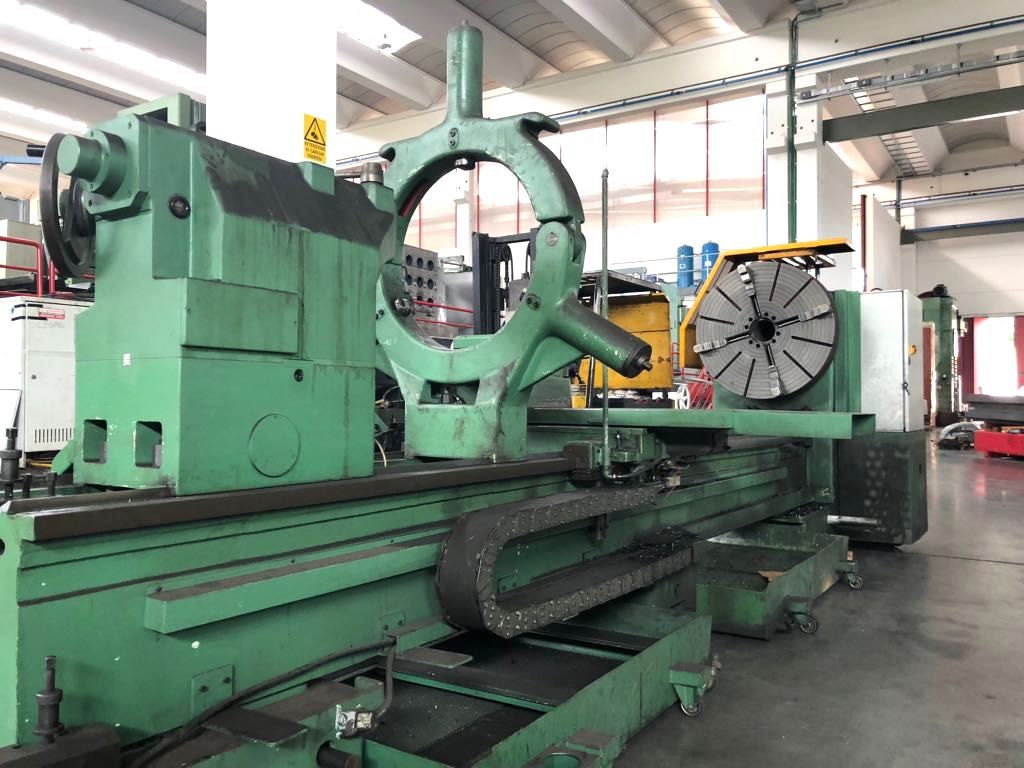

Closed steadies
DIAM. 700
Maintenance & Use books
Yes
Available in stock
SI
Platform
DIAM. 1000

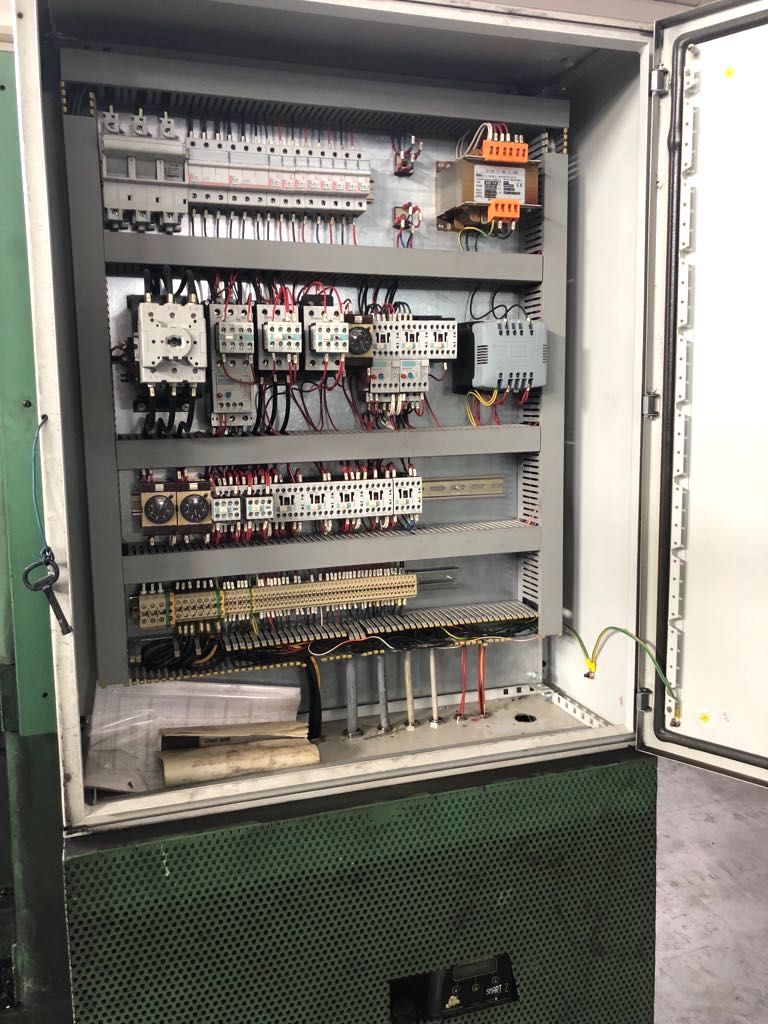

Electrical drawings
Yes
Protections
SI
Relevant updates made on the machine
RECENTISSIMA REVISIONE TOTALE DEL COSTRUTTORE

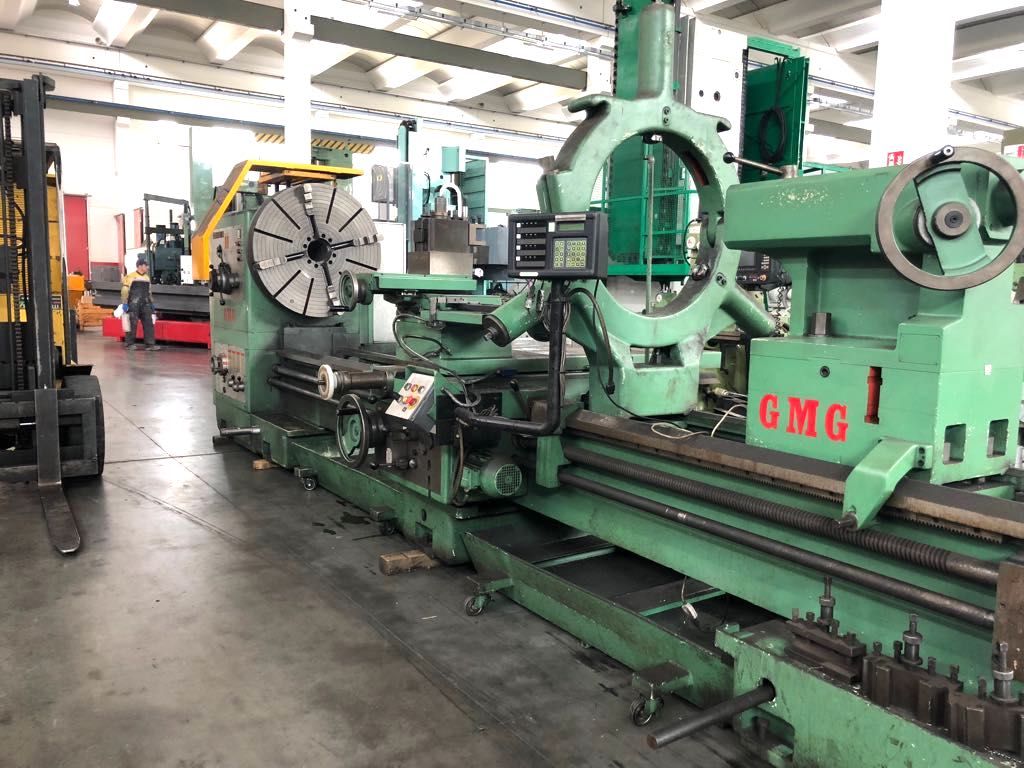

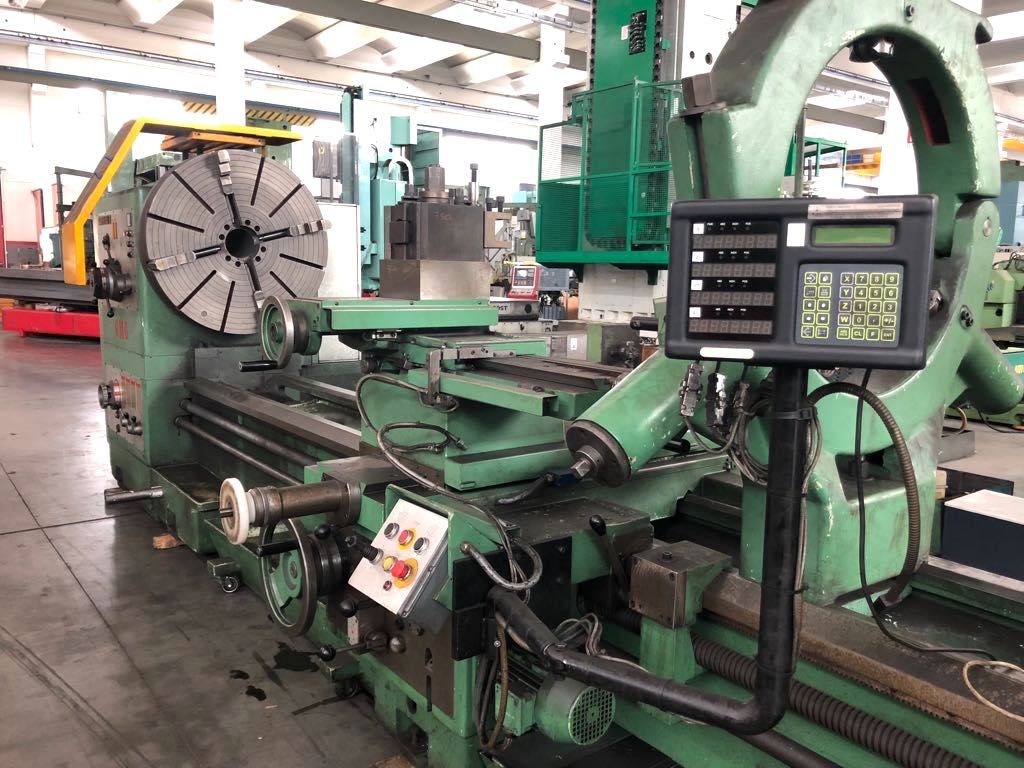

Digital read out (DRO)
4 ASSI
