Category

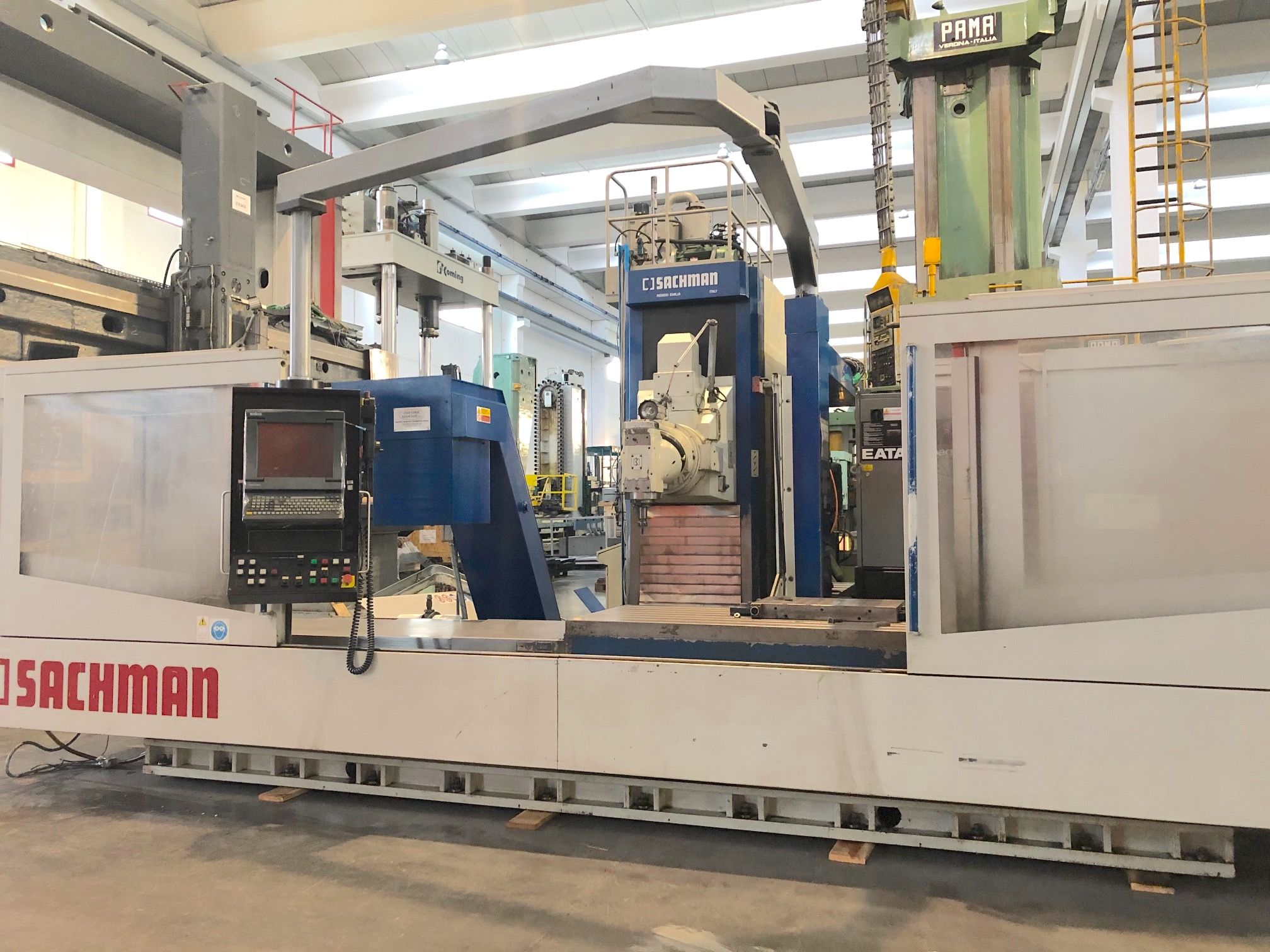

Milling machine
Type
T type
Made
Model
TS10
Capacity
2500x1210x1000 mm98,43x47,64x39,37 in

Technical specifications

Metric Imperial
WORKING CAPACITY
Longitudinal (X)
2500 mm98,43 in
Vertical (Y)
1000 mm39,37 in
Cross column (Z)
1210 mm47,64 in

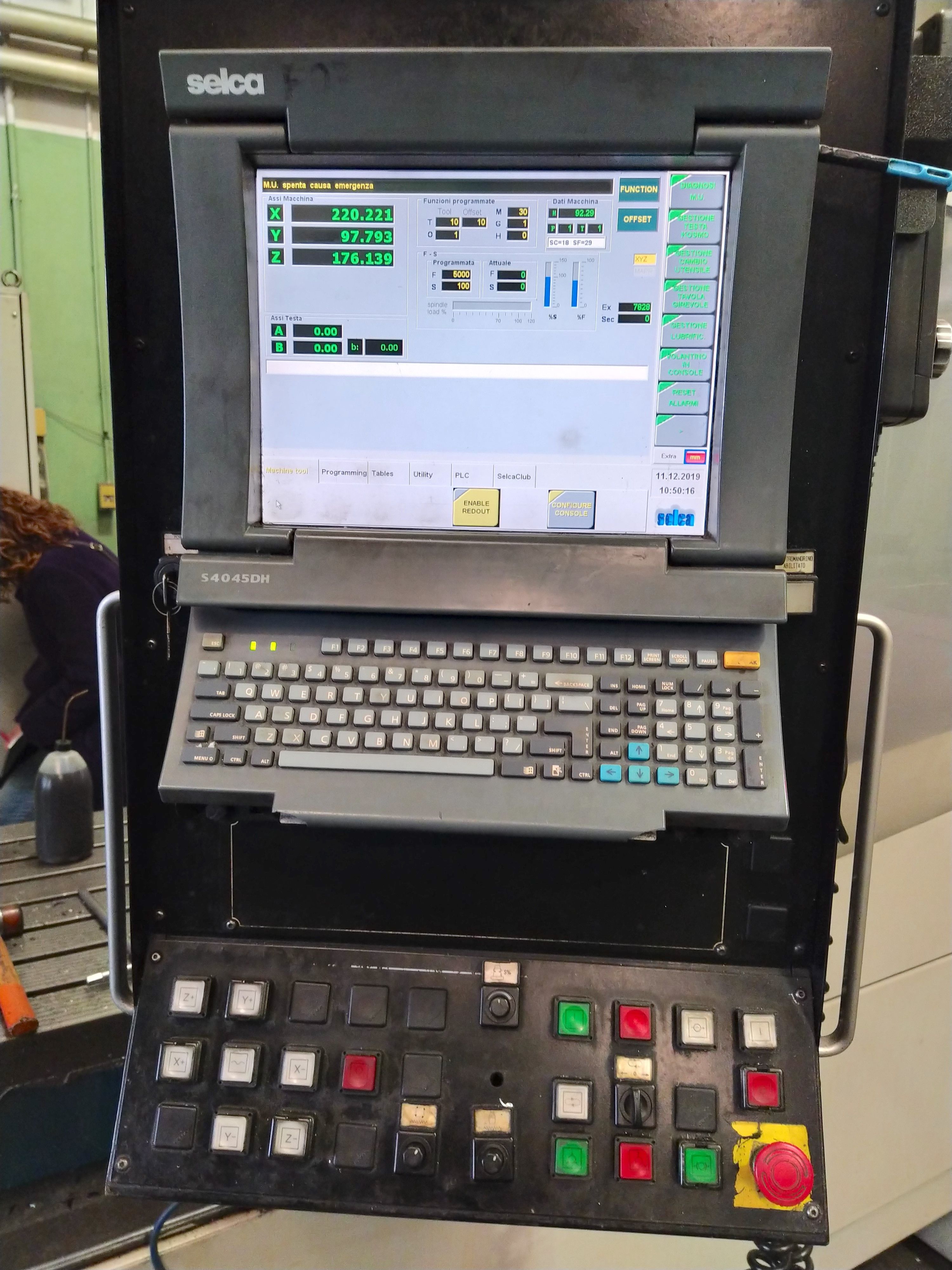

CNC
CNC
SELCA 4045PD
SPINDLE
Rotating speed
5000 Rpm
Taper
ISO50
Spindle power
20,5 Kw
FEEDS
Rapid X
25 m/min984,25 ipm
Rapid Y
25 m/min984,25 ipm
Rapid Z
25 m/min984,25 ipm

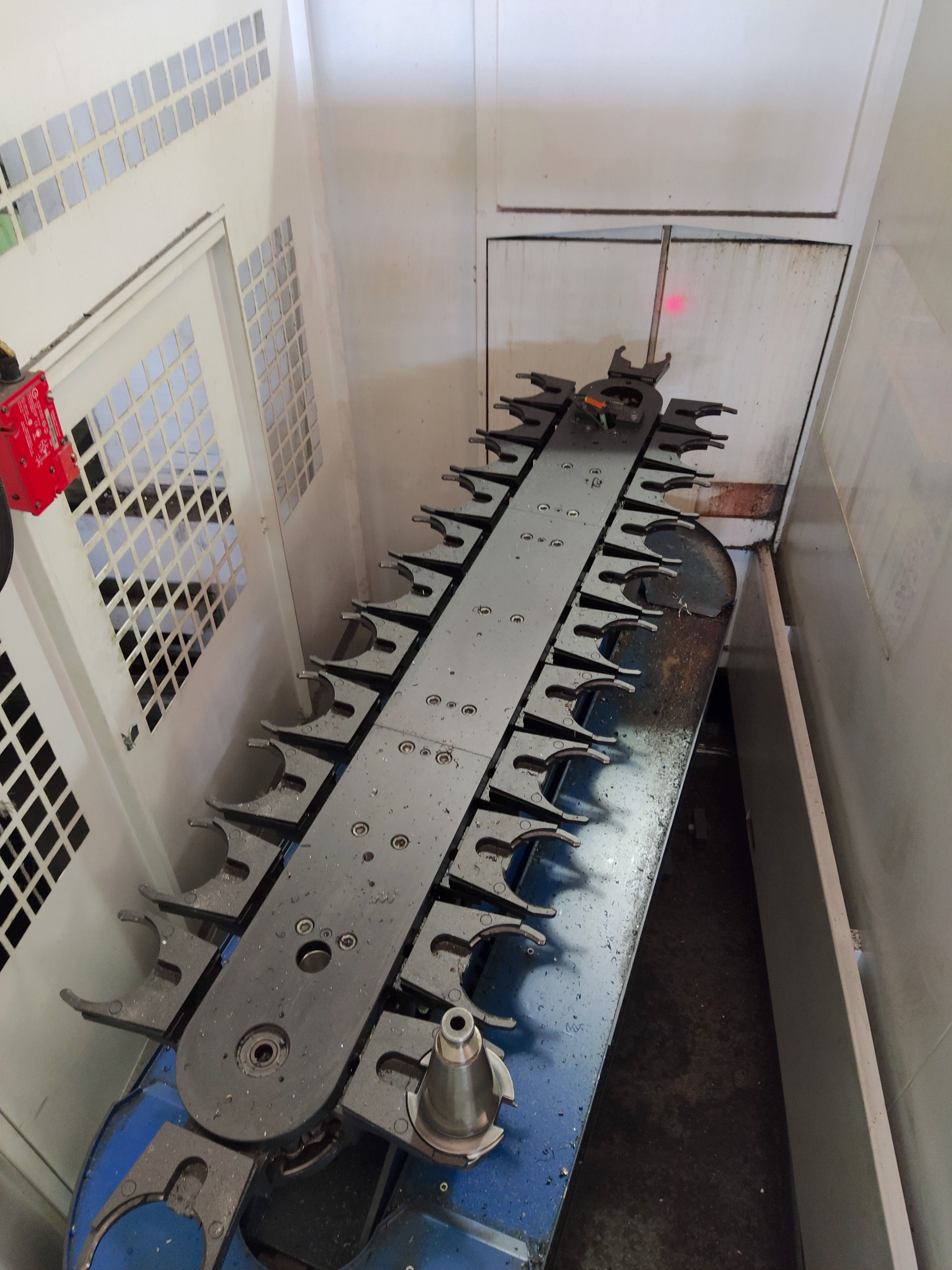

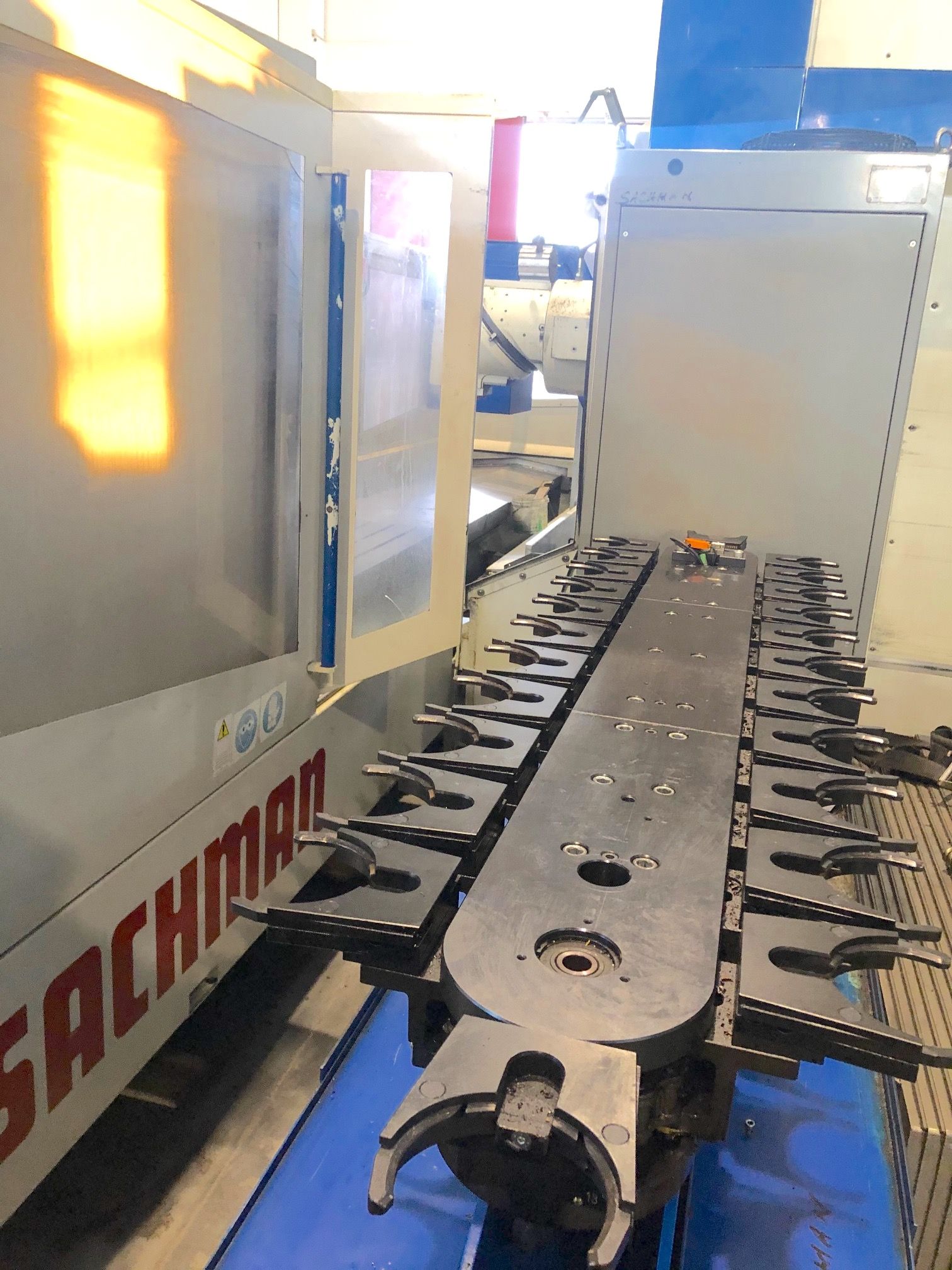

ATC
Positions
24
Tool taper
ISO50

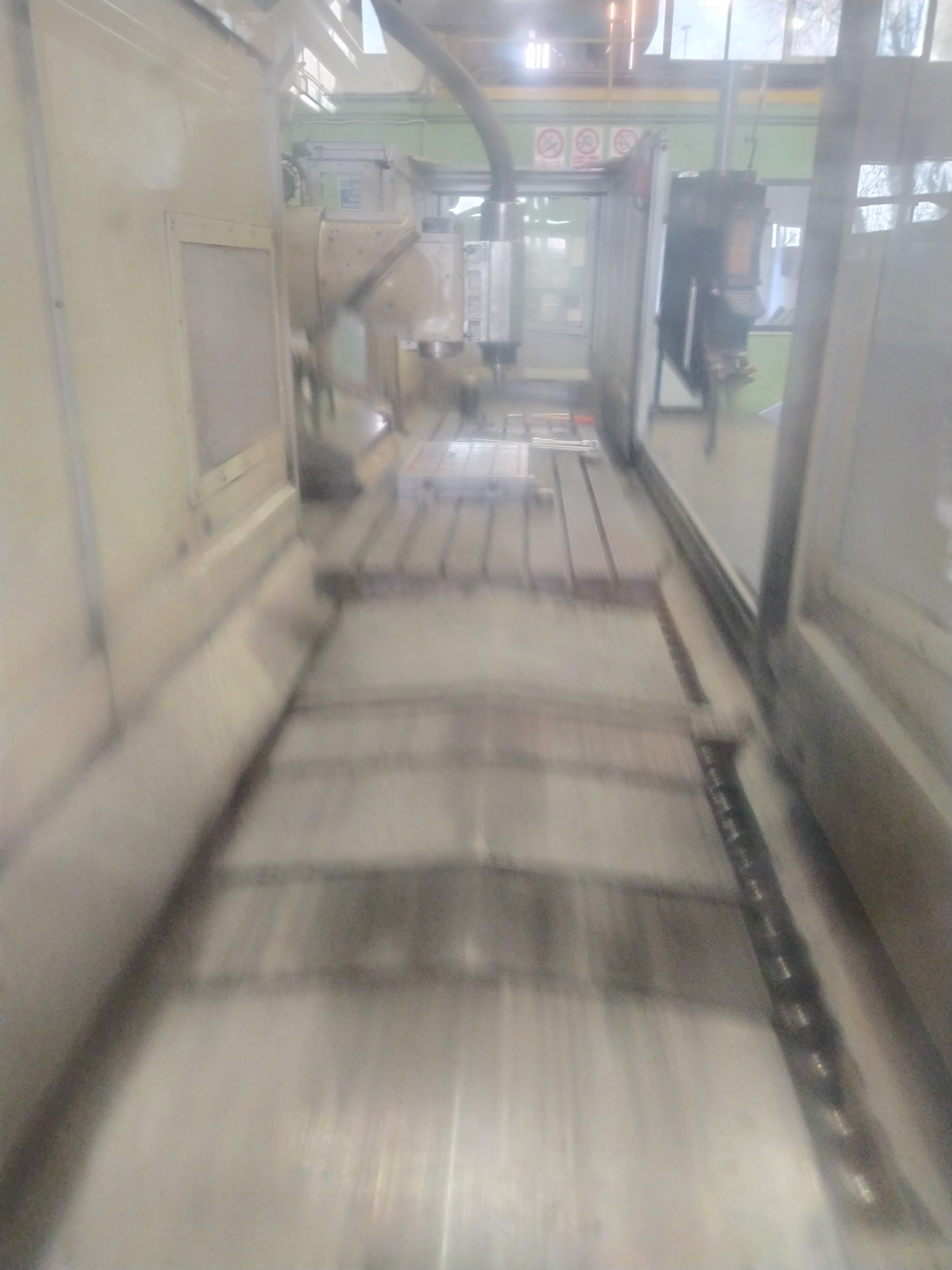

TABLE 1
Surface
2700x800 mm106,30x31,50 in
Capacity
3000 Kg
HEAD 1
Type
KOSMO5000
Spindle taper
ISO50
A axis
120x3 °
C axis
360x1 °
Max speed
5000 Rpm
Max power
20,5 Kw
EXTRA
Machine total weight
16700 Kg
Floor space
7200x4200x3000 mm283,46x165,35x118,11 in
Chip conveyor
Si

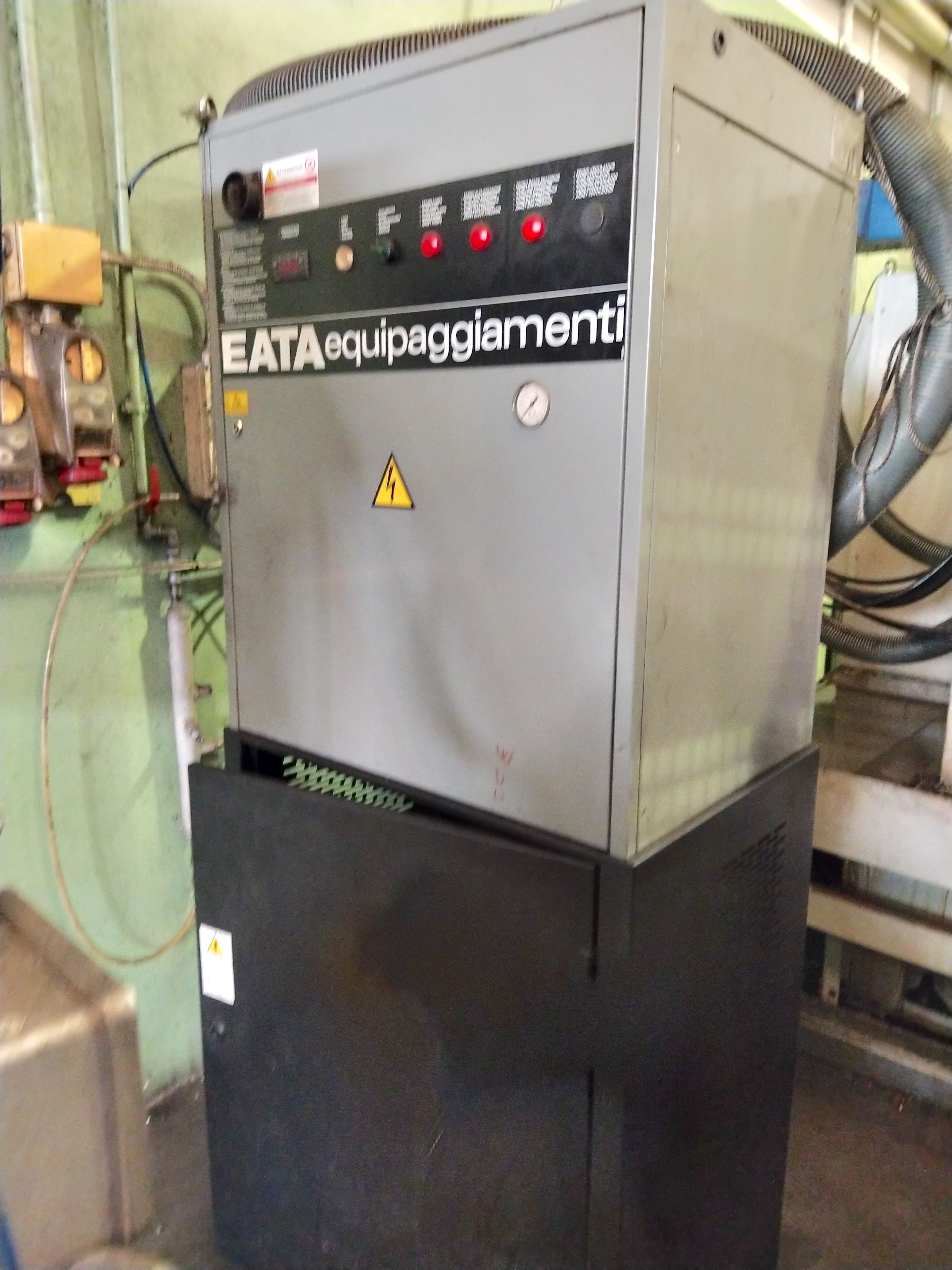

Chiller
Si
Housing
perimetrale
Availability
Pronta
Maintenance & Use books
Yes
Electrical drawings
Yes
CE Certification
Yes
