Category

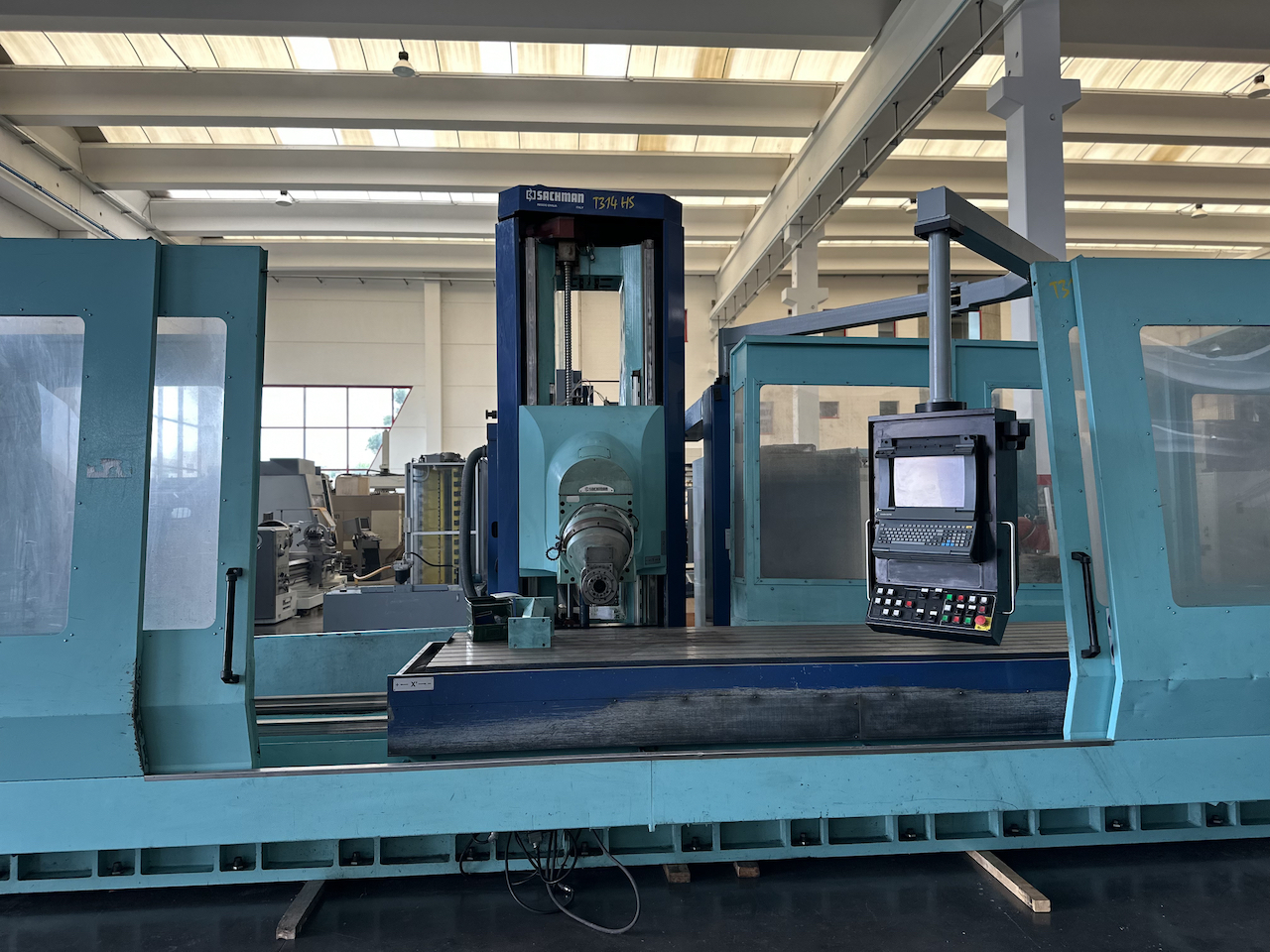

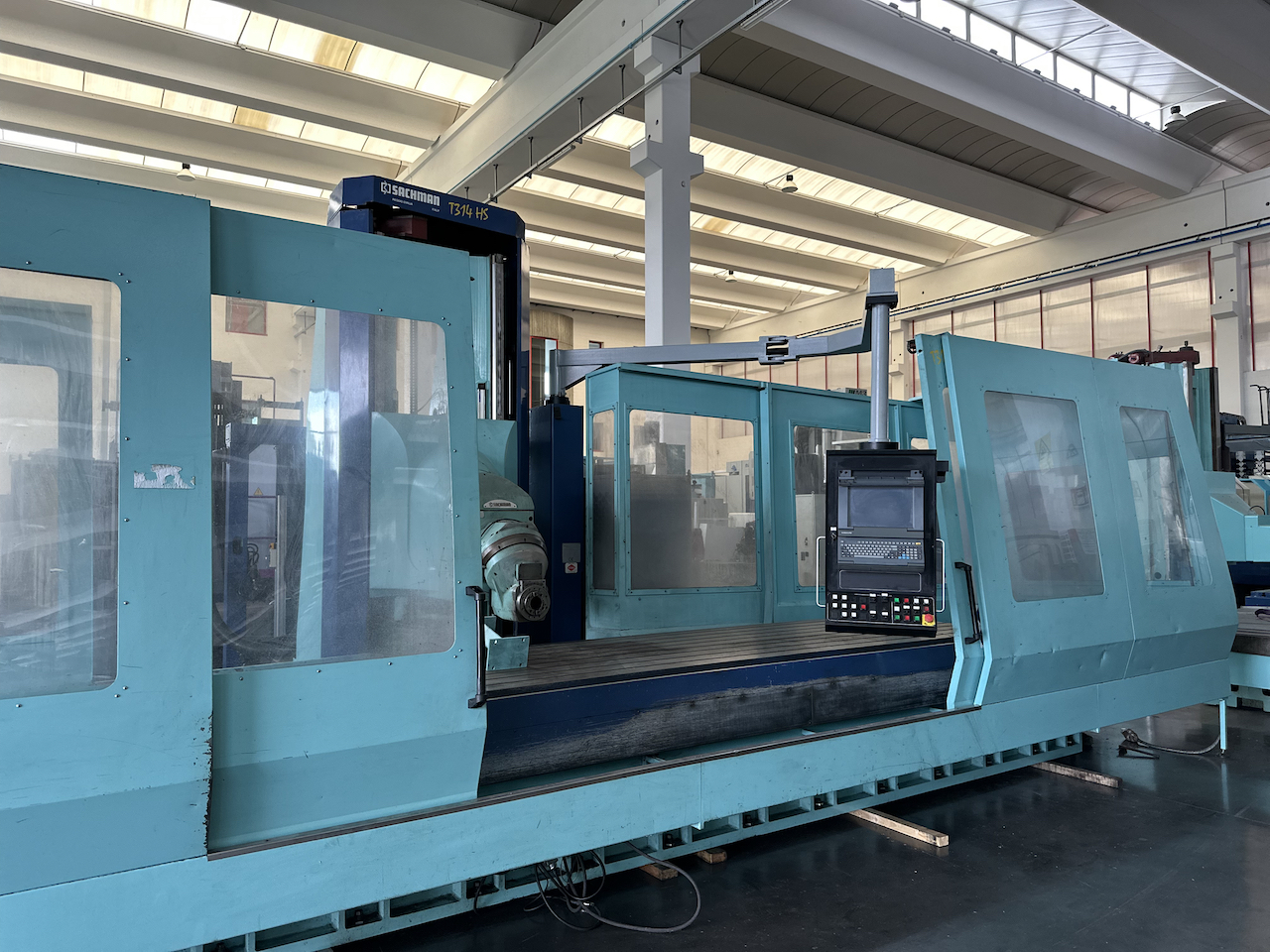

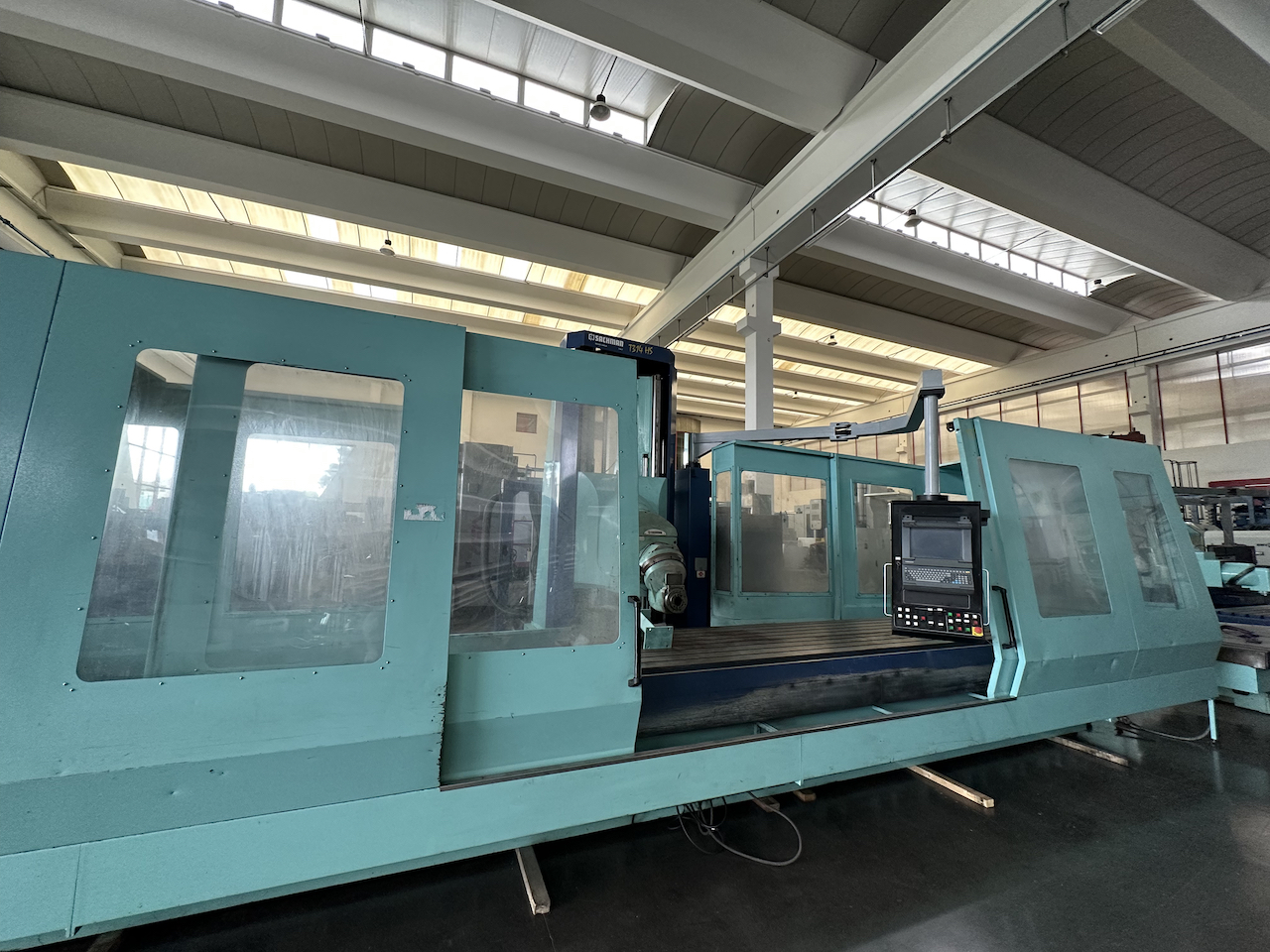

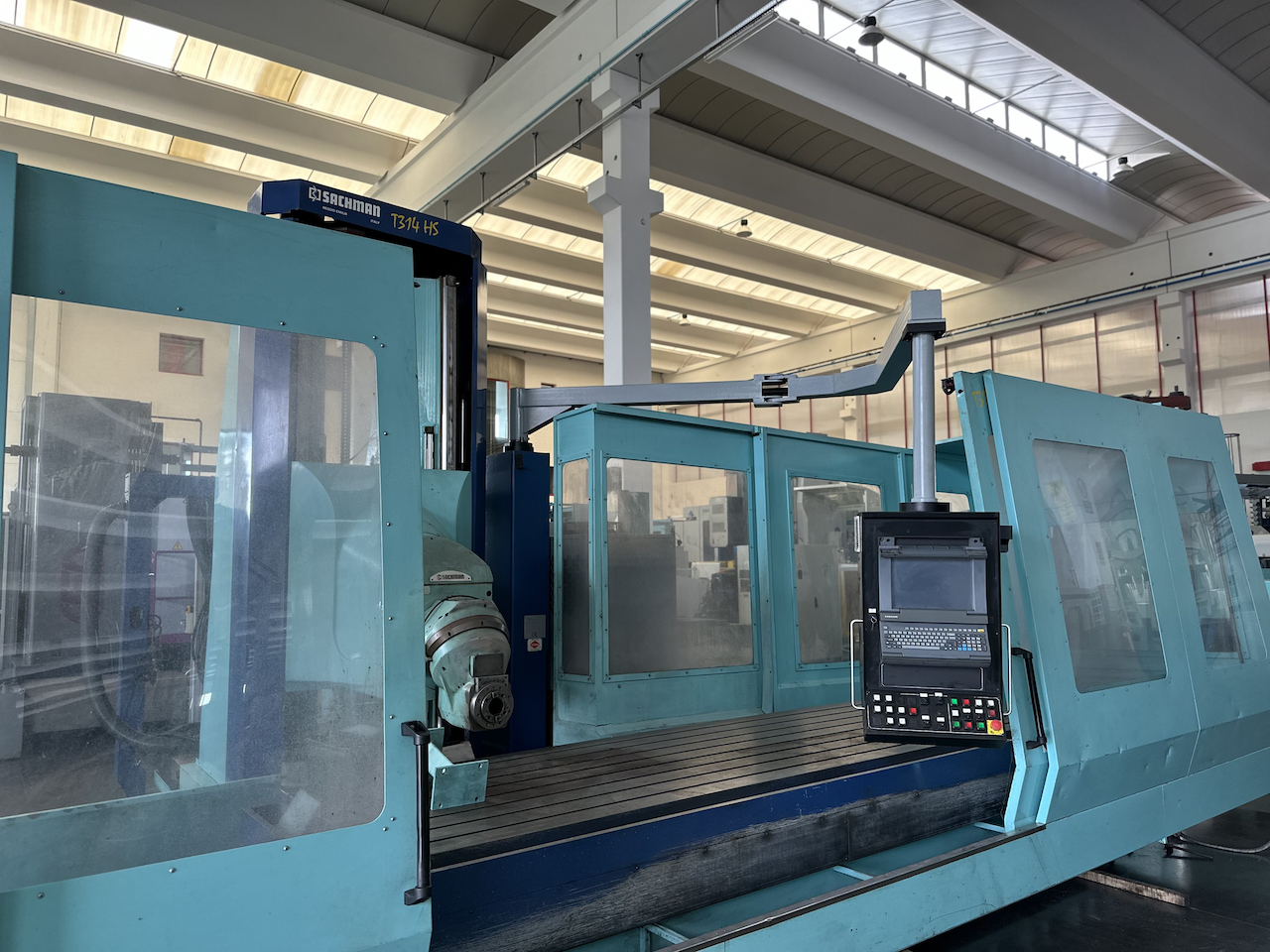

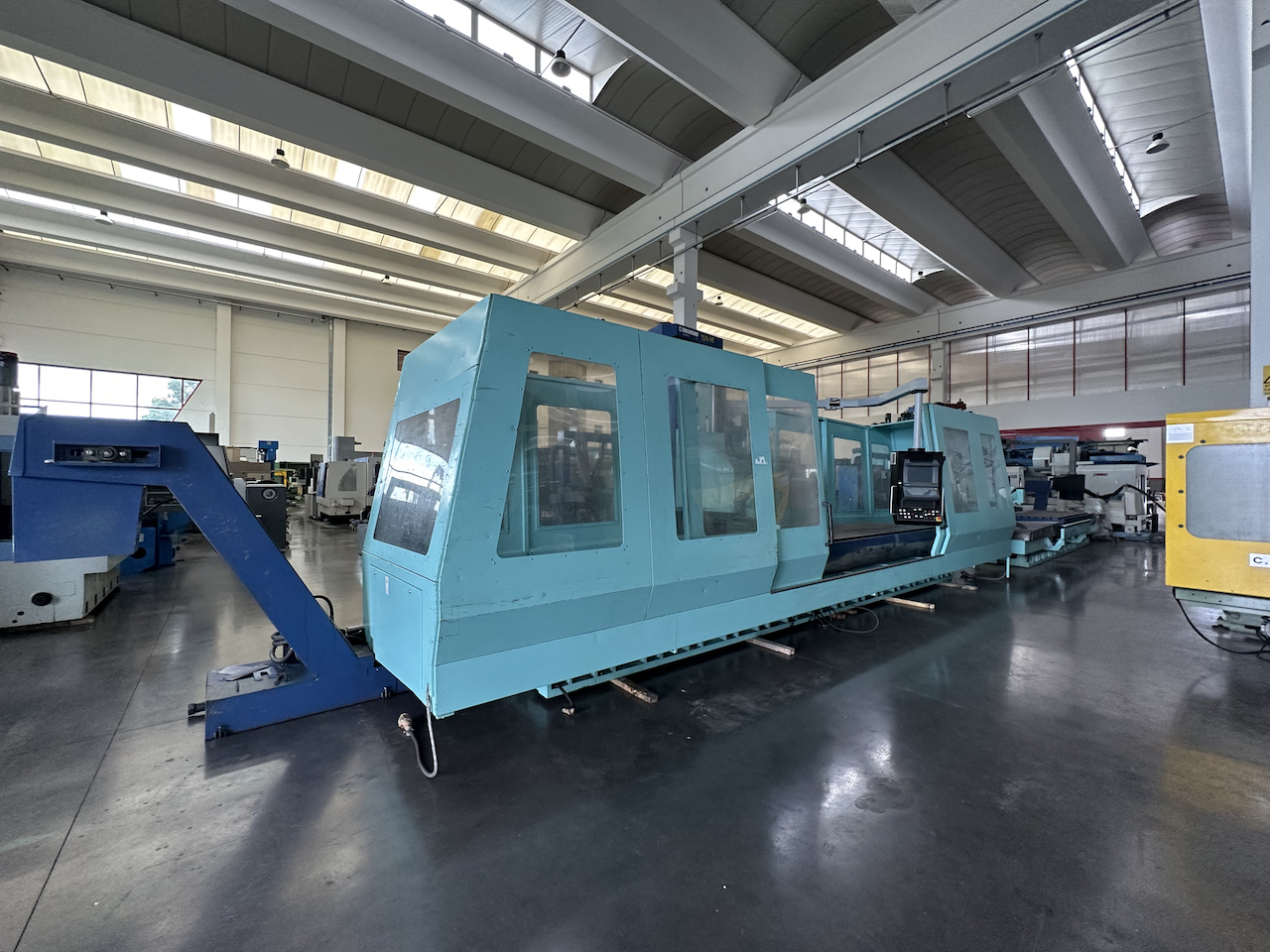

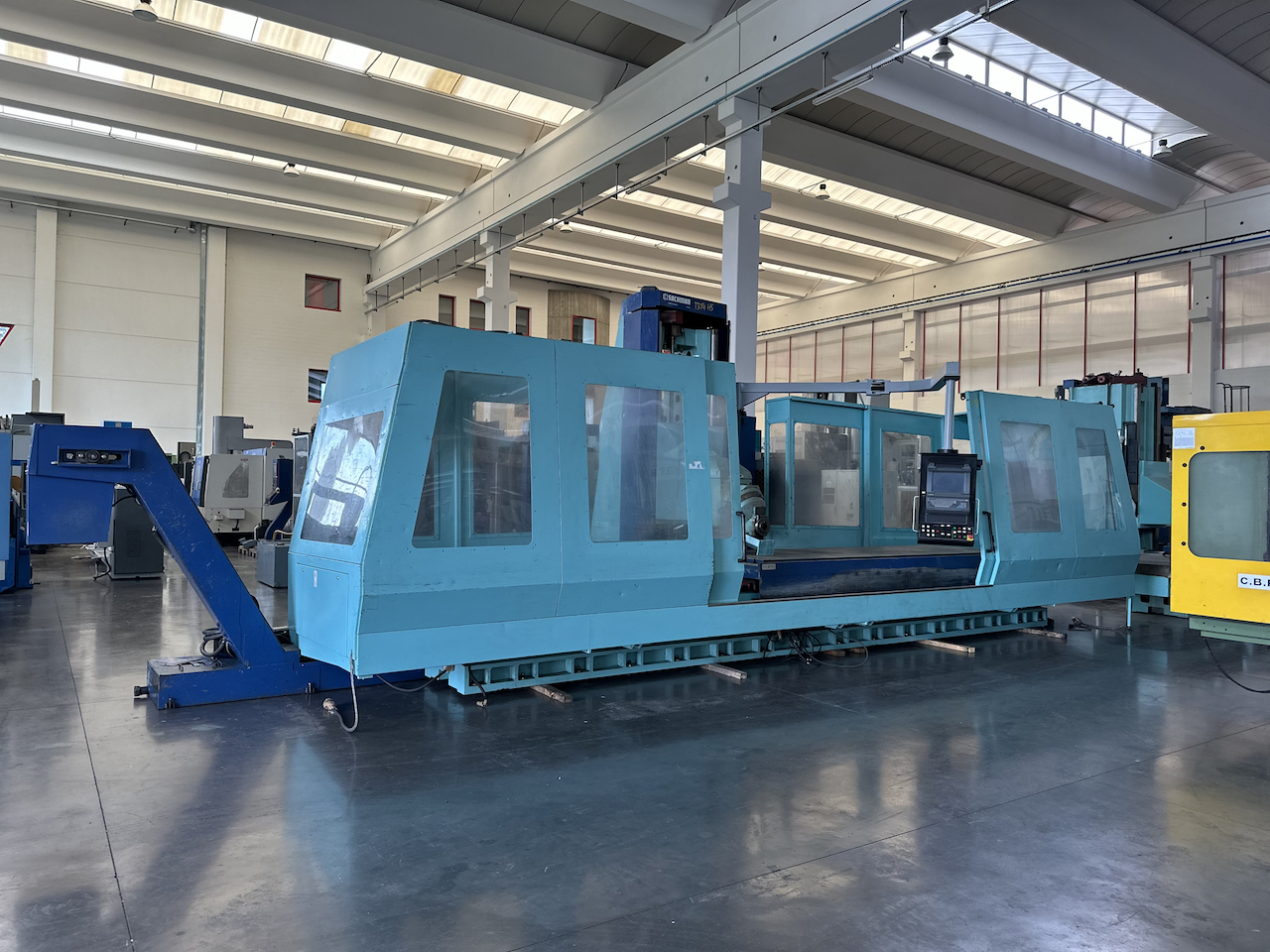

Milling machine
Type
T type
Made
Model
T314HS
Capacity
3500x1500x1600 mm137,80x59,06x62,99 in

Technical specifications

Metric Imperial
WORKING CAPACITY
Longitudinal (X)
3500 mm137,80 in
Vertical (Y)
1500 mm59,06 in
Cross column (Z)
1600 mm62,99 in

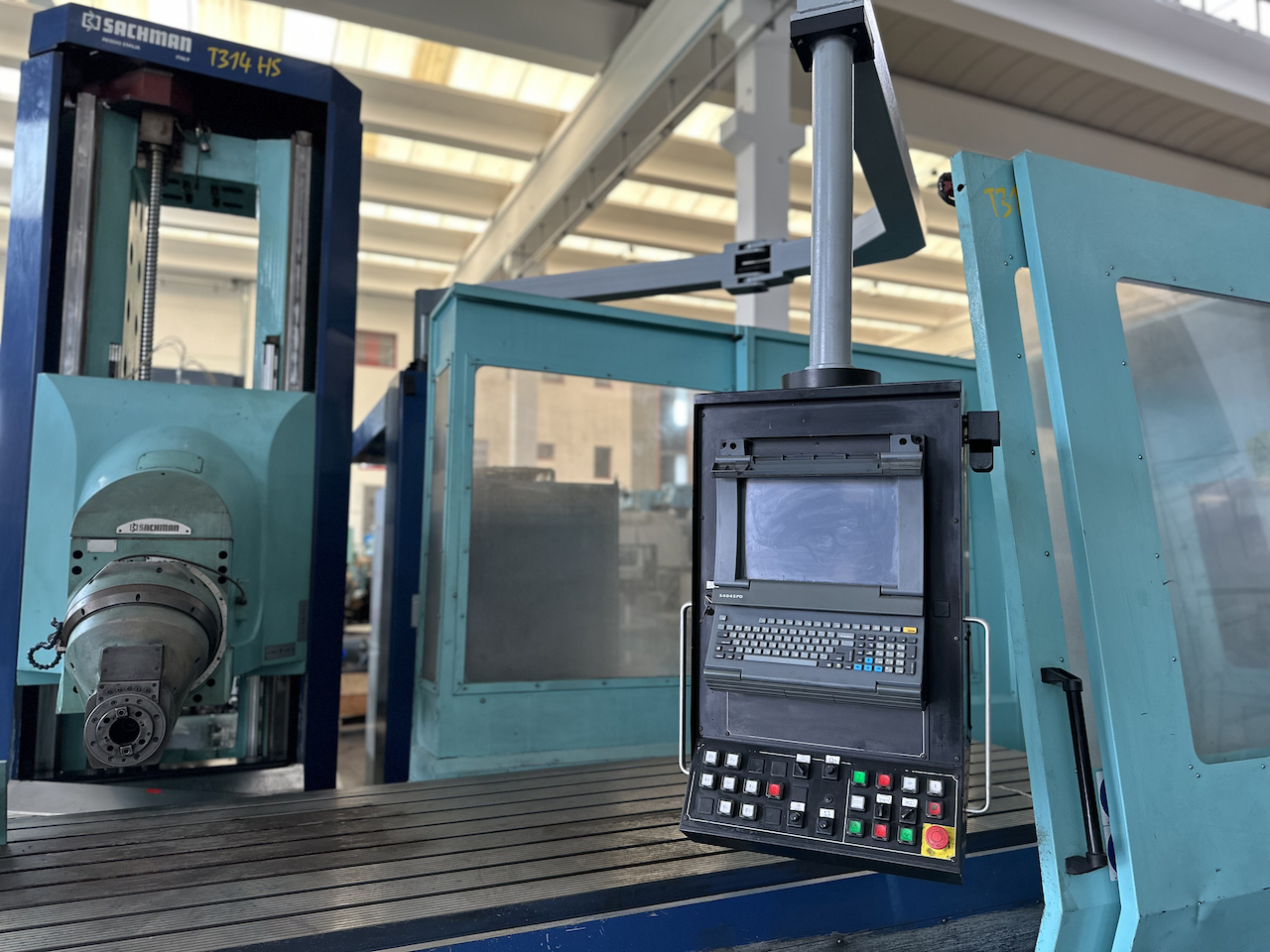

CNC
CNC
SELCA 4045D
SPINDLE
Spindle power
35 Kw
Rotating speed
5000 Rpm
Gearbox
2 gamme
FEEDS
Rapid X
20 m/min787,40 ipm
Rapid Y
20 m/min787,40 ipm
Rapid Z
20 m/min787,40 ipm
TABLE 1
Surface
3700x1100 mm145,67x43,31 in

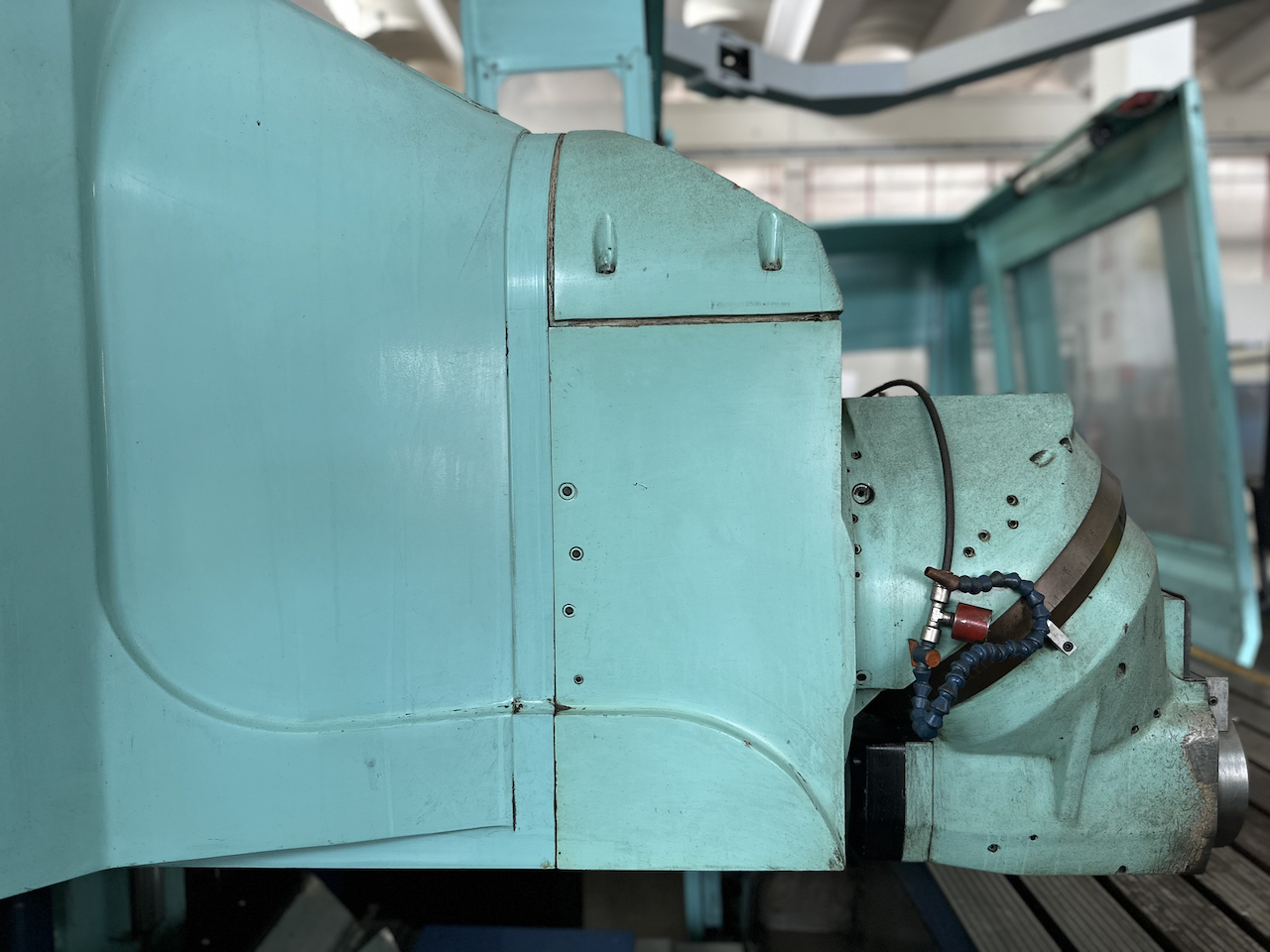

HEAD 1
Type
KOSMO3
Spindle taper
ISO50
A axis
0,02 °
C axis
0,02 °
Max speed
5000 Rpm
Max power
37 Kw
The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy cannot be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
