Milling machine
Type
T type
Made

SACHMAN

Model
TRT22
Capacity
2500x1500x1400 mm98,43x59,06x55,12 in

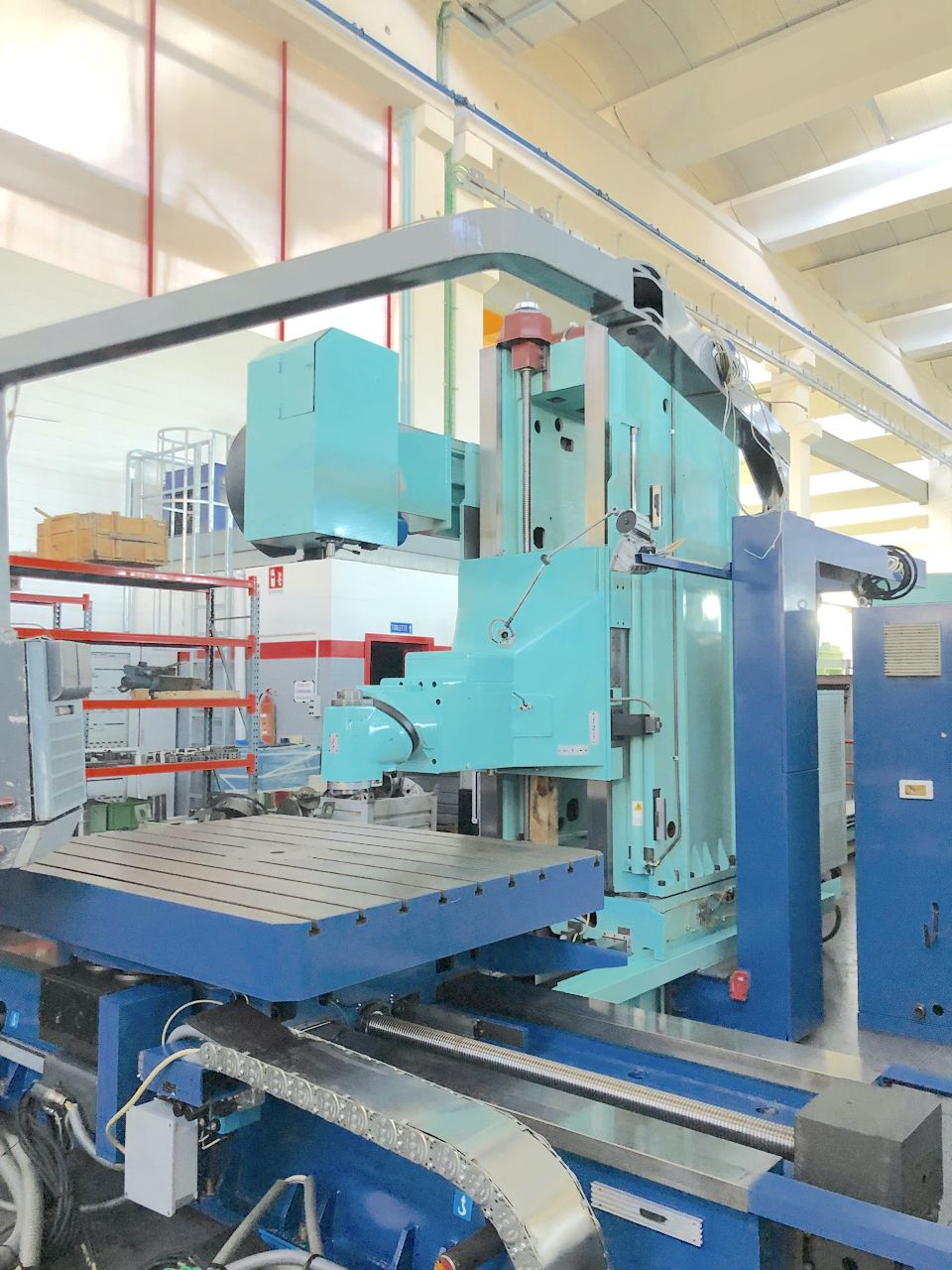

SACHMAN TRT22
All the machines are available subject to prior sale
Gallery - 9 photos
Gallery - 9 photos
Gallery - 9 photos
Gallery - 9 photos
Gallery - 9 photos
Gallery - 9 photos
Gallery - 9 photos
Gallery - 9 photos
Gallery - 9 photos
Data sheet
Enable notifications

Technical specifications

Metric Imperial
WORKING CAPACITY
Longitudinal (X)
2500 mm98,43 in
Vertical (Y)
1500 mm59,06 in
Cross column (Z)
1400 mm55,12 in

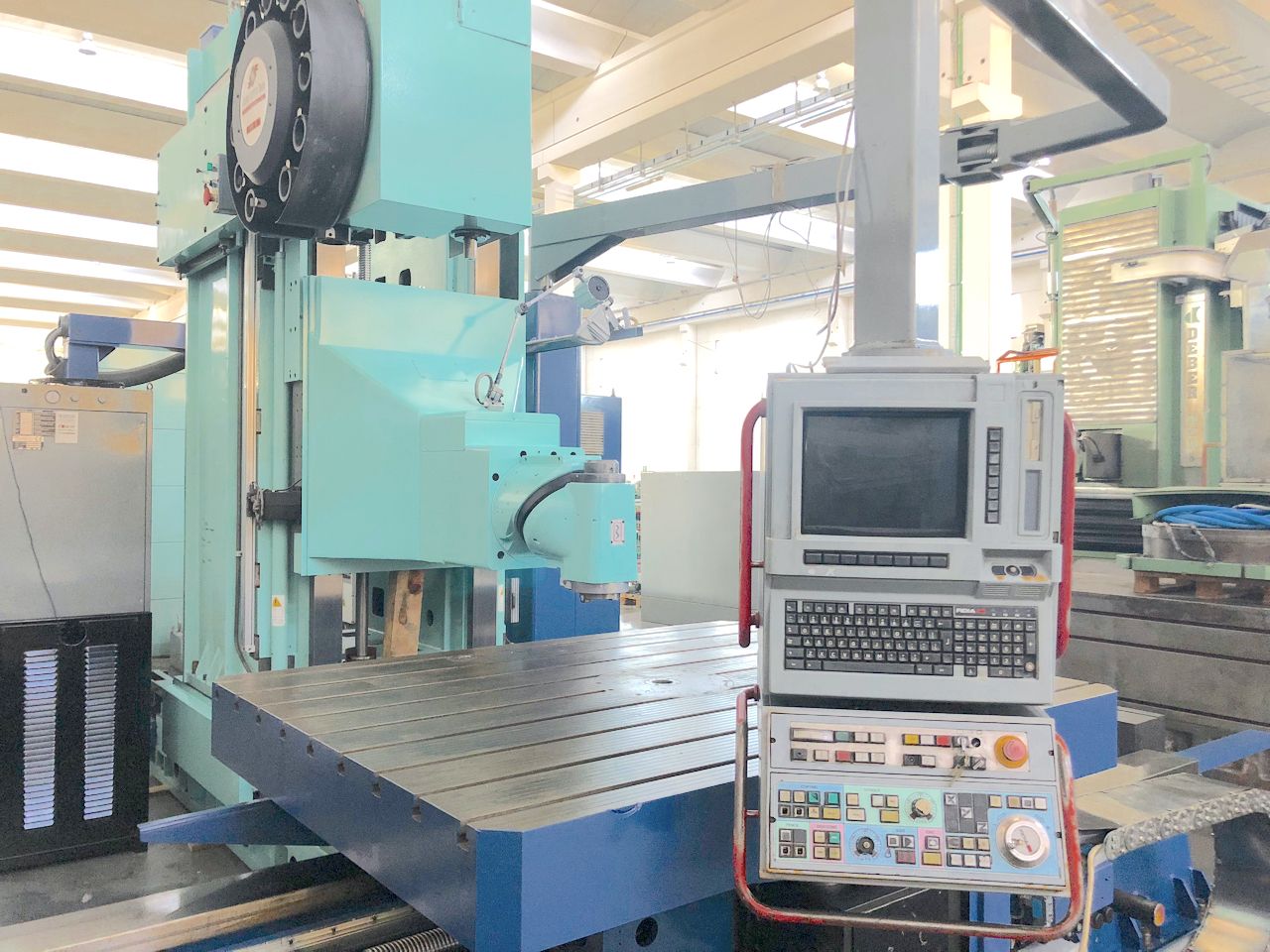

CNC
CNC
FIDIA
SPINDLE
Spindle power
24 Kw
Rotating speed
4000 Rpm
Taper
ISO50

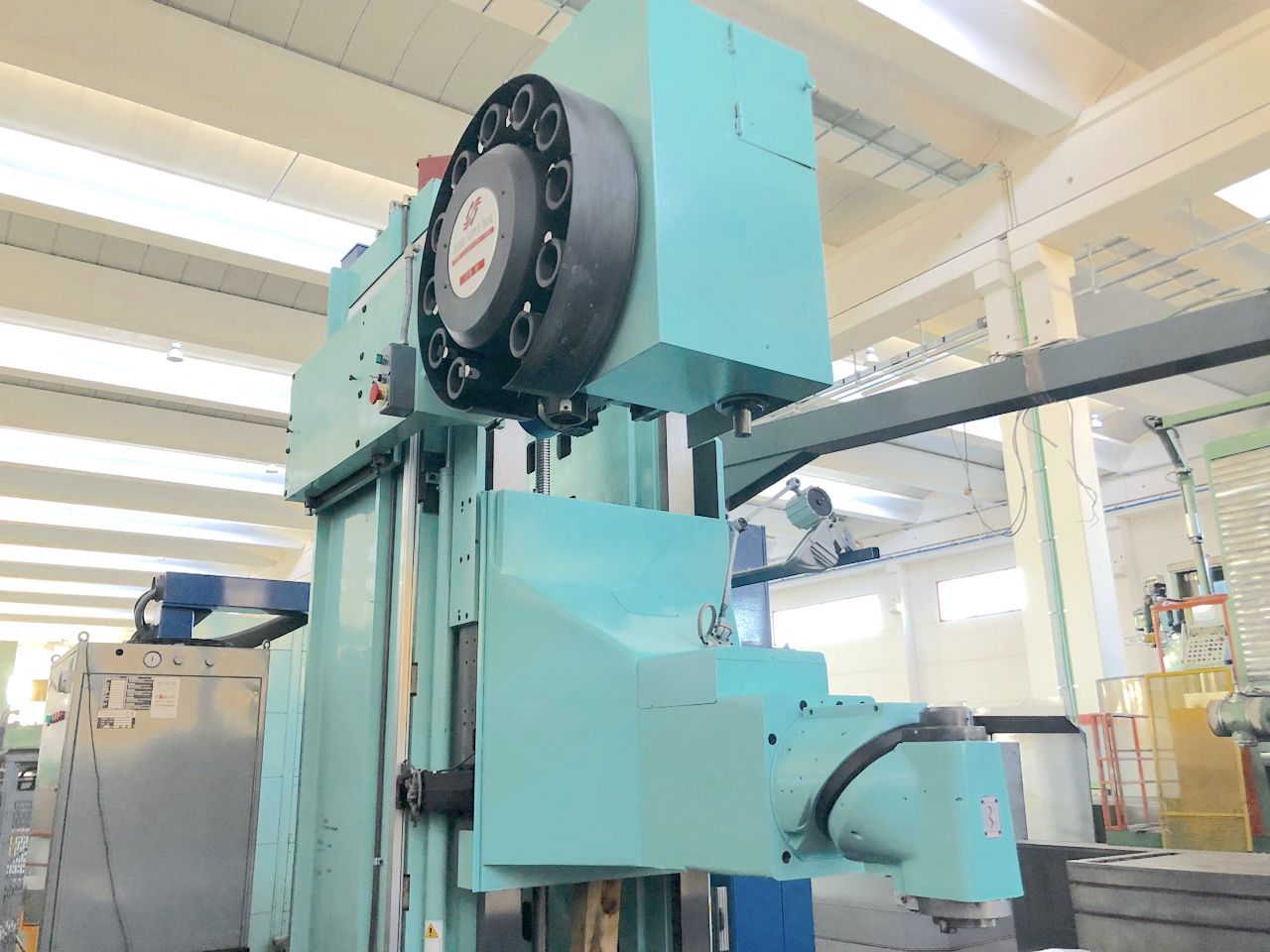

ATC
Positions
ATC12
Tool taper
ISO50
Max tool diameter
130 mm5,12 in
Max diam with free adiacent space
250 mm9,84 in
Max tool lenght
250 mm9,84 in
Max tool weight
20 Kg

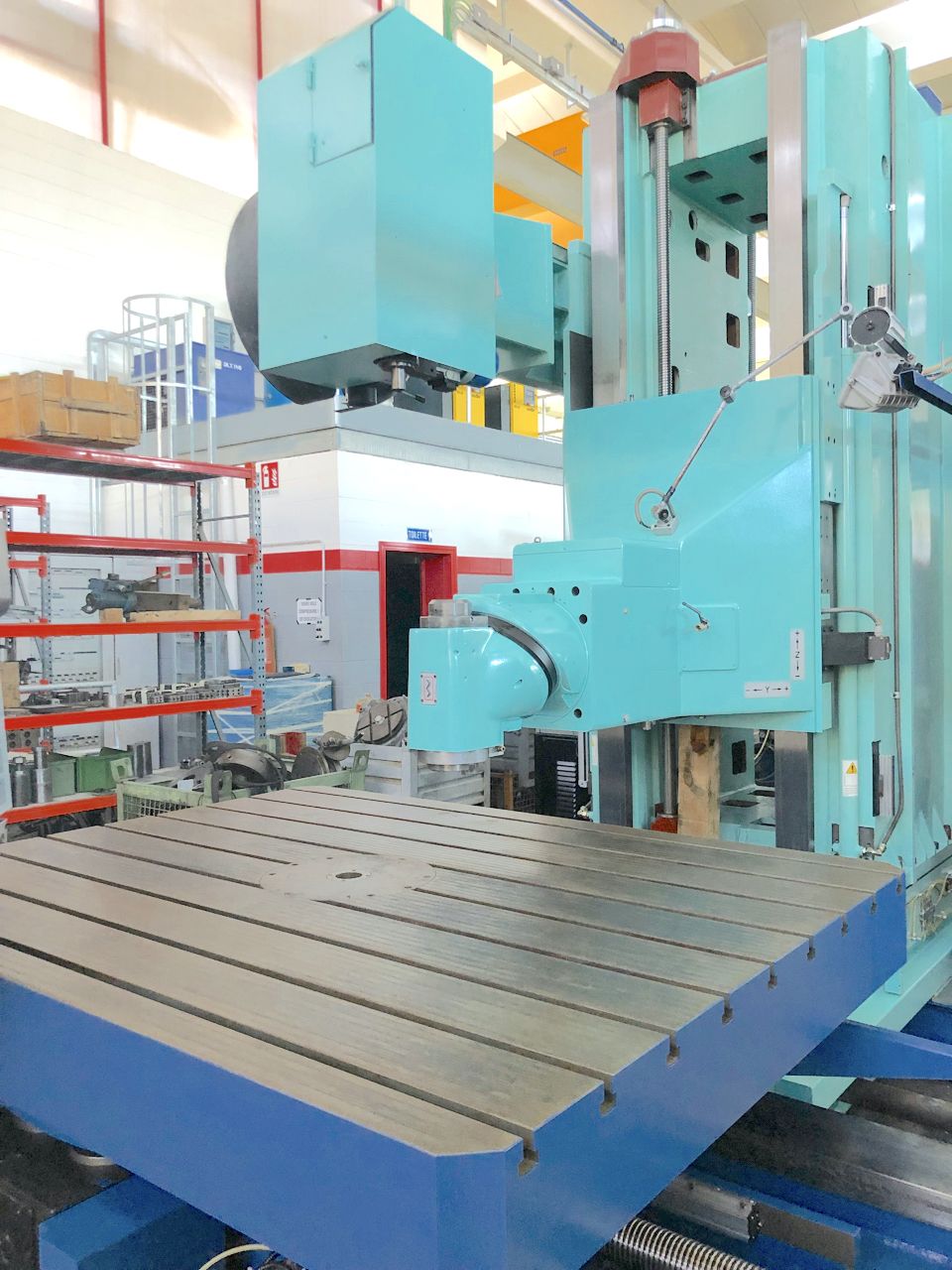

TABLE 1
Surface
2000x1600 mm78,74x62,99 in
Accuracy (B axis)
0,001 °
Capacity
10.000 Kg
Rotating speed
3 Rpm o °/min
HEAD 1
Type
KOSMO4000
Spindle taper
ISO50
A axis
144x2,5 °
C axis
120x3 °
Max speed
4000 Rpm
Max power
24 Kw
FEEDS
Rapid X
12 m/min472,44 ipm
Rapid Y
12 m/min472,44 ipm
Rapid Z
12 m/min472,44 ipm
X
10 m/min393,70 ipm
Y
10 m/min393,70 ipm
Z
10 m/min393,70 ipm
Rapid B
3 Rpm
EXTRA
Chip conveyor
si
Housing
protezione area di lavoro
CE Certification
Yes
Machine total weight
24300 Kg
