Category
Milling machine
Type
T type
Made
Model
TS10
Capacity
2500x1210x1000 mm98,43x47,64x39,37 in

Technical specifications

Metric Imperial
WORKING CAPACITY
Longitudinal (X)
2500 mm98,43 in
Vertical (Y)
1210 mm47,64 in
Cross column (Z)
1000 mm39,37 in
CNC
CNC
SELCA 4045PHD
Notes
volantino remotato SELBOX52
SPINDLE
Rotating speed
5000 Rpm
Gearbox
2 gamme
Taper
ISO50
Spindle power
20,5 Kw
FEEDS
Rapid X
25 m/min984,25 ipm
Rapid Y
25 m/min984,25 ipm
Rapid Z
25 m/min984,25 ipm
ATC
Positions
24
Position
catena rototraslante
Tool taper
ISO50
HEAD 1
Type
KOSMO 5000
C axis
1 °
A axis
3 °
Spindle taper
ISO50
Max speed
5000 Rpm
Max power
20,5 Kw
TABLE 1
Surface
2700x800 mm106,30x31,50 in
Capacity
3000 Kg
Support
guide lineari a ricircolo di rulli
EXTRA

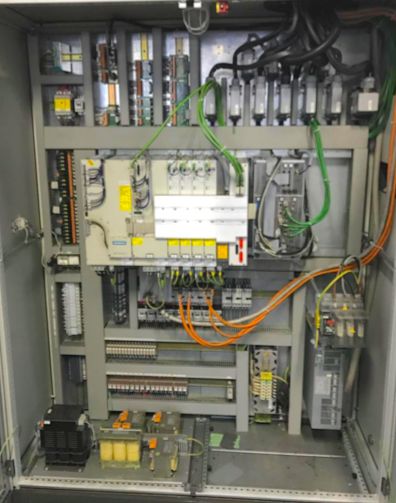

Electrical drawings
Yes
Maintenance & Use books
Yes
CE Certification
Yes
Housing
PERIMETRALE CON PORTE ANTERIORI
Chip conveyor
SI
Filtration unit
si
Chiller
si
Availability
pronta
Machine total weight
16000 Kg
Floor space
7200x4200x3000 mm283,46x165,35x118,11 in
