Category
Milling machine
Type
T type
Made
Model
TRT314HS
Capacity
2500x1400x1500 mm98,43x55,12x59,06 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
2500 mm98,43 in
Vertical (Y)
1500 mm59,06 in
Cross column (Z)
1400 mm55,12 in
Axes support
Guide lineari a ricircolo di rulli
CNC
CNC
SELCA 4045D

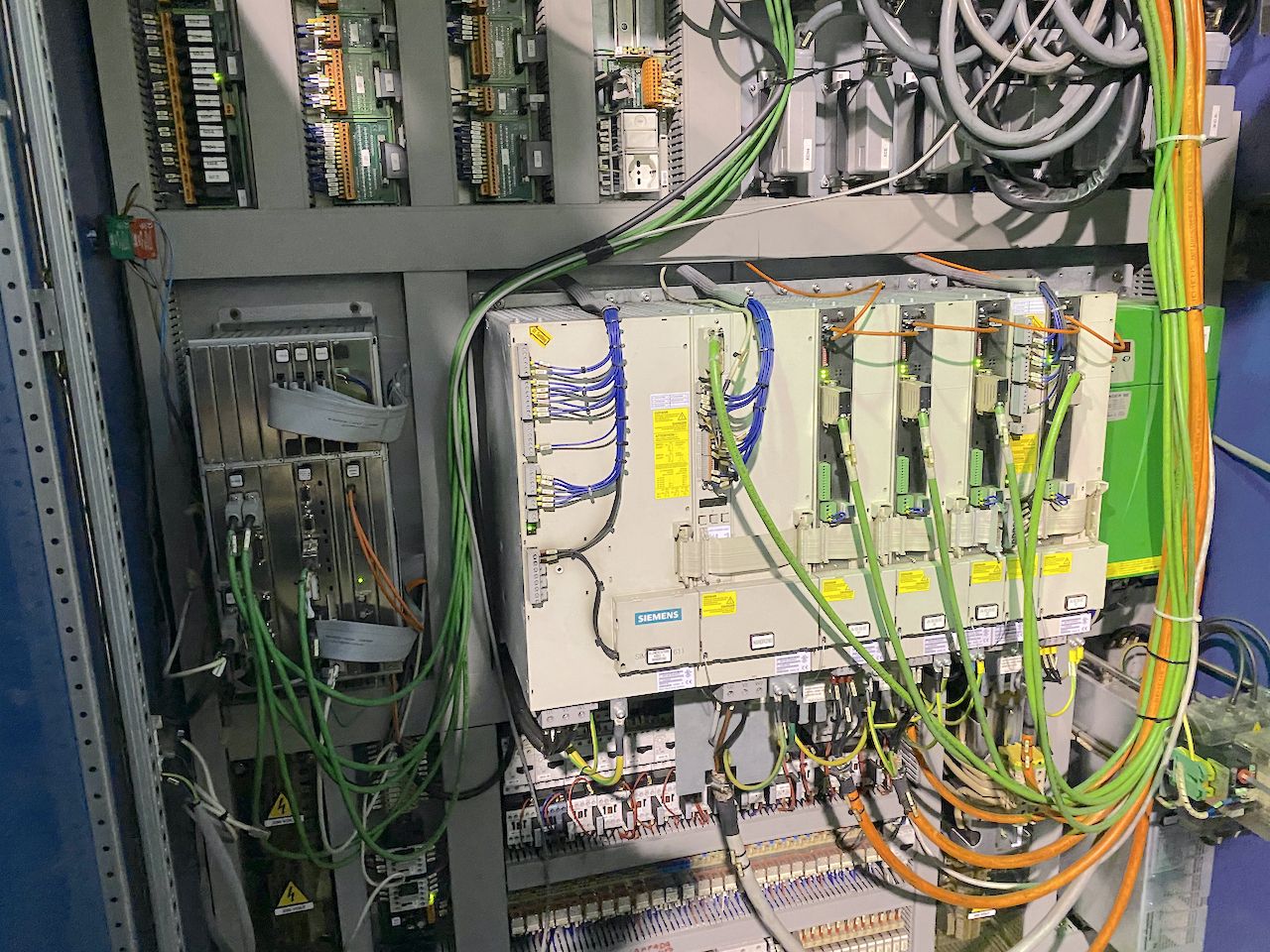

Drives
Siemens
Notes
Selnetwin4000 in rete Ethernet
SPINDLE
Spindle power
28/36 Kw
Rotating speed
5000 Rpm
Taper
ISO50 DIN69871
Gearbox
2 gamme
FEEDS
Rapid X
20 m/min787,40 ipm
Rapid Y
20 m/min787,40 ipm
Rapid Z
20 m/min787,40 ipm
ATC
Positions
20
Max tool diameter
120 mm4,72 in
Max diam with free adiacent space
200 mm7,87 in
Max tool lenght
400 mm15,75 in
Max tool weight
20 Kg
Tool taper
ISO50
TABLE 1
Surface
2000x1600 mm78,74x62,99 in
Accuracy (B axis)
0,001 °
Capacity
15000 Kg
Notes
Cave a T: 8x22H7
HEAD 1
Type
KOSMO4000
Spindle taper
ISO50
A axis
120x3 °
C axis
360x1 °
Max speed
5000 Rpm
Max power
28/36 Kw
EXTRA
Total power supply
48 Kw
Machine total weight
24670 Kg
Floor space
6607x5894x4099 mm260,12x232,05x161,38 in
Chip conveyor
SI
Housing
Perimetrale completa
CE Certification
Yes
Chiller
SI
Available under power
si
Availability
pronta
