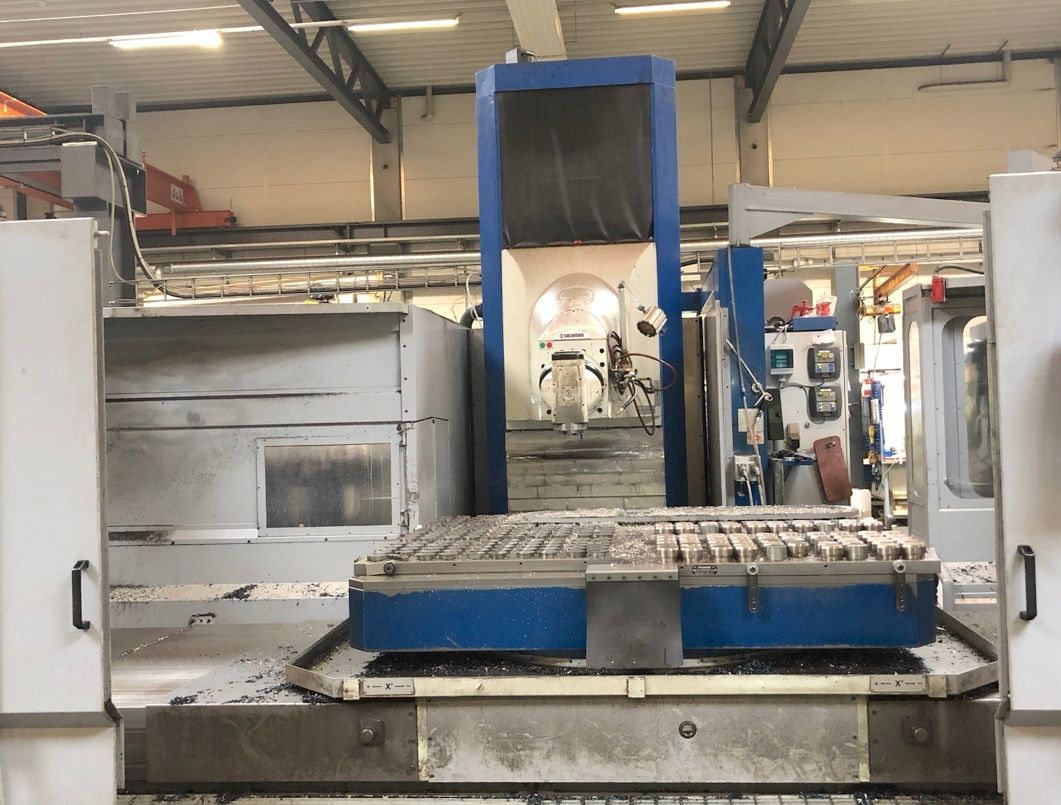

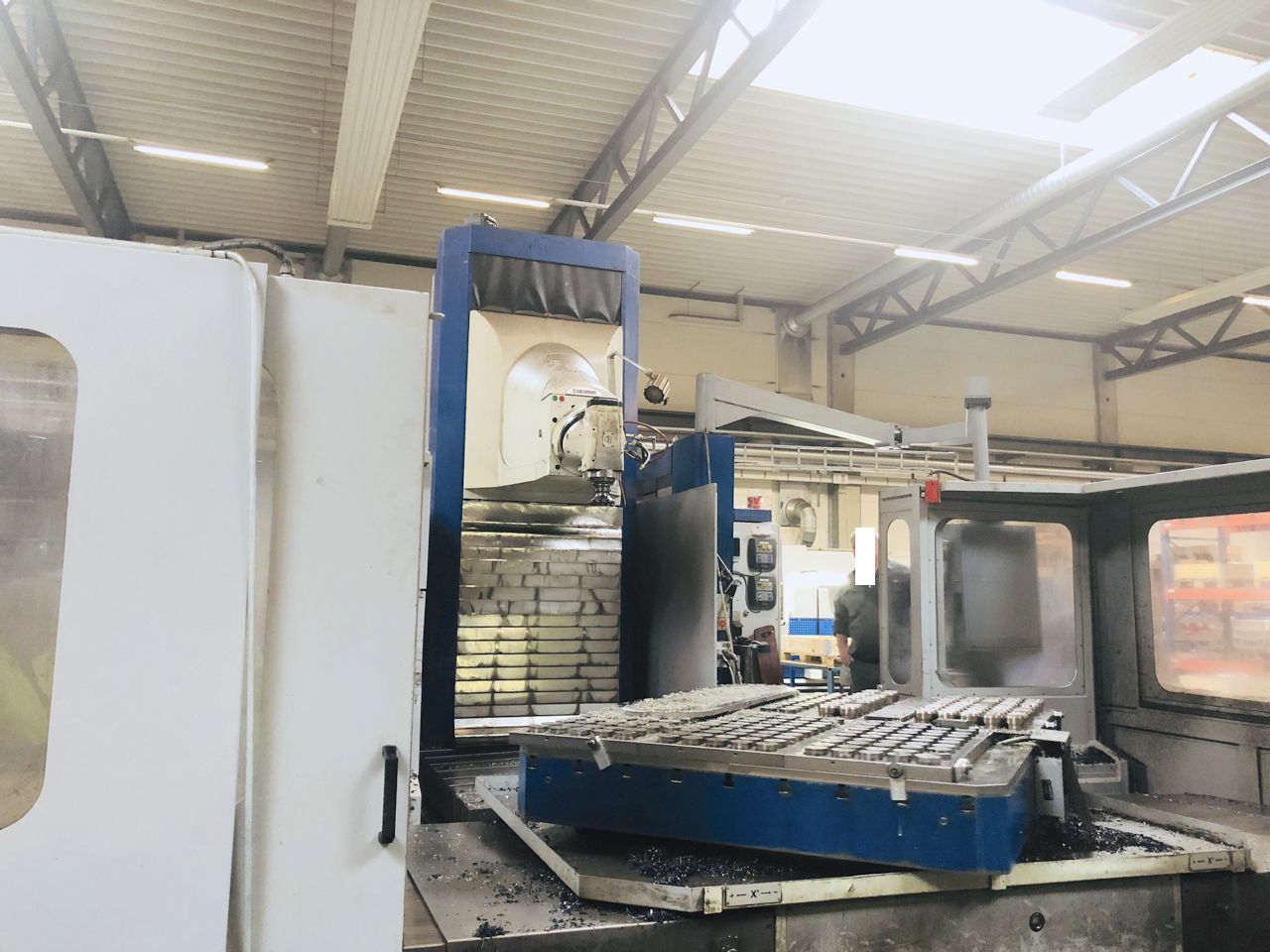

Category
Milling machine
Type
T type
Made
Model
TRT 314 GP
Capacity
2500x1400x1500 mm98,43x55,12x59,06 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
2500 mm98,43 in
Vertical (Y)
1500 mm59,06 in
Cross column (Z)
1400 mm55,12 in
Axes support
guide piane
CNC
CNC

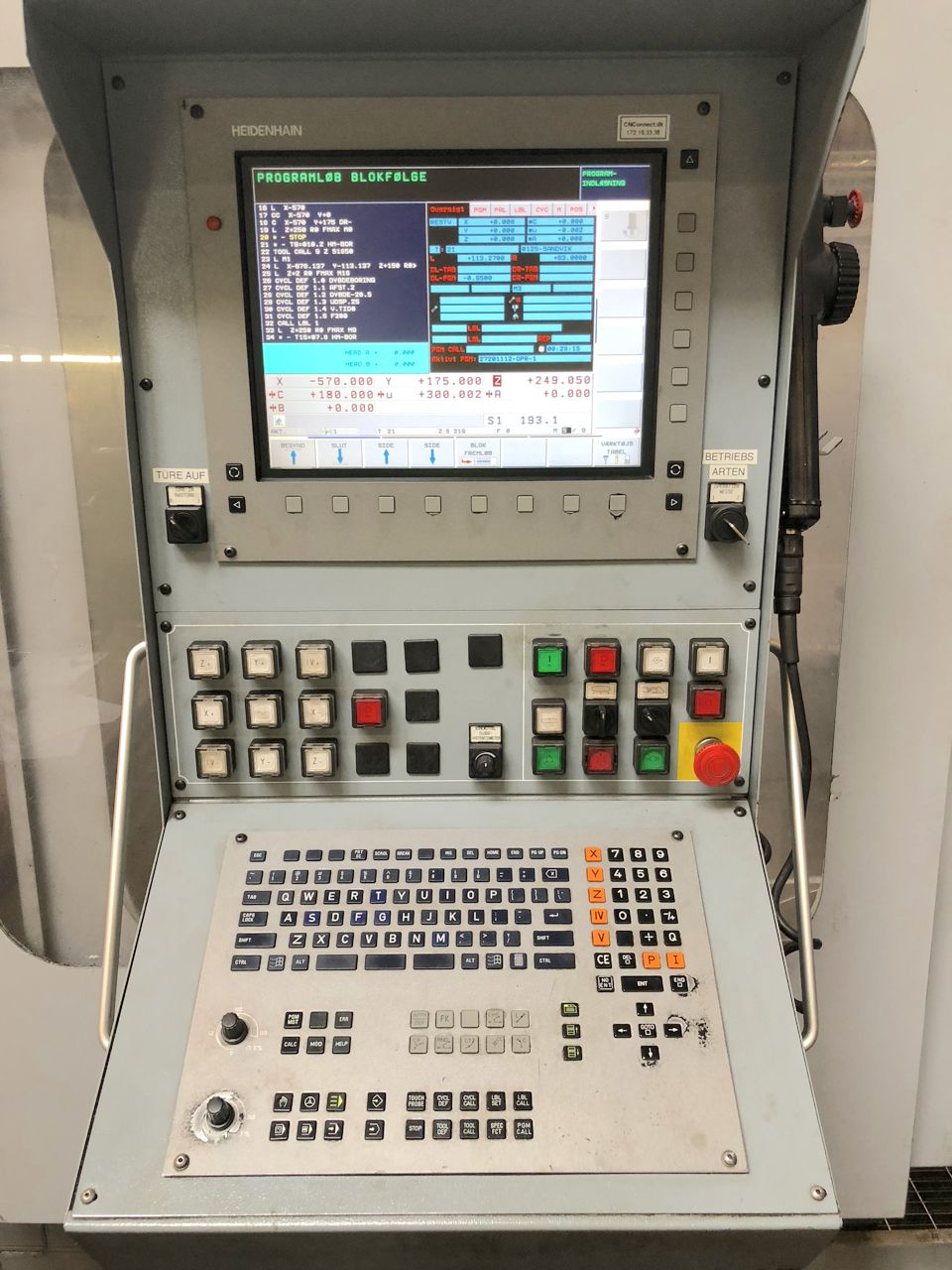

Heidenhain iTNC530SP+HR410
SPINDLE
Spindle power
S1 28Kw / S6-60 35Kw/S6-40 43 Kw
Rotating speed
20-4000 Rpm
Taper
ISO50

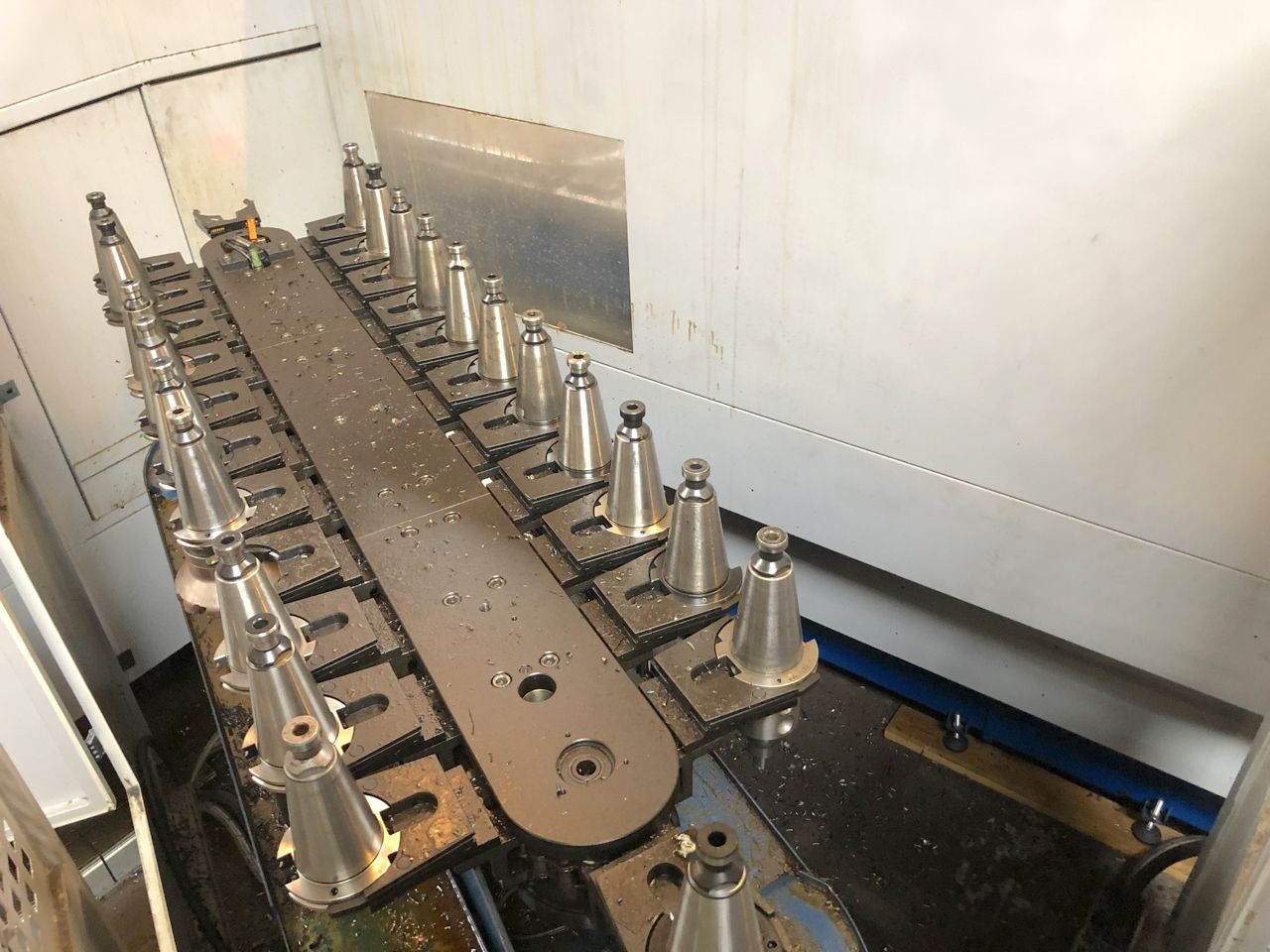

ATC
Positions
24
Tool taper
ISO50

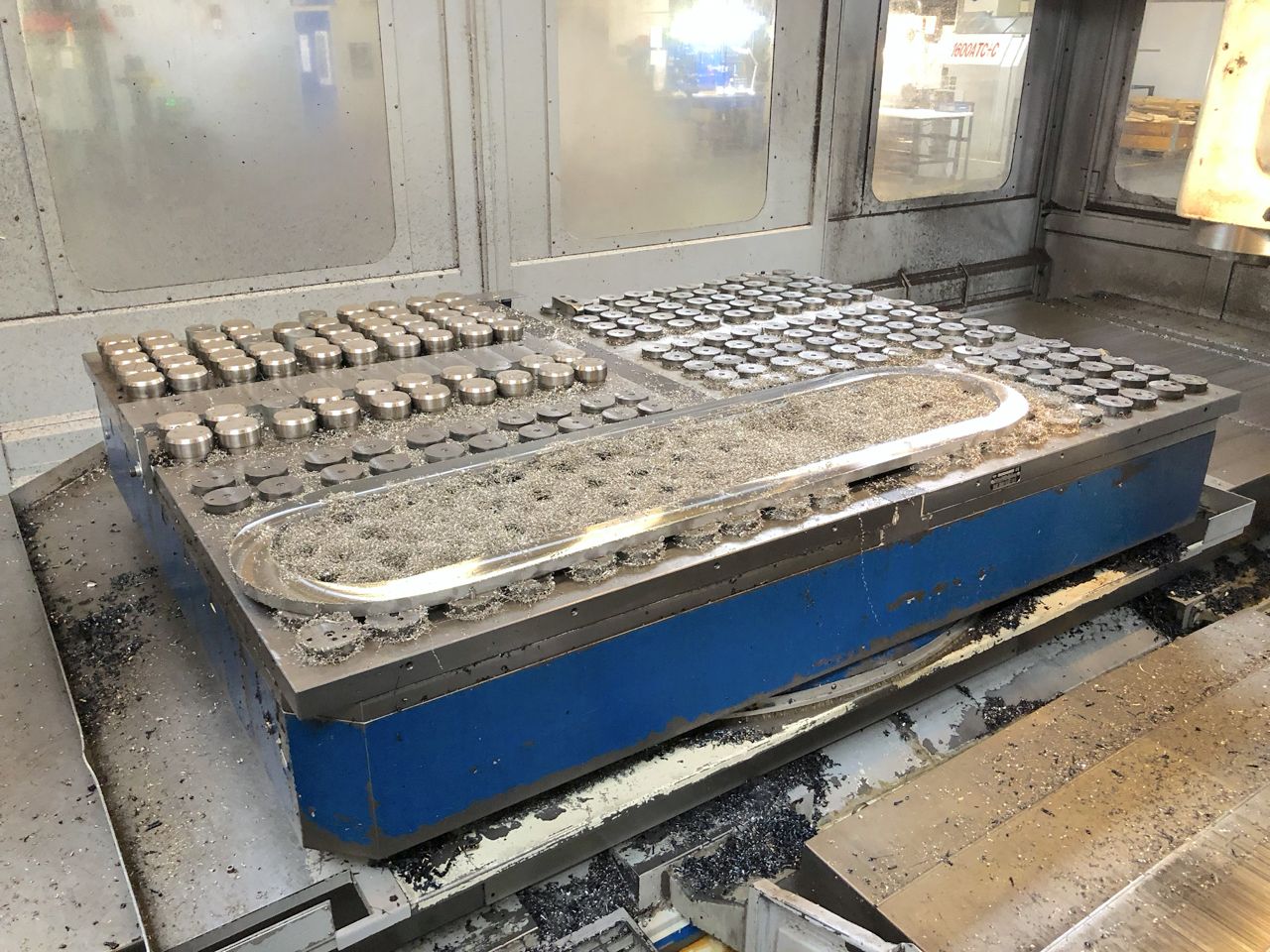

TABLE 1
Available upon request
No
Surface
2000x1600 mm78,74x62,99 in
Accuracy (B axis)
360,000 °
Capacity
15000 Kg

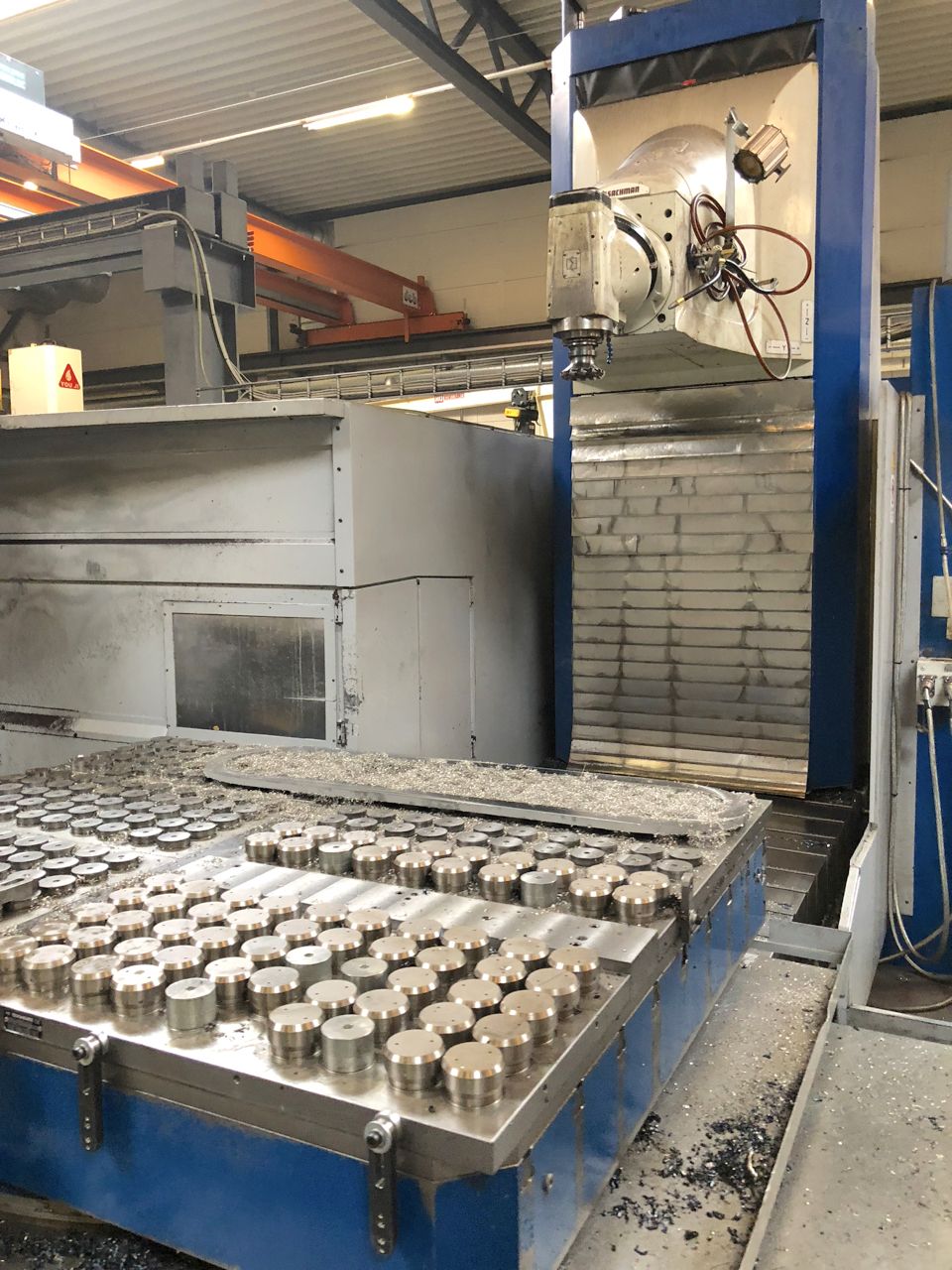

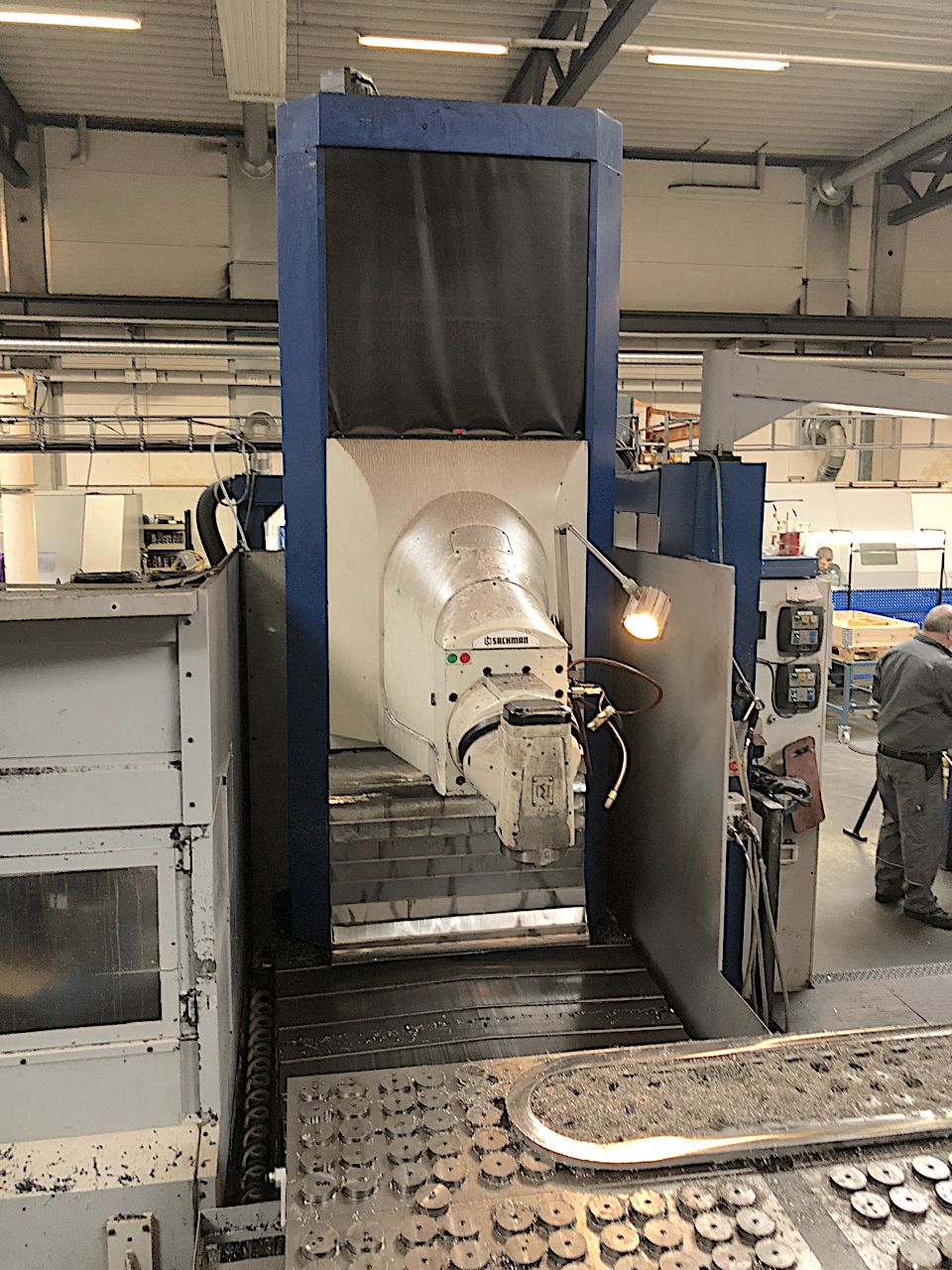

HEAD 1
Available upon request
No
Spindle taper
ISO 50
A axis
2,5 °
C axis
3 °
Max speed
20-4000 Rpm
Max power
S1 28Kw / S6-60 35Kw/S6-40 43 Kw
Type
KOSMO4000
Coolant
interno/esterno 40Bar - soffio aria esterno
EXTRA
Tooling included
doppio piano magnetico Tecnomagnete
High Pressure
40 Bar
Maintenance & Use books
Yes
Electrical drawings
Yes
CE Certification
Yes
Housing
Completa

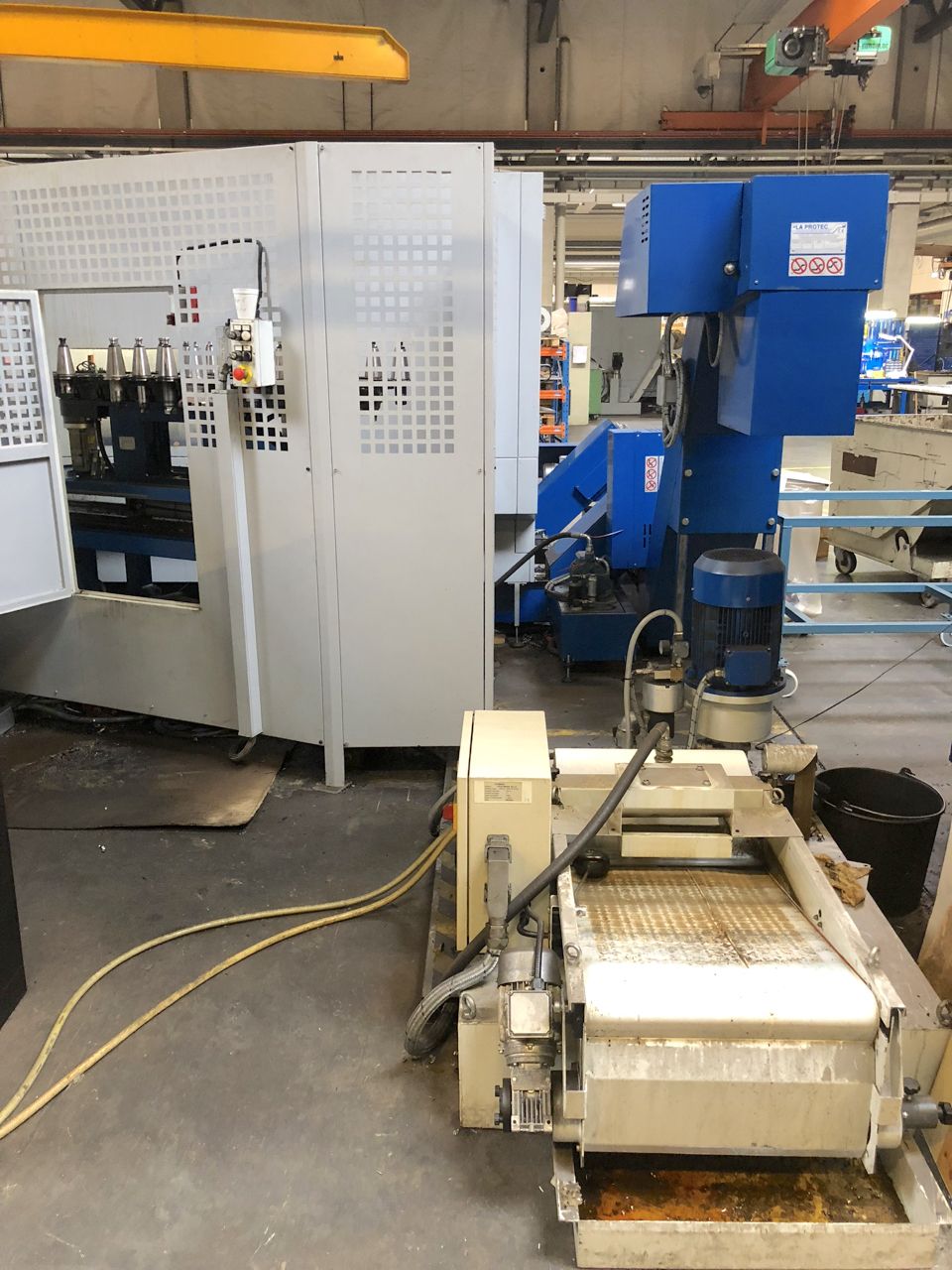

Chip conveyor
a nastro 2+1
Availability
Pronta
Workpiece touch probe
M&W
Machine total weight
30100 Kg
Filtration unit
filtro a carta
Chiller
si
Available under power
si
