Category
Milling machine
Type
T type
Made
Model
T314 GP
Capacity
3000x1400x1500 mm118,11x55,12x59,06 in

Technical specifications

Metric Imperial
WORKING CAPACITY
Longitudinal (X)
3000 mm118,11 in
Vertical (Y)
1500 mm59,06 in
Cross column (Z)
1400 mm55,12 in
Axes support
Guide piane

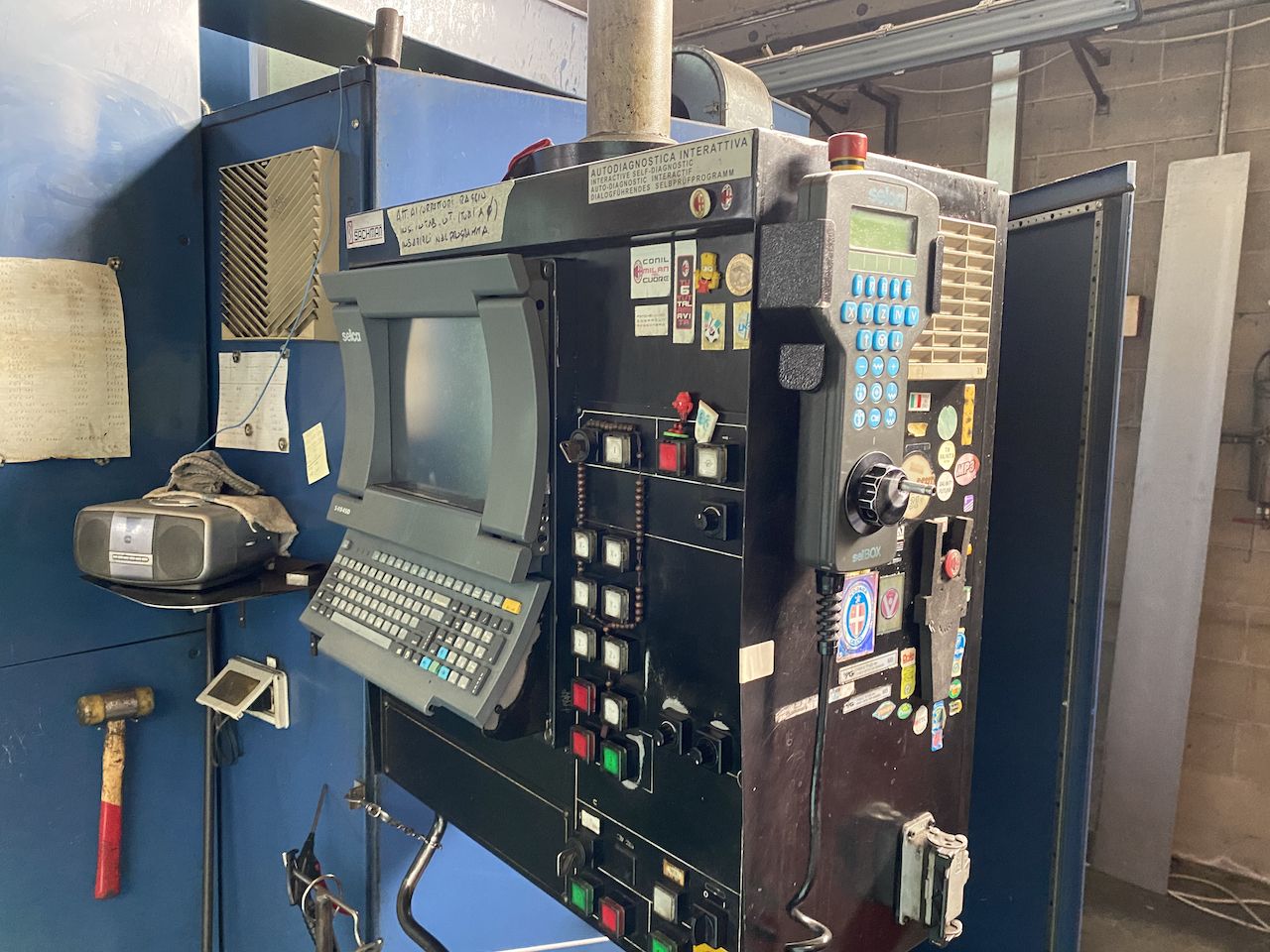

CNC
CNC
Selca S4045

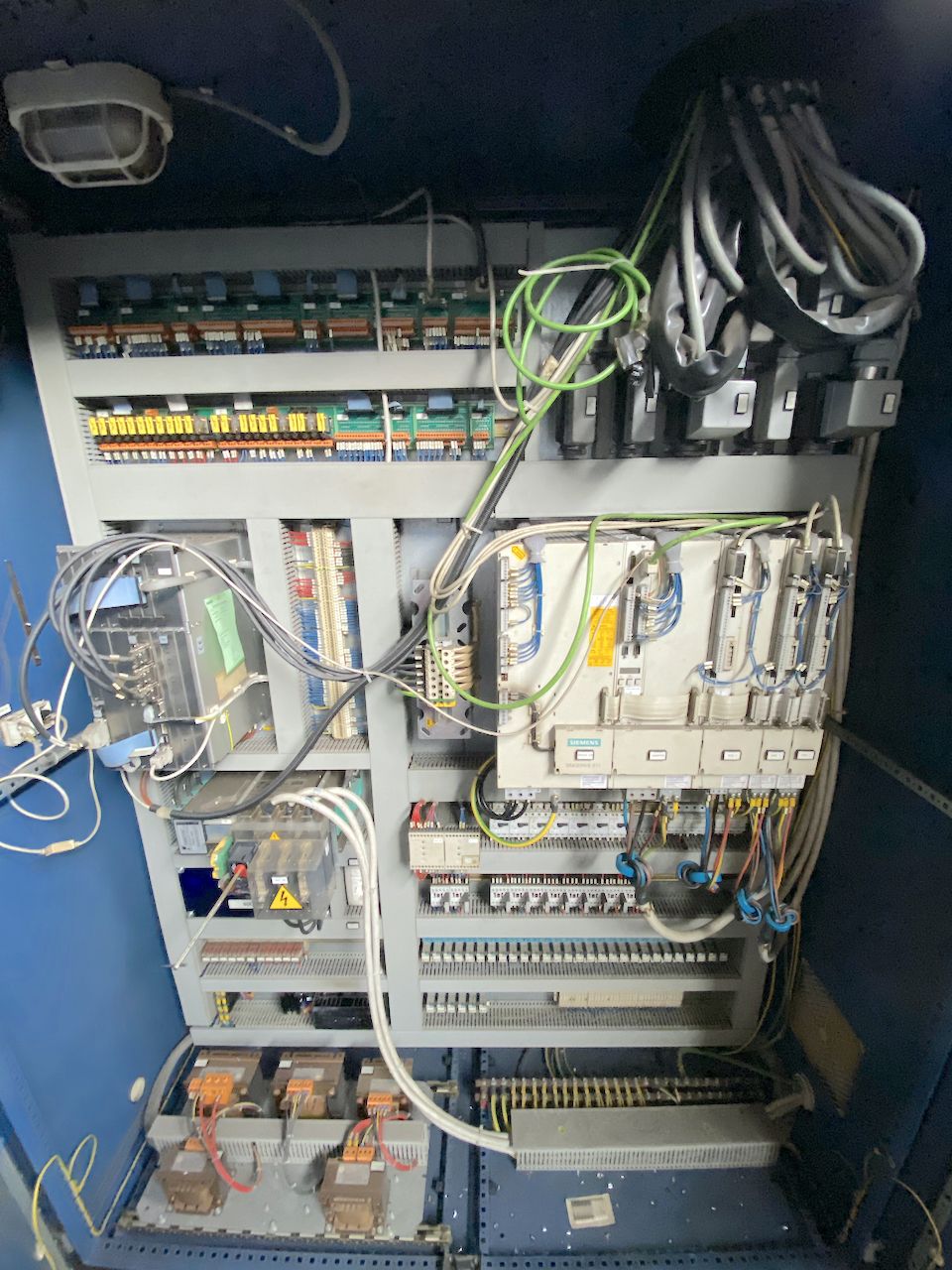

Drives
Siemens
Notes
Volantino remotato Selca S2
SPINDLE
Rotating speed
5000 Rpm
Taper
ISO50
Torque
850 Nm
ATC
Positions
40

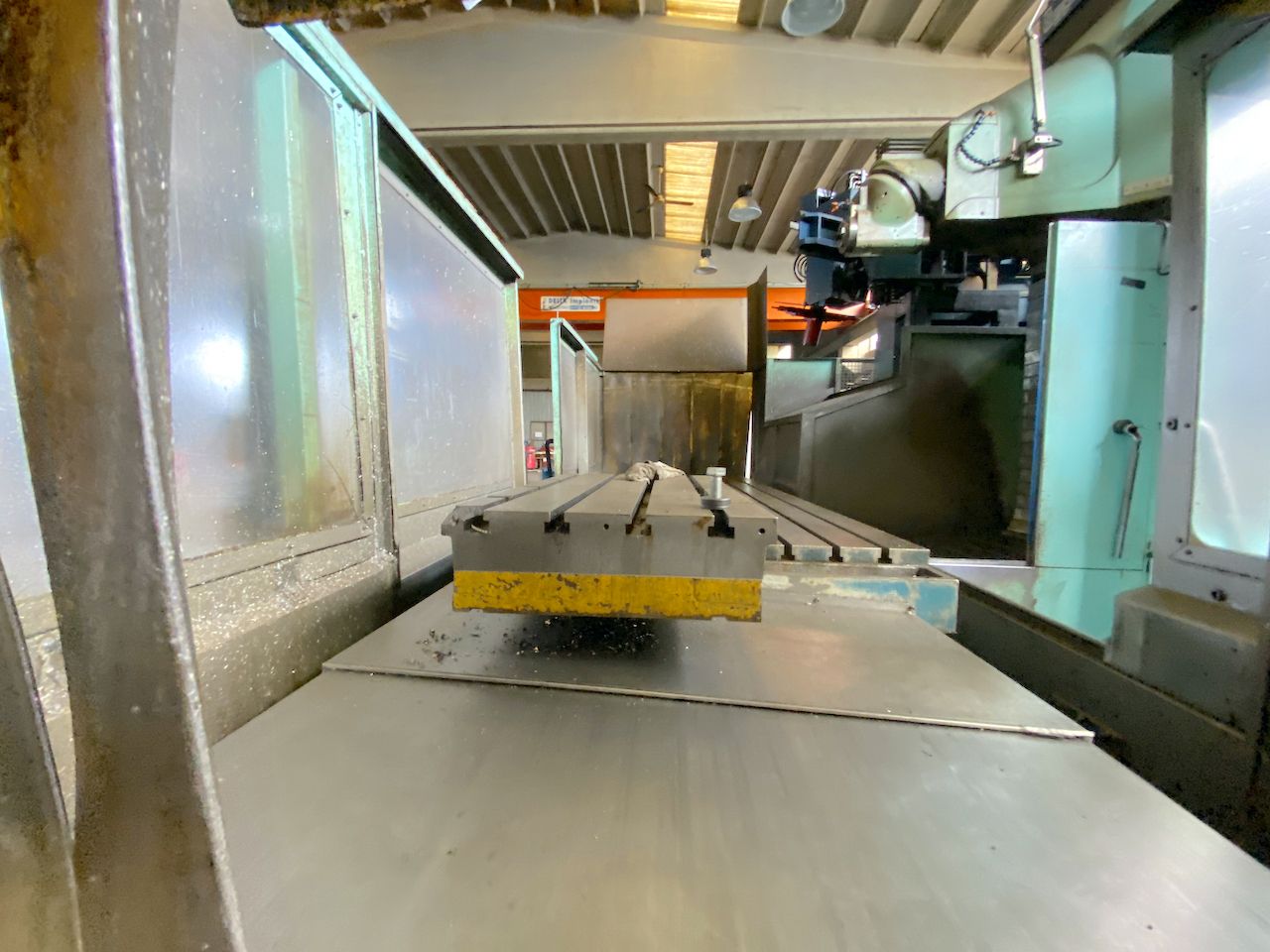

TABLE 1
Surface
3200x1100 mm125,98x43,31 in
Translation
3000 mm118,11 in
Capacity
10.000 Kg

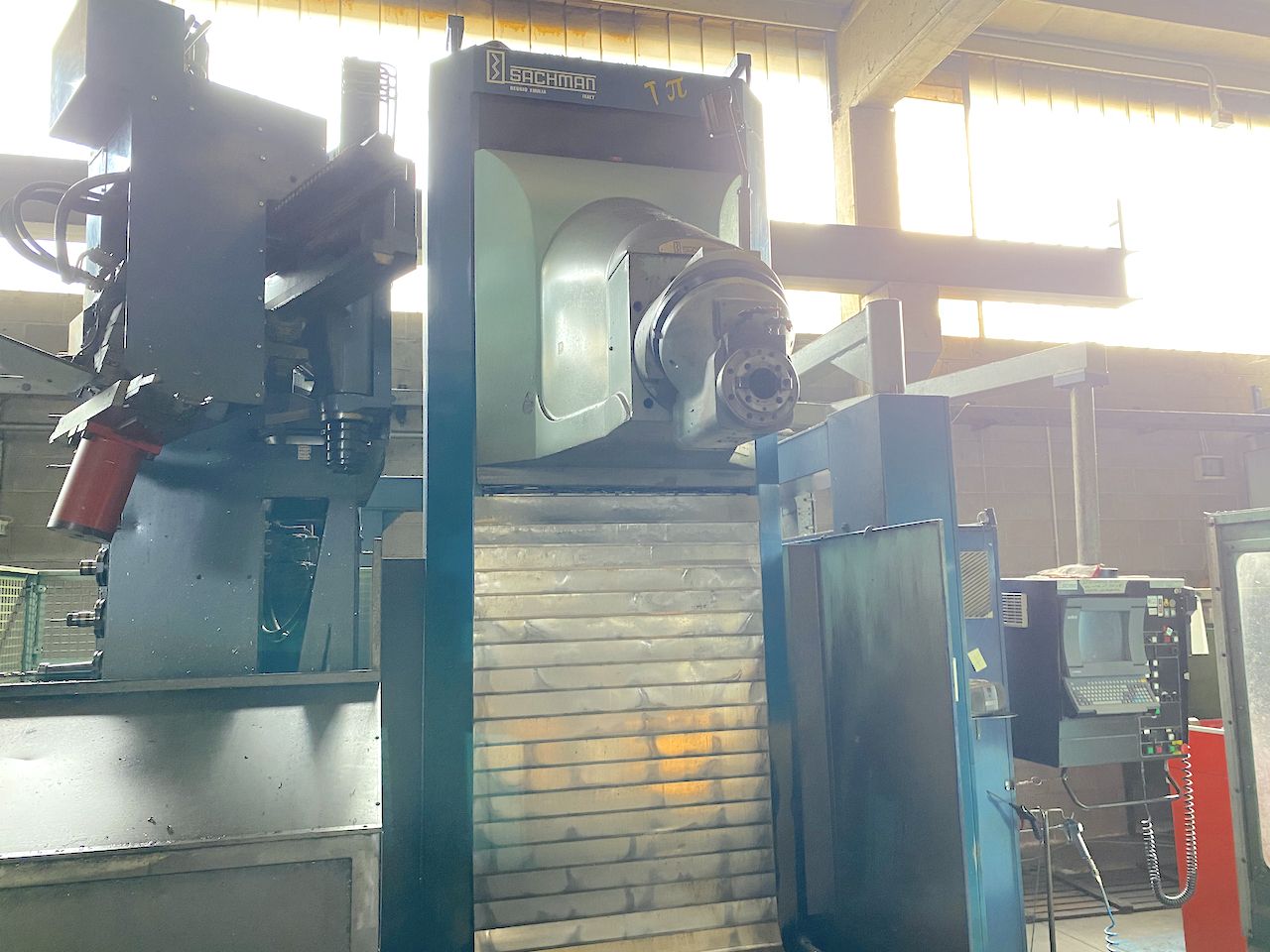

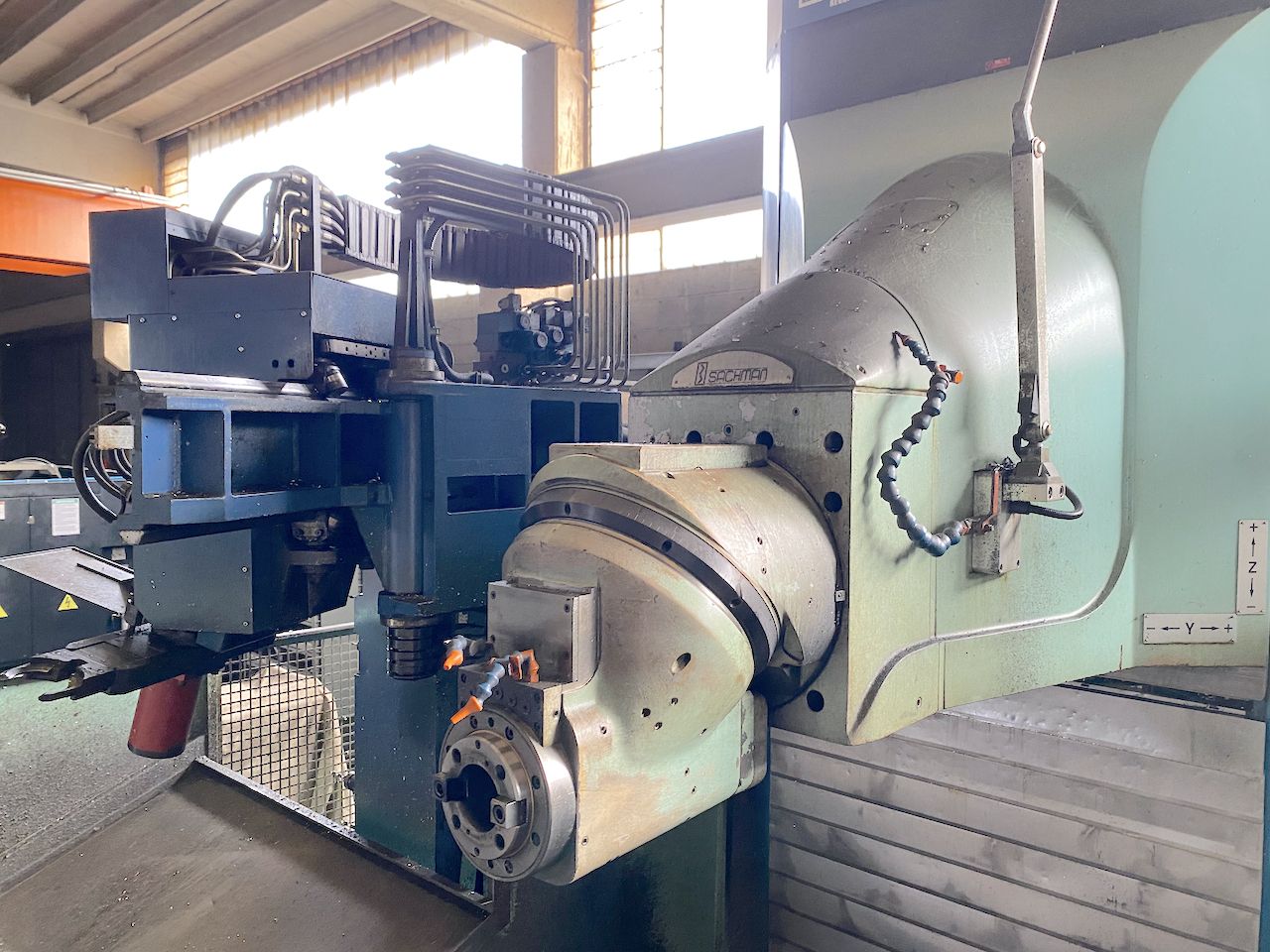

HEAD 1
Type
KOSMO5000
Spindle taper
ISO50
A axis
120x3 °
C axis
144x2,5 °
Max speed
5000 Rpm
Coolant
CTS 15Bar interni
Max torque
850 Nm
FEEDS
Rapid X
12 m/min472,44 ipm
Rapid Y
12 m/min472,44 ipm
Rapid Z
12 m/min472,44 ipm
EXTRA
Floor space
7688x5091x3971 mm302,68x200,43x156,34 in
High Pressure
15Bar interni
Electrical drawings
Yes
Maintenance & Use books
Yes
Chip conveyor
Si
Total power supply
50 Kw
Machine total weight
25115 Kg
