Category

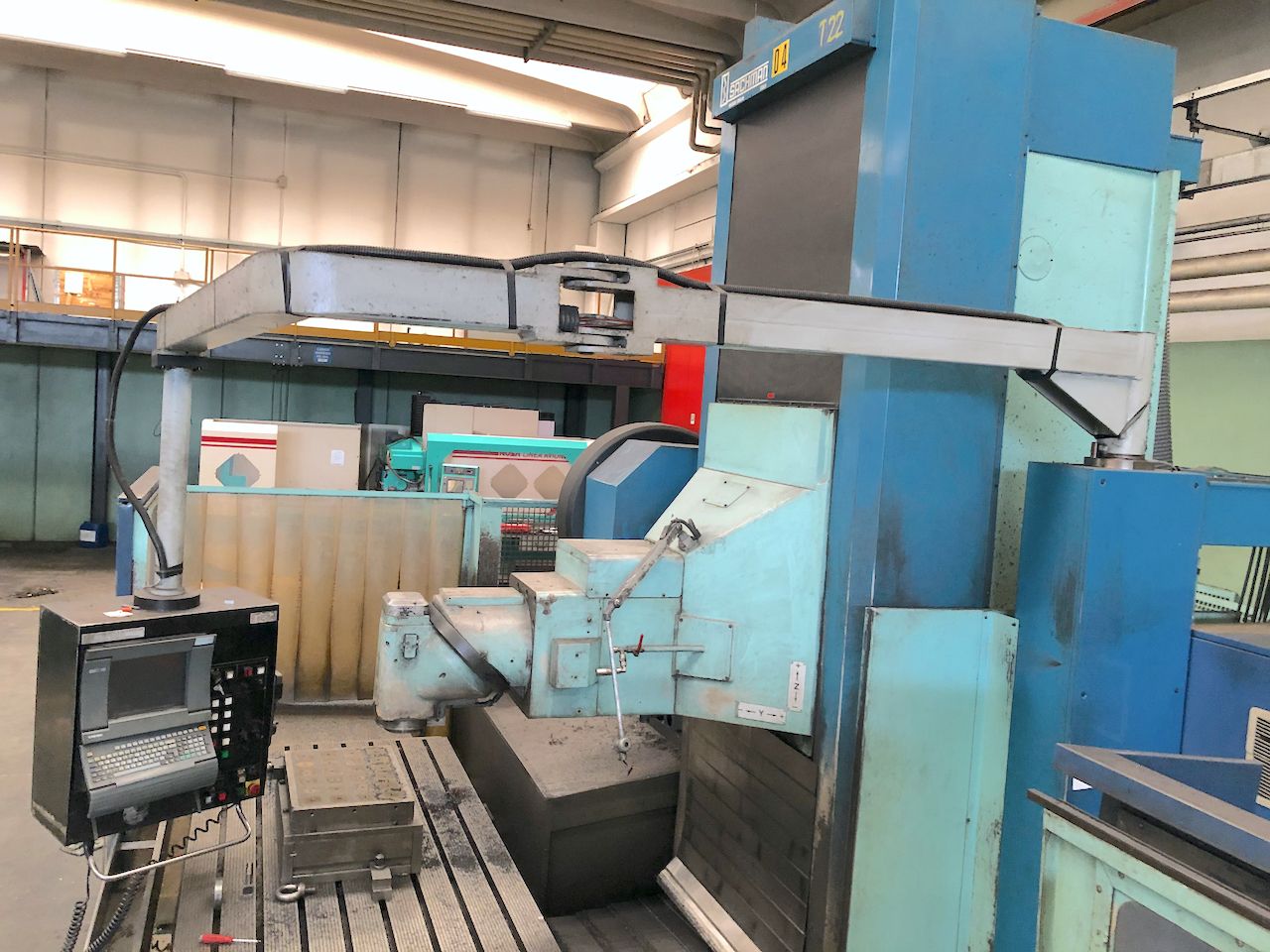

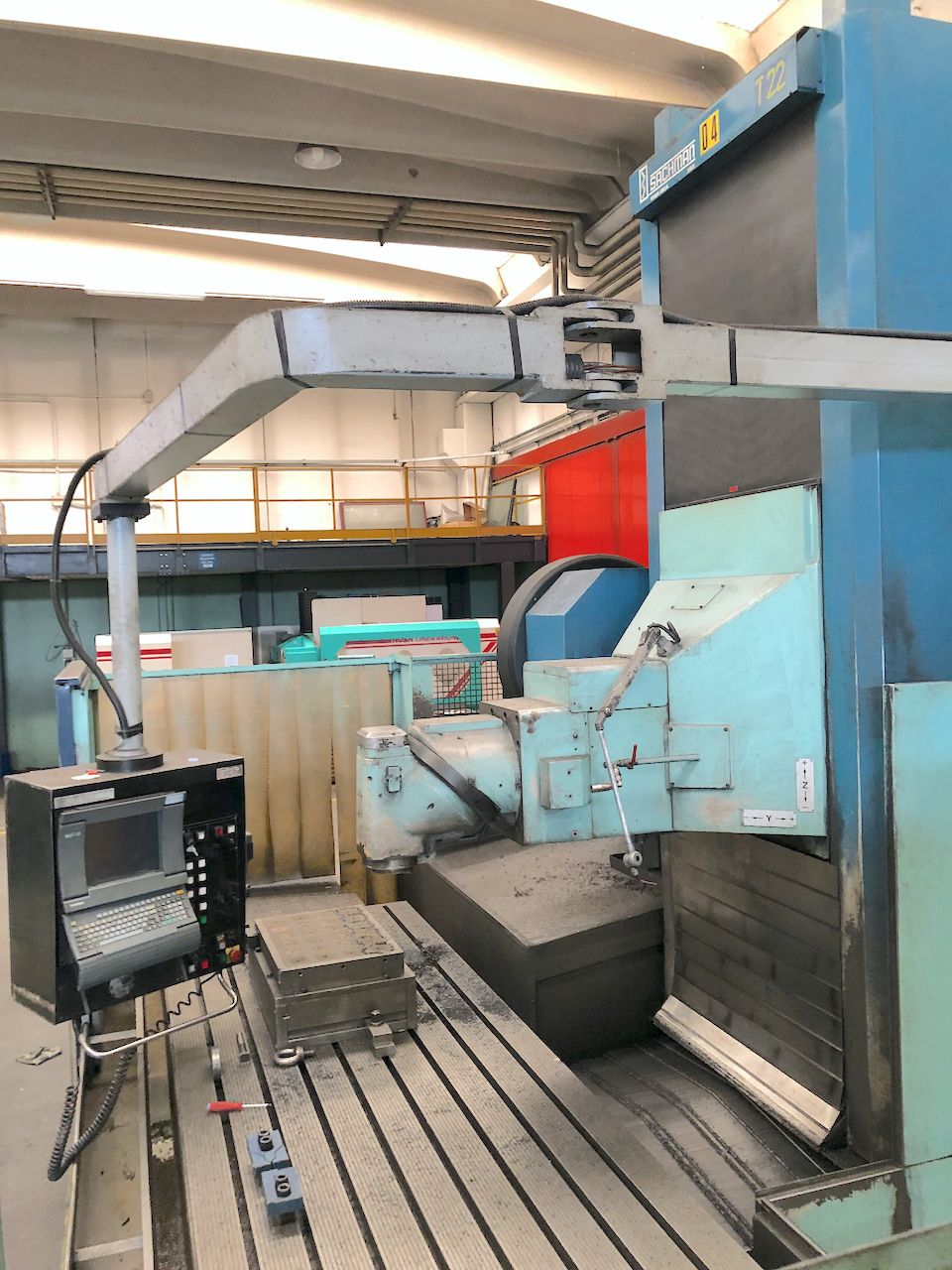

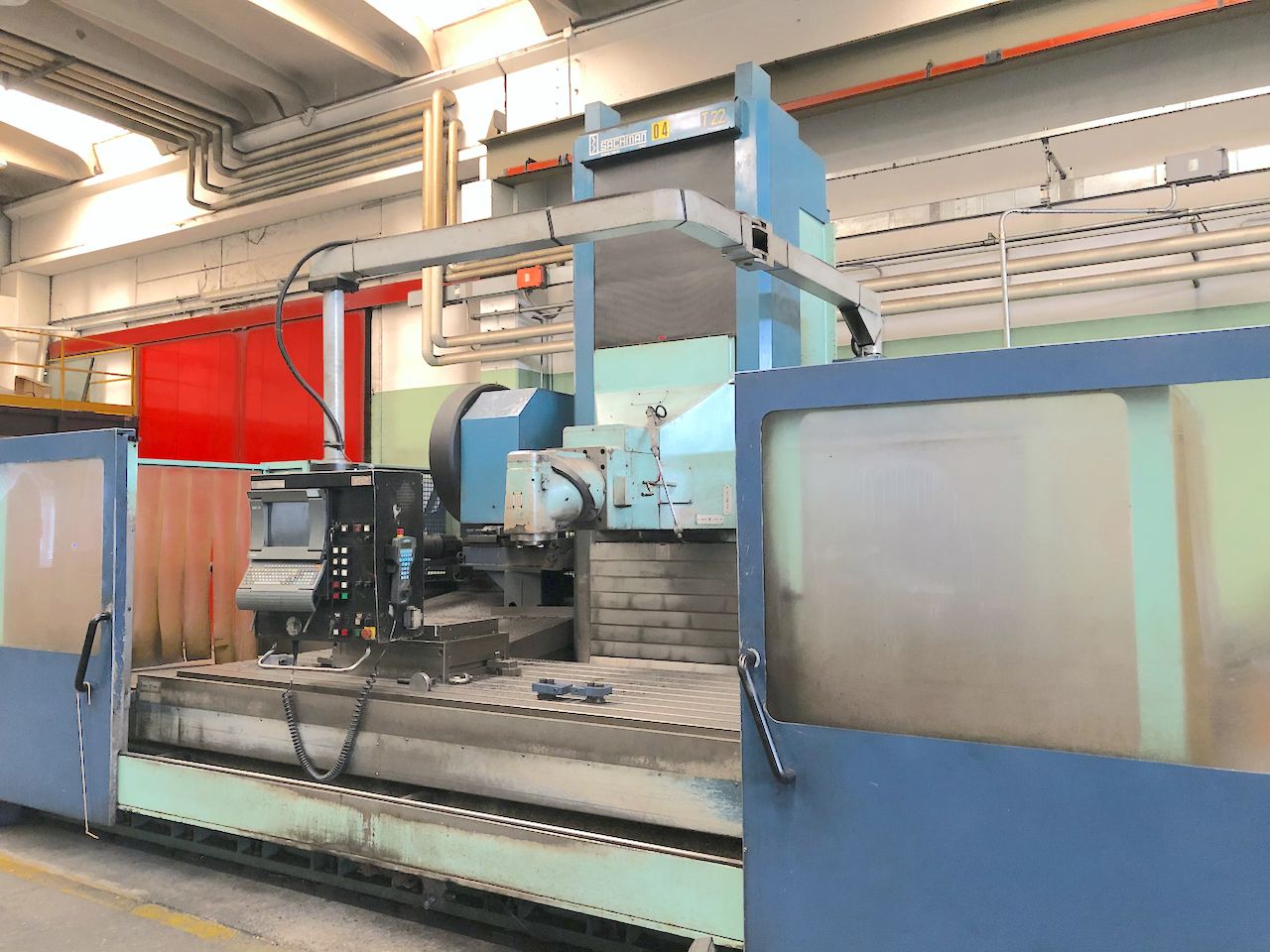

Milling machine
Type
T type
Made
Model
T22
Capacity
3000x1500x1400 mm118,11x59,06x55,12 in

Technical specifications

Metric Imperial
WORKING CAPACITY
Longitudinal (X)
3000 mm118,11 in
Vertical (Y)
1500 mm59,06 in
Cross column (Z)
1400 mm55,12 in
HEAD 1
A axis
120x3 °
Type
KOSMO5000
Spindle taper
ISO50 DIN69871
C axis
360x1 °
Max speed
5000 Rpm
Max power
24 Kw
CNC
CNC
SELCA S40405D + Volantino elettronico
Drives
Siemens
Measuring system
Righe ottiche
SPINDLE
Spindle power
28 Kw
Rotating speed
5000 Rpm
Taper
ISO50 DIN69871
FEEDS
Rapid X
12 m/min472,44 ipm
Rapid Y
12 m/min472,44 ipm
Rapid Z
12 m/min472,44 ipm

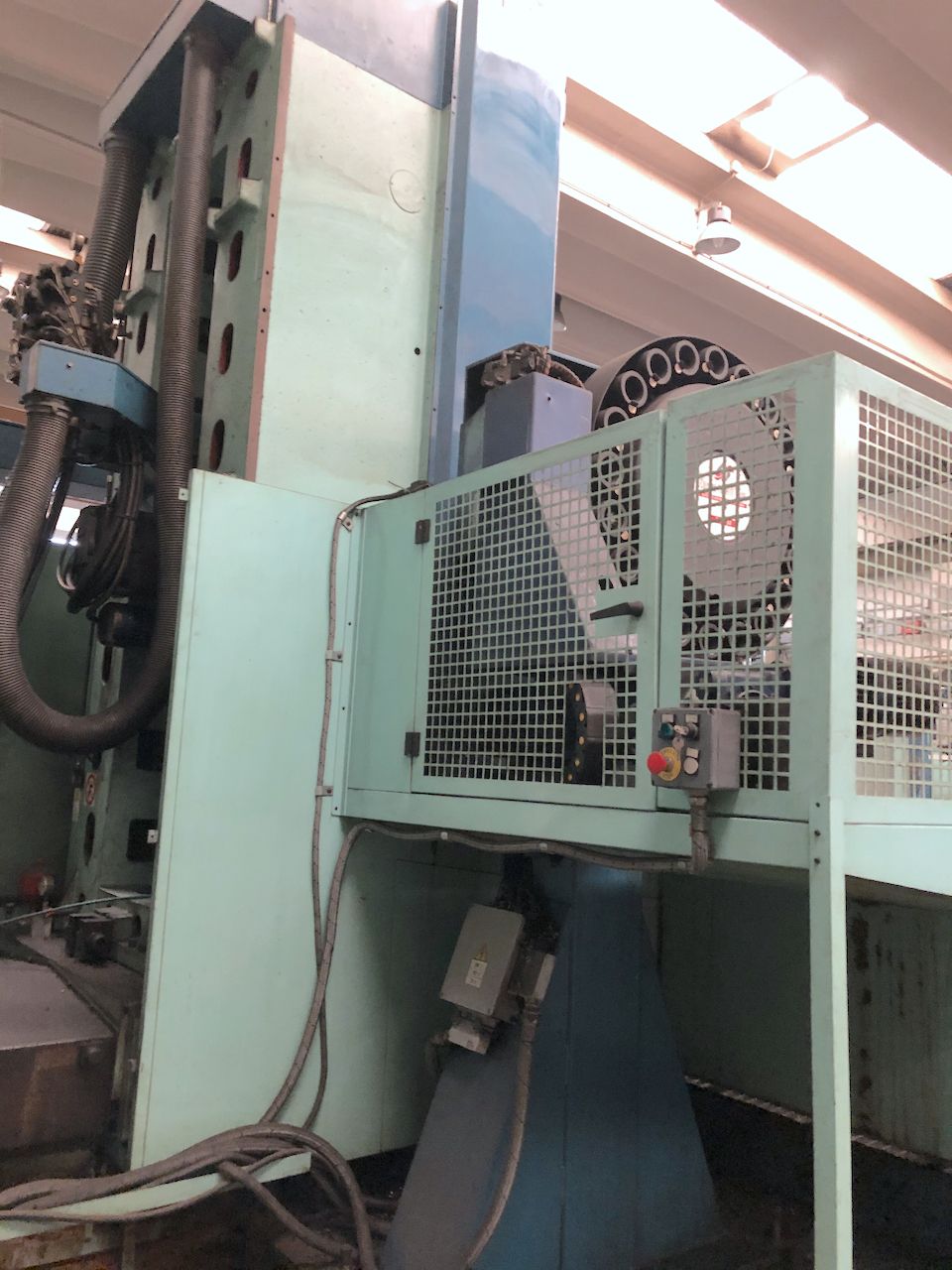

ATC
Positions
20
Max tool diameter
120 mm4,72 in
Max diam with free adiacent space
200 mm7,87 in
Max tool lenght
400 mm15,75 in
Max tool weight
20 Kg
Tool taper
ISO50
TABLE 1
Surface
3200x1100 mm125,98x43,31 in
Capacity
10000 Kg
EXTRA
Total power supply
48 Kw
Machine total weight
29000 Kg
Chiller
si
Maintenance & Use books
Yes
Electrical drawings
Yes
CE Certification
Yes
Chip conveyor
si
Availability
pronta
Floor space
7700x4800x4117 mm303,15x188,98x162,09 in
