Category
Milling machine
Type
T type
Made
Model
T15HS
Capacity
2500x1200x1200 mm98,43x47,24x47,24 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
2500 mm98,43 in
Vertical (Y)
1200 mm47,24 in
Cross column (Z)
1200 mm47,24 in

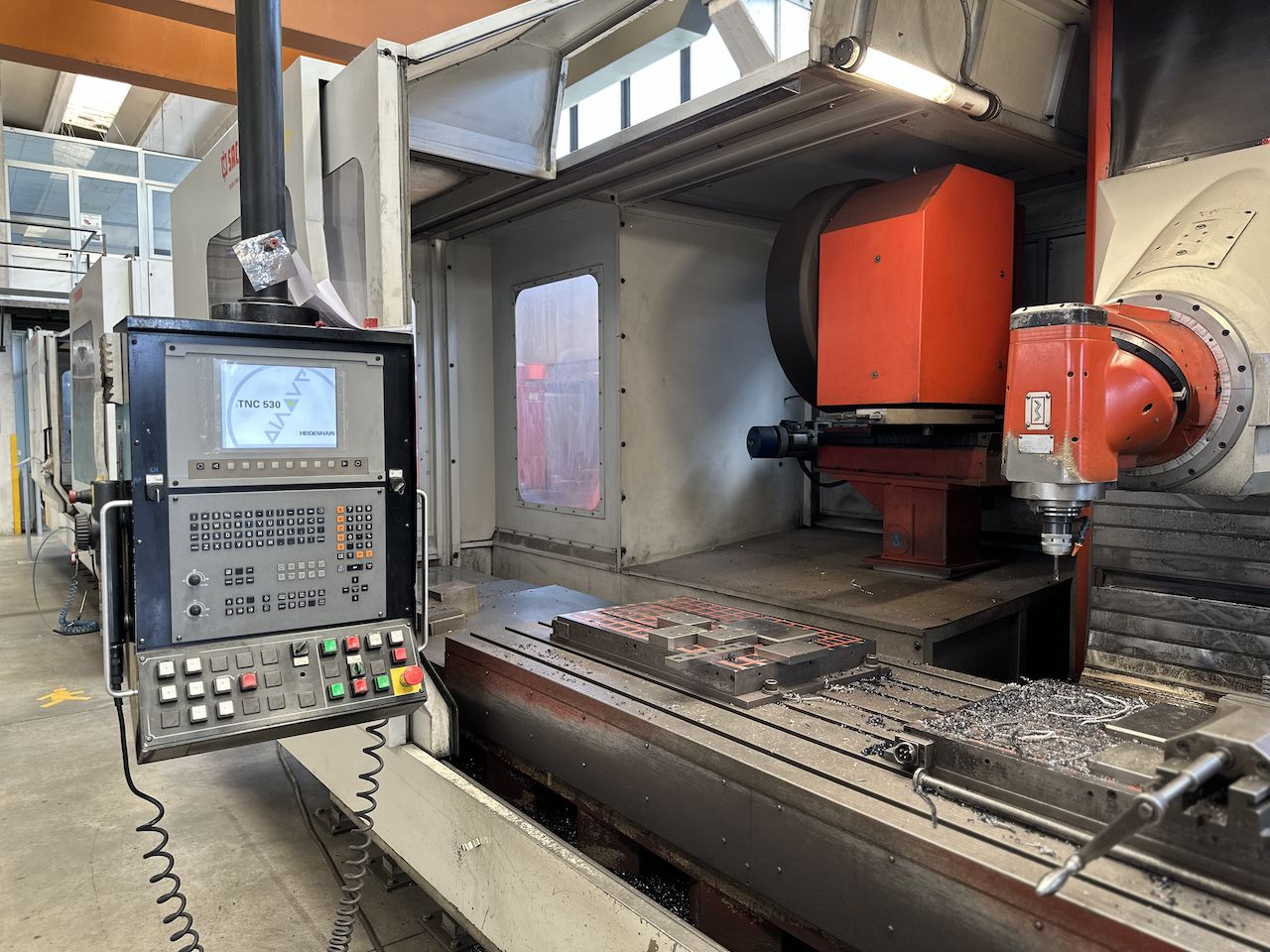

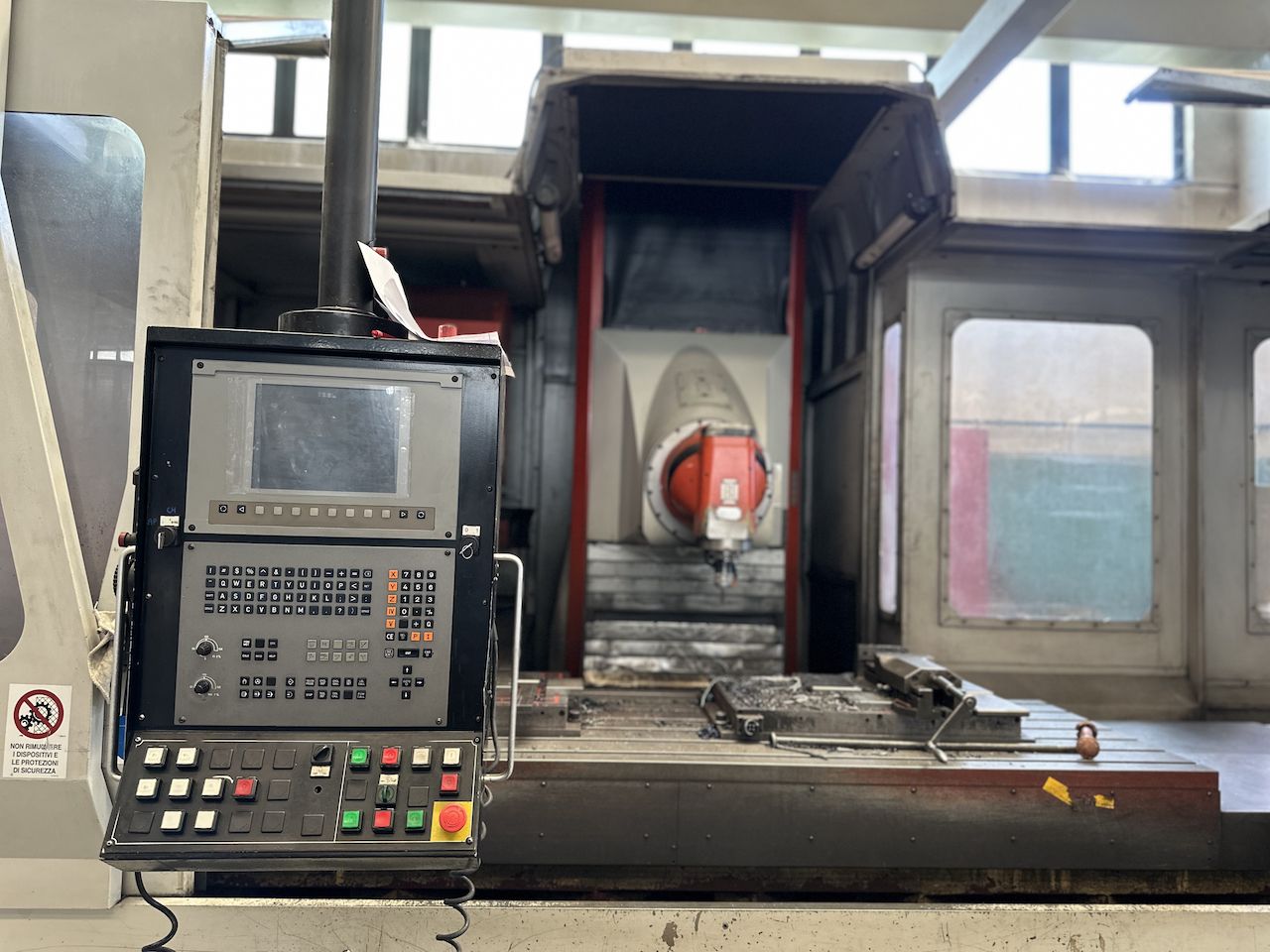

CNC
CNC
Heidenhain TNC530
Notes
volantino elettronico HR410, Presetting TT130
FEEDS
Rapid X
40 m/min1.574,80 ipm
Rapid Y
40 m/min1.574,80 ipm
Rapid Z
40 m/min1.574,80 ipm

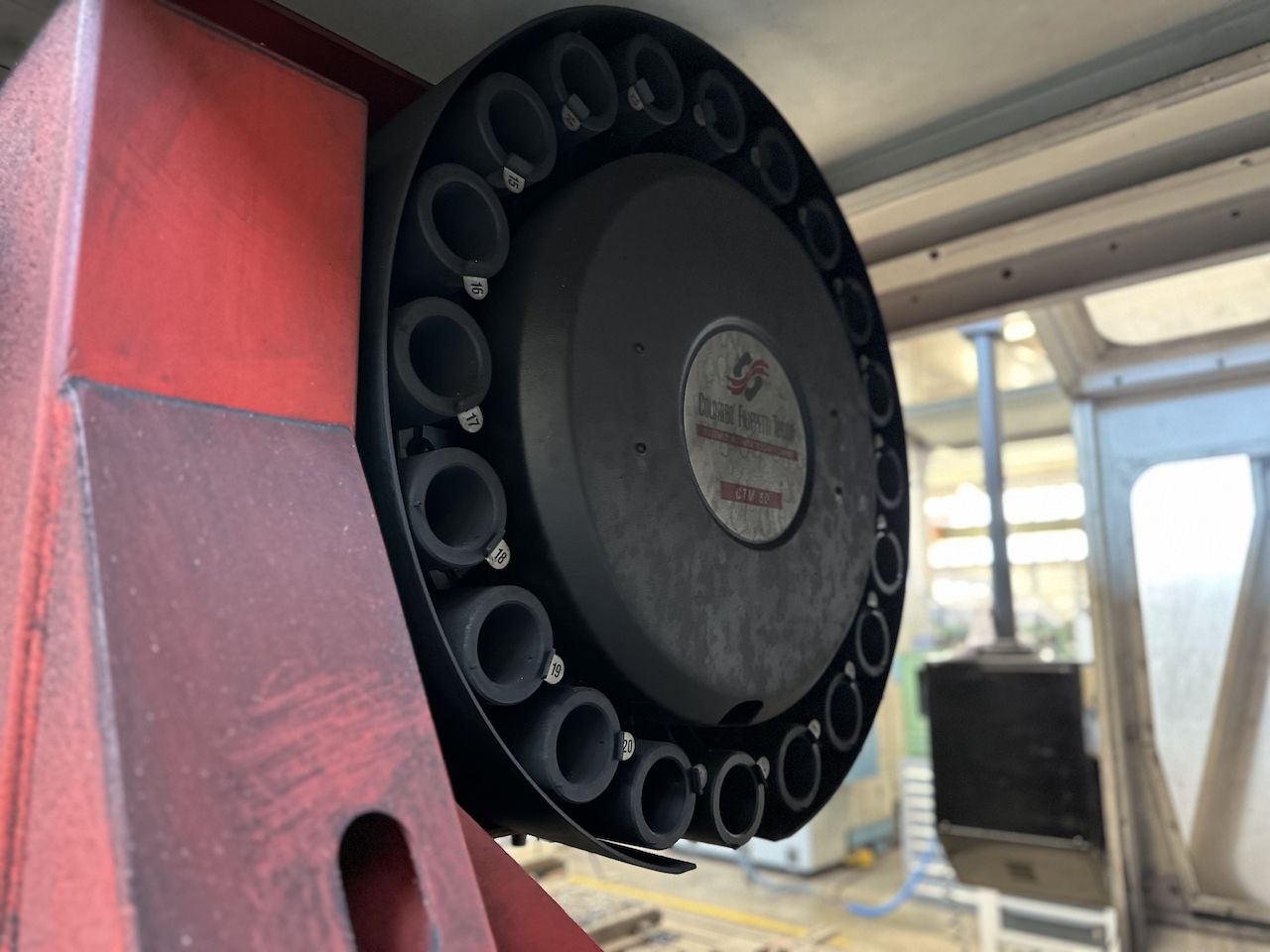

ATC
Positions
20
Tool taper
ISO50
TABLE 1
Surface
2700x900 mm106,30x35,43 in
Translation
2500 mm98,43 in
Capacity
4000 Kg

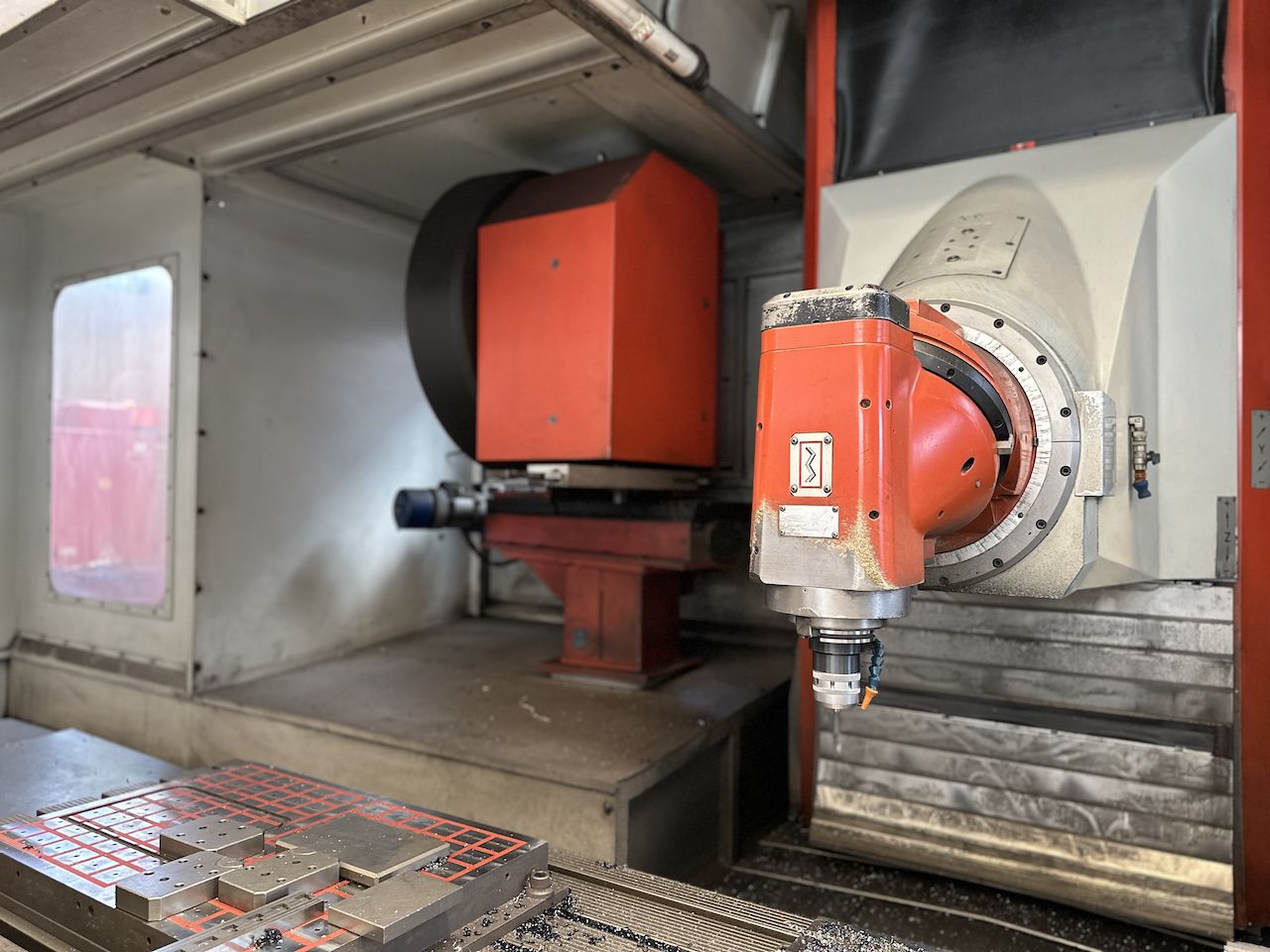

HEAD 1
Type
KOSMO500
Spindle taper
ISO50
A axis
120x3 °
C axis
144x2,5 °
Max speed
5000 Rpm
Max power
35 Kw
EXTRA
Tool presetter
TT130
CE Certification
Yes
Electrical drawings
Yes
Maintenance & Use books
Yes
Housing
integrale con tetto

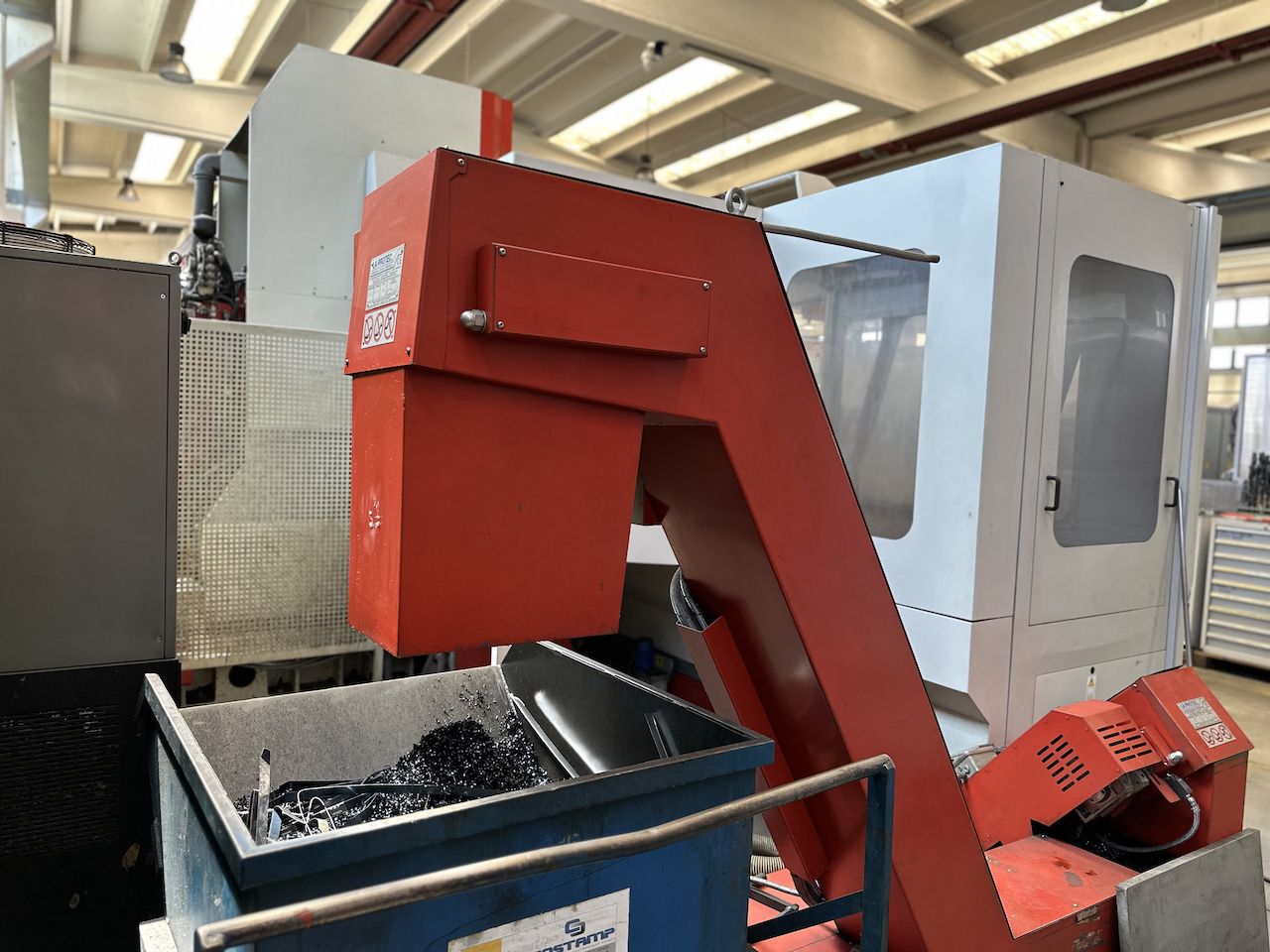

Chip conveyor
evacuatore trucioli a nastro con serbatoio e pompa per liquido refrigerante
