Category

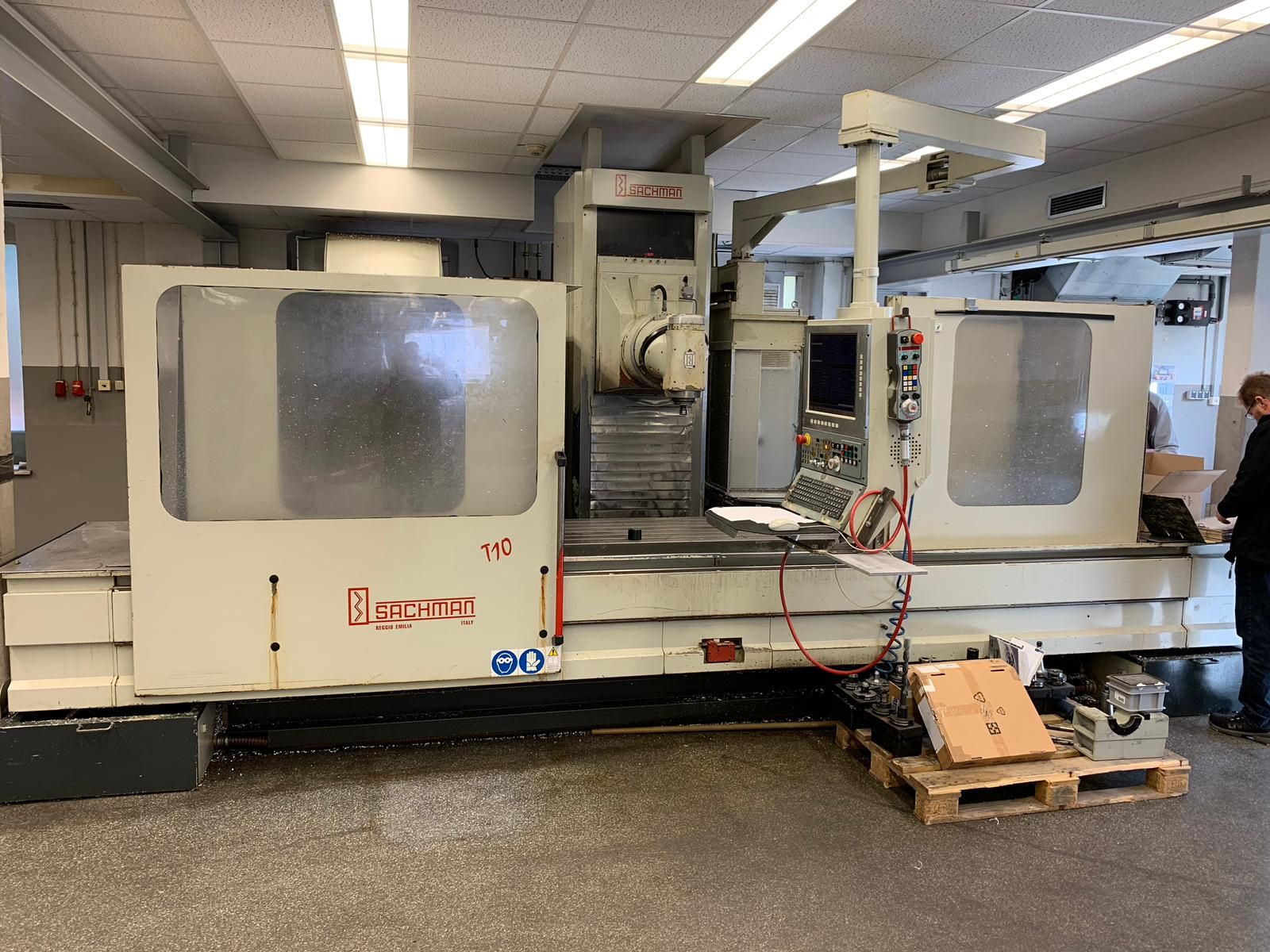

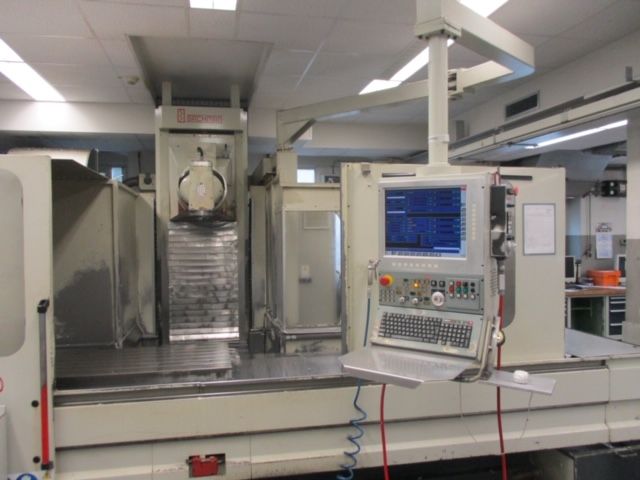

Milling machine
Type
T type
Made
Model
T10GP
Capacity
2000x1000x1075 mm78,74x39,37x42,32 in

Technical specifications

Metric Imperial
WORKING CAPACITY
Longitudinal (X)
2000 mm78,74 in
Vertical (Y)
1000 mm39,37 in
Cross column (Z)
1075 mm42,32 in
Axes support
Guide piane

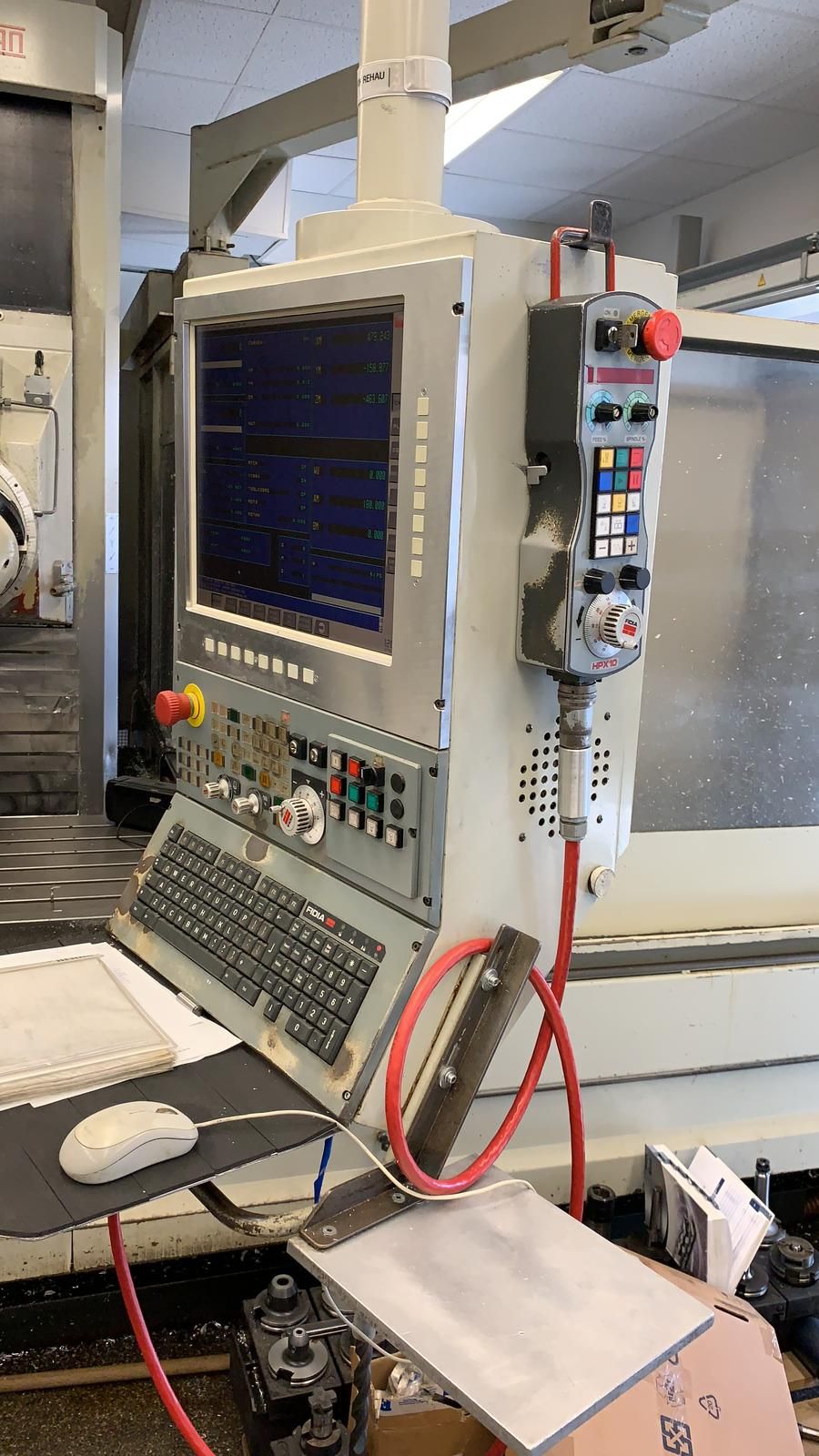

CNC
CNC
CNC FIDIA C20 4M + HPX10/03
Notes
electronic compensating device for therimc head expansion
FEEDS
Rapid X
15 m/min590,55 ipm
Rapid Y
15 m/min590,55 ipm
Rapid Z
15 m/min590,55 ipm
TABLE 1
Surface
2200x710 mm86,61x27,95 in

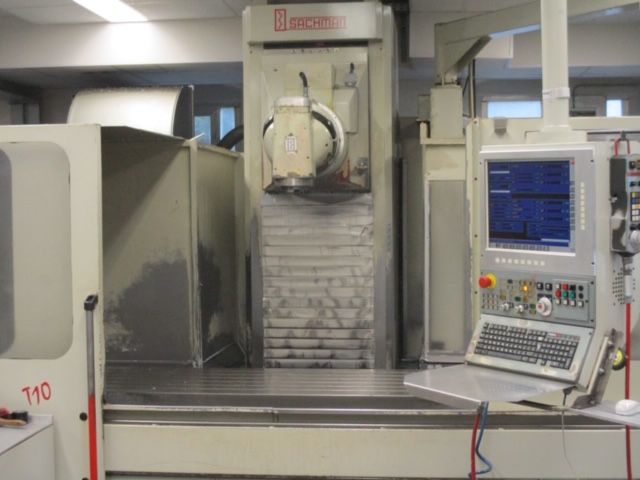

HEAD 1
Type
KOSMO 5000
Spindle taper
ISO50 DIN69871
A axis
1 °
C axis
3 °
Max speed
5000 Rpm
Max power
17 Kw
SPINDLE
Spindle power
17,5 Kw
Gearbox
2 gears
Rotating speed
5000 Rpm
Taper
ISO50 DIN 69871
EXTRA
CE Certification
Yes

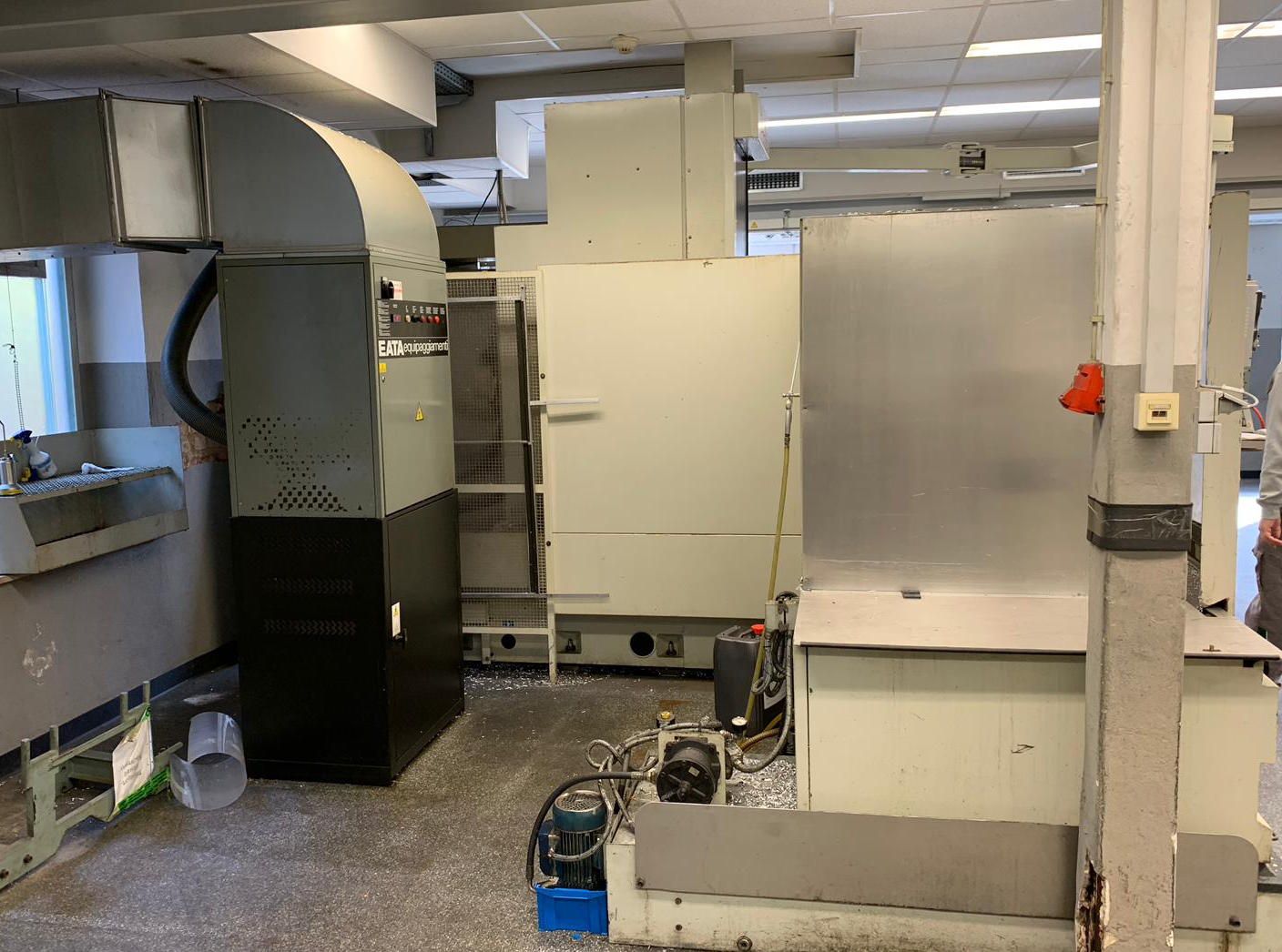

High Pressure
15Bar CTS

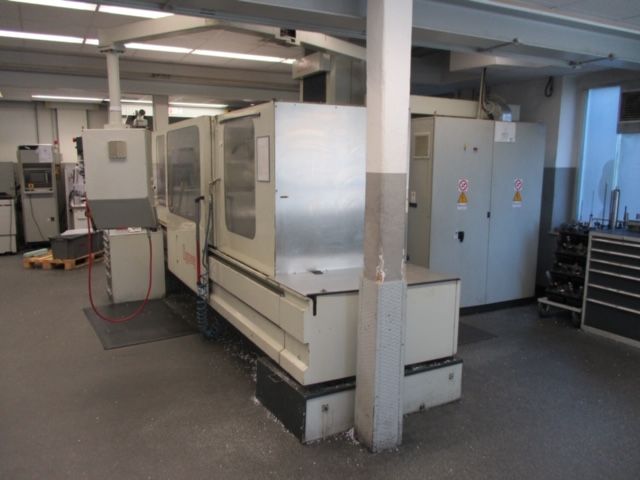

Housing
perimetrale
Availability
pronta
Available in stock
si

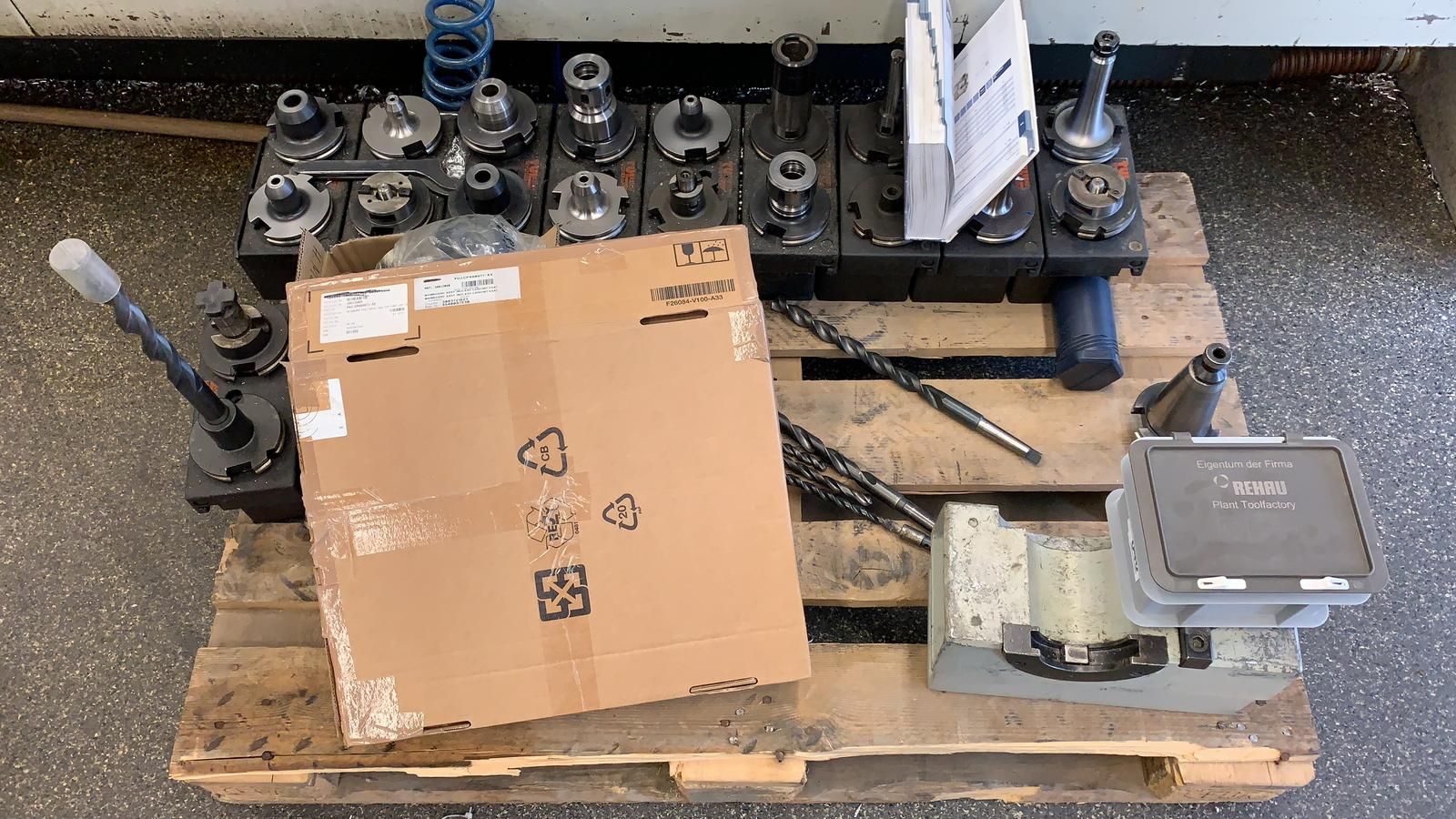

Tooling included
set di coni ISO50
