Category
Milling machine
Type
T type
Made
Model
T10 HS 2000
Capacity
2000x1075x900 mm78,74x42,32x35,43 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
2000 mm78,74 in
Vertical (Y)
900 mm35,43 in
Cross column (Z)
1075 mm42,32 in
Axes support
guide a rulli

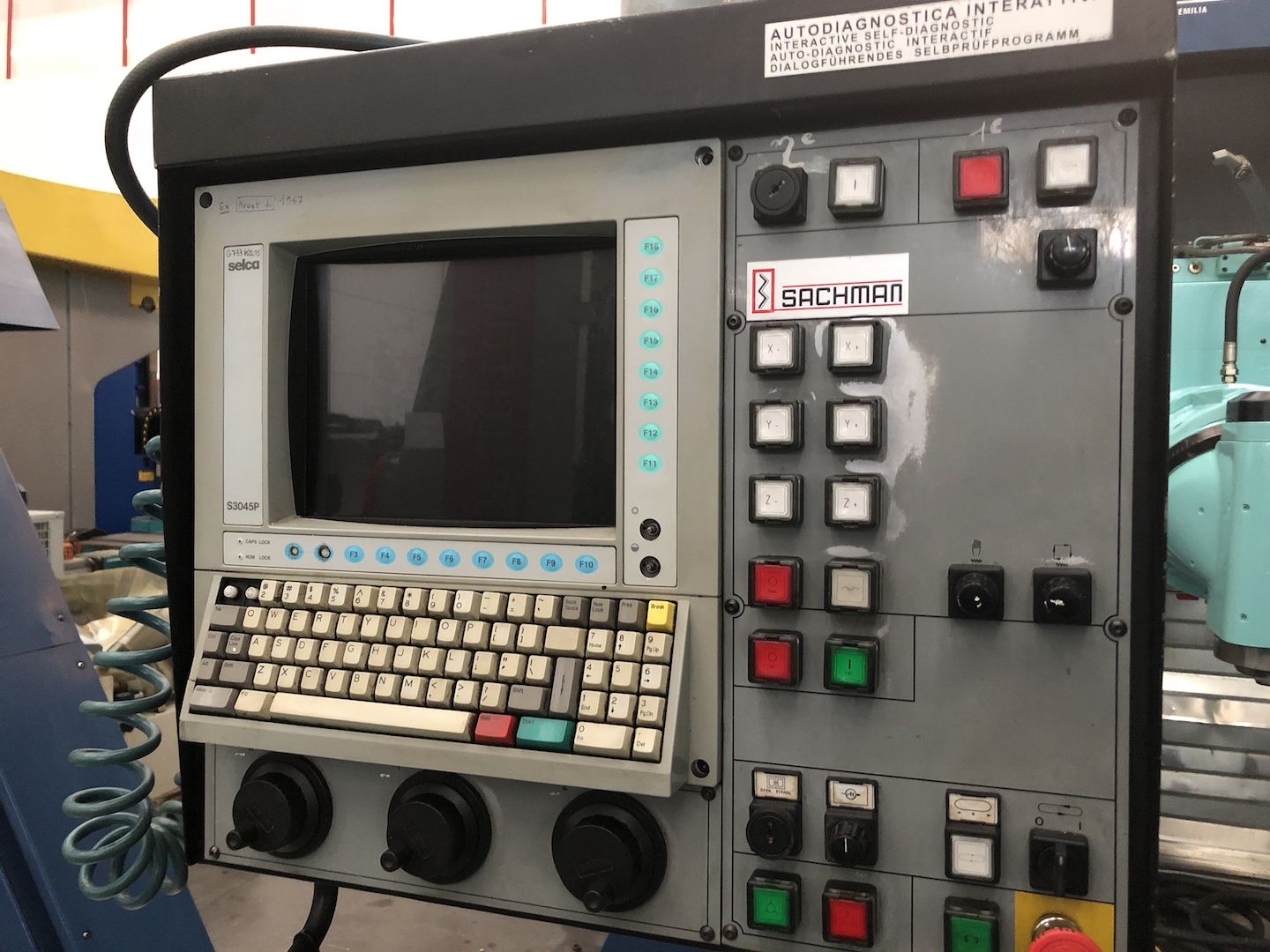

CNC
CNC
SELCA 3045
Drives
Siemens Simodrive 611
SPINDLE
Spindle power
17/25 Kw
Rotating speed
4000 Rpm
Taper
ISO50
FEEDS
Rapid X
25 m/min984,25 ipm
Rapid Y
25 m/min984,25 ipm
Rapid Z
25 m/min984,25 ipm

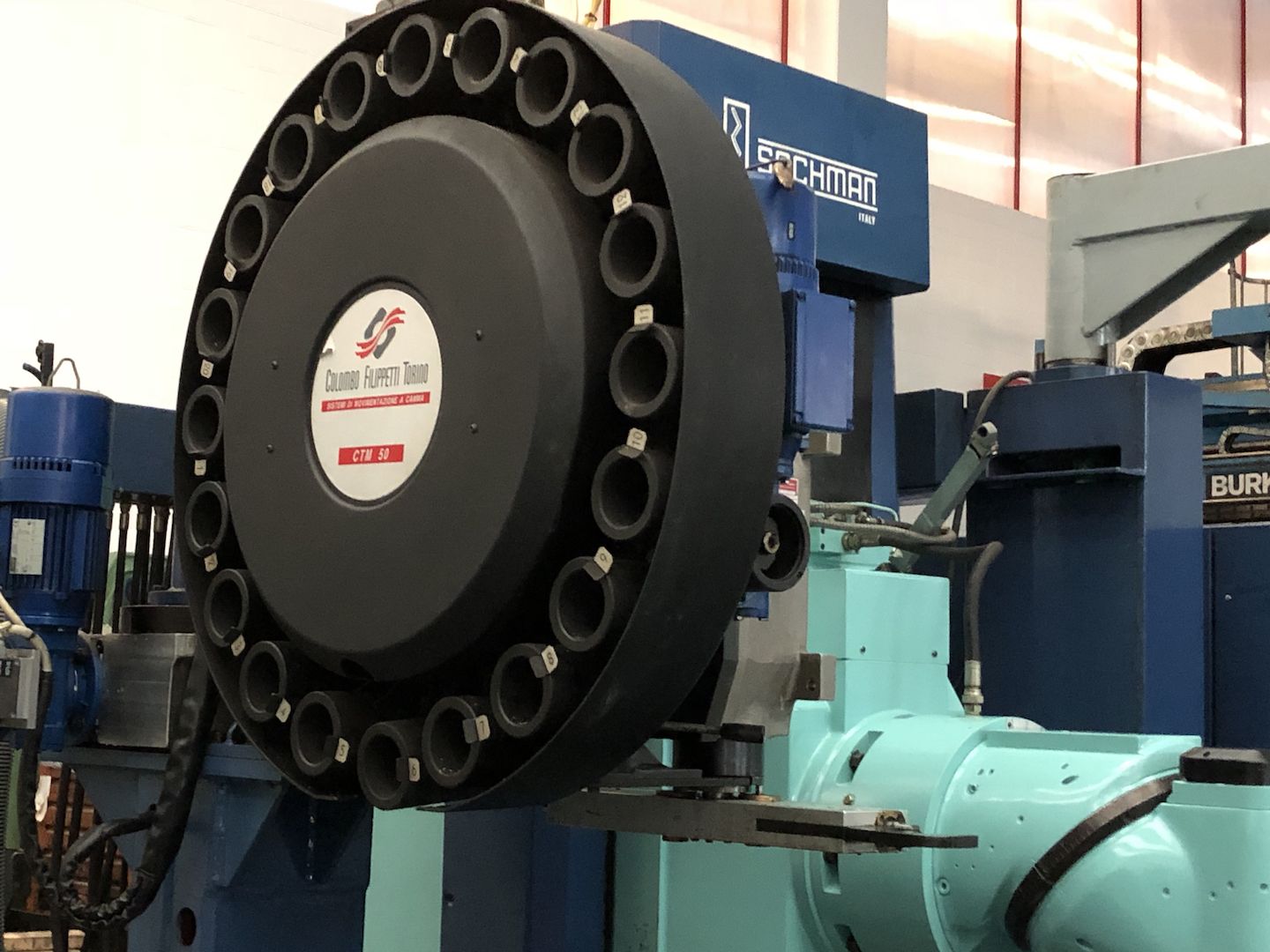

ATC
Positions
24
Max tool diameter
125 mm4,92 in
Max diam with free adiacent space
150 mm5,91 in
Max tool lenght
500 mm19,69 in
Max tool weight
25 Kg
Tool taper
ISO50

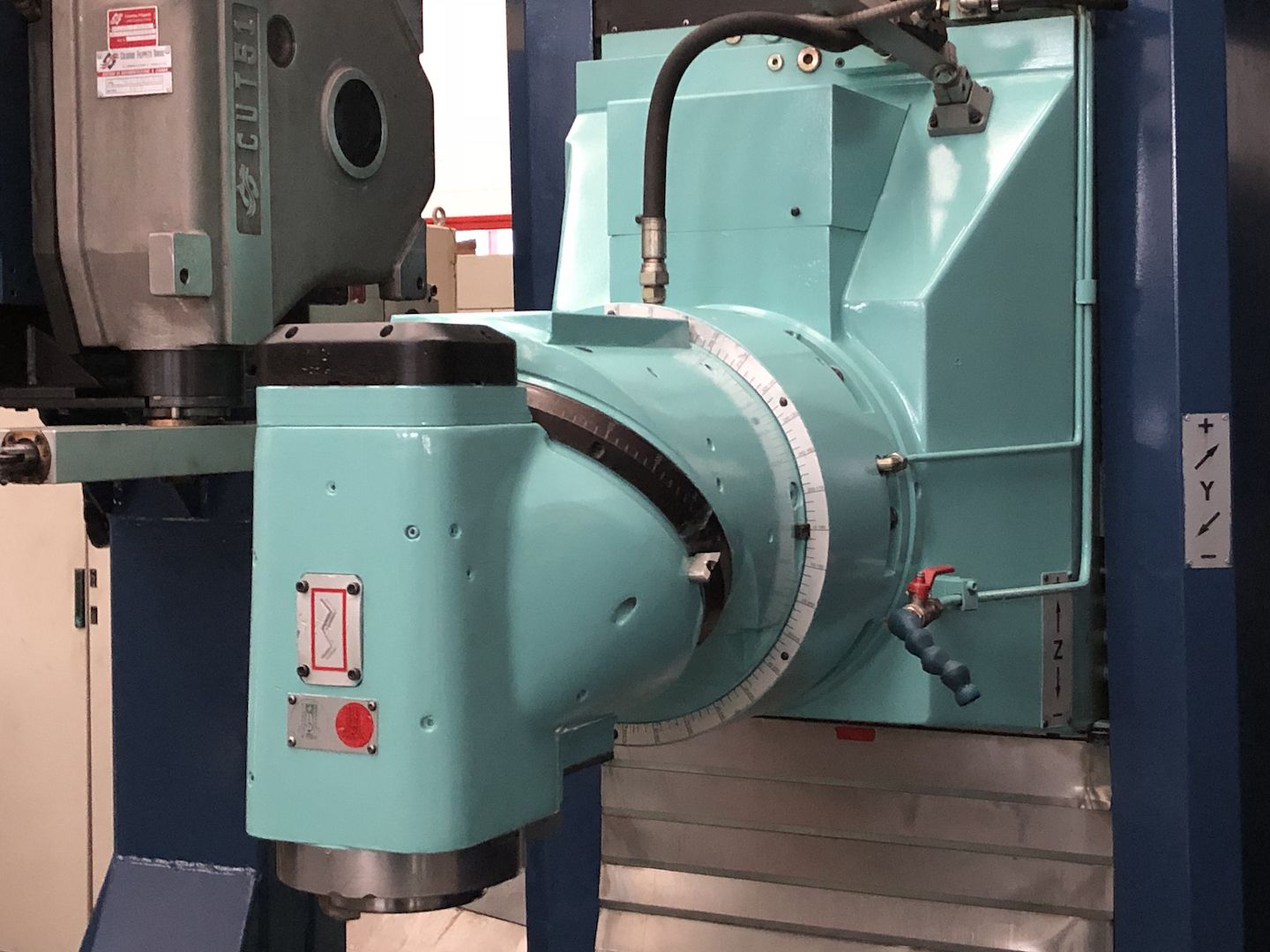

HEAD 1
Type
KOSMO4000
Spindle taper
ISO50
A axis
2,5 °
C axis
3 °
Max speed
4000 Rpm
Coolant
interna/esterna
TABLE 1
Capacity
4000 Kg
Support
guide a rulli
EXTRA
Total power supply
28 Kw
Machine total weight
19800 Kg
Chiller
si
Maintenance & Use books
Yes
Electrical drawings
Yes
CE Certification
Yes
Housing
perimetrale
Chip conveyor
longitudinale
Availability
pronta
Available in stock
si
