Category
Milling machine
Type
T type
Made
Model
T10 GP
Capacity
2000x1075x1000 mm78,74x42,32x39,37 in

Technical specifications

Metric Imperial
WORKING CAPACITY
Longitudinal (X)
2000 mm78,74 in
Vertical (Y)
1075 mm42,32 in
Cross column (Z)
1000 mm39,37 in

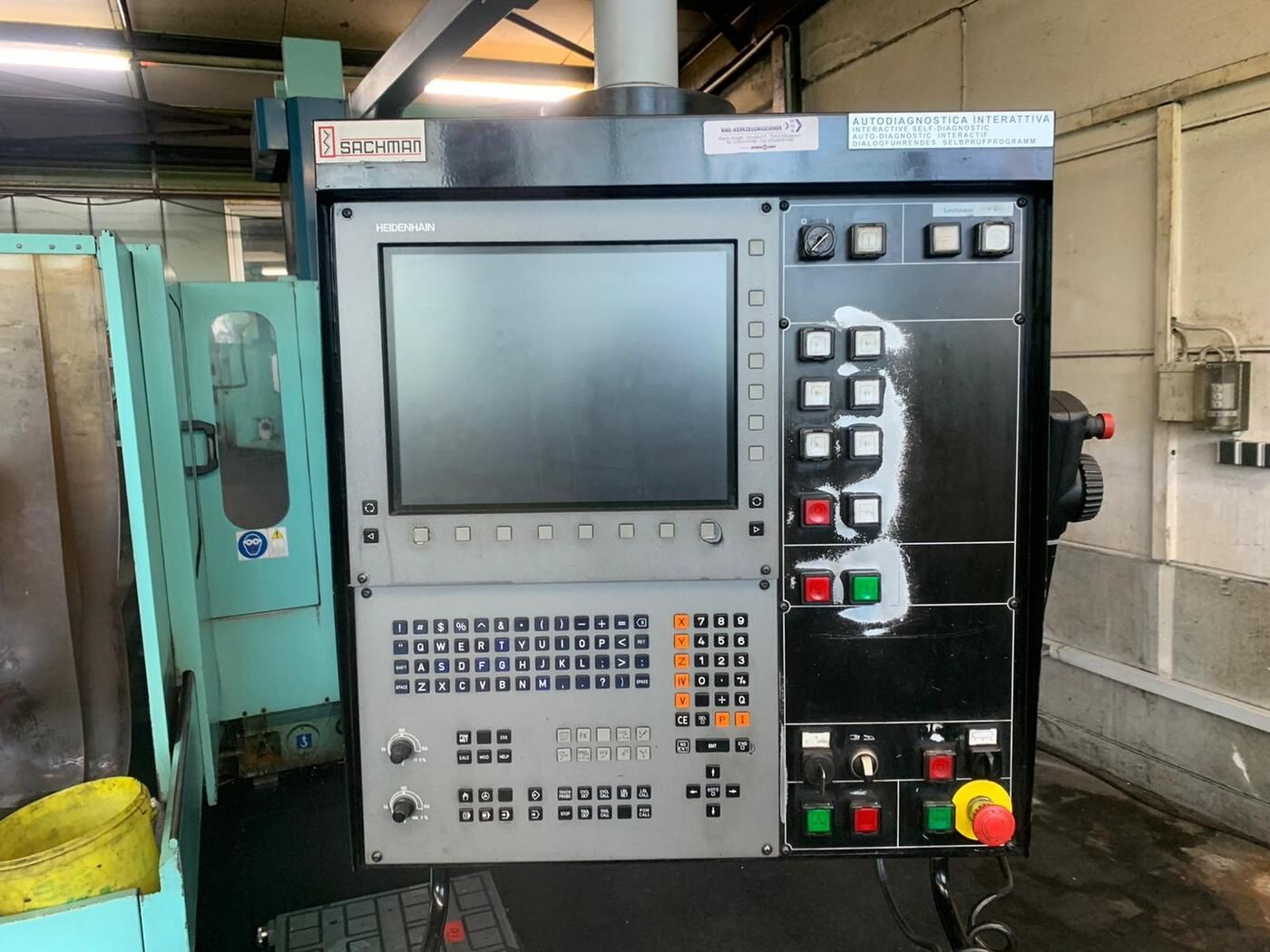

CNC
CNC
HEDENHEIN 430
SPINDLE
Spindle power
15 Kw
Rotating speed
4000 Rpm
Taper
ISO 50
FEEDS
Rapid X
25000 m/min984.250,00 ipm
Rapid Y
25000 m/min984.250,00 ipm
TABLE 1
Surface
2200X710 mm86,61X27,95 in
Capacity
3000 Kg
HEAD 1
Type
KOSMO 4000
Spindle taper
ISO 50
A axis
3 °
C axis
2,5 °
Max speed
4000 Rpm
Max power
15 Kw
EXTRA
Floor space
7000X3900X3300 mm275,59X153,54X129,92 in
Chiller
SI
Maintenance & Use books
Yes
Electrical drawings
Yes
CE Certification
Yes
Housing
COMPLETA

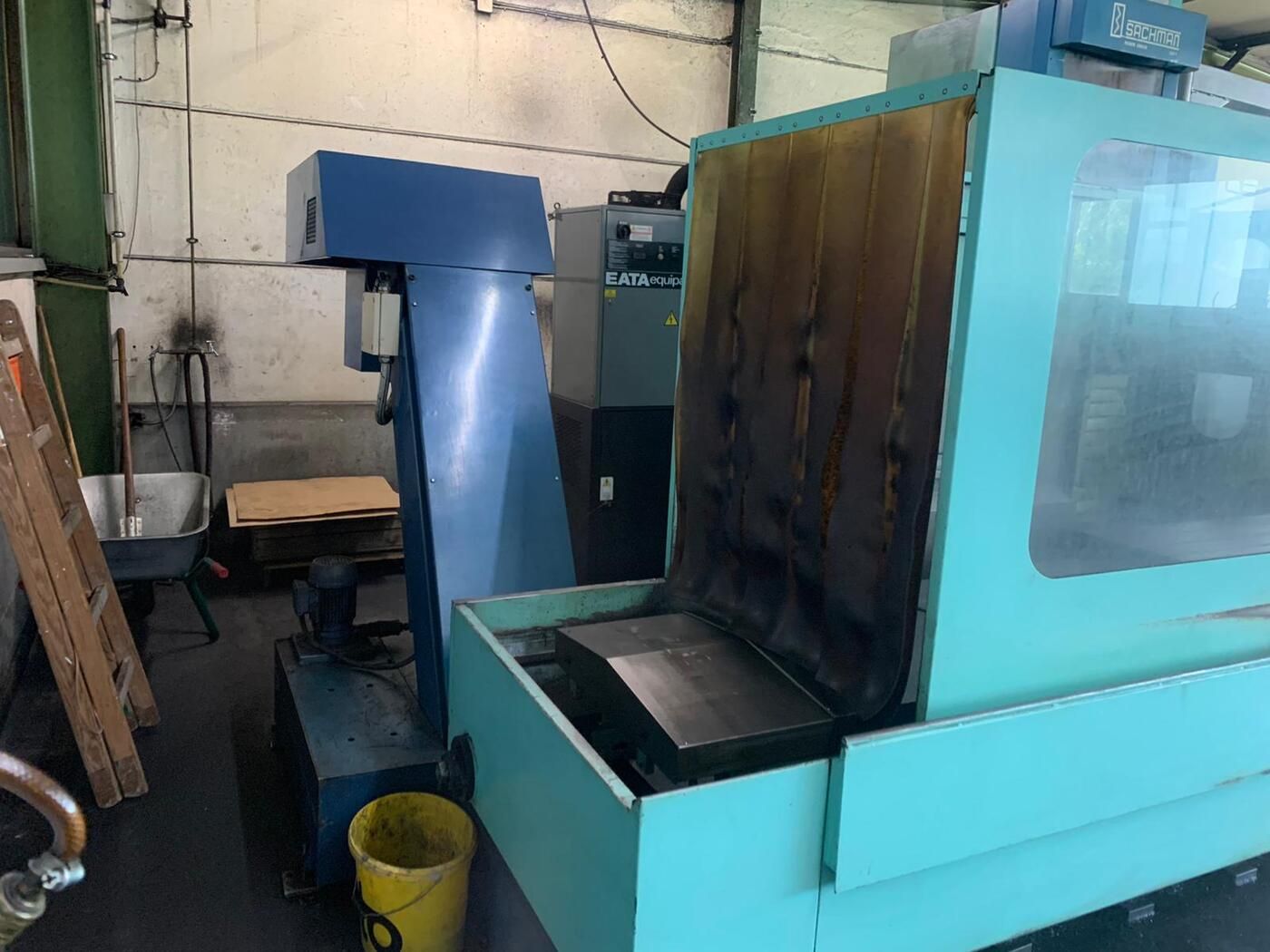

Chip conveyor
SI
Availability
PRONTA
Available in stock
SI
