Category
Milling machine
Type
T type
Made
Model
HB2 T
Capacity
3000x1500x1200+950 mm118,11x59,06x47,24+37,40 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Axes support
guide piane
Longitudinal (X)
3000 mm118,11 in
Vertical (Y)
1500 mm59,06 in
Cross column (Z)
1200 mm47,24 in
Ram (V)
950 mm37,40 in

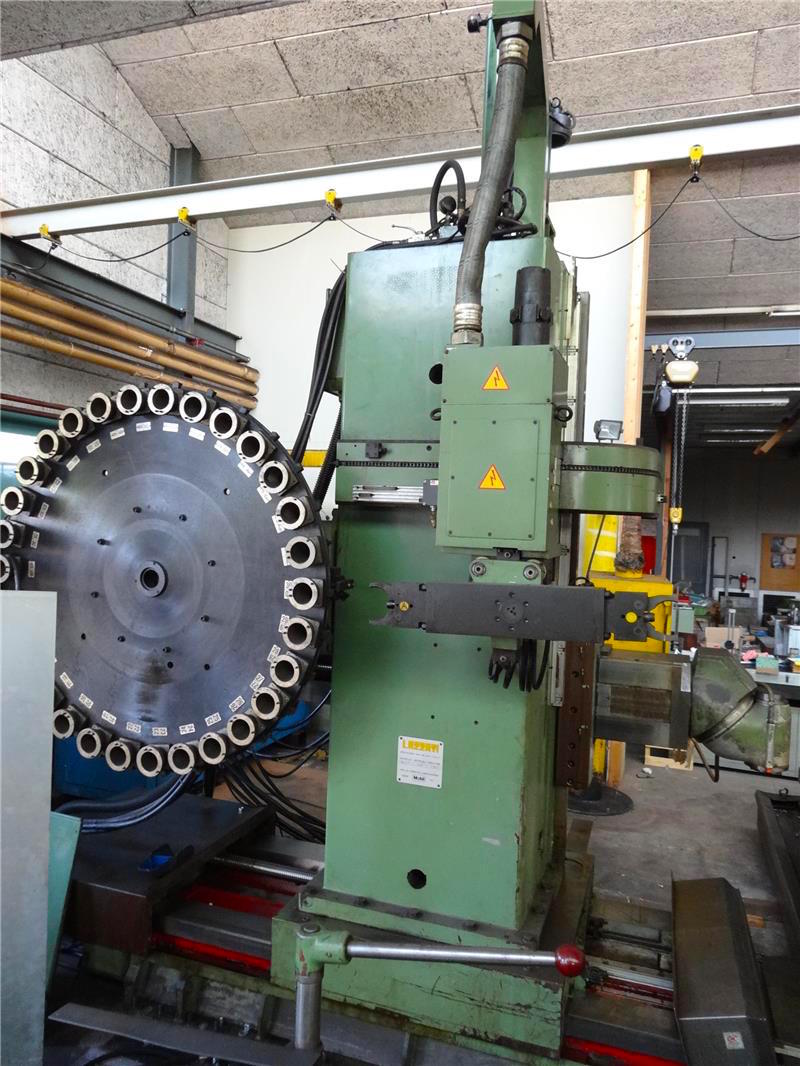

ATC
Tool taper
ISO50
Positions
30
FEEDS
Rapid B
4 Rpm
B
0,0008-2 Rpm
Rapid X
10 m/min393,70 ipm
Rapid Y
10 m/min393,70 ipm
Rapid Z
10 m/min393,70 ipm
Rapid V
10 m/min393,70 ipm
X
5 m/min196,85 ipm
Y
5 m/min196,85 ipm
Z
5 m/min196,85 ipm
V
5 m/min196,85 ipm

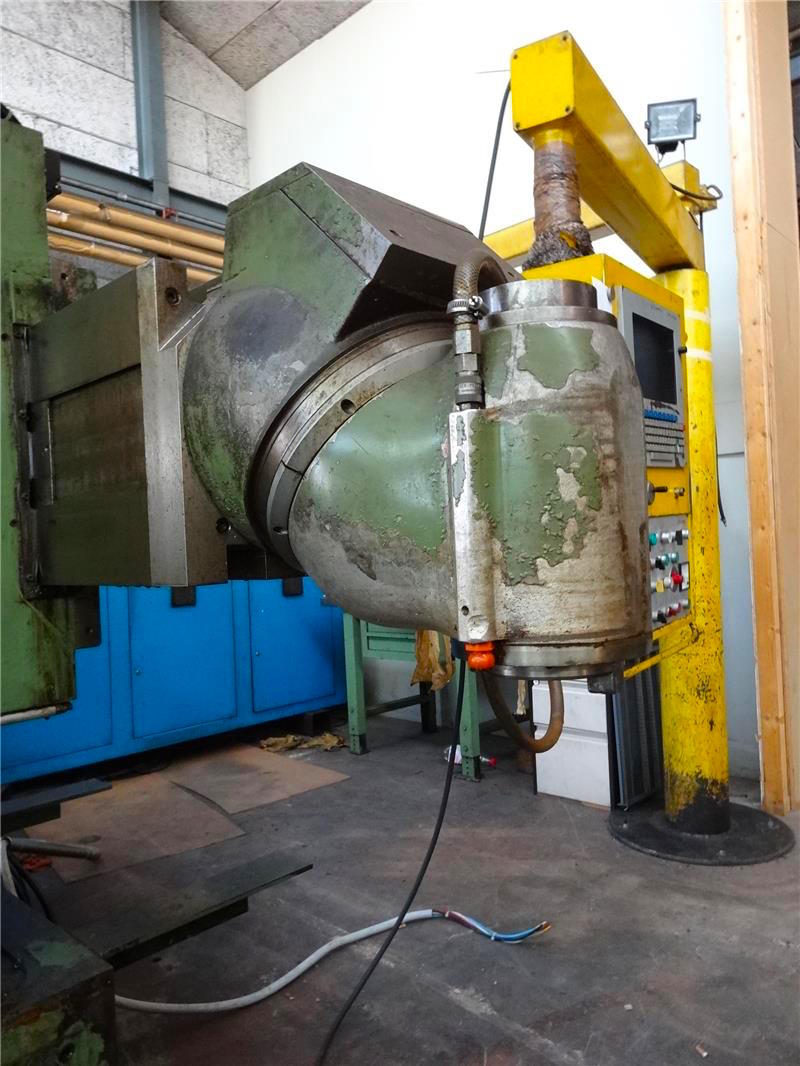

HEAD 1
Type
birotativa automatica
Max power
15 Kw
Spindle taper
ISO50
A axis
360x1 °
C axis
275x1 °
Max torque
1200 Nm
Max speed
5-2000 Rpm

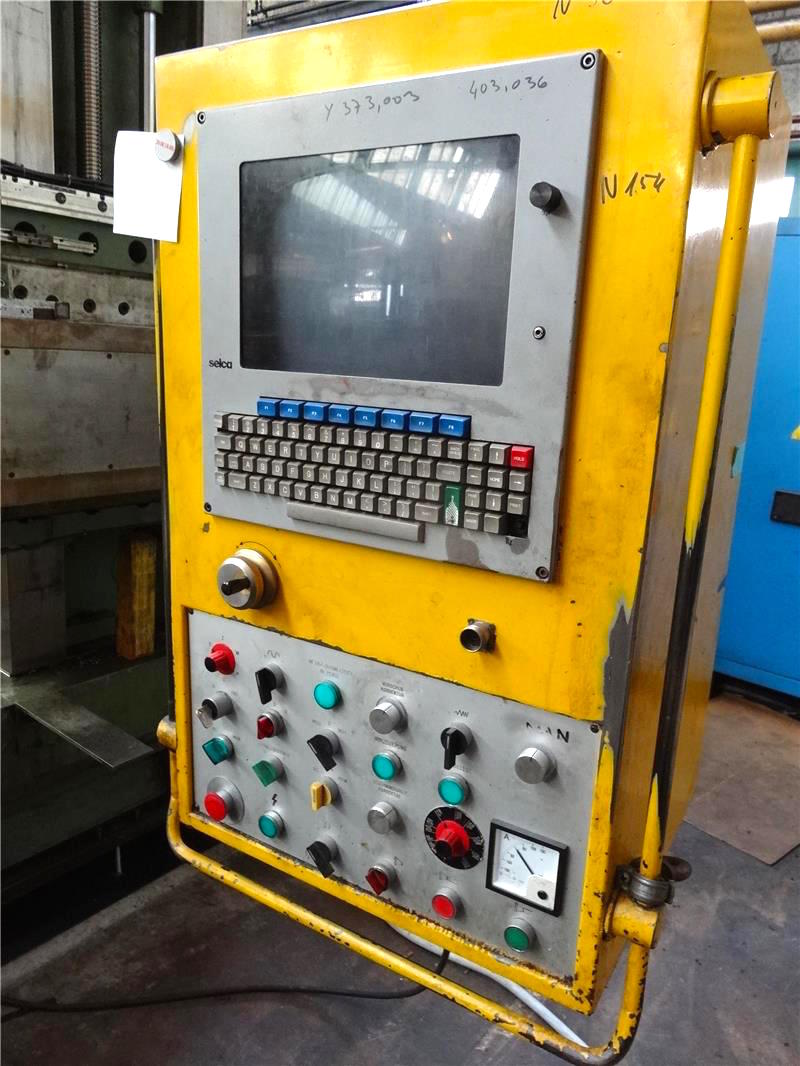

CNC
CNC
SELCA 1200
SPINDLE
Spindle power
15 Kw
Rotating speed
5-2000 Rpm
Torque
1200 Nm
Taper
ISO50

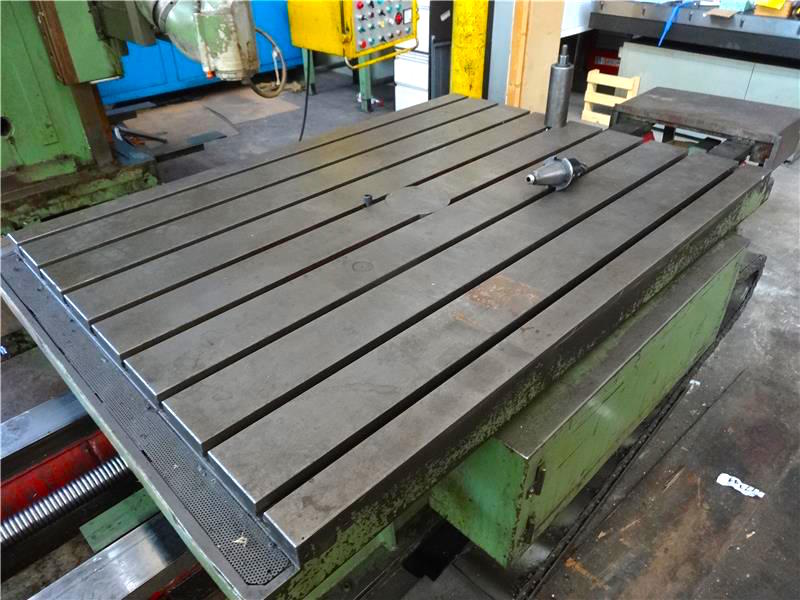

TABLE 1
Surface
1800x1300 mm70,87x51,18 in
Rotating speed
4 Rpm o °/min
EXTRA
Availability
pronta
Available in stock
sì
Total power supply
45 Kw
Machine total weight
17000 Kg
Floor space
6000x6000 mm236,22x236,22 in
Maintenance & Use books
Yes
Electrical drawings
Yes
