Category
Milling machine
Type
T type
Made
Model
LEM T15 TG
Capacity
3000x2000x1500+1000 mm118,11x78,74x59,06+39,37 in

Technical specifications

Metric Imperial
WORKING CAPACITY
Longitudinal (X)
3000 mm118,11 in
Vertical (Y)
2000 mm78,74 in
Ram (V)
1000 mm39,37 in
Cross column (Z)
1500 mm59,06 in
SPINDLE
Torque
1400 Nm
Rotating speed
4000 Rpm
Spindle power
22/27,5 Kw
Taper
ISO50

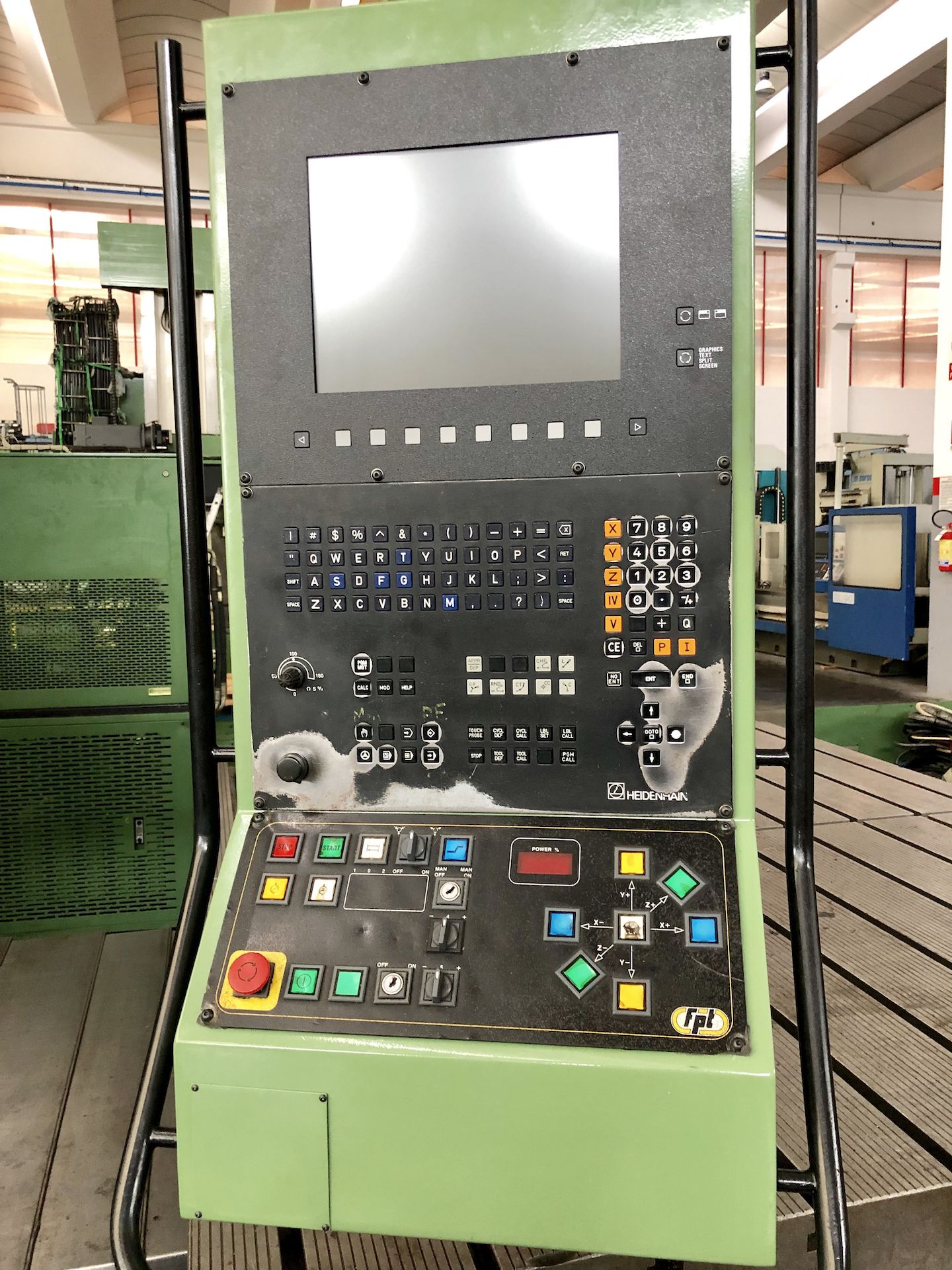

CNC
CNC
Heidenhain TNC426
ATC
Positions
30
TABLE 1
Surface
2500x2000 mm98,43x78,74 in
Accuracy (B axis)
360.000x0,001 °
Capacity
25.000 Kg

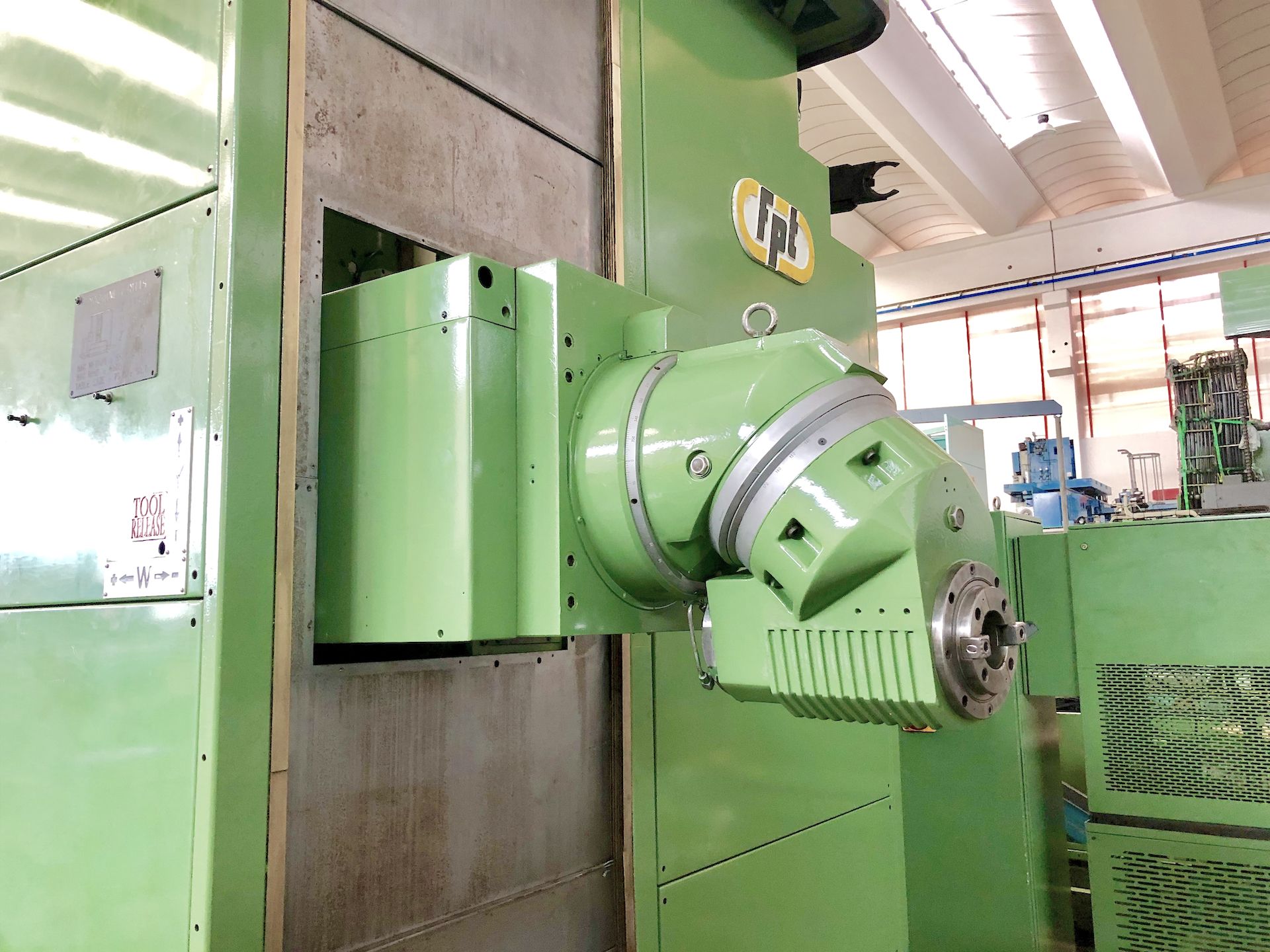

HEAD 1
Type
Testa birotativa automatica TU360
Spindle taper
ISO50
A axis
360x1 °
C axis
360x1 °
Max speed
4000 Rpm
EXTRA
CE Certification
Yes
Total power supply
70 Kw
The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy cannot be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
