Category
Milling machine
Type
T type
Made
Model
AREA T15
Capacity
3000x2000x1500+1000 mm118,11x78,74x59,06+39,37 in

Technical specifications

Metric Imperial
WORKING CAPACITY
Longitudinal (X)
3000 mm118,11 in
Vertical (Y)
2000 mm78,74 in
Cross column (Z)
1500 mm59,06 in
Ram (V)
1000 mm39,37 in
Axes support
idrostatico

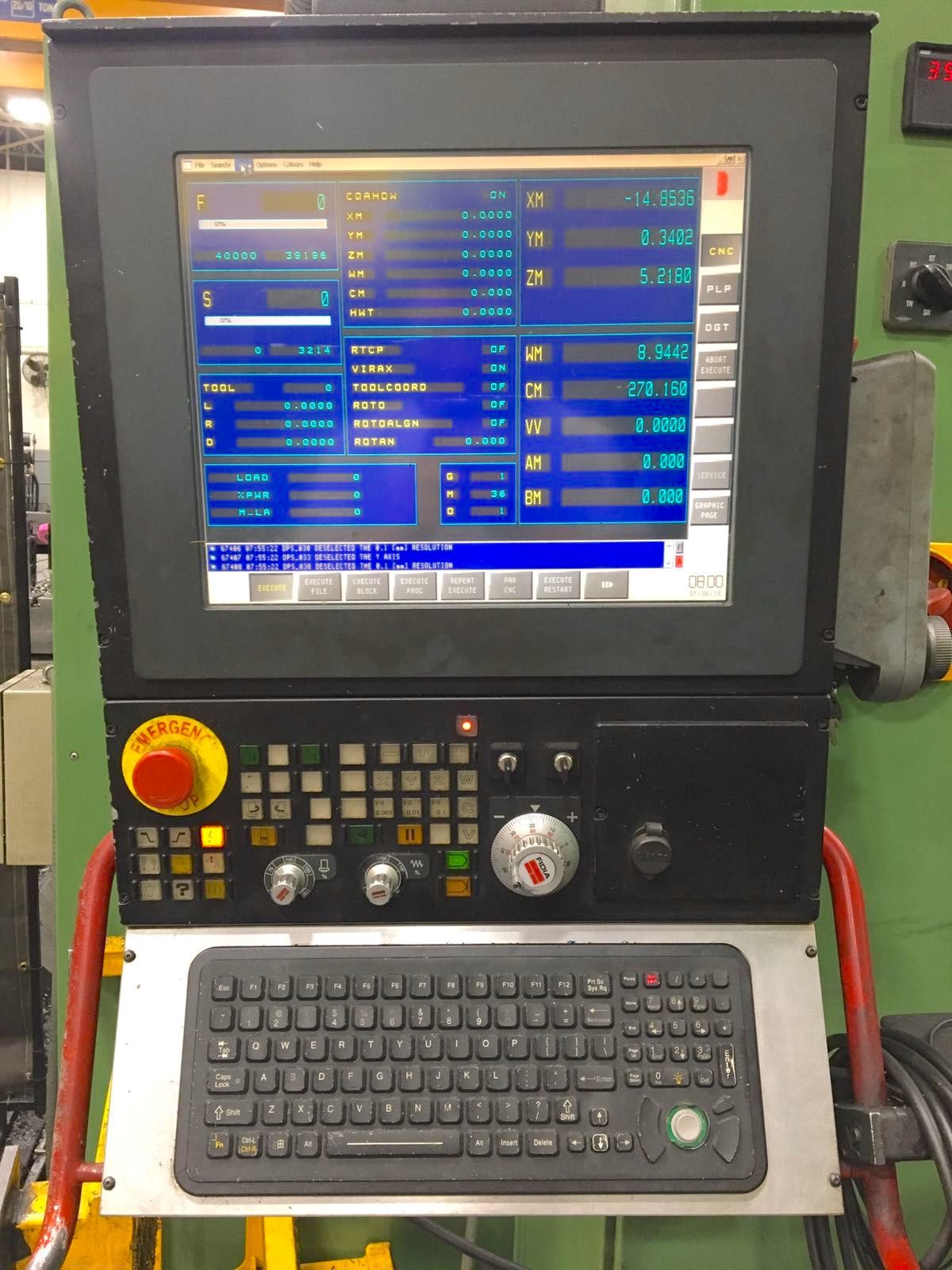

CNC
CNC
Fidia C20

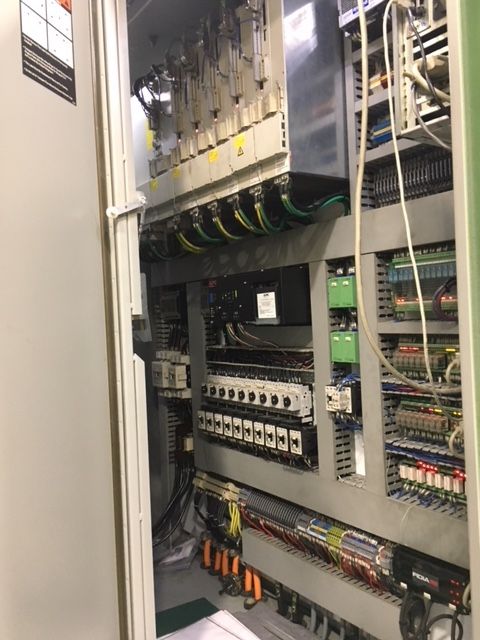

Drives
SIEMENS
SPINDLE
Spindle power
37 Kw
Rotating speed
3000 Rpm
Taper
ISO50
TABLE 1
Surface
2000x1750 mm78,74x68,90 in
Accuracy (B axis)
360.000x0,001 °
Capacity
20.000 Kg

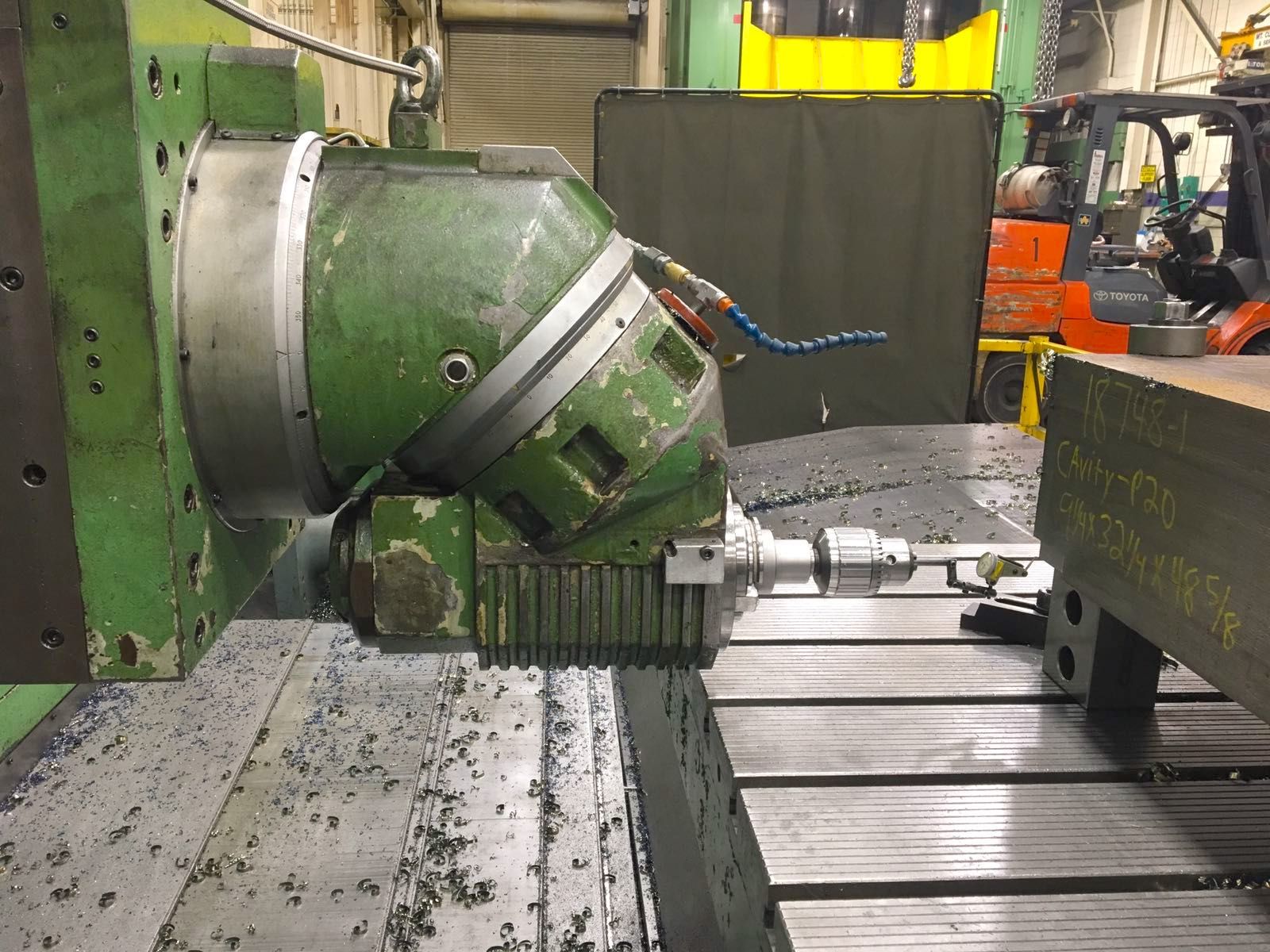

HEAD 1
Type
Universale Birotativa Automatica TU360
Spindle taper
ISo50
A axis
360x1 °
C axis
360x1 °
Max speed
3000 Rpm
Max power
37 Kw
HEAD 2
Available upon request
No
Max speed
3000 Rpm
