Category

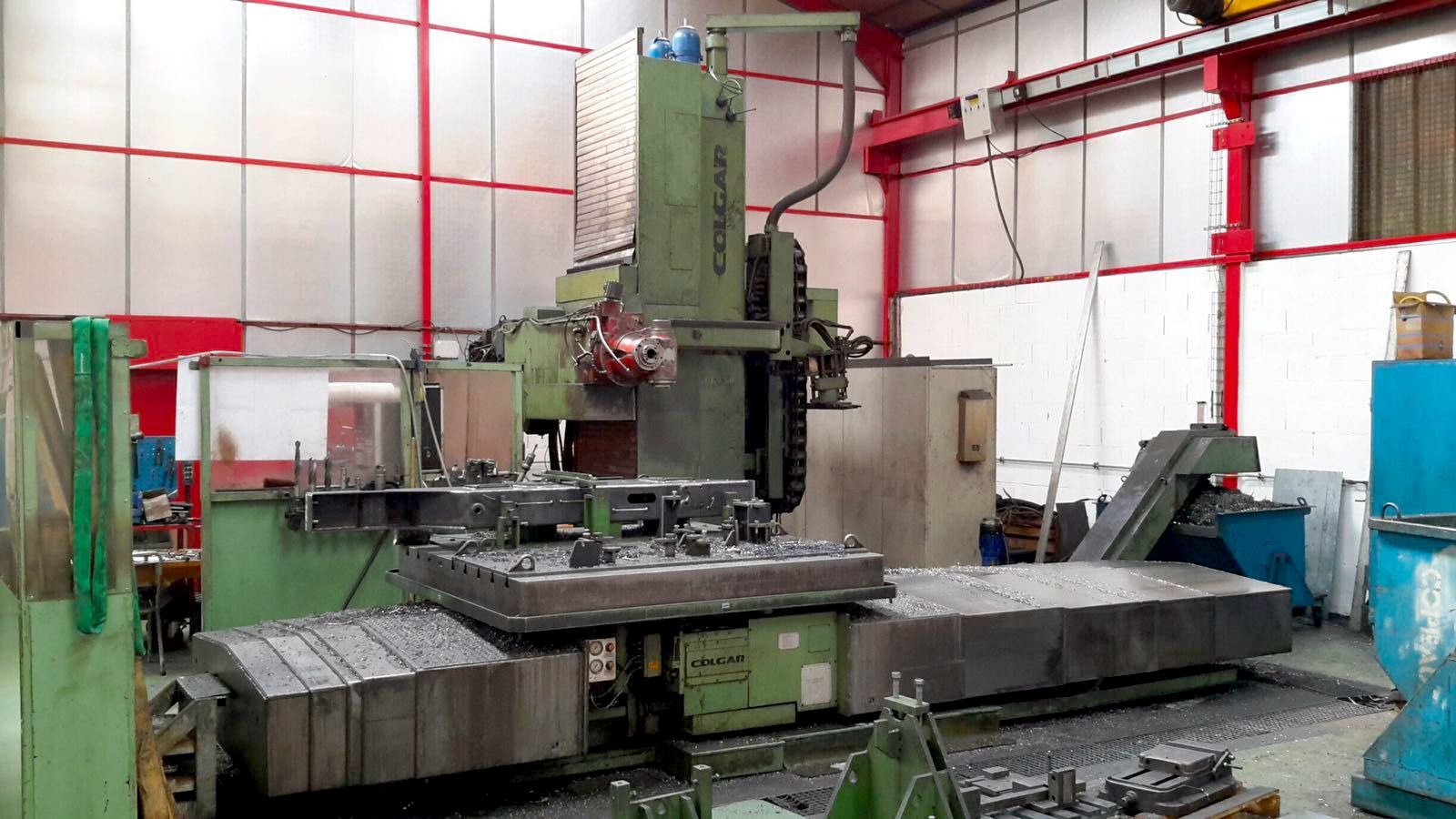

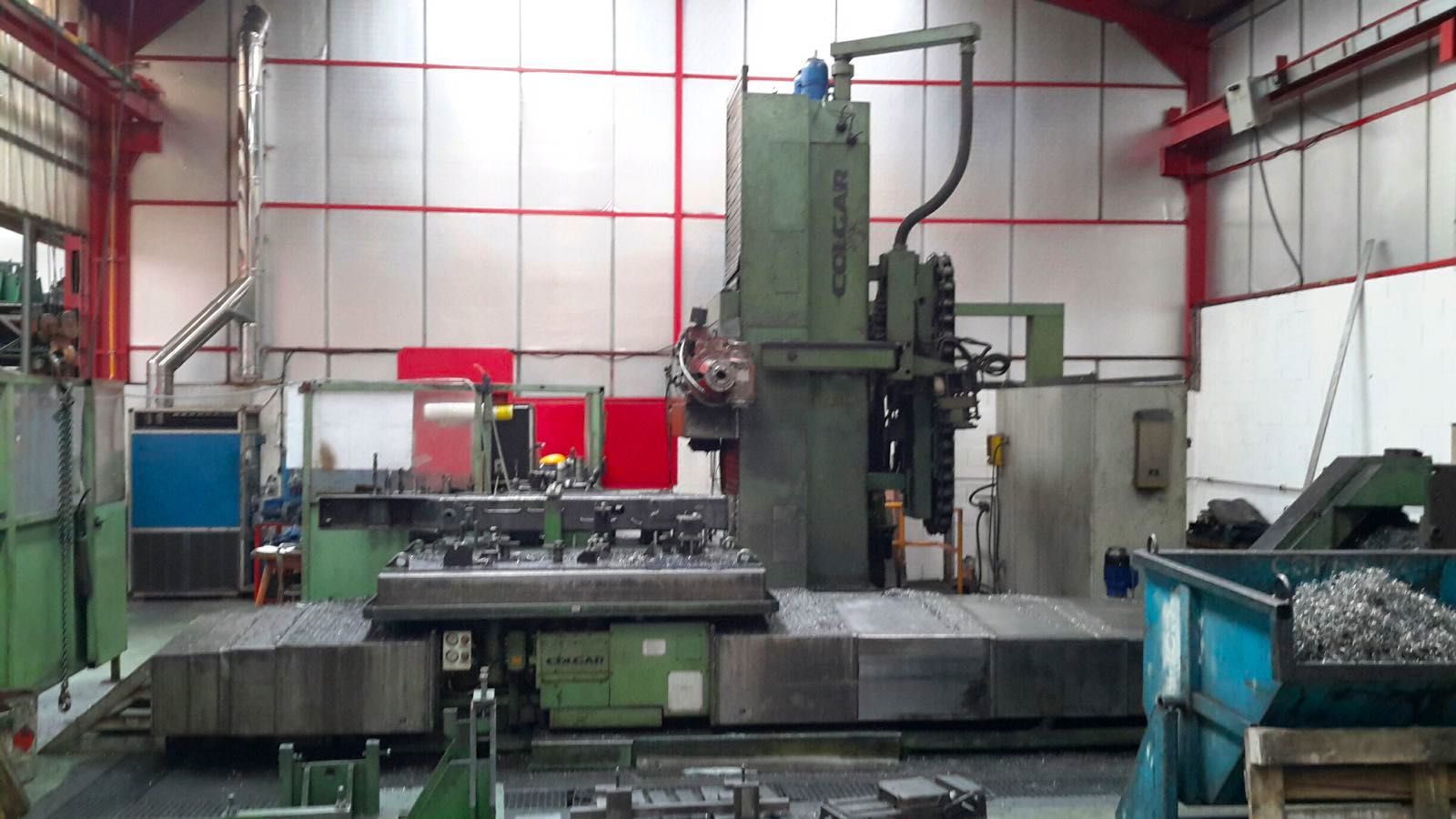

Milling machine
Type
T type
Made
Model
PROGRAM 200 TR12
Capacity
3000x2000x1000+1000 mm118,11x78,74x39,37+39,37 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
3000 mm118,11 in
Vertical (Y)
2000 mm78,74 in
Cross column (Z)
1000 mm39,37 in
Ram (V)
1000 mm39,37 in
Axes support
Hydrostatic
CNC
CNC
Heidenhain TNC430
Drives
Siemens Simodrive 611
SPINDLE
Rotating speed
5 - 2950 Rpm
Torque
1700 Nm
Taper
ISO50
Support
Hydrostatic
FEEDS
Rapid X
15 m/min590,55 ipm
Rapid Y
15 m/min590,55 ipm
Rapid Z
15 m/min590,55 ipm
Rapid V
10 m/min393,70 ipm

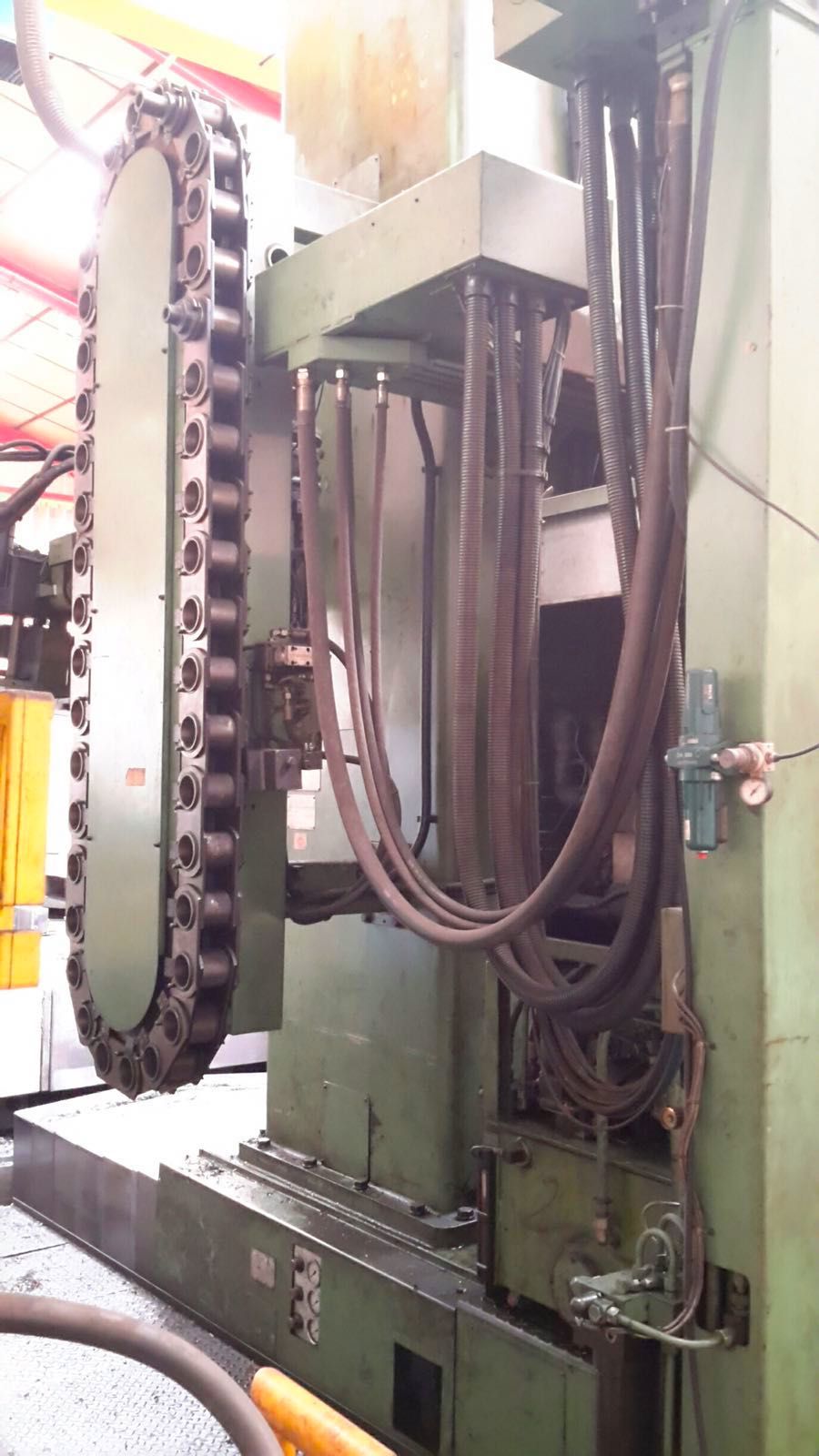

ATC
Positions
40
Tool taper
ISo50
Max tool diameter
260 mm10,24 in

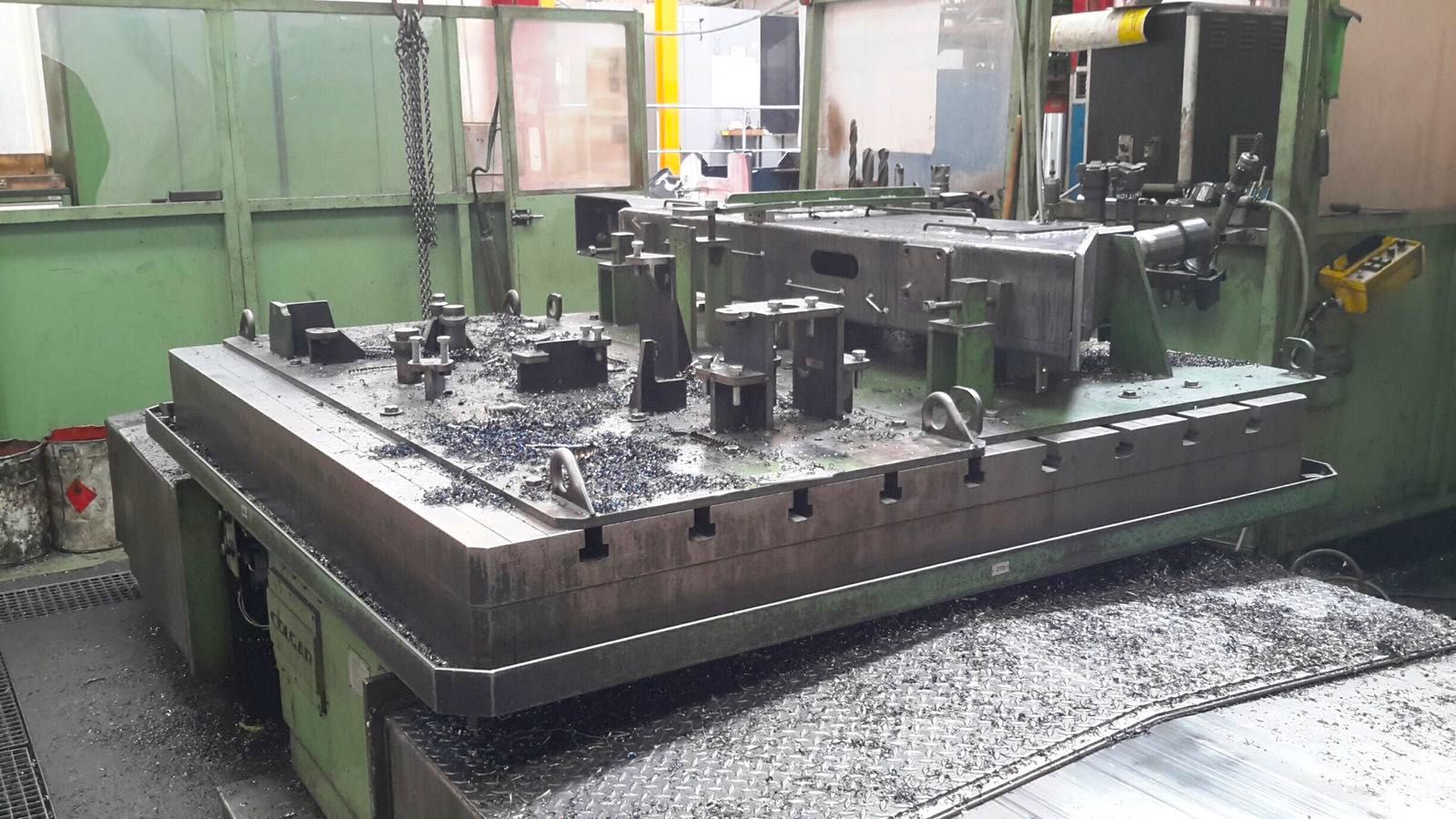

TABLE 1
Surface
2000x1600 mm78,74x62,99 in
Accuracy (B axis)
0,001 °
Capacity
12.000 Kg
Support
Hydrostatic

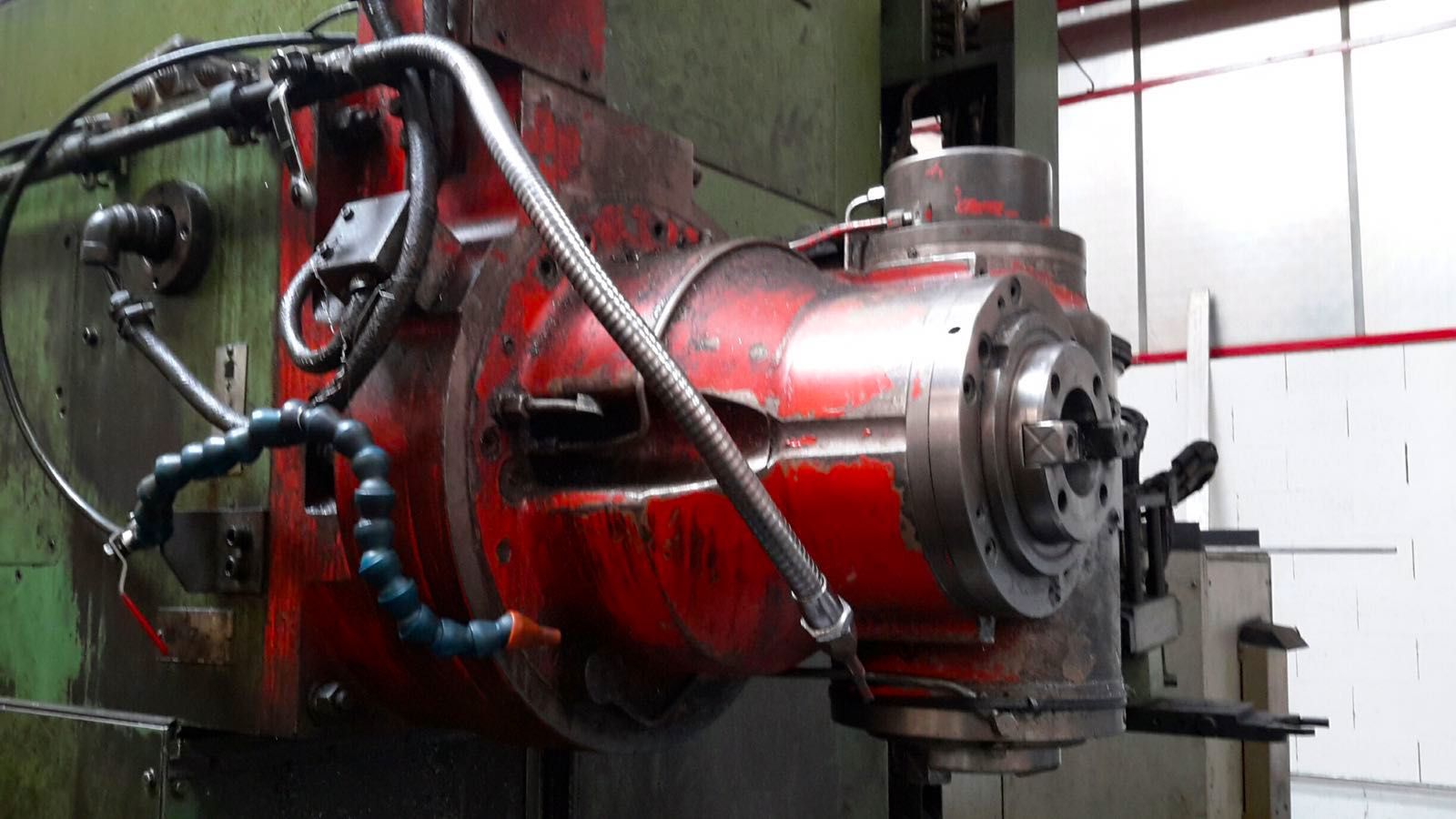

HEAD 1
Type
Ortogonale bimandrino
Spindle taper
ISO50
C axis
144x2,5 °
Max torque
1700 Nm
Max speed
7-2950 Rpm
Coolant
interno/esterno
EXTRA
High Pressure
si
Filtration unit
si
Chiller
is
Maintenance & Use books
Yes
Electrical drawings
Yes
CE Certification
Yes
Chip conveyor
si
Availability
pronta
Available under power
si
