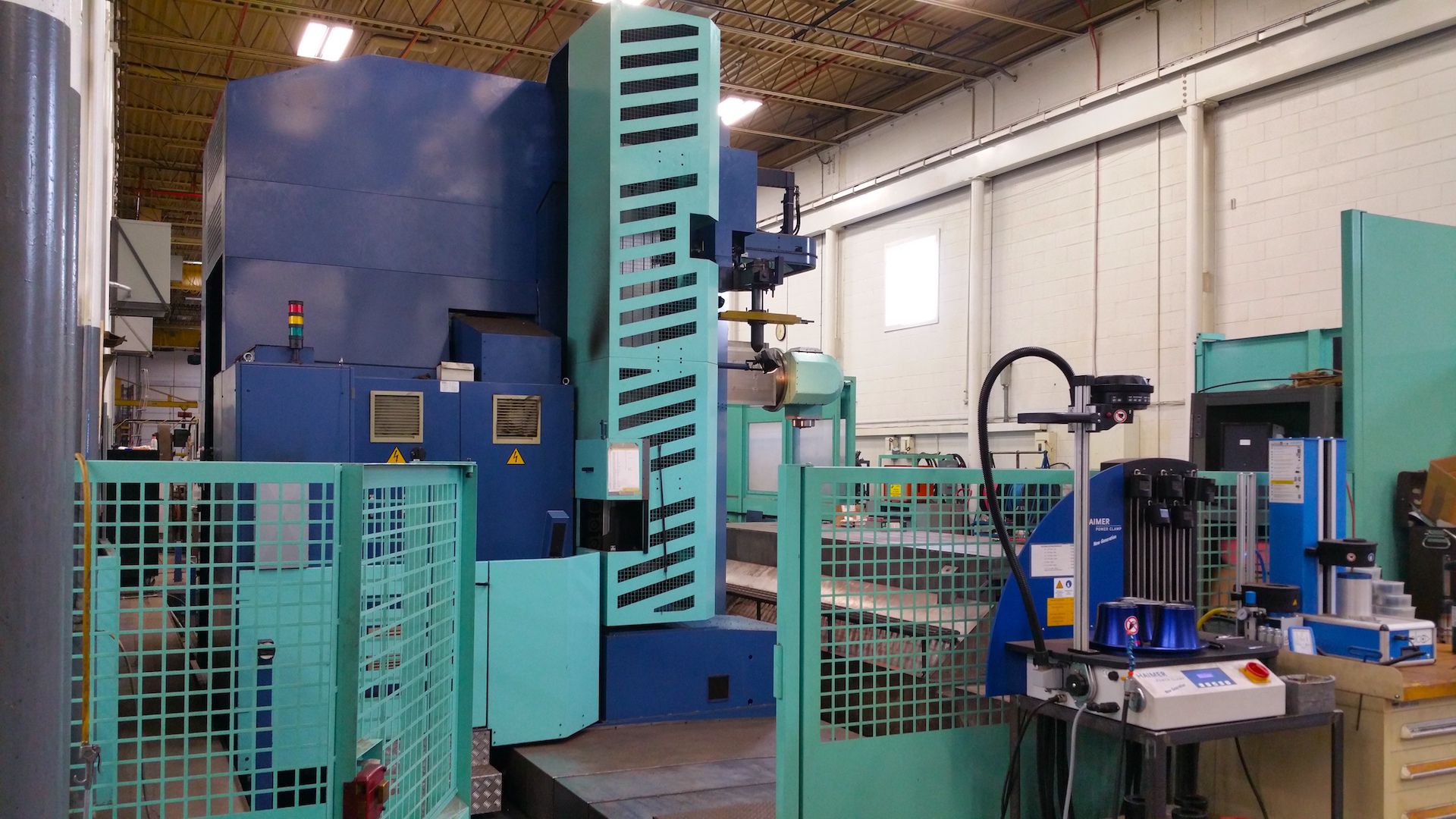

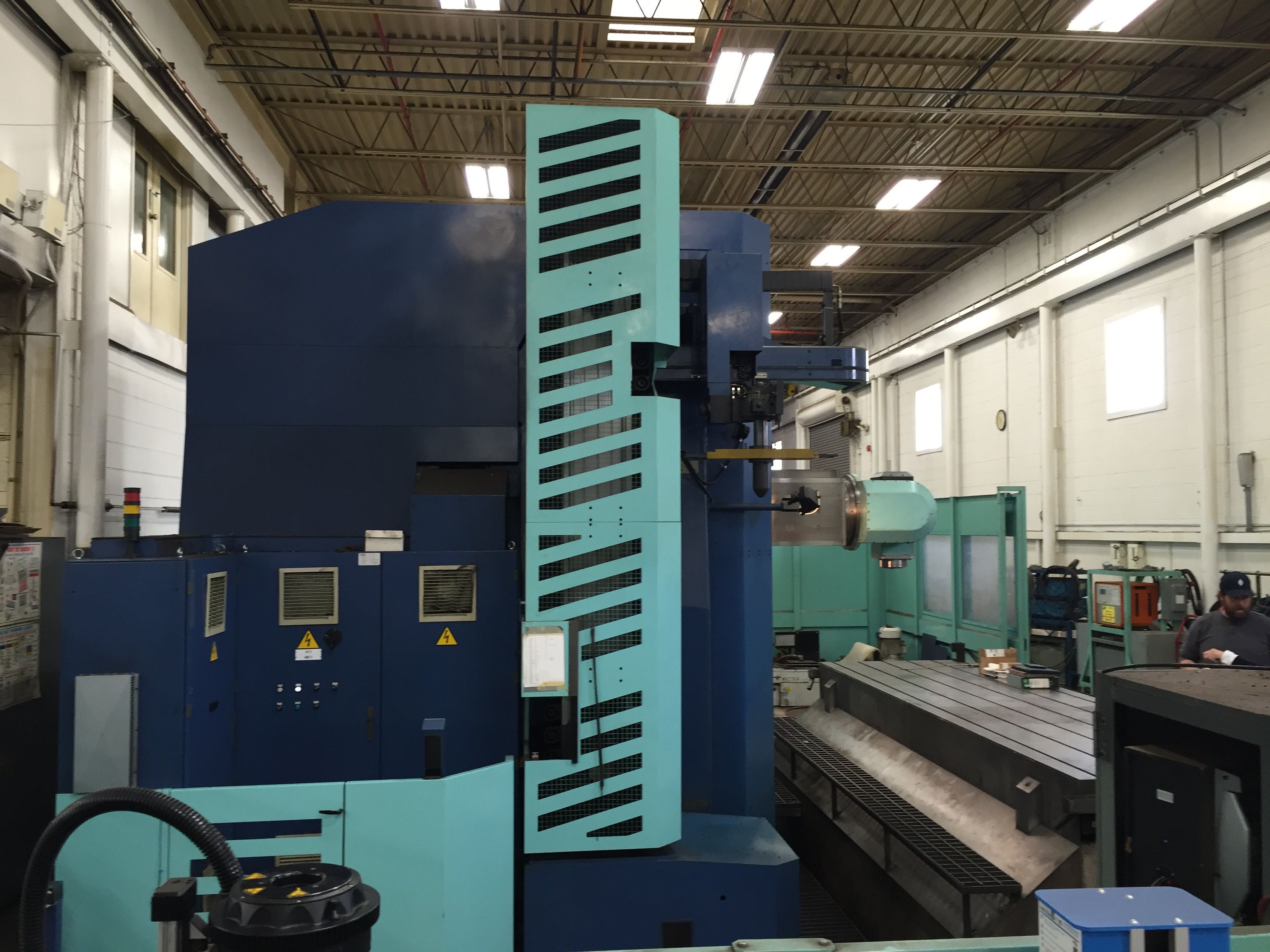

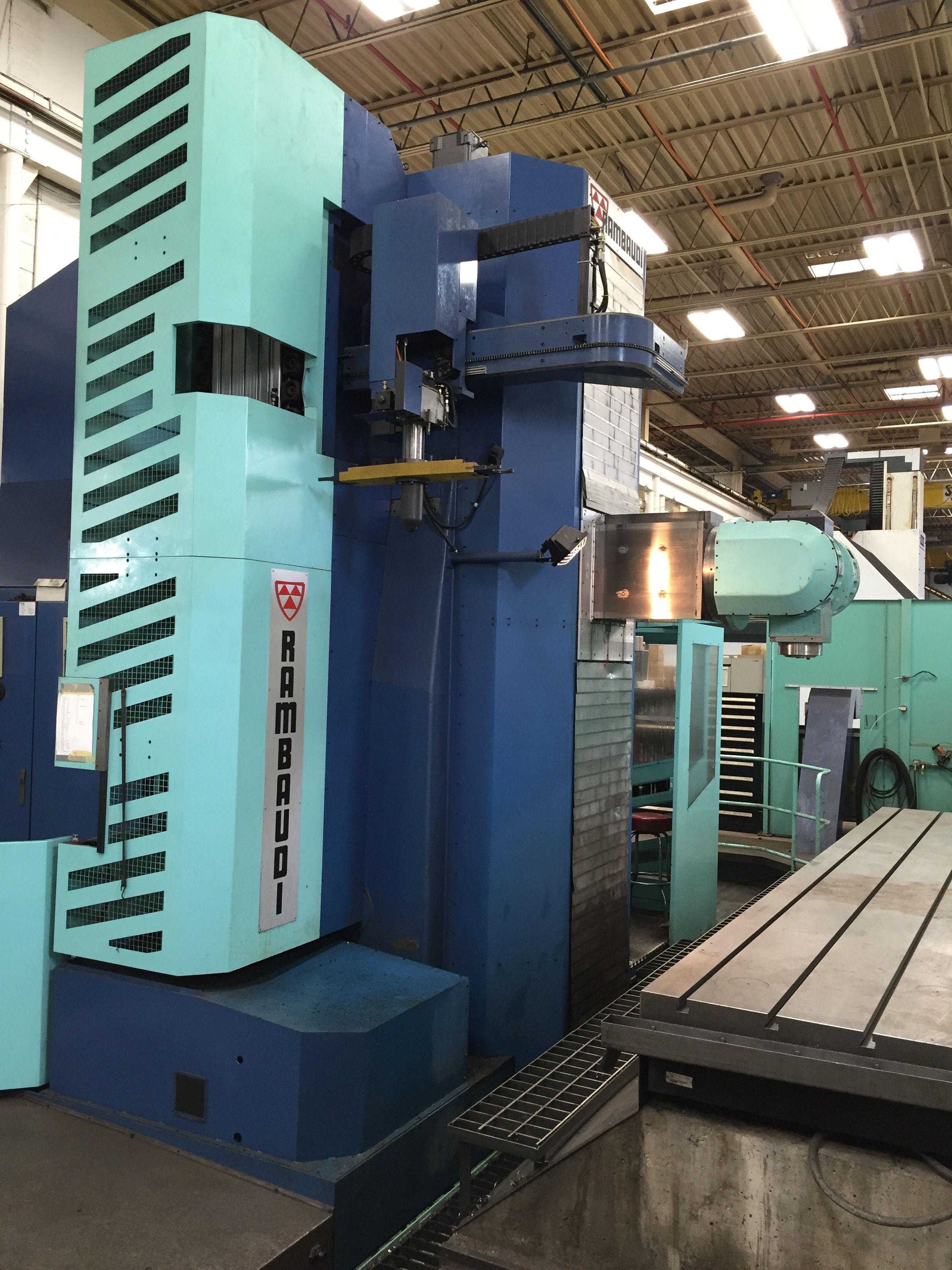

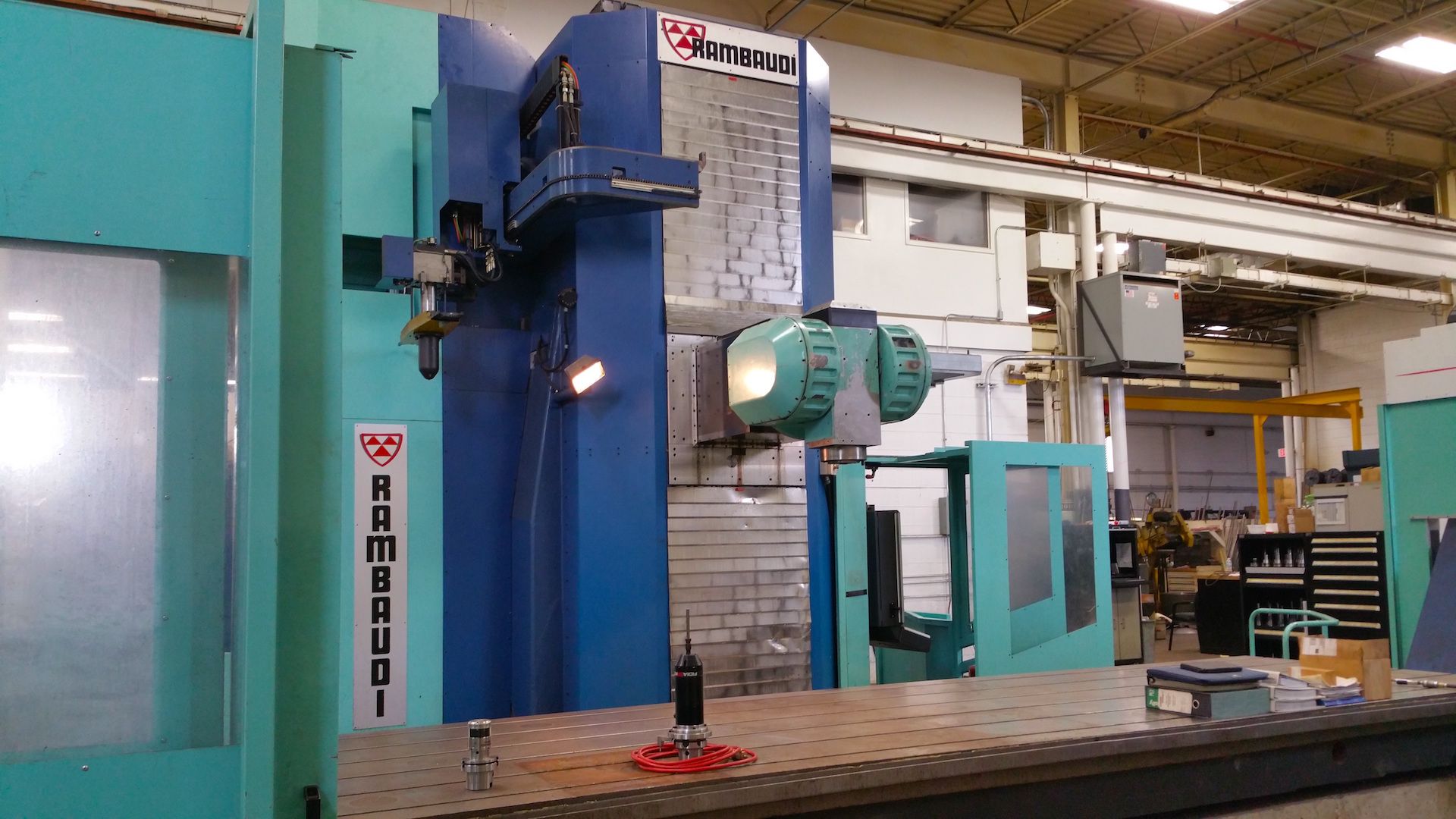

Category
Milling machine
Type
mobile column
Made

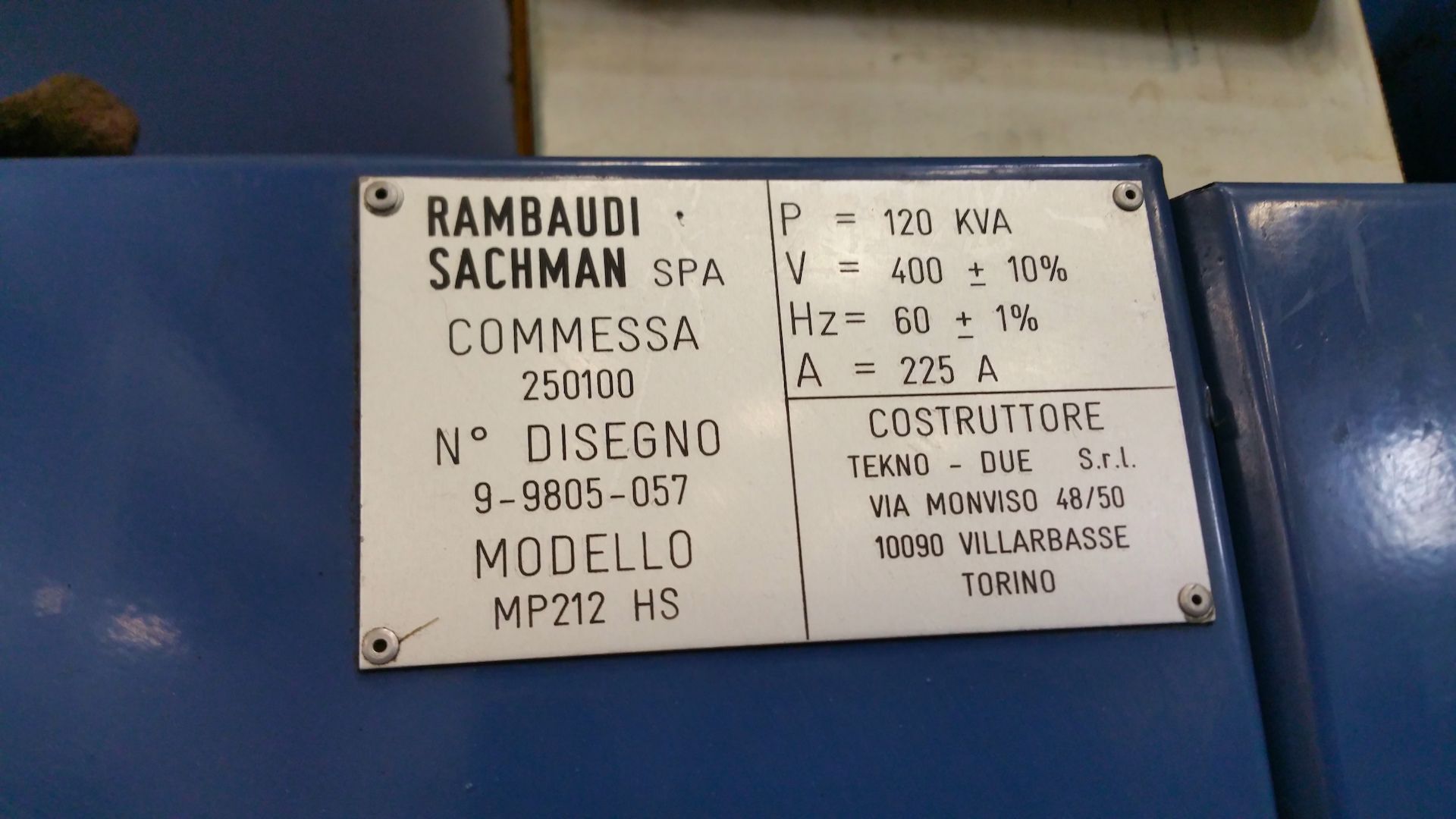

Model
MP212 HS
Capacity
4000x2500x1400 mm157,48x98,43x55,12 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
4000 mm157,48 in
Vertical (Y)
2500 mm98,43 in
Cross RAM (Z)
1400 mm55,12 in

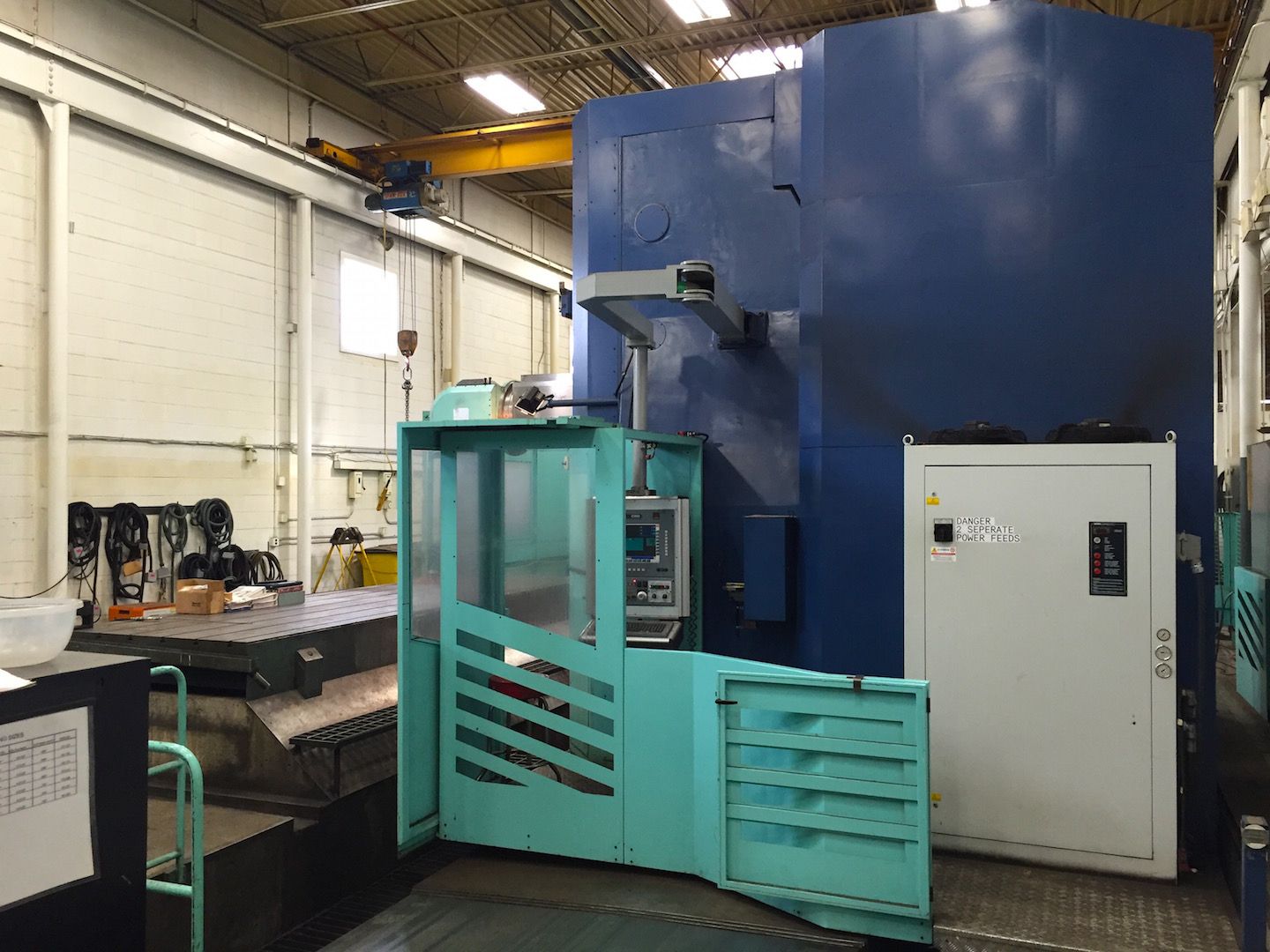

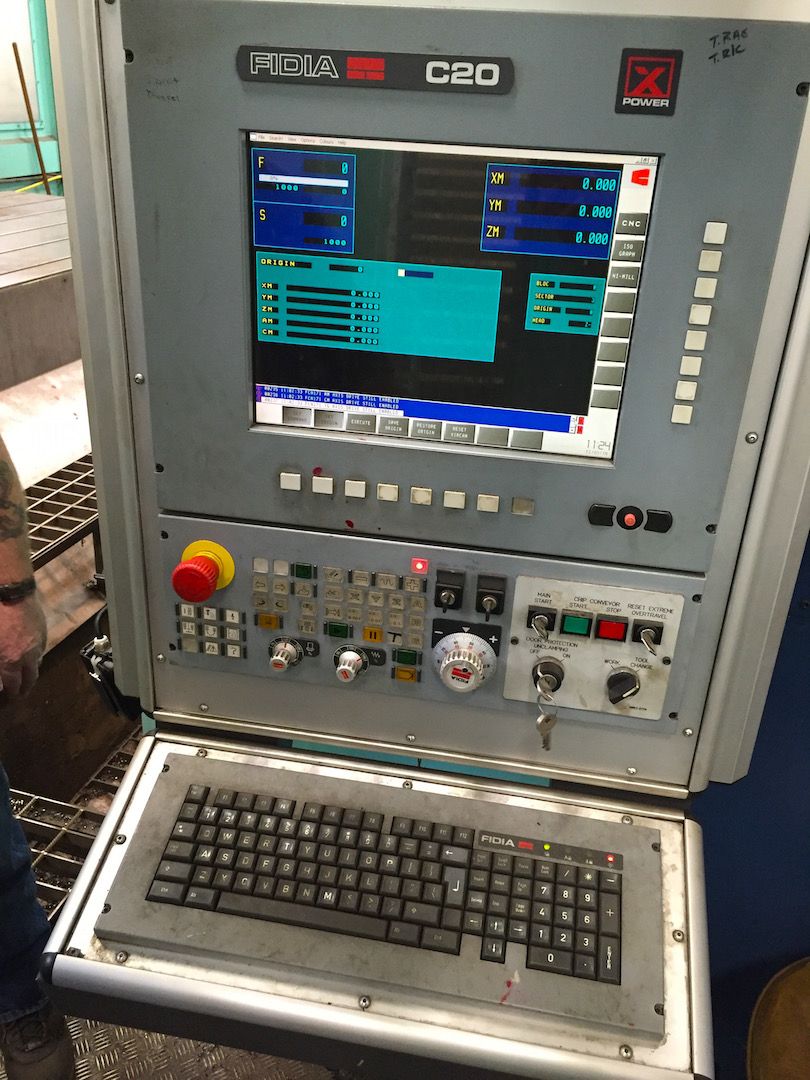

CNC
CNC
FIDIA C20

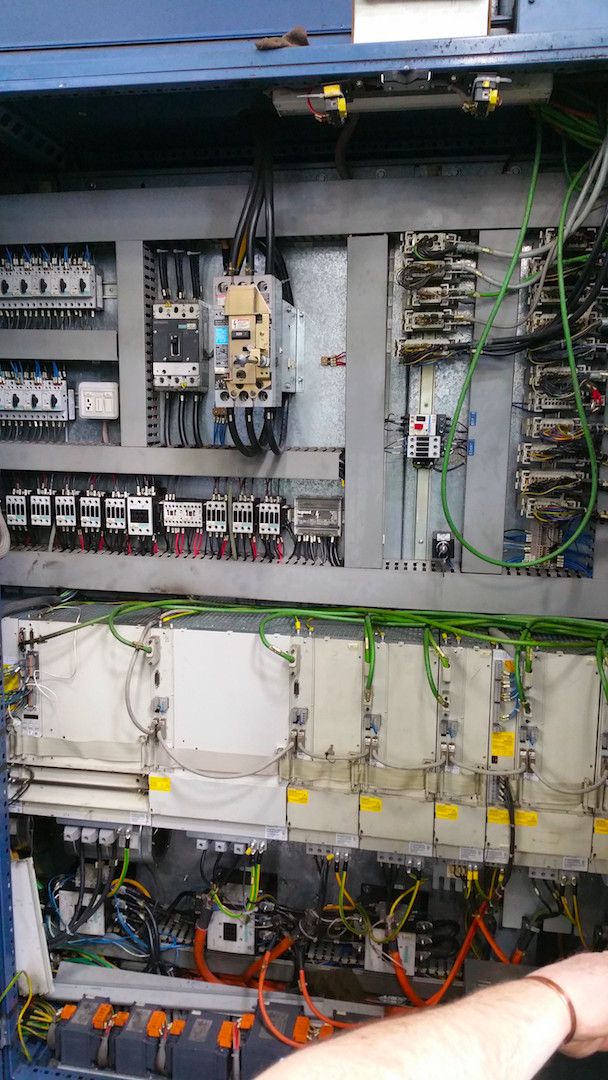

Drives
SIEMENS SINUMERIC 611
SPINDLE
Spindle power
46 Kw
Rotating speed
16000 Rpm
Taper
HSK100A DIN69893
Notes

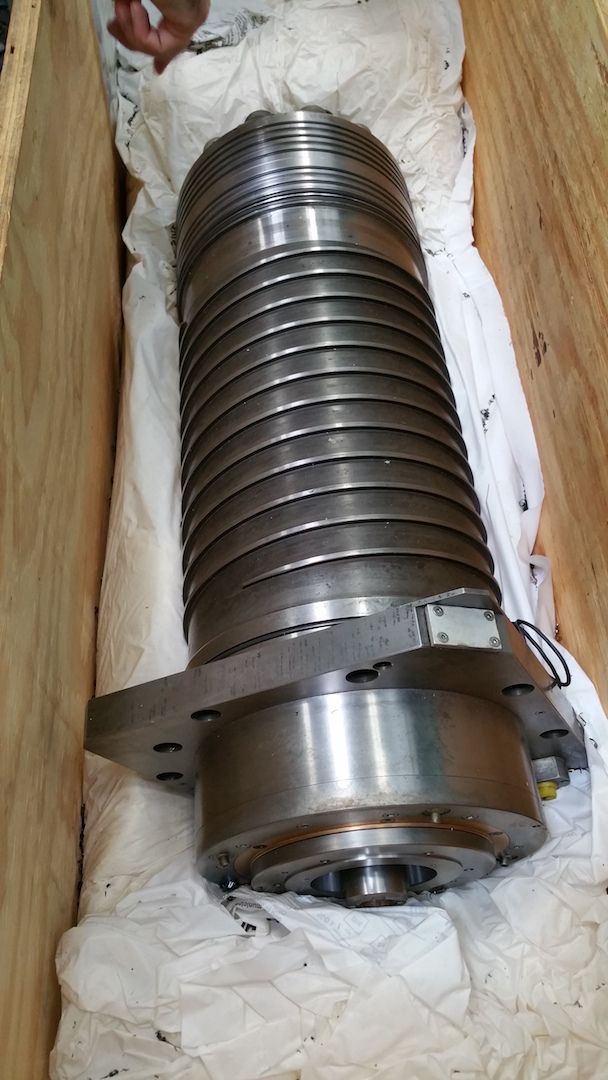

secondo elettromandrino di ricambio revisionato
FEEDS
Rapid X
30 m/min1.181,10 ipm
Rapid Y
30 m/min1.181,10 ipm
Rapid Z
30 m/min1.181,10 ipm
ATC
Positions
60
Max tool diameter
125 mm4,92 in
Max diam with free adiacent space
220 mm8,66 in
Max tool lenght
300 mm11,81 in
Max tool weight
20 Kg
Tool taper
HSK100A
FIXING TABLE
Floorspace (LxWxH)
5000x1500 mm196,85x59,06 in
Capacity
15000 Kg/mq
T slots number
H7

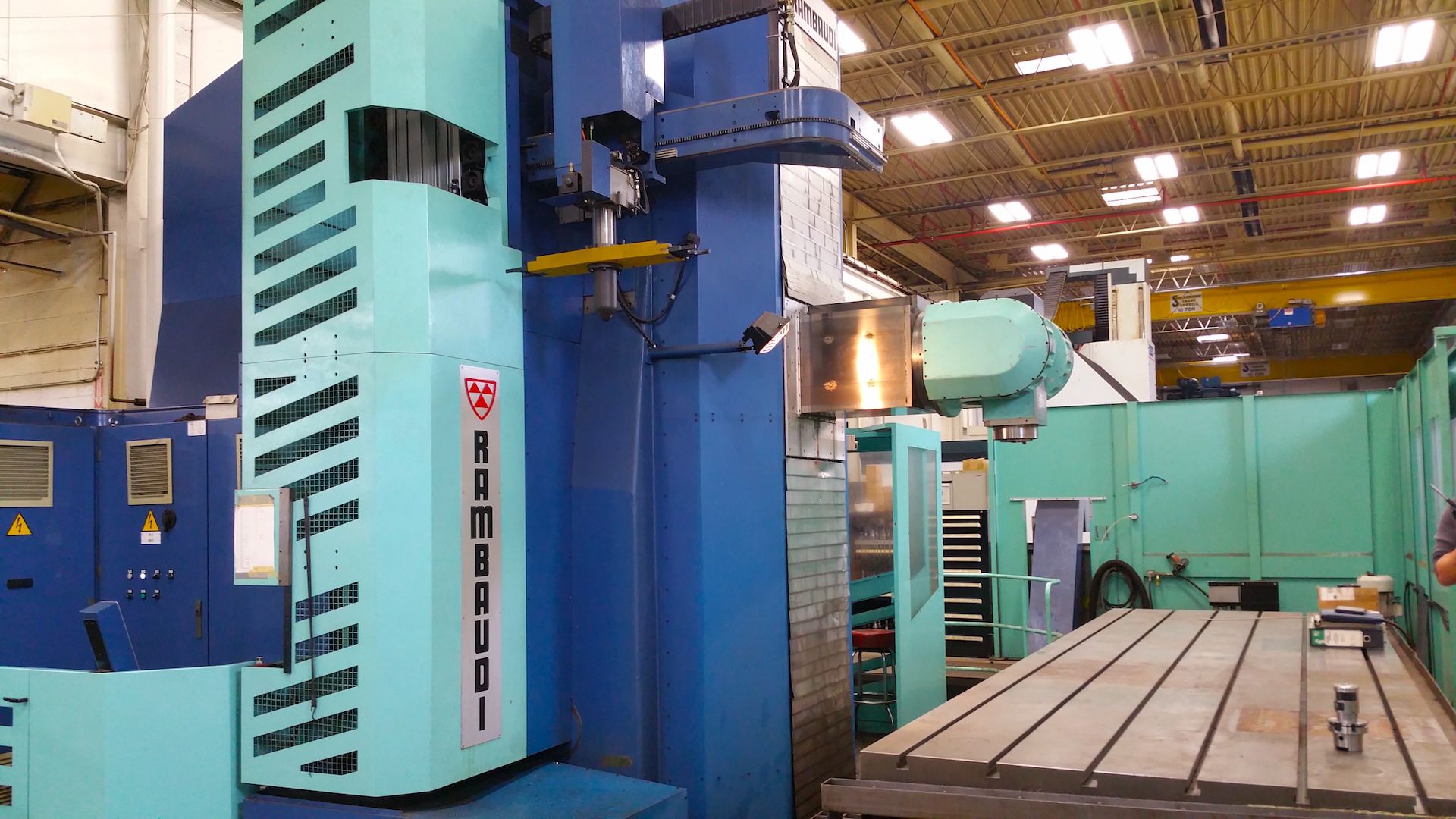

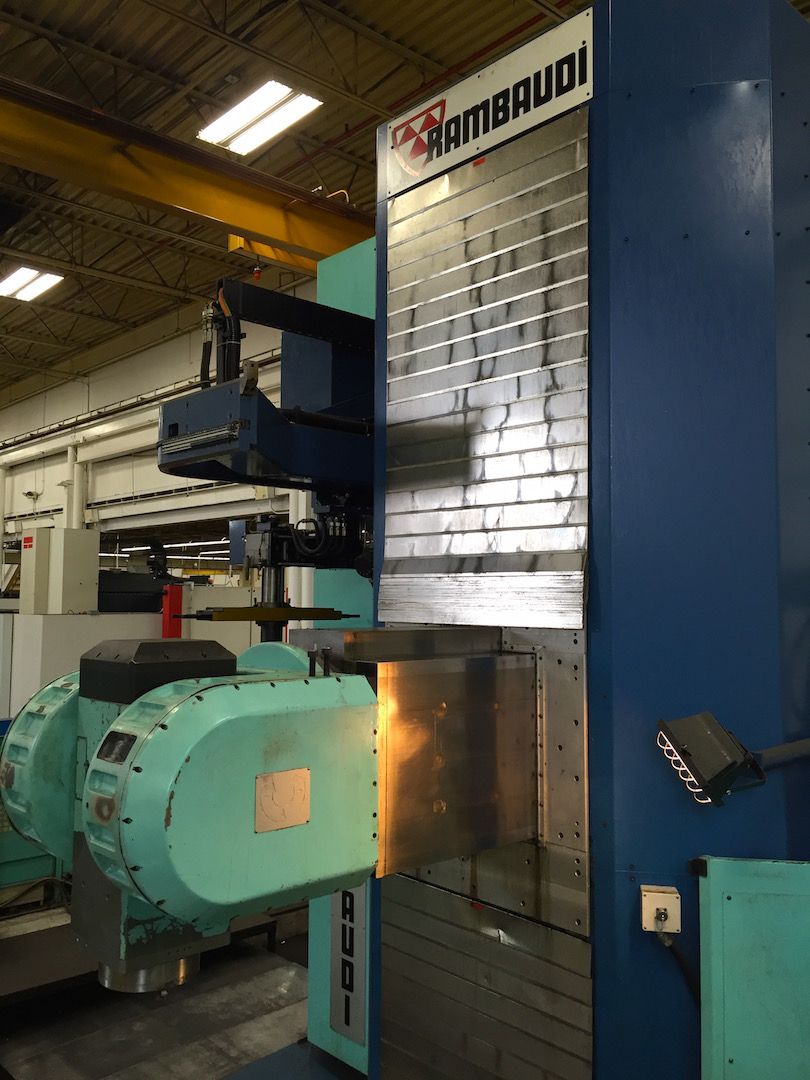

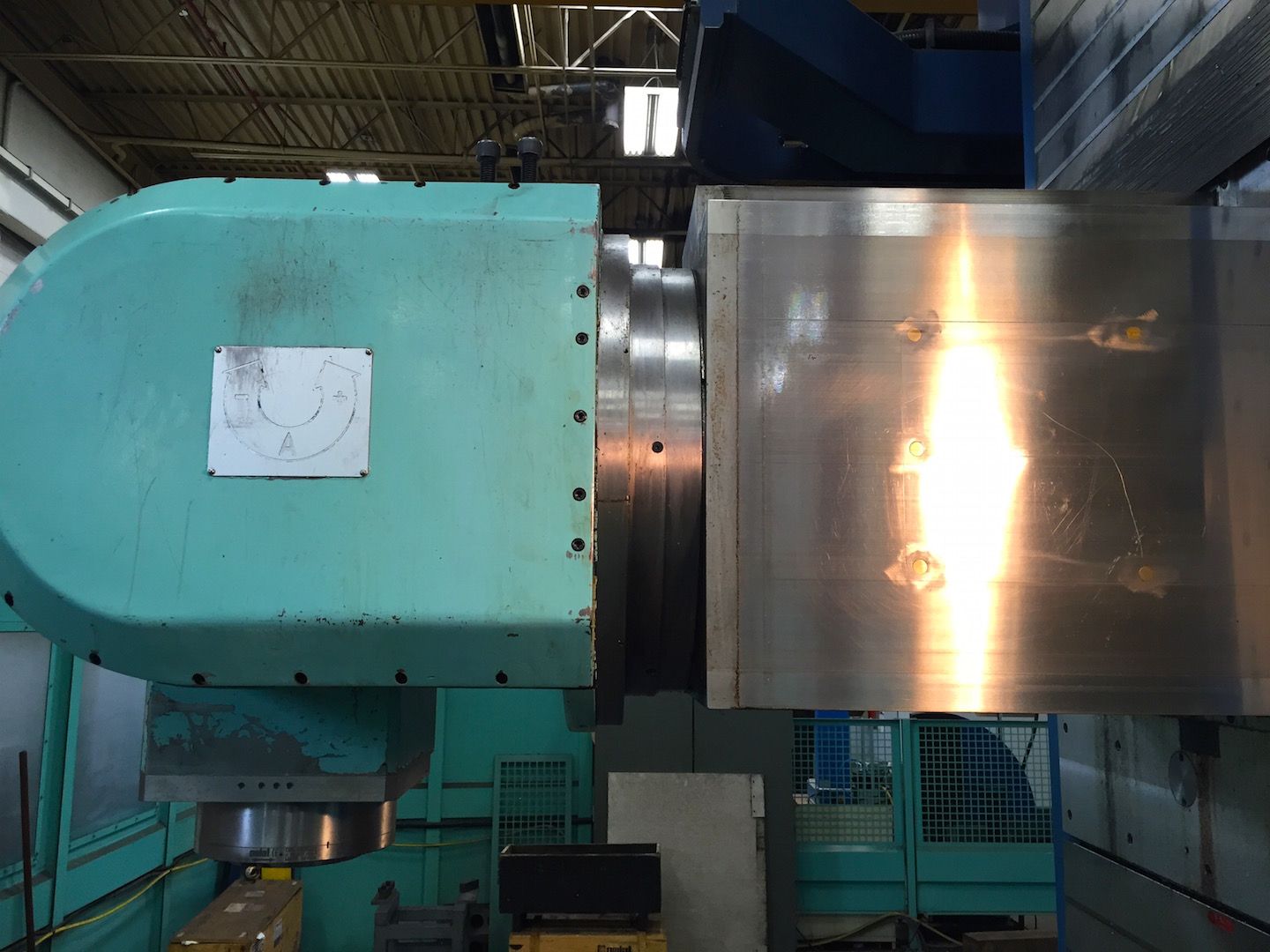

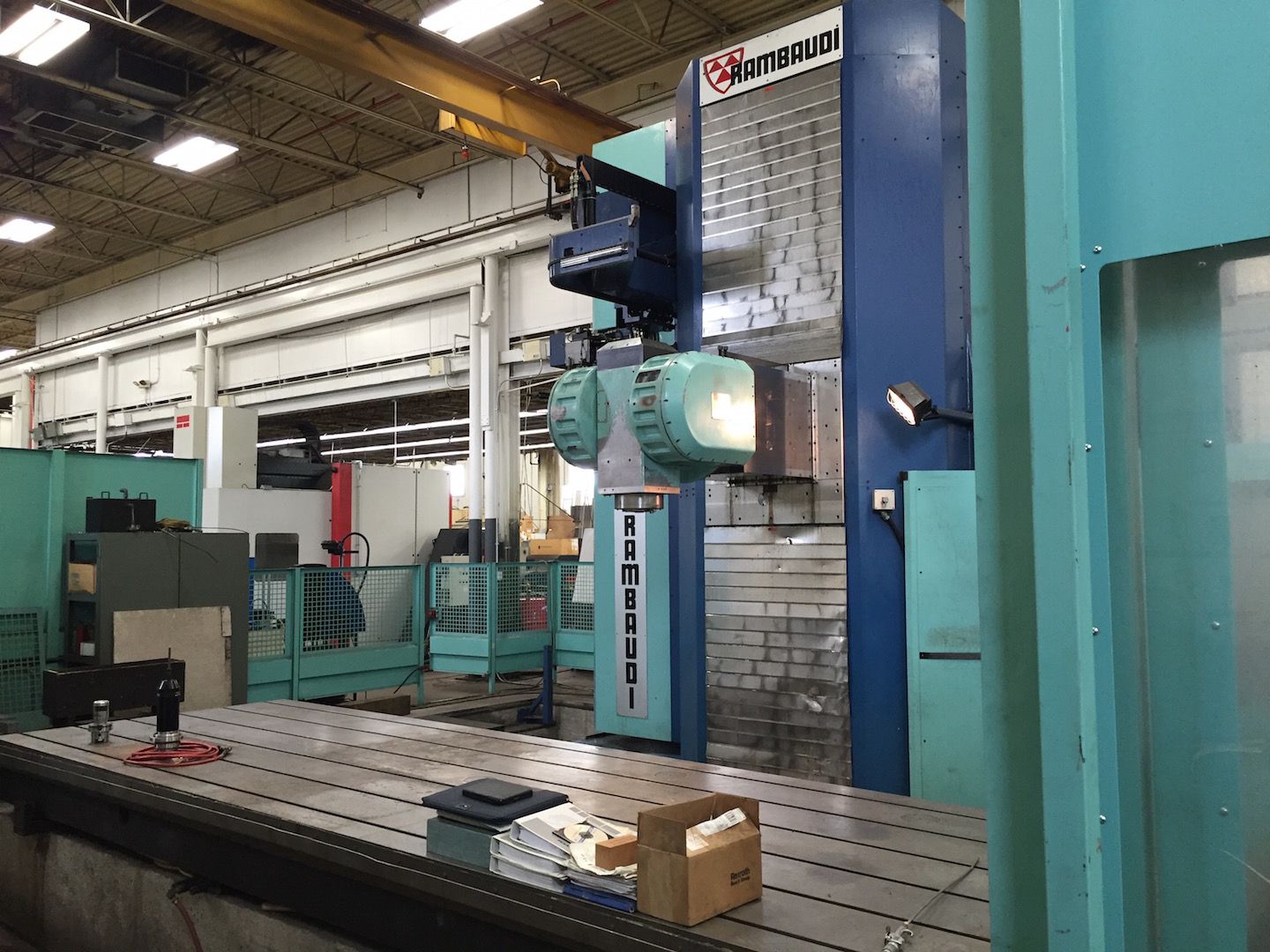

HEAD 1
Type
GLOBE
Spindle taper
HSK100A
A axis
+/- 105 °
C axis
+/- 190 °
Max torque
220 Nm
Max speed
16000 Rpm
Max power
(S6) 56 Kw
Coolant
internal high pressure
Notes
testa a posizionamento continuo
EXTRA
Machine total weight
68100 Kg
Floor space
13200x7700x4713 mm519,68x303,15x185,55 in

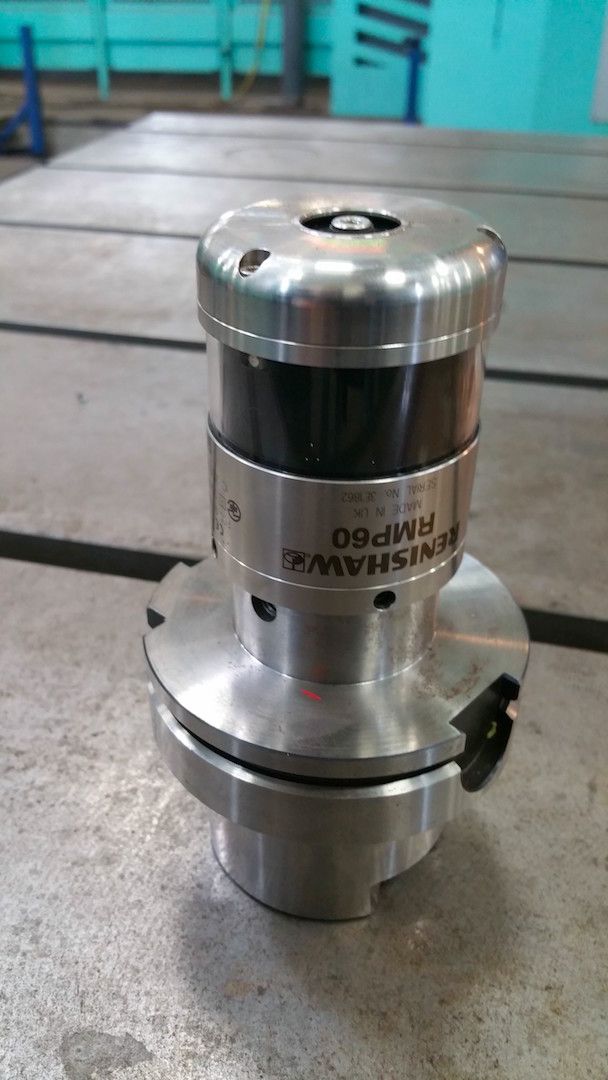

Workpiece touch probe

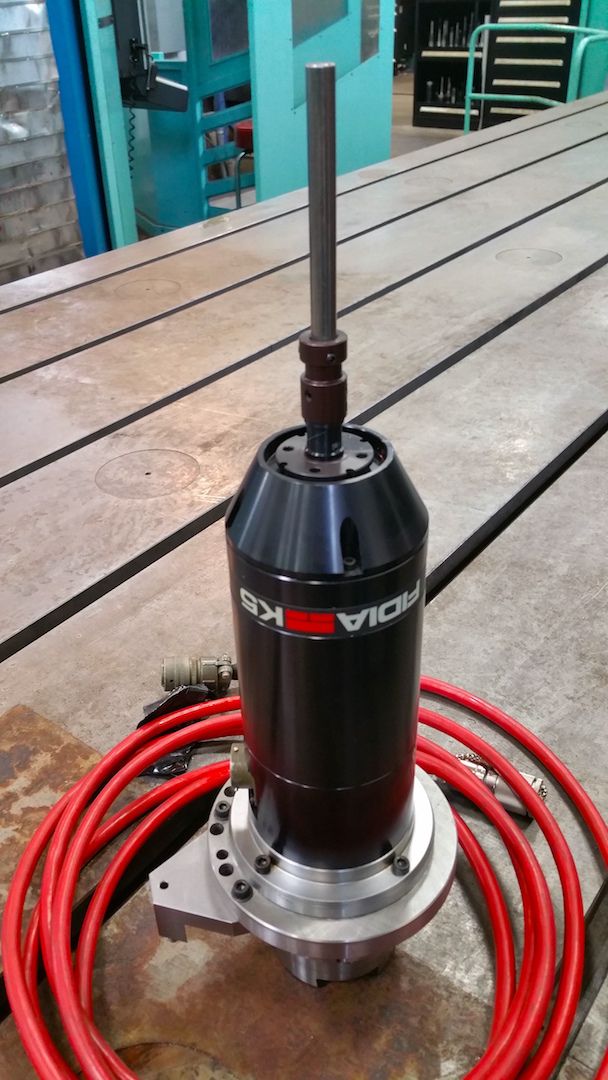

RENISHAW RMP60 - LASER FIDIA RENISHAW K5
Tool presetter
LASER RENISHAW
Maintenance & Use books
Yes

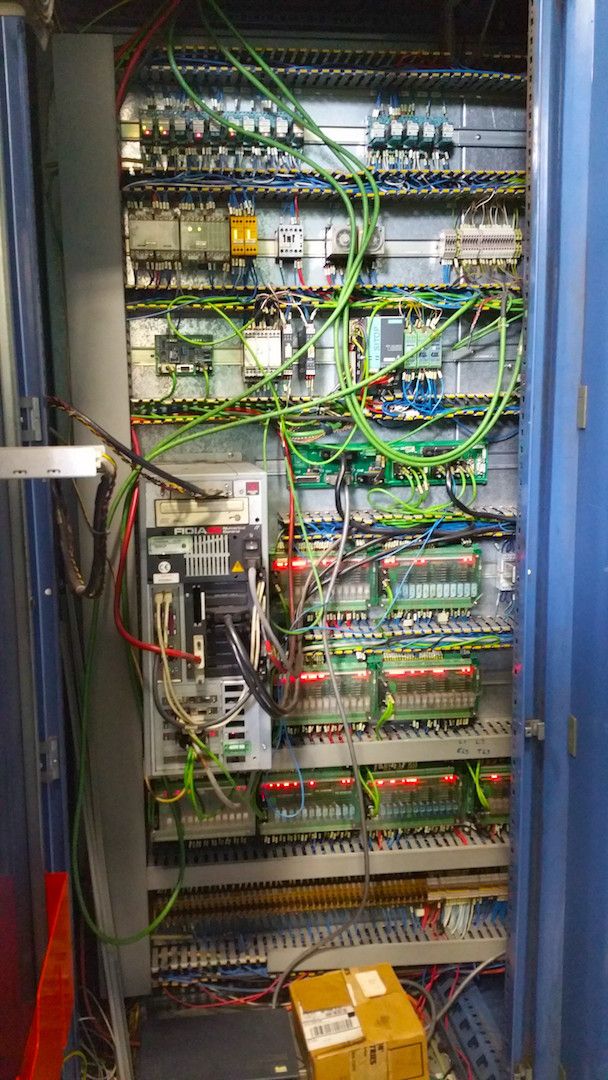

Electrical drawings
Yes
CE Certification
Yes

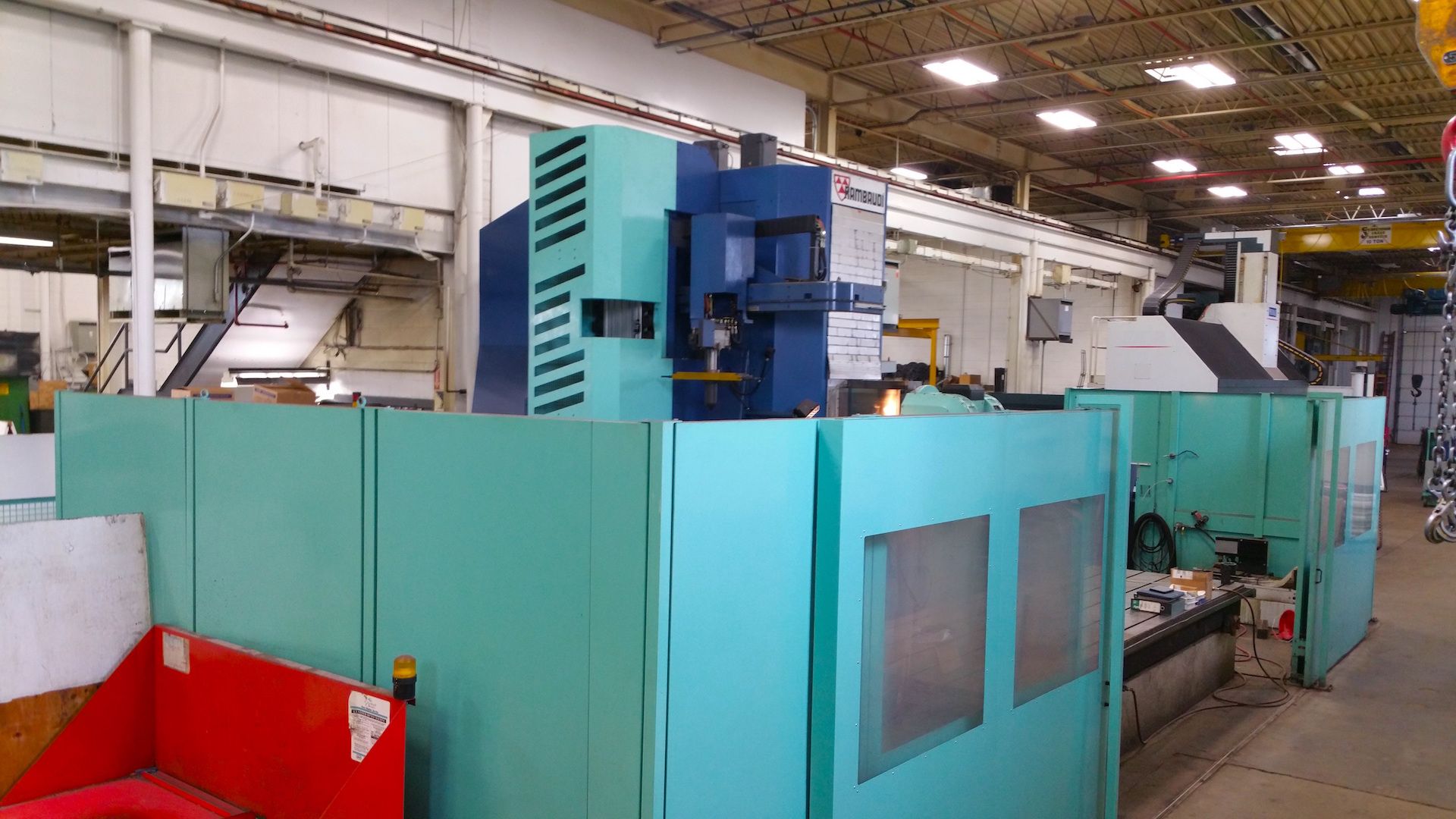

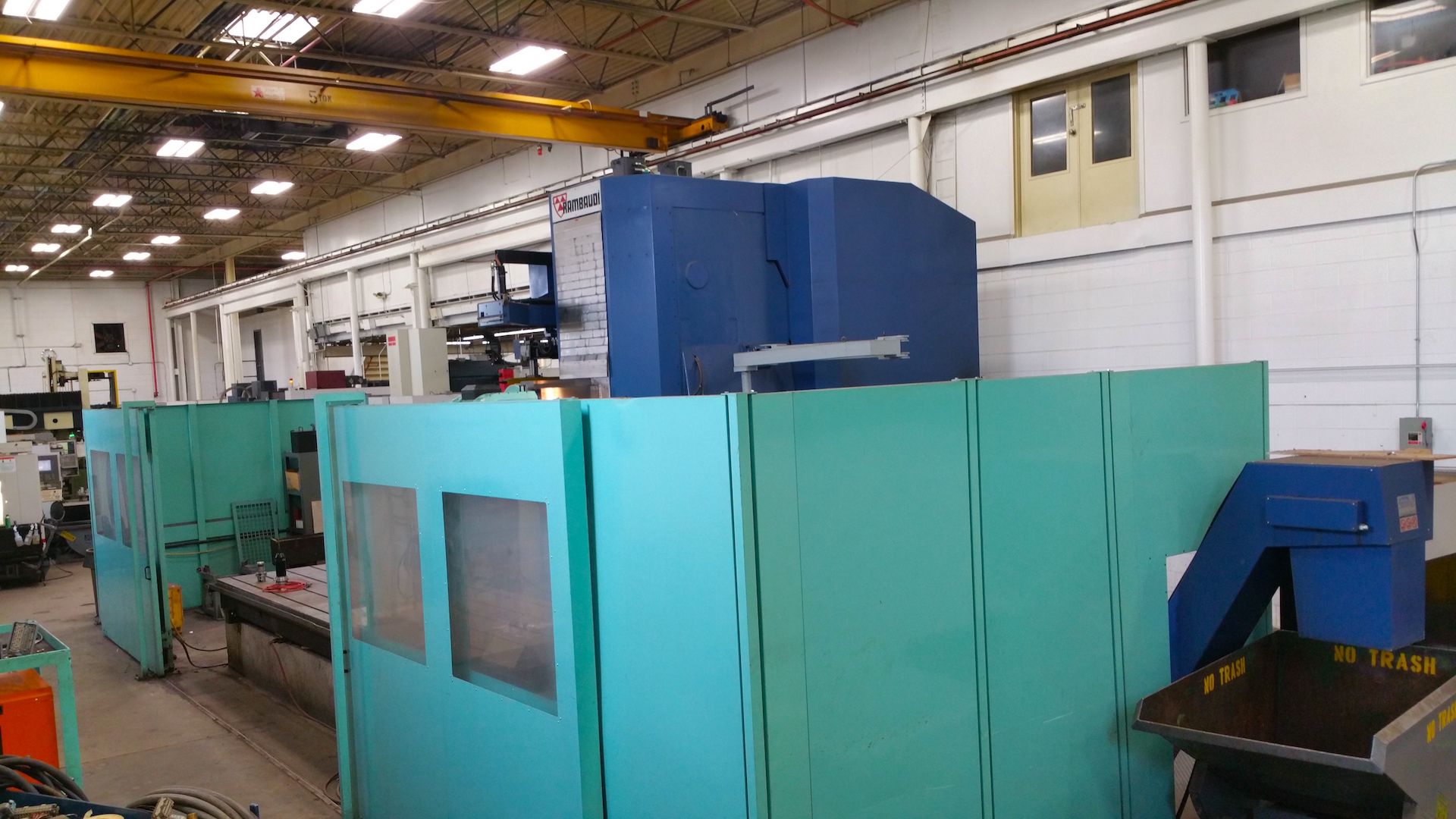

Housing
perimetrale completa
Chip conveyor
si
Availability
pronta
High Pressure
60Bar

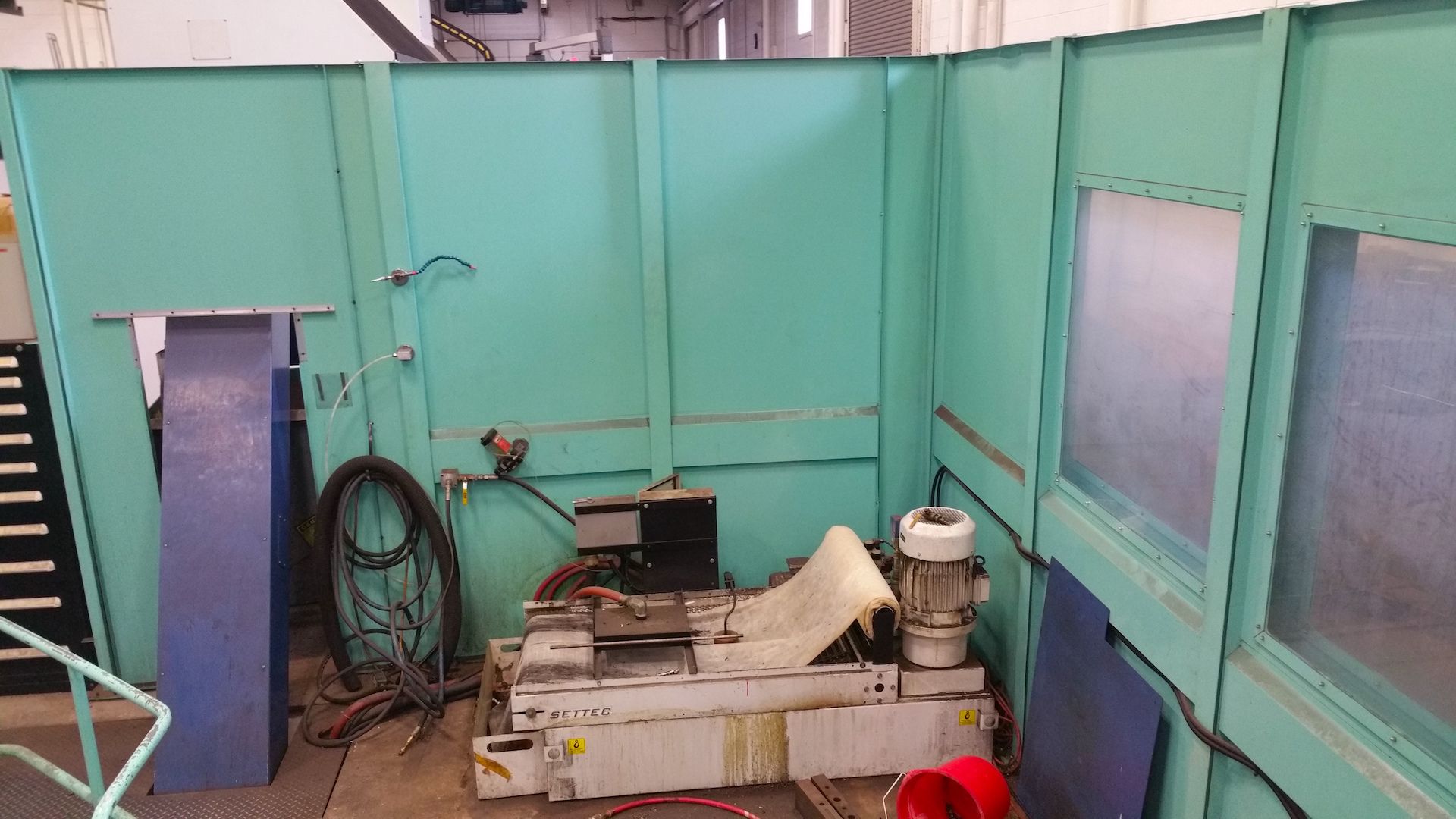

Filtration unit
vasca filtro a carta

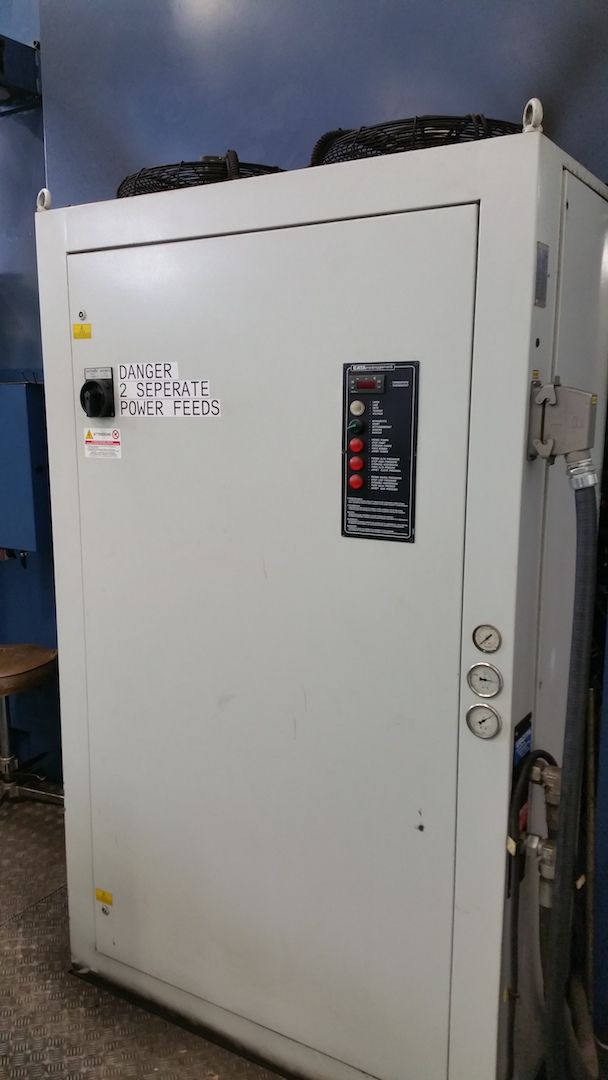

Chiller
si
Tooling included
Testa a posizionamento continuo GLOBE, secondo eletrromandrino di ricambio, sonda Renishaw RMP60, Laser
Relevant updates made on the machine
Sostituzione motori dei 2 motori Torque della testa, revisione elettromandrino OMLAT + secondo elettromandrino di ricambio
