Category
Milling machine
Type
mobile column
Made
Model
MX1000
Capacity
4000x1700x1000 mm157,48x66,93x39,37 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Axes support
guide a rulli
Cross RAM (Z)
1000 mm39,37 in
Vertical (Y)
1700 mm66,93 in
Longitudinal (X)
4000 mm157,48 in
TABLE 1
Capacity
15000 Kg
Accuracy (B axis)
0,001 °
Surface
1750x1500 mm68,90x59,06 in
Available upon request
Yes

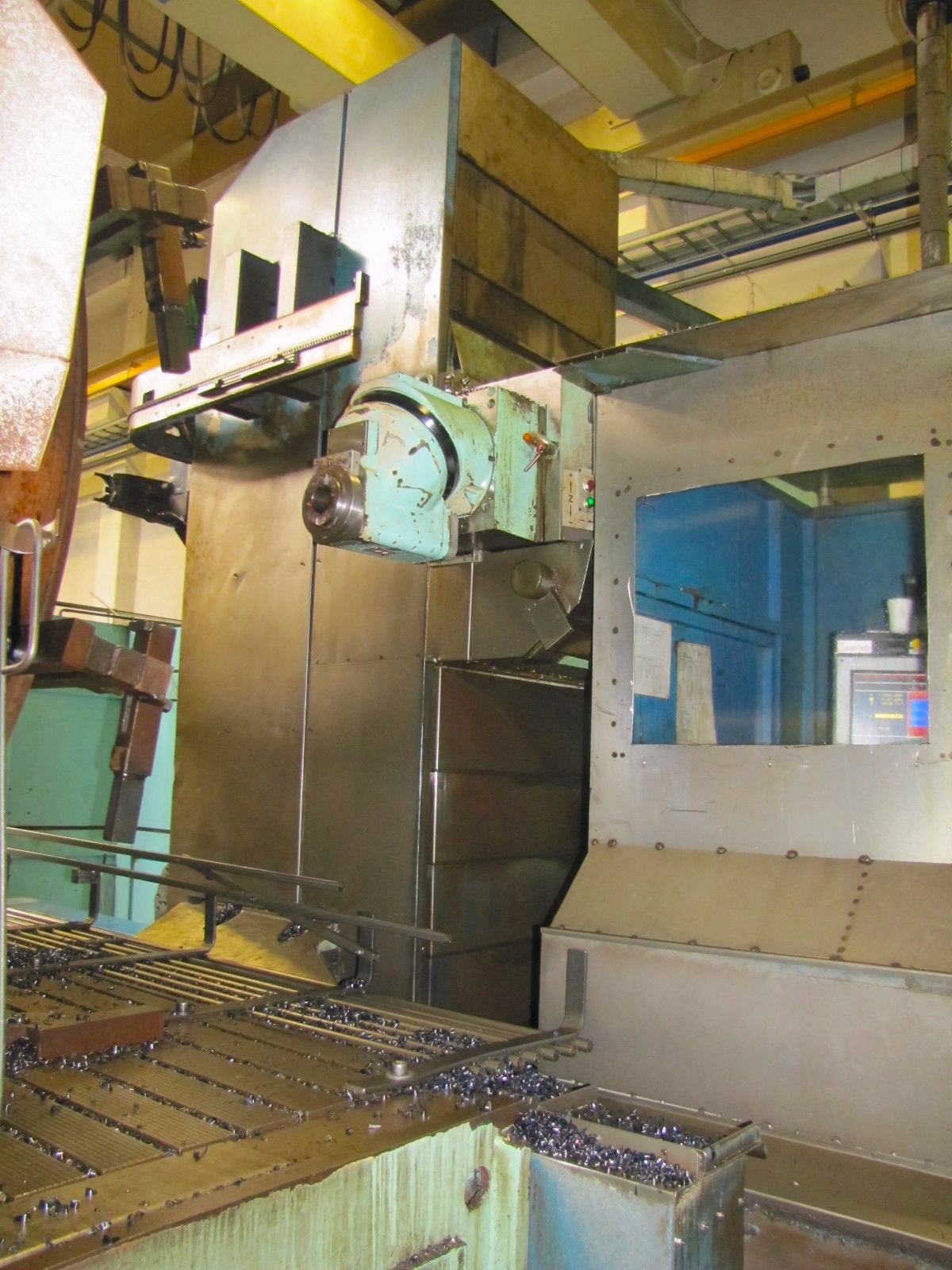

HEAD 1
Coolant
interno/esterno
Max power
35 Kw
Max speed
4000 Rpm
C axis
2,5 °
A axis
3 °
Spindle taper
ISO50
Available upon request
Yes
Type
Kosmo4000
FIXING TABLE
Capacity
4000 Kg/mq
Floorspace (LxWxH)
4000x1100 mm157,48x43,31 in

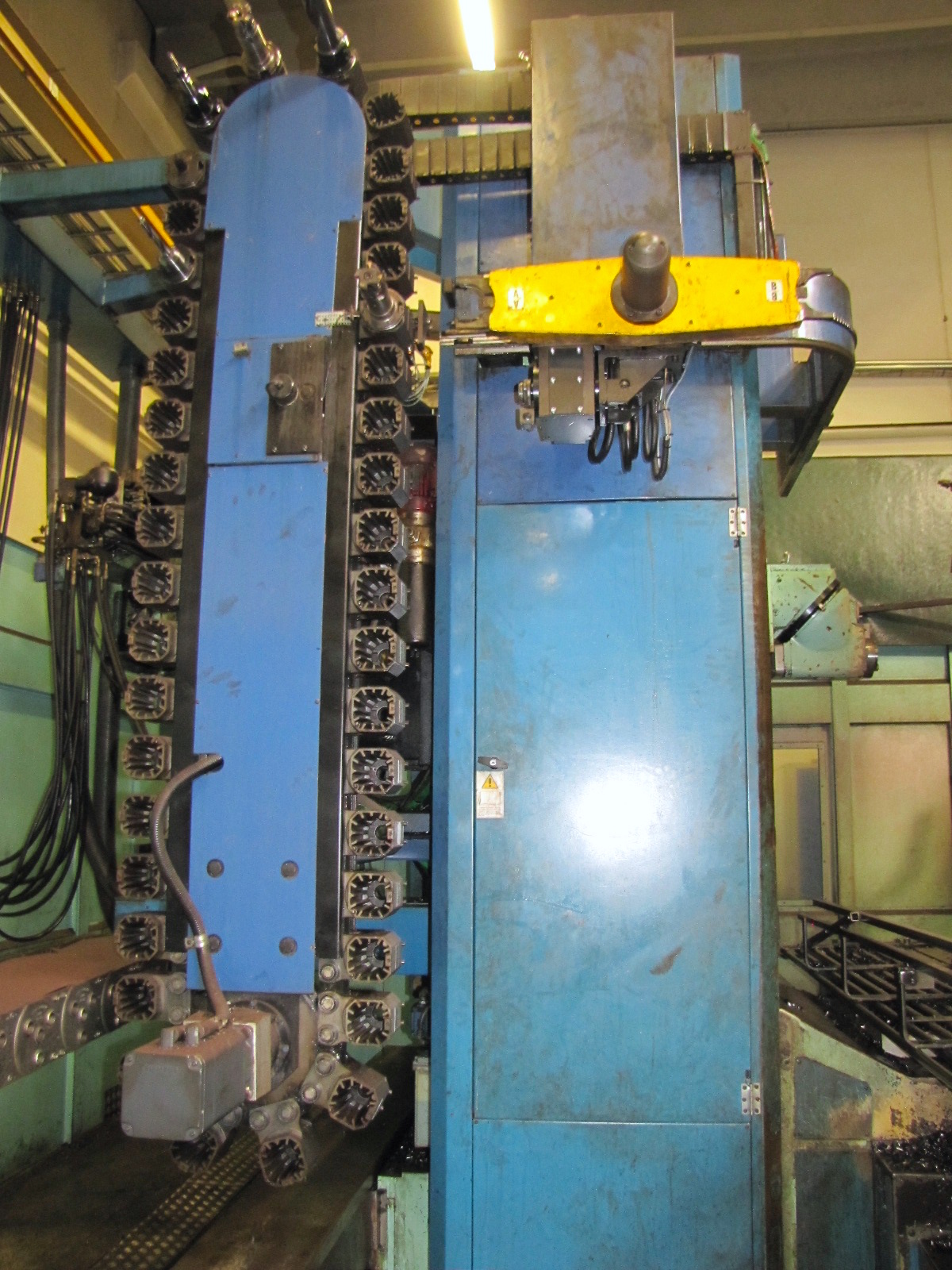

ATC
Position
a catena sulla colonna
Tool taper
ISO50
Max tool weight
20 Kg
Max tool lenght
500 mm19,69 in
Max diam with free adiacent space
250 mm9,84 in
Max tool diameter
150 mm5,91 in
Positions
40
FEEDS
Z
15 m/min590,55 ipm
Y
15 m/min590,55 ipm
X
15 m/min590,55 ipm
Rapid Z
25 m/min984,25 ipm
Rapid Y
25 m/min984,25 ipm
Rapid X
25 m/min984,25 ipm
SPINDLE
Taper
ISO50
Rotating speed
0-4000 Rpm
Gearbox
ZF
Spindle power
28/35 Kw
CNC
Drives
Siemens SIMODRIVE611

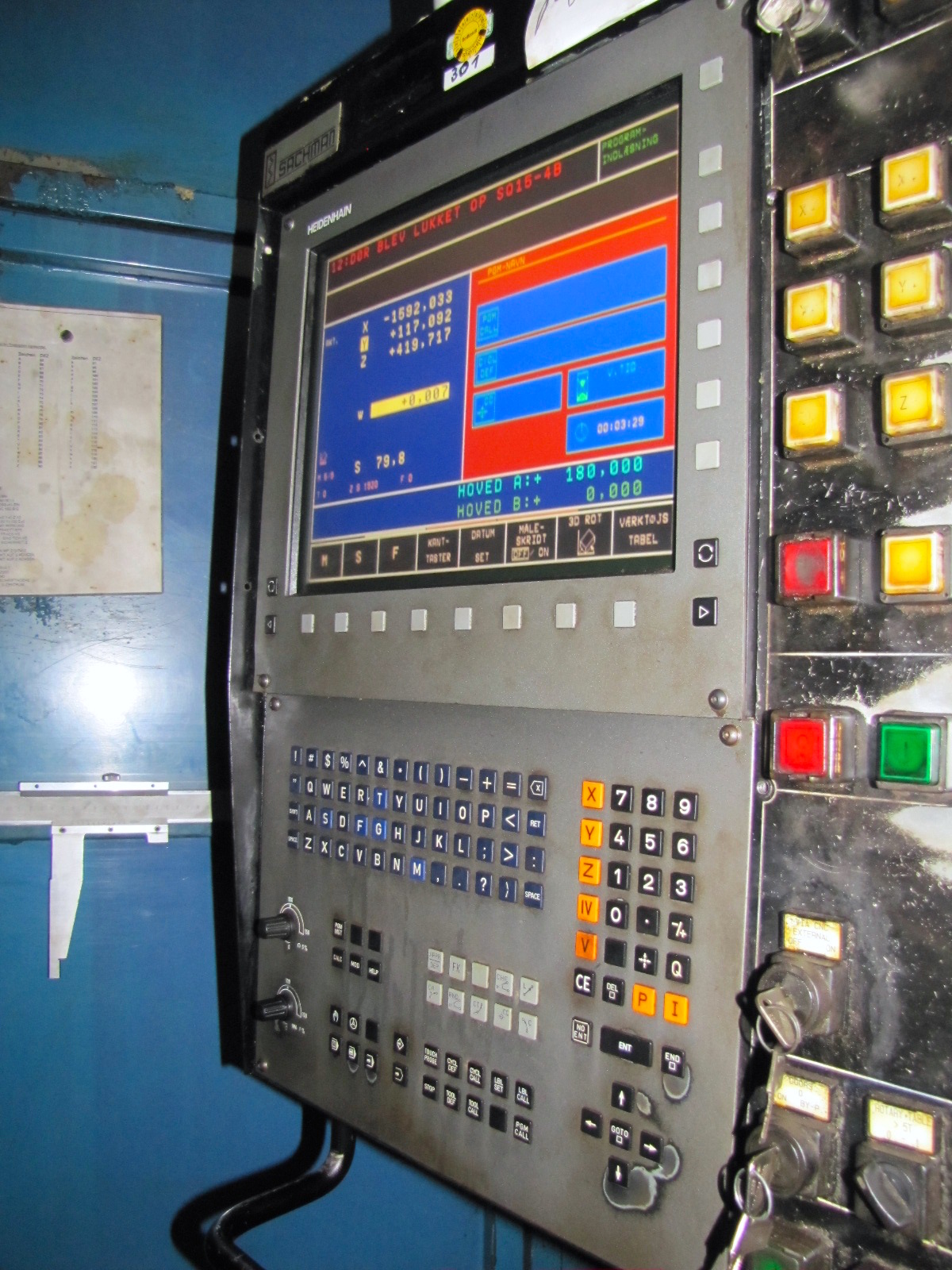

CNC
Heidenhain TNC430M
EXTRA
Mobile operator platform
si
Machine total weight
43200 Kg
Total power supply
45 Kw

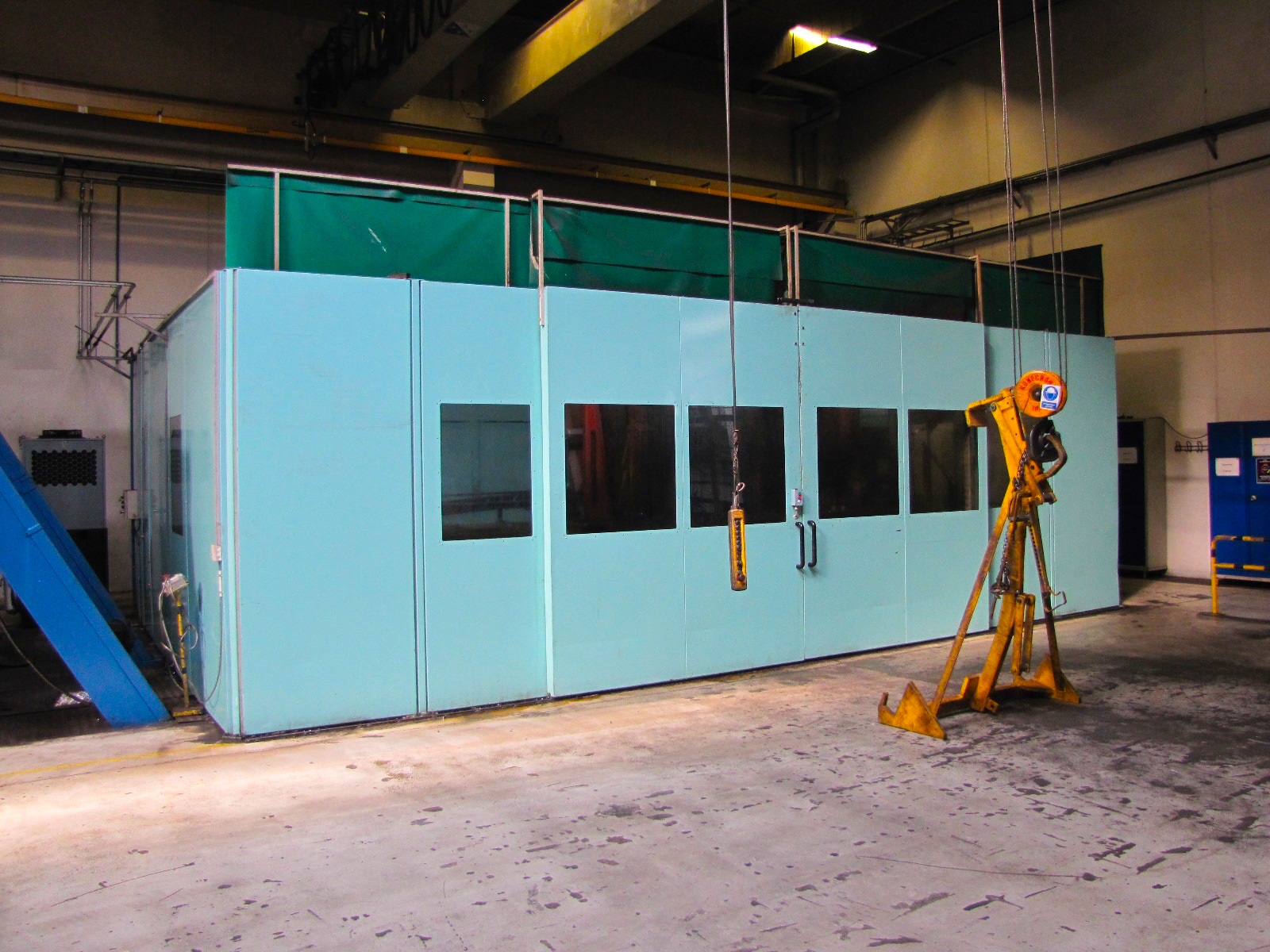

Housing
perimetrale
CE Certification
Yes
Electrical drawings
Yes
Maintenance & Use books
Yes
Availability
pronta
Chip conveyor
2 evacuatori longitudinali
Available in stock
si
