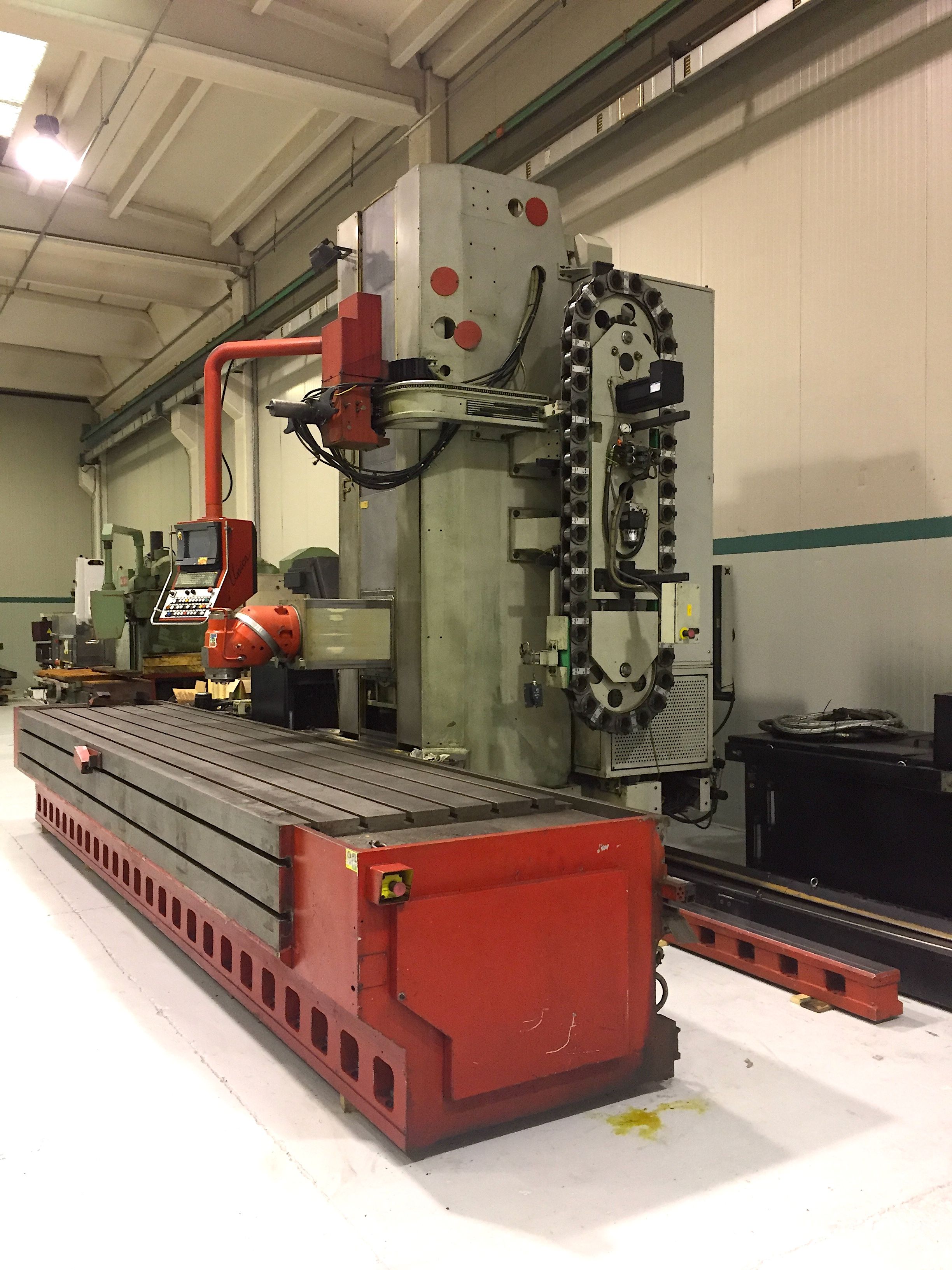

Category

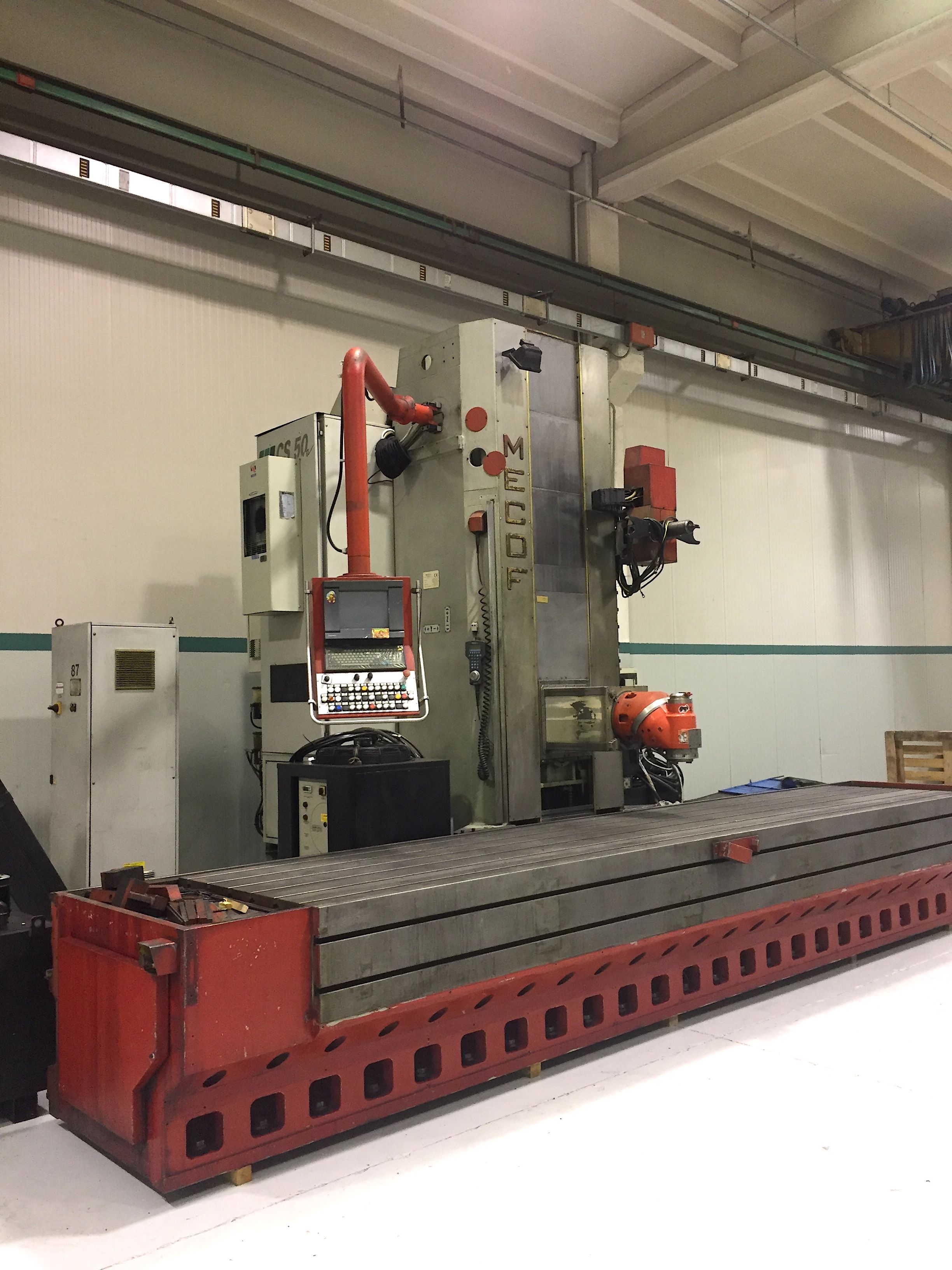

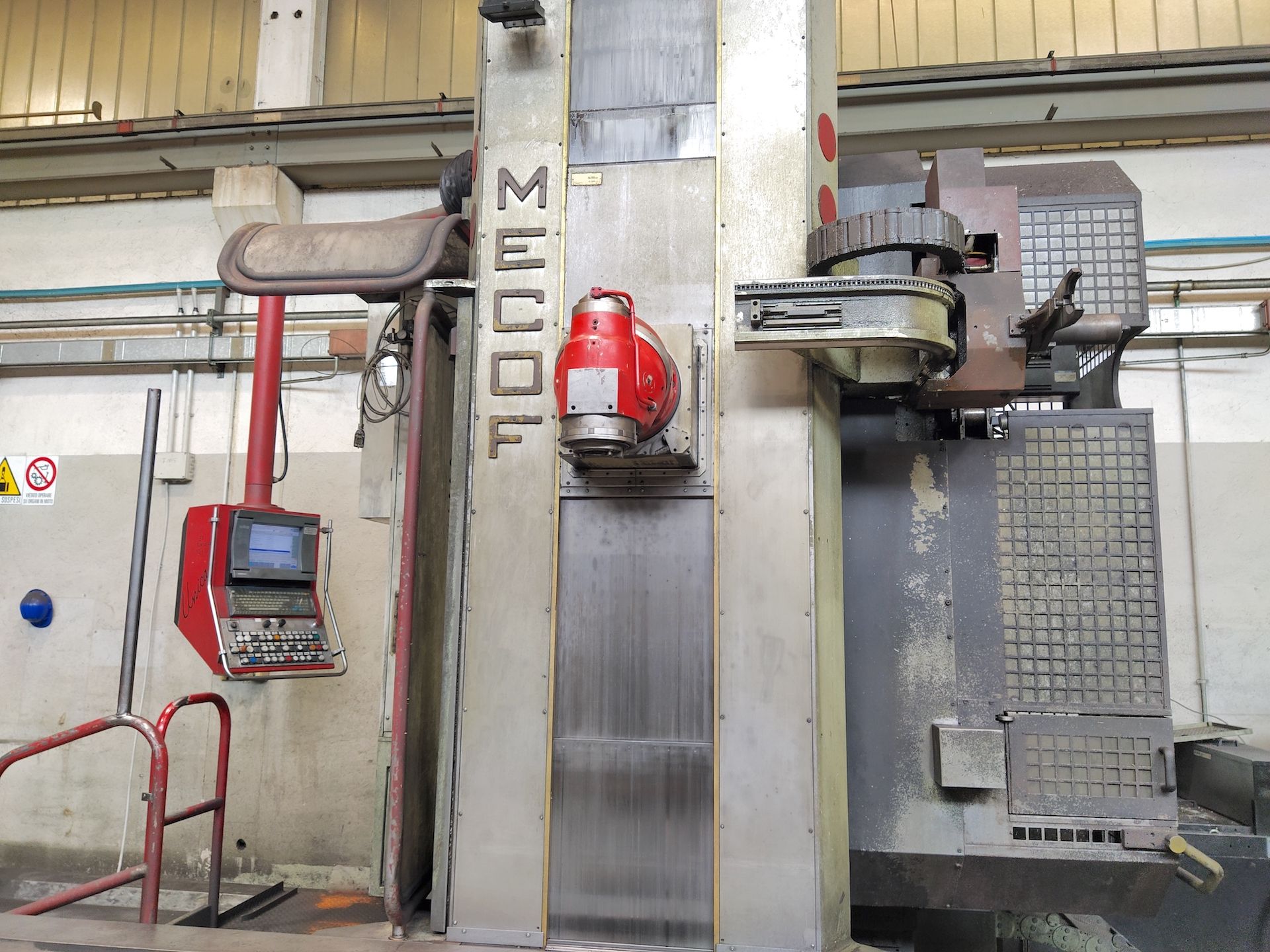

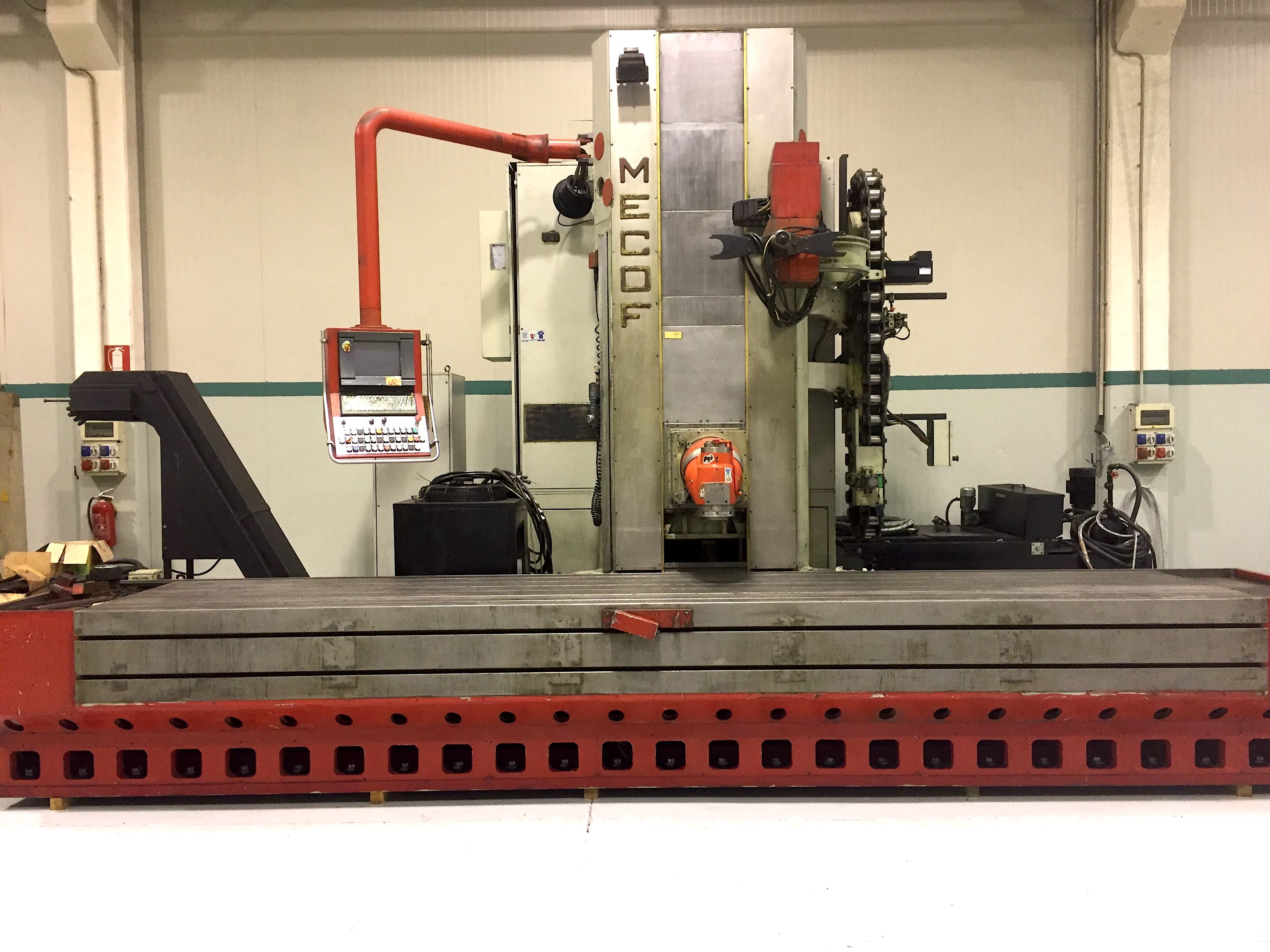

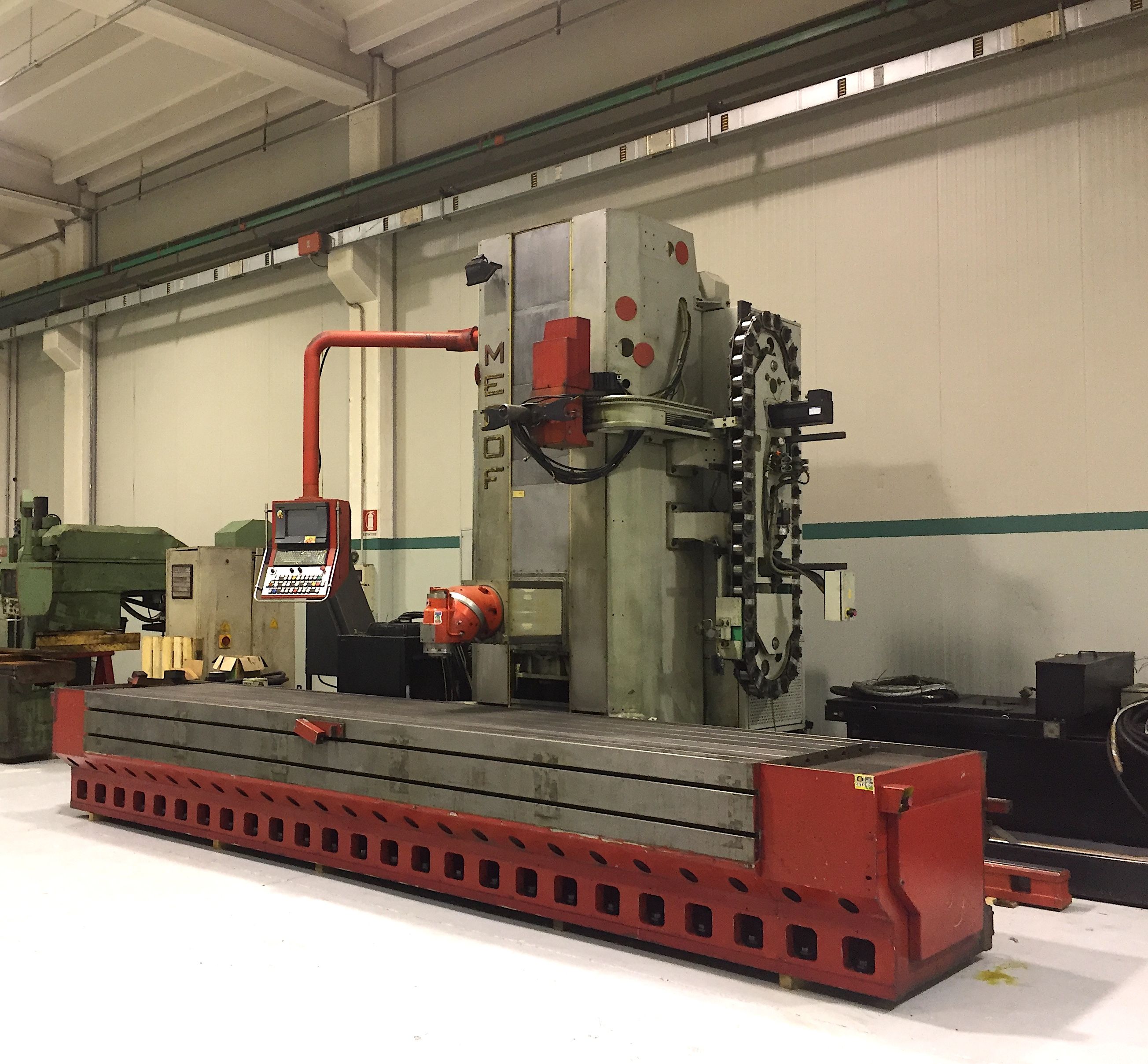

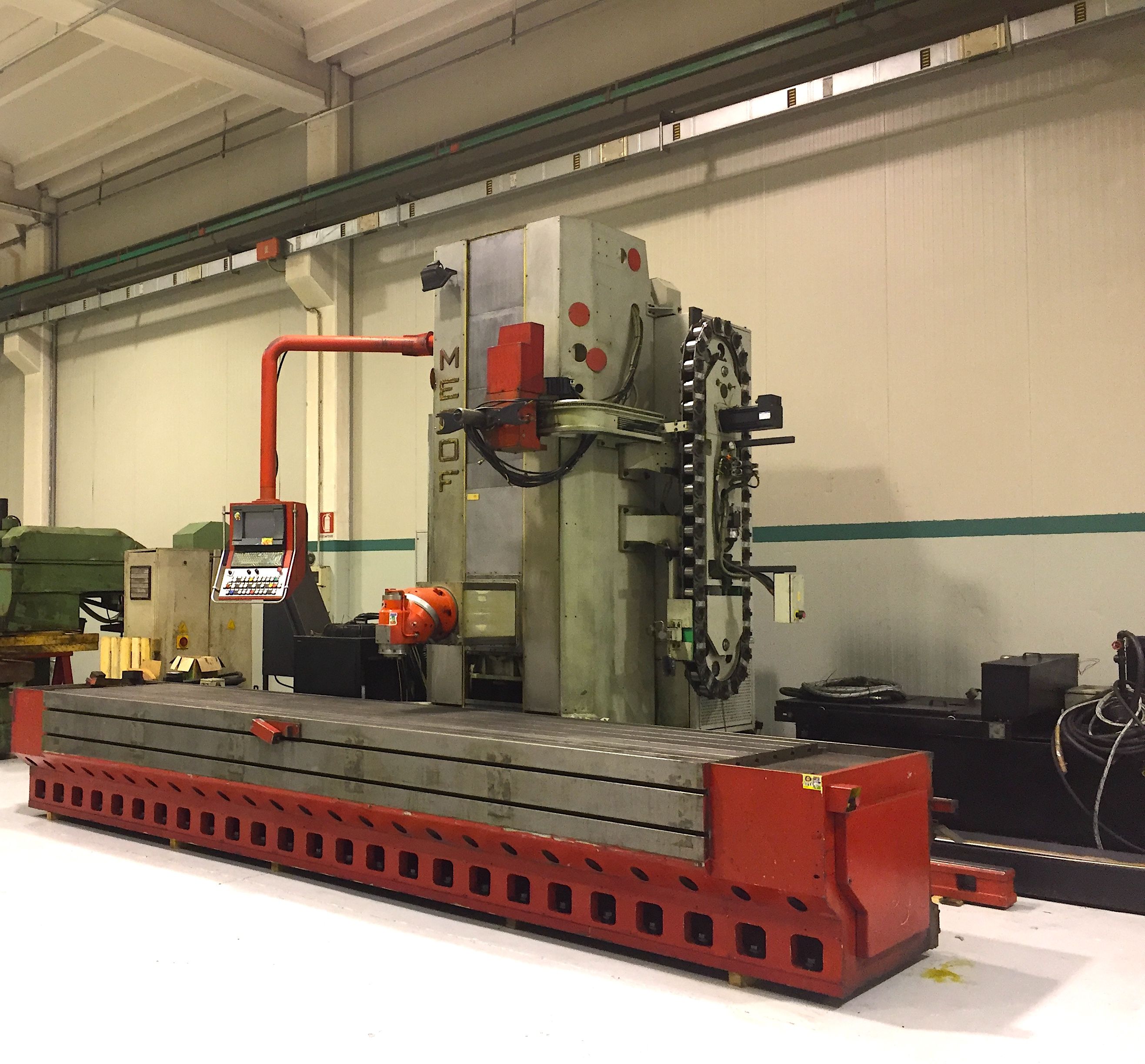

Milling machine
Type
mobile column
Made
Model
CS50 Unica
Capacity
4000x1800x1000 mm157,48x70,87x39,37 in

Technical specifications

Metric Imperial
WORKING CAPACITY
Longitudinal (X)
4000 mm157,48 in
Vertical (Y)
1800 mm70,87 in
Cross RAM (Z)
1000 mm39,37 in

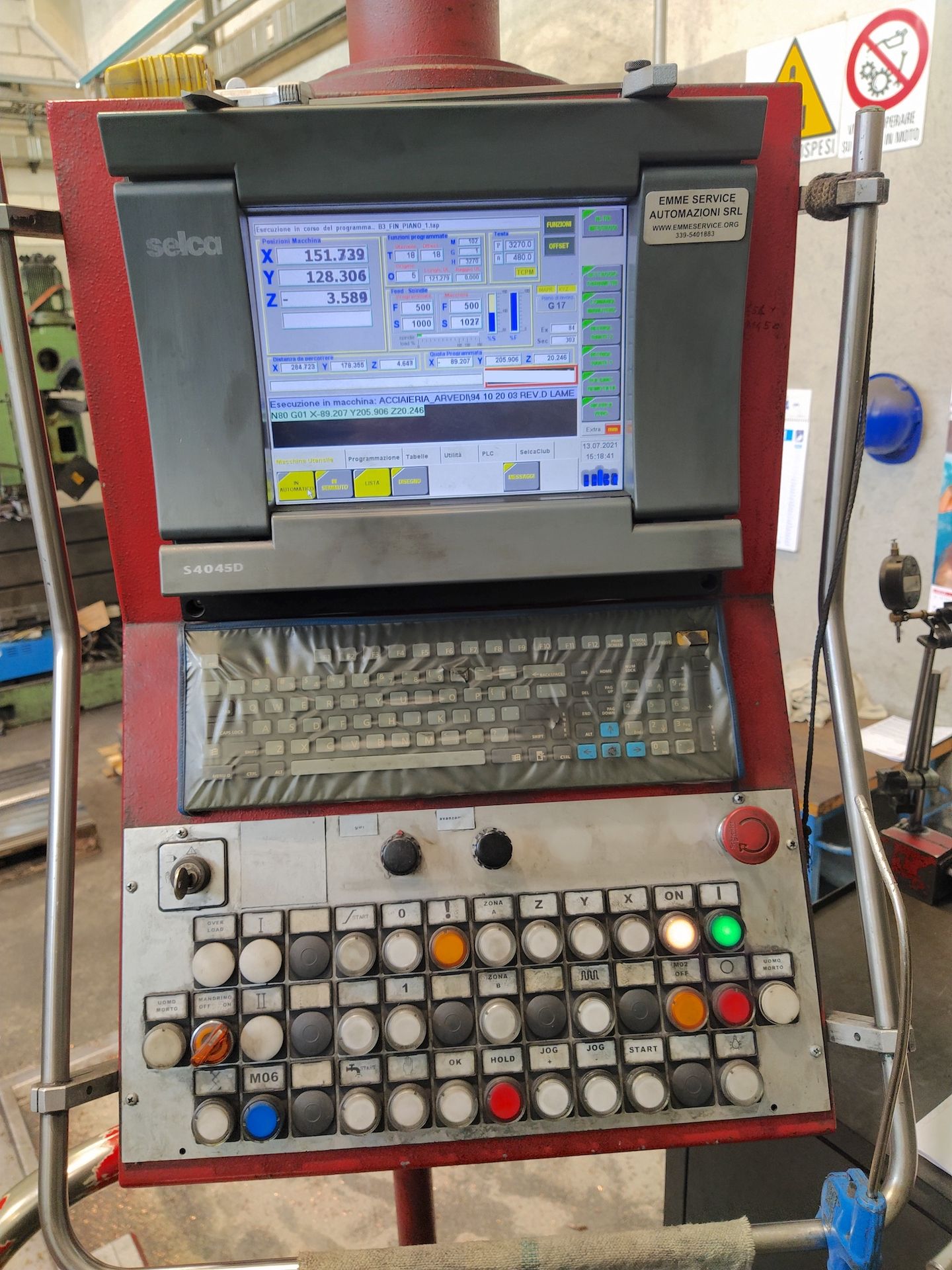

CNC
CNC
SELCA 4045D
ATC
Positions
40
Tool taper
ISO50
SPINDLE
Rotating speed
4300 Rpm
Torque
760 Nm
Taper
ISO50
Spindle power
20 Kw
TABLE 1
Surface
5300x1090 mm208,66x42,91 in

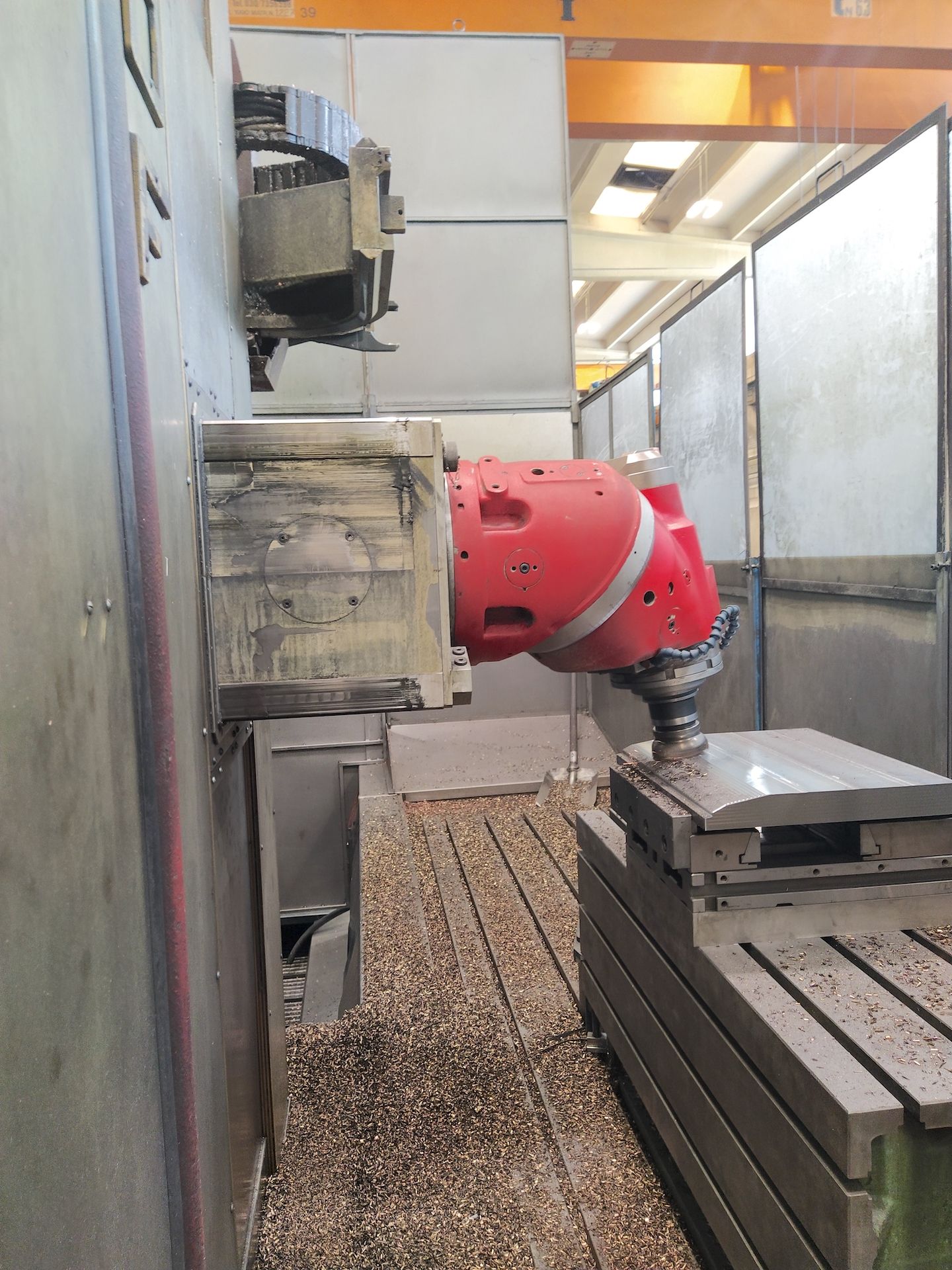

HEAD 1
Spindle taper
ISO50
A axis
1 °
C axis
3 °
Max torque
760 Nm
Max speed
4000 Rpm
Max power
20 Kw
