Category

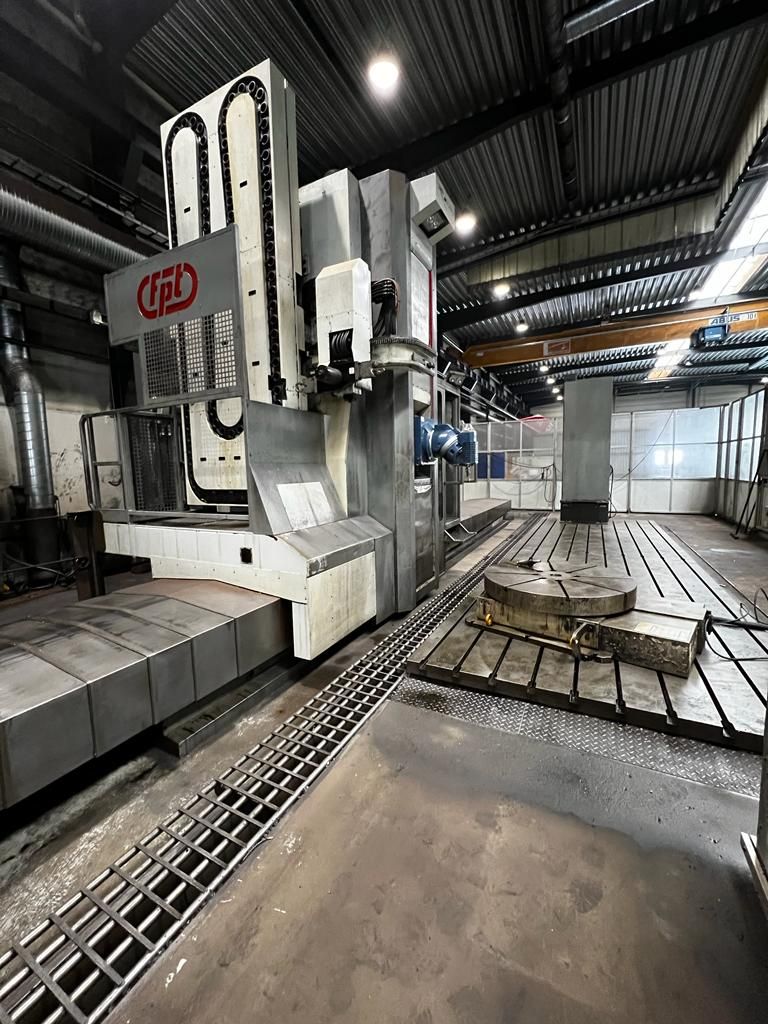

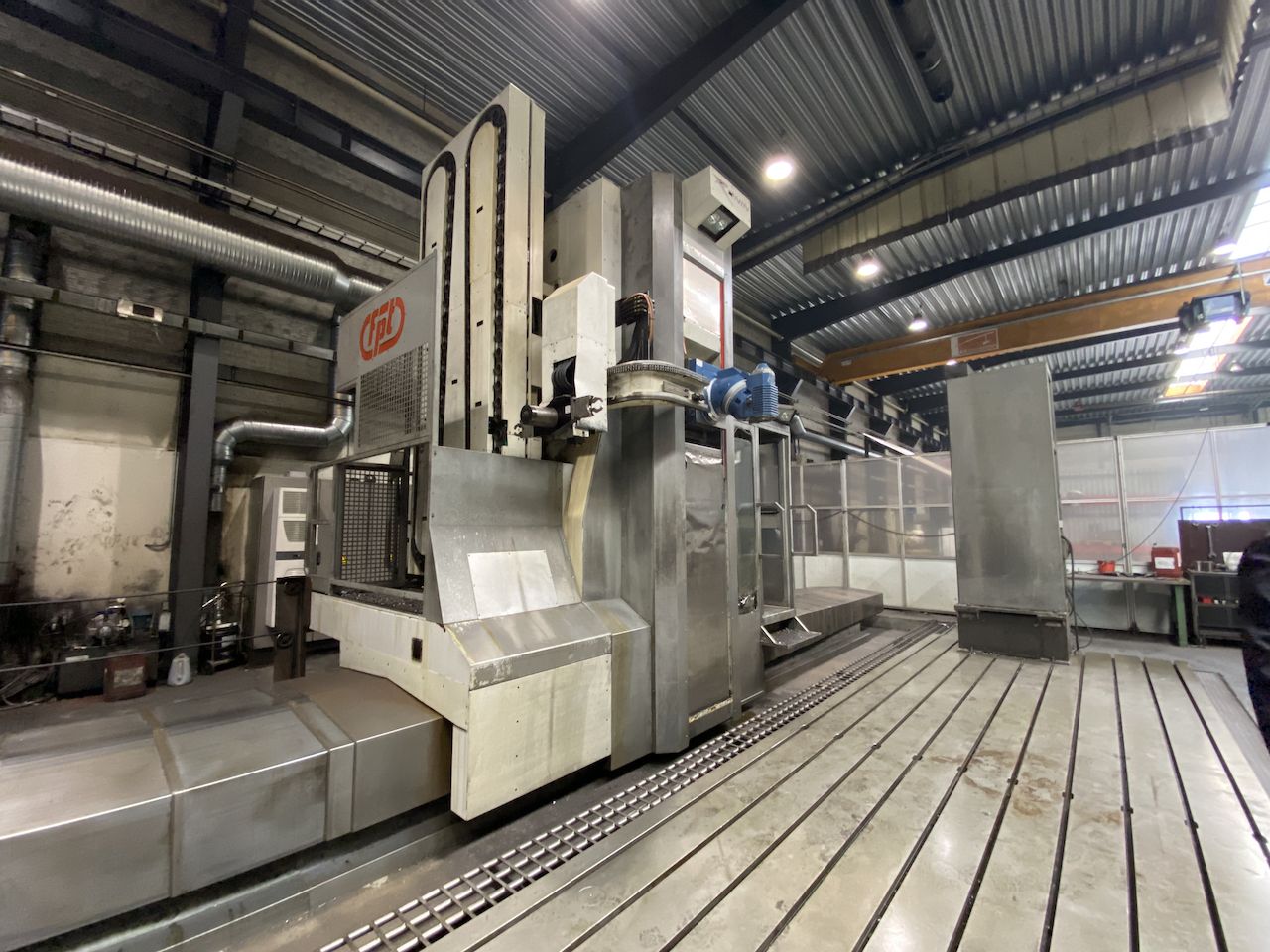

Milling machine
Type
mobile column
Made
Model
RONIN M80
Capacity
8000x2500x1500 mm314,96x98,43x59,06 in

Technical specifications

Metric Imperial
WORKING CAPACITY
Longitudinal (X)
8000 mm314,96 in
Vertical (Y)
2500 mm98,43 in
Cross RAM (Z)
1500 mm59,06 in

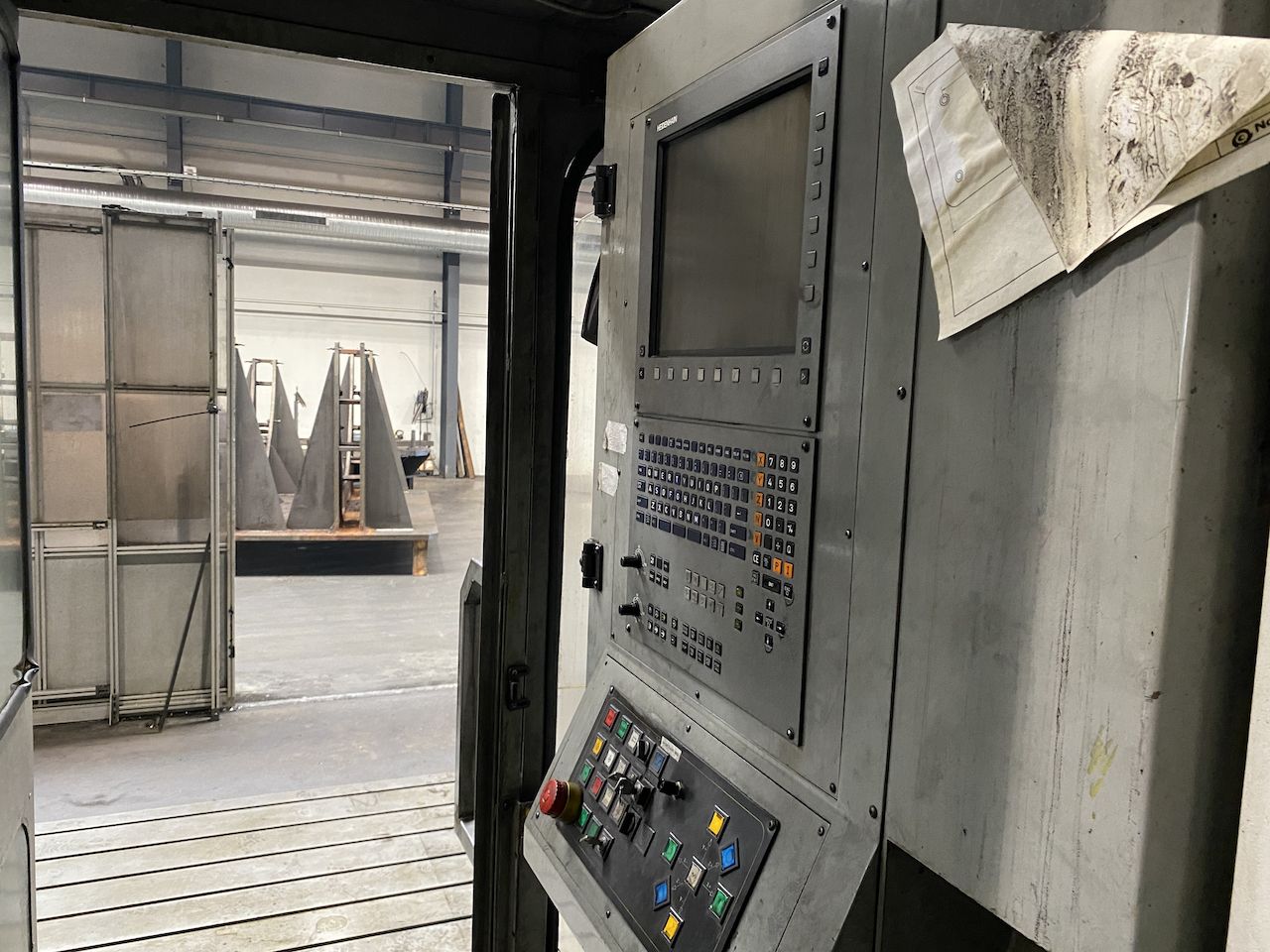

CNC
CNC
Heidenhain iTnc530
Notes
2 CNC (1 on the operator platform + 1 outside working area)
SPINDLE
Spindle power
46 Kw
Rotating speed
5000 Rpm
Taper
ISO50
ATC
Positions
120
Tool taper
100x ISO50 / 20x HSK63
FIXING TABLE
Floorspace (LxWxH)
9000x3000 mm354,33x118,11 in
HEAD 1
Type
TUPCG5
Spindle taper
ISO50
A axis
360.000x0,001 °
C axis
360.000x0,001 °
Max speed
5000 Rpm
Max power
46 Kw
Max torque
1180 Nm
Notes
ad indexaggio millesimale

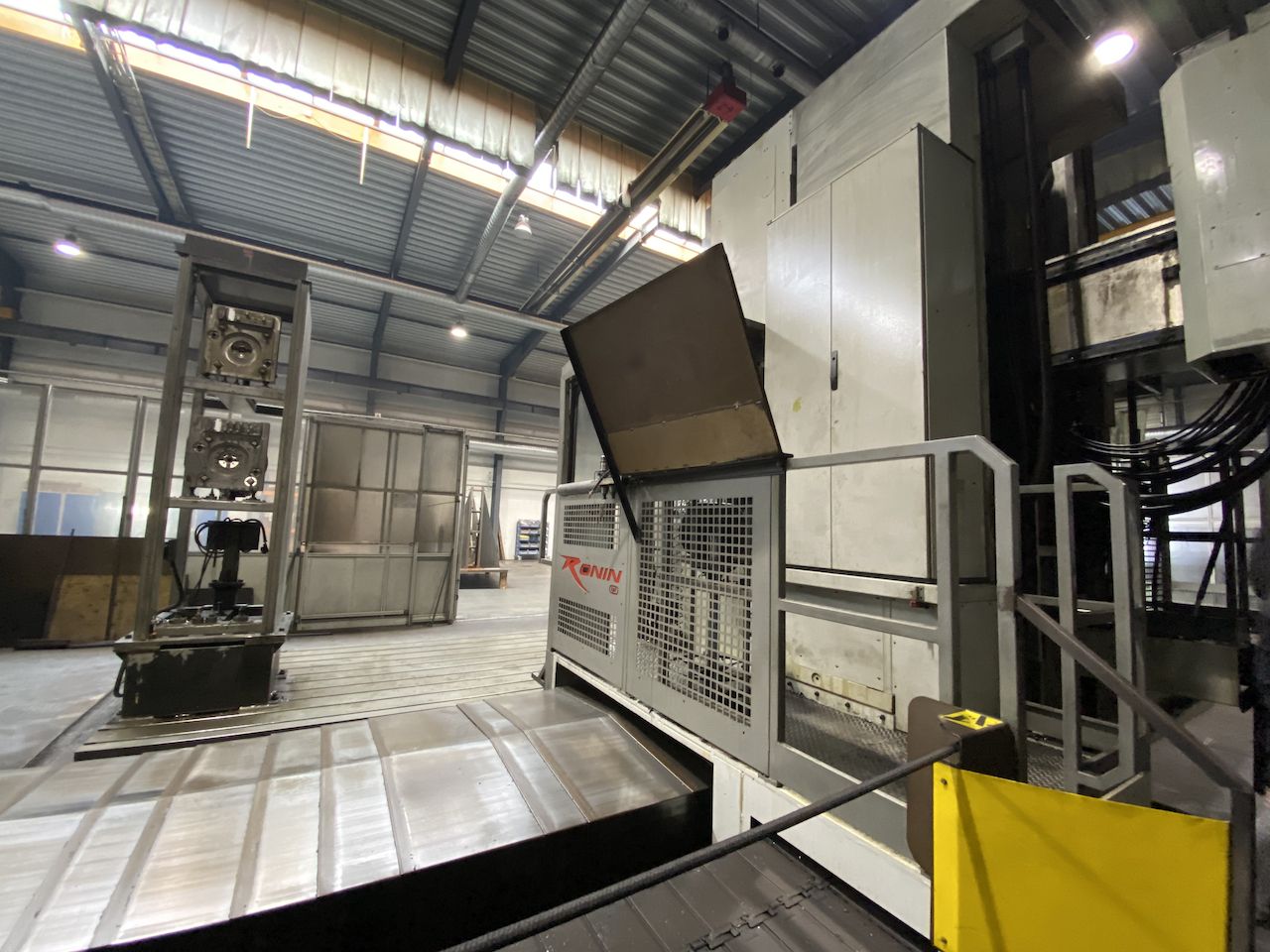

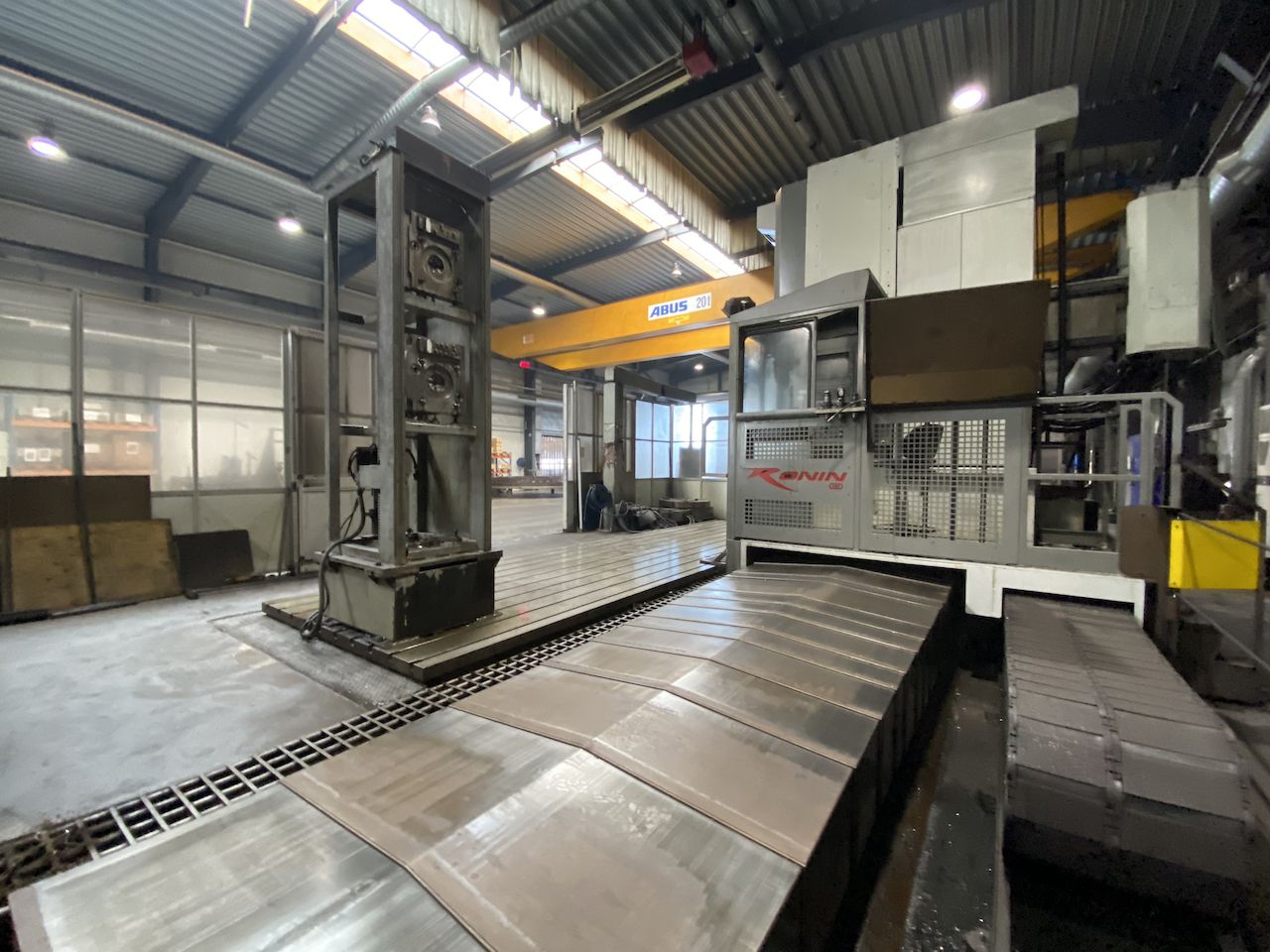

PICK UP STATION FOR HEADS
Positions
3
HEAD 2
Available upon request
No
Max torque
1180 Nm
Max speed
5000 Rpm
Max power
49 Kw
FEEDS
Rapid X
35 m/min1.377,95 ipm
Rapid Y
35 m/min1.377,95 ipm
Rapid Z
35 m/min1.377,95 ipm
EXTRA
Workpiece touch probe
si
Floor space
12900x7500x4800 mm507,87x295,28x188,98 in
CE Certification
Yes
Availability
pronta
Electrical drawings
Yes
Maintenance & Use books
Yes
