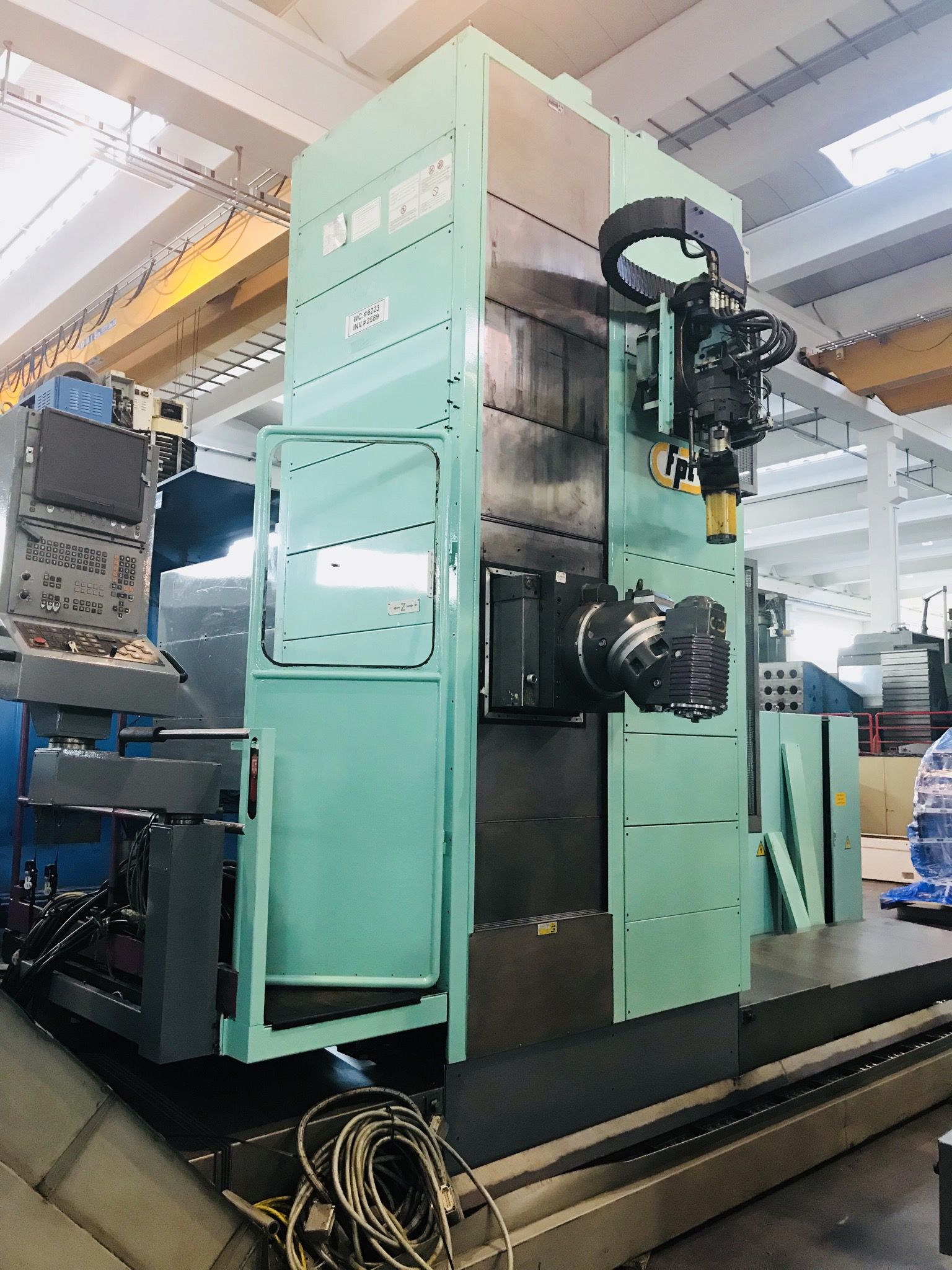

Category
Milling machine
Type
mobile column
Made
Model
LEM M50
Capacity
5000x2000x1200 mm196,85x78,74x47,24 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
5000 mm196,85 in
Vertical (Y)
2000 mm78,74 in
Cross RAM (Z)
1200 mm47,24 in
Table (V)
1500 mm59,06 in
Axes support
Hydrostatic
SPINDLE
Spindle power
22/27,5 Kw
Rotating speed
187-4000 Rpm
Torque
1400 Nm
Taper
ISO50
FEEDS
Rapid X
15 m/min590,55 ipm
Rapid Y
15 m/min590,55 ipm
Rapid Z
15 m/min590,55 ipm
Rapid V
15 m/min590,55 ipm
X
6 m/min236,22 ipm
Y
6 m/min236,22 ipm
Z
6 m/min236,22 ipm
V
6 m/min236,22 ipm

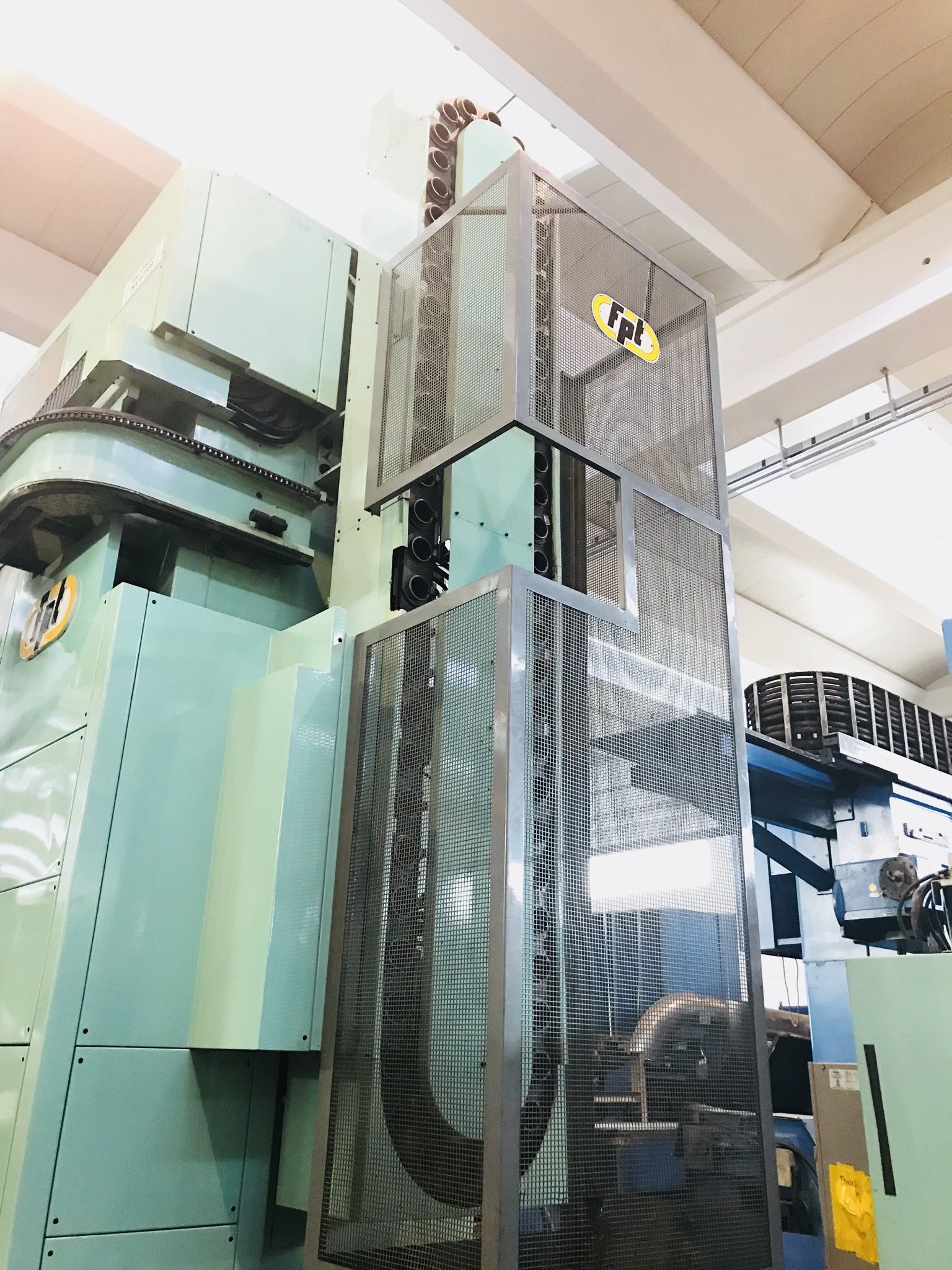

ATC
Positions
60
Max tool diameter
125 mm4,92 in
Max diam with free adiacent space
230 mm9,06 in
Max tool lenght
400 mm15,75 in
Max tool weight
20 Kg
Tool taper
ISO50

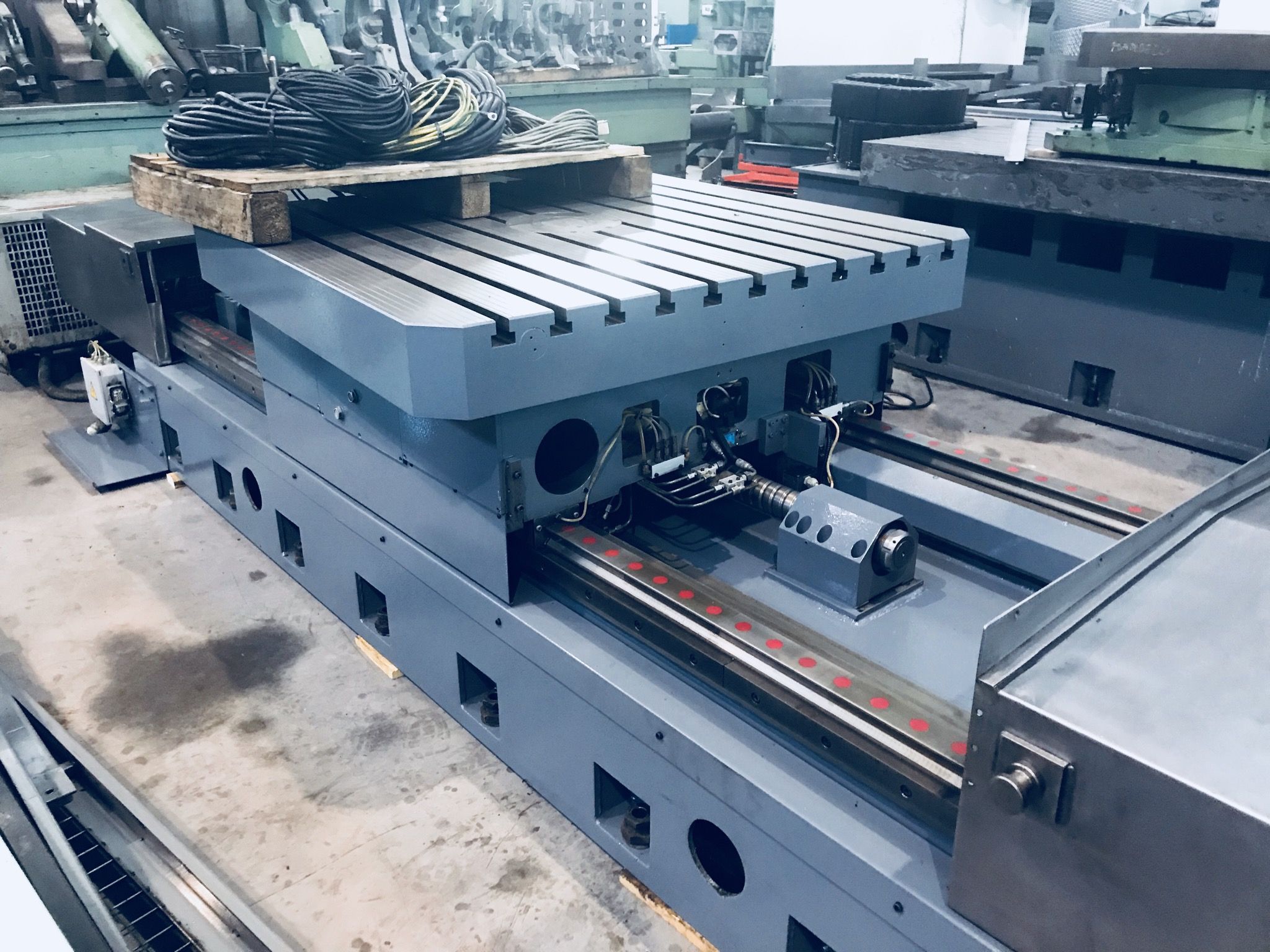

TABLE 1
Surface
1250x1250 mm49,21x49,21 in
Translation
1500 mm59,06 in
Accuracy (B axis)
0,001 °
Capacity
10.000 Kg
Available upon request
Yes

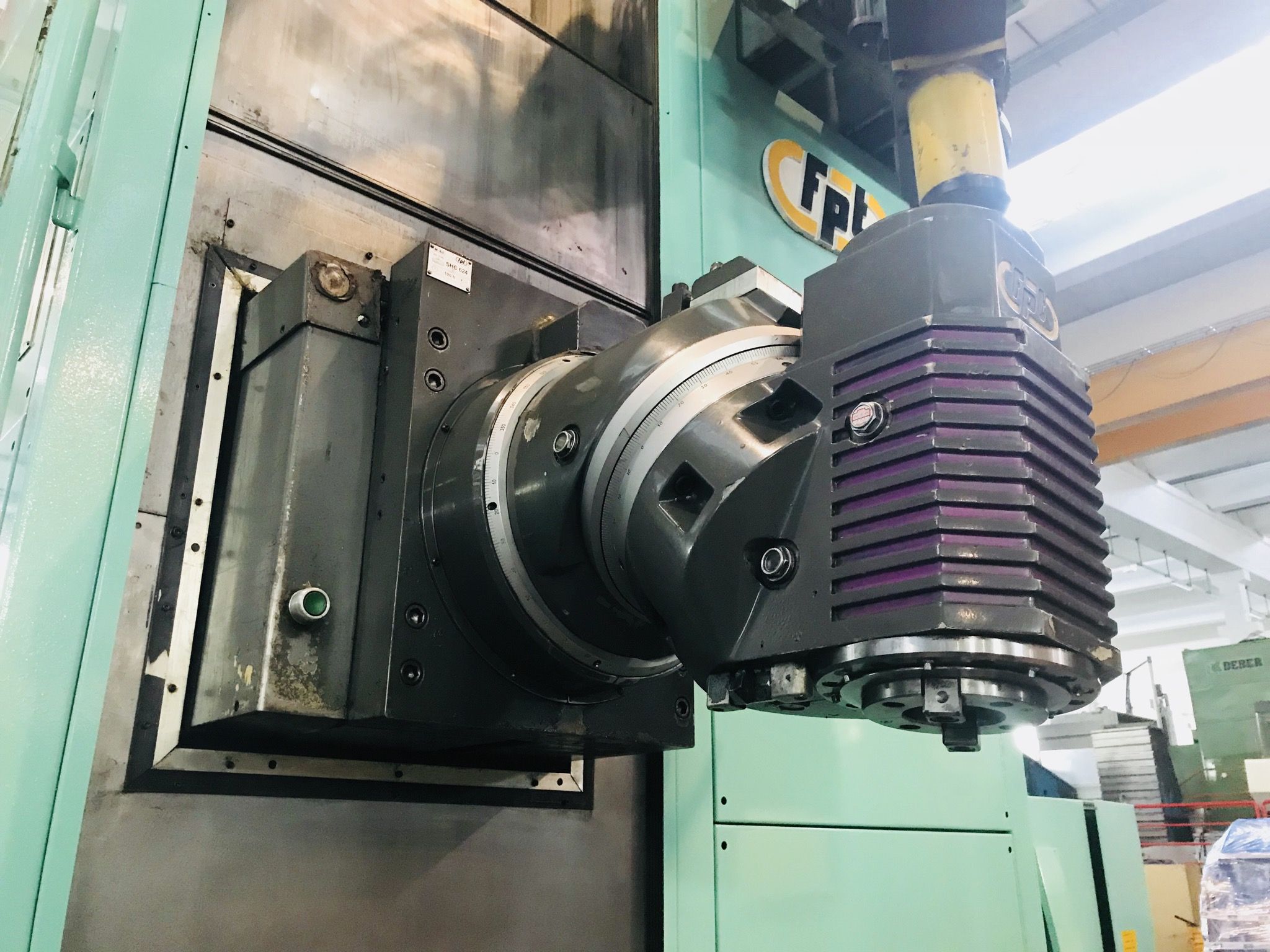

HEAD 1
Type
TUPC
Spindle taper
ISO50
A axis
360x1 °
C axis
360x1 °
Max torque
1400 Nm
Max speed
4000 Rpm
Max power
27,5 Kw
Coolant
interno CTS
CNC
CNC
Heidenhain TNC430
Measuring system
Siemens Sinumeric 611
Drives
Siemens Sinumeric 611
EXTRA
Machine total weight
27000 Kg
Total power supply
52 Kw
High Pressure
16Bar
Filtration unit
1200L
Chiller
si
Chip conveyor
si
Housing
perimetrale
Floor space
10500x9595 mm413,39x377,76 in
