Category
Milling machine
Type
Bed type
Made
Model

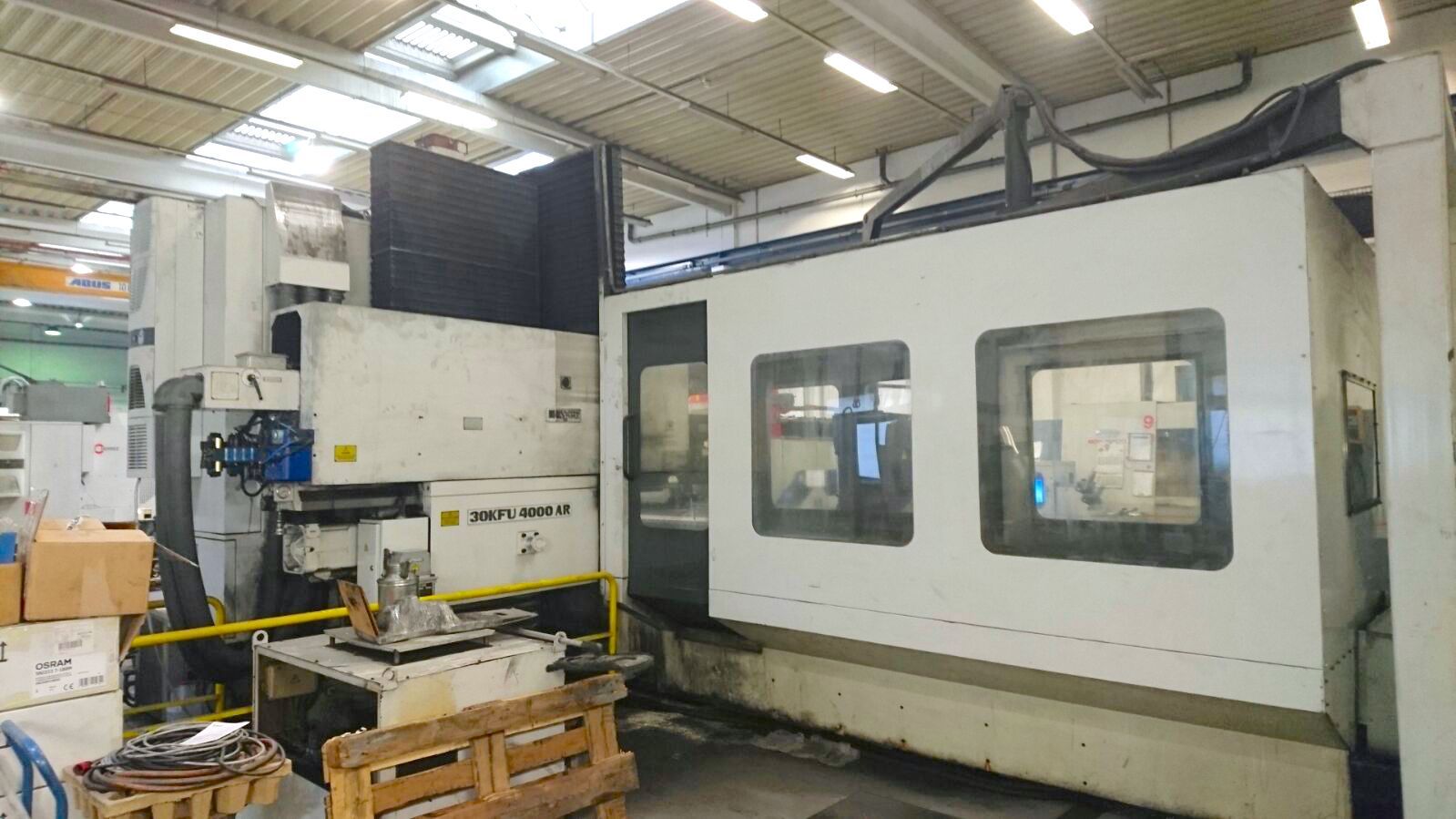

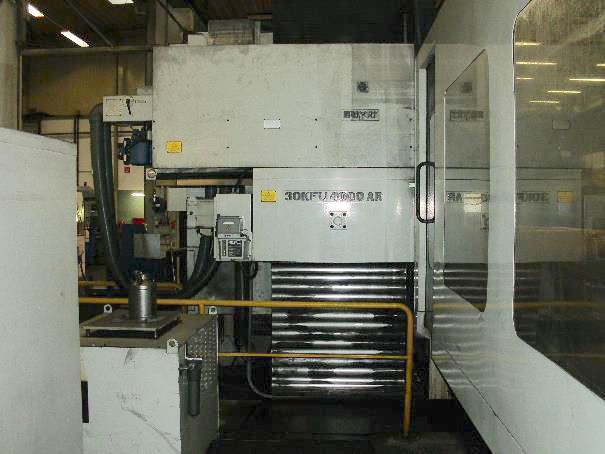

30KFU4000 AR
Capacity
3707x1501x1256 mm145,94x59,09x49,45 in

Technical specifications

Metric Imperial
WORKING CAPACITY
Longitudinal (X)
3707 mm145,94 in
Vertical (Y)
1501 mm59,09 in
Cross RAM (Z)
1256 mm49,45 in
CNC
CNC

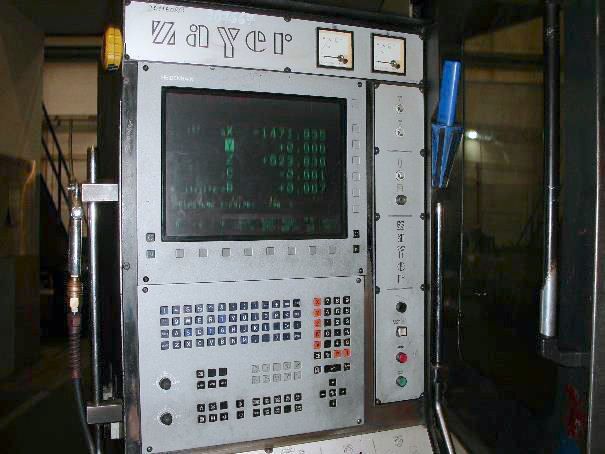

Heidenhain TNC430M
SPINDLE
Spindle power
37 Kw
Rotating speed
35-6000 Rpm
Taper
ISO50 DIN 69871
FEEDS
Rapid X
25 m/min984,25 ipm
Rapid Y
25 m/min984,25 ipm
Rapid Z
25 m/min984,25 ipm

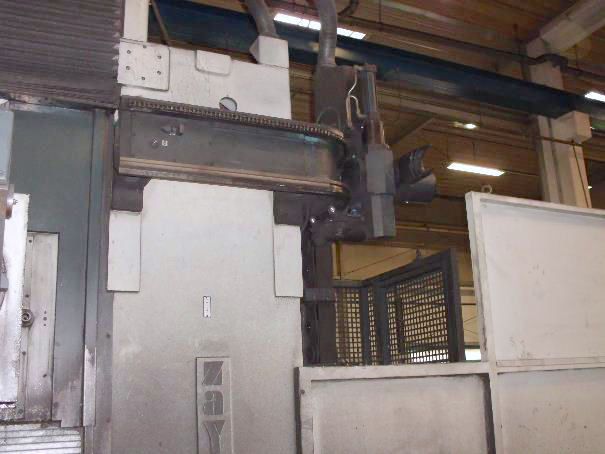

ATC
Positions
30
Max tool weight
25 Kg

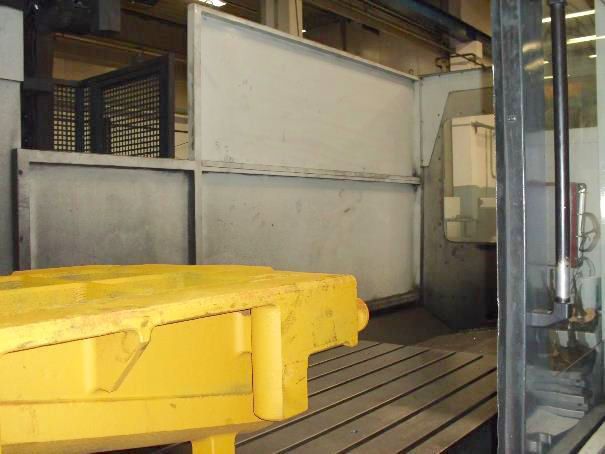

TABLE 1
Surface
4000x1300 mm157,48x51,18 in
Capacity
10000 Kg

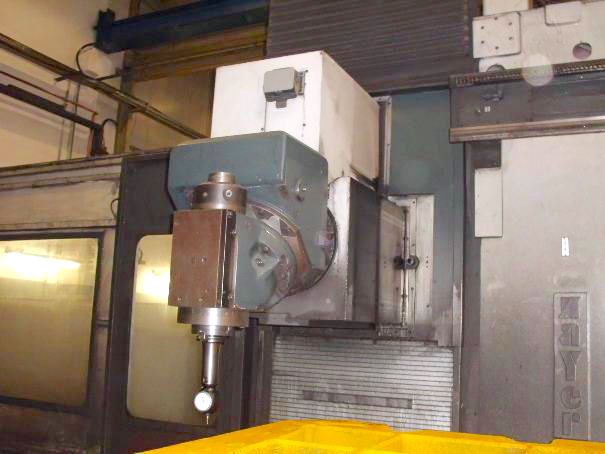

HEAD 1
Type
2 axes auto indexed
Spindle taper
ISO50
A axis
360.000x0,001 °
C axis
360.000x0,001 °
Max speed
35-6000 Rpm
Max power
37 Kw
Coolant
10 Bar
Notes
revisionata 2016
FIXING TABLE
T slots number
9x22x140mm
Floorspace (LxWxH)
4000x1300 mm157,48x51,18 in
EXTRA
Machine total weight
28500 Kg
High Pressure
10 Bar
Filtration unit
1000L 30L/min
Maintenance & Use books
Yes
Electrical drawings
Yes
CE Certification
Yes
Housing
perimetrale
Availability
febbraio 2017
Available under power
si
Relevant updates made on the machine
revisione completa testa 2016, manutenzione ordinaria
