Category
Milling machine
Type
Bed type
Made
Model
20KF3000
Capacity
2713x1211x1007 mm106,81x47,68x39,65 in

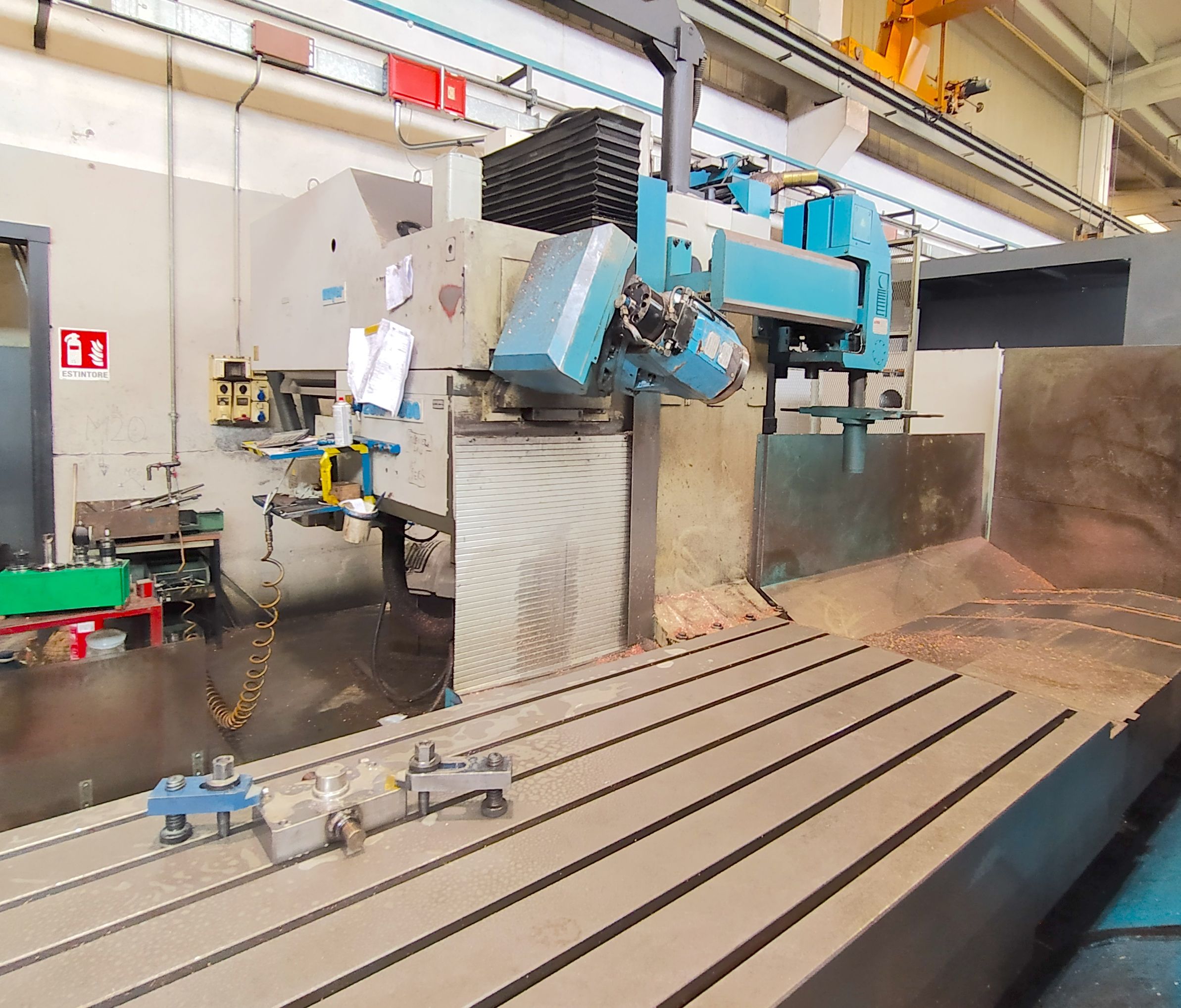

ZAYER 20KF3000
All the machines are available subject to prior sale
Enable notifications

Technical specifications

Metric Imperial
WORKING CAPACITY
Longitudinal (X)
2713 mm106,81 in
Vertical (Y)
1007 mm39,65 in
Cross RAM (Z)
1211 mm47,68 in

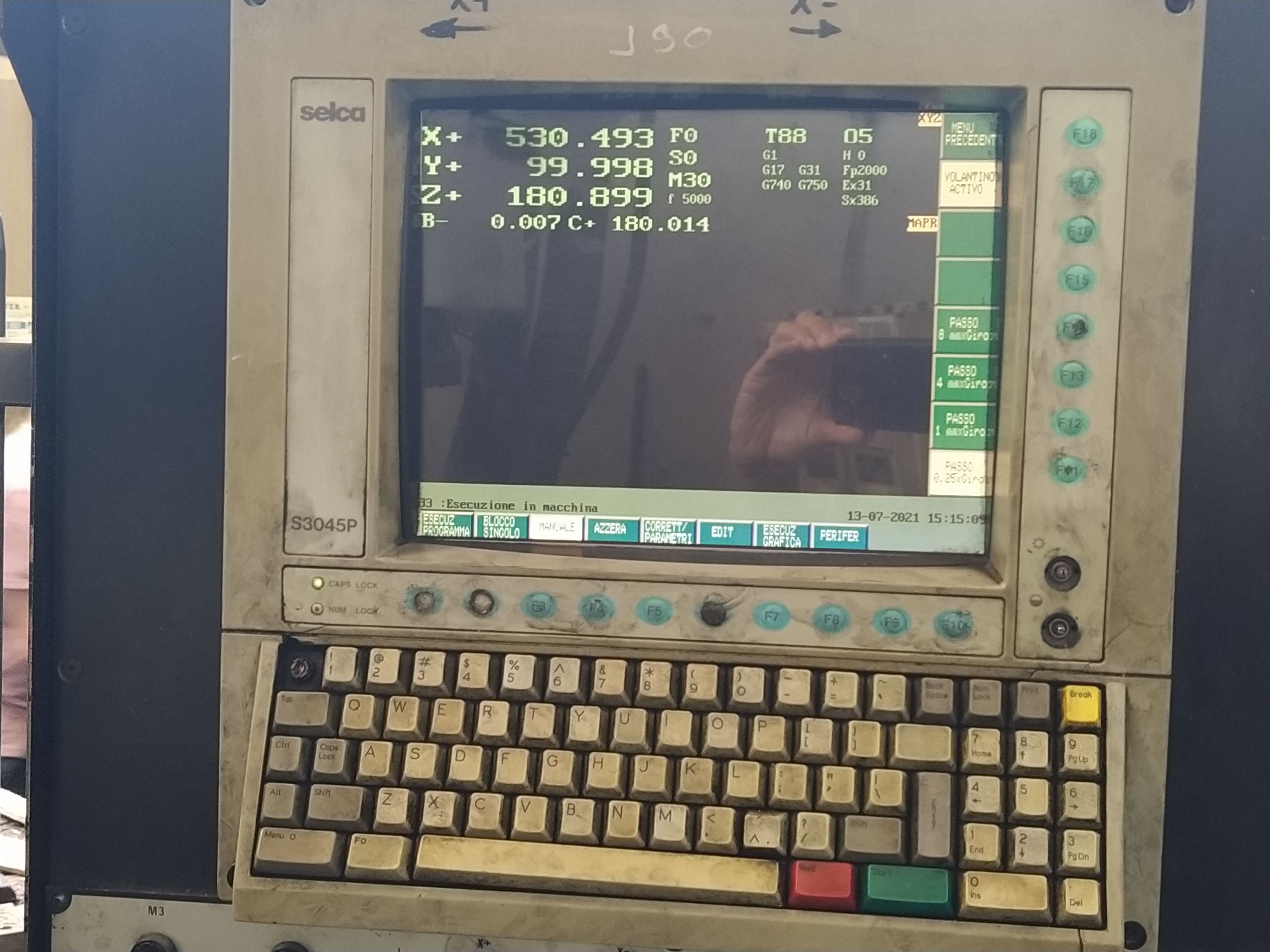

CNC
CNC
SELCA 3045P
Drives
SIEMENS

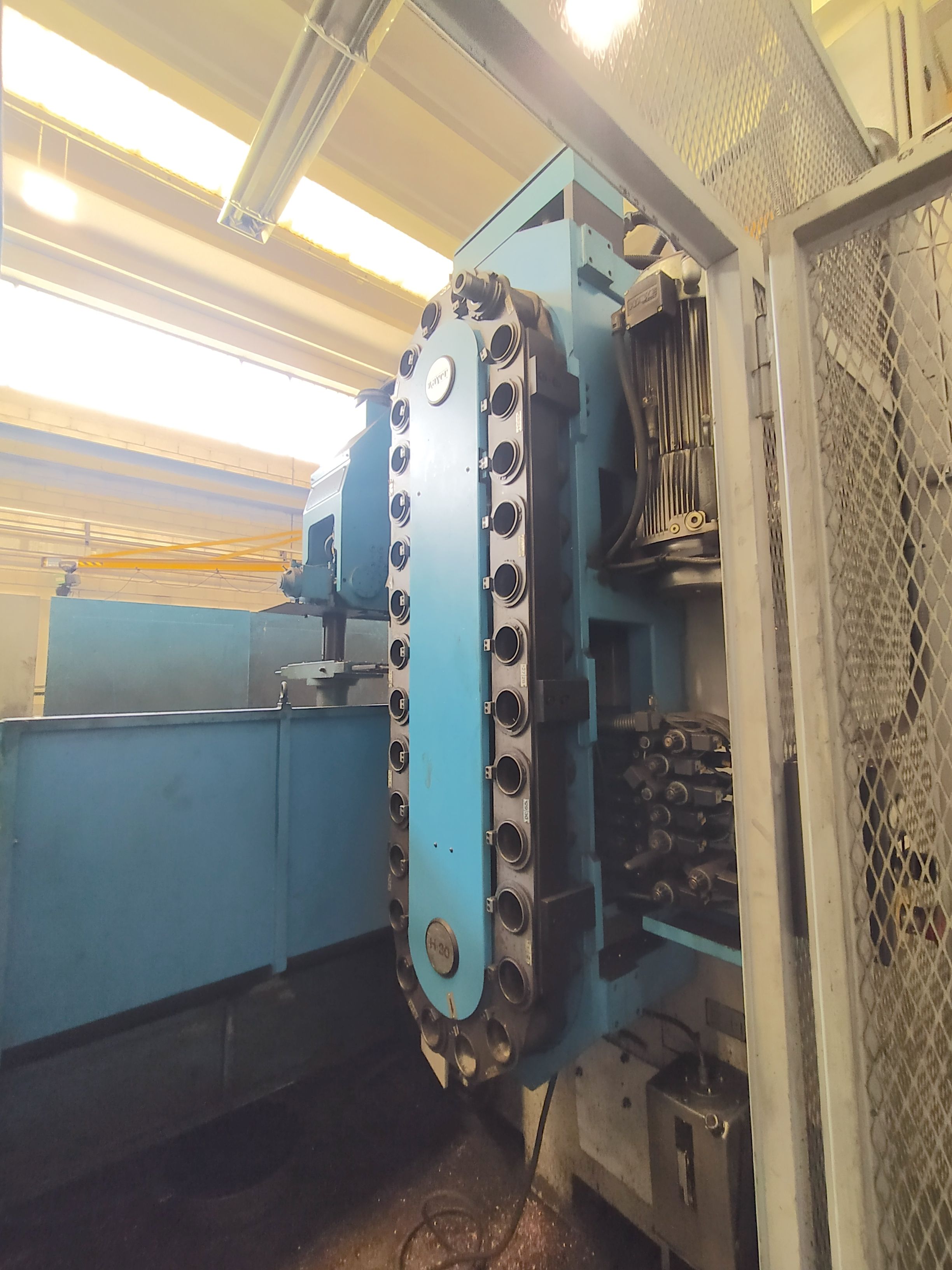

ATC
Positions
40
TABLE 1
Surface
3000x1000 mm118,11x39,37 in
Capacity
10000 Kg
SPINDLE
Spindle power
28 Kw
Rotating speed
40-6000 Rpm
FEEDS
Rapid X
15 m/min590,55 ipm
Rapid Y
15 m/min590,55 ipm
Rapid Z
15 m/min590,55 ipm

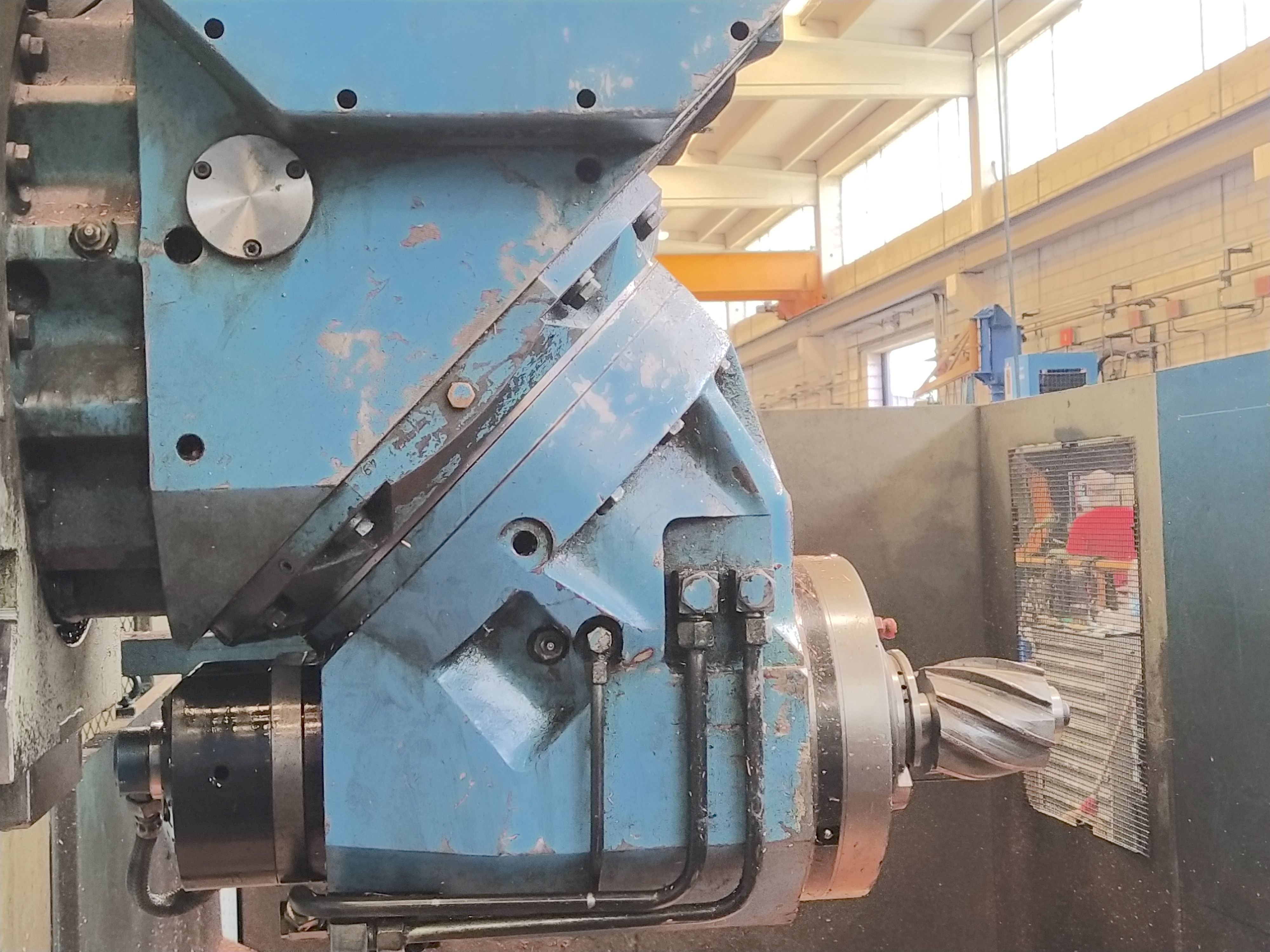

HEAD 1
Type
Birotativa indexata
Max power
28 Kw
Max speed
6000 Rpm
EXTRA
Machine total weight
21000 Kg
The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy cannot be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
